SERVICE MANUAL
(Machine code: C229)

1
IMPORTANT SAFETY NOTICES
PREVENTION OF PHYSICAL INJURY
1. Before disassembling or assembling parts of the printer and peripherals, make
sure that the power cord is unplugged.
2. The wall outlet should be near the printer and easily accessible.
3. If any adjustment or operation check has to be made with exterior covers off or
open while the main switch is turned on, keep hands away from electrified or
mechanically driven components.
HEALTH SAFETY CONDITIONS
1. If you get ink in your eyes by accident, try to remove it with eye drops or flush
with water as first aid. If unsuccessful, get medical attention.
2. If you ingest ink by accident, induce vomiting by sticking a finger down your
throat or by giving soapy or strong salty water to drink.
OBSERVANCE OF ELECTRICAL SAFETY STANDARDS
1. The printer and its peripherals must be installed and maintained by a customer
service representative who has completed the training course on those models.
ICAUTION
The RAM has a lithium battery which can explode if handled incorrectly.
Replace only with the same type of RAM. Do not recharge or burn this
battery. Used RAM's must be handled in accordance with local regulations.
IATTENTION
La carte RAM comporte une pile au lithium qui présente un risque
d'explosion en cas de mauvaise manipulation. Remplacer la pile
uniquement par une carte RAM identique. Ne pas recharger ni brûler cette
pile. Les cartes RAM usagées doivent être éliminées conformément aux
réglementations locales.

2
SAFETY AND ECOLOGICAL NOTES FOR DISPOSAL
1. Dispose of replaced parts in accordance with local regulations.
2. Used ink and masters should be disposed of in an environmentally safe
manner and in accordance with local regulations.
3. When keeping used lithium batteries (from the main processing units) in order
to dispose of them later, do not store more than 100 batteries (from the main
processing units) per sealed box. Storing larger numbers or not sealing them
apart may lead to chemical reactions and heat build-up.

1
IMPORTANT SAFETY NOTICES
PREVENTION OF PHYSICAL INJURY
1. Before disassembling or assembling parts of the printer and peripherals, make
sure that the power cord is unplugged.
2. The wall outlet should be near the printer and easily accessible.
3. If any adjustment or operation check has to be made with exterior covers off or
open while the main switch is turned on, keep hands away from electrified or
mechanically driven components.
HEALTH SAFETY CONDITIONS
1. If you get ink in your eyes by accident, try to remove it with eye drops or flush
with water as first aid. If unsuccessful, get medical attention.
2. If you ingest ink by accident, induce vomiting by sticking a finger down your
throat or by giving soapy or strong salty water to drink.
OBSERVANCE OF ELECTRICAL SAFETY STANDARDS
1. The printer and its peripherals must be installed and maintained by a customer
service representative who has completed the training course on those models.
ICAUTION
The RAM has a lithium battery which can explode if handled incorrectly.
Replace only with the same type of RAM. Do not recharge or burn this
battery. Used RAM's must be handled in accordance with local regulations.
IATTENTION
La carte RAM comporte une pile au lithium qui présente un risque
d'explosion en cas de mauvaise manipulation. Remplacer la pile
uniquement par une carte RAM identique. Ne pas recharger ni brûler cette
pile. Les cartes RAM usagées doivent être éliminées conformément aux
réglementations locales.

2
SAFETY AND ECOLOGICAL NOTES FOR DISPOSAL
1. Dispose of replaced parts in accordance with local regulations.
2. Used ink and masters should be disposed of in an environmentally safe
manner and in accordance with local regulations.
3. When keeping used lithium batteries (from the main processing units) in order
to dispose of them later, do not store more than 100 batteries (from the main
processing units) per sealed box. Storing larger numbers or not sealing them
apart may lead to chemical reactions and heat build-up.

1 July, 1998 SPECIFICATIONS
1-1
Overall
Information
1. OVERALL INFORMATION
1.1 SPECIFICATIONS
Configuration: Desktop
Master Processing: Digital with 400 dpi thermal head
Scanning (Pixel Density): 400 dpi CCD
Printing Process: Fully automatic stencil system, with one drum and
pressure cylinder system
Original Type: Sheet/Book
In Platen Mode: Document size:
Maximum 304.8 x 432 mm [12.0" x 17.0"]
Thickness: Less than 30 mm
Weight: Less than 10 kg
In ADF Mode: Document size:
Maximum 297 x 864 mm [11.6" x 33.8"]
Minimum 105 x 128 mm [4.2" x 5.1"]
Document weight:
52.3 - 104.7 g/m2 [14 - 28 lb]
ADF capacity:
30 sheets (using 20 lb or 80 g/m2paper)
Reproduction Ratios: Inch versions Others
Full Size: 100% 100%
Reduction: 65% 71%
74% 82%
77% 87%
93% 93%
Enlargement: 121% 115%
129% 122%
155% 141%
Zoom: 50 - 200% (by 1%) in Platen mode
50 - 155% (by 1%) in ADF mode
Directional Magnification:
50 - 200% (by 1%)
Image Modes: Letter, Photo, Letter/Photo, Pencil, Tint

SPECIFICATIONS 1 July, 1998
1-2
Printing Area:
(At 20 °C/ 65 % RH) Metric size version models:
290 mm x 409 mm
Inch size version models:
290 mm x 419 mm [11.4" x 16.4"]
With optional A4 drum:
290 mm x 204 mm [11.4" x 8.0"]
Edge Margins: Leading edge:
10 mm (At the "0" position of Image Shift mode)
Trailing edge:
2 mm
Print Paper Size: Minimum: 70 mm x 148 mm [2.8" x 5.9"]
Maximum: 325 mm x 447 mm [12.7" x 17.6"]
Print Paper Weight: 47.1 g/m2to 209.3 g/m2[12.5 lb to 55.6 lb]
Printing Speed: 60, 75, 90, 105, 120 sheets/minute (5 steps)
Master Process Time: Platen mode:
Less than 15.5 seconds (A3 paper)
Less than 12 seconds (A4 paper)
ADF mode:
Less than 19.5 seconds (A3 paper)
Less than 16 seconds (A4 paper)
Master Eject Box Capacity: 60 masters / A3 size (Normal conditions)
Side Registration Adjustable
Range: ±10 mm
Vertical Registration Adjustable
Range: Inch size version models:
±10 mm
Metric size version models:
±15 mm
Paper Feed Table Capacity: 1000 sheets (80 g/m2/ 20 lb)
Paper Delivery Table Capacity: 1000 sheets (80 g/m2/ 20 lb)
Power Source: 110/120 V, 50/60 Hz: 2.7 A
220 - 240 V, 50/60 Hz: 1.5 A
Maximum Power Consumption: 110/120 V version: 285 W
220 - 240 V version: 280 W

1 July, 1998 SPECIFICATIONS
1-3
Overall
Information
Noise Emission:
(At operation position) At 60 rpm printing speed: 57 dB At 90 rpm printing speed: 60 dB
At 120 rpm printing speed: 64 dB
Weight: 94 kg [207 lb]
101 kg [222.7 lb] with ADF
Dimensions:
(Width x Depth x Height) Trays closed: 625 mm x 650 mm x 574 mm With ADF:
625 mm x 650 mm x 684 mm
Trays open: 1405 mm x 650 mm x 574 mm
With ADF:
1405 mm x 650 mm x 684 mm
Master Type: Thermal master roll type:
420 mm width, 110 m / roll
Yield:
200 masters/roll (at A3 size)
Max run length per master:
2,000 prints
Master Storage Conditions: Temperature:
-10 °C to 40 °C
Humidity:
10% to 95% RH
Recommended maximum storage period:
One year after production date
* Avoid locations exposed to direct sunlight.
Ink Type 1000 ml cartridge type
Available colors:
Black, Red, Blue, Green, Brown
Ink Storage Conditions: Temperature:
-5 °C to 40 °C
(Optimum conditions: 15 °C to 25 °C)
Humidity:
10% to 95% RH
(Optimum conditions: 20% to 70% RH)
Recommended maximum storage period:
One year after production date
* Avoid locations exposed to direct sunlight.

SPECIFICATIONS 1 July, 1998
1-4
Available Options •A3 Drum
•A4 Drum
•Document Feeder
•Key Counter
•Memory Board (Editing Function)
•PC Controller
•Interface Board (Standard for the U.S.A and
European versions)

1 July, 1998 GUIDE TO COMPONENTS AND THEIR FUNCTION
1-5
Overall
Information
1.2 GUIDE TO COMPONENTS AND THEIR FUNCTION

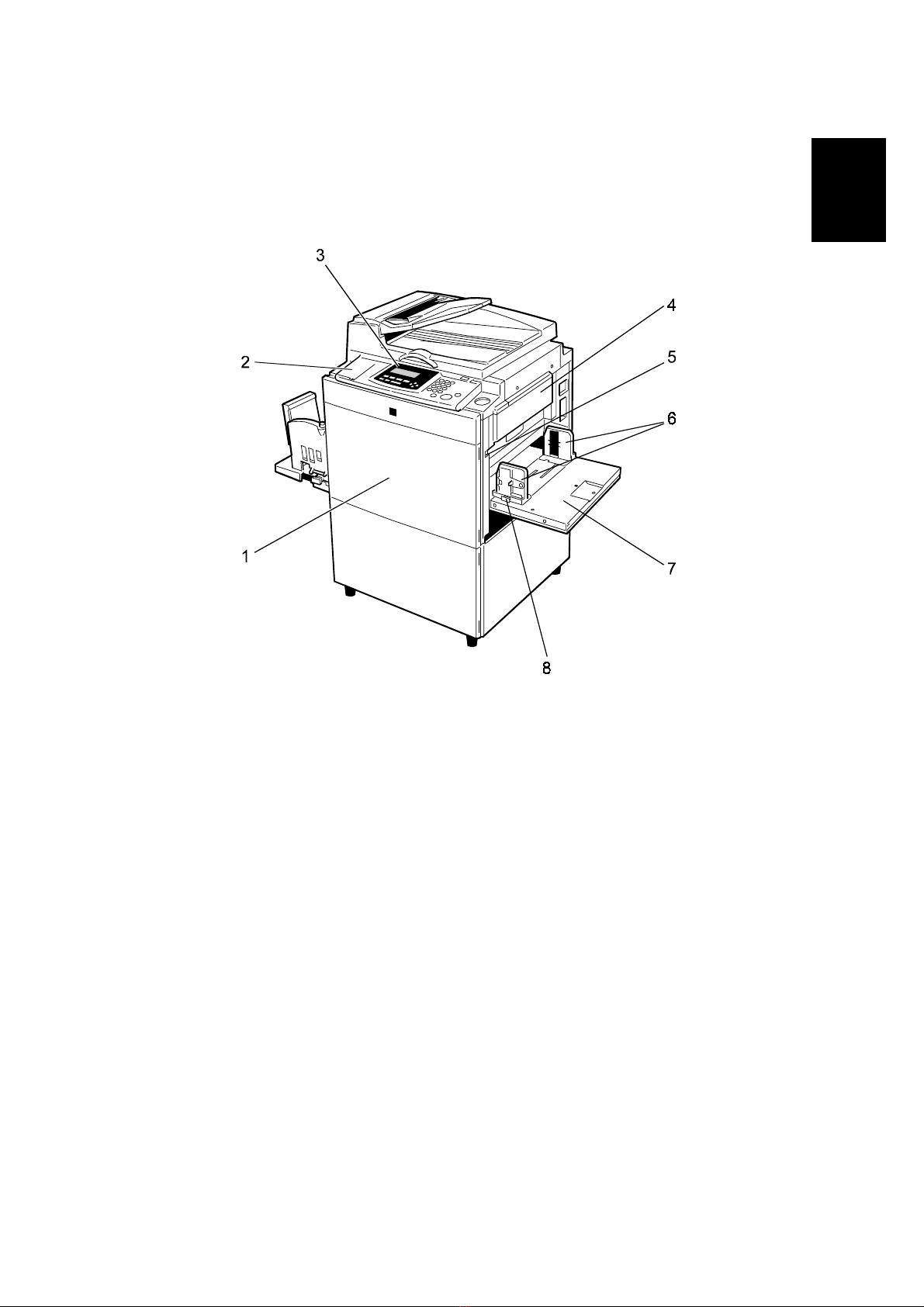

1.2.1 MACHINE EXTERIOR
1. Front Door Open for access to the inside of the
machine.
2. Flip-up Cover Open to access the Image Density key and
so on.
3. Operation Panel Operator controls and indicators are
located here.
4. Master Feed Unit Open the master feed unit when installing
the master.
5. Paper Feed Tray Down key Press to lower the paper feed tray.
6. Paper Feed Side/End
Plates Use to prevent paper skew.
7. Paper Feed Tray Set paper on this tray for printing.
8. Paper Feed Side/End Plate
Knob Use to move the side/end plates.
C229V500.WMF

MACHINE INTERIOR 1 July, 1998
1-6

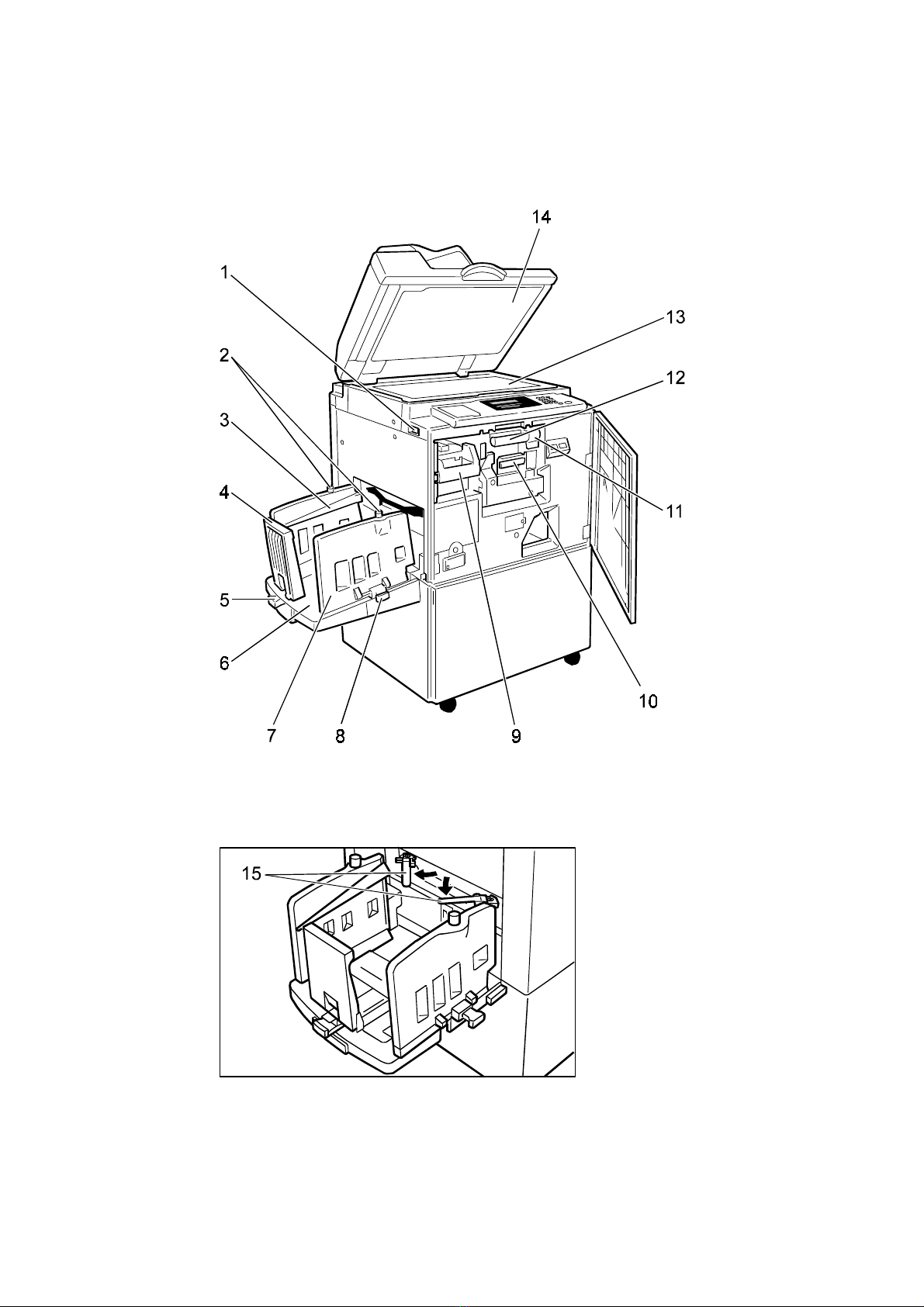

1.3 MACHINE INTERIOR
C229V501.WMF

1 July, 1998 MACHINE INTERIOR
1-7
Overall
Information
1. Main Switch Use to turn the power on or off.
2. Paper Alignment Wing
Knobs Use to lift or lower the paper alignment wings.
3. Paper Alignment Wings Lift or lower the wings depending on the
paper type you use.
4. Paper Delivery End Plate This plate aligns the leading edge of prints.
5. Paper Delivery End Plate
Knob Use to move the end plate.
6. Paper Delivery Tray Completed prints are delivered here.
7. Paper Delivery Side Plates These plates align the prints on the paper
delivery tray.
8. Paper Delivery Side Plate
Knobs Use to move the side plates.
9. Master Eject Unit Front
Handle E1 Use to pull out the master eject unit.
10. Ink Holder Set the ink cartridge in this holder.
11. Drum Unit Lock Lever B1 Lower to unlock and pull out the drum unit.
12. Drum Unit The master is wrapped around this unit.
13. Exposure Glass (Contact
Glass) Position originals here face down for printing.
14. Platen Cover Lower this cover over an original before
printing.
15. Trailing Edge Guides Swing out these guides when you use A4,
81/2" x 11" sideways, or B5 lengthwise
paper.

MACHINE INTERIOR 1 July, 1998
1-8

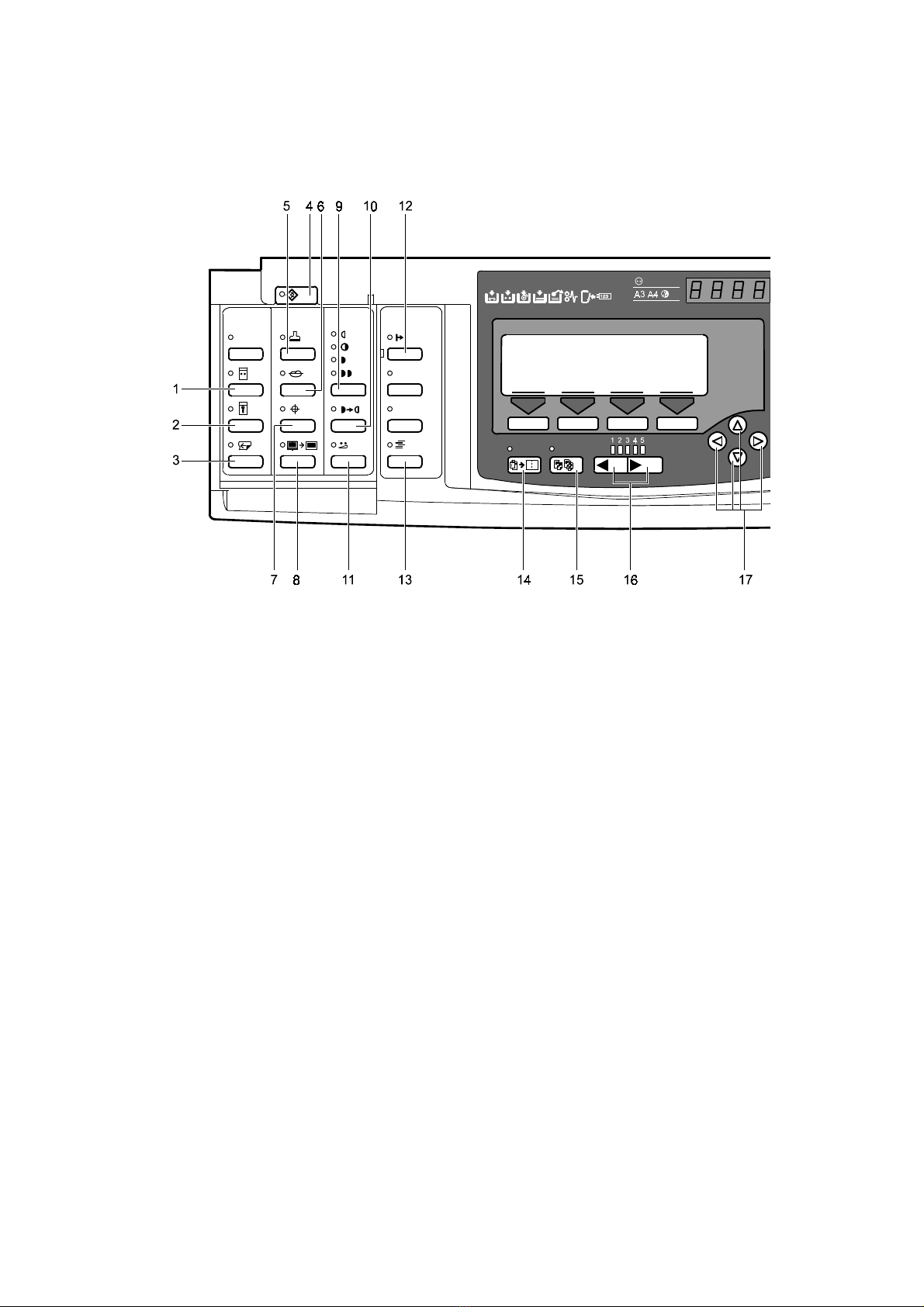

1.3.1 OPERATION PANEL
1. Quality Start key
2. Security key
3. Skip Feed key
4. User Tools key
Press to change the default
settings and conditions to meet
your requirements.
5. Stamp key
6. Make-up key
7. Overlay key
8. Edge Erase key
9. Image Density key
Press to make prints darker or
lighter.
10. Tint key
11. Economy Mode key
12. On Line key
13. Job Separator key
14. Combine key
Press to combine originals onto
one print.
15. Class key
Press to select All Class, Auto
Class, Manual Class, or Class
mode.
16. Speed keys
17. Scroll keys
Press to shift the image forward,
backward, right, or left.
C229V502.WMF

1 July, 1998 MACHINE INTERIOR
1-9
Overall
Information
18. Program key
Press to input or recall user
programs.
19. Number keys
20. Clear/Stop key
While printing, press to stop the
machine.
21. Enter key
Use to enter data in selected
modes.
22. Clear Modes key
Press to clear the previously
entered job settings.
23. Start key
Press to make a master.
24. Auto Cycle key
Use to process the master and
make prints at one stroke.
25. Proof key
Press to make a proof print.
26. Print key
Press to start printing.
C229V502.WMF

MACHINE INTERIOR 1 July, 1998
1-10

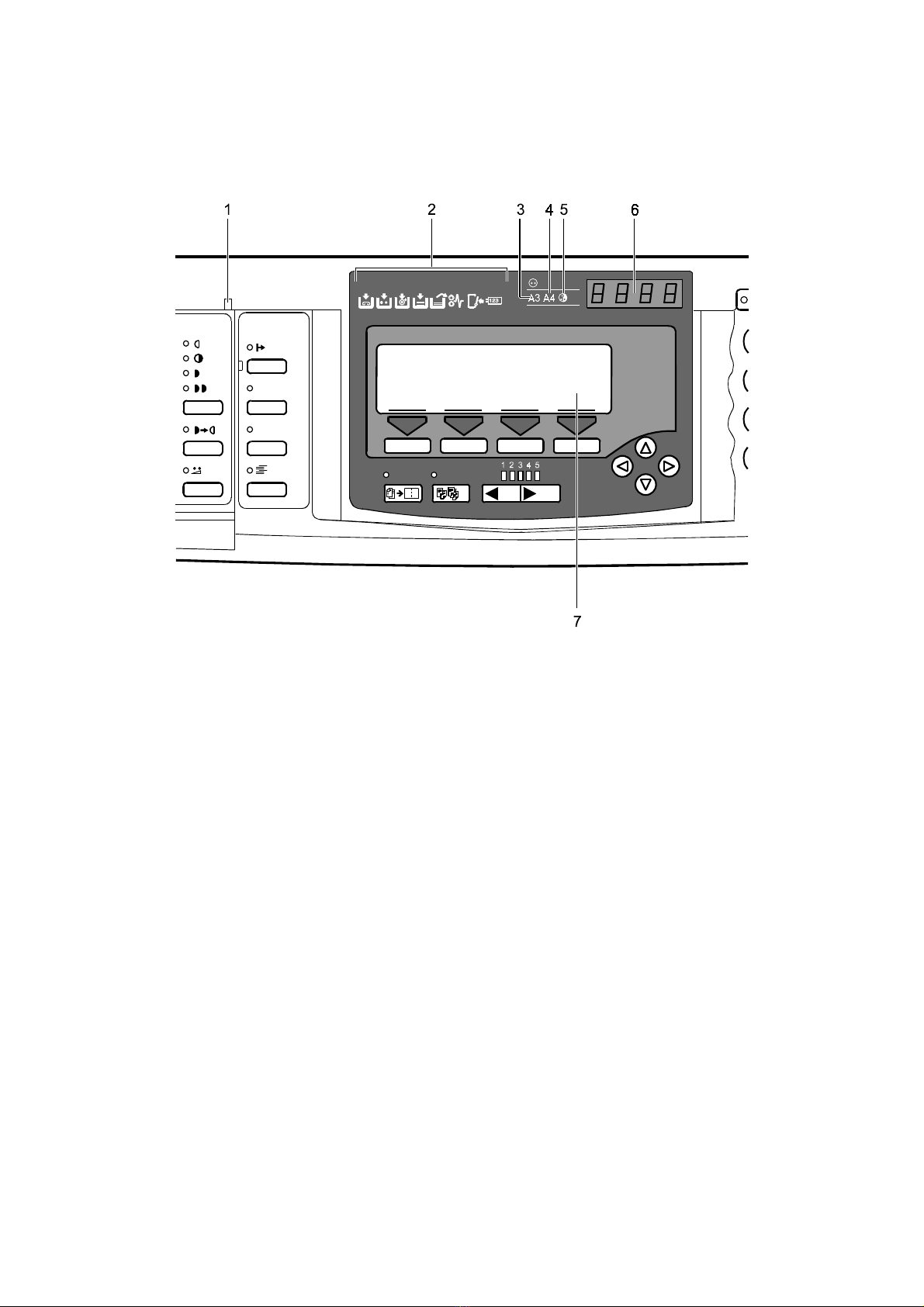

1.3.2 INDICATORS
1. Special Feature indicator
This indicator is lit when you
press keys under the flip-up
cover.
5. Color Drum indicator
This indicator is lit when the color
drum unit is installed.
2. Monitors
The monitors light up when a
non-standard condition occurs
within the machine.
6. Counter
Displays the number of prints
entered. While printing, it shows
the number of prints remaining.
3. A3/11" x 17" Drum indicator
This indicator is lit when the A3,
11" x 17" drum unit is installed.
7. Panel Display
4. A4/81/2" x 11" Drum indicator
This indicator is lit when the A4,
81/2" x 11" drum unit is installed.
C229V503.WMF

1 July, 1998 PRINTING PROCESS OVERVIEW
1-11
Overall
Information

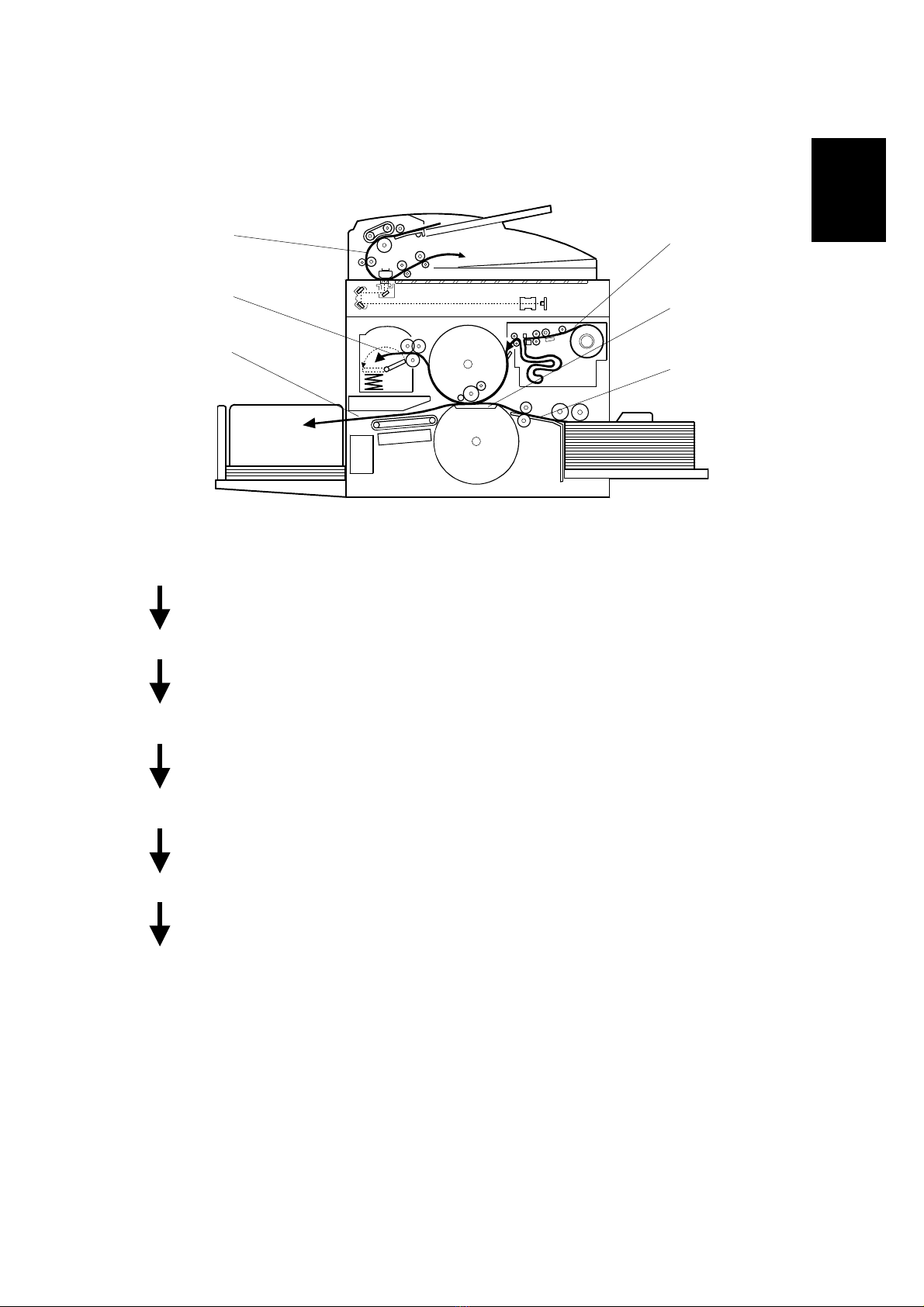

1.4 PRINTING PROCESS OVERVIEW
1. Master Ejecting: Ejects the used master wrapped around the drum
into the master eject box.
2. Scanning: Scans the original image with the CCD through the
mirrors and the lens.
3. Master Feeding: Converts the image signal read by the CCD into
digital signals and sends them to the thermal head to
develop the image on the master. The master then
wraps around the drum.
4. Paper Feeding: Sends paper to the drum section.
5. Printing: Presses the paper fed from the paper feed section
against the drum. This transfers ink to the paper
through the drum screen and the master.
6. Paper Delivering: Peels off the printed paper with the exit pawls and air
knife, and ejects the paper onto the paper delivery
table.
NOTE: Some parts of the master eject, scanning, and master feeding processes
are carried out at the same time. Paper feeding also starts before the
master feeding process has finished.
C229V008.WMF
1
23
4
5
6

MECHANICAL COMPONENT LAYOUT 1 July, 1998
1-12

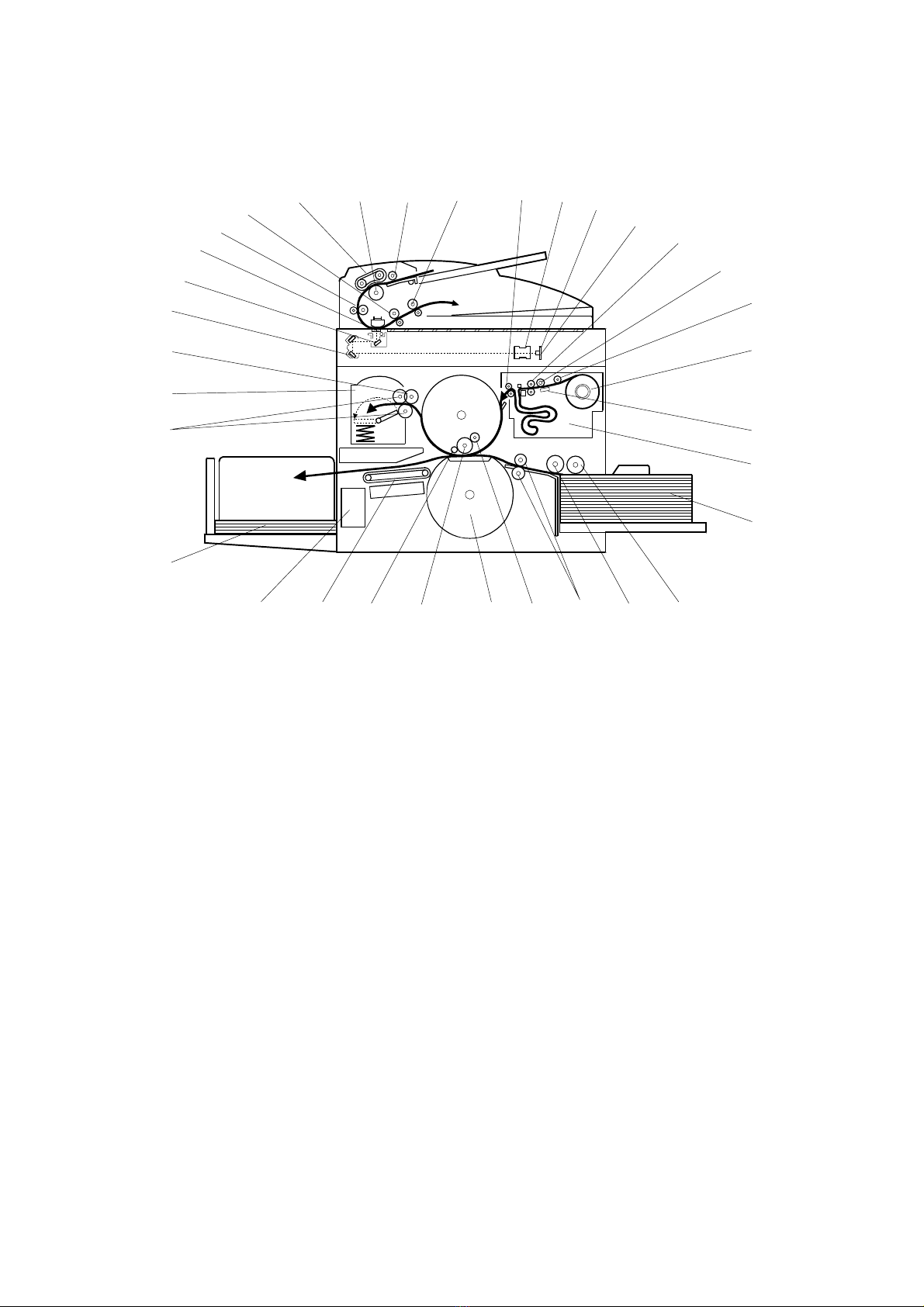

1.5 MECHANICAL COMPONENT LAYOUT
1. Master Feed Control Roller
2. Lens
3. CCD
4. SBU
5. Tension Roller
6. Platen Roller
7. Master Set Roller
8. Master Roll
9. Thermal Head
10. Master Buffer Duct
11. Paper Table
12. Paper Feed Roller
13. Paper Separation Roller
14. Registration Rollers
15. Doctor Roller
16. Pressure Cylinder
17. Ink Roller
18. Idling Roller
19. Transport Belts
20. Job Separator Unit
21. Paper Delivery Table
22. Master Eject Rollers
23. Master Eject Box
24. Master Pick-up Roller
25. 2nd Scanner
26. 1st Scanner
27. DF Exposure Glass
28. 1st Transport Roller
29. 2nd Transport Roller
30. Original Feed Belt
31. Separation Roller
32. Pick-up Roller
33. Original Exit Roller
C229V008.WMF
12 45
3
67
8
9
10
11
121314151617181920
21
22
23
24
25
26
28 29 30 31 32 33
27

1 July, 1998 ELECTRICAL COMPONENT LAYOUT
1-13
Overall
Information
1.6 ELECTRICAL COMPONENT LAYOUT
1.6.1 PRINTED CIRCUIT BOARD LAYOUT
C229V007.WMF
1
2
3
4
5
6
7
10
11
9
8

ELECTRICAL COMPONENT LAYOUT 1 July, 1998
1-14
1.6.2 SCANNER SECTION
1.6.3 PAPER FEED SECTION
C229V001.WMF
C229V002.WMF
20
21
22
23
24
25
26
27
19
18
34
33
32
31
30 29 28
11
12
13 14 15 16
17

1 July, 1998 ELECTRICAL COMPONENT LAYOUT
1-15
Overall
Information

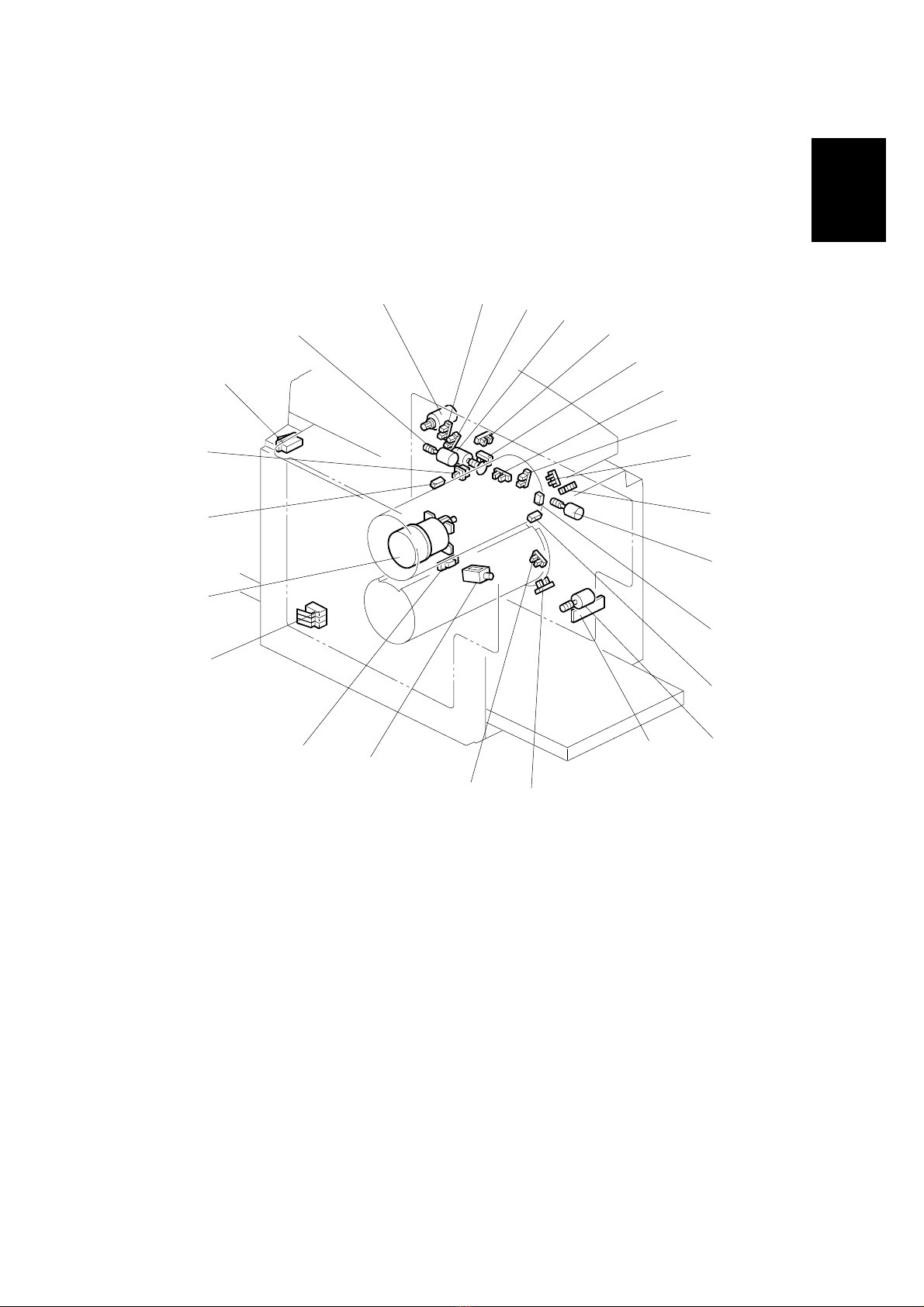

1.6.4 MASTER EJECT, PRESSURE CYLINDER, AND OTHER
SECTIONS
C229V003.WMF
38
37 39 40 41 42 43
44
46
48
45
49
50
51
52
53
54
55
56
57
58
59
35
36
47
