安装指南
为了安全正确地使用本机器,在使用之前,请务
必仔细阅读“安全信息”。
安裝指南
為了能正確安全地使用本機,請務必先閱讀本手
冊中的「安全資訊」,再開始使用。
安装指南
安裝指南
Setup Guide
Setup Guide
For safe and correct use, be sure to read the
Safety Information before using the machine.
CN
TW
EN
2
CN
TW
EN

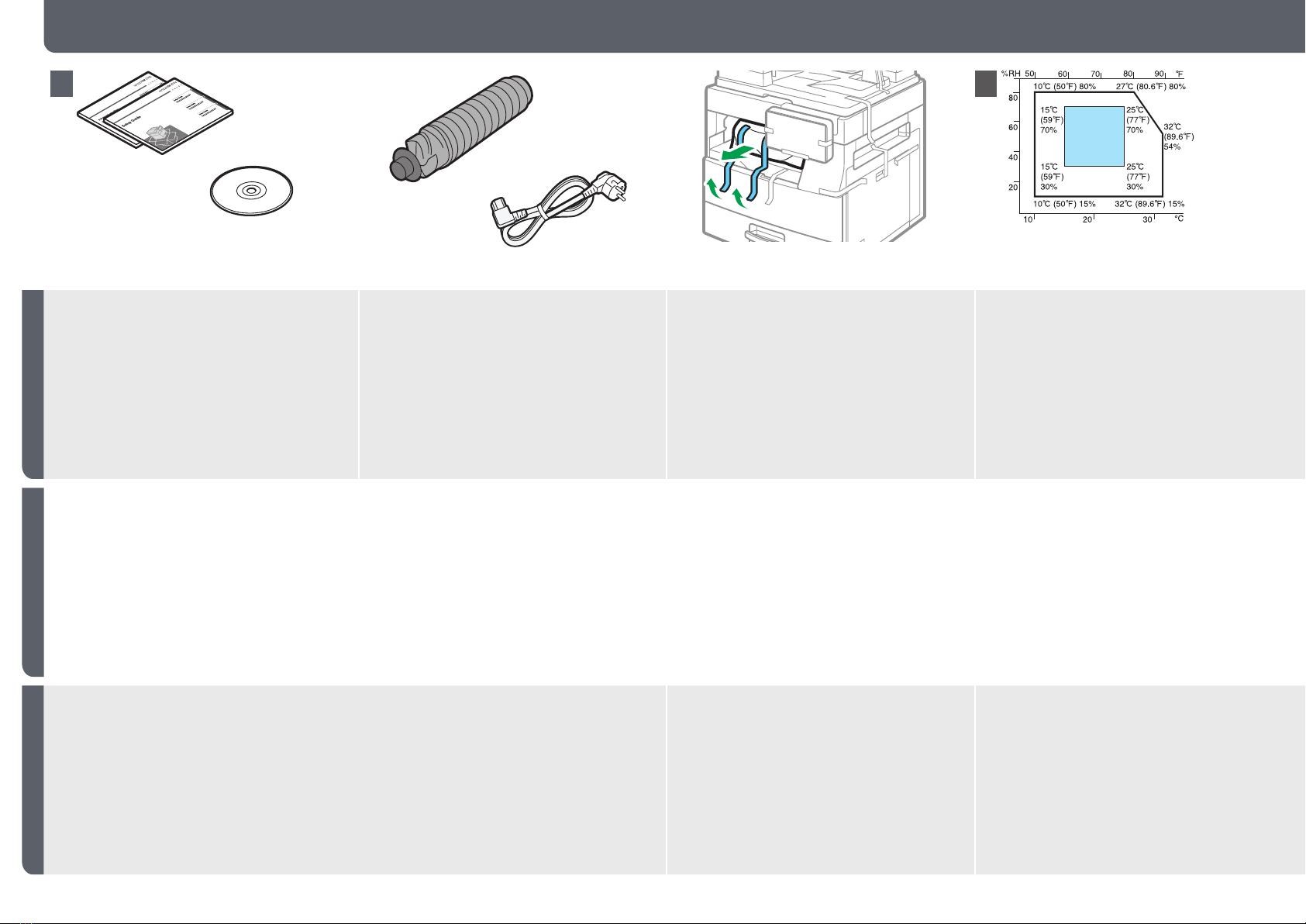

1. 准备工作/準備事項/Preparing
确认组件。
• 安装指南(本手册)
• 安全信息
• 光盘
• 墨盒
• 电源线
电源线和墨盒存放在输出纸盘上。 确认环境条件。
• 请将机器安装在机器周围温度和湿度均在上图中所示允许
范围(白色区域)的地方。(蓝色区域:建议范围)
• 请将机器安装在高度差在5 mm以内的水平位置上。
確認元件。
• 安裝指南(本手冊)
• 安全資訊
• CD-ROM光碟
• 碳粉匣
• 電源線
電源線和碳粉匣存放在接紙盤上。 確認環境條件。
• 將機器安裝在周圍溫度和濕度符合上述允許範圍(白色區
域)的地方。(藍色區域:建議的範圍)
• 將機器安裝在高度差距5 mm以內的水平位置。
Confirm the components.
• Setup Guide (This manual)
• Safety Information
• CD-ROM
• Print Cartridge
• Power cord
The power cord and the print cartridge are
stored on the output tray.
Confirm the environmental conditions.
• Install the machine in a place where the temperature and
humidity around the machine is within the permissible
range (white area) shown above. (Blue area: Recommended
range)
• Install the machine on a level spot where the difference in
height is within 5 mm.
1
EBW079
DVK204
2
220-240 V, 10 A, 50/60 Hz
110 V, 15 A, 60 Hz
EBW052
EBW053
2
EBW031
2
DVL205
3
CN
TW
EN
设置/安裝/Setup
设置/安裝/Setup
确认空间。
確認空間。
Confirm the space.
3
EBW062
136 cm
(53.6 inches)
139 cm (54.8 inches)
171 cm
(67.4 inches)
4
CN
TW
EN
2. 安装机器/安裝機器/Installing the Machine
如上图所示,四人握住机器两侧,然后慢慢抬起并移
动机器。
• 请勿握持曝光玻璃盖或控制面板来抬起机器。
在定位机器时将其慢慢放下。
请勿在机器周围的空间里放置任何物品,以便可以轻
松地装入纸张、更换耗材和清除卡纸。
从机器外部撕下所有窄胶带和保护膜。
如上圖所示,由四個人抓住機器兩側,然後慢慢抬起
移動。
• 抬起機器時,請勿抓住曝光玻璃蓋板和控制面板。
固定定位時,請緩緩慢慢放下機器。
請勿在機器周圍放置任何物品,以便裝入紙張、更換
耗材或清除夾紙。
從機器外部撕下所有窄膠帶和保護膜。
Hold both sides of the machine with four people
as shown above, and slowly lift and move the
machine. • Do not hold the exposure glass cover nor
the control panel to lift the machine.
Lower the machine slowly when positioning it.
Do not put anything in the space around the ma-
chine, so that you can load paper, replace consum-
ables, and clear paper jams easily.
Remove all the narrow adhesive tapes and pro-
tective sheet from the outside of the machine.
1
EBW054
2
EBW055
2
EBW061
51 cm
(20.1 inches)
45 cm
(17.8 inches)
75 cm
(29.6 inches)
30 cm
(11.9 inches)
30 cm
(11.9 inches)
3
EBW032
5
CN
TW
EN
设置/安裝/Setup
抬起曝光玻璃盖,以撕下内部胶带(1)和保护膜(2)。 打开手送台,然后撕下所有胶带。 打开前盖。 撕下标签上贴的胶带。
提起曝光玻璃蓋板,撕下內部膠帶(1)和保護膜(2)。 打開手送台,然後撕下所有膠帶。 打開前蓋。 撕下固定標籤的膠帶。
Lift the exposure glass cover to remove the inner
adhesive tapes (1) and the protective sheet (2).
Open the bypass tray, and then remove all adhe-
sive tapes.
Open the front cover. Remove adhesive tape holding the tag.
4
EBW064
(1)
(2)
5
EBW040
6
EBW033
7
EBW034
如上图所示,四人握住机器两侧,然后慢慢抬起并移
动机器。
• 请勿握持曝光玻璃盖或控制面板来抬起机器。
在定位机器时将其慢慢放下。
请勿在机器周围的空间里放置任何物品,以便可以轻
松地装入纸张、更换耗材和清除卡纸。
从机器外部撕下所有窄胶带和保护膜。
如上圖所示,由四個人抓住機器兩側,然後慢慢抬起
移動。
• 抬起機器時,請勿抓住曝光玻璃蓋板和控制面板。
固定定位時,請緩緩慢慢放下機器。
請勿在機器周圍放置任何物品,以便裝入紙張、更換
耗材或清除夾紙。
從機器外部撕下所有窄膠帶和保護膜。
Hold both sides of the machine with four people
as shown above, and slowly lift and move the
machine. • Do not hold the exposure glass cover nor
the control panel to lift the machine.
Lower the machine slowly when positioning it.
Do not put anything in the space around the ma-
chine, so that you can load paper, replace consum-
ables, and clear paper jams easily.
Remove all the narrow adhesive tapes and pro-
tective sheet from the outside of the machine.
6
CN
TW
EN

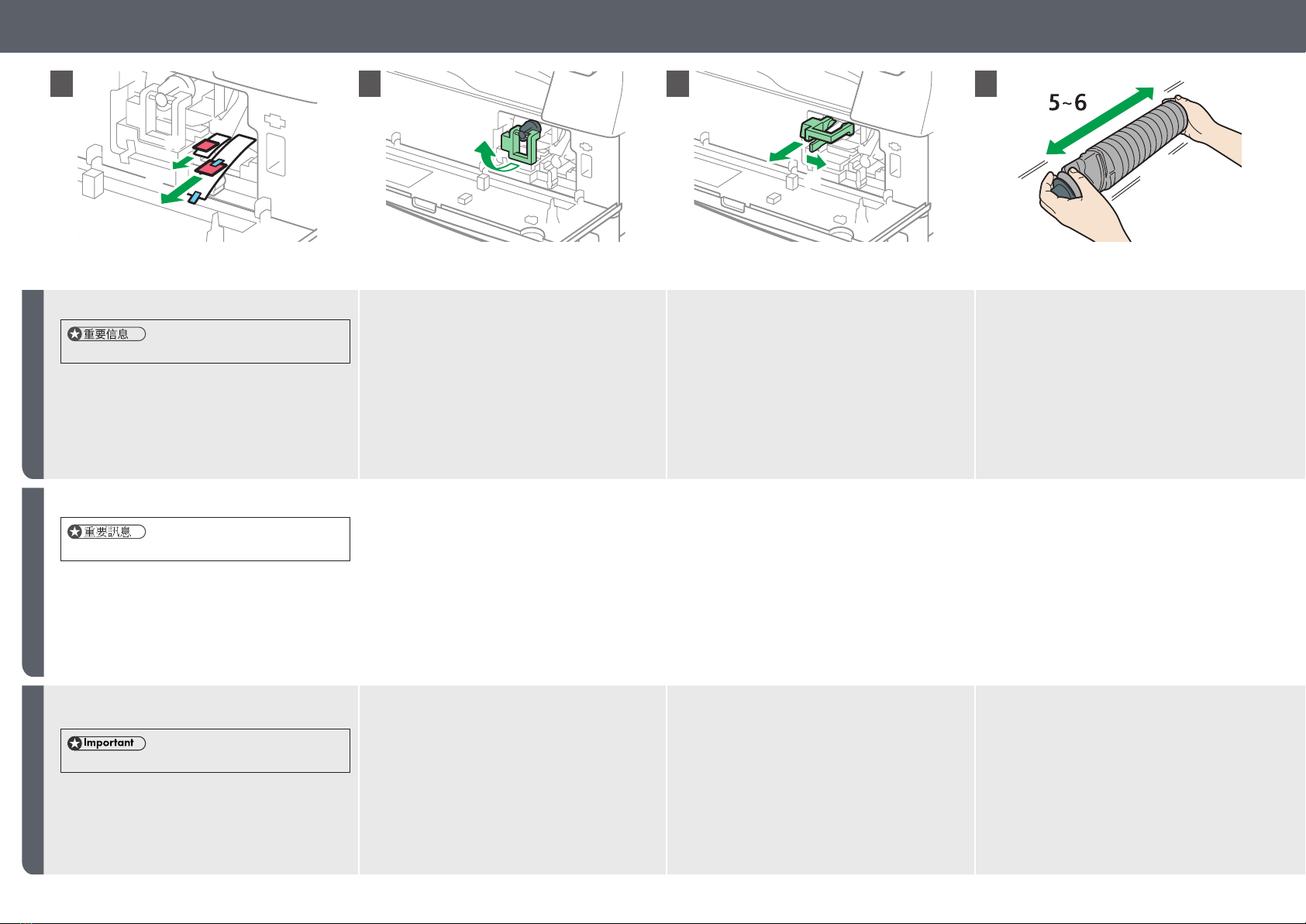

向您所在方向拉出保护膜。
• 如果没有拉出胶带,则会发生错误。
抬起绿色杆。 推动绿色杆(1),然后轻轻拉出支架(2)。 水平拿住新墨盒,左右摇动5到6次。
將保護膜朝自己的方向直接拉出。
• 不拉出膠帶會發生錯誤。
抬起綠色拉桿。 壓下綠色拉桿(1),然後輕輕拉出支架(2)。 水平握住新的碳粉匣左右搖晃五到六次。
Pull out the protective sheets straight towards
you.
• An error occurs if you do not pull out the tape.
Lift the green lever. Push the green lever (1), and then gently pull out
the holder (2).
Hold the new print cartridge horizontally and
shake it from side to side five or six times.
8
EBW065
(1)
(2)
9
EBW035
10
EBW066
(1)
(2)
11
DZV115
7
CN
TW
EN
设置/安裝/Setup
取下黑色盖。
• 摇动前不要取下黑色盖。
• 不要取下内盖。
将墨盒放到支架上,然后向前拉墨盒顶部。 推入绿色杆,直到其卡嗒一声到位为止。 确认绿色杆返回其原始位置。
取下黑蓋。
• 搖晃之前不要取下黑蓋。
• 請勿取下內蓋。
將碳粉匣放在支架上,然後將頂部向前拉。 推入綠色拉桿,直到發出卡嗒聲。 檢查綠色拉桿是否回到原位。
Remove the black cap.
• Do not remove the black cap before shaking.
• Do not remove the inner cap.
Put the print cartridge on the holder, and then
pull its top forward.
Push in the green lever until it clicks. Check that the green lever returns to its original
position.
12
DZV116
13
EBW037
14
EBW038
15
EBW041
向您所在方向拉出保护膜。
• 如果没有拉出胶带,则会发生错误。
抬起绿色杆。 推动绿色杆(1),然后轻轻拉出支架(2)。 水平拿住新墨盒,左右摇动5到6次。
將保護膜朝自己的方向直接拉出。
• 不拉出膠帶會發生錯誤。
抬起綠色拉桿。 壓下綠色拉桿(1),然後輕輕拉出支架(2)。 水平握住新的碳粉匣左右搖晃五到六次。
Pull out the protective sheets straight towards
you.
• An error occurs if you do not pull out the tape.
Lift the green lever. Push the green lever (1), and then gently pull out
the holder (2).
Hold the new print cartridge horizontally and
shake it from side to side five or six times.
8
CN
TW
EN
设置/安裝/Setup
按下绿色杆。 合上前盖。
按下綠色拉桿。 關上前蓋。
Press down the green lever. Close the front cover.
16
EBW042
17
EBW043
2 2
9
CN
TW
EN
3. 装纸/裝入紙張/Loading Paper
小心地拉出纸盘,直到它停住为止,然后撕下胶带。 握住背面挡板的控制杆,并将其与纸张尺寸对齐。之
后,握住右侧挡板的控制杆,并将右侧挡板和左侧挡
板与纸张尺寸对齐。
将打印面朝下装入纸张。
• 纸张堆叠不要超过限制标记(上图所示的气球上的
标记)。
小心地推入纸盘,直到它停住为止。
將紙匣小心拉出到底,然後撕下膠帶。 捏住後擋板的拉桿,與紙張尺寸對齊。接著,捏住右
擋板的拉桿,將左右擋板與紙張尺寸對齊。
將紙張列印面朝下裝入。
• 堆疊的紙張請勿超過限制標記(上圖氣球中的標記)。
將紙匣小心推入到底。
Pull the paper tray carefully until it stops, and
then remove the adhesive tape.
Pinch the lever of the back fence and align it with
the paper size. Next, pinch the lever of the right
fence and align the right and left fences with the
paper size.
Load the paper print side down.
• Do not stack paper over the limit mark (the mark in
the balloon shown above).
Push the tray in carefully until it stops.
1
EBW044
2
EBW045
3
EBW046
4
EBW047
10
CN
TW
EN
将电源线连接到机器背面的电源接头(1)上,然后将
电源线连接到墙壁电源插座(2)。
按下主电源开关。
机器启动。在开始屏幕之后,将出现语言选择屏幕。
安装选件时,请参阅网络手册,并查看“设置”中的
“安装和设置选件”。
將電源線連接到機器背面的電源連接器(1),然後將電
源線連接到牆壁插座(2)。
按下主電源開關。
機器啟動。出現開始畫面後,隨即出現語言選擇畫面。
安裝選購件時,請參閱網頁版手冊中「設定」的「安
裝和設定選購件」一節。
Connect the power cord to the power connector
at the back of the machine (1), and then connect
the power cord to the wall outlet (2).
Press the main power switch.
The machine starts up. Following the start screen,
the language select screen appears.
When installing option, see “Installing and Setting
Options”, Setup in the web manual.
1
EBW067
(1)
(2)
2
EBW056
2 2
4. 开启电源/打開電源/Turning the Power On
