Ricoh PJ WX4153 Original instructions

Read this manual carefully before you use this machine and keep
it handy for future reference. For safe and correct use, be sure to
read the Safety Information in this manual before using the
machine.
For information not found in this manual,
see the online manuals available on our
web site (https://www.ricoh.com/).
Information for This Machine
Safety Information for This Machine
Safety Information

TABLE OF CONTENTS
How to Read This Manual ................................................................................................................................ 2
Introduction..................................................................................................................................................... 2
Disclaimer........................................................................................................................................................2
Notes...............................................................................................................................................................2
1. Safety Information for This Machine
Safety Symbols for This Machine...................................................................................................................... 3
Safety Information...............................................................................................................................................4
Safety During Operation............................................................................................................................... 4
Safety Precautions to Be Followed................................................................................................................4

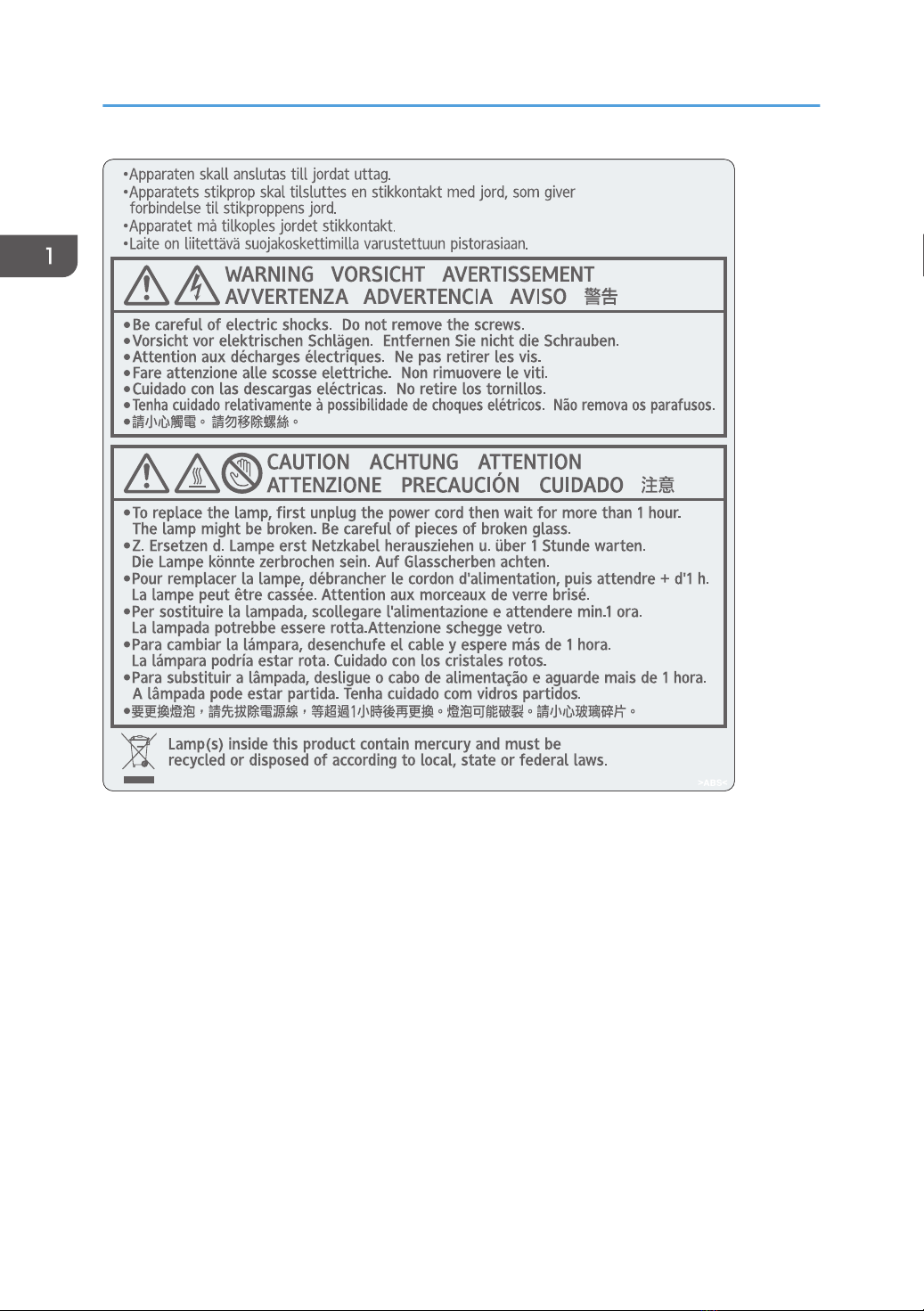

Safety Labels of This Machine.........................................................................................................................14
Positions of Power Rating Labels and Other Labels or Indications.......................................................... 14
Positions of WARNING and CAUTION Labels........................................................................................14
Power Switch Symbols.................................................................................................................................17
2. Information for This Machine
Laws and Regulations...................................................................................................................................... 19
EMC Directive.............................................................................................................................................. 19
Notes to USA Users of FCC Requirements................................................................................................ 19
Notes on lamp(s) inside this machine.........................................................................................................20
1

How to Read This Manual
Introduction
This manual contains detailed instructions and notes on the operation and use of this machine. For your
safety and benefit, read this manual carefully before using the machine. Keep this manual in a handy
place for quick reference.
Disclaimer
In no event will the company be liable for direct, indirect, special, incidental, or consequential damages
as a result of handling or operating the machine.
Notes
Contents of this manual are subject to change without prior notice.
Some illustrations in this manual might be slightly different from the machine.
The manufacturer shall not be responsible for any damage or expense that might result from the use of
parts other than genuine parts from the manufacturer with your office products.
2

1. Safety Information for This Machine
This chapter describes safety information for this machine.
Safety Symbols for This Machine
The meanings of the safety symbols for this machine are as follows:
Caution
Do not touch
Caution, hot surface
Caution, risk of electric shock
3

Safety Information
Safety During Operation
In this manual, the following important symbols are used:
Indicates a potentially hazardous situation which, if instructions are not followed, could result in death
or serious injury.
Indicates a potentially hazardous situation which, if instructions are not followed, may result in minor
or moderate injury or damage to property.
Safety Precautions to Be Followed
This section explains safety precautions that should always be followed when using this machine.
Grounding connection
This section explains safety precautions about grounding connection.
• Connect the power cord to a grounded power outlet for grounding connection. Otherwise, a
short circuit could occur, leading to fire or electrical shock.
Environments where the machine can be used
This section explains safety precautions about environments where the machine can be used.
• Avoid taking the following actions close to or inside this machine because doing so can result in
fire or electric shock:
• Using flammable sprays, solvents, and so on
• Placing flammable sprays, solvents, and so on
• Placing containers holding liquids or small metal objects
• Keep the machine and attachments out of the reach of children. If the machine is near children,
it may cause injury.
1. Safety Information for This Machine
4

• Do not place the machine in a humid or dusty environment. Doing so can result in fire or electric
shock.
• Do not place heavy objects on the machine. Doing so can cause the machine to fall or topple
over, possibly resulting in injury.
• Do not place the machine on an unstable or tilted surface. Doing so can cause the machine to
fall or topple over, possibly resulting in injury.
• Do not place the machine or use it in an environment where it might get wet such as from snow,
rain, or being near water. Doing so could result in fire or electric shock.
• Do not put your face or hand near the exhaust vents. Doing so could result in burns or an
accident due to hot air coming from the exhaust vents.
• Do not use the machine on soft material such as paper or cloth that might get sucked into the
intake vents. Doing so may cause heat buildup inside the machine, resulting in malfunction,
burns, or fire.
• Do not place the machine in a location where air flow is poor. Doing so may cause fire due to
internal components becoming overheated.
• Do not place or store the machine in a location where direct sunlight or heat generation might
occur. The heat may deform or wear out the exterior parts or negatively affect internal parts.
Doing so could result in fire.
• Do not place low heat resistant material near the exhaust vents. Hot air may come from the
exhaust vents, resulting in damage to the machine or an accident.
• Do not obstruct the machine's vents. Doing so risks fire caused by overheated internal
components.
• Do not install the machine in a confined space without proper ventilation and air circulation,
such as in a closed cabinet. Allow proper space around the machine for dissipating heat
inside. Do not block any opening and vents on the machine. Overheating may result in hazards
and electric shock.
• Do not allow foreign objects to enter the machine from the air inlet or outlet.
Safety Information
5

• Install the machine so that the power cord and cables do not get tangled or caught. If the
cables get caught, they may become damaged, resulting in fire or electric shock.
• Use only genuine accessories or accessories recommended by the manufacturer to mount the
main unit. Using wrong or unsuitable accessories may cause the main unit to fall and result in
serious personal injuries. Make sure that the surface and fixing points are strong enough to
sustain the weight of the main unit.
Handling power cords and power cord plugs
This section explains safety precautions about handling power cords and power cord plugs.
• Avoid taking the following actions because doing so can result in fire or electric shock:
• Using any power supply voltage or frequencies other than those that match the
specifications shown
• Using multi-socket adaptors
• Using extension cords
• Touching the prongs of the power cable's plug with anything metallic
• There are dangerous voltages inside the machine. Never unscrew or remove any covers.
• Turn off the power and unplug the power cord if you intend to move the machine.
• Do not use any power sources other than those that match the specifications shown in this
manual. Doing so could result in fire or electric shock.
• Do not damage, break, or modify the power cord. Also, do not place heavy objects on the
power cord, or pull the cord or bend it severely. Doing so could result in fire or electric shock.
• The supplied power cord or cords are for use with this machine only. They cannot be used for
appliances other than this machine. Also, do not use power cords other than the power cord or
cords supplied with this machine. Doing so can result in fire or electric shock.
• It is dangerous to handle the power cord plug with wet hands. Doing so could result in electric
shock.
1. Safety Information for This Machine
6

• To prevent fire or electric shock, disconnect the plug and the power cord from the wall outlet at
least once a year and check them. If any of the following conditions exist, do not use the plug
and the power cord continuously, and consult your dealer or service representative.
• There are burn marks on the plug
• The prongs on the plug are deformed
• The power cord's inner wires are exposed or broken
• The power cord's coating is cracked, dented, or damaged
• When the power cord is bent, the power turns off and on
• Part of the power cord becomes hot
• Do not use the connection cable if it is deformed, cracked, or damaged. Doing so could result
in fire or electric shock. If the connection cable is deformed, cracked, or damaged, contact
your service representative to request a replacement cable.
• Never user a power cord which appears damaged or frayed, or change the plug type on the
power cord.
• Push the power plug all the way into the power outlet. Do not use a power outlet with a loose
connection. Doing so may result in heat buildup. Plug the power cord in the correct direction
into the base. If they are not plugged in correctly, it could result in smoke, fire, or electric shock.
• If you do not use the machine for a long period of time such as consecutive holidays, be sure to
disconnect the power cord plug from the wall outlet for reasons of safety.
• When disconnecting the power cord from the wall outlet, always pull the plug, not the cord.
Pulling the cord can damage the power cord. Use of damaged power cords could result in fire
or electric shock.
• Be sure to disconnect the plug from the wall outlet and clean the prongs and the area around
the prongs at least once a year. Allowing dust to build up on the plug constitutes a fire hazard.
• When performing maintenance on the machine, disconnect the power cord from the wall outlet
for safety.
• Do not place the power cord and connection cable in a way that might cause someone to trip
and fall. The machine might fall over and cause an injury.
• Power Source
Safety Information
7

120 V, 3.8A or more, 60Hz
Please be sure to connect the power cord to a power source as above.
For users in Norway, this product is also designed for an IT power distribution system with phase-
to-phase voltage of 230V.
Handling the main machine
This section explains safety precautions about handling the main machine.
• Be sure to locate the machine as close as possible to a wall outlet. This will allow easy
disconnection of the power cord in the event of an emergency.
• If the machine behaves unusually as follows, turn off the power immediately. After turning off the
power, make sure to disconnect the power cord plug from the wall outlet, and then contact your
service representative and report the problem. Continuously using the power cord can result in
fire or electric shock.
• The machine is emitting smoke
• The machine is emitting odors
• Metal objects or other foreign objects have fallen inside the machine
• Water or other fluids have fallen inside the machine
• Do not touch this machine if a lightning strike occurs in the immediate vicinity. Doing so could
result in electric shock.
• The following explains the warning messages on the plastic bag used in this product's
packaging:
• Do not leave the polythene materials (bags, etc.) supplied with this machine close to babies
and small children. Suffocation can result if polythene materials are brought into contact
with the mouth or nose.
• If the machine topples or a cover or other part is damaged, turn off the power immediately. After
disconnecting the power cord plug from the wall outlet, contact your service representative.
Using the machine continuously can result in fire or electric shock.
• Do not turn the main power switch off or remove the power cord while power is being supplied
to the machine. Doing so may ruin the flash memory drive or cause other damage.
1. Safety Information for This Machine
8

• The machine may be very hot after it is turned off, especially the vents and the lower part of the
unit where the lamp is located. Avoid touching these areas. Doing so may result in burns.
• Do not place the machine on other equipment or vice versa. Doing so may cause heat buildup
inside the machine or cause the other equipment to malfunction.
• Do not increase the volume unless you are listening while increasing the volume. Also, lower
the volume before turning off the power, because a loud sound may be emitted when the
power is turned on and cause hearing damage.
Handling the machine's interior
This section explains safety precautions about handling the machine's interior.
• Do not remove any covers or screws that are not mentioned in this manual. There are high
voltage components inside the machine that may cause electric shock. Contact your service
representative if any of the machine's internal components require maintenance, adjustment, or
repair.
• Do not disassemble or modify the machine. Doing so may cause injury or malfunction.
• To reduce the risk of electric shock, do not remove covers. No user serviceable parts inside.
Refer all servicing to qualified service personnel.
• Contact your sales or service representative for cleaning the machine's interior. If the machine's
interior is not regularly cleaned while dust accumulates, fire and malfunction can result.
Installing and fixing the projector on a wall or ceiling
• For safe operation, follow the warnings below when installing and fixing the projector a wall or
ceiling.
• Do not attempt to clean or replace parts for a machine. Doing so may cause it to fall
down, resulting in an injury.
• Do not open the lamp cover of a machine. Doing so may cause the lamp cover to fall
down. If the lamp is broken, pieces of glass may fall and cause an injury.
• Contact your sales or service representative to clean or replace parts for a machine.
Safety Information
9

• Do not user projector in oil-mist or smoke environment. Doing so may cause the projector case
to crack and fall from its ceiling mount. This may cause serious injury.
• If a machine is incorrectly installed on a wall or ceiling, it may fall down and cause an injury.
Contact your sales or service representative if you want to install a machine on a wall or
ceiling.
• Do not obstruct the machine's vents. Doing so risks fire caused by overheated internal
components.
For users
• Do not install the projector by yourself. Contact your sales or service representative if you
want to install the projector on a wall or ceiling.
For sales or service representatives
• Use brackets that are strong enough to support the projector. The projector weighs about 3.0
kg (6.6 lb.).
• Install the projector on a location that can withstand four times the combined weight of the
projector and the brackets.
• Use only the screws (three M4×16 screws) provided with the projector to attach the brackets
to the projector.
• Use all three of the projector's screw holes to attach the brackets. The locations of the screw
holes are shown in the illustration below. Make sure that the screws are tightened firmly.
Y0E5IX0066
About the batteries
Explains things that you should follow in regard to the batteries.
1. Safety Information for This Machine
10

• For safe operation, follow the warnings below regarding the batteries. If you use the batteries
incorrectly, it may result in fire or injury due to batteries leaking or exploding.
• Do not use batteries other than the ones specified.
• Different types of batteries have different characteristics. Do not mix different types.
• Do not mix old and new batteries. Mixing old and new batteries will shorten battery life or
cause chemical leaks from the batteries.
• Do not disassemble, alter, and direct solder a battery.
• Correctly insert batteries according to the polarity ( / ).
• Do not charge non-rechargeable batteries.
• Do not heat or throw the batteries into fire or water.
• Do not connect the positive and negative terminals on a battery with a wire.
• Remove the batteries that are past their suggested use period or that are depleted.
• Remove the batteries when they will not be used for extended periods.
• A battery can be damaged, for example, when it is dropped. Do not use any such
potentially damaged battery.
• Keep the batteries out of the reach of children. Children may swallow or choke on the
batteries. If this happens, contact a doctor immediately.
• Chemicals which leak from batteries may cause skin irritation. If any chemical matter seeps out
of the batteries, wipe it up immediately using a dry cloth, and replace the batteries as soon as
possible.
• Risk of explosion if battery is replaced by an incorrect type. Please dispose of used
rechargeable batteries correctly at your local community waste collection/recycling center.
What to do if a battery has leaked
• If leakage from a battery adheres to your skin, rinse it with water immediately, and then
contact a doctor.
• Wipe off the leakage with tissue paper while being careful not to touch it.
• Soak the tissue paper that you used in water, and then throw it away as burnable trash.
About the lamp
Explains things that you should follow in regard to the lamp.
Safety Information
11

• Do not look into the projection window or vent when the machine is on. The bright light may
damage your eyes. Be especially careful in an environment with children.
• Do not stare at operating lamp. May be harmful to the eyes.
• Before replacing the lamp, turn off the power and wait at least one hour to allow the machine
to cool completely. If it is not completely cool, you may burn or injure yourself due to the inside
of the machine and lamp unit being hot. If you replace the lamp without unplugging the power
cord from the power outlet, electric shock or explosion may occur.
• Be careful when handling the used lamp so that it does not break. If it breaks, it may cause
injury.
• The machine's light uses a mercury vapor lamp that becomes high pressure when it is turned on.
The lamp has the following characteristics, so be sure to handle it with care after understanding
the contents. If the lamp explodes and you are either injured from broken pieces of glass, think
you have gotten glass particles or mercury vapour in your eyes, or have inhaled glass particles
or mercury vapour, contact a doctor immediately.
• Deterioration or shock can cause the lamp's life span to end or the lamp to explode. If the
lamp explodes, it may make a big noise.
• The time that it takes for the lamp to reach its life span or explode depends on each
individual lamp and its operating conditions. It is possible that it might explode the first
time it is used.
• If you use the lamp past its replacement period, the possibility of explosion increases.
• If the lamp explodes, broken glass pieces may be scattered around the inside of the
machine and ejected from the vent or other opening.
• If the lamp explodes, a very small amount of mercury vapor in the lamp tube and broken
glass pieces may be ejected from the vents or other opening.
• Do not block the projection light when it is on. If you do so, the part that is blocking the
projection light may get quite hot and deform, deteriorate or cause a burn or fire. The reflected
light may make the projection window hot and cause a machine failure. To temporarily
suspend projection, select the AV mute function. To suspend longer, turn off the machine.
• Be sure to always use a dedicated replacement lamp that is new when replacing the lamp. If
you use a lamp that is not dedicated, it may result in an explosion and injury.
1. Safety Information for This Machine
12

What to do if a lamp has exploded
• If the lamp explodes, remove the power cord from the projector, leave the room while making
sure it is thoroughly ventilated.
• If the lamp explodes and you think that you have gotten glass particles or mercury vapor in
your eyes or have inhaled either, contact a doctor immediately.
• Clean up the area around the projector completely while being careful not to get injured from
any broken glass pieces.
• Throw away any food that was near the projector.
• Ask your service representative to replace the lamp and inspect the projector.
Moving
This section explains safety precautions about moving the machine.
• Unplug the power cord from the wall outlet before you move the machine. While moving the
machine, take care that the power cord is not damaged under the machine. Failing to take these
precautions could result in fire or electric shock.
Handling RGB cable
• The supplied RGB cable is for use with this machine only. It cannot be used for appliances
other than this machine. Also, do not use RGB cables other than the one supplied with this
machine. Doing so can result in malfunction, fire, or electric shock.
Safety Information
13

Safety Labels of This Machine
Positions of Power Rating Labels and Other Labels or Indications
This machine has a power rating label and other labels or indications at the position (1) shown below.
Y0E5IX0116
1
Positions of WARNING and CAUTION Labels
This machine has labels for WARNING and CAUTION at the positions shown below. For safety,
please follow the instructions and handle the machine as indicated.
Y0E5IX0067
1
1. Safety Information for This Machine
14

1
Y0E5IX0068
"As with any bright source, do not stare into the direct beam, RG2 IEC 62471-5:2015"
This product is classified into "Risk Group 2" of the photobiological safety of lamps and lamp systems
specified in IEC 62471-5. "Risk Group 2" indicates a "moderate biogenic risk" and does not pose any
risk due to aversion such as blinking eyes against a strong visual stimulus or heat based discomfort.
Do not look into the projection window when the projector is on. The bright light may damage your
eyes.
Do not place anything on the projection window. The object may become very hot and cause a fire or
burn. To blank the image temporarily, turn on the AV mute function.
Y0E5IX0069
2
3
2
CZE155
Do not touch ! Surface may be very hot.
3
Safety Labels of This Machine
15

Y0E5IX0117
When replacing the lamp, be careful of broken glass because the lamp may be broken.
To replace the lamp, first unplug the power cord then wait for more than 1 hour.
1. Safety Information for This Machine
16

Y0E5IX0118
4
4
Y0E5IX0119
The surface of the lamp unit is hot, so do not touch it except when having to replace the lamp.
To replace the lamp, first unplug the power cord then wait for more than 1 hour.
When replacing the lamp, never touch the surface on or around the lamp unit, including its handle, for
at least one hour. The surface becomes very hot, and it takes time to return to normal temperature.
Power Switch Symbols
The meanings of the symbols for the switches on this machine are as follows:
• : STANDBY
Safety Labels of This Machine
17

1. Safety Information for This Machine
18
