RICOH PJ RICOH PJ WXC1110
Machine Codes: Y0AB
Field Service Manual
May, 2016

Important Safety Notices
Important Safety Notices
Prevention of physical injury
1. Before disassembling or assembling parts of the main machine and peripherals, make sure that the
power cord of the main machine is unplugged.
2. The wall outlet should be near the machine and easily accessible.
3. If any adjustment or operation check has to be made with exterior covers off or open while the
main switch is turned on, keep hands away from electrified or mechanically driven components.
• To prevent a fire or explosion, keep the machine away from flammable liquids, gases, and
aerosols.
Health safety conditions
This machine, which uses a high voltage power source, can generate ozone gas. High ozone density is
harmful to human health. Therefore, the machine must be installed in a well-ventilated room.
Observance of electrical safety standards
This machine and its peripherals must be serviced by a customer service representative who has
completed the training course on those models.
Safety and Ecological Notes for Disposal
Dispose of replaced parts in accordance with local regulations.
1

TABLE OF CONTENTS
Important Safety Notices................................................................................................................................... 1
Important Safety Notices............................................................................................................................... 1
Prevention of physical injury................................................................................................................. 1
Health safety conditions........................................................................................................................1
Observance of electrical safety standards.......................................................................................... 1
Safety and Ecological Notes for Disposal................................................................................................... 1
1. Product Information
Overview.............................................................................................................................................................5
Main Unit........................................................................................................................................................ 5
Control Panel.................................................................................................................................................. 7
Connection Ports.............................................................................................................................................8
Remote Control...............................................................................................................................................9
Specifications....................................................................................................................................................11
Product Highlights........................................................................................................................................11
General Specifications................................................................................................................................ 12
Computer Compatibility.............................................................................................................................. 13
Lens............................................................................................................................................................... 14
Supported Multi-Media Formats................................................................................................................ 14
2. Installation
Installation Requirements................................................................................................................................. 19
Environment/Power Requirements............................................................................................................. 19
Machine Space Requirements....................................................................................................................19
Machine Dimensions................................................................................................................................... 19
Main Machine Installation...............................................................................................................................20
Accessory Check..........................................................................................................................................20
Precautions................................................................................................................................................... 21
3. Replacement
Equipment Needed..........................................................................................................................................23
Parts List.............................................................................................................................................................24
Service Parts List........................................................................................................................................... 24
Part Replacement..............................................................................................................................................25
Exterior Cover.............................................................................................................................................. 25
Top Cover............................................................................................................................................ 25
2

I/O Cover........................................................................................................................................... 27
Bottom Cover.......................................................................................................................................28
Speaker........................................................................................................................................................ 30
FPC Cable.................................................................................................................................................... 30
Multimedia Board........................................................................................................................................31
Keypad......................................................................................................................................................... 32
Engine Module.............................................................................................................................................33
Fans...............................................................................................................................................................34
Main Board.................................................................................................................................................. 36
Adjustable Foot............................................................................................................................................ 37
4. Adjustment
Required Action after Replacing Parts ...........................................................................................................39
Special Tools.................................................................................................................................................... 40
Service Mode ..................................................................................................................................................41
How to enter the Service Mode..................................................................................................................41
Service Mode Settings.................................................................................................................................42
Calibration........................................................................................................................................................43
ADC Calibration.......................................................................................................................................... 43
Environment......................................................................................................................................... 43
Procedure.............................................................................................................................................44
Criteria................................................................................................................................................. 45
G Sensor Calibration...................................................................................................................................45
Factory Reset.................................................................................................................................................... 47
Factory Reset Procedure..............................................................................................................................47
5. Troubleshooting
Troubleshooting................................................................................................................................................49
Main Procedure........................................................................................................................................... 49
No Power Troubleshooting......................................................................................................................... 50
Power Troubleshooting................................................................................................................................51
Image Performance Troubleshooting......................................................................................................... 52
Remote Control Troubleshooting................................................................................................................ 54
LED Lighting Message......................................................................................................................................55
Error Log............................................................................................................................................................56
3

Checking the Error Log................................................................................................................................56
6. Firmware Update
Overview of the Firmware Update................................................................................................................. 59
System Firmware Upgrade..............................................................................................................................60
Equipment Needed......................................................................................................................................60
DLP Composer Lite Setup Procedure..........................................................................................................60
Firmware Upgrade Procedure....................................................................................................................63
AM8250 Firmware Upgrade......................................................................................................................... 69
Equipment Needed......................................................................................................................................69
USB Driver Upgrade Procedure................................................................................................................. 69
AM8250 Firmware Upgrade Procedure.................................................................................................. 72
4

1. Product Information
Overview

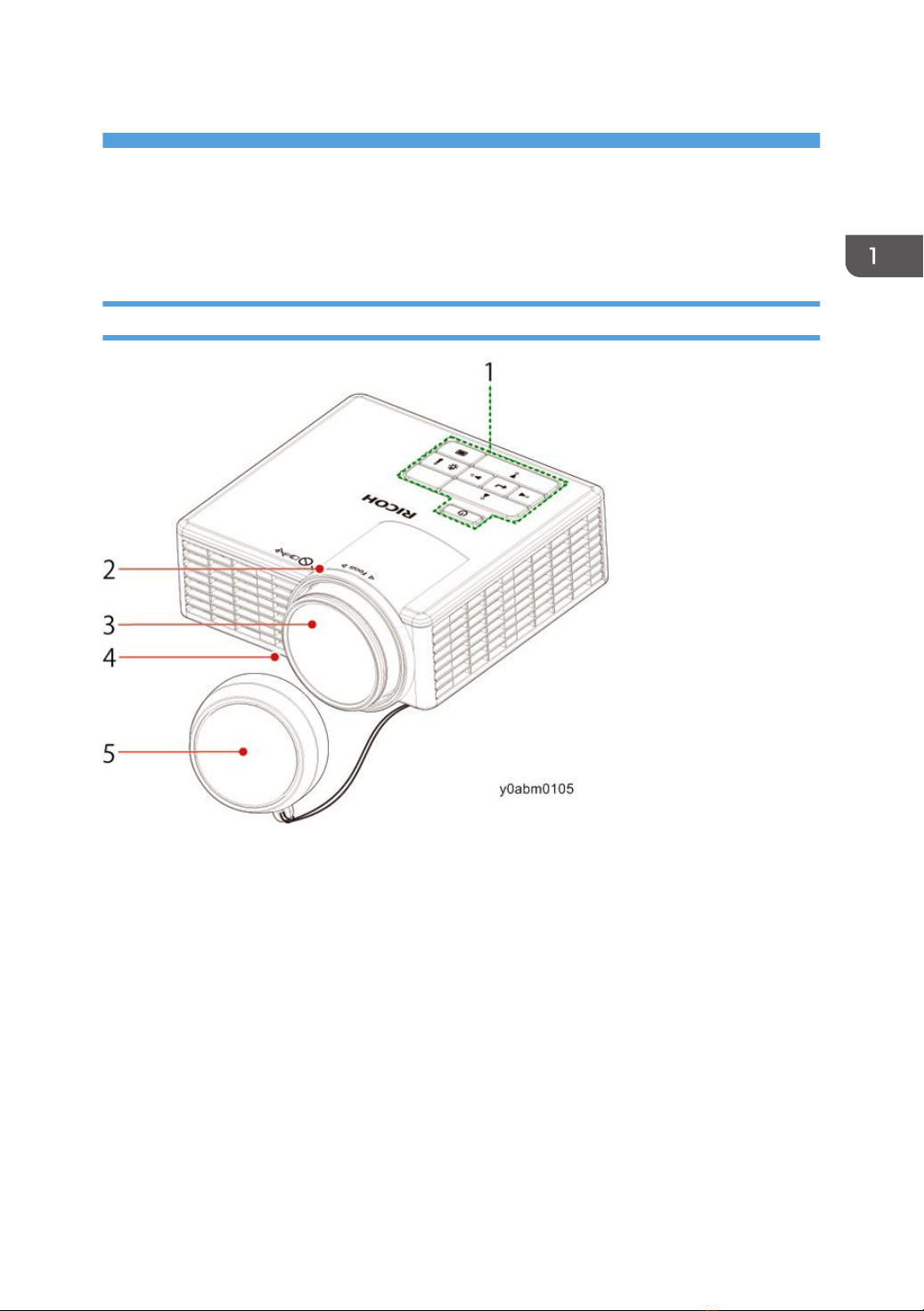

Main Unit
5

1. Control panel
2. Focus ring
3. Lens
4. Adjustable foot
5. Lens cap
6. Ventilation (inlet)
7. Infrared remote sensor
8. Connection ports
9. Ventilation (outlet)
1. Product Information
6

Control Panel
Ind. Part Name Description
1 Power Turns the projector on/off.
2 Temp LED Indicate the projector's temperature status.
3 Error LED Indicate the projector's error status.
4 Menu Press this key to launch the Onscreen display (OSD).
5Four Directional
Select Keys
Use , , , or to select items or make adjustments to your
selection.
6 Enter
Confirm your section of items in sub menu operation. When the OSD
menu appears, select "Input Source" to choose VGA, HDMI/MHL,
and Media.
Overview
7

Connection Ports
1. Anti-theft lock hole
2. Micro SD card slot
3. USB Type A terminal
4. DC IN plugged jack
5. Headphone jack
6. HDMI / MHL terminal
7. Computer In terminal
1. Product Information
8

Remote Control
Ind. Part Name Description
1 Power Turns the projector on/off.
2 AV Mute Mutes/unmutes audio and/or video depending on the chosen mute
option in the OSD menu ("Setup" > "Advanced" > "Mute").
3 Menu Turns the main menu on/off or returns to upper level in the menu
operations.
4 Rewind Searches backward.
5 Play/Pause Plays/pauses media file.
6 Moving mode Enters Moving mode.
7 Input Select input source.
8 Aspect Use this function to choose your desired aspect ratio for the screen.
9 Picture Select the preset picture mode.
Overview
9

Ind. Part Name Description
10 Four Directional
Select Uses to operate menu.
11 Exit Returns to the previous page.
12 Enter Confirms your section of items in menu system.
13 Fast Forward Searches forward.
14 Magnify +/- Enlarge part of the screen image. Reduce the enlarged part of the
image. (Digital Zoom)
1. Product Information
10

Specifications
Product Highlights
• RICOH PJ WXC1110 is a portable data projector with Multimedia playback function & Office
viewer native to deliver min.
• 600 lumens with WXGA (1280*800) resolution & 1.5 Watts mono speaker. With expandable
memory from micro SD card slot, it can display photo, video, music, PDF & Microsoft Office
documents directly via embedded multimedia module.
• The complete I/O connection, Wireless display (with optional WiFi dongle) presents the portable
business functionality.
• One panel 0.45 " DMD for WXGA projection system
• 40W LED dimmable to 10W
• Net weight: < 1lbs (DVT weight is about 435g with lens cap)
• Manual focus projection w/Fixed zoom lens
• True 1280X800(WXGA) resolution,16.7M for High colors
• With up, down, left, and right screen reverse
• Build-in full screen NTSC/PAL video capability with component through D-sub terminals
• 1080P/ WSXGA+ / WXGA/ SXGA+/ SXGA/ XGA/ SVGA/ VGA/ MAC compatibility.
• Auto image re-sizing to 1280X800(WXGA) full screen
• Auto detection of computer signal input
• Auto Image synchronization (Auto-tracking /frequency /position adjustment)
• Support Zoom-in and Zoom-out function
• Automatically saves adjustments for future use
• On-screen menu with 16 languages
• Adaptive voltage control fan speed
• Auto vertical keystone
• Support MHL display via mobile phone
Specifications
11

General Specifications
No. Item Description
1Dimensions
(W x D x H)
W112.5 x D105 x H40.5mm (not including focus ring, rubber
foot & protruding parts)
2 Weight < 460g
3 Power Supply • Auto-ranging: AC100–240V ±10%, 50–60Hz
• DC Output: 19V/3.42A, 65W (max.)
4 Engine Platform 2nd Gen. D51 Plus
5 Resolution WXGA 1280*800
6 ASIC
• DLP Pico Processor DPP 6401 w/ DLP-Link 3D/120Hz
support
• Multimedia: AM8250
7 LED Type RGB LED
8 LED Life 20,000 Hours Bright Mode @ 40W ±10%
9 Altitude
• Operating:
0–2,500 ft, for 5–40°C
2,500–5,000 ft, for 5–35°C
5,000–10,000 ft, for 5–30°C
10 Technology TI" DMD, 0.45" WXGA DMD
11 Power Consumption
• Full Mode:
AC input < 77 W @ 110–240VAC,
DC output < 19V/3.35A; 64W @ 110VAC
• Standby Mode < = 0.5W
12 LED Power Bright Mode: 40W ±10% (Typ.)
13 Component Video (via
VGA connector) 480i, 480p, 576i, 576p, 720p, 1080i
14 Throw Ratio 0.8 ±5%
1. Product Information
12

No. Item Description
15 Throw Distance • 0.43–3.44m (mechanical travel range);
• 0.86–1.72m (optical travel range)
16 Image Size • 25–200" (mechanical travel range)
• 50–100" (optical travel range) optimize at 60"
17 Contrast Ratio • Typical: 800:1
• Minimum: 600:1
18 Uniformity
(JBMA standard)
• Typical: 88%
• Minimum: 80%
Computer Compatibility
PC (HDMI and VGA) and Macintosh compatible
Mode Resolution Refresh rate [Hz] Notes for Mac
VGA 640 x 480 60/75 60/75
SVGA 800 x 600 60/75/120*1 60/75
XGA 1024 x 768 60/75/120*1 *2 60/75
SXGA 1280 x 1024 60/75 60
WXGA 1280 x 768 60/75 -
WXGA 1280 x 800 60 60
WXGA 1366 x 768 60 60
WXGA+ 1440 x 900 60/75 -
SXGA+ 1400 x 1050 60 60
WSXGA+ 1680 x 1050 60 60
Specifications
13

PC (HDMI and VGA) and Macintosh compatible
Mode Resolution Refresh rate [Hz] Notes for Mac
HDMI,
YPbPr(via VGA port)
480i/480p 60 -
576i/576p 50
720p 50/60 60
1080i 50/60 -
1080p 24/50/60 60
*1 3D timing for TI DLP 3D
*2 Down-scaling from 1024x768 to 800x600 to fit the front-end output specification, and then up-
scaling into DPP6401
Lens
F#1.9, F=8.02 mm (at 60" screen)
Supported Multi-Media Formats
Photo Format
File Format Sub Type Encode Type Max Size
Jpeg / Jpg
Baseline
YUV420
6000 x 4000 =
24,000,000 pixel
YUV422
YUV440
YUV444
Progressive
YUV420
6000 x 4000 =
24,000,000 pixel
YUV422
YUV440
YUV444
BMP - - 6000 x 4000 =
24,000,000 pixel
1. Product Information
14

Video Formats
File Format Video Codec Decode Max.
Resolution
Max Bit Rate
(bps) Audio Codec Profile
MPG, MPEG MPEG1/2 1920 x 1080
30fps 30M bps MPEG1 L1-3,
LPCM -
AVI, MOV,
MP4, MKV H.264 1920 x 1080
30fps 30M bps
MPEG1 L1-3,
AAC, LPCM
BP(Baseline
Profile)/
MP(Main
Profile)/
HP(High
Profile)
AVI, MOV,
MP4 MPEG4 1920 x 1080
30fps 30M bps SP(Simple
Profile)/
ASP(Advance
d Simple
Profile)
AVI, MOV,
MP4 Xvid 1920 x 1080
30fps 30M bps
AVI MJPGE 1920 x 1080
30fps 30M bps BP(Baseline
Profile)
WMV VC-1 1920 x 1080
30fps 30M bps WMA8/9
SP(Simple
Profile)/
MP(Main
Profile)
Audio Formats
File Format Sample Rate (kHz) Bit Rate (kbps)
MP3 8-48 8-320
WMA 22-48 5-320
WMV (ADPCM-WAV) 8-48 32-384
WMV (PCM-WAV) 8-48 128-1536
AAC 8-48 8-320
M4A 8-48 8-320
Specifications
15

Office Viewer Formats
File Format Supported Version Page/Lines Limitation Size Limitation
Adobe PDF PDF 1.0, 1.1, 1.2, 1.3,
1.4
Up to 360 pages (One
File) Up to 32 MB
Microsoft Word
British Word 95 Because office viewer
does not load all pages
of MS/Word file at the
same time, there are
not obvious limitations
of page and line.
Up to 20 MB
Word 97, 2000,
2002, 2003
Word 2007(.docx)
Up to 30 MB
Word 2010(.docx)
Microsoft Excel
Excel 5, 95
Row Limit: up to 300(*)
Column Limit: up to
100(*)
Sheets: Up to 50(*)
Up to 14 MB
Excel 97, 2000,
2002, 2003
Excel 2007(.xlsx)
Excel 2010(.xlsx)
Office XP Excel
Microsoft PowerPoint
PowerPoint 97
Up to 100 pages (One
File) Up to 19 MB
PowerPoint 2000,
2002, 2003
PowerPoint
2007(.pptx)
PowerPoint
2010(.pptx)
Office XP PowerPoint
PowerPoint
presentation 2003 and
earlier (.ppx)
PowerPoint
presentation
2007 and 2010
(.ppsx)
1. Product Information
16

• (*) Row limit, column limit, and sheet limit can not appear in one Excel file simultaneously.
• Animations are not supported when viewing MS PowerPoint files.
• When projecting files, some documents may not be displayed the same as shown on the screen of
a PC.
Specifications
17

1. Product Information
18
