Digital power supply case (S800) assembly instruction
This case is suitable for RD6012/RD6012W/RD6018/RD6018W
Date: 2020.7.24
Dear users, thank you for purchasing the digital power supply accessory-metal case
produced by Hangzhou Ruideng Technology Co., Ltd. In order to let you know more about
the full function of this product, get a better experience and avoid misuse. Please read this
instruction carefully before assembly. Keep it for future reference.
ATTENTION: Since the assembly process involves voltage that exceeds the human body's
safety, non-professionals should not operate, you must do insulation and protective
measures during the assembly process, and check the wiring several times for safety, please
place the product at a place that children and old people cannot get.

声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。
2
目录|Content
Digital power supply case (S800) assembly instruction......................................................................1
1. Notes........................................................................................................................................3
2. Product Dimension..................................................................................................................3
3. Accessory List.......................................................................................................................... 4
4. Accessory Picture.................................................................................................................... 5
5. Assembly Procedure................................................................................................................6
5.1 Assembly Preparation................................................................................................... 6
5.2 Assembly step................................................................................................................6

声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。
3
1. Notes
● Read this instruction carefully before assembly, if you still have any questions, please
contact us.
Since the assembly process involves voltage that exceeds the human body's safety,
non-professionals should not operate, you must do insulation and protective measures during
the assembly process, don’t forget to check the wiring several times for safety, and place the
product at a place where children and old people cannot touch.
●This case is made of cold-rolled steel plate or Aluminum plate and the surface is sprayed.
When assembling and using, prevent it from scratching by sharp objects, and avoid direct
sunlight and humid environment.
● Avoid short circuit when assembling, connect the electrode correctly.
● NEVER connect the cables when you turn on the power.
● Try to avoid vibration and fall.

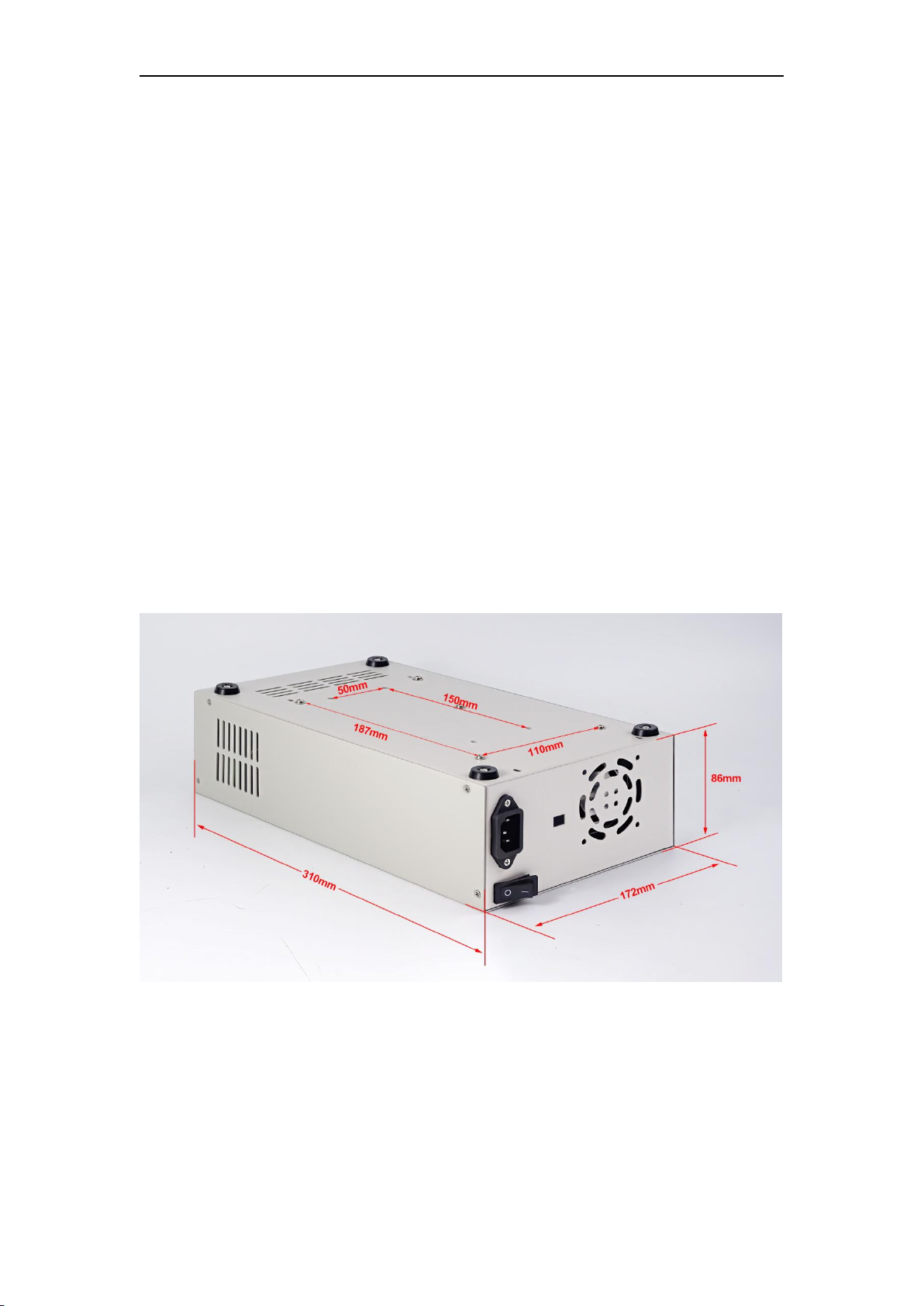

2. Product Dimension
Please use the switch power supply we recommend, the heat dissipation is provided by
the fan of the switch power supply, and if you use other power source, please check if the
heat dissipation is good enough, and check whether positions of fixing holes are suitable or
not.

声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。
4
3. Accessory List
NAME
SPECIFICATION
QUANTITY
Upper Board
S800 upper board
1
Lower Board
S800 lower board
1
Connection
Cables
Brown 32cm：1
Brown 10 cm：1
Yellow Green 32cm：1
Blue 32cm：1
Red 17cm： 2
Black 17cm： 2
Temperature sensor
extension board :1
9
Rocker switch
KCD3
1
AC power socket
AC-04
1
Non-slip mats
Φ13*4
4

声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。
5
Screws for fixing
mats, extension
board and
switch power
supply
M3*4 round head
11
Screws for fixing
case and AC
power socket
M3*6 flat head(white)
10
4. Accessory Picture

声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。
6
A: Lower Board
B:Upper Board
C: Screws for fixing mats, extension board
and switch power supply
D: Screws for fixing case
and AC power socket
E: Non-slip mats
F: Rocker switch
G: AC power socket
H: Connection Cables
5. Assembly Procedure
5.1 Assembly Preparation
● RD60XX digital power supply*1, S800 case*1, 65V800W switch power supply*1
● Tools, accessory (DC power supply, 3 pin plug cable, multimeter, screw driver, test pencil...)
● Proper assembly environment
5.2 Assembly step
Note: The case material is a bit soft and may be slightly deformed during transportation. If
there is a gap during the assembly, please straighten it before assemble it.
①Check the accessories: check if the accessories of S800 are same as accessories list or
accessory picture.
②Check RD60XX: Adjust input power supply to 12v/1A to power on RD6012, and set 5V/1A
output on RD60XX, turn on the output to see if the output is normal.
③Back board assembly: install the rocker switch and AC power socket on the lower board.
④Connect cables to switch power supply: (dangerous, non-professionals should not
operate)
Use long brown cable to connect the rocker switch and the live wire (L) of the switch power

声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。
7
supply; then use short brown cable to connect the rocker switch and the live wire (L) of the AC
power socket; Use the blue cable to connect the neutral wire (N) of AC power socket and the
neutral wire (N) of switch power supply; Use a yellow-green two-color cable to connect the
ground wire (E) of AC power socket and the ground wire (〨) of switch power supply. Use two red
cables to connect the IN+ of the green terminal and the positive electrodes (+V), and use two
black cables to connect the (IN-) of the terminals and negative electrodes (COM). Install the
temperature sensor extension board to the back panel.
⑤Assemble the switch power supply：Install the switch power supply on the lower
board

声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。
8
⑥switch power supply test:
Check the wring again and power on the switch power supply, and use test
pencil to check the power and insulation status. Then use multimeter to check if the
60V output is normal, then use screw driver to adjust the output of the switch power
supply to about 68V.
⑦RD60XX assembly：If you have CR1220 battery, please install the battery with the
positive side facing up, if you have WiFi module, please install it like what shows in
the picture. Install RD60XX to the front side in the correct way, otherwise it cannot
be installed properly, we make flame tight to prevent the RD60XX from shaking, if the
case is slightly deformed, you can gently bend the case to make it straight.

声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。
9
⑧Connect the rest cables: insert the external temperature sensor cable, insert the
green terminal and sort out the cables.
⑨Install the screws of the case

声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。
10
⑩ Install the foot pads.
⑪ If you need to use external temperature detect, you can insert the external temperature
sensor cable to be back end of the case, and do final test.
