Riden RD6018W User manual

声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。
1
Constant Voltage and Constant Current DC
Power Supply Instruction
Model: RD6006/RD6006W/ RD6012/RD6012WRD6018/RD6018W
Date: 2020.9.14
Dear users, thank you for purchasing the constant voltage constant current DC
power supply produced by Hangzhou Ruideng Technology Co., Ltd. In order to let you
know more about the full function of this product, get a better experience and avoid
misuse. Please read this instruction carefully before using it. Keep it for future
reference.
Note: This instruction is corresponding to firmware V1.30, the page and
operation may be different under different firmware versions, please pay attention
when using it. We do recommend you to download the latest firmware for better
experience.

声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。
2
Content
CONSTANT VOLTAGE AND CONSTANT CURRENT DC POWER SUPPLY INSTRUCTION..............................1
CONTENT.................................................................................................................................................... 2
1.1 TECHNICAL PARAMETER..........................................................................................................................4
1.2 CORE FUNCTION...................................................................................................................................5
1.3 PANEL INSTRUCTION..............................................................................................................................5
1.3.1 Front Panel................................................................................................................................5
1.3.2 Back Panel.................................................................................................................................6
1.4 OPERATION INSTRUCTION.......................................................................................................................7
1.4.1 Main Page................................................................................................................................. 8
1.4.2 Operation Introduction.............................................................................................................8
ANDROID APP INSTRUCTION.................................................................................................................. 14
2.1 MOBILE PHONE APP INSTALLATION.......................................................................................................14
2.1.1 APP Download........................................................................................................................ 14
2.2 INSTALLATION INTRODUCTION............................................................................................................... 14
2.2.1 APP Update.............................................................................................................................14
2.2.2 APP Interface Display..............................................................................................................14
2.2.3 APP Operation........................................................................................................................ 15
IOS APP INSTRUCTION.............................................................................................................................18
3.1 MOBILE PHONE APP INSTALLATION.......................................................................................................18
3.1.1 APP Download........................................................................................................................ 18
3.2 INSTALLATION AND OPERATION............................................................................................................. 18
3.2.1 APP Update.............................................................................................................................18
3.2.2 UI Instruction.......................................................................................................................... 18
3.2.3 APP Operation........................................................................................................................ 19
PC SOFTWARE INSTALLATION AND OPERATION INSTRUCTION.............................................................22
4.1 SOFTWARE DOWNLOAD....................................................................................................................... 22
4.1.1 Unzip Files...............................................................................................................................22
4.1.2 Unzip Files...............................................................................................................................22
4.2 SOFTWARE OPERATION........................................................................................................................ 23
4.2.1 Software Connection.............................................................................................................. 23
4.2.2 PC Software Operation Instruction.........................................................................................23
4.3 FUNCTIONS INTRODUCTION.................................................................................................................. 24
4.3.1 Basic Functions....................................................................................................................... 25

声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。
3
4.3.2 Calibration...............................................................................................................................25
4.3.3 Advanced Function................................................................................................................. 26
4.3.4 RS485 Multiple Devices Communication................................................................................26
4.3.5 Firmware Update....................................................................................................................27
4.3.6 Boot Logo Update...................................................................................................................28
4.3.7 Version Update Detection...................................................................................................... 29
4.3.8 Language Setting.....................................................................................................................30
4.3.9 About...................................................................................................................................... 30
APPENDIX.................................................................................................................................................32
APPENDIX 1: COMMON BATTERY VOLTAGE COMPARISON TABLE....................................................................... 32
APPENDIX 2: COMMON BATTERY VOLTAGE COMPARISON TABLE....................................................................... 33

声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。
4
1.1 Technical Parameter
Model
RD6006
RD6006-
W
RD6012
RD6012-
W
RD6018
RD6018-
W
Input voltage range
6-70.00V
Output voltage range
0-60.00V
Output current range
0-6.000A
0-12.00A
0-18.00A
Output power range
0-360W
0-720W
0-1080W
Input voltage measurement resolution
0.01V
Output voltage setting measurement
resolution
0.01V
Output current setting measurement
resolution
0.001A
0.01A
Battery voltage measurement
resolution
0.01V
Input voltage measurement accuracy
±(1%+5 digits)
Output voltage accuracy between
setting and measurement
±(0.3%+3 digits)
Output current accuracy between
setting and measurement
±(0.5%+5 digits)
Battery voltage measurement accuracy
±(0.5%+3 digits)
Automatic cut off current value when
charging
10mA
100mA
Output ripple typical
100mV VPP
250mV VPP@6A
Working temperature range
-10℃~40℃
External sensor Temperature detection
range:
-10℃~100℃/0℉~200℉
External sensor Temperature detection
accuracy:
±3℃/±6℉
Constant voltage mode response time
2ms（0.1A-5A Load）
Constant voltage mode
load regulation
±(0.1%+2 digits)
Constant current mode
load regulation
±(0.1%+3 digits)
Capacity measurement range
0-9999.99Ah
Energy measurement range
0-9999.99Wh
Capacity and energy statistical error
±2％
Buck working mode
Voltage drop >1V and >10%
Cooling fan start condition
Output voltage>40V
or Output
current>4A or
System
temperature>45℃
Output current>8A or
System temperature>45℃

声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。
5
Cooling fan shut down condition when
working
Output voltage <40V
and Output current
<3.9A and System
temperature <45℃
Output current <7.9A and System temperature
<45℃
Over temperature protection
System temperature >80℃
Screen brightness setting
0-5(6 level in total)
Screen
2.4 inch color HD display
Weight(with package)
About 0.58kg
About 0.61kg
About 0.68kg
Product dimension
167*81*65mm
167*81*69mm
Support USB communication
yes
Support WiFi communication
No
yes
No
yes
No
yes
1.2 Core Function
·Keypad + encoder potentiometer combination adjustment
·10 data groups for storage and call out
·Firmware update, support more functions later
·2.4 inch HD color display
·Dedicated terminal for battery charging
·Brand new PC software
·Support WiFi communication /USB communication
·Support Android/ IOS APP

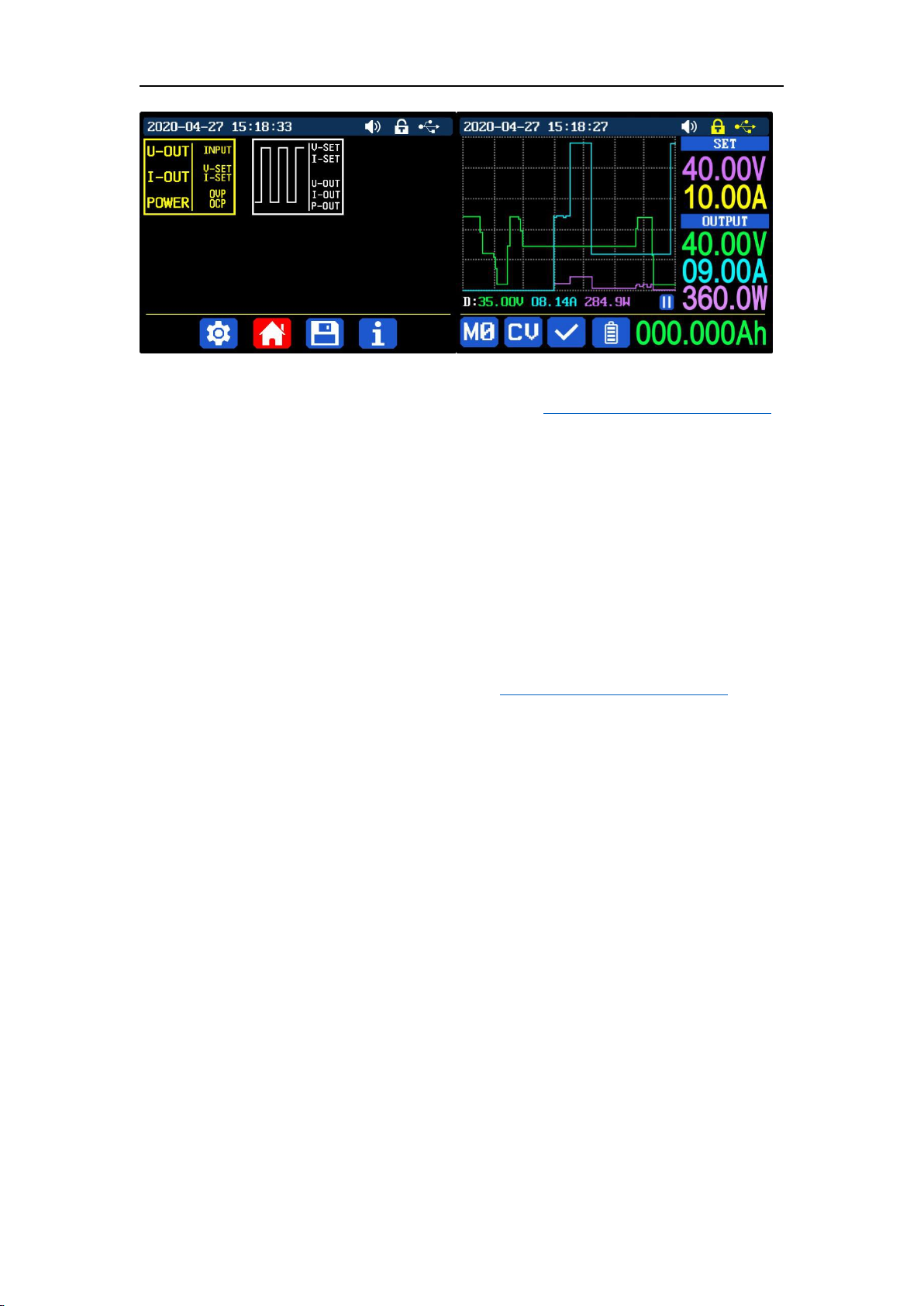

·Support multiple display interfaces
1.3 Panel Instruction
1.3.1 Front Panel

声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。
6
A: Power button
B: SHIFT Second function button
C: Quick storage button
D: Current/Over current protection setting
E: Voltage/Over voltage protection setting
F: Micro USB port
G: Power supply output negative terminal/
Battery charging negative terminal
H: Battery charging positive terminal
(Dedicated terminal for battery charging)
I: Power supply output positive terminal
J: Output switch
K: encoder potentiometer/Cancel button
L: Direction button
M: Enter/ Confirm button
N: keypad
O: Screen
1.3.2 Back Panel

声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。
7
P: Input fuse
Q: Output fuse
R: Power source input interface
S: External temperature sensor interface
T: CR1220 battery socket
U: Communication module interface
V: Fan interface
NOTE:
Power source input interface must be
connected to 6-70V constant DC power source. The
external sensor cable (as shown on right) must be
connected to the external temperature sensor
interface. The fan interface cannot be connected to
other fans. When the system temperature is higher than 80 ℃, the output will be
shut down and show OTP on the scrren. CR1220 is the clock battery (Please prepare
by yourself), it can power on the clock function. Communication interface is a special
interface, please don’t connect to other modules or cables.
You can see the Wi-Fi module and RS-485 module in the picture below. If you
need RS-485 for industrial batch test and it is not on sale now, if you want to use that,
please contact us.
1.4 Operation Instruction
After power-on, it will show boot image first, and then enters the main page.
We use RD6012 as example to introduce how to use it.

声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。
8
1.4.1 Main Page
W: Time
AF: Protection status indication
X: Button tune
AG: Battery charging indication
Y: Button lock status
AH: Battery related information display area
Z: Communication interface
AM: Input voltage
AA: Actual output voltage value
AL: Output voltage preset value
AB: Actual output current value
AK: Output current preset value
AC: Output power
AJ: Over voltage protection value
AD: Current data group
AI: Over current protection value
AE: Constant voltage Constant current
status
1.4.2 Operation Introduction
In the menu operation, the icon in red or cursor is the currently selected menu,
the icon in blue is not selected, press ENTER to confirm, press the encoder
potentiometer to cancel or return, press the direction button to move the cursor or
switch menu, rotate the encoder potentiometer to change the setting, the settings
will be automatically saved when returning from the menu page. Press and hold the
0 button and power on to restore the factory settings, press and hold the 1 button
and power on to restore the factory calibration value, press and hold ENTER and
power on to enter the boot mode.
1.4.2.1 Battery Charging Function Introduction
Battery charging operation video：https://youtu.be/irTbqfqtgU0
After power-on, at battery related information display area, external
temperature, capacity and energy will loop display. When there is output current:
capacity, energy automatically accumulated, and automatically cleared after
shutdown.

声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。
9
The green terminal is connected to the positive pole of the battery, and the
black terminal is connected to the negative pole of the battery. After the battery is
correctly connected, the battery charging indicator turns red and the battery is
connected. Press ON/OFF to start charging, the battery charging indicator turns
green. When the actual output current is lower than 0.1A (10mA for RD6006), the
output will be shut down automatically. Battery with protection board need to be
charged with red and black terminals. The charging voltage and current should be set
on your own. When the charging function is not in use, you can connect the green
and black terminals with a cable to prevent interference with the battery detection
terminal and accidentally turn off the output.
It is strongly recommended to use the original charger to charge the battery.
The charging function of this machine can only serve as a temporary replacement,
not for long-term use. There is a risk of fire and explosion during the charging
process. Non-professionals should not operate. (COMMON BATTERY VOLTAGE can be
check in Appendix 2.)
1.4.2.2 Main Page Output Voltage and Output Current Setting
Output voltage and current setting operation video：https://youtu.be/S6Kan66dNsk
Press “I-SET” button to set the output current value, you can use encoder
potentiometer to adjust the output value directly, press the direction button to move
the cursor. Of course you can use keypad to enter the value, and press “ENTER” to
confirm. If you set the wrong value, you can press encoder potentiometer to cancel.
Press “V-SET” button to set the output voltage value, the operation method is
similar to output current setting.
Press “SHIFT”+ “I-SET” button / “SHIFT”+ “V-SET” button to set the over current
protection/ over voltage protection value. The operation method is similar to output
current setting.
M0 is the default data group when RD6006 is powered on, manually modify the
settings will automatically be record to M0 after confirmation.
1.4.2.3 Data Group Quick Storage and Call out
Data group quick store and call out operation video：https://youtu.be/eo5saPjOGpo
Press “MEM”+ keypad button 1-9, you can store the output voltage value,
output current value, over voltage protection value, over current protection value
into the corresponding data group(as shown above), then press “ENTER” to confirm,

声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。
10
or press the encoder potentiometer to cancel.
Press “SHIFT”+ keypad button 1-9 to quick call out the saved data (as shown
above). Press “ENTER” to confirm, or press the encoder potentiometer to cancel.
1.4.2.4 Keypad lock and unlock
Keypad lock operation video：https://youtu.be/zxpmasJyQ6Y
Press “SHIFT”+”LOCK” to lock or unlock the keyboard. And the keypad will be
automatically locked when communication starts, there will be displayed on the
top (cannot unlock manually), and the keypad will be automatically unlocked when
the connection disconnected manually, there will be displayed, the keypad will
be automatically unlocked when the connection disconnected abnormally, and the
power off button can be used when the keypad is locked.
1.4.2.5 System Setting
System setting operation video：https://youtu.be/Q9d3rIgIrOc
Press “SHIFT”+”MENU” to enter the system setting menu as shown below, press
“ENTER” to enter the menu, press direction button to select option, the option in red
is the option be chosen, rotate the encoder potentiometer to change setting.
Turn on the “Take OK”, a
confirmation window will pop up when
you quick call out a data group. If you
turn it off, the setting values will be
modified directly when you call out a
data group.
Turn on the “Take out”, the output
will be turn on automatically when you call out a data group. If you turn it off, the
output will keep the previous status.
Turn on the “Boot Pow”, it will turn on the output automatically when start. If
you turn it off, the output will keep OFF status when started.
Turn on the “Buzzer”, you will hear button tune when press the button, and
there will be on the top. If you turn it off, there will not be button tune when
press the button, and there will be on the top.

声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。
11
Turn on the “Logo”, it will display Logo first and then enter the main page when
boot RD6006. If you turn it off, you will enter the main page directly.
The system language supports Simplified Chinese, English, German and France
for the time being; the screen brightness can be set from level 0 to level 5; The
communication interface can be set to USB, Wi-Fi or TTL, USB interface is the
Micro-USB interface on the front panel interface, you can see the on the top
when communication starts. Wi-Fi interface is the Wi-Fi module inserted to the
communication interface, you can see the on the top when communication
starts (connect mobile phone by Wi-Fi, WiFi function only support connection control
in LAN), TTL is not available for the time being; When the interface is changed, you
need to reboot RD6006 to apply the modification. The baud rate can be set to
9600/19200/38400/57600/115200 under USB mode; The Baud rate under Wi-Fi is
fixed at 115200. Device address can be set from 001-255. You can set the date and
time by rotating the encoder potentiometer, the setting will be saved immediately
after modification. Please do not set a wrong time, it may cause that the date will not
be automatically accumulated. Press the encoder potentiometer to return, and the
set value will be saved automatically. Upd.R. is the refresh rate of read back voltage
and current in the main page, you can set it to low, middle and high. We add output
power limit function, when you set that, the current will be adjusted automatically to
the value which multiply by set voltage value will not exceed the power limit, so that
it can protect the input PSU, it is recommended to set the output power value at
(rated power of PSU*95%). Press encoder potentiometer to return and save the
settings.

声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。
12
1.4.2.6 Main Page Display Style Setting
Main interface display style setting operation video：https://youtu.be/f51VDiY2VHE
You can press SHIFT + MENU to enter the system setting menu, and then press
the right button to enter the main page style setting menu as shown above. Press
ENTER and then use direction button to set classic style or curve style. The pattern in
red is the style being chosen. Press the encoder potentiometer to return and save
the settings. The classic style is the system default style, it shows the voltage, current
and power in large font. The curve style is as shown above, the color of the three
curves corresponds to the output voltage, current and power. D is the scale of the
ordinate, Press “ENTER” to start or pause the curve, and rotate the encoder
potentiometer to scale the ordinate of the curve.
1.4.2.7 Storage Data Setting
Data group setting in manual operation video：https://youtu.be/i1kTeurS13I
You can press SHIFT + MENU to enter the system setting menu, and then press
the right button twice to enter the data storage setting menu as shown below, press
ENTER to enter the setting menu, the icon in red is the chosen data group, press the
direction button to select data group number. Press “I-SET” button to set the storage
output current value, then rotate the encoder potentiometer the adjust the output
value, press the direction button to move the cursor. You can also set the value with
keypad, press ENTER to confirm. If you set the wrong value, you can press the
encoder potentiometer to cancel. Press “V-SET” button to set the storage output
voltage value, the operation method is similar to storage output current setting.
Press “SHIFT”+ “I-SET” button or “SHIFT”+ “V-SET” button to set the storage
over current protection/ storage over voltage protection value. The operation
method is similar to storage output current value setting. Press encoder
potentiometer to return, and the data will be automatically saved.

声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。
13
1.4.2.8 System Information
System information operation video：https://youtu.be/Um4NQObeeJE
You can press SHIFT + MENU to enter the system setting menu, and then press
the right button three times to enter the system information menu as shown above.
You can view the SN number, firmware version and system temperature here.

声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。
14
Android APP Instruction
2.1 Mobile Phone APP Installation
This App only supports Android 5.0 to Android 10.0 operating system, and there may be
incompatibilities problems between APP and operating system, please install and test the
software before buying the product. It will apply for location service, please agree and
turn on the location service. After downloading the mobile APP zip-file, please install
the APP in file manager. Don’t install or remove Wi-Fi module when the powered on,
otherwise it will be damaged. This instruction is made for version 1.1.2, there will be
little difference between different versions, and we do recommend you to download
the latest APP for better experience.
2.1.1 APP Download
You can download the APP in Google Play by searching RDPower.
You can also download the RD60XX APP zip-file in this URL:
https://drive.google.com/drive/folders/1V0l6P1sIJilN1yBOsTO9YGLVdkuO0cX9?usp=s
haring
2.2 Installation Introduction
After the installation, you can see the icon as shown below:
2.2.1 APP Update
Click the APP icon, After the APP starts, it will
automatically detect whether there is a new version,
and it will remind you by popping the window. You need
to check if there is a new version by manual detecting.

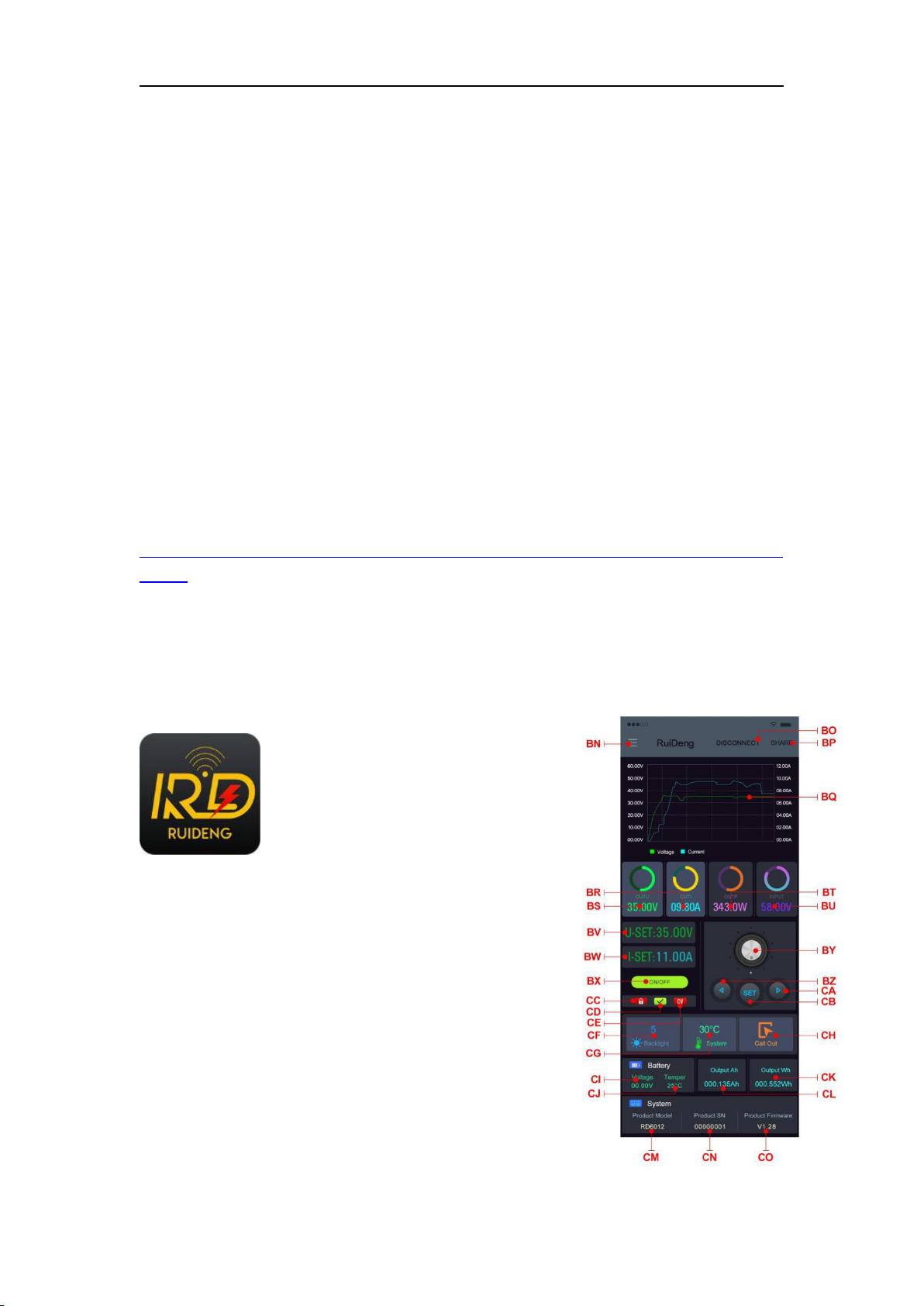

2.2.2 APP Interface Display
When finish the installation and succeed in connection, it
will show the main page as shown in the right picture.

声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。
15
BN: call out/ shut down sidebar
CB: set button
BO: connection button
CC: keypad lock indication
BP: export data to mobile phone folder
CD: protection status indication
BQ: data curve
CE: constant voltage/ constant current status
BR: actual output current
CF: screen brightness
BS: actual output voltage
CG: system temperature
BT: actual output power
CH: data group quick call out
BU: input voltage
CI: battery voltage
BV: preset voltage value
CJ: external sensor temperature detecting value
BW: preset current value
CK: accumulated output power
BX: ON/OFF button
CL: accumulated output capacity
BY: setting wheel
CM: model being connected
BZ: move the cursor to the left
CN: product SN number
CA: move the cursor to the right
CO: product firmware version
2.2.3 APP Operation
2.2.3.1 Network Distribution
Picture 3
Picture 4

声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。
16
Picture 5
Picture 6
Picture 7
Picture 8

声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。
17
Connect Wi-Fi for the first time, please insert the WiFi board to the right place,
then power on RD6012, you will see the blue LED blinks once. Set the
communication interface to WIFI, restart RD6012, then place the RD6012 and the
mobile phone close to the 2.4G router (the mobile phone must also be under the
same 2.4G network, and the router must disable the AP isolation function and the
WMM function).
RD6012 will wait for the phone to connect as shown in Picture 3. Press “BN” to
call out the sidebar, clicks on the “Network distribution” as shown in Picture 5, then
enter the WiFi password and confirm you are using 2.4G network as shown in Picture
6. After 10 seconds, the RD6012 will obtain the IP address of the mobile phone as
shown in Picture 4. Then click “Next”, fill in the WIFI password as shown in Picture 7,
click "CONFIRM" below, wait for about 20s, it will show success as shown in Picture 8,
then RD6012 will automatically restart, the distribution network is successful, return
to the main interface and click “BO”(Connection). If the distribution network fails,
please power off the module and re-operate in the same way (multiple networking
failures you can watch the video and try to use the hotspot of the mobile phone to
test). If you use Huawei brand phone, please turn off the random MAC address
function.
3.2.3.2 Proper Wi-Fi Connection
Android APP download and connection operation video:
https://youtu.be/QwyBEUCnp9c
When power on RD6012, it will connect Wi-Fi first, and then detect if it can be
connected to APP, and it may not be connected successfully if the phone is under
screen-lock status or the APP is running at the background. If the IP address of the
phone has changed, you need to press the “left direction” button and then press
“ENTER” button to reset the net, repeat 3.2.3.1 operation.
2.2.3.3 APP Operation
Android APP operation video: https://youtu.be/hqrF4keTfbE.
Click “BV” to set the output voltage, and use the wheel “BY” to adjust the value,
the “BZ”,“CA” to change the position of cursor, click “CB” to set the parameter. Click
“BP” to exports the voltage-current curve to excel file, up to 24 hours document can
be recorded.
NOTE:
1. There are many kinds of Android phone, so the user interfaces maybe
different on some brand phones or different scales of the same brand.
2. Application permission requirements, allow the necessary permissions when
the APP is installed (allow background running, using Bluetooth, operation on the
folder, reading the application list, etc.) and also set the permissions of the APP after
installation: Allow background running, never shut down when lock screen, allow
self-starting (it is used to prevent the system from forcibly exiting the APP when
recording data), etc.

声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。
18
IOS APP Instruction
3.1 Mobile Phone APP Installation
3.1.1 APP Download
IOS APP can only supports IOS10.0-13.4 system, please search “RDPower” in the
APP store to download, or search “RD6006” to find the APP ，and there may be
incompatibilities problems between APP and operating system.The software opened
under IOS13 will apply for location service for the first time. Please agree and open
the location in Settings-Privacy. Don’t install or remove Wi-Fi module when the
power is on, or else it will be damaged. This instruction is made for version 1.0.1,
there will be little difference between different versions, we do recommend you to
download the latest App for better experience.
3.2 Installation and Operation
IOS APP download and connection operation video ：https://youtu.be/nH2HYwop0TE
You can see the APP icon (as shown on the right) when finished
the installation.
The first time you start the APP, there will be prompt as shown
in Picture 10 if your mobile phone system is IOS13 or above, choose
“Allow when using APP”, if your system is under IOS13, you can see
the prompt as shown in Picture 11, please choose ”Wireless LAN and cellular mobile
network”.
3.2.1 APP Update
You can download the latest the software at APP store, this instruction is
corresponding to IOS APP version 1.0.9.
3.2.2 UI Instruction
You can see the user interface as shown in Picture 9.
AN: connection button
BA: system temperature
AO: export data to mobile phone folder
BB: data group
AP: data curve
BC: screen brightness
AQ: actual output voltage
BD: battery voltage
AR: actual output current
BE: external sensor temperature detecting value
AS: actual output power
BF: accumulated output power
AT: preset voltage value
BG: accumulated output capacity
AU: preset current value
BH: model being connected
AV: output ON/OFF button
BI: product firmware version
AW: protection status indication
BJ: product SN number
AX: battery status indication
BK: main page
AY: constant voltage/ constant current
status
BL: network distribution page

声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。
19
AZ: input voltage measurement value
BM: personal center
3.2.3 APP Operation
3.2.3.1 Network Distribution
Picture 9
Picture 10

声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。
20
Picture 11
Picture 12
Picture 13
Picture 14
Connect Wi-Fi for the first time, please insert the WiFi board to the right place,
then power on RD6012, you will see the blue LED blinks once. Set the
communication interface to WIFI, restart RD6012, then place the RD6012 and the
mobile phone close to the 2.4G router (the mobile phone must also be under the
same 2.4G network, and the router must disable the AP isolation function and the
WMM function).
RD6012 will wait for the phone to connect as shown in Picture 13. Press “BL” to
jump to the network distribution page and enter the password. Click “Initialization”
and wait about 20 seconds, RD6012 will obtain the IP address of the mobile phone as
shown in Picture 14. Then click “Configure Network”, wait about 30s, it will show
success on the APP, then RD6012 will start normally, the distribution network is
