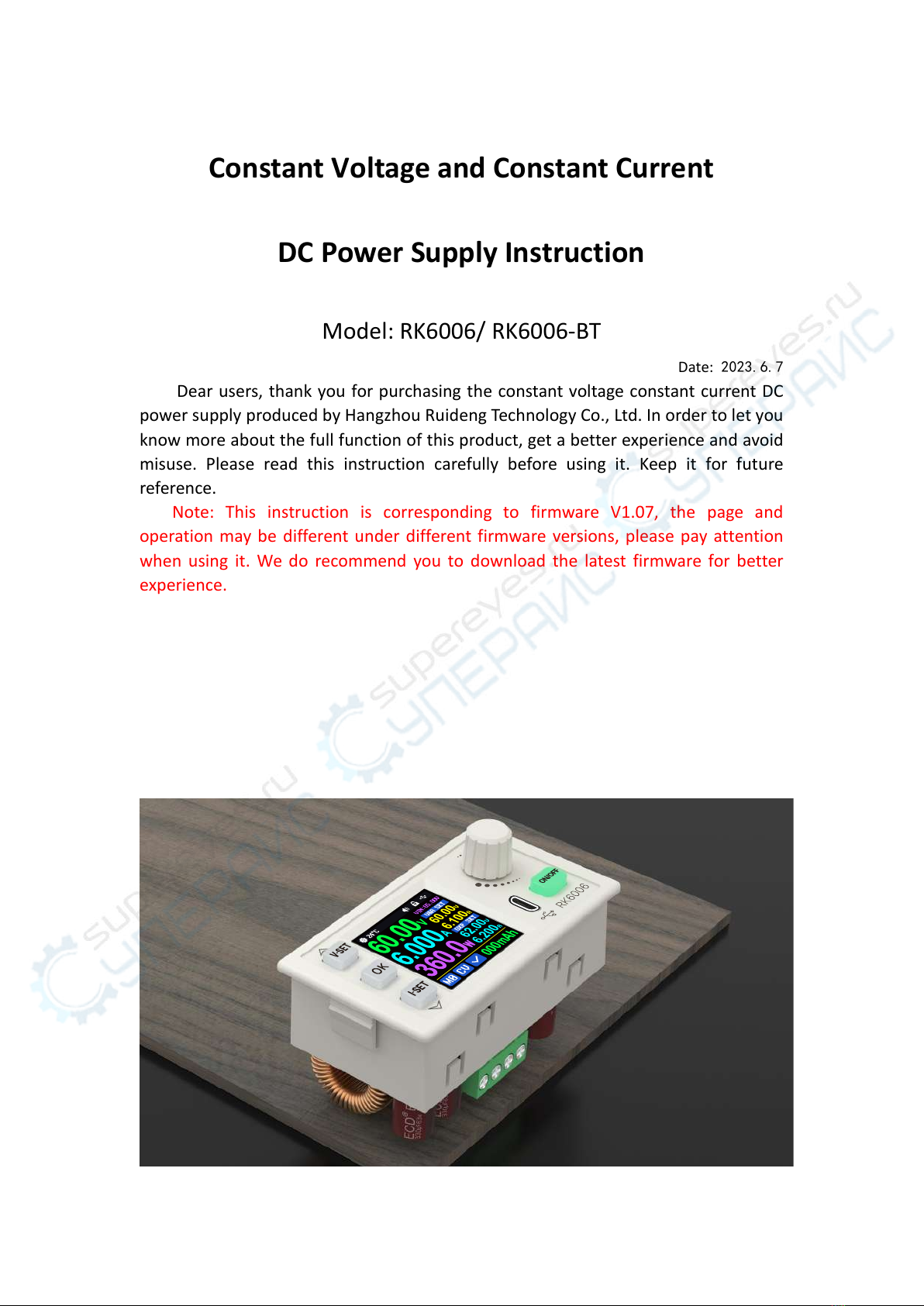

Riden RK6006 User manual

Constant Voltage and Constant Current
DC Power Supply Instruction
Model: RK6006/ RK6006-BT
Date: 2023.6.7
Dear users, thank you for purchasing the constant voltage constant current DC
power supply produced by Hangzhou Ruideng Technology Co., Ltd. In order to let you
know more about the full function of this product, get a better experience and avoid
misuse. Please read this instruction carefully before using it. Keep it for future
reference.
Note: This instruction is corresponding to firmware V1.07, the page and
operation may be different under different firmware versions, please pay attention
when using it. We do recommend you to download the latest firmware for better
experience.

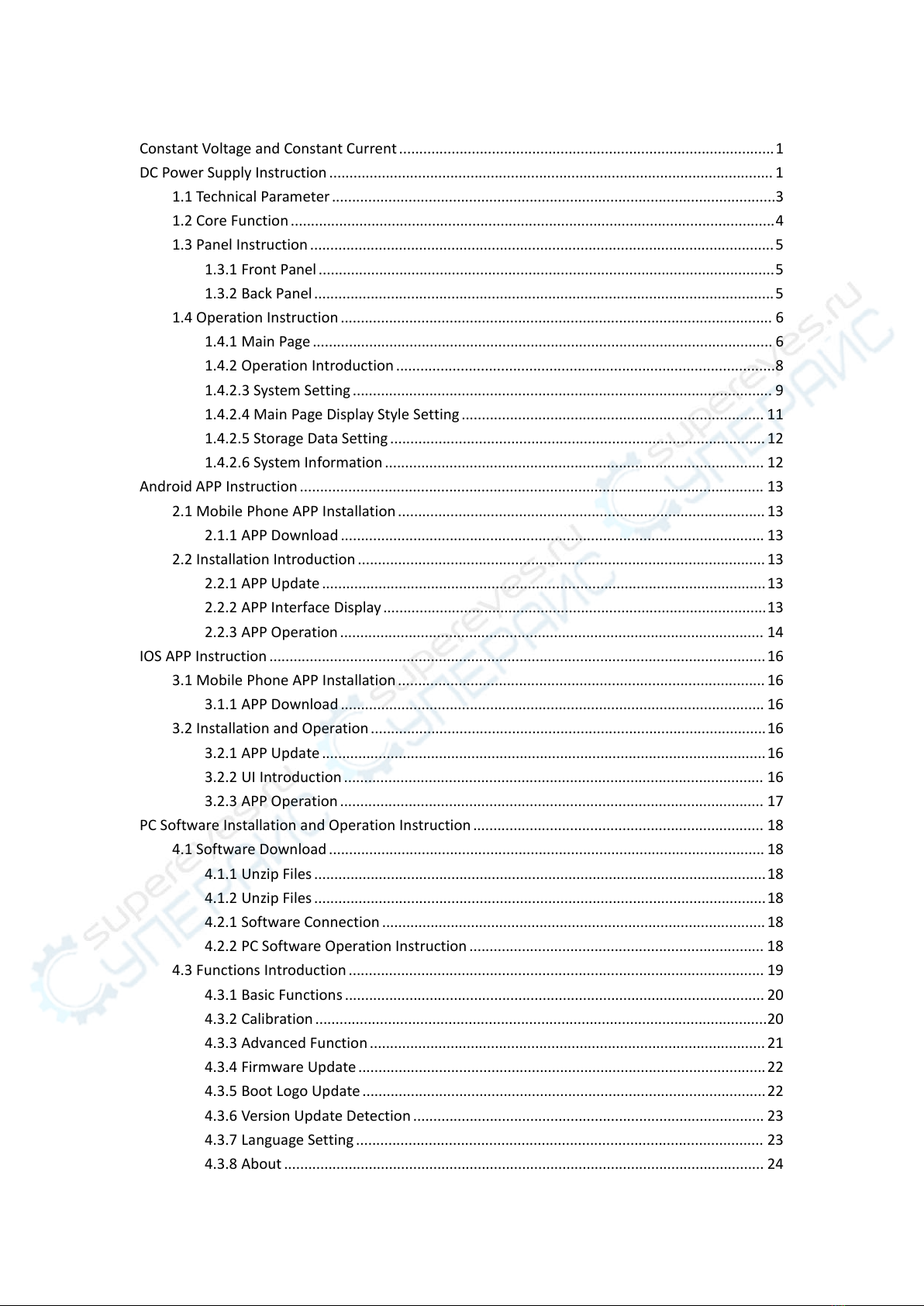

Constant Voltage and Constant Current.............................................................................................1
DC Power Supply Instruction .............................................................................................................. 1
1.1 Technical Parameter..............................................................................................................3
1.2 Core Function ........................................................................................................................4
1.3 Panel Instruction ...................................................................................................................5
1.3.1 Front Panel.................................................................................................................5
1.3.2 Back Panel..................................................................................................................5
1.4 Operation Instruction........................................................................................................... 6
1.4.1 Main Page.................................................................................................................. 6
1.4.2 Operation Introduction..............................................................................................8
1.4.2.3 System Setting........................................................................................................ 9
1.4.2.4 Main Page Display Style Setting ........................................................................... 11
1.4.2.5 Storage Data Setting.............................................................................................12
1.4.2.6 System Information .............................................................................................. 12

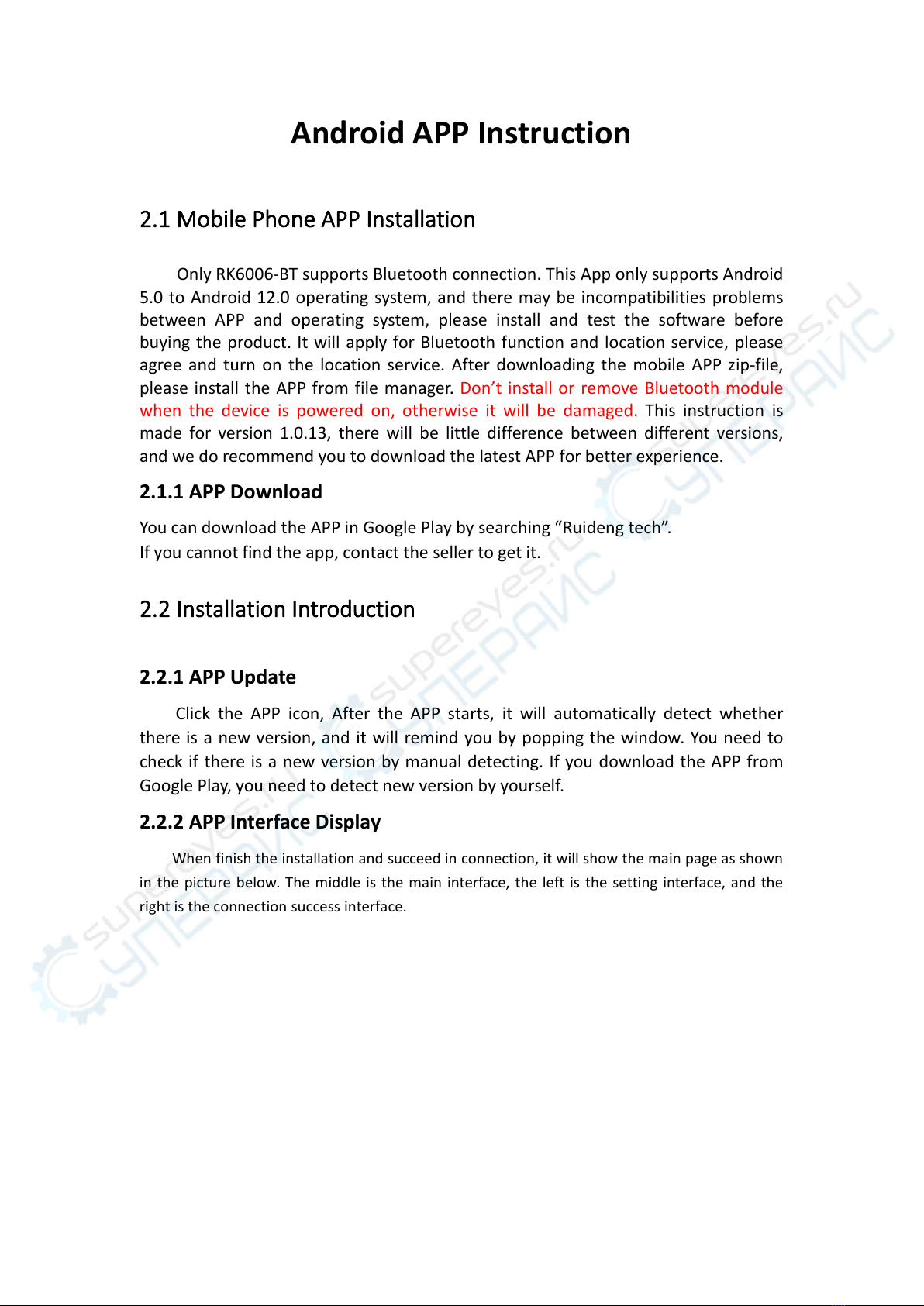

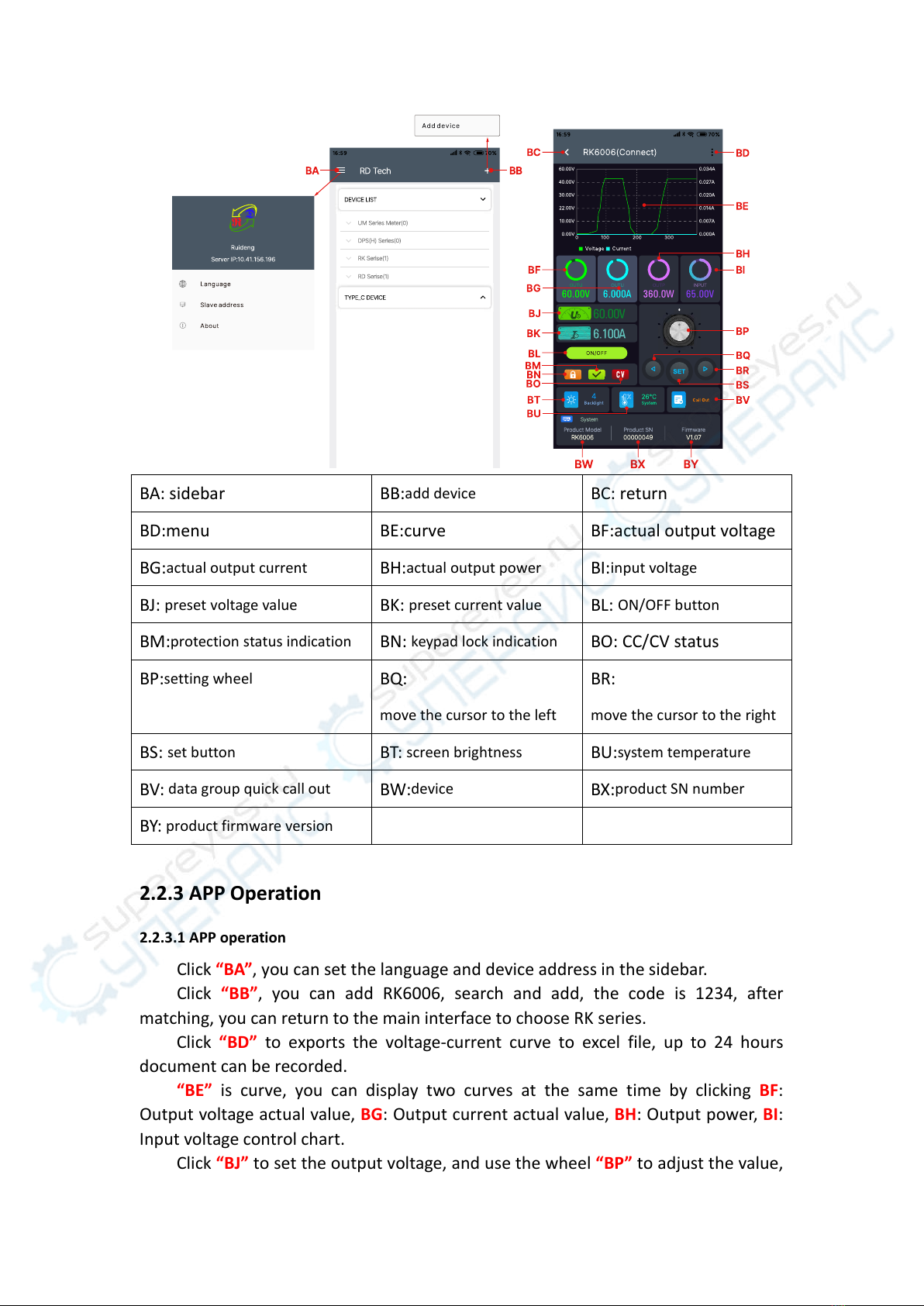

Android APP Instruction ................................................................................................................... 13
2.1 Mobile Phone APP Installation ...........................................................................................13
2.1.1 APP Download ......................................................................................................... 13
2.2 Installation Introduction..................................................................................................... 13
2.2.1 APP Update ..............................................................................................................13
2.2.2 APP Interface Display...............................................................................................13
2.2.3 APP Operation ......................................................................................................... 14

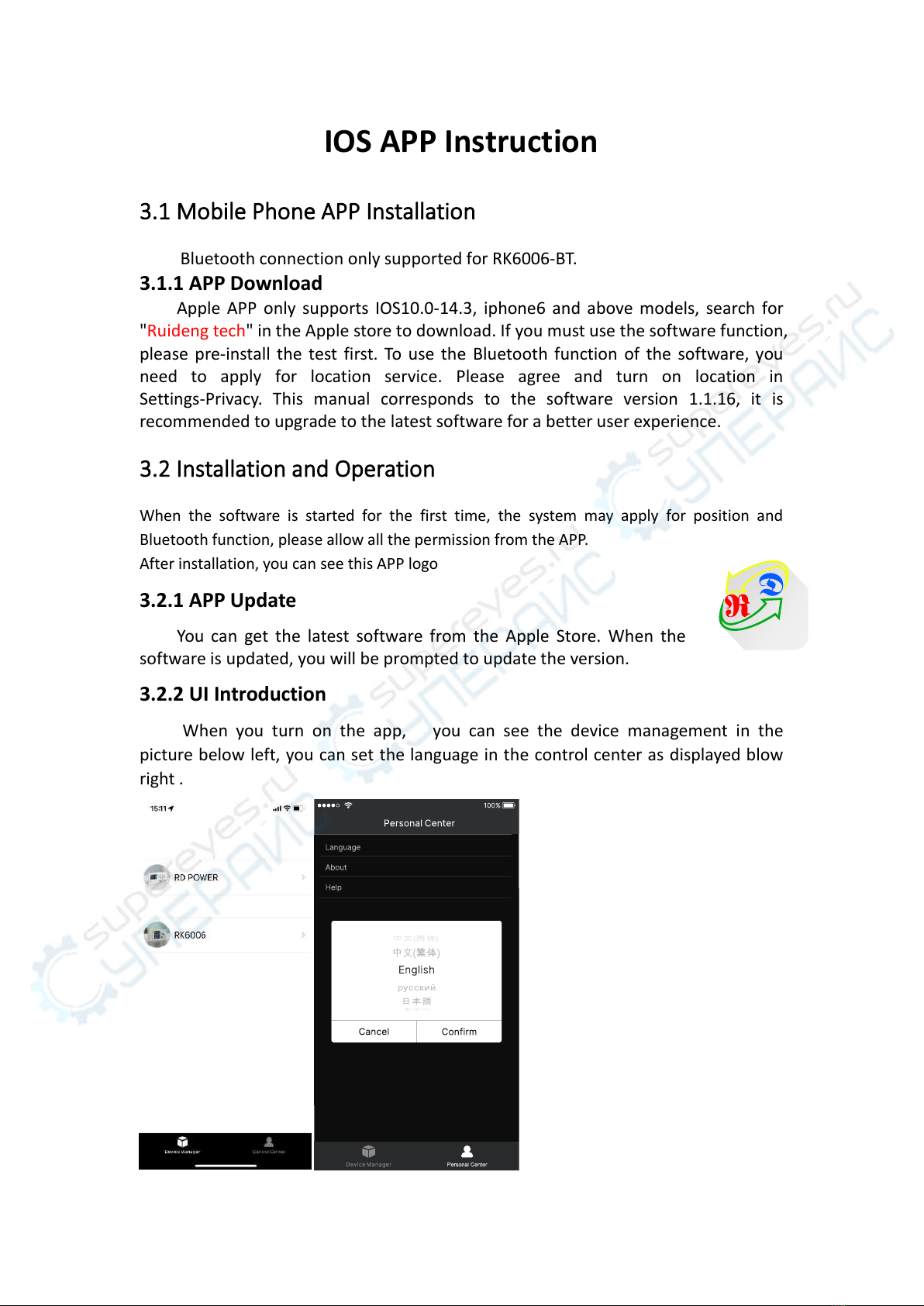

IOS APP Instruction ...........................................................................................................................16
3.1 Mobile Phone APP Installation ...........................................................................................16
3.1.1 APP Download ......................................................................................................... 16
3.2 Installation and Operation..................................................................................................16
3.2.1 APP Update ..............................................................................................................16
3.2.2 UI Introduction........................................................................................................ 16
3.2.3 APP Operation ......................................................................................................... 17

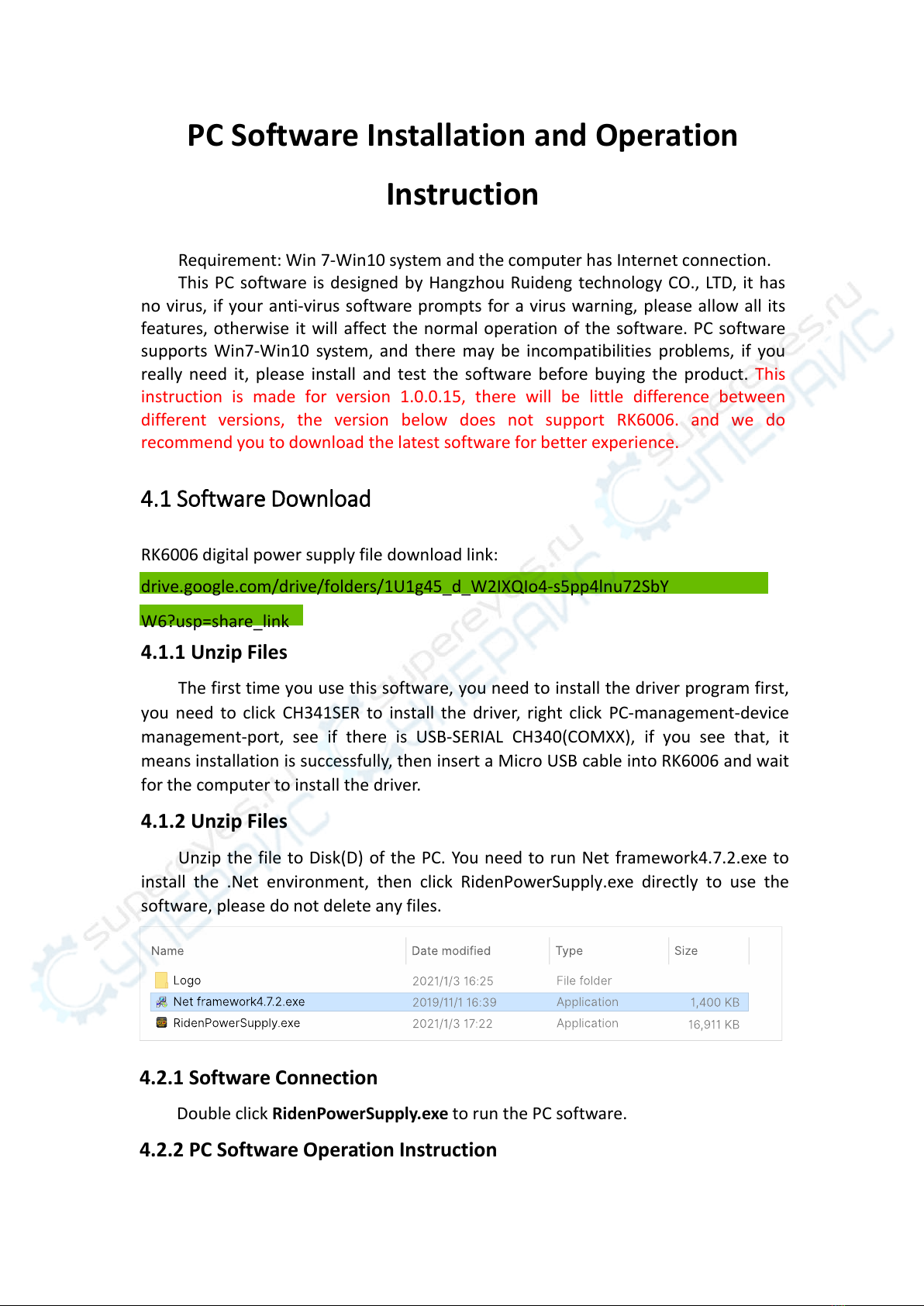

PC Software Installation and Operation Instruction........................................................................ 18
4.1 Software Download............................................................................................................ 18
4.1.1 Unzip Files ................................................................................................................18
4.1.2 Unzip Files ................................................................................................................18
4.2.1 Software Connection ............................................................................................... 18
4.2.2 PC Software Operation Instruction ......................................................................... 18
4.3 Functions Introduction....................................................................................................... 19

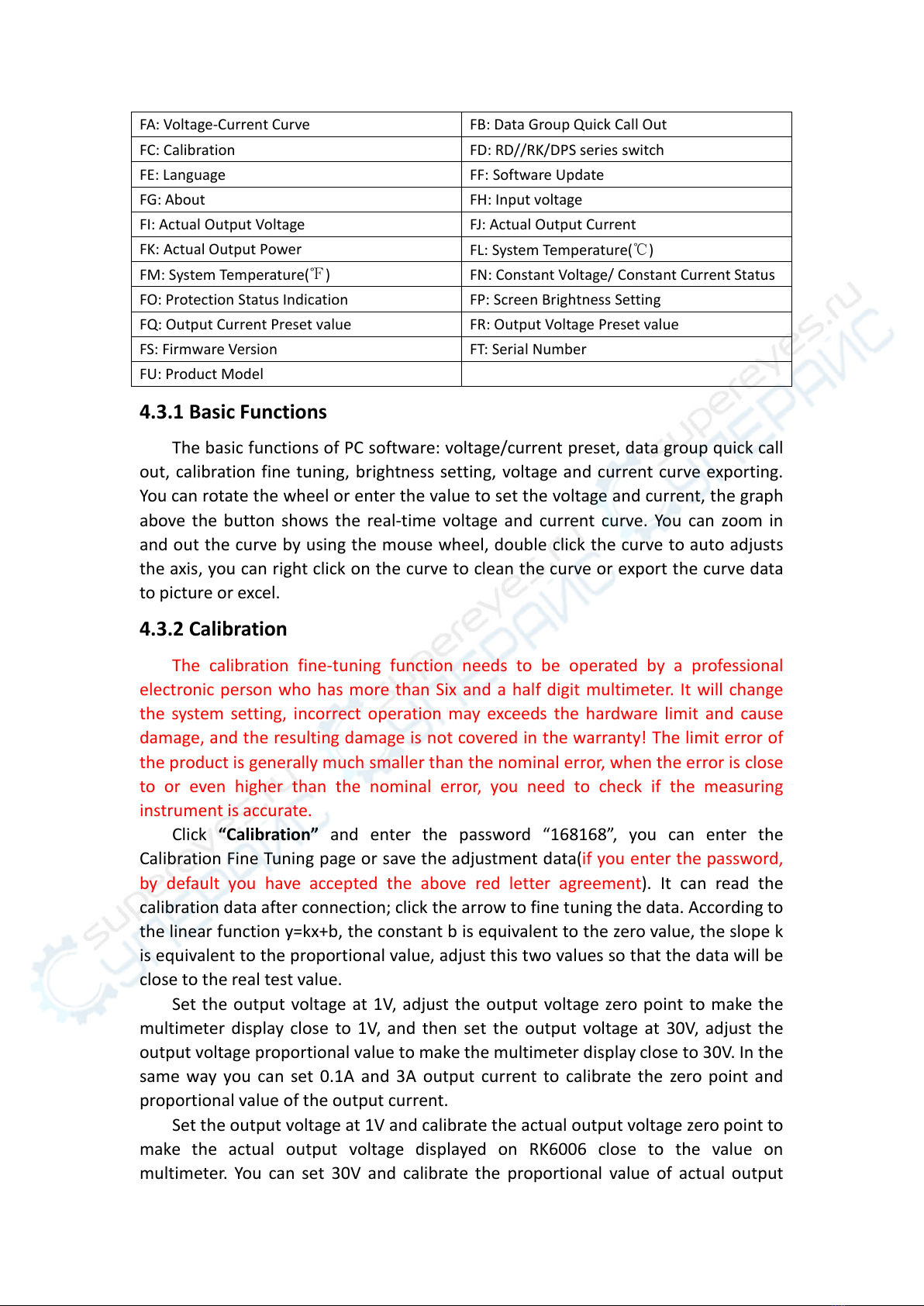

4.3.1 Basic Functions ........................................................................................................ 20
4.3.2 Calibration................................................................................................................20
4.3.3 Advanced Function ..................................................................................................21
4.3.4 Firmware Update.....................................................................................................22
4.3.5 Boot Logo Update....................................................................................................22
4.3.6 Version Update Detection....................................................................................... 23
4.3.7 Language Setting..................................................................................................... 23
4.3.8 About ....................................................................................................................... 24

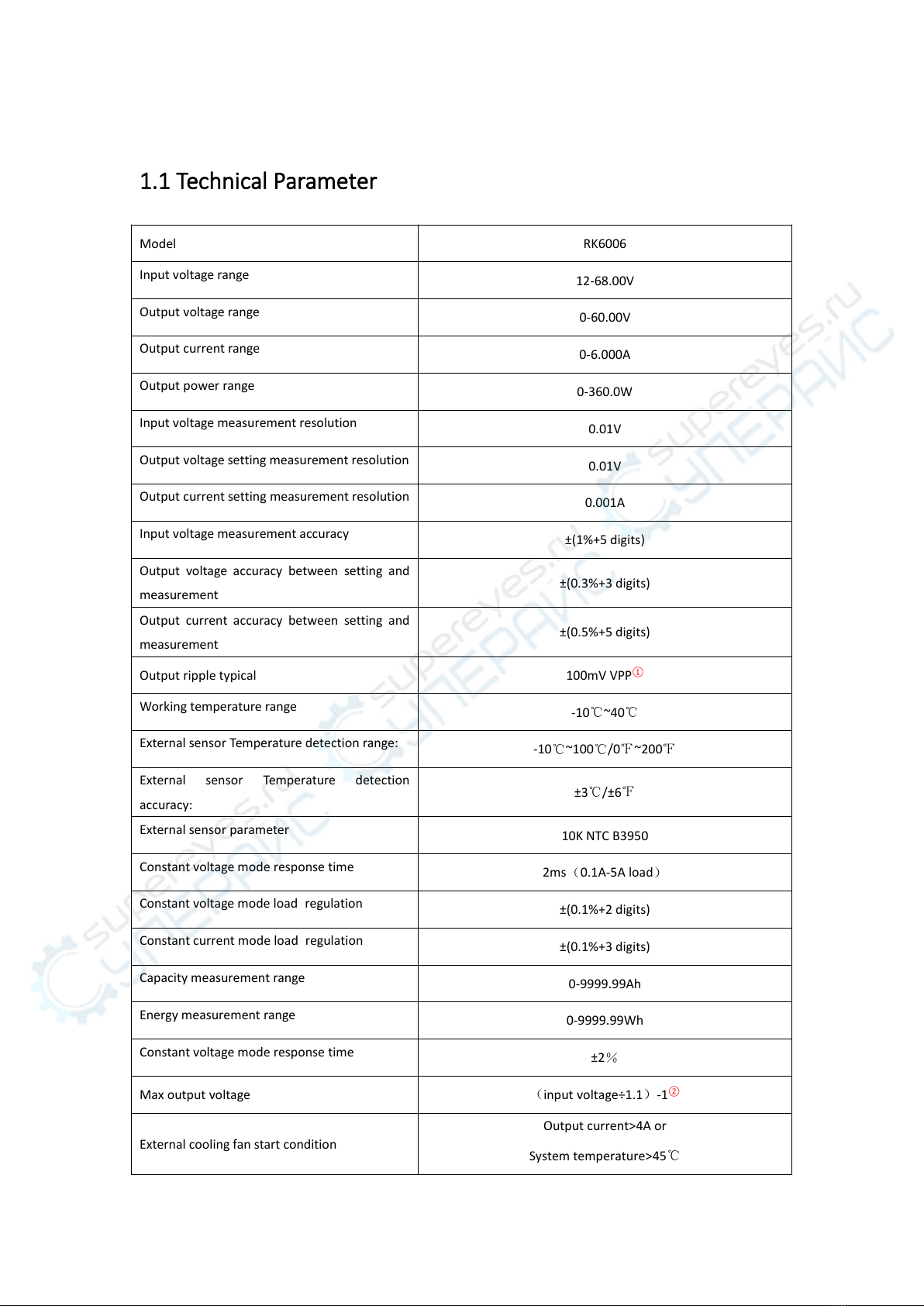

1.1 Technical Parameter
Model
RK6006
Input voltage range
12-68.00V
Output voltage range
0-60.00V
Output current range
0-6.000A
Output power range
0-360.0W
Input voltage measurement resolution
0.01V
Output voltage setting measurement resolution
0.01V
Output current setting measurement resolution
0.001A
Input voltage measurement accuracy
±(1%+5 digits)
Output voltage accuracy between setting and
measurement
±(0.3%+3 digits)
Output current accuracy between setting and
measurement
±(0.5%+5 digits)
Output ripple typical
100mV VPP①
Working temperature range
-10℃~40℃
External sensor Temperature detection range:
-10℃~100℃/0℉~200℉
External sensor Temperature detection
accuracy:
±3℃/±6℉
External sensor parameter
10K NTC B3950
Constant voltage mode response time
2ms（0.1A-5A load）
Constant voltage mode load regulation
±(0.1%+2 digits)
Constant current mode load regulation
±(0.1%+3 digits)
Capacity measurement range
0-9999.99Ah
Energy measurement range
0-9999.99Wh
Constant voltage mode response time
±2％
Max output voltage
（input voltage÷1.1）-1②
External cooling fan start condition
Output current>4A or
System temperature>45℃

Cooling fan shut down condition when working
Output current <3.9A and System temperature <40℃
Over temperature protection
System temperature >80℃
Screen brightness setting
0-5(6 level in total)
Screen
1.54 inch 240*240 color HD display
Weight(with package)
0.15kg
Product dimension
79*43*54mm
Support USB communication
yes
Support Bluetooth communication
Only RK6006-BT supports
①:Ripple measurement method: noise and ripple are measured at X1 range, AC coupling,
20 MHz of bandwidth on your oscilloscope with a 0.1uF parallel capacitor at the output terminals
②for example: input voltage is 24V，the max output voltage is 20.8V。

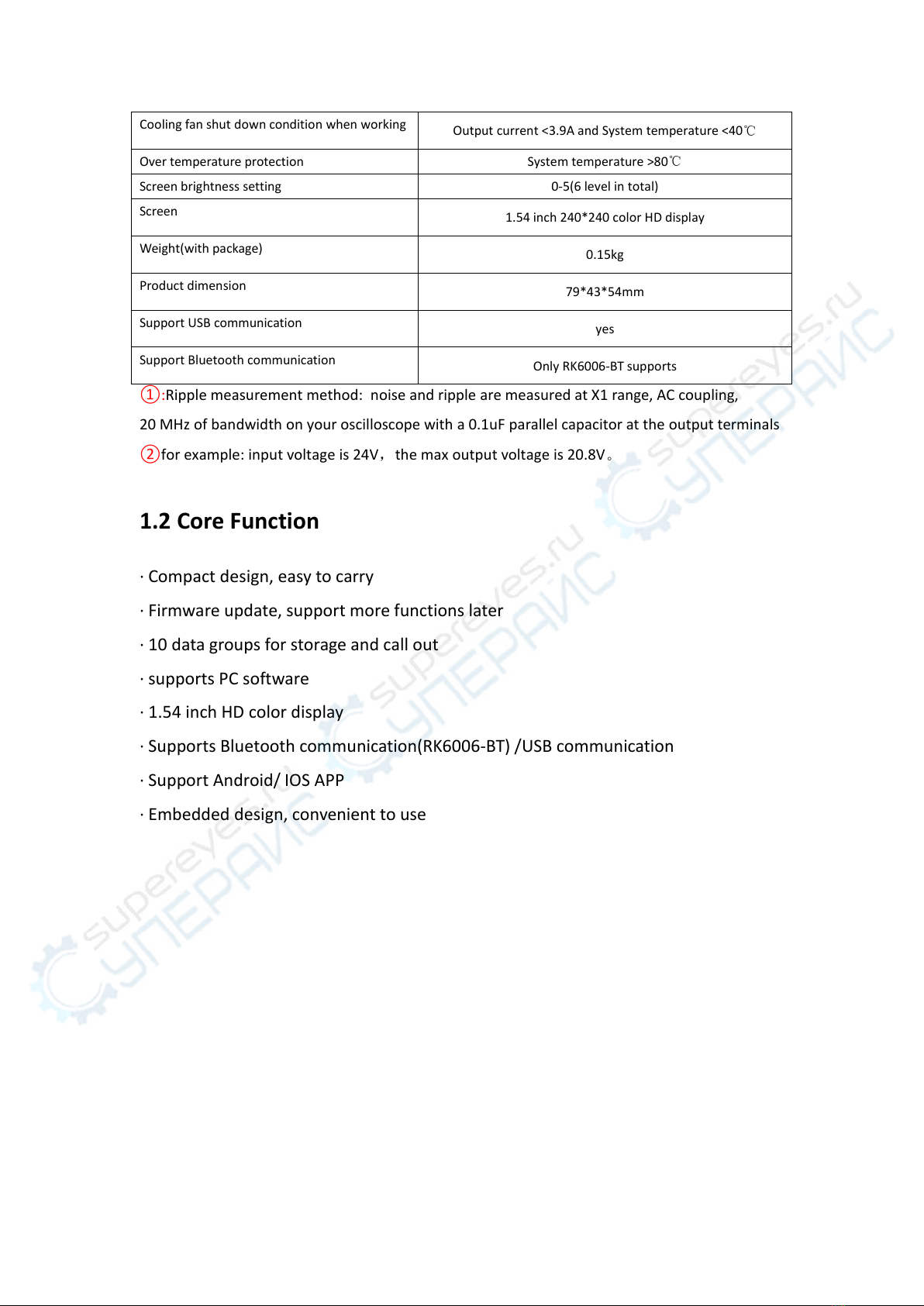

1.2 Core Function
· Compact design, easy to carry
· Firmware update, support more functions later
· 10 data groups for storage and call out
· supports PC software
· 1.54 inch HD color display
· Supports Bluetooth communication(RK6006-BT) /USB communication
· Support Android/ IOS APP
· Embedded design, convenient to use

1.3 Panel Instruction
1.3.1 Front Panel
A: Voltage setting/Up Arrow
B: Confirm Button/Set Menu
C: Current setting / Down Arrow
D: Encoder Potentiometer
E: Screen
F: Micro USB port
G: Output Power Button
1.3.2 Back Panel
H: External temperature sensor interface
I: External fan interface
J: Input fuse
K: Input and Output terminal
L: Output fuse
M: Communication module interface

NOTE:
This device input terminals must be connected to 12-68V
constant DC power source. When the input voltage is greater
than 72V, the output will be automatically turned off and an
alarm (as shown in the right picture) will be automatically
prompt. When the input voltage exceeds more, the product
will be directly damaged and cannot be repaired!
The external fan interface is set to 5V and the current is
limited to 200mA. When the system temperature is higher than 80℃, the output will
be shut down and show OTP on the screen. Communication interface is only for our
communication board, please don’t connect to other modules or cables.
1.4 Operation Instruction
After power-on, it will show boot image first, and then enters the main page.
1.4.1 Main Page
AA: Actual output voltage value
AB: Actual output current value
AC: Output power
AD: Current data group
AE: Constant voltage Constant
current status
AF: Protection status indication
AG: System temperature
AH: Loop display area
AI: Over current protection value
AJ: Over voltage protection value
AK: Output current preset value
AL: Output voltage preset value
AM: Input voltage
AN: Communication interface
AO: Button lock status
AP: Button tune

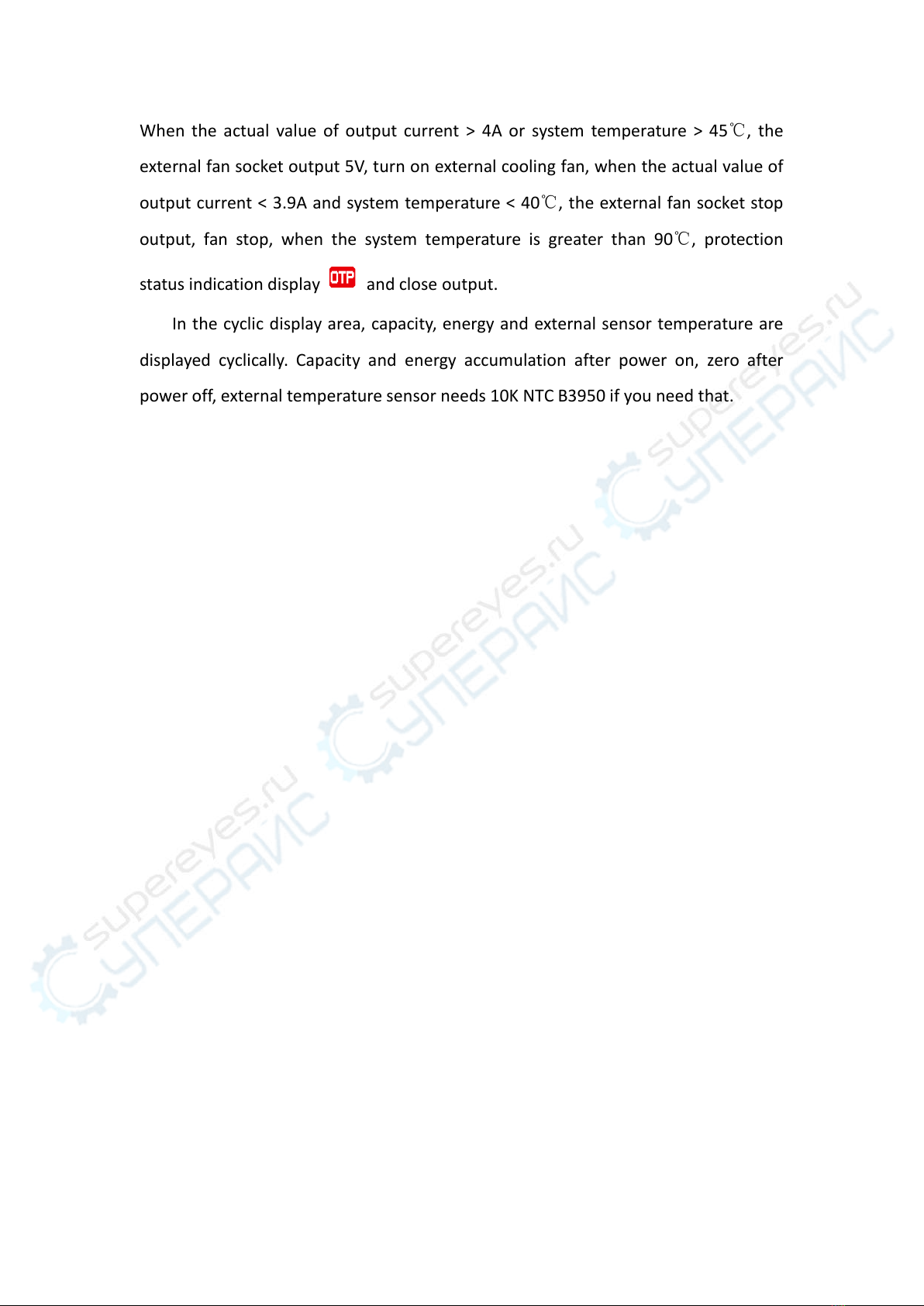

When the actual value of output current > 4A or system temperature > 45℃, the
external fan socket output 5V, turn on external cooling fan, when the actual value of
output current < 3.9A and system temperature < 40℃, the external fan socket stop
output, fan stop, when the system temperature is greater than 90℃, protection
status indication display and close output.
In the cyclic display area, capacity, energy and external sensor temperature are
displayed cyclically. Capacity and energy accumulation after power on, zero after
power off, external temperature sensor needs 10K NTC B3950 if you need that.

1.4.2 Operation Introduction
In the menu operation, the icon in red or cursor is the currently selected menu,
press the encoder potentiometer to switch the menu, press to confirm or enter,
press the direction button to move the cursor, rotate the encoder potentiometer to
change the setting, press the button again to save the setting. Press and hold
the button and power on to restore the factory settings, press and hold the
button and power on to restore the factory calibration value, press and hold
and power on to enter the boot mode.
1.4.2.1 Main Page Output Voltage and Current Setting Output voltage and current setting
operation video：youtube/C3qL3OIkNBo
Press button to set the output current value, you can rotate encoder
potentiometer to adjust the output value, or press the encoder potentiometer to
move the cursor.
Press button to set the output voltage value, the operation way is similar
to output current setting.
Long press button / button to set the over current protection/ over
voltage protection value. The operation way is similar to output current setting. If
you want to set the over current auto cut off function, your OCP value should be
higher than the Current setting value.
When the device is under constant voltage mode, it will show , and it will
show when under constant current mode; when the device works normally it
will show at protection status indication, when the actual output current value
is higher than the over current protection value(OCP), the output will be cut off
automatically, and show , when the actual output voltage value is higher than
the over voltage protection value(OVP), the output will be cut off automatically, and
show , when the system temperature is higher than 80℃, the output will be cut
off automatically, and show .

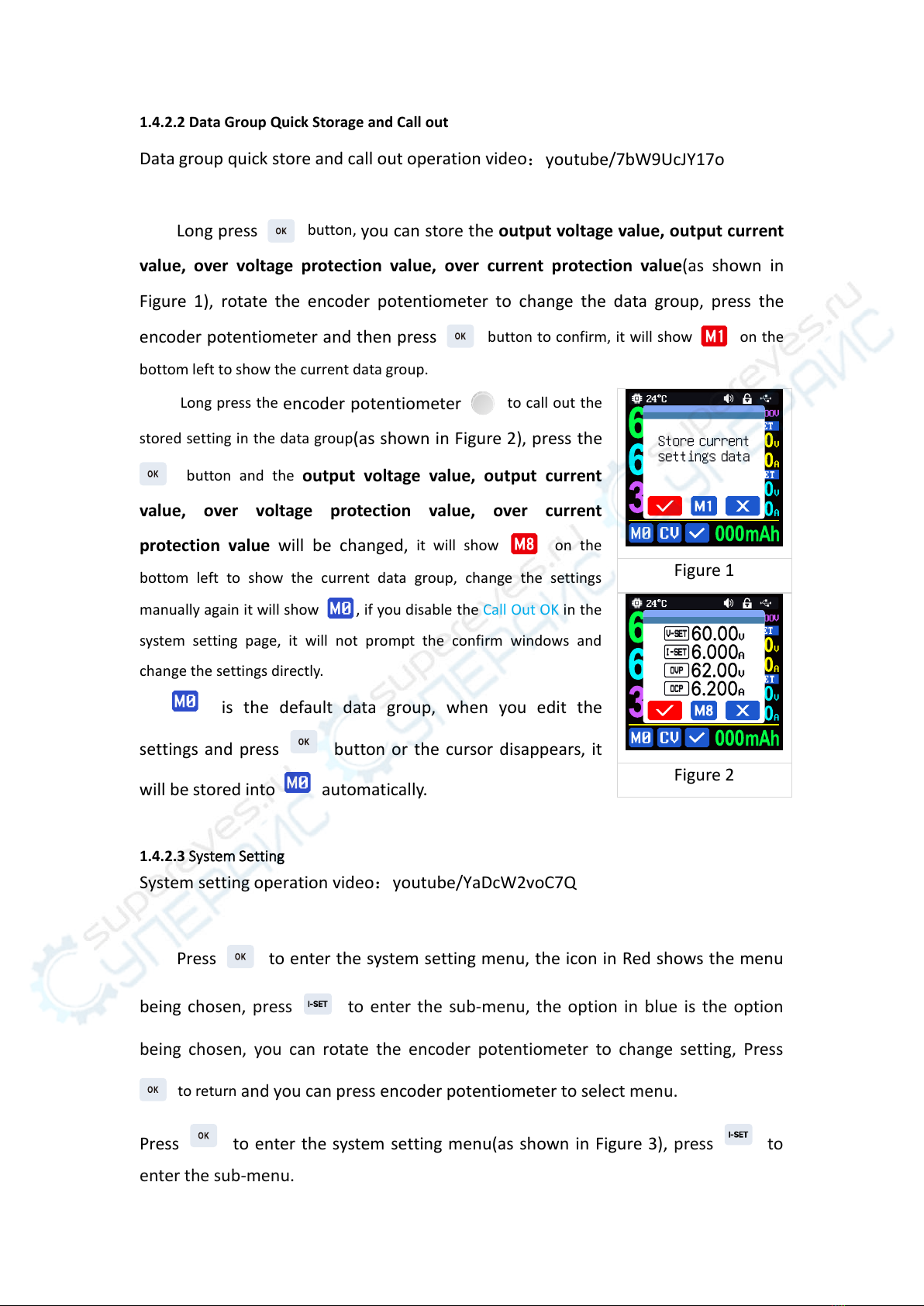

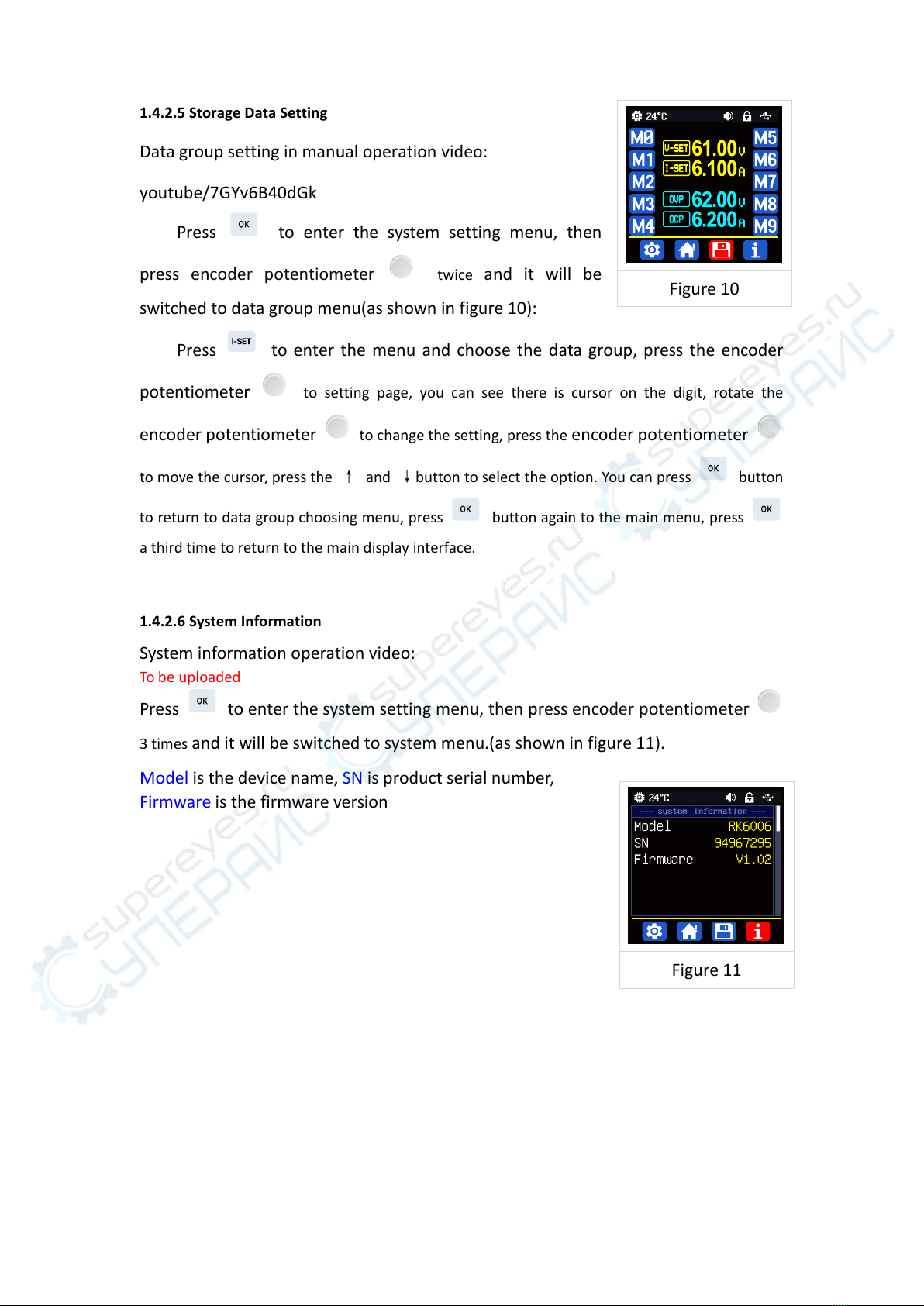

1.4.2.2 Data Group Quick Storage and Call out
Data group quick store and call out operation video：youtube/7bW9UcJY17o
Long press button, you can store the output voltage value, output current
value, over voltage protection value, over current protection value(as shown in
Figure 1), rotate the encoder potentiometer to change the data group, press the
encoder potentiometer and then press button to confirm, it will show on the
bottom left to show the current data group.
Long press the encoder potentiometer to call out the
stored setting in the data group(as shown in Figure 2), press the
button and the output voltage value, output current
value, over voltage protection value, over current
protection value will be changed, it will show on the
bottom left to show the current data group, change the settings
manually again it will show , if you disable the Call Out OK in the
system setting page, it will not prompt the confirm windows and
change the settings directly.
is the default data group, when you edit the
settings and press button or the cursor disappears, it
will be stored into automatically.
1.4.2.3 System Setting
System setting operation video：youtube/YaDcW2voC7Q
Press to enter the system setting menu, the icon in Red shows the menu
being chosen, press to enter the sub-menu, the option in blue is the option
being chosen, you can rotate the encoder potentiometer to change setting, Press
to return and you can press encoder potentiometer to select menu.
Press to enter the system setting menu(as shown in Figure 3), press to
enter the sub-menu.
Figure 1
Figure 2

Settings Sub-menu(figure 3,4):
System language is is set to English by default. You can
also set Simplified Chinese, French, Germany and Russian
language;
Take Out is set to OFF by default, when call out a data
group, it will keep the previous output status, when set it ON,
it will output directly when call out a data group.
Boot Power is set to OFF by default, when boot the device the output is cut off,
when set it on, it will automatically turn on the output after booting.
Boot Logo is set to ON by default, when boot the device, it will show the boot
logo first, then enter the main interface, when set it OFF, it will enter the main
interface directly.
Buzzer is set to ON by default,it will show on the top, and you can hear the
beep when press the button. When set it OFF, it will show ,
there will not be beep when press the button.
Backlight is set to level 4 by default, it can be set between
level 0-5.
Update Rate is set to Low by default, you can set it
S(low)/M(middle)/H(high), it is the fresh rate of the real output
voltage and current.
Max Power is set to 380W by default, you can set it
between 0-380W, it is the max output power. The max output is
default voltage priority mode, when the setting voltage*setting
current is higher than the max power, the device will
automatically decrease the output current setting value. When
used together with low power power source, it is recommended
to set the value as the rated power of the power source*95%.
Temperature unit is ℃by default, it can be switched between ℃and ℉(figure
4);
Rotate is default 0, you can set it 90, 180, 270, after setting the display will rotate
Figure 3
C
。
Rotate
Temperature
Max Power
Update Rate
Backlight
Buzzer
S
Settings
24°C
4
0
380W
Figure 4
Figure 5
