Riello UPS MASTER HP User manual
UNINTERRUPTIBLE POWER SUPPLY
MASTER HP - UL
55 – 100Ah BATTERY CABINET
User Manual
0ML190480RUENUC page2/24
RPSSpA
VialeEuropa7
37045Legnago(VR)Italy
www.riello‐ups.com
0ML190480RUENUC page3/24
TABLE OF CONTENTS
SECTION 1..................................................................................................... 3
INTRODUCTION........................................................................................................................................................3
SECTION 2..................................................................................................... 5
SAFETYWARNINGS.................................................................................................................................................5
SECTION 3..................................................................................................... 8
BATTERYCABINETSETUP...................................................................................................................................8
FLOORLOAD‐CARRYINGCAPACITY................................................................................................................8
CLEARANCES...............................................................................................................................................................8

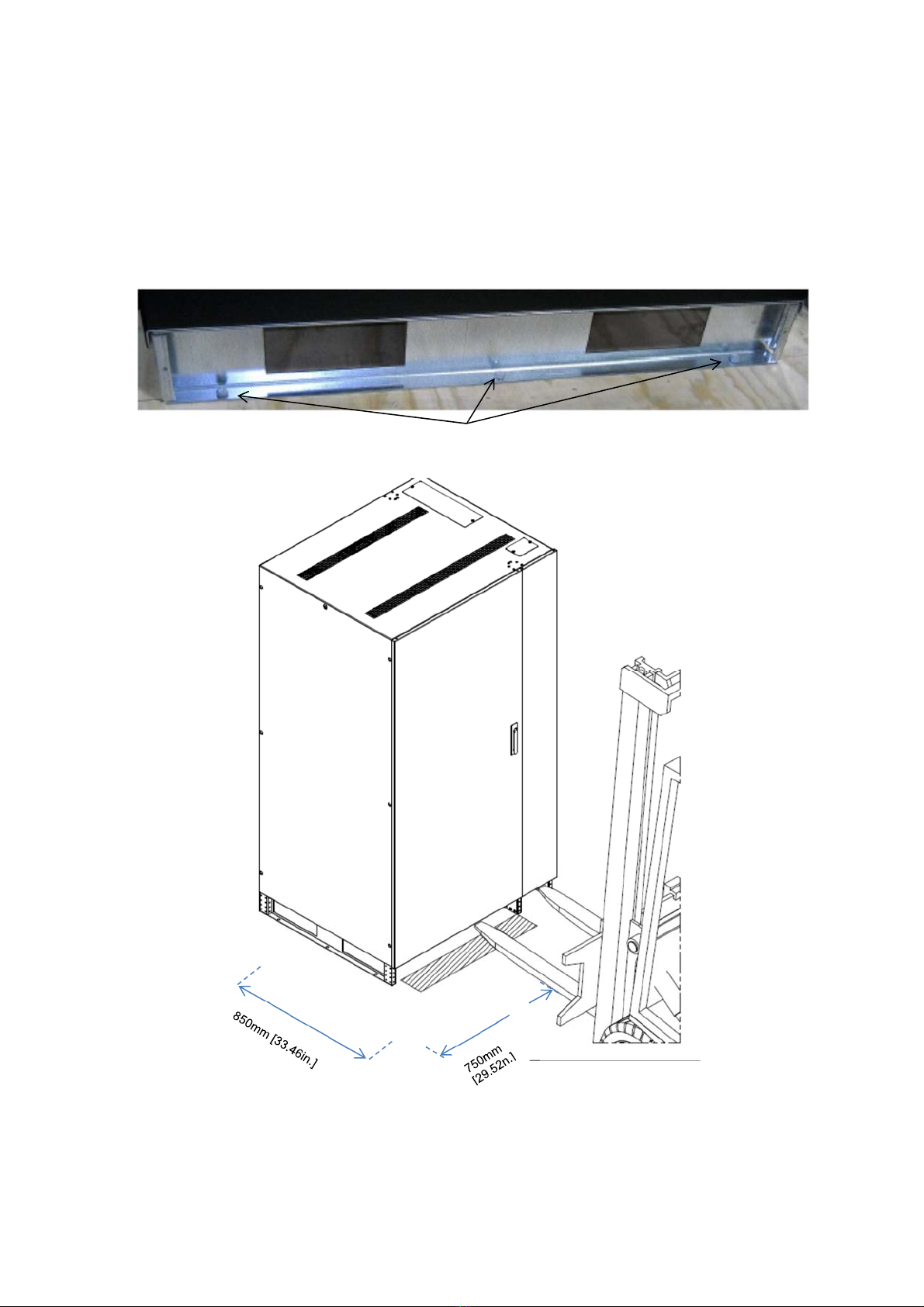

HANDLINGTHECABINET(unloadingandtransporting).......................................................................8
INSPECTINGTHEEQUIPMENT........................................................................................................................10
SECTION 4................................................................................................... 11
INSTALLATIONANDASSEMBLYOFBATTERYBLOCKS.......................................................................11
BATTERYASSEMBLYMODE..............................................................................................................................11

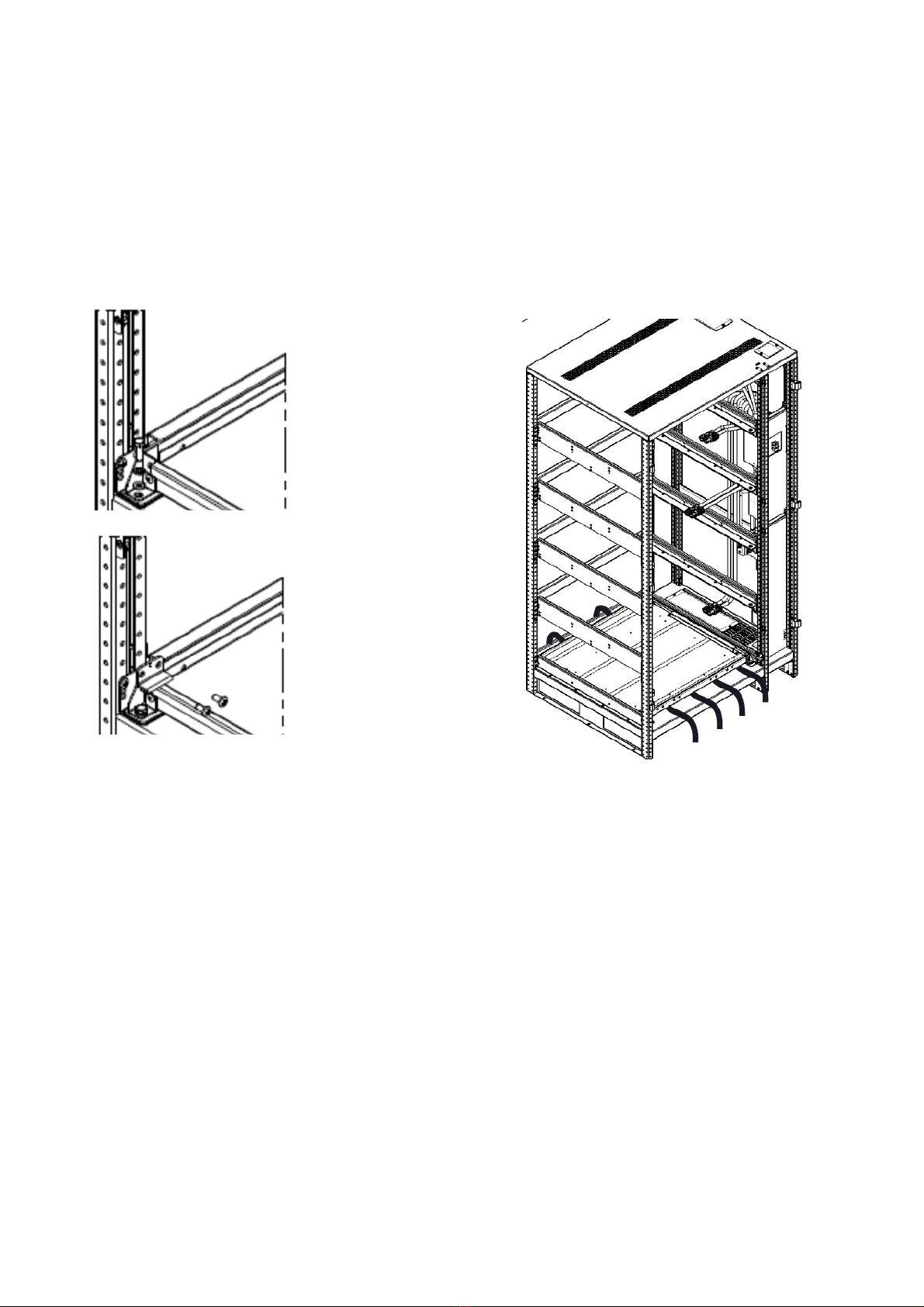

REMOVETRAYS.......................................................................................................................................................12

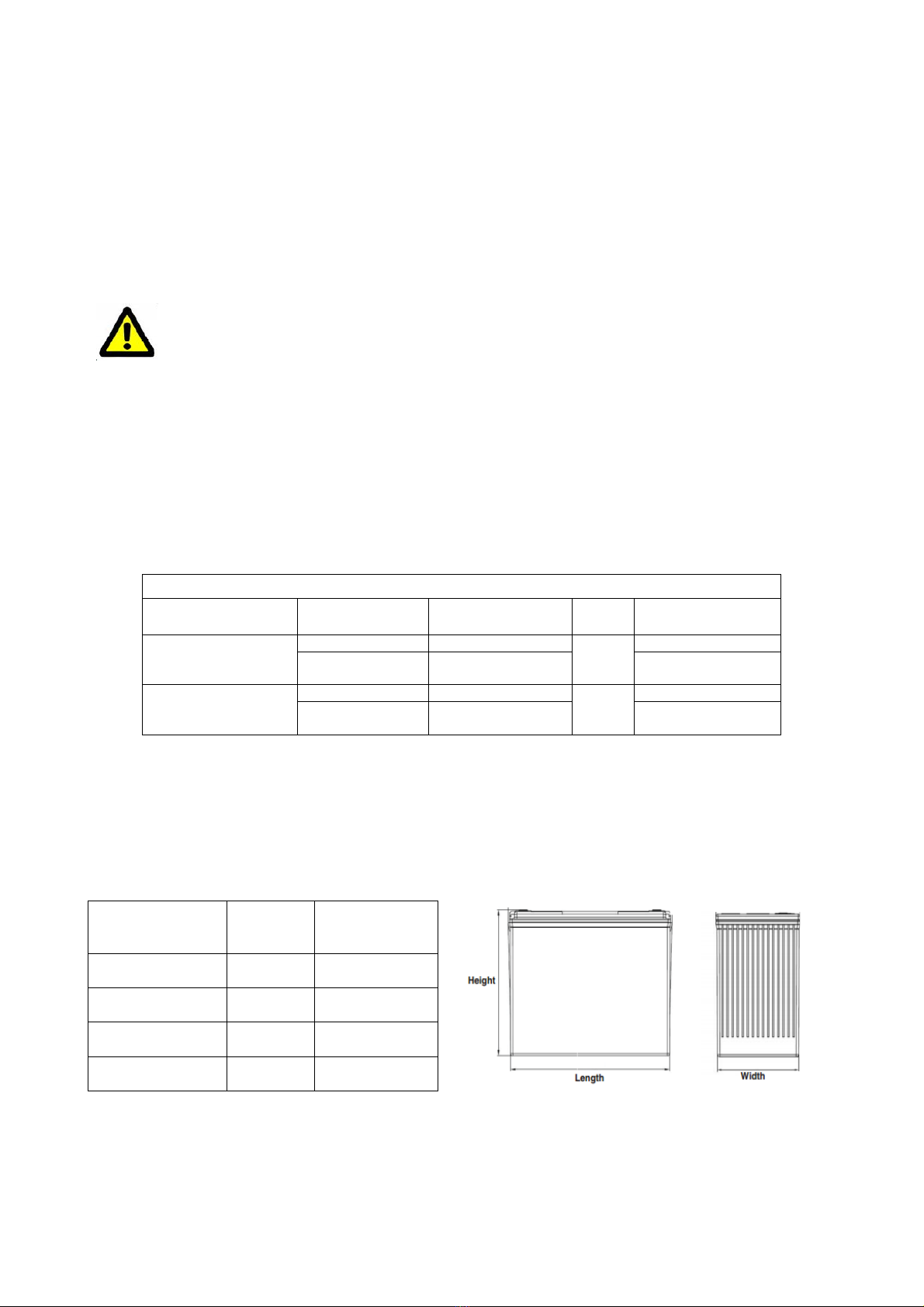

POSITIONINGANDINSTALLINGBATTERIES............................................................................................12

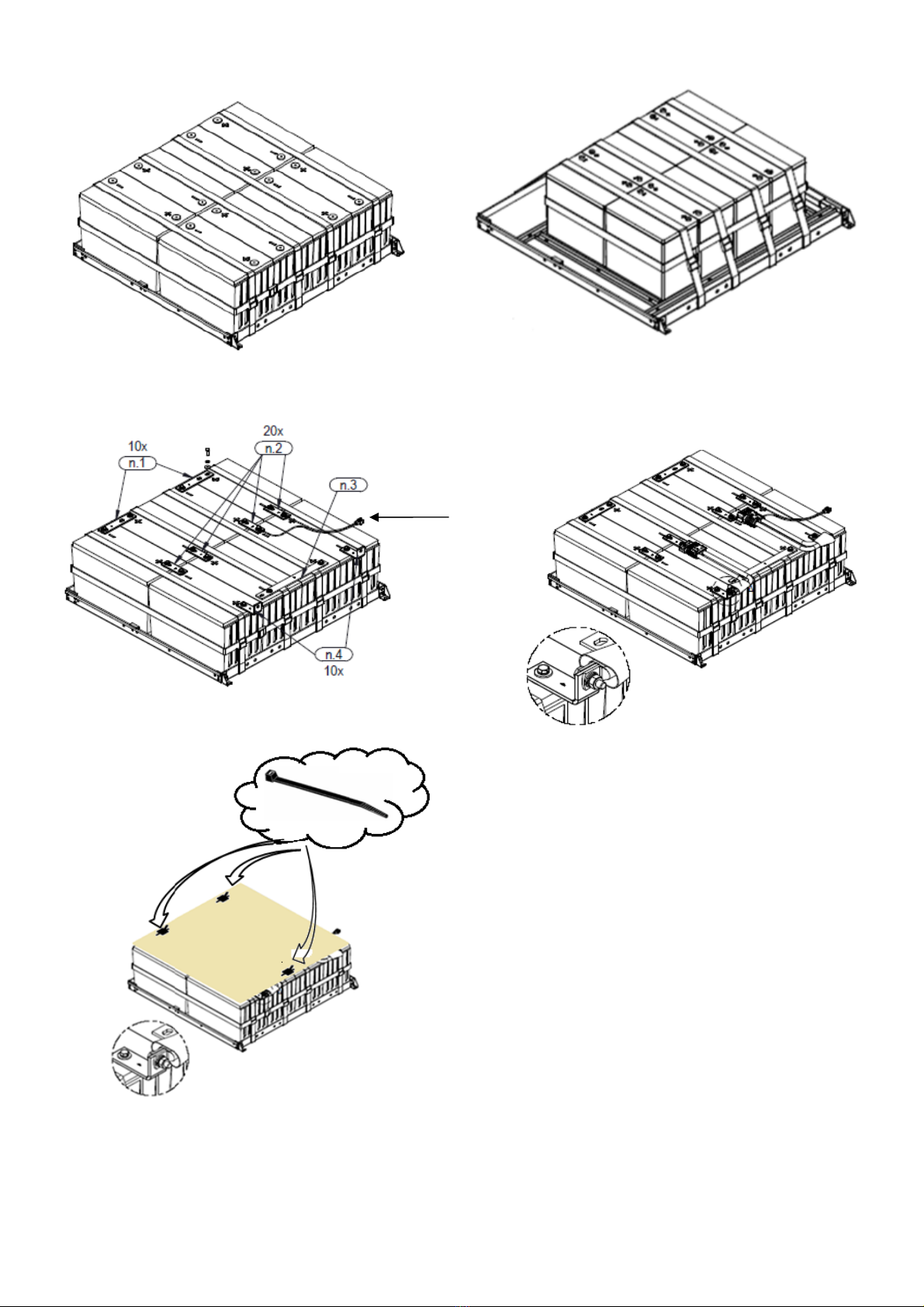

TRAYASSEMBLYPROCEDURE.........................................................................................................................13

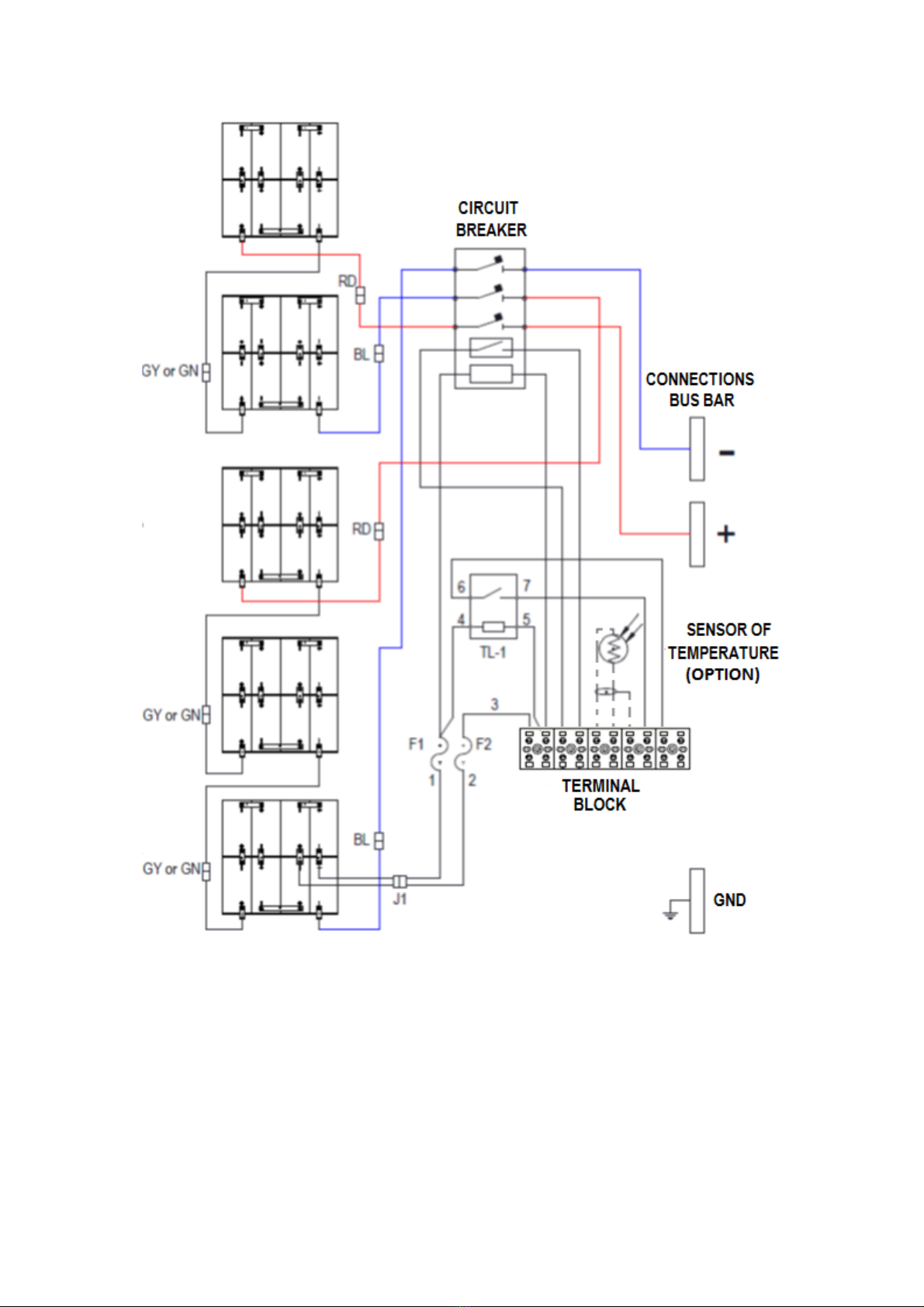

CONNECTIONBETWEENTHETRAYS...........................................................................................................15
SECTION 5................................................................................................... 19
CONNECTIONTOUPSSYSTEM.........................................................................................................................19
POWERCABLECONNECTION...........................................................................................................................19
AUXILIARYCABLESCONNECTIONS(OPTION).........................................................................................22
SECTION1
INTRODUCTION
The BBX battery cabinet is used along with the Uninterruptible Power Supply (UPS), series MHT, to prevent
loss of valuable electronic information and minimize equipment downtime. During brownouts, blackouts, and
other power interruptions, batteries provide emergency power to safeguard operation.
0ML190480RUENUC page4/24
This manual is intended to describe all steps for installing the battery cabinet, starting from the empty
cabinet as it is presented without battery blocks installed.
This manual cover the versions.
BBX 1900 480V UL L6 3U : 55 Ah Rated Voltage 480Vdc (240 cells 40x 12Vdc blocks) OCP 200
A (Circuit breacker provided ). Suitable for up to 80kVA MHT UPS
BBX 1900 480V UL L8 3U : 100 Ah Rated Voltage 480Vdc (240 cells 40x 12Vdc blocks) OCP 300
A (circuit breaker provided). Suitable up to 160kVA MHT UPS, up to
500kVA with 2 or more strings

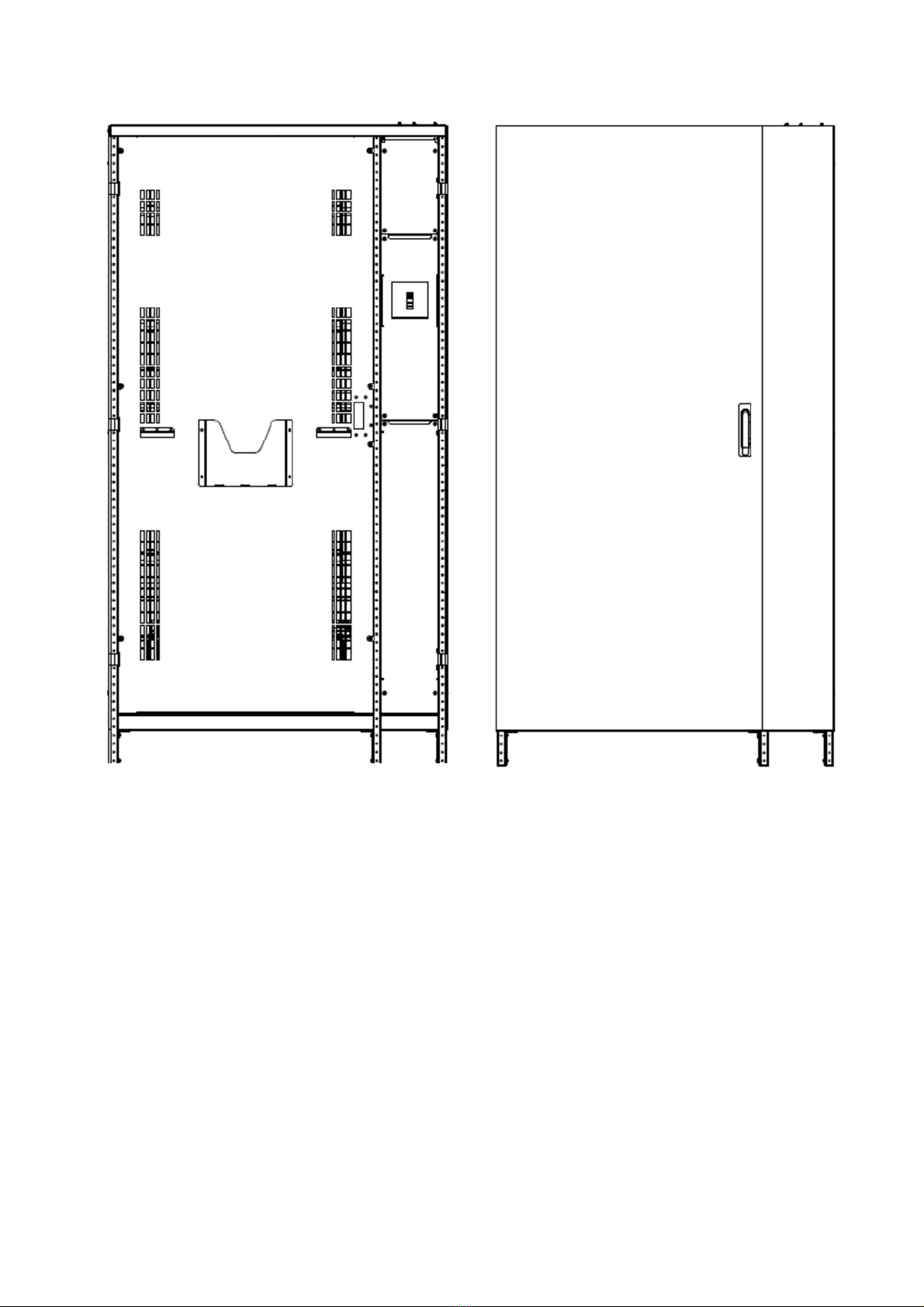

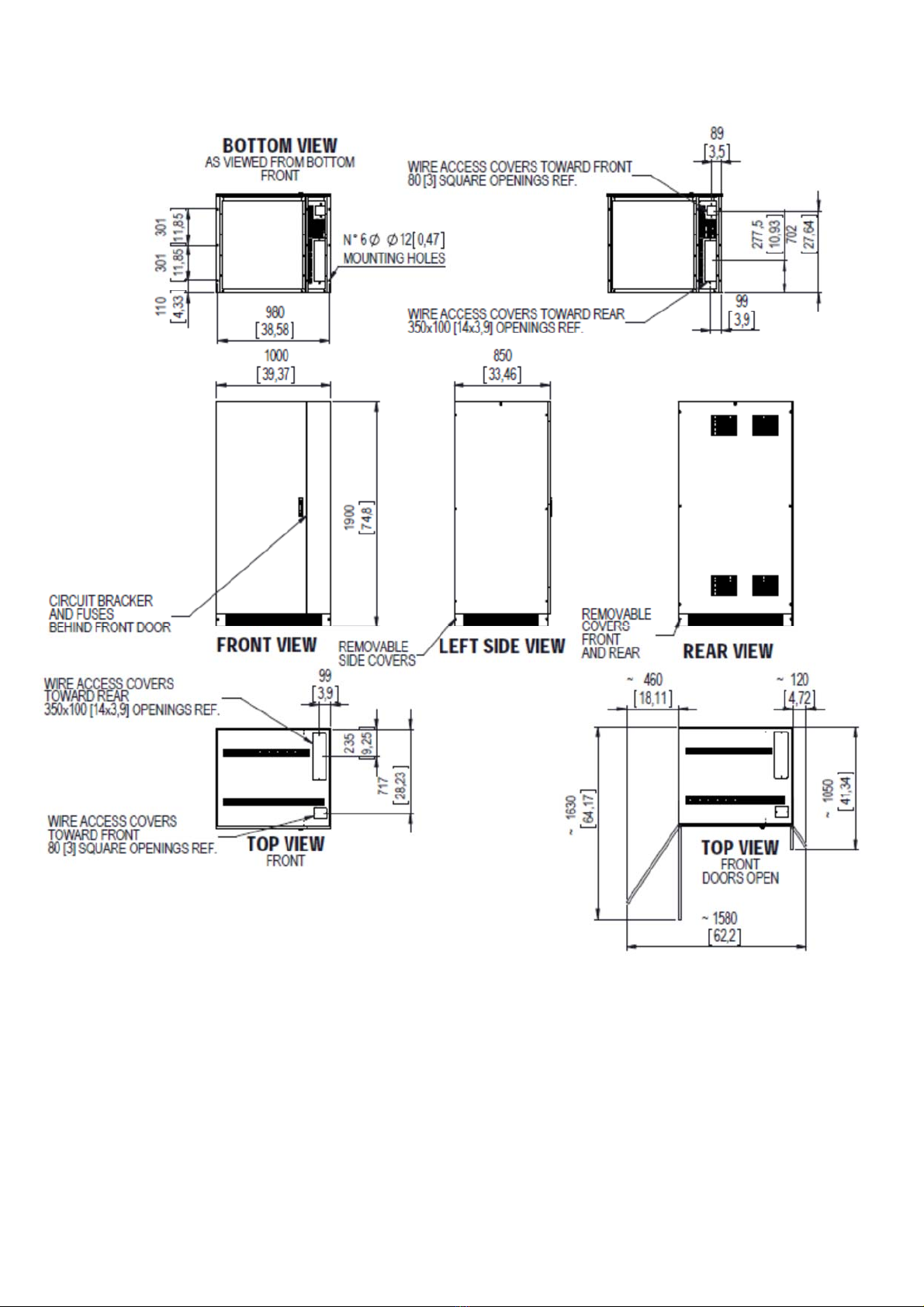

Fig. 1 - BBX battery cabinet external dimensions
0ML190480RUENUC page5/24
SECTION2
SAFETY WARNINGS
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
This manual contains important instructions that you should follow during installation and maintenance of the
Battery Cabinet. Please read all instructions before operating the equipment and save this manual for future
reference. For any installation and maintenance, please refer this manual together with the UPS user’s
manual. The battery cabinet has been specifically designed for industrial or computer room applications.
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
a. Do not use outdoors.
b. Do not route wiring across or near hot surfaces.
c. Do not install near gas or electric heaters.
d. Use caution when servicing batteries. Battery acid can cause burns to skin and eyes. If acid is
spilled on skin or in eyes, flush with abundant fresh water and contact a physician immediately.
e. Equipment should be installed where it will not readily be subjected to tampering by unauthorized
personnel.
f. The use of accessory equipment not recommended by the manufacturer may cause an unsafe
condition.
g. Do not use this equipment for other than intended use.

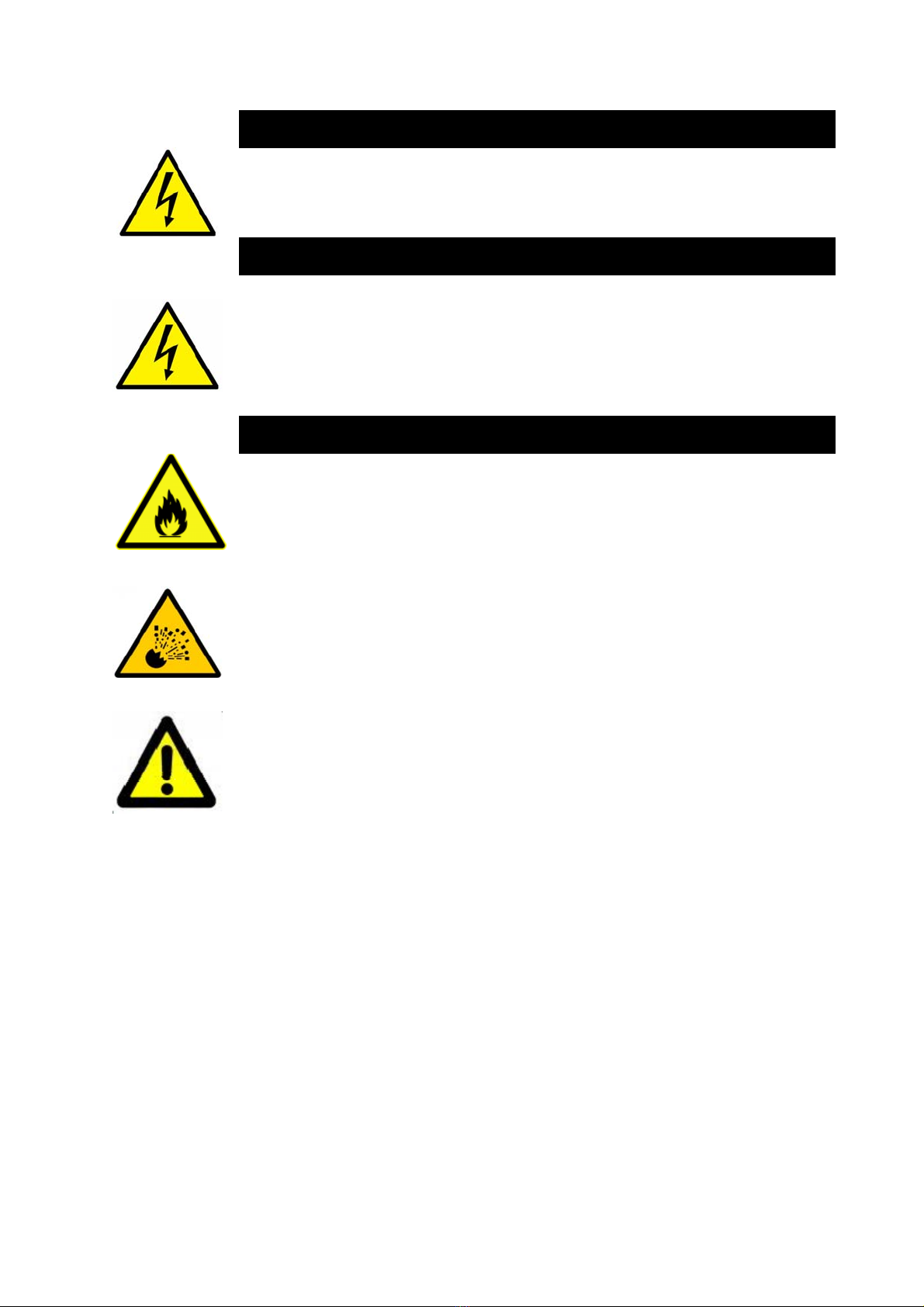

Table1‐symbols
Danger / Risk of Electric Shock
Risk of Explosion
Risk of fire
Caution
Electrostatic Sensitive Device
Note
Ground Connection
