Riello UPS sentryum S3U User manual

- 1 -
I NTRODUCTION
Thank you for choosing our product.
Our company is specialized in the design, development and manufacture of uninterruptible power supplies (UPS).
The UPS described in this manual is a high-quality product, carefully designed and manufactured to guarantee the best performance.
This manual provides detailed instructions for the use and installation of the product.
For information with regards to the use of, and to ensure that you obtain the best performance from your UPS, this manual
should be stored near to the UPS and must be READ PRIOR TO PERFORMING ANY OPERATIONS UPON IT.
NOTE: Some of the images in this document are provided as a guideline only, and they may not accurately reproduce the depicted
product components.
S AFETY PRECAUTIONS
Read the specific safety manual prior to performing any operations upon the Sentryum UPS.
This manual must be read in conjunction with the installation manual that contains further information with regards to the safe
configuration of the product.
E NVIRONMENTAL P ROTECTION
Whilst developing its products, the company takes great care to analyze all environmental issues. All our products seek the objectives
defined by the policies of the environmental management system, developed by the company according to the current legislation.
Hazardous materials such as CFCs, HCFCs or asbestos have not been used in this product.
The packaging is made of recyclable material. Please dispose of the individual elements according to the current legislation in force
in the country where the product is to be employed. Please refer to Table 1 for identifying the materials:
D ESCRIPTION M ATERIAL
Pallet Wood
(FOR)
Packaging box Corrugated cardboard
(PAP)
Protective bag High Density
Polyethylene (PE-HD)
Buffers Low Density Polyethylene
(PE-LD)
Table 1 – Packaging material list
D ISPOSAL OF THE PRODUCT
The UPS contains materials which (in case of decommissioning/disposal) are considered TOXIC and DANGEROUS WASTE, for
example circuit boards and batteries. Treat such material according to the current legislation by using licensed disposal centers. Their
correct disposal helps to protect the environment and human health. If the various components are to be stored, pending admission
to landfills, take care to keep them in a safe place and protected from atmospheric agents, to avoid contamination of the ground and
ground water (especially with lead and the electrolyte of the batteries).
For further information about the disposal requirements under WEEE regulations please refer to the relative manual.
© The reproduction of any part of this manual, even if partial, is forbidden unless authorized by the manufacturer.
The manufacturer reserves the right to change the product described at any time without prior notice for improvement purposes.

- 2 -
SUMMARY

GLOSSARY OF ACRONYMS 4
PRESENTATION 5
SENTRYUM 40/50/60KVA 5
DESCRIPTION 6
GENERAL VIEWS 7
COMMUNICATION 8
COMMUNICATION PORTS 8
UPS OPERATION 9
OPERATING MODES 9
ON LINE MODE 9
ECO MODE 9
FREQUENCY CONVERTER MODE 9
OPERATING STATES 9
NORMAL 9
STAND-BY 9
BATTERY WORKING 9
TEMPORARY BYPASS 9
MANUAL BYPASS 10
OTHER FEATURES 10
BACK-FEED PROTECTION 10
DISPLAY 11
OVERVIEW 11
STATUS BAR 11
ICONS AND SYMBOLS 12
ACTIVE TEXT AREAS 13
NAVIGATION 13
SYSTEM HOME PAGE 14
SYSTEM MEASUREMENTS 16
SYSTEM STATUS 17
MENU ENTRIES 19
COMMAND PANEL 19
SYSTEM OFF/ON COMMAND 19
BYPASS COMMAND 20
BATTERY TEST COMMAND 21
TEMPORARY ALARM SUPPRESSION 21
GLOBAL SYSTEM INFORMATION 21
MAIN SETUP PAGE 22
LANGUAGE SETTING 23
DISPLAY SETTING 23
System clock 24
Screen saver and buzzer 24
Change password 25
SYSTEM LOG PAGE 25
“EXPERT”LEVEL 26
GENERAL SYSTEM SETTINGS 27
GENERAL CONFIGURATION 27
Operating mode 27
Auto restart 27
INVERTER OUTPUT SETTINGS 28
Voltage setting 28
Frequency setting 28
BATTERY CONFIGURATION 29
BATTERY TEST SCHEDULING 29
Battery low time 29
ACCESS USERS LEVEL 30
“POWERUSER”LEVEL 30
“USER”LEVEL 30
ACCESS LEVEL SELECTION 31
PASSWORD CHANGE 31
STATUS LED 32

- 3 -
BUZZER 32
CONFIGURING THE UPS FROM DISPLAY 33
DEFAULT CONFIGURATION OF THE INPUT/OUTPUT SIGNALS 34
OUTPUT SIGNALS CONFIGURATION (FACTORY DEFAULT) 34
INPUT SIGNALS CONFIGURATION (FACTORY DEFAULT) 34
OPERATIVE PROCEDURES 35
PRELIMINARY OPERATIONS 35
SYSTEM ON DIRECT COMMAND 35
SYSTEM ON COMMAND VIA BATTERY (COLD START) 36
OPERATIONS CHECKS 37
BATTERY TEST 37
BATTERY WORKING 37
LOAD FORCED ON BYPASS 37
SWITCHING THE SYSTEM FROM ON-LINE TO MANUAL BYPASS 38
RESTORE THE ON LINE MODE AFTER MANUAL BYPASS 39
LOAD ON STATIC BYPASS AFTER MANUAL BYPASS 40
SYSTEM OFF COMMAND 40
OPTIONS 41
EXTERNAL BATTERY CABINET 41
BATTERY ROOM VENTILATION 42
SETTING THE RATED BATTERY CAPACITY –SOFTWARE CONFIGURATION 42
EXTERNAL BATTERY TEMPERATURE PROBE 42
FOUR SWITCH VERSION 42
REMOTE MAINTENANCE BYPASS 43
PARALLEL 44
OPTIONAL SLOT BOARDS 44
EXTERNAL BATTERY CABINET BREAKER REMOTE TRIP 44
STATUS / ALARM CODES 45
STATUSES 45
COMMANDS 45
WARNING 45
ANOMALIES 46
FAULTS 46
LOCKS 47
TROUBLESHOOTING GUIDE 48
PREVENTIVE MAINTENANCE 51
INTRODUCTION 51
BATTERIES 51
FANS 51
AIR FILTER 51
TECHNICAL DATA TABLE 52

- 4 -
GLOSSARY OF ACRONYMS
Acronym ITEM Description
S3U Sentryum UL Three phase output voltage UPS
SW Four switch version UPS model type
SLOT Expansion Slot Slot to accommodate the communication cards and
relays expansion board
COM Communication Board It includes R.E.P.O., IN/OUT signals interface, USB
communication port, serial port
EXT T_BATT External Battery Temperature Probe Connector for external battery temperature kit
B_BOX R.E.P.O. Battery box REPO Remote power off for the battery cabinet breaker trip coil
SWMB Manual Bypass Switch Maintenance bypass breaker
SWIN Mains Input Switch Mains input breaker
SWBYP Bypass Input Switch Bypass line input breaker
SWOUT Output Switch Output switch disconnector
B+ - Positive battery voltage/current/temp.
B- - Negative battery voltage/current/temp.
CB Battery Charger UPS internal battery charger
PE Protective earth Earth connection of the UPS
EPO Emergency Power Off Remote power off command for the UPS

- 5 -
PRESENTATION
SENTRYUM 40/50/60KVA
Sentryum UPS Systems are intended to ensure a perfect supply voltage for the equipment connected to it, both with and without a
mains power supply. Once connected and powered, the system generates an alternating sinusoidal voltage, with stable amplitude and
frequency, regardless of surges and/or variations affecting the electrical supply.
Sentryum is the very latest Riello UPS development resulting in a third-generation transformer-free UPS, originally introduced into the
market over twenty years ago.
This ultimate solution is rated at output power factor 1 and defined as ON LINE double conversion technology in accordance with VFI-
SS-111 classification (as set out in standard IEC EN 62040-3) and it provides the very highest levels of performance such as:
 HIGH EFFICIENCY: up to 94,5% in ON LINE double conversion mode.
 ULTIMATE TECHNOLOGIES: Sentryum applies the advanced technologies such as DSP (Digital Signal Processor), dual
core microprocessor, three level inverter circuits to provide maximum protection to the critical loads, whilst maintaining
optimized energy savings.
 COMPACTNESS AND FLEXIBILITY: Sentryum is offered in two different switch configurations (single and four switches) to
suit any installation scenario and satisfy any critical power demand.
 GRAPHIC DISPLAY: Sentryum offers a multiplatform communication choice together with a colored graphic touch screen
display to easily monitor and manage the UPS.

- 6 -
DESCRIPTION
The purpose of a UPS is to provide a perfect power supply voltage for the devices connected to it, irrespective of whether the mains
power supply is present or not. Once connected and powered, the UPS generates a sinusoidal alternating voltage with a stable
amplitude and frequency, regardless of any changes and/or variations occurring on the electricity grid. Whilst the UPS receives energy
from the mains supply, the DSP will ensure that the connected batteries remain charged. The DSP also monitors the amplitude and
frequency of the mains voltage, the amplitude and frequency of the voltage generated by the inverter, the load applied, the internal
temperature and the condition of the connected batteries.
The block diagrams below show each of the components that make up the UPS for both single and four switch versions.
Block diagram of the UPS (Single switch version, without separate bypass)
Block diagram of the UPS (Four switches version “SW”, with separate bypass)

- 7 -
GENERAL VIEWS
FRONT REAR
A) USB/RS232 communication ports F) Touch screen display
B) Communication ports
(R.E.P.O., IN/OUT SIGNAL, USB, SERIAL) G) Switches (from left: Input, Separate bypass input, maintenance bypass, output)*
C) Battery start button (COLD START) H) Signal terminal cover
D) Slots for optional accessory communication card I) Power Terminal cover
E) Parallel card L) Wire output cover
* Maintenance bypass (SWMB), bypass input (SWBYP) and output (SWOUT) switches are only available in “SW” version.

- 8 -
COMMUNICATION
COMMUNICATION PORTS

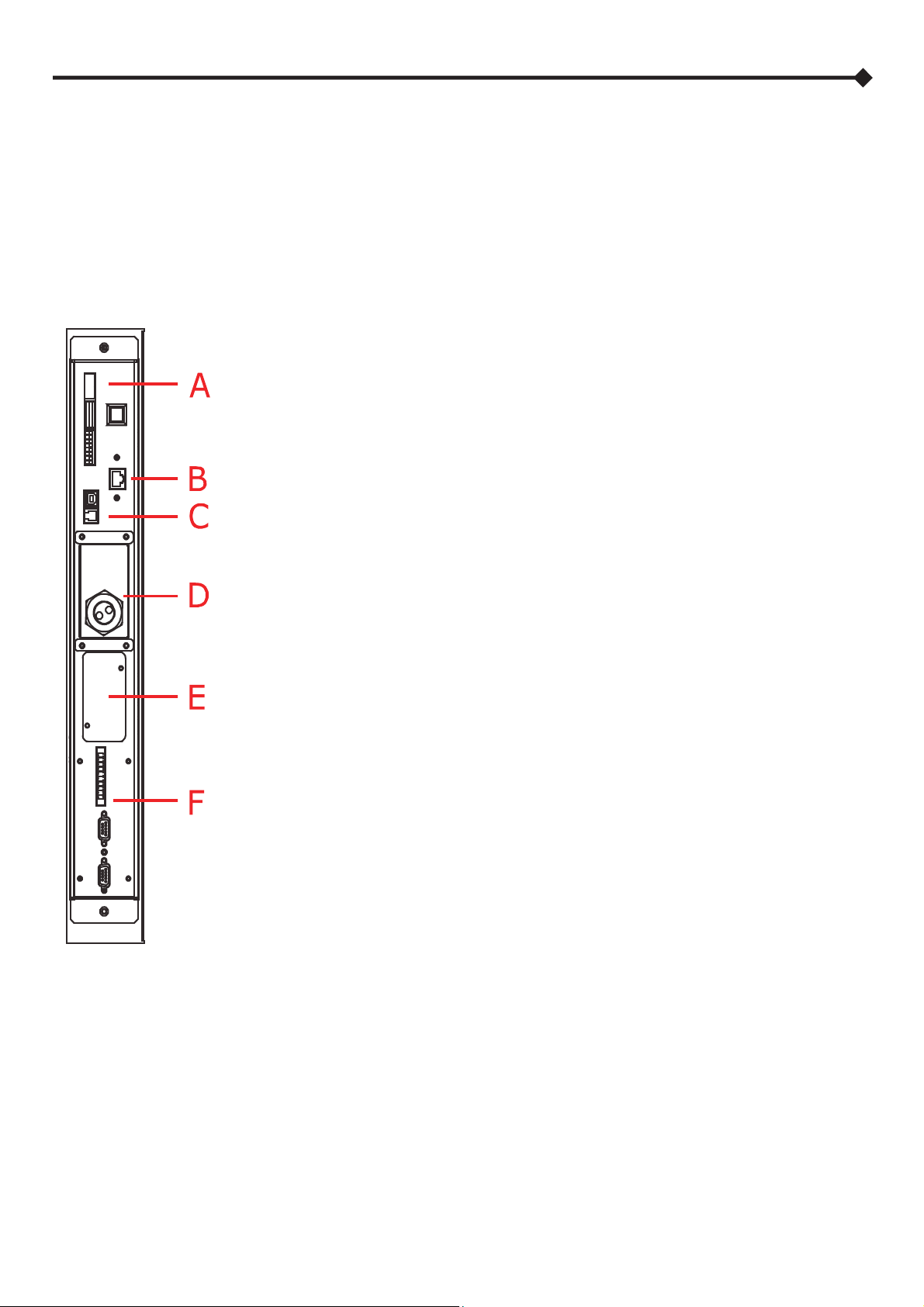

The communication ports are situated on the top of the UPS, behind the door.
A
R.E.P.O / IN / OUT:
these are digital inputs and dry contact outputs available to the user to
perform various functions.
The R.E.P.O. input is dedicated to Remote Emergency Power Off
normally closed contact (the UPS is supplied with a link pre-fitted from
the factory as standard).
All the other inputs and outputs can be programmed with the aid of the
configuration software.
Please refer to the installation manual for more information with regards
to the connections.
B
RJ45 programming port:
This port is dedicated to service technicians and have to be used in order
to update the DSP firmware.
C
USB / Serial RS232 ports:
These ports allow the UPS to communicate with a computer enabling the
system to be monitored and configured.
The two ports cannot be used simultaneously.
The USB port is to be used as an alternative to the RS232 serial interface.
USB port function is only guaranteed when using a cable no longer than
1.5 m. If a longer cable is required, the use of the RS232 serial interface
is suggested. In any case it is recommended not to use a cable longer
than 10 m.
D
SLOT 2 - Communication and contact Slot:
Slot to accommodate additional communication cards (default
configuration), or contacts/relay expansion cards.
For further information with regards to the communications expansion
cards, please refer to the communications card user manual.
E
SLOT 1 - Communication Slot:
Slot to accommodate the additional communication cards (no
contacts/relay card).
For further information with regards to the communications cards, please
refer to the communications card user manual.
F Parallel board:
The parallel board enables up to four units to be connected in parallel.

- 9 -
UPS OPERATION
OPERATING MODES
The UPS can be configured for different operating modes. The following operating modes as listed below may be selected.
To configure these operating modes, the unit must be in stand-by.
ON LINE MODE
When in ON LINE mode, the system operates in ON LINE double conversion. This mode provides maximum protection for the load.
During operation the energy coming from the mains power supply (AC), is converted into a clean and stable output.
The voltage supplied to the load is a perfect sinewave, with the frequency and voltage independent of the incoming mains supply (VFI
technology). During this mode, the batteries are constantly maintained under charge.
ECO MODE
In order to optimize efficiency, in ECO MODE the load is normally powered through the bypass (any disturbances that occur within
the mains power supply can affect the load). In the event of a mains power supply failure or if the power supply is not within the pre-
set tolerances, the UPS will seamlessly switch to ON LINE operation automatically. After the power supply returns within tolerance,
the load is switched back to bypass.
FREQUENCY CONVERTER MODE
The system can be configured in this mode to generate a fixed output frequency different from the input frequency. This configuration
automatically disables the bypass line. FREQUENCY CONVERTER mode can be operated with and without connected batteries.
WARNING: Do NOT switch on the SWMB (manual bypass switch) when the UPS is in FREQUENCY CONVERTER mode.
To prevent maintenance bypass operation, the user shall keep the SWMB switch handle blocked.
OPERATING STATES
The UPS may be in a different status for each operating mode explained above. The following is a list of possible operating states.
NORMAL
When the UPS operates "normally" in the selected Operating Mode without any alarm.
In this condition the selected "Operating Mode" is displayed in light blue.
STAND-BY
This is the default status when the UPS is supplied. The UPS is powered but the system is in idle status (no power stages are active).
BATTERY WORKING
When the UPS is supplying the output with the batteries present, if the mains power supply falls outside the pre-set tolerances, for
example in case of a blackout, voltage or frequency disturbance, the system automatically switches to BATTERY OPERATING
STATUS and draws power from the batteries to support the load.
Once the mains power supply is again clean and stable, the system automatically returns back to the pre-set operational mode.
TEMPORARY BYPASS
During this operational state, the load is directly powered by the incoming mains supply, therefore, any input disturbances will directly
affect the connected load.

- 10 -
MANUAL BYPASS
The manual bypass enables the user to physically connect the UPS input directly to the output. This condition is required to perform
maintenance operations on the UPS without the need to disconnect the power from the protected load.
This is achieved by operating the Manual Bypass switch, either within the UPS (if the UPS is endowed with internal maintenance
bypass – “SW” version only) or the external manual bypass switch. In this case, follow the prescriptions contained in the “Remote
maintenance bypass" paragraph.
When the locking pad is removed from the internal manual bypass switch handle, or the external manual bypass is operated, an
auxiliary contact informs the UPS that the load is going to be transferred to manual bypass. This activates an immediate, synchronized
transition to the internal static bypass to ensure a safe closure of the manual bypass power contacts.
WARNING: Maintenance work inside the UPS is to be performed exclusively by qualified staff. There may be
voltages present within the UPS even when the input, output and battery disconnectors are open. Removal of
the UPS panels by non
-
qualified staff may result in injury to the operator and damage the equipment.
For further instructions in relation to the manual bypass function, please refer to the “Switching the system to manual bypass” chapter.
OTHER FEATURES
BACK-FEED PROTECTION
The UPS has an internal protection against back-feed. This protection acts by means of a sensing circuit which turns off the inverter
if a fault within the static switch is detected. In this condition, to avoid interrupting the supply to the connected load, the UPS switches
to bypass line.
If the bypass is not available, the connected load is switched off.
To avoid stopping the inverter, a dry contact can be configured to drive a disconnection device. This device must be installed upstream
of the bypass input to the UPS, in this case when a back-feed fault occurs, the system opens the external disconnection device (for
further information, refer to the configuration software manual).

- 11 -
DISPLAY
OVERVIEW
The UPS is equipped with a 5’’ touch screen color display, through which, amongst others, it is possible to:
 view the status of the system;
 switch on / switch off the system, activate a battery test and perform bypass operation commands;
 configure the system, access levels and the network services.
The “Home” page shows a synoptic diagram of the general operation status of the system. It is possible to interact with the system
and access further information via the icons.
STATUS BAR
The status bar at the top shows the UPS model, the rated power of the system and the system date and time.
In the event of an alarm an exclamation mark will also be present indicating the number of alarms active at that time.
From the top of the status bar the user can access the anomaly/alarm log by pressing the “Exclamation point” icon.
The “Exclamation point” icon will only be visible if an anomaly, warning, lock or command occurs.
Icon indicating the existence and number of alarms that are active at that time. If you tap on the icon, a pop-up will
appear showing the individual alarms in detail. To close the pop-up, tap the "exclamation point" icon again.
In the list of alarms:
 Blue messages indicate warning (W) alarms;
 Orange messages indicate anomalies (A) alarms;
 Red messages indicate lock (L) alarms and faults (F) alarms.
For the alarm code list, refer to the “STATUS/ALARM CODES” chapter.

- 12 -
ICONS AND SYMBOLS
System input/mains status % Battery charge level
System output status % Phase 1 load level
Bypass status % Phase 2 load level
Battery status % Phase 3 load level
System status Manual bypass switch closed (SWMB)
In general, the color and the shape of the icons provide instant information to the status of the system.
Grey: communication lost (Com-Lost) Orange: anomaly
Light blue: normal status Flashing red: alarm
Blue: Temporary bypass status

- 13 -
ACTIVE TEXT AREAS
System Status: area of the display reserved for the description of the system status.
If the UPS is in NORMAL MODE this area will indicate the current operating mode,
or another operational system state. NORMAL MODE means that the UPS is
working in the expected operational state for the configured operating mode (e.g.
when in ON LINE mode the expected status is “Load on Inverter”, during ECO MODE
the expected operating state is “Load on Bypass”)
Mains Input: Area of the display reserved for displaying the main electrical values
related to the input to the system.
Battery: Area of the display reserved for displaying the main electrical values related
to the battery.
Bypass input: Area of the display reserved for displaying the main electrical values
related to the bypass line.
Output: Area of the display reserved for displaying the main electrical values related
to the output of the system.
NAVIGATION
Menu expansion / reduction tab icons (the menu reduces automatically after a few
seconds). The menu may change depending on the pre-set access level.
HOME Press this icon to close the currently selected page and return to the Home page.
RETURN Press this icon to go back to the previous page.
SAVE Press this icon to save any changes.
EXIT WHITOUT SAVING Press this icon to exit without saving changes.

- 14 -
S YSTEM HOME PAGE
The home page provides a schematic view of the overall operating condition of the system. It is possible to interact with the system
and access further information via the icons.
Depending on the current state of the system, this page may assume different appearances as shown in the examples below.
The user can return on the home page at any time by tapping the “Home” icon on the status bar.
The following are some examples of the home page whilst displaying various operating conditions:
Home page displaying UPS in ON LINE mode (normal operation, load on inverter).
- Single switch version -
Home page displaying UPS in ON LINE mode (normal operation, load on inverter).
- Four switch version -
Home page displaying UPS in ECO mode (normal operation, load on static bypass).

- 15 -
Home page displaying BATTERY WORKING status.
Home page displaying MANUAL BYPASS SWITCH CLOSED.
Home page with alarm drop-down list opened.

- 16 -
SYSTEM MEASUREMENTS
The pages that display the main electrical values of the system can be accessed through the icons in the Home page:
Pressing one of the four section icons Input (1), Bypass (2), Battery (3), Output (4) will open the relative measurements page.
Mains Input page: displays the status and the parameters relating to the system input.
Bypass section page: displays the status and the parameters of the system bypass line.

- 17 -
Battery status page: displays the status and the parameters related to the system batteries.
On the left is shown the voltage of the positive and negative battery banks. The battery currents, displayed on the right, have a positive
symbol if the UPS is working from battery, whilst the symbol is negative if the battery is under charge.
The charge level is estimated by an algorithm that computes the energy flowing to and from the batteries and the voltage level. The
autonomy is calculated based on the actual power supplied to the load and the charge level.
Output status page: displays the status and the parameters of the system output.
SYSTEM STATUS
Pressing the System icon will give access to the switch status tabs, sensor status or internal status pages.

- 18 -
Switch status page: displays the status of the UPS internal switches and the optional external switches.
The external switch auxiliary contacts must be connected to the digital inputs and programmed using the configuration software.
Sensor status page: displays the temperature of the system and of the power heatsinks.
The Ext-Bat value will be shown if a Battery Cabinet external temperature probe is installed and set by the configuration software.
Internal status page: displays the status of the UPS internal contacts, the status of power stages and the DC bus voltage.
