DS6000 Series Overview
Being a multifunctional and high performance digital oscilloscope, DS6000 delivers a
perfect combination of easy-to-use and various function features as well as
outstanding specifications to help users to fulfill their tasks more quickly.
Main features:
1 GHz or 600 MHz bandwidth.
2-channel or 4-channel model.
5 GSa/s maximum real-time sample rate, 100 GSa/s maximum equivalent sample
rate, 180, 000 wfms/s (dots display) maximum waveform refresh rate.
140 Mpts maximum memory depth (standard).
Ultra Vision technology.
10.1 inches, WVGA (800*480) 160,000 color TFT LCD, with ultra-wide screen,
vivid picture, low power consumption and long service life.
Enable to identify probe type automatically.
Adjustable brightness of analog channel waveform.
Auto setting of waveform display (Auto).
Various trigger functions including multiple protocol triggers.
Standard parallel decoding and multiple serial decodings (options).
Auto measurements of 22 waveform parameters and measurement functions
with statistic.
Real-time waveform recording, record open (constant on), playback and analysis
functions.
Precise delayed sweep function.
Built-in FFT function.
Pass/fail test function.
Multiple waveform math operation functions.
Standard configuration interfaces: USB Device, dual USB Host, LAN and GPIB
(optional).
Support USB storage device storage and PictBridge printer.
Conform to LXI-C instrument standards. Enable quick, economic and efficient
creation and reconfiguration of test system.
Support remote command control.
Embedded help to facilitate information access.
Support multiple languages and Chinese/English input.
Provide shortcut keys for measurement, storage and print.
Provide more than 2-hour lithium battery power supply (optional) to facilitate
on-field test and use.
Built-in 1 GBytes flash memory.

RIGOL
VI
DS6000 Service Guide
Contents
Guaranty and Declaration .............................................................................I
Safety Requirement..................................................................................... II
General Safety Summary............................................................................II
Safety Terms and Symbols......................................................................... IV
DS6000 Series Overview.............................................................................. V
Chapter 1 Disassemble and Assemble....................................................1-1
Disassemble and Assemble Notices............................................................1-1
Outside View Drawing of the Instrument....................................................1-2
Disassemble the Rear Cover......................................................................1-3
Disassemble the Rear Metal Cover.............................................................1-4
Disassemble the Fan&Power Socket...........................................................1-5
Disassemble the Power Supply&Interface Board..........................................1-6
Disassemble the Front Panel.....................................................................1-8
Disassemble the LCD&Patch Board ..........................................................1-10
Disassemble the Buttons ........................................................................1-12
Disassemble the Main Board...................................................................1-13
Assemble Procedures .............................................................................1-14
Chapter 2 Troubleshooting&Maintenance..............................................2-1
Troubleshooting.......................................................................................2-1
Maintenance............................................................................................2-3
System Maintenance..........................................................................2-3
Warranty..........................................................................................2-3
General Care and Cleaning.................................................................2-4

Chapter 1 Disassemble and Assemble RIGOL
DS6000 Service Guide
1-1
Chapter 1 Disassemble and Assemble
Disassemble and Assemble Notices
Notices:
Do not disassemble the instrument unless for working requirement.
Only authorized personnel can disassemble the instrument.
Cut off the power supply before disassembling the instrument.
Please wear anti-static wrist strap or make other anti-static precaution when
disassembling the instrument.
Please use proper tools and follow the correct steps.
Take care not to deform the metal structure and be scuffed when disassembling
the metal structures.
Tools Required:
Phillips screw driver T10
BNC socket
5mm hexagonal socket
WARNING
Make sure that the power supply is cut off before disassembling the
instrument. Only personnel with relative training or relative qualification
certification can disassemble the instrument.

RIGOL Chapter 1 Disassemble and Assemble
1-2
DS6000 Service Guide
Outside View Drawing of the Instrument
The figure below is the outside view drawing of DS6000 (four-channel). You need to
get a basic understanding of the main parts of the instrument before disassembling
and assembling the instrument. When disassembling or assembling the instrument,
take care not to scratch the surfaces of the parts.
The recommended disassemble procedures are as follows.
Disassemble the Rear Cover →Disassemble the Rear Metal Cover →
Disassemble the Fan&Power Socket →Disassemble the Power
Supply&Interface Board →Disassemble the Front Panel →Disassemble
the LCD&Patch Board →Disassemble the Buttons →Disassemble the
Main Board
Figure 1-1 DS6000 Outside View Drawing

Chapter 1 Disassemble and Assemble RIGOL
DS6000 Service Guide
1-3
Disassemble the Rear Cover
Figure 1-2 Disassemble the Rear Cover
Part Explanations:
①2 (M3*8 pan head torx bi-metal flat spring machine) screws at the handle groove.
②2 (M3*10 countersunk head torx machine) screws at the bottom of the cover.
Dsiassemble Steps:
1. Remove the 2 screws (①) on the handle using the screw driver (T10).
2. Remove the 2 screws (②, one on each side) at the bottom using the screw driver
(T10).
3. Take off the rear cover gently.
①
①
②
Rear Cover

RIGOL Chapter 1 Disassemble and Assemble
1-4
DS6000 Service Guide
Disassemble the Rear Metal Cover
Figure 1-3 Disassemble the Rear Metal Cover
Part Exaplanation:
①17 (M3*6 countersunk head torx machine) screws fixing the front metal panel and
rear metal cover.
Disassemble Steps:
1. Remove the 17 screws (①) fixing the front metal panel and rear metal cover
using the screw driver (T10). The screw positions are not shown completely in the
figure above, please remove them according to their actual positions.
2. Remove the AC power cord, battery power cord, rear interface board power cord
and data cable before taking off the rear metal cover.
Tip
Insert the cord into the corresp
onding interface on the main board before
assembling the rear metal cover.
①
①
①
①
①
Rear Metal Cover
①
①

Chapter 1 Disassemble and Assemble RIGOL
DS6000 Service Guide
1-5
Disassemble the Fan&Power Socket

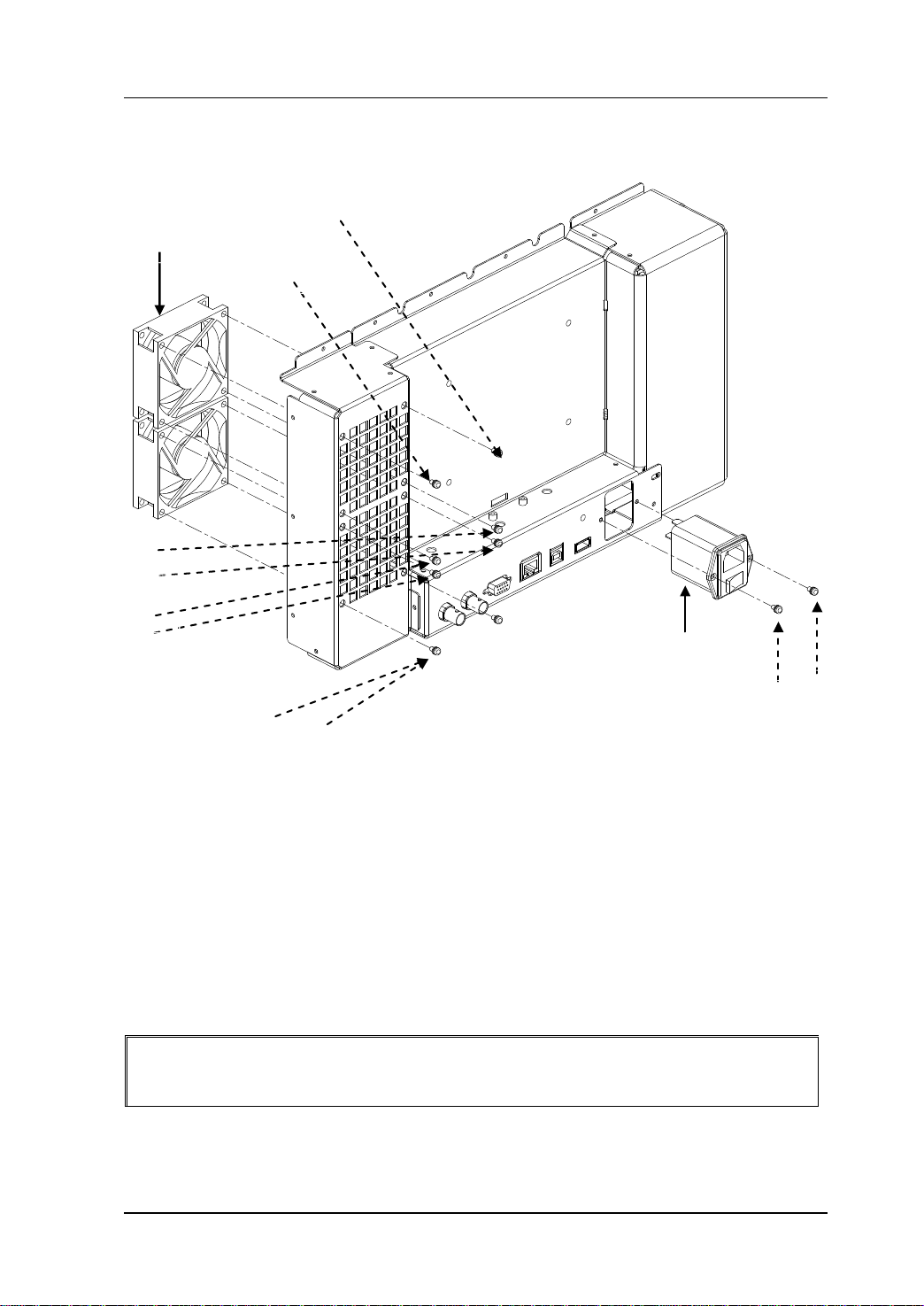

Figure 1-4 Disassemble the Fan and Power Socket
Part Explanations:
①2 (M3*10 countersunk head torx machine) screws fixing the power socket.
②8 (ST5*10 countersunk head torx thread cutting self tapping machine) screws
fixing the two fans.
Disassemble Steps:
1. Remove the 2 screws (①) fixing the power socket using the screw driver (T10).
2. Remove the 8 screws (②) fixing the fans using the screw driver (T10).
Tip
Pay attention to the directions of the fans when installing the fans.
②
②
②
②
②
①
①
Fan
Power Socket
②
②
②

RIGOL Chapter 1 Disassemble and Assemble
1-6
DS6000 Service Guide
Disassemble the Power Supply&Interface Board
Figure 1-5 Disassemble the Power Supply and Interface Board
Part Explanations:
①4 (M3*10 pan head torx bi-metal flat spring machine) screws fixing the power
supply.
②3 (M3*6 pan head torx bi-metal flat spring machine) screws fixing the interface
board.
Disassemble Steps:
1. Remove the two nuts and washers at the BNC port at the rear metal cover using
the BNC socket.
2. Remove the DB9 interface screws (imperial) at both sides of the RS232 interface
using the socket (5mm hexagonal socket).
3. Remove the 4 screws (①) fixing the power supply using the screw driver (T10).
4. Remove the 3 screws (②) fixing the rear interface board using the screw driver
(T10).
①
①
①
①
Interface Board
Power Suuply
②
②
②

Chapter 1 Disassemble and Assemble RIGOL
DS6000 Service Guide
1-7
Figure 1-6 Positions of the Power Supply and Battery Interfaces
Tip
Pay attention to the positions of the power supply and battery interfaces when
assembling the power sup
ply. Wrong connection might result in main board
damage.

RIGOL Chapter 1 Disassemble and Assemble
1-8
DS6000 Service Guide
Disassemble the Front Panel
Figure 1-7 Disassemble the Front Panel
Part Explanations:
①7 knobs.
②7 (M3*10 pan head torx machine) screws fixing the front panel.
③1 (M3*6 countersunk head torx machine) screw at the timebase scale adjustment
knob at the front panel.
Dsiassemble Steps:
1. Remove the 7 knobs at the front panel.
2. Remove the button film.
3. Remove the screw (③) fixing the front panel and the keyboard using the
screwdriver (T10).
4. Remove the 7 screws (②) fixing the front panel using the screw driver (T10).
②
②
②
②
②
②
①
Knobs
②

Chapter 1 Disassemble and Assemble RIGOL
DS6000 Service Guide
1-9
Tip
a) When
removing the knobs, you are recommended to prize out the knobs using
tools similar to the lever. Besides, it is recommended to place a soft washer at
each force-bearing point to avoid damaging the button film and knobs.
b) When the button film is removed, the stickness of the glue reduces and repeat
use would result in unreliable paste. Therefore, if you only want to view the
main board, disassembling the rear metal cover is enough and y
ou are not
recommended to disassemble the front panel.

RIGOL Chapter 1 Disassemble and Assemble
1-10
DS6000 Service Guide
Disassemble the LCD&Patch Board
Figure 1-8 Disassemble the LCD and Patch Board
Part Explanations:
①6 (M3*8 pan head torx bi-metal flat spring machine) screws fixing the LCD.
②2 (M3*6 countersunk head torx machine) screws fixing the patch board.
Disassemble Steps:
1. Remove the 6 screws (①) fixing the LCD using the screw driver (T10).
2. Pull out the screen line connecting the patch board.
3. Remove the 2 screws (②) fixing the patch board using the screw driver (T10) and
pull out the screen line connecting the main board.
①
①
①
①
①
①
②
LCD
Patch Board

Chapter 1 Disassemble and Assemble RIGOL
DS6000 Service Guide
1-11
Figure 1-9 Direction of the Patch Board
Tip
Pay attention to the direction of the patch board when installing the patch board.

RIGOL Chapter 1 Disassemble and Assemble
1-12
DS6000 Service Guide
Disassemble the Buttons
Figure 1-10 Dsiassemble the Buttons
Part Explanation:
①4 screws fixing the left keyboard, 5 (M3*6 countersunk head torx machine) screws
fixing the main keyboard.
Disassemble Steps:
1. Remove the 4 screws (①) fixing the left keyboard using the screw driver (T10).
2. Remove the 5 screws (①) fixing the main keyboard using the screw driver (T10).
①
①
①
①
①
①
①
