RIKA SWING User manual

Operating Manual
SWING
SWING

2
TABLE OF CONTENTS
1. PREFACE 3
Dimensions ..............................................................................................................................................................................................3
Amount of fuel .........................................................................................................................................................................................3
Technical data...........................................................................................................................................................................................3
Packaging .................................................................................................................................................................................................3
Electrical connection (Rikatronic4)..........................................................................................................................................................3
Explanations to symbols...........................................................................................................................................................................3
Spare part overview - exploded diagram...................................................................................................................................................4
Spare part overview - article numbers ......................................................................................................................................................6
2. IMPORTANT INFORMATION 7
General warning and safety information ..................................................................................................................................................7
First heating..............................................................................................................................................................................................7

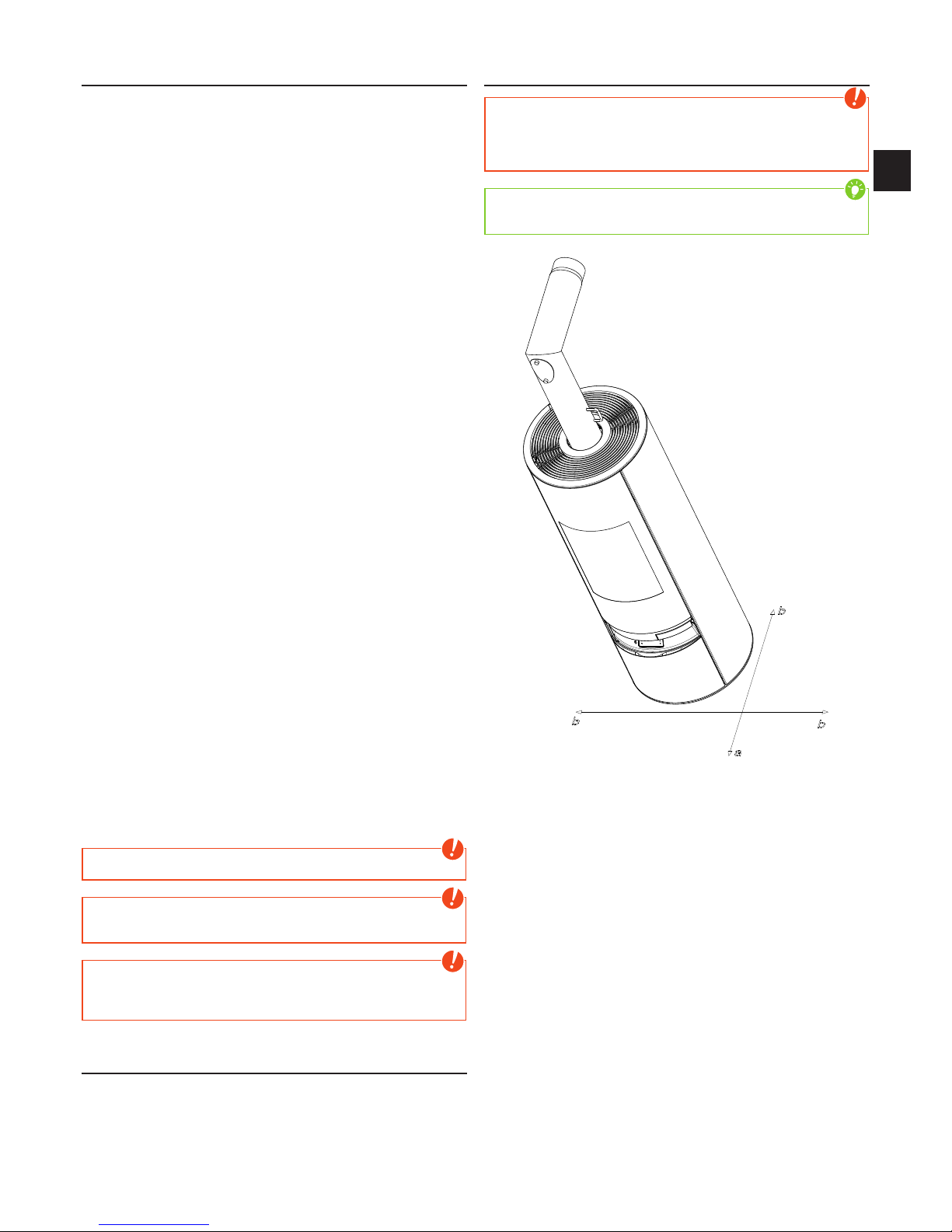

Safety distances ........................................................................................................................................................................................7
Prior to set up...........................................................................................................................................................................................8
3. BRIEF INFORMATION ON COMBUSTIBLE - LOGS 9
Suitable fuels and fuel amounts ................................................................................................................................................................9
Wood types...............................................................................................................................................................................................9
Output controlling ...................................................................................................................................................................................9
Clean combustion.....................................................................................................................................................................................9
4. INSTALLING THE STOVE 10
General information...............................................................................................................................................................................10
Connection to the chimney ....................................................................................................................................................................10
Connecting to a steel chimney ...............................................................................................................................................................10
Combustion air.......................................................................................................................................................................................10
Feeding in external combustion air.........................................................................................................................................................10
5. ASSEMBLY/DISMANTLING STONE AND OPTIONS 11
Converting to rear flue pipe connection .................................................................................................................................................11
6. MANUAL OPERATION 12
Combustion air regulation......................................................................................................................................................................12
RIKA firelighter .....................................................................................................................................................................................12
Correct heating up..................................................................................................................................................................................12
7. CLEANING AND MAINTENANCE 13
Basic information ...................................................................................................................................................................................13
Opening of the door...............................................................................................................................................................................13
Cleaning the combustion chamber.........................................................................................................................................................13
Empty the ash drawer.............................................................................................................................................................................13
Cleaning the door glass ..........................................................................................................................................................................13
Cleaning painted surfaces ......................................................................................................................................................................13
Cleaning the flame temperature sensor ..................................................................................................................................................13
Cleaning the convection air openings.....................................................................................................................................................13
Combustion air - intake .........................................................................................................................................................................13
Cleaning the flue pipes...........................................................................................................................................................................13
Checking door seal .................................................................................................................................................................................13
8. PROBLEMS - POSSIBLE SOLUTIONS 14
Problem 1 ...............................................................................................................................................................................................14
Problem 2 ...............................................................................................................................................................................................14
Problem 3 ...............................................................................................................................................................................................14
9. GUARANTEE 15

|
3
EN
2
1. PREFACE

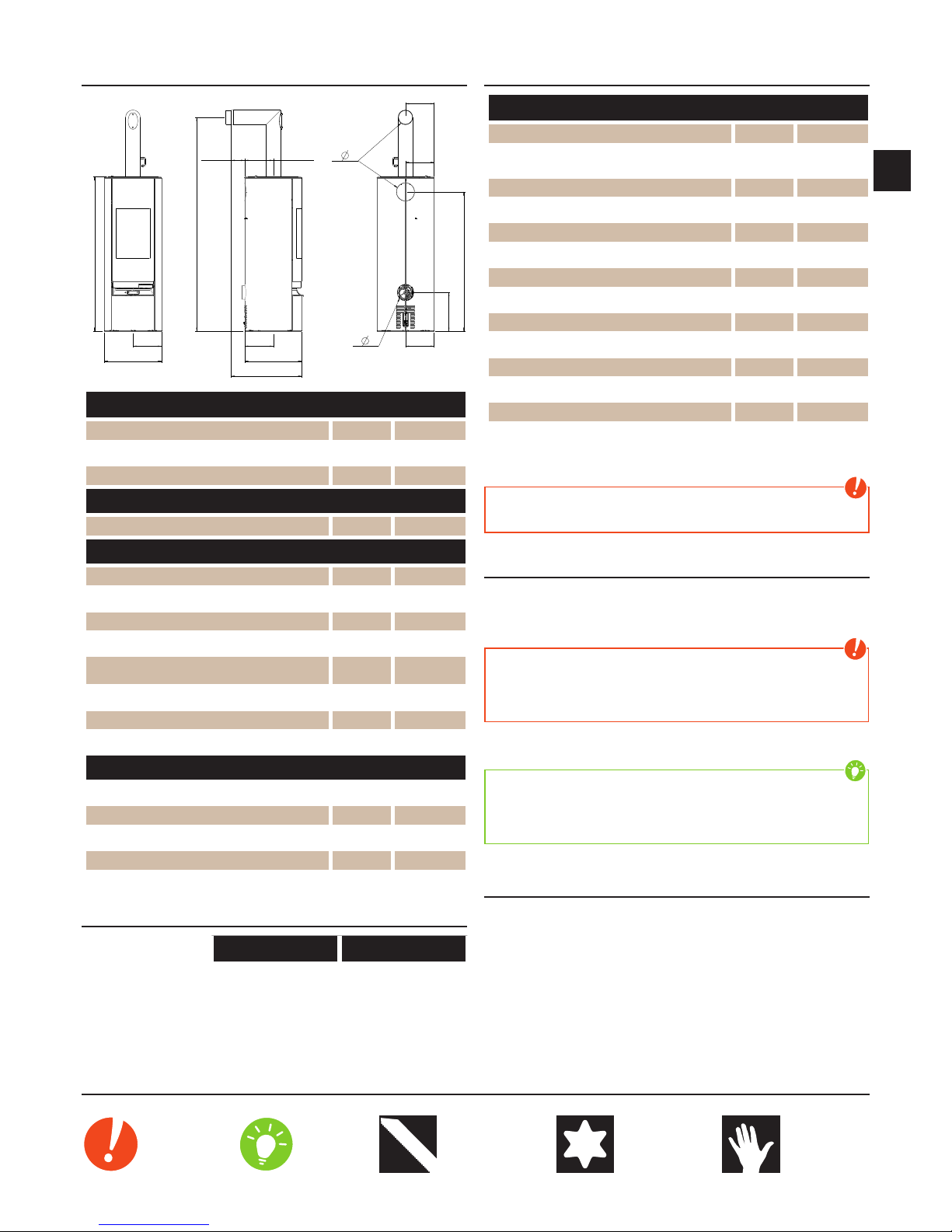

Dimensions
B
H
RO-H
RO-T1
T
RO-T2 RO-T3
R-H
F-H
F-S
R-S
RO-S
FB-TFB-S
R-
F-
Dimensions
Height [mm] 1405
Width [mm] 520
Corpus depth [mm] 520
Weight
Weight [kg] 175
Flue pipe connection
R - Ø Flue pipe outlet [mm] 130
RO - H original angle pipe connection height [cm] 195
RO - T1 original angle pipe total depth [cm] 64
RO - T2 original angle pipe distance to rear wall [cm] 12
RO - T3 Deapth from rear wall to middle of flue
pipe [cm] 26
RO - S original angle pipe side distance [cm] 26
R - H Rear connection height [cm] 127
R - S Rear connection side distance [cm] 26
Fresh air connection
F - Ø Diameter [mm] 125
F - H Connection height [cm] 35
F - S Side distance [cm] 26
FB - S Floor connection side distance [cm] 26
FB - T Floor connection depth [cm] 26
Amount of fuel
Nominal load Part load
Amount of fuel ~2,2 kg* ~1,1 kg*
*Practical values may vary depending on fuel quality.
Technical data
Technical data
Heating power range [kW] 4 - 8
Room heating capacity (depending on house
insulation) [m³] 90 - 210
Fuel consumption [kg/h] up to 2,2
Electric supply [V]/[Hz] 230/50
Average electrical input [W] ~ 4
Fuse [A] 2,5 AT
Efficiency [%] 81,9
CO2 [%] 10,5
CO-emission on 13% OO [mg/mN
3] 677
Dust emission [mg/mN
3] 21
Exhaust [g/s] 6,7
Exhaust temperature [°C] 251,8
Chimney draft requirement [Pa] 12
The owner of small firing systems or the person authorised for the small
firing system is to keep the technical documentation and is to submit it to the
authorities or the chimney sweep on request.
Note
Please observe the national and European standards as well as local
regulations concerning the installation and operation of firing installations!
Packaging
Your first impression is important to us!
The packaging of your new stove provides excellent protection against damage.
However damage to the stove and accessories may still occur during transport.
Note
Therefore please check your stove on receipt for damage and completeness!
Report any deficiencies to your dealer immediately! Pay particular attention
during unpacking that the stone panels remain intact. Scratches to the
material can easily occur. Stone panels are excluded from the warrant.
The packaging of your new stove is environmentally neutral to a great extent.
Tip
The wood used in the packaging has not been surface treated and may
therefore be burnt in your woodburning stove (not in a pelletstove!). The
cardboard and film (PE) can be depolluted via the municipal waste collection
for recycling.
Electrical connection (Rikatronic4)
The stove is supplied with an approx. 2m long connecting cable with a Euro-
plug. This cable is to be connected to a 230Volt/50Hz socket. The average
electrical power consumption is about 4 Watt in heating operation, and approx.
150 Watt during automatic ignition. The connection cable must be laid in a way
that there is no contact to any sharp edges or hot surfaces of the stove.
Explanations to symbols
...Important
Note
...Useful
Tip ...Hacksaw
#25
...Hexalobular
T25 ...Manually

4
Spare part overview - exploded diagram
16
17
16
17
12
13
12
4 0
13
2 3
2 4
19
2 2
2 5
2 6
2 7
2 1
11
4 1
10
2 8
2 9
4 2
4 3
4
15
14
3 6
14
3 4
3 2
3 3
7
4
4
2
4 6
3
3
3
14
6
6
5
5
3 0
6
3 1
3 7
3 8
3 9
3 5
18
1
113
117
118
2 0
116
8
4 4
2 0
116
9
8
9
4 5
9 0
8 4
8 6
8 5
100
9 7
9 6
9 8
9 9
102
8 9
8 8
8 7
9 2
9 3
9 1
8 3
9 4
9 5
106
107
105
109
115
110
111
112
108
104
103
101

|
5
EN
4
5 5
5 3
5 6
4 7
5 2
5 1
5 0
5 1
5 0
4 8
4 9
5 4
5 7
6 8
6 7
6 9
6 6
6 0
6 6
6 0
5 8
5 9
5 9
6 1
6 1
114
12 0
119
6 4
6 3
6 2
6 5
6 5
7 8
8 1
8 2
7 4
7 7
7 9
7 9
8 0
8 0
7 6
7 6
7 5
7 5
7 0
7 2
7 1
