Safety Precautions
Before attempting to use the TechMate scan tool please
read and observe the following safety precautions:
• Always refer to and follow the engine and boat manufacturer’s safety and
service procedures to prevent personal injury and equipment damage.
• Never connect or disconnect the scan tool with the vehicle’s ignition turned
ON or while the engine is running.
• Always stay clear of any moving or movable engine components when
connecting and using the scan tool.
• When working near marine batteries never use any device that is capable of
producing a spark, high temperature or open ame.
• Marine batteries contain sulfuric acid and produce highly explosive gases
that may ignite. To prevent serious injury always observe this precaution
along with the safety precautions provided by the engine, boat and battery
manufacturers.
• Always test and service a running engine in a well ventilated area.
• Always wear approved eye protection.
IMPORTANT
• e scan tool is a sensitive electronic instrument. Always handle the tool
with care.
• DO NOT subject the scan tool to excessive water spray or expose it to rain.
e scan tool is water resistant but not water proof.
• DO NOT leave the scan tool in direct sunlight for extended periods of time
or subject it to extreme temperatures (hot or cold).
• Store the scan tool in its protective carrying case when not in use. If you do
not have a carrying case, store the scanner in its original packaging.
Page 7
Overview
About this supplemental publication
is publication is intended as a supplement to the main scan tool User Guide.
Please refer to the TechMate Pro User Guide (Figure 1) that was supplied with
your tool for important fundamental information on features and operation.

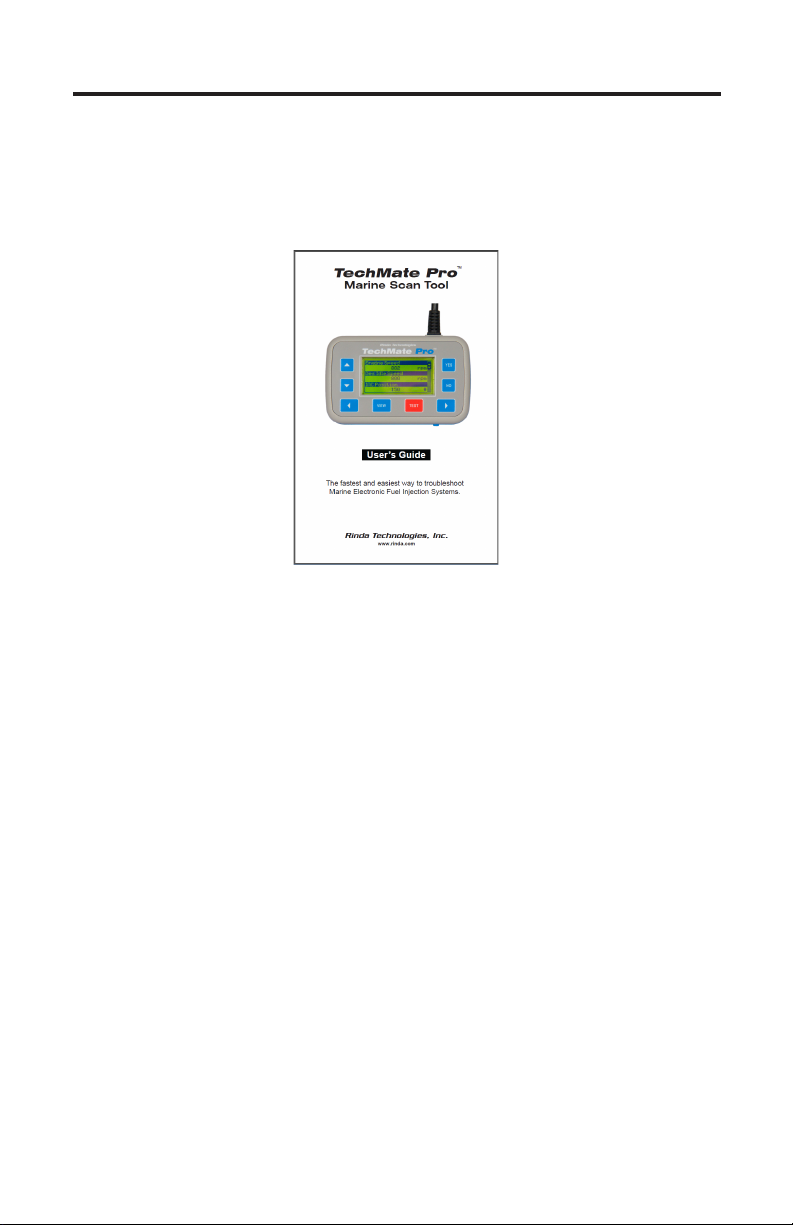

Figure 1 TechMate Pro User Guide
Outboard System Support
e TechMate Pro scan tool supports a variety of Mercury outboard electronic
engine control systems. Following is a general summary of supported system
types. For specic details, please refer to the appropriate section of this manual
based upon the type of engine control module (ECM) you are working with.
Outboard control systems supported:
• Mercury PCM-555 / ECM-555 (Smartcraft) ECMs
• Mercury ECM-70 (Smartcraft) ECMs
• Mercury 1997-2000 DFI ECMs
• Mercury #824003 Fuel ECM
• Mercury 3.0L Ignition ECM
• Mercury 3.0L Fuel ECM
• Mercury Racing 2.5L hi-perf (FMS ECM)
• Mercury 25, 30, 40, 50, 60 HP 4-strokes (24 pin Motorola ECM)
• Mercury 25 / 30 HP EFI 4-strokes (with Tohatsu powerheads)
• Mercury 75 / 90 / 115 HP EFI 4-strokes (with Yamaha powerheads)
SmartCraft PCM
Page 8
Figure 2 Mercury PCM-555 & ECM-555
is section describes TechMate Pro scan tool functions related to outboard
engines equipped with Mercury PCM-555 / ECM-555 SmartCra compatible
EFI modules. is system type was introduced on a variety of Mercury outboard
engines beginning in 2001. We will use the term “PCM” to refer to both styles of
EFI modules.
Figure 3 Mercury ECM-70
IMPORTANT NOTE
In 2010 Mercury introduced a new ECM-70 Smartcra compatible EFI module
as shown in Figure 3. If you are working on an engine that is equipped with a
ECM-70 EFI module please refer to the Smartcra ECM-70 section in this
manual for diagnostic adapter requirements and details on connecting the scan
tool to the engine.
Smartcraft PCM
Page 9
1) Locate the engine’s 4 pin (or 2 pin on some models) diagnostic connector
(DLC). e exact location of this connector is specied in the engine manu-
facturer’s service manual and may vary depending upon the engine type.
2) With the engine’s ignition switch in the OFF position, plug the scan tool’s
communication cable into the DLC connector. Adapter #94006 is required
for 4-pin applications, adapter #94028 is required for 2-pin applications..
3) Once the tool is connected, turn the ignition switch ON and start the engine
if necessary. Note the #94028 adapter requires a separate battery connection:
Red to +12vdc and Black to engine ground to provide power to the tool.

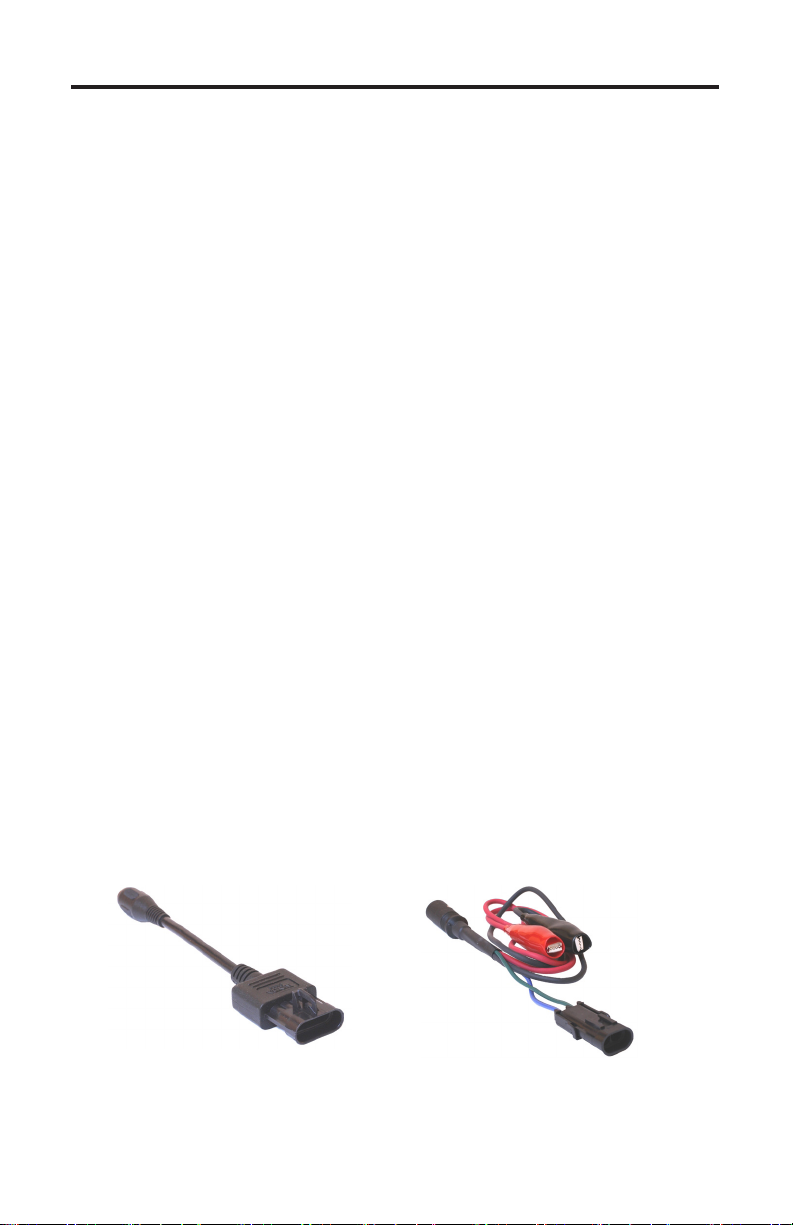

4-pin Adapter
Rinda Tech P/N 94006
2-pin Adapter
Rinda Tech P/N 94028
Connecting to the PCM-555 / ECM-555 EFI Systems
e TechMate Pro scan tool provides an extensive set of diagnostic and support
functions for troubleshooting engines equipped with the PCM SmartCra engine
control system.
Two types of diagnostic connectors were used on outboard engines equipped
with these EFI systems. As a general rule most outboard engines 2005 and ear-
lier that utilize Smartcra PCMs (PCM-555 or ECM-555) are tted with a 2-pin
diagnostic connector. Starting in 2006 Mercury began using a 4-pin diagnostic
connector on most of their Smartcra PCM equipped engines. One exception
to this is on Verado engines. All Verado engines 2005 and newer use the 4-pin
style connector.
To connect the TechMate Pro scan tool follow the steps below. e two possible
types of diagnostic adapters required for these systems are shown at the bottom
of this page.
SmartCraft PCM
Page 10
4) Aer the scan tool displays its initial opening messages, use the ▲and ▼
keys to highlight the “Mercury Outboards” option from the main menu,
then press the YES key to select it.
5) A list of outboard system types will now be displayed. Select the “2001-Up
Smartcra” system type.
Obtaining Data
Aer selecting the “2001-Up Smartcra” option you will be presented with the
engine operating hours and then the main PCM menu will be displayed as shown
in Figure 4 below.
Figure 4 Main PCM Menu
SMARTCRAFT PCM
PCM Data
PCM Faults
PCM History
PCM System Info
PCM Functions
To obtain diagnostic data select the “PCM Data” option. is menu choice
causes the scanner to begin reading and displaying live data from the PCM
module. Use the ▲and ▼keys to scroll through the engine operating data that
is displayed.
PCM Faults
Selecting the “PCM Faults” option from the main menu will display a sub-menu
allowing you to read or erase system faults as shown in Figure 5. Select “Read
Faults” to upload and display any stored faults. Select “Erase Faults” to clear the
PCM faults.
Figure 5 PCM Faults Menu
PCM FAULTS
Read Faults
Erase Faults
Smartcraft PCM
Page 11
PCM History
Selecting the “PCM History” menu choice displays a sub-menu of items associat-
ed with the PCM’s fault history memory as shown in Figure 6.
Freeze Frame Memory
Selecting “Freeze Frame Memory” from the menu will display a list of faults that
are stored in the PCM’s Freeze Frame data memory as shown in Figure 7. e
Freeze Frame Memory retains the last 10 faults that the PCM has detected re-
gardless of when they occurred and even if ignition power has been turned OFF.
e Freeze Frame Memory also contains a snapshot of several critical engine
parameters, such as the engine’s speed and temperature, for each fault that is
stored. is snapshot is taken at the time the fault was detected.
Figure 6 PCM History Menu
PCM HISTORY
Freeze Frame Memory
Fault Seconds
Erase Fault History
RPM History
Erase RPM History
Figure 7 PCM Freeze Frame Example
SELECT FREEZE FRAME
9 Engine Guardian
16 MAP Sensor Circu
81 Main Power Relay
85 Oil Pressure Low
101 CAN Communicatio
To view the Freeze Frame data, select a fault from the list and then press YES. A
brief description of the fault will be displayed followed by the fault’s Freeze Frame
snapshot data. e snapshot data is a list that can be scrolled through using
the ▲and ▼keys. is data is associated with the fault and was acquired and
stored by the PCM at the time the fault occurred. Press the NO key to return to
the Freeze Frame selection menu. Press NO a second time to return to the PCM
History menu.
SmartCraft PCM
Page 12
Fault Seconds
When critical faults occur and remain active the PCM keeps track of how many
seconds the fault has persisted during engine operation. e type and number of
critical faults this function keeps track of is pre-selected by the engine manufac-
turer. All PCM faults do not have an associated “Fault Second” counter assigned
to them, only a select number of fault types are kept track of.
To view Fault Seconds information select the “Fault Seconds” menu option. A
list of fault types will be displayed showing how many seconds each fault type
persisted.
Erase Fault History
Selecting this option from the Fault History menu will erase the PCM’s Fault
Second data and Freeze Frame Memory data. If active faults are present the
PCM’s Freeze Frame Memory may immediately repopulate with current active
fault information.
RPM History
PCM control modules have the ability to record the number of hours an engine
has been operated within a predetermined set of RPM ranges. ese ranges are
set at the factory and allow a service technician to view a prole of how a partic-
ular engine has been operated. Upon selecting the RPM History menu option a
list will be displayed showing the hours accumulated in particular RPM ranges.
Use the ▲and ▼keys to scroll through the RPM History data. Press the NO
key to return to the PCM History menu.
Erase RPM History
Selecting this option from the Fault History menu will erase the PCM’s RPM
History data. Accumulated hours in all of the RPM History’s ranges will be reset
to zero. is function DOES NOT erase total engine operating hours.
Total operating hours are displayed when initially selecting a system type using
the “Mercury Outboards” selection from the scan tool’s main menu. Total
engine operating hours cannot be cleared and reect the total run time for the
life of the engine.
Smartcraft PCM
Page 13
PCM System Info
e PCM control module contains an area of memory that is used to store help-
ful text information for a service technician. is information consists of many
lines of text which describe basic engine settings, capacities, etc, as well as PCM
soware revision information. e System Info data is entered into the PCM’s
memory at the factory and may be accessed as follows:
Aer selecting the “PCM System Info“ option from the main PCM menu the
scanner will begin uploading the system information. A bar graph indicator will
be displayed indicating the scan tool’s progress.
Once the system information is uploaded into the scan tool’s memory it will be
displayed. Use the ▲and ▼keys to scroll through the information. Press the
NO key to return to the main PCM menu.
PCM Functions
e PCM Functions menu option allows a technician to access a variety of PCM
functional tests and settings as shown in Figure 8.
Figure 8 PCM Functions Menu
PCM FUNCTIONS
Output Tests
Induced Misfire Test
Set Engine Location
Set Trim Limit
Set Trailer Limit
Output Tests
e Output Test menu option provides a technician with the ability to exercise
various PCM actuators and controls in order to verify correct operation. Select-
ing the “Output Tests” menu choice displays a sub-menu of items available as
shown in Figure 9.
Supported output tests will dier based upon the type of engine you are ser-
vicing. Some items apply only to engines equipped with DTS (digital throttle
and shi) for example. An engine equipped with sequential fuel injection will
support the ring of individual fuel injectors whereas an engine equipped with
an ECM-555 system, which is bank-red, will not support individual injector
ring. Always refer to the engine manufacturer’s service manual for details on
the specic output tests available on the engine you are servicing.
SmartCraft PCM
Page 14
Figure 9 PCM Output Tests Menu
PCM OUTPUT TESTS
Fuel Injectors
Fuel Pump Relay
Ignition Coils
Direct Injectors
Warning Horn
Fuel Injector Output Test
e Fuel Injector output test allows individual fuel injectors to be actuated to ver-
ify their operation. e fuel injector under test will be red at a rate equivalent
to 1600 rpm. is test helps a technician verify that a particular fuel injector is
receiving a command signal from the PCM. is test will not reveal if an injector
is clogged, internally leaking or mechanically worn.
• IMPORTANT: Before performing this test the engine’s electric fuel
pump should be disabled. Disabling of the fuel pump may be accom-
plished by removing the fuel pump fuse or disconnecting the pump’s
electrical connector.
• This test should be performed with Key-On and Engine Off.
1) Review the warnings stated above and be sure the engine is not running when
attempting to perform this test.
2) Aer selecting the “Fuel Injectors“ function from the PCM Output Test menu
the scanner will begin to display several safety messages. Review these mes-
sages and be certain their instructions are followed.
3) When the safety messages have been displayed, you may select the fuel injec-
tor you wish to test by using the ▲and ▼keys. To begin ring the selected
injector press the TEST key. e fuel injector will begin actuating at a speed
equivalent to 1600 rpm for a period of approximately 10 seconds.
• To abort the Fuel Injector test at any time, press and hold the
scanner’s NO key.
4) Aer the test is complete you may return to step #3 to test another injector or
press the NO key to return to the scanner’s Output Test menu.
Smartcraft PCM
Page 15
Fuel Pump Relay Output Test
is test will cause the PCM to energize the fuel pump relay thereby activating
the engine’s electric fuel pump. Upon executing this test the technician should
listen for fuel pump and relay mechanical activity. e relay will be activated for
a period of one second.
• This test should be performed with Key-On and Engine Off.
1) Review the advisory message stated above and be sure the engine is not run-
ning when attempting to perform this test.
2) Aer selecting the “Fuel Pump Relay“ test from the PCM Output Test menu
the scanner will prompt you to begin the test. To initiate the test press the
TEST key. e fuel pump relay will be activated for approximately one
second.
3) You may press the TEST key again to repeat the test or press the NO key to
return to the Output Test menu.
Ignition Coil Output Test
e Ignition Coil output test allows individual coils and their associated spark
outputs to be red to verify their operation. is test requires that a spark gap
tester be used to verify proper ignition coil operation. e ignition coil under test
will be red at a rate equivalent to 1600 rpm. is test helps a technician verify
that a particular ignition coil is receiving a command signal from the PCM and
that the coil’s high voltage output is sucient to generate a spark discharge.
• WARNING: Use of spark gap tester is required for this test. Do not
perform this test with the ignition wires attached to the engine’s spark
plugs while they are installed in the cylinders.
• Engine backre and external ame can occur. As a safety precaution,
purge fuel vapors from the engine before proceeding.
• An approved spark gap tester must be attached to the spark output
under test. See the spark gap tester’s instructions for proper installa-
tion, adjustment and use.
• IMPORTANT: Before performing this test the engine’s electric fuel
pump should be disabled. Disabling of the fuel pump may be accom-
plished by removing the fuel pump fuse or disconnecting the pump’s
electrical connector.
• This test should be performed with Key-On and Engine Off.
1) Review the warnings stated above and be sure the engine is not running when
attempting to perform this test.
2) Aer selecting the “Ignition Coil“ function from the PCM Output Test menu
SmartCraft PCM
Page 16
the scanner will begin to display several warning messages. Review these
messages and be certain their instructions are followed.
3) When the safety messages have been displayed, you may select the ignition
coil you wish to test by using the ▲and ▼keys. To begin ring the selected
coil press the TEST key. is action will being actuating the ignition coil at a
speed equivalent to 1600 rpm for a period of approximately 10 seconds.
• To abort the Ignition Coil test at any time, press and hold the scan-
ner’s NO key.
4) Aer the test is complete you may return to step #3 to test another ignition
coil or press the NO key to return to the scanner’s Output Test menu.
Direct Injector Output Test (engines with direct injectors only)
e Direct Injector output test allows individual injectors to be actuated to verify
their operation. e injector under test will be red at a rate equivalent to 1600
rpm. is test helps a technician verify that a particular direct injector is receiv-
ing a command signal from the PCM.
• IMPORTANT: Before performing this test the engine’s electric fuel
pump should be disabled. Disabling of the fuel pump may be accom-
plished by removing the fuel pump fuse or disconnecting the pump’s
electrical connector.
• This test should be performed with Key-On and Engine Off.
1) Review the warnings stated above and be sure the engine is not running when
attempting to perform this test.
2) Aer selecting the “Direct Injectors“ function from the PCM Output Test
menu the scanner will begin to display several safety messages. Review these
messages and be certain their instructions are followed.
3) When the safety messages have been displayed, you may select the injector
you wish to test by using the ▲and ▼keys. To begin ring the selected in-
jector press the TEST key. is action will being actuating the direct injector
at a speed equivalent to 1600 rpm for a period of approximately 10 seconds.
• To abort the Direct Injector test at any time, press and hold the scan-
ner’s NO key.
4) Aer the test is complete you may return to step #3 to test another injector or
press the NO key to return to the scanner’s Output Test menu.
Smartcraft PCM
Page 17
Warning Horn Output Test (non-DTS systems only)
is test will cause the PCM to energize the engine warning horn. e warning
horn will be activated for a period of one second.
• This test should be performed with Key-On and Engine Off.
1) Review the advisory message stated above and be sure the engine is not run-
ning when attempting to perform this test.
2) Aer selecting the “Warning Horn“ test from the PCM Output Test menu the
scanner will prompt you to begin the test. To initiate the test press the TEST
key. e warning horn will be activated for approximately one second.
3) You may press the TEST key again to repeat the test or press the NO key to
return to the Output Test menu.
Throttle Motor Test (DTS systems only)
is test allows a technician to check the functionality of the engine’s electronic
throttle actuator motor. e test allows the throttle blade to be moved in 5 degree
increments using the scan tool’s ▲and ▼keys and also displays the current TPS
voltages and TPS percent in real-time.
• This test must be performed with Key-On, Engine Off
Follow the scan tool’s on screen prompts to proceed with the test.
• Press and hold the NO key on the scan tool’s keypad to stop the test
at any time.
Gear Shift Motor Test (DTS systems only)
is test allows the technician to test the functionality drive’s shi actuator
mechanism by commanding it to move into the Forward and Reverse positions.
• WARNING: This test causes the vessel’s drive to shift into forward
and reverse, thereby causing the vessel to move.
• This test must be performed in NEUTRAL with the engine IDLING.
• Refer to the engine manufacturer’s safety instructions PRIOR to
performing this test.
• Vessel should be secured to prevent movement.
Aer referring to the manufacturer’s instructions and safety procedures for this
procedure, follow the scan tool’s on screen prompts to proceed with the test.
• Press and hold the NO key on the scan tool’s keypad to stop the test
at any time.
SmartCraft PCM
Page 18
Idle Air Control Output Test (non-DTS systems only)
e IAC Test allows the functionality of the engine’s Idle Air Control system
to be tested. is test commands the PCM module to change the IAC valve’s
position thereby changing the engine’s idle speed. Perform the following steps to
conduct the IAC test.
• IMPORTANT: This test should be performed in Neutral with the engine
idling and at normal operating temperature.
• Do not attempt to drive the boat while performing this test.
• Follow all engine and boat manufacturer’s safety precautions and stay
clear of all moving engine components.
1) Review the warnings stated above prior to conducting this test. For best
results the engine should be idling at normal operating temperature.
2) Aer selecting the “IAC Test“ function from the PCM Functions menu the
scanner will begin to display one or more advisory messages. Review these
messages and be certain their instructions are followed.
3) When the advisory messages have been displayed, you may begin the test by
pressing the YES key. While the test is in progress the scanner will display
the current engine RPM as well as the IAC valve’s position. Use the ▲and ▼
keys to change the IAC’s position in 5% increments. e IAC position range
is from -100% to +100%. While changing the IAC position you should hear a
noticeable change in engine speed.
4) To exit the IAC test press the NO key. You will be returned to the scanner’s
PCM Output Test menu.
Boost Valve Output Test (supercharged engines only)
is test allows a technician to check the functionality of the engine’s boost valve.
e test allows the boost valve duty cycle to be adjusted in 5 percent increments
using the scan tool’s ▲and ▼keys and also displays the current percent in
real-time.
• This test must be performed with Key-On, Engine Off
Follow the scan tool’s on screen prompts to proceed with the test.
• Press and hold the NO key on the scan tool’s keypad to stop the test
at any time.
Smartcraft PCM
Page 19
Tach Output Test
e Tachometer Output test is primarily used to verify the operation of an
analog, helm mounted, tachometer. e PCM is capable of generating and sup-
plying an RPM signal to an analog tachometer. is test will command the PCM
to output a tach signal that is equivalent to 3000 rpm.
• This test should be performed with Key-On and Engine Off.
1) Review the advisory message stated above and be sure the engine is not run-
ning when attempting to perform this test.
2) Aer selecting the “Tach Output“ test from the PCM Output Test menu the
scanner will prompt you to begin the test. To initiate the test press the TEST
key. e PCM will begin sending a signal equivalent to 3000 rpm to an exter-
nally attached (usually helm mounted) tachometer gauge. e tach signal will
be active for approximately 10 seconds.
• Press and hold the NO key on the scan tool’s keypad to stop the test
at any time.
3) Aer the test is complete the scan tool will return to the Output Test menu.
Induced Misre Test
e Induced Misre Test is designed to assist a technician in nding a problem-
atic cylinder. is test commands the PCM module to disable the fuel injector on
a selected cylinder thereby causing that cylinder to misre (not produce power).
Perform the following steps to conduct the induced misre test.
• IMPORTANT: This test should be performed with the engine running at
approximately 1500 rpm, at normal operating temperature and under
moderate load.
• Do not attempt to drive the boat while performing this test.
• Follow all engine and boat manufacturer’s safety precautions and stay
clear of all moving engine components.
1) Review the warnings stated above prior to conducting this test. For best
results the engine should be running at approximately 1500 rpm and under a
moderate load.
2) Aer selecting the “Induced Misre” function from the PCM Functions menu
the scanner will begin to display one or more advisory messages. Review
these messages and be certain their instructions are followed.
SmartCraft PCM
Page 20
3) When the advisory messages have been displayed you may select the cylinder
you wish to disable by using the ▲and ▼keys.
To begin the test press the TEST key. is action will command the PCM to
disable the fuel injector on the selected cylinder for approximately 10 sec-
onds. During this time you should hear a noticeable decrease in engine speed.
is decrease indicates that the selected cylinder was contributing power to
the system.
If a decrease in engine speed is not heard during the course of this test it may
indicate a problem with one or more cylinder components including the fuel
injector, ignition coil, spark plug, or other component. Refer to the engine
manufacturer’s troubleshooting procedures to isolate the problem compo-
nent.
• To Abort the Induced Misre Test at any time, press and hold the
scanner’s NO key.
4) Aer the test is complete you may return to step #3 to test another cylinder or
press the NO key to return to the scanner’s PCM Function menu.
Set Engine Location
is function allows the technician to read and modify the PCM’s engine
location setting. All engines shipped from the factory are congured as STAR-
BOARD. Multi-engine installations may require an alternate setting when used
within a Mercury/MerCruiser SmartCra system. Refer to the engine and boat
manufacturer’s installation procedures for the correct setting.
Available PCM engine location settings are as follows:
STARBOARD
PORT
STARBRD 2 INSIDE
PORT 2 INSIDE
Perform the following steps to read and change the Engine Location.
• This test should be performed with Key-On and Engine Off.
1) Review the advisory message stated above prior to performing this function.
2) Aer selecting the “Set Engine Loc“ function from the PCM Functions menu
the scanner will automatically read and display the current Engine Location
setting. Aer displaying the setting you may choose to proceed to alter the
location setting by pressing the YES key. Use the ▲and ▼keys to scroll
through the available location settings.
Table of contents
Other RindaTechnologies Marine Equipment manuals
