Rinnai Avenger 25 Plus User manual

This appliance shall be installed in accordance with:
• Manufacturer’s Installation Instructions
• Current AS/NZS 3000 & AS/NZS 5601
• Local Regulations and Municipal Building Codes
This appliance must be installed, serviced and repaired by an Authorised Person.
Portable Unflued Gas
Convection Heaters
With Electric Boost
Operation Manual
To Suit Models
Avenger 25 Plus
Capella 18 Plus
N10378

Rinnai i Operation Manual
This page intentionally blank.

Rinnai 1 Operation Manual
ABOUT YOUR NEW AVENGER/CAPELLA PLUS ....................................................2
CONTROL PANEL LAYOUT ......................................................................................3
REMOTE CONTROL ...................................................................................................4
FEATURES..................................................................................................................5
IMPORTANT POINTS .................................................................................................6
CUSTOMER OPERATING INSTRUCTIONS ............................................................11
HOW TO OPERATE THE HEATER ..........................................................................12
ADJUSTING TEMPERATURES................................................................................13

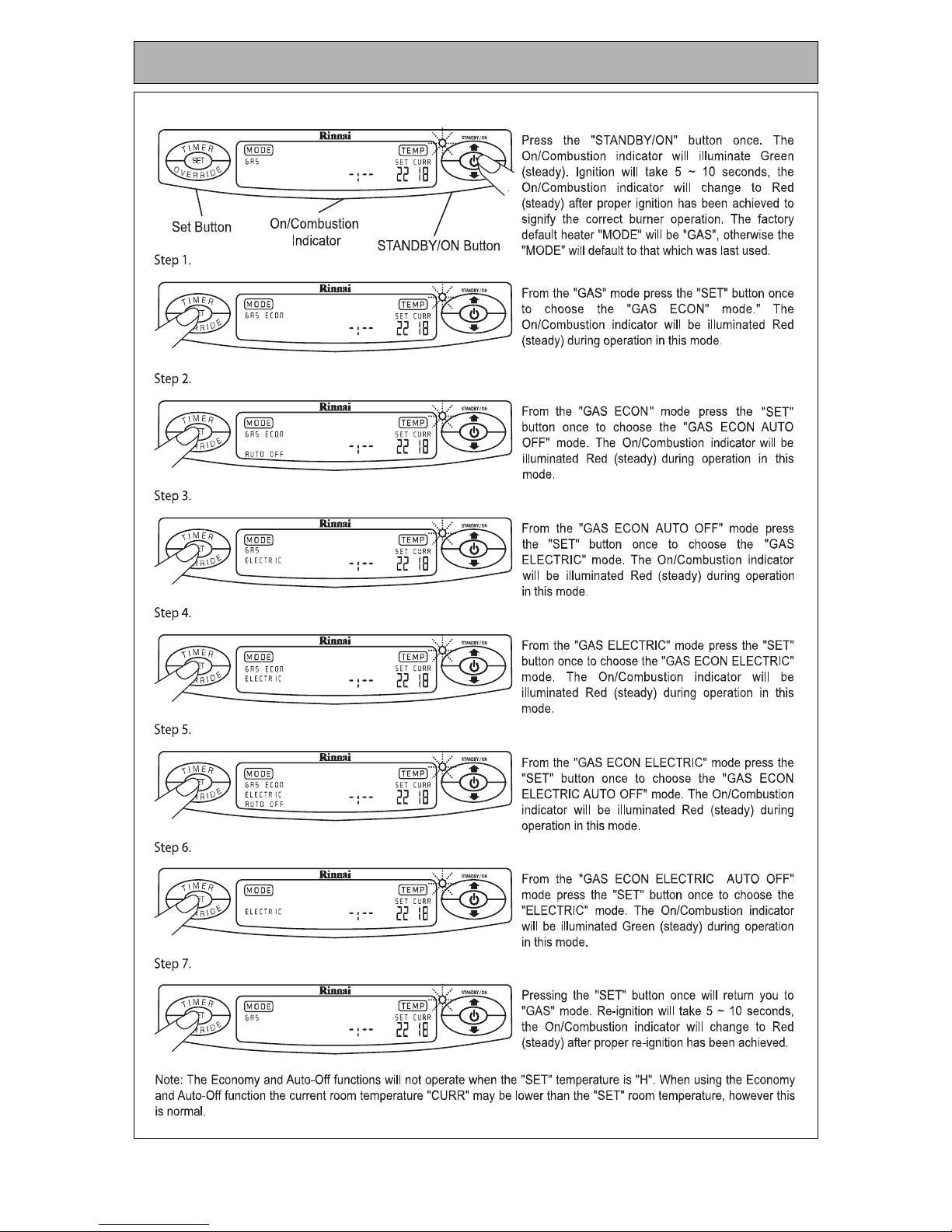

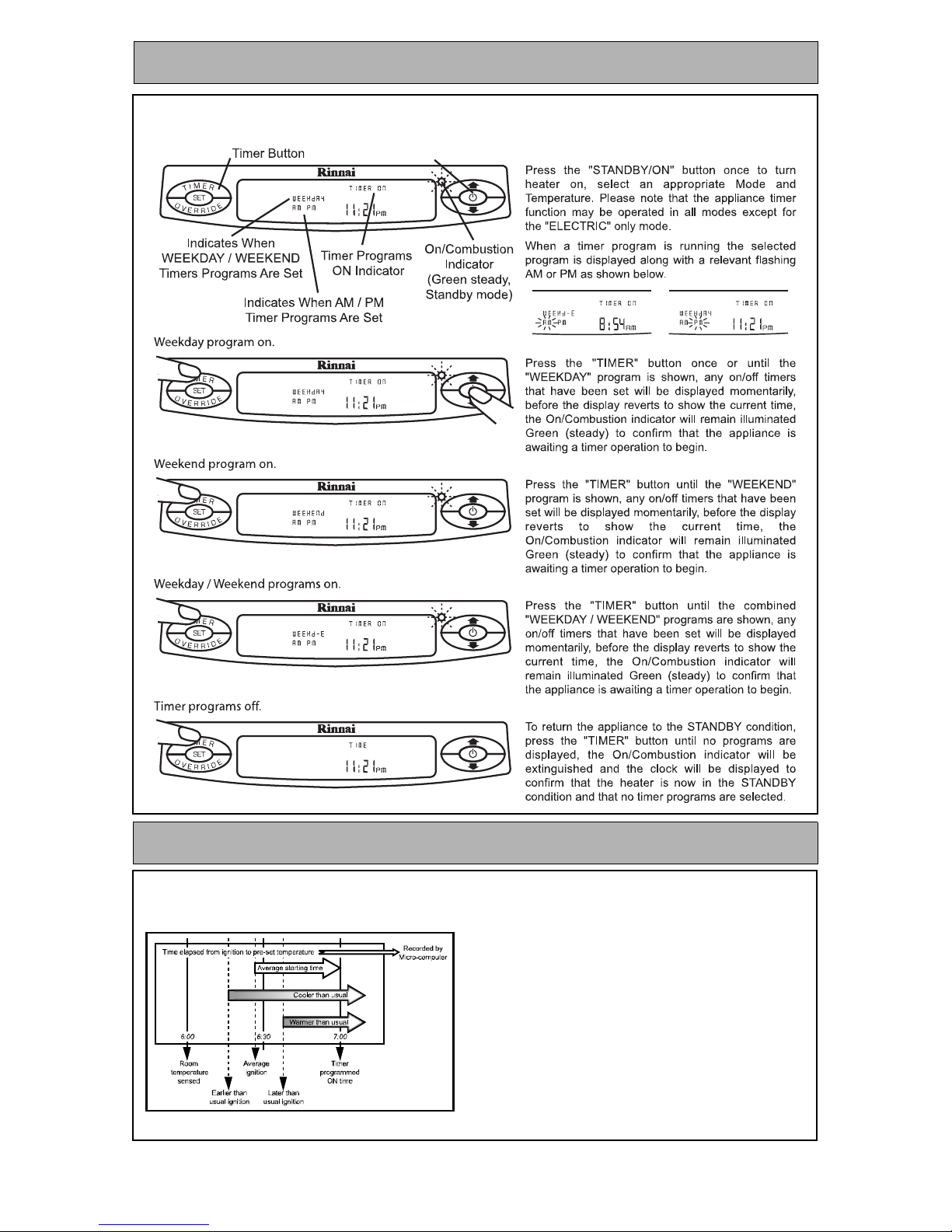

HEATER MODES & FUNCTIONS.............................................................................14
SETTING HEATER MODES......................................................................................15
SETTING CLOCK......................................................................................................16
PROGRAMMING THE ON/OFF TIMERS..................................................................17
OPERATING THE ON/OFF TIMERS ........................................................................18
PRE-HEAT.................................................................................................................18
OVERRIDE FUNCTION.............................................................................................19
USING THE REMOTE CONTROL ............................................................................19
CHILD LOCK .............................................................................................................20
SAFETY DEVICES ....................................................................................................20
CARE OF HEATER ...................................................................................................21
TROUBLE SHOOTING..............................................................................................22
ERROR CODES ........................................................................................................23
SPECIFICATIONS .....................................................................................................24
CONTACT INFORMATION .......................................................................................26
TABLE OF CONTENTS

Rinnai 2 Operation Manual
STANDBY/ON BUTTON

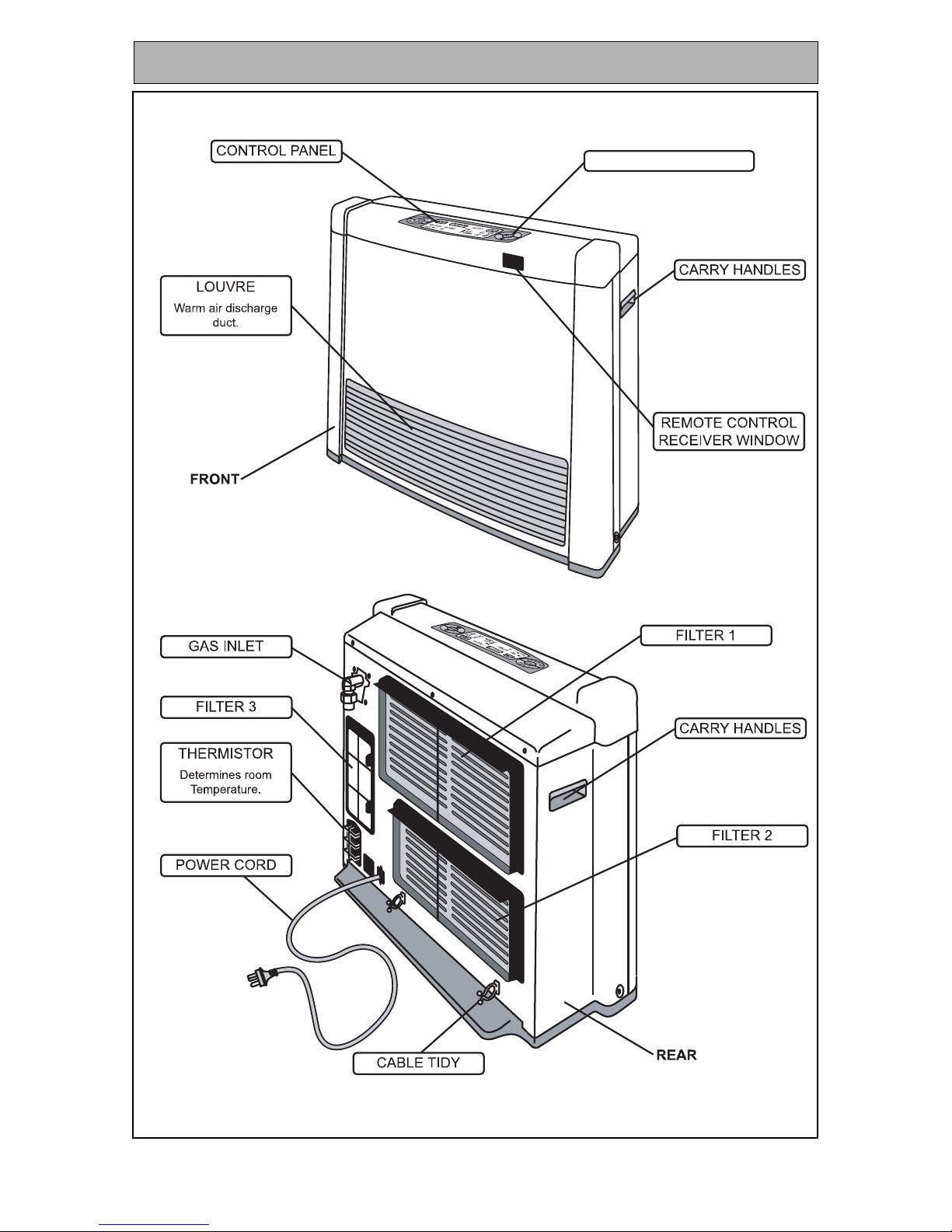

ABOUT YOUR NEW AVENGER/CAPELLA PLUS

Rinnai 3 Operation Manual
STANDBY/ON
STANDBY / ON button

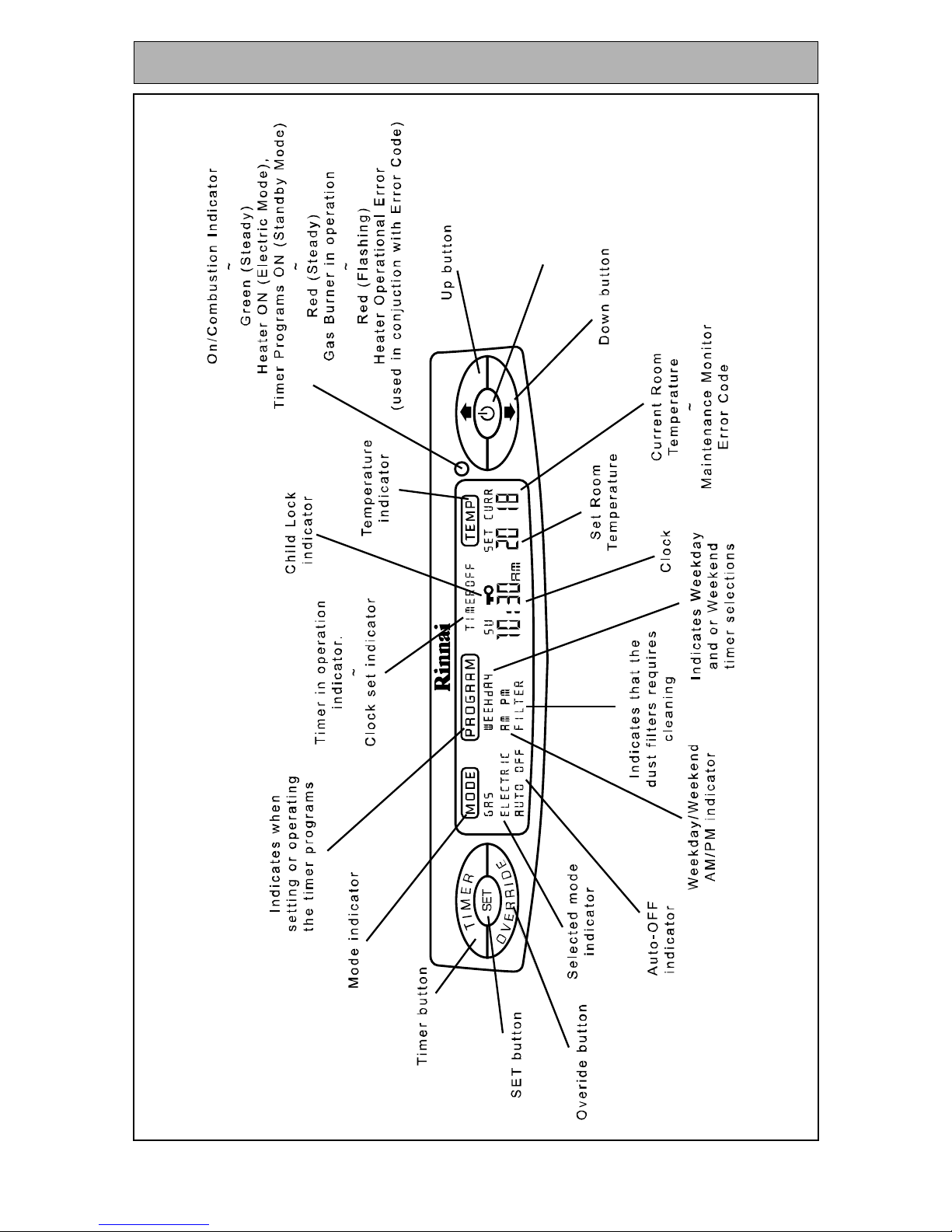

CONTROL PANEL LAYOUT

Rinnai 4 Operation Manual
STANDBY BUTTON
Timer mode.
STANDBY button will cancel any future timer
operations, these will have to be reset manually.
REMOTE CONTROL

Rinnai 5 Operation Manual
PUSH BUTTON IGNITION Only one touch of the STANDBY/ON switch is required
to operate the heater.
CHILD LOCK When the Child Lock is activated all controls other than
the STANDBY switch will be locked. Deactivating the
lock releases the controls. If the lock is activated when
the appliance is in STANDBY, all functions will be
locked.
MEMORY The micro-computer records selected preset
temperatures, the times programmed into Timers as well
as operating the Economy/Auto-Off and Pre-heat
modes, to maintain comfort levels.
PRE-HEAT This function will automatically operate the appliance
before the programmed start time of the Timer, in order
to heat a room to the pre-set temperature by the
programmed time.
FILTER INDICATOR When the fan filters become covered with dust, the filter
indicator will flash. The filters should be vacuumed at
regular intervals to avoid unnecessary strain on the
appliance.
REMOTE CONTROL For the convenience of operating the heater between
STANDBY or ON, as well as adjusting the temperature
up or down while at a short distance from the heater.
DUAL WEEKDAY / WEEKEND
TIMER
The Dual WEEKDAY/WEEKEND Timer allows you to
program the appliance to come on for two separate
periods each day, one period in the morning and one
period in the evening, on separate WEEKDAY and
WEEKEND timers. The built in Pre-heat Mode brings the
room temperature to the temperature you have selected,
by the time programmed into the Timer.
The Dual Timer feature means that you can "Set and
Forget" your heater. It will turn itself ON or to STANDBY
at the times you have programmed until you cancel the
Timer program.
ECONOMY / AUTO-OFF
FUNCTION
The Economy / Auto-Off functions are energy saving
feature designed to control the room temperature and
are automatically selected in all modes.
FEATURES

Rinnai 6 Operation Manual
Unpacking Appliance:
Check for damage. If the heater is damaged, contact your supplier for advice. Before installing the
appliance, check it is labelled for the correct gas type (see label on rear of heater). Refer to local gas
authority for confirmation of gas type if you are in doubt. The following items should also be included in
the carton: Customers Operation Information, Remote Control, Remote Control Caddy and Batteries.
IMPORTANT
1. The appliance must be installed in accordance with the local gas and electrical authority
regulations.
2. For information on gas consumption, see data plate on the appliance.
3. When using this appliance, ensure that the room is correctly ventilated. Check AS5601 (Gas
Installations) or the local gas authority for information on ventilation requirements, or refer to the
warning label located on the appliance.
4. DO NOT connect this appliance to the gas supply to heat a bedroom. It may be connected
to the electric supply for heating a bedroom in ‘ELECTRIC’ mode only.
5. DO NOT use this heater in the immediate surroundings of a bath, shower, swimming pool,
toilet or sauna. The appliance must not be used to heat any of these areas.
6. DO NOT connect to an LPG Gas cylinder indoors.
7. This appliance must not be installed where
curtains or other combustible materials could
come into contact with it. In some cases
curtains may need restraining.
8. This appliance is not designed to be built in.
Not intended for fireplace insert.
9. Heater must not be located below a power
socket-outlet.
10. If you move house, check the gas type in the
area where you are moving to.
11. The local gas and electrical authorities will be
able to advise on local regulations.
12. Heat emanating from the front of this appliance may over time affect the appearance of some
materials used for flooring such as carpet, vinyl, cork or timber. This effect may be amplified if the
air in the room contains cooking vapours or cigarette smoke. To avoid this possibility, it is
recommended that a mat be placed in front of the appliance, extending at least 750 mm in front
of it.
13. The appliance is not intended for use by young children or infirm persons without supervision.
14. Young children should be supervised to ensure they do not play with the appliance.
15. If the supply cord or gas hose are damaged or require replacing, they must be replaced by the
manufacturer or the manufacturer's agent or similarly qualified person in order to avoid a hazard.
16. The appliance weighs 21 kg. Exercise caution when lifting or moving.
DO NOT modify this appliance.
Servicing shall be carried out ONLY by authorised personnel.
WARNING
ON/OF
F
SET
50mm
750mm
50mm
50mm
50mm
The above diagram shows the clearances required
around this heater whilst in operation.
IMPORTANT POINTS

Rinnai 7 Operation Manual

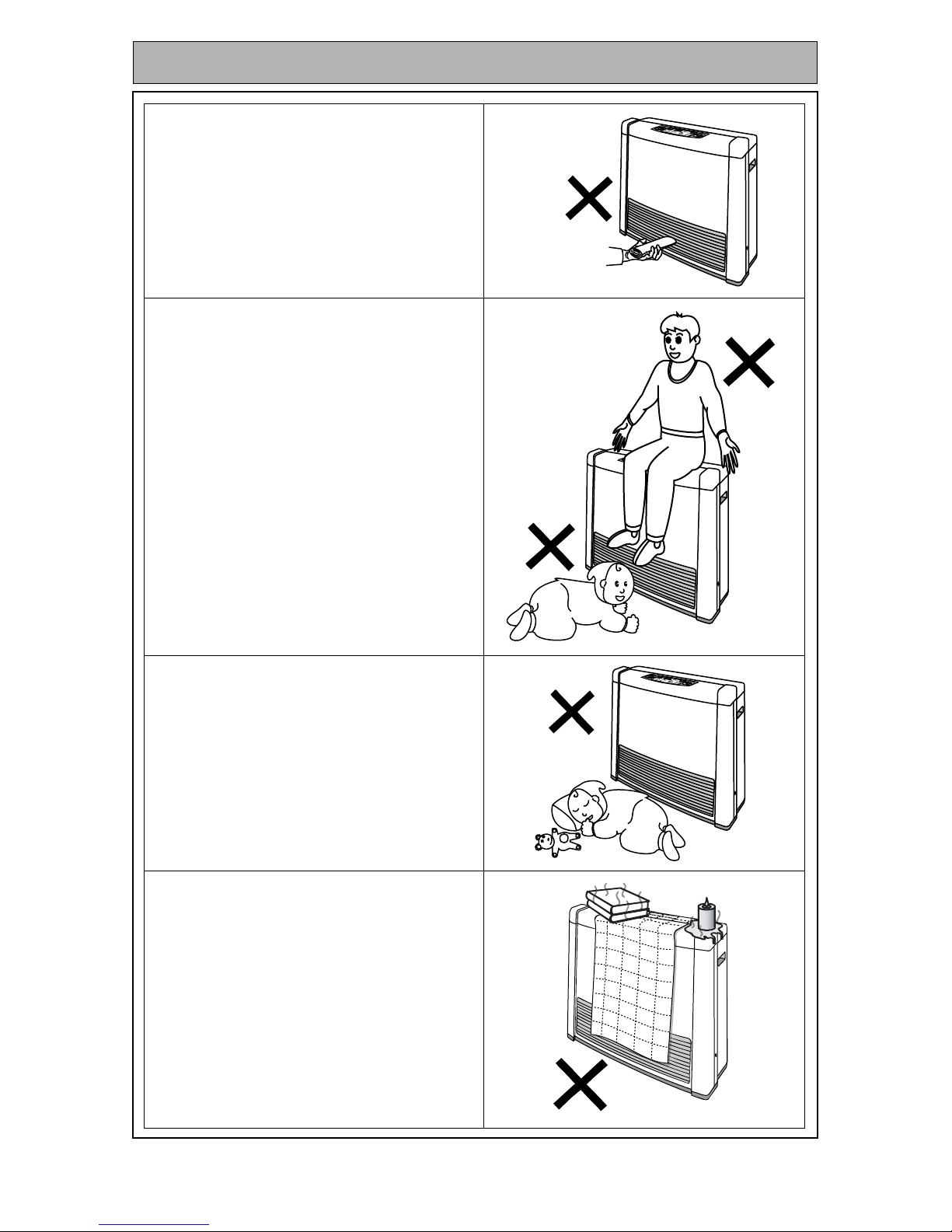

Do not allow children to post articles in the
louvres.
The appliance is not intended for use by
young children or infirm persons without
supervision.
Young children should be supervised to
ensure they DO NOT play with the appliance.
Do not sit on this heater.
Do not allow children or elderly persons to
sleep in the warm air discharge from the
heater.
Do not cover or place articles on or against
this appliance.
IMPORTANT POINTS

Rinnai 8 Operation Manual
IMPORTANT POINTS

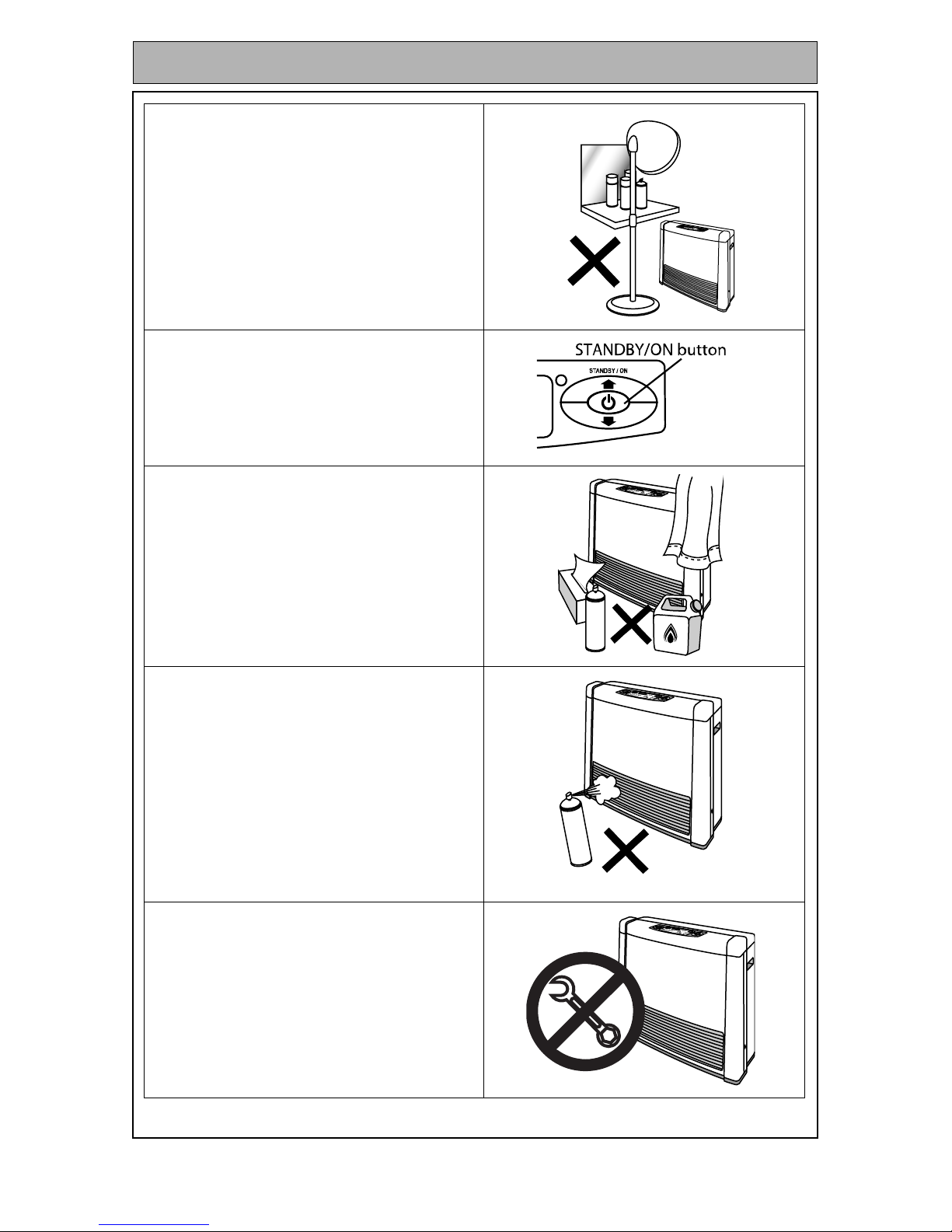

Do not operate/install this heater in areas
where painting is taking place, or in places
such as hairdressing salons, where there
may be fluff and dust, and where aerosols are
used.
Turn the heater on to STANDBY after use.
Keep heater away from flammable materials.
DO NOT use or store flammable materials
near this appliance.
Do not spray aerosols near this heater while it
is in the vicinity of this heater while it is in
operation.
Most aerosols contain butane gas which can
be a fire hazard if used near this heater when
it is in use.
Use of aerosols, paint, polishes etc. whilst
this heater is in use may also cause
unpleasant smells.
DO NOT modify this appliance.

Rinnai 9 Operation Manual

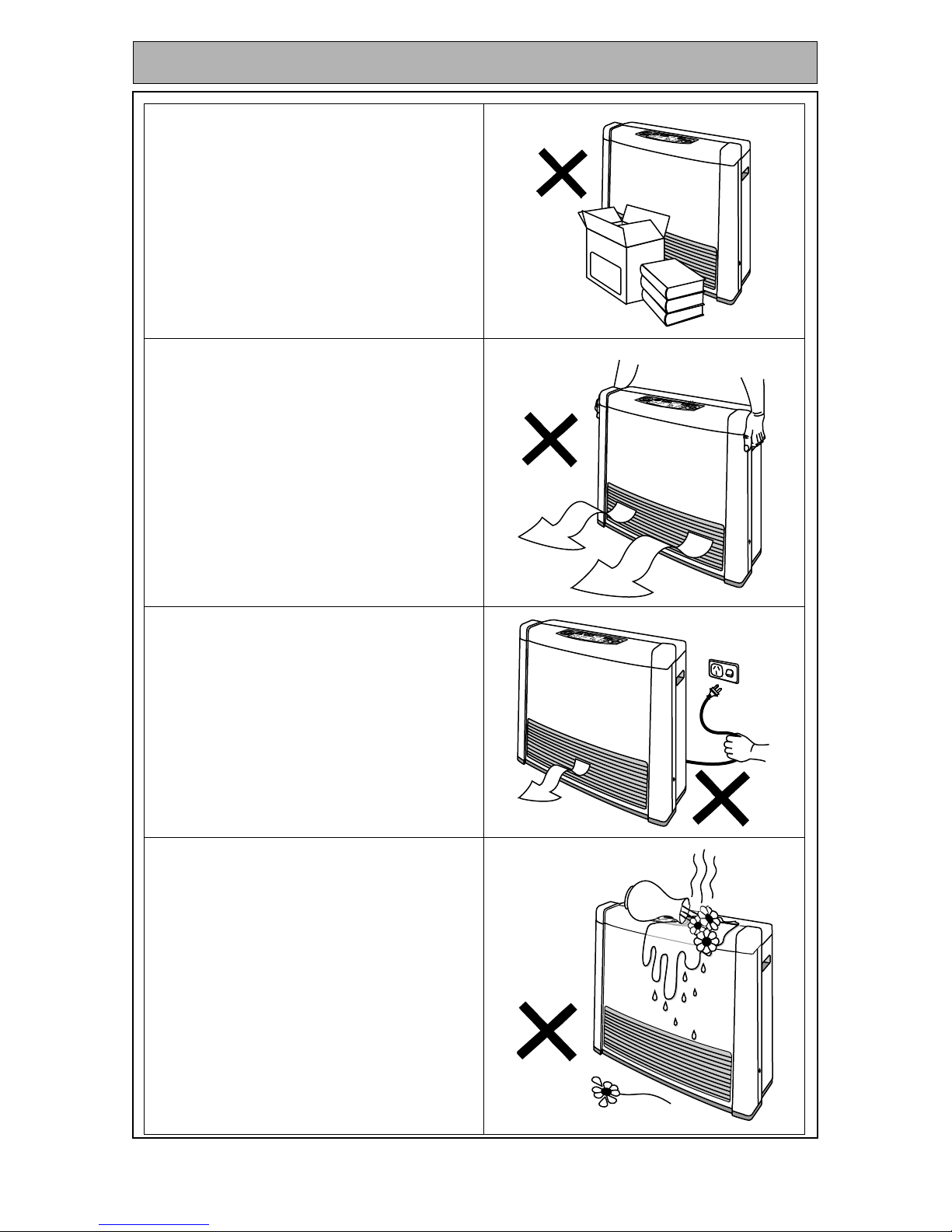

Do not place articles in front of the louvres.
Do not move the heater whilst it is turned on.
Do not unplug the heater while it is in
operation or while the fans are still cycling.
Unplugging the heater will cause the timer
and clock to stop, however programmed ON/
OFF times will remain in the memory.
Do not place containers of liquid on top of the
heater. Water spillage can cause extensive
damage to the appliance and create an
electrocution hazard.
IMPORTANT POINTS

Rinnai 10 Operation Manual
IMPORTANT POINTS
A dedicated 240v 10 Amp power point must
be used with this appliance.
Do not use power boards or double adaptors
to operate this appliance.
Heater must not be located below a power
socket-outlet.
Heat emanating from the front of this
appliance may over time affect the
appearance of some materials used for
flooring such as carpet, vinyl, cork or timber.
This effect may be amplified if the air in the
room contains cooking vapours or cigarette
smoke. To avoid this possibility, it is
recommended that a mat be placed in front of
the appliance, extending at least 750 mm in
front of it.
During peak operating periods the filters
should be cleaned weekly, however if the
“FILTER” warning indicator flashes in the
control panel display, turn off the appliance
immediately and clean filters before further
use.
When the heater is operated for the first time
or after long periods of non use a slight odour
may be emitted, this is normal.
However if odours persist switch of the
appliance and contact Rinnai.

Rinnai 11 Operation Manual
INSTALLATION
Check room size and ventilation
This heater must not be installed in a room
smaller than:
The AVENGER 25Plus must not be in a room
smaller than 62.5 m3.
The CAPELLA 18Plus must not be in a room
smaller than 45.0 m3.
Fixed ventilation must conform to local regulations.
Number and position of vents is for illustrative purposes only. For more information on ventilation,
please refer to our Rinnai Web Site www.rinnai.com.au
DO NOT install in a bedroom or bathroom.
The bayonet plug on the factory fitted flexible hose simply plugs into your bayonet fitting. The control
panel is located on the top of the appliance, basic controls are also located on the remote control.
For the AVENGER - H x W x D must equal or exceed 62.5 m3.
For example: if room size is L 5.2 m x W 5.0 m x H 2.4 m the volume will be 62.4 m3
For the CAPELLA - H x W x D must equal or exceed 45.0 m3.
For example: if room size is L 4.5 m x W 4.2 m x H 2.4 m the volume will be 45.4 m3
This heater must not be installed where
curtains or other combustible materials could
come into contact with it. In some cases
curtains may need restraining.
Other clearances are shown in the diagram.
This heater is not designed to be built in.
Width
Depth
Height
HEATER
ON/OF
F
SET
50mm
750mm
50mm
50mm
50mm
The above diagram shows the clearances required
around this heater whilst in operation.
CUSTOMER OPERATING INSTRUCTIONS

Rinnai 12 Operation Manual
STANDBY/ON
STANDBY/ON
STANDBY/ON
STANDBY/ON Button
''STANDBY/ON'' button once.
''STANDBY/ON''
To return the heater to STANDBY
To return the heater to STANDBY while it is in
operation press the ''STANDBY/ON'' button once.
''STANDBY/ON'' button twice to restart.
heaters ''STANDBY/ON'' button
The ''STANDBY'' and ''ON'' buttons located on the remote control can also be used to operate the
appliance.
Remote control STANDBY and ON Buttons
13
15
12

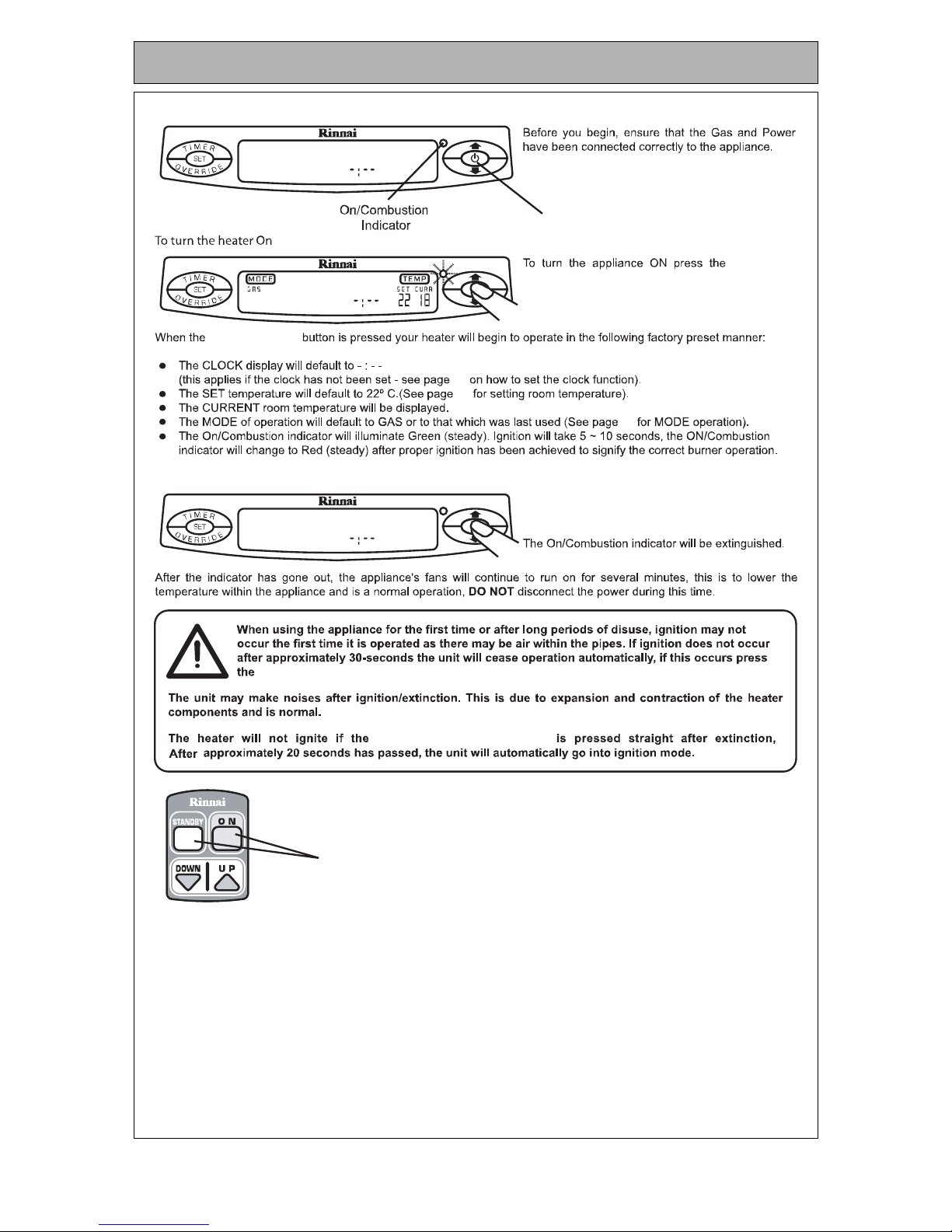

HOW TO OPERATE THE HEATER

Rinnai 13 Operation Manual

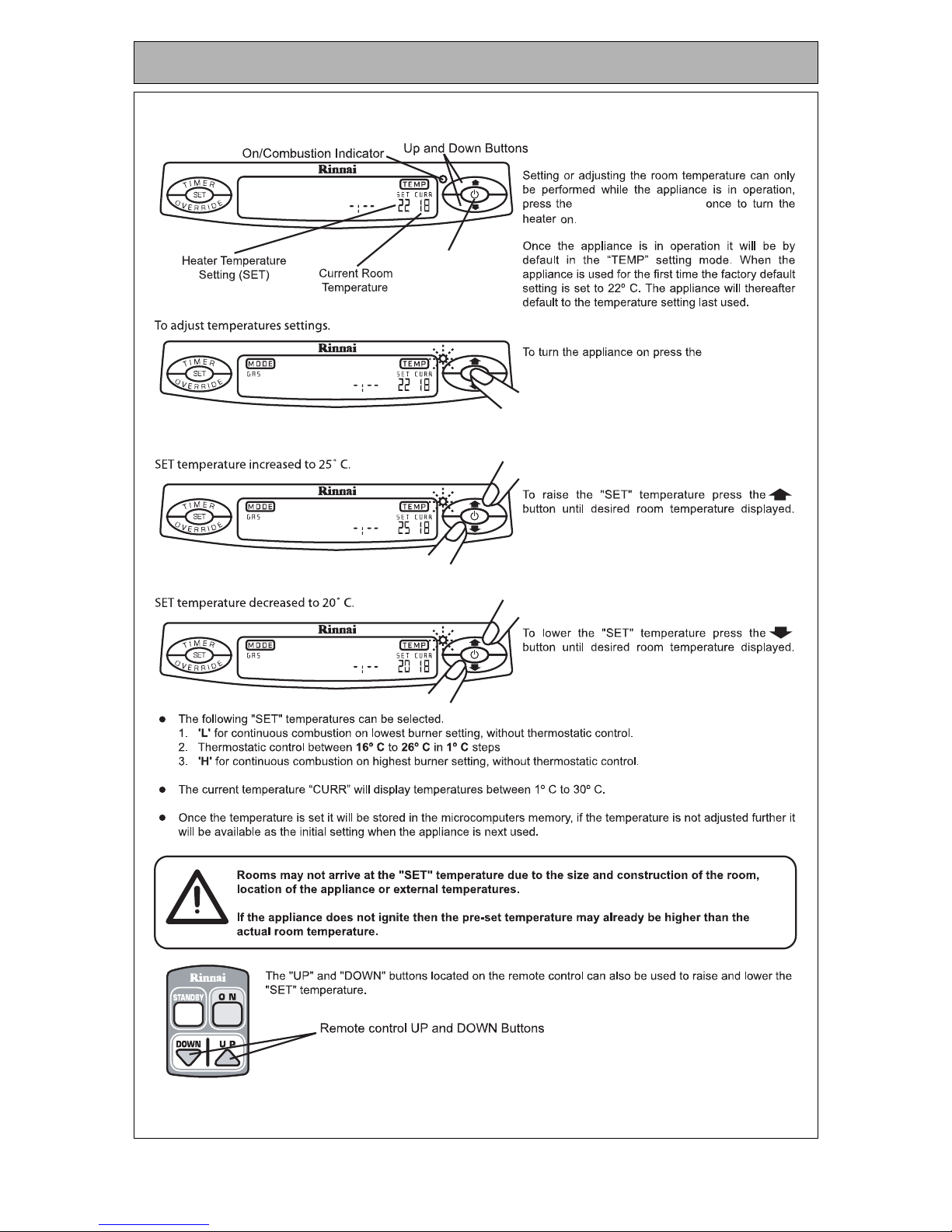

ADJUSTING TEMPERATURES
STANDBY/ON
STANDBY/ON
STANDBY/ON
STANDBY/ON
STANDBY/ON Button
''STANDBY/ON'' button
''STANDBY/ON''
button once.

Rinnai 14 Operation Manual
HEATER MODES & FUNCTIONS
Your appliance has several "MODE" settings to choose from. The factory default setting is "GAS". For your
convenience in normal operation the appliance’s memory will select the “MODE” that was last used.
COMFORT AND ECONOMY
As a room is warmed, the walls and ceilings are also warmed, making one feel a little warmer than when the ceilings
and walls were cold, even though the room temperature is the same. The Economy (ECON) function prevents
discomfort from overheating and saves energy.
“GAS” MODE
When operating in this mode, the appliance will heat the room using gas convection. Gas combustion in this mode
is continuous and will adjust automatically to maintain the “SET” temperature.
"GAS ECON" MODE
When operating in this mode, the appliance will heat the room using gas convection. Once the “SET” Temperature
has been maintained for a period of 30 minutes, the comfort control system will progressively lower the “SET”
temperature by 2°C over a period of 60 minutes. When ‘ECON’ only is selected, gas combustion is continuous and
will adjust automatically to maintain the “SET” temperature minus 2°C.
Note: that during operation in this mode the “CURR” room temperature displayed may be lower than the “SET”
temperature, however this is normal.
"GAS ECON AUTO OFF" MODE
When operating in this mode, the appliance will heat the room using gas convection. Once the “SET” temperature
has been maintained for a period of 30 minutes, the comfort control system will progressively lower the “SET”
temperature by 2°C over a period of 60 minutes. When ‘ECON’ & ‘AUTO OFF’ are selected, gas combustion will
start and stop automatically to maintain the “SET” temperature minus 2°C.
Note: that during operation in this mode the “CURR” room temperature displayed may be lower than the “SET”
temperature, however this is normal.
“GAS ELECTRIC” MODE
When operating in this mode, the appliance will heat the room using Gas convection or Gas and Electric convection.
Electric convection is used only when the room is cold and/or when the heat load is high. Gas combustion in this
mode is continuous and will adjust automatically whilst the electric convection is turned on and off to maintain the
“SET” temperature.
“GAS ECON ELECTRIC” MODE
When operating in this mode, the appliance will heat the room using Gas convection or Gas and Electric convection.
Electric convection is used only when the room is cold and/or when the heat load is high. Once the “SET”
temperature has been maintained for a period of 30 minutes, the comfort control system will progressively lower the
“SET” temperature by 2°C over a period of 60 minutes. When ‘ECON’ only is selected, gas combustion is continuous
and will adjust automatically to maintain the “SET” temperature minus 2°C.
Note: that during operation in this mode the “CURR” room temperature displayed may be lower than the “SET”
temperature, however this is normal.
“GAS ECON ELECTRIC AUTO OFF” MODE
When operating in this mode, the appliance will heat the room using Gas convection or Gas and Electric convection.
Electric convection is used only when the room is cold and/or when the heat load is high. Once the “SET”
temperature has been maintained for a period of 30 minutes, the comfort control system will progressively lower the
“SET” temperature by 2°C over a period of 60 minutes. When ‘ECON’ & ‘AUTO OFF’ are selected, gas combustion
will start and stop automatically to maintain the “SET” temperature minus 2°C.
Note: that during operation in this mode the “CURR” room temperature displayed may be lower than the “SET”
temperature, however this is normal.
“ELECTRIC” MODE
When operating in this mode, the appliance will heat the room using Electric convection. The Electric element will
switch on and off automatically to maintain the “SET” temperature.
Note: Electric convection will only operate when the “SET” temperate is at least 2°C higher than the “CURR”
temperature. Timer operation is disabled when the appliance is in the “ELECTRIC” only mode.

Rinnai 15 Operation Manual
SETTING HEATER MODES

Rinnai 16 Operation Manual
SETTING CLOCK
STANDBY/ON
STANDBY/ON
STANDBY/ON
STANDBY/ON
STANDBY/ON
STANDBY/ON
STANDBY/ON
STANDBY/ON Button
STANDBY condition.
''STANDBY/ON'' Button
STANDBY

Rinnai 17 Operation Manual
PROGRAMMING THE ON/OFF TIMERS
Here we will learn how to set the Timer (s) function by following the steps below.
STANDBY/ON
STANDBY/ON
STANDBY/ON
STANDBY/ON
STANDBY/ON
STANDBY/ON
STANDBY/ON
STANDBY/ON Button
With the heater in the STANDBY condition press
the ''SET'' button until ''PROGRAM'' is shown in
the control panel display and the hour digits are
flashing.

Rinnai 18 Operation Manual
STANDBY/ON
STANDBY/ON
STANDBY/ON
STANDBY/ON
STANDBY/ON
STANDBY/ON Button
Now that the timer (s) functions have been programmed they can operated as follows.
This function operates automatically in conjunction with the Timers. When a Timer is selected, the heater may
operate anywhere within an hour prior to the programmed starting time of a Timer.
This function is called Pre-heat since it ensures the room
reaches the desired temperature by the time the Timer
programs On time. The room temperature is sensed one
hour before reaching Timers programmed ON time.
The temperature differential at the time of sensing the room
temperature combined with the data from previous
operation governs exactly how long before the programmed
ON time the micro-computer will operate the heater and
ignite the burner.
OPERATING THE ON/OFF TIMERS
PRE-HEAT
