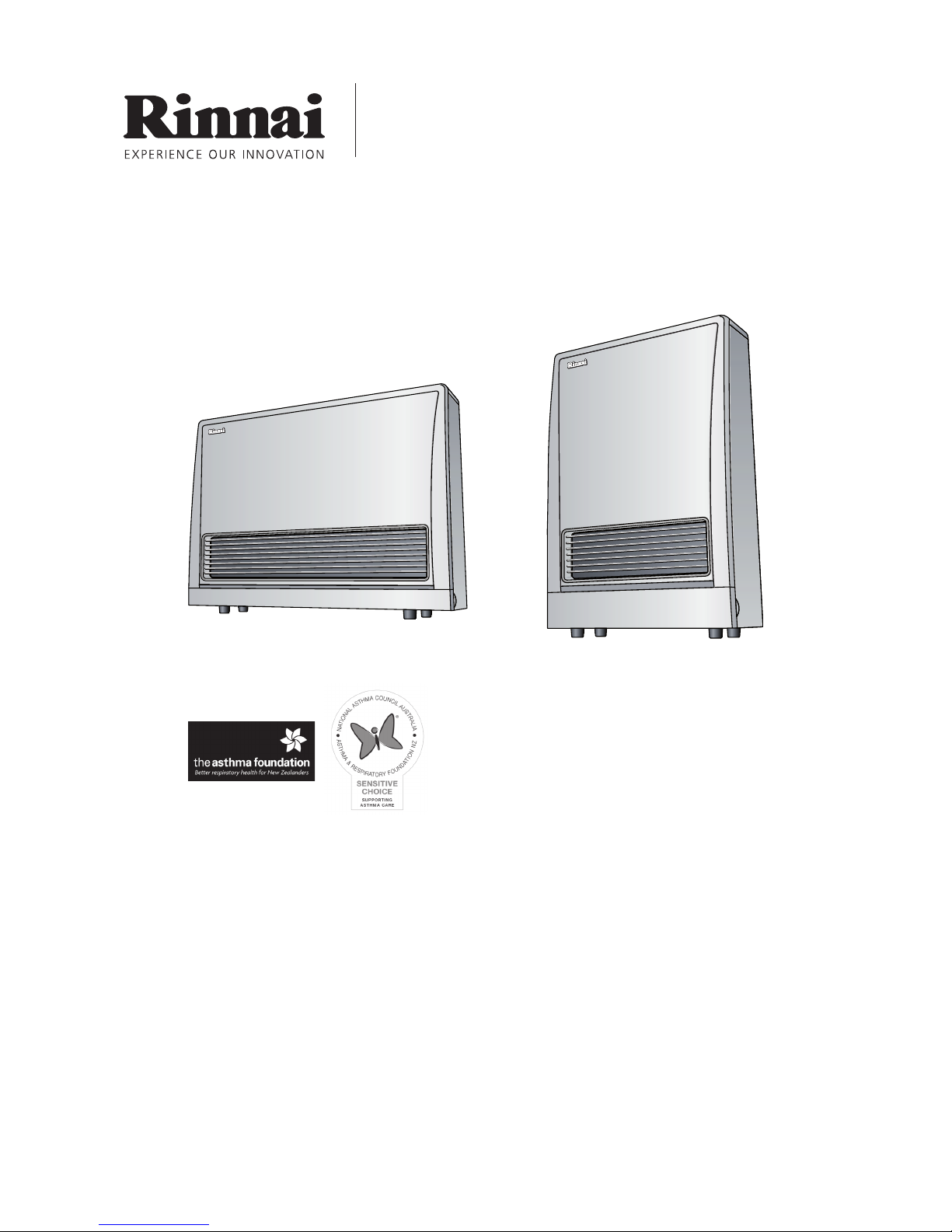

Rinnai RHFE-309FT Specification sheet

Operation and Installation Manual
NOT INTENDED FOR FIREPLACE INSERT.
Appliance must be installed with a Rinnai supplied ue system. For ueing installation
details refer to separate instructions.
Appliance must be installed, commissioned and serviced by a licensed tradesperson in
accordance with these instructions and all applicable local rules and regulations.
Owner, please retain this manual for future reference.
Approved by the Asthma and
Respiratory Foundation
Energysavers®
RHFE-309FT and RHFE-559FT

LIMITED WARRANTY
Please keep these instructions in a safe place for future reference.
RECORD AND ATTACH YOUR PROOF OF PURCHASE BELOW:
Your Retailer:__________________________________________________
Name:________________________________________________________
Address:______________________________________________________
_____________________________________________________________
Telephone:( _______ ) __________________________________________
Date of Purchase: ______ / ______ / _________
TERMS AND CONDITIONS
1. During the 24 month period from date of
purchase and subject to clauses 2 and
3 below, Rinnai New Zealand Limited
(“Rinnai”) will, at its own discretion, either
replace or repair any defective product at
no charge to the customer.
2. This warranty covers manufacturing defects
only. This warranty will not apply if (for
example) the product has been improperly
installed or is otherwise installed contrary
to manufacturer’s recommendations, has
been damaged during or after installation,
has not been operated in accordance
with operating instructions, or has been
subjected to damage or abuse beyond that
expected from conditions of normal use.
3. Warranty claims may be invalid if not
accompanied by details of the installing or
supervising gas tter’s registration number
and the gas tting certication number.
4. This warranty commences from the date of
purchase. Proof of purchase is required at
the time of any warranty claim.
5. Servicing of the product is to be carried out
by a Rinnai authorised service centre.
All Rinnai appliances meet or exceed the
safety standards required by New Zealand
gas and electrical regulations. The company
is constantly improving its products and as
such specications are subject to change or
variation without notice.
Rinnai brings you peace of mind
with a 2 year minimum warranty.

Contents
WARNING
Improper installation, adjustment, alteration, service or maintenance
can cause property damage, personal injury or loss of life.
For assistance or additional information contact Rinnai on
0800 RINNAI (0800 746 624).
Customer Information
About your Energysaver®4
Safety 7
General information 9
Heater operation 11
Setting the clock and timers 13
Operating the timers 14
Operation: Other features 15
Care of your Energysaver®16
Error code messages 17
Troubleshooting 18
Installer Information 20
Specication 21
Dimensions 22
Positioning, gas and electrical supply 23
Flueing: General 24
Flueing: Installation congurations 26
Energysaver® installation 28
Installer details 30
Wiring diagram 31

Rinnai New Zealand Energysaver®Operation and Installation Manual:
RHFE-309FT and RHFE-559FT (01-10)
4
About your Energysaver®
RHFE-309FT RHFE-559FT
Input: 13 MJ/h (on high) 23 MJ/h (on high)
Output: 3 kW 5 kW
Efciency: 80% 81%
Energy Star Rating: 4.3 stars 4.5 stars
Note: Figures may vary slightly depending on gas type and ue conguration.
At Rinnai, we’re committed to a positive future for New Zealand and our customers. Our high
efciency Energysaver® range not only ensures a warm home, but a healthy home.
Rinnai Energysavers are simple to operate, the layout below highlights where some of the
key components are positioned. The general layout of the Energysaver®models are the same
regardless of model, the model show below is the RHFE-559FT.
Bottom trim, pulls off
to allow lling of the
humidier tray
Louvre, warm air
discharge
Air lter (not pictured)
Control panel is centrally positioned
on top of the Energysaver®
Rear panel (not
pictured) covers
air inlet tube and
other operational
components

Rinnai New Zealand Energysaver®Operation and Installation Manual:
RHFE-309FT and RHFE-559FT (01-10)
5
About your Energysaver®
Features
Push button ignition Only one-touch is required to turn the heater on and off.
Child lock function Prevents children from altering settings when the heater is in use or activating
the heater when turned off.
Preheat This function will automatically operate the appliance before the programmed
start time in order to preheat the room.
Economy mode Energy saving feature designed to control the room temperature and prevent
the room from overheating.
Override Temporarily changes the heater operation from on to off, or vice versa, until the
next programmed setting is reached.
Dual timer Allows you to program the appliance to come on for two separate periods each
day, one in the morning and one in the evening. The dual timer feature means
you can “set and forget” your heater.
Filter indicator When the air (fan) lter becomes covered with dust the lter indicator will ash
indicating that cleaning is necessary.
Humidier tray Raise humidity in the room for extra comfort with the humidier tray—can be
lled with water as required.
Safety devices
Overheat switch This device automatically cuts the gas off if the heater exceeds a certain
temperature. This is normally caused by an obstruction in front of the louvres,
or a blocked fan lter. If this switch operates, turn the unit off, remove
obstruction (clean lters) and let the unit cool before restarting.
Fusible link Back up to the overheat switch. If a fusible link cuts off the gas a service call is
required to repair the appliance and replace the link.
Flame failure device If the ame goes out during operation, this device cuts off the unit (lockout). To
reset, turn the unit off, then on again. If this happens repeatedly a service call
is required.
Electrical fuse The electrical circuits are protected by an electric fuse. When the fuse blows,
the heater will not operate. A service call is required as the fuse needs to be
replaced.
Power failure In the event of a power failure or power cut, the gas valves will automatically
close. After the power is reinstated the appliance will automatically restart. The
time of day will need to be reset to the current time.

Rinnai New Zealand Energysaver®Operation and Installation Manual:
RHFE-309FT and RHFE-559FT (01-10)
6
About your Energysaver®

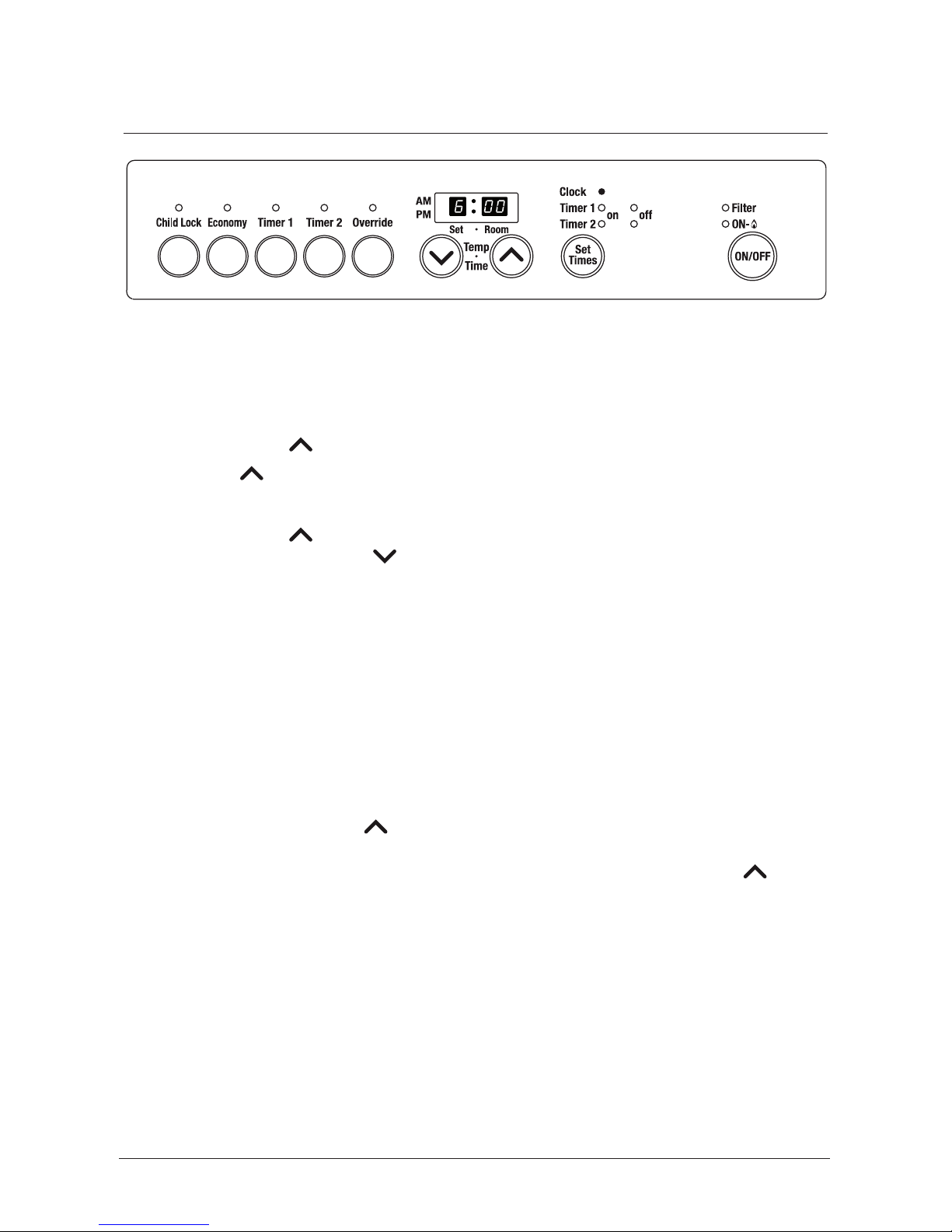

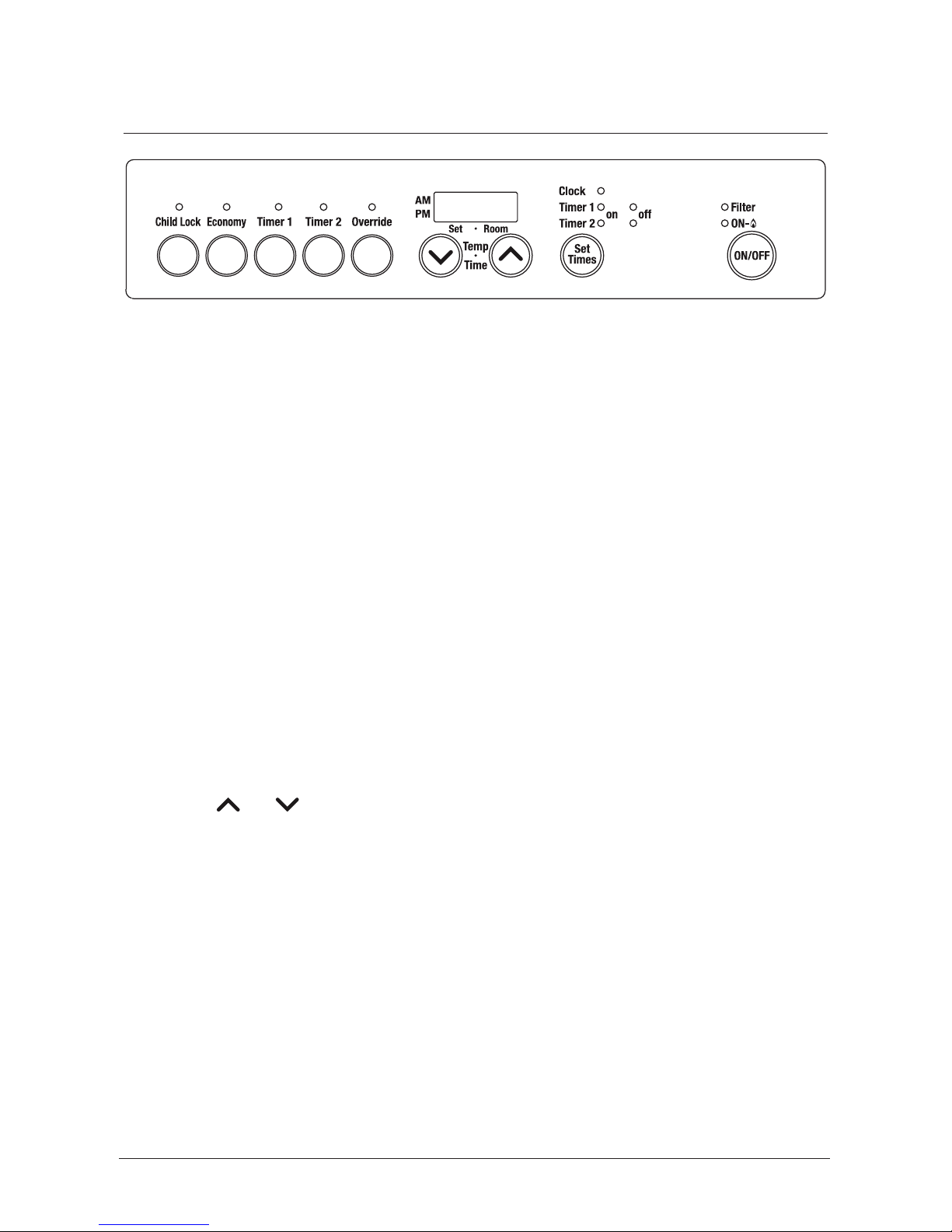

Control panel layout (both models)
Main switch for turning 'ON / OFF'.
'ON' / 'OFF' BUTTON
1
Selects clock and/or Timers for
adjusting or programming.
SET TIMES BUTTON
2
POWER ON /COMBUSTION
INDICATOR
9
Indicates that clock or dual timer
programme is being set.
CLOCK ADJUSTMENT &
TIMER INDICATORS
Indicates that the filter needs cleaning.
FILTER INDICATOR
10
Increases or decreases the temperature
setting as well as changing hours or
minutes
Indicates that the appliance is turned ON
and whether the burner is alight.
TIME / TEMP ADJUSTMENT
BUTTON
34
Temporarily changes operation from
ON to OFF or OFF to ON, until next
programmed setting is reached.
OVERRIDE BUTTON
Selects operating mode for
Timers 1 & 2 period.
ON TIMER BUTTON
5
Locks all controls when pressed.
(EXCEPT OFF)
CHILD LOCK BUTTON
78
6
Selects energy saving function
ECONOMY BUTTON
Indicates that the override function
is activated.
OVERRIDE INDICATOR
12
Shows either the time of day,
temperatures, or coded error message
TIME / TEMP DISPLAY
11
Indicates Child lock is activated.
CHILD LOCK
INDICATOR
15
123
75
8
15
9
13 12
14 11 10
64
Indicates that Timer 1 or Timer 2 has
been selected to operate.
TIMER INDICATOR
13 14 ECONOMY INDICATOR
Indicates that the Economy mode is
in operation.

Rinnai New Zealand Energysaver®Operation and Installation Manual:
RHFE-309FT and RHFE-559FT (01-10)
7
Safety

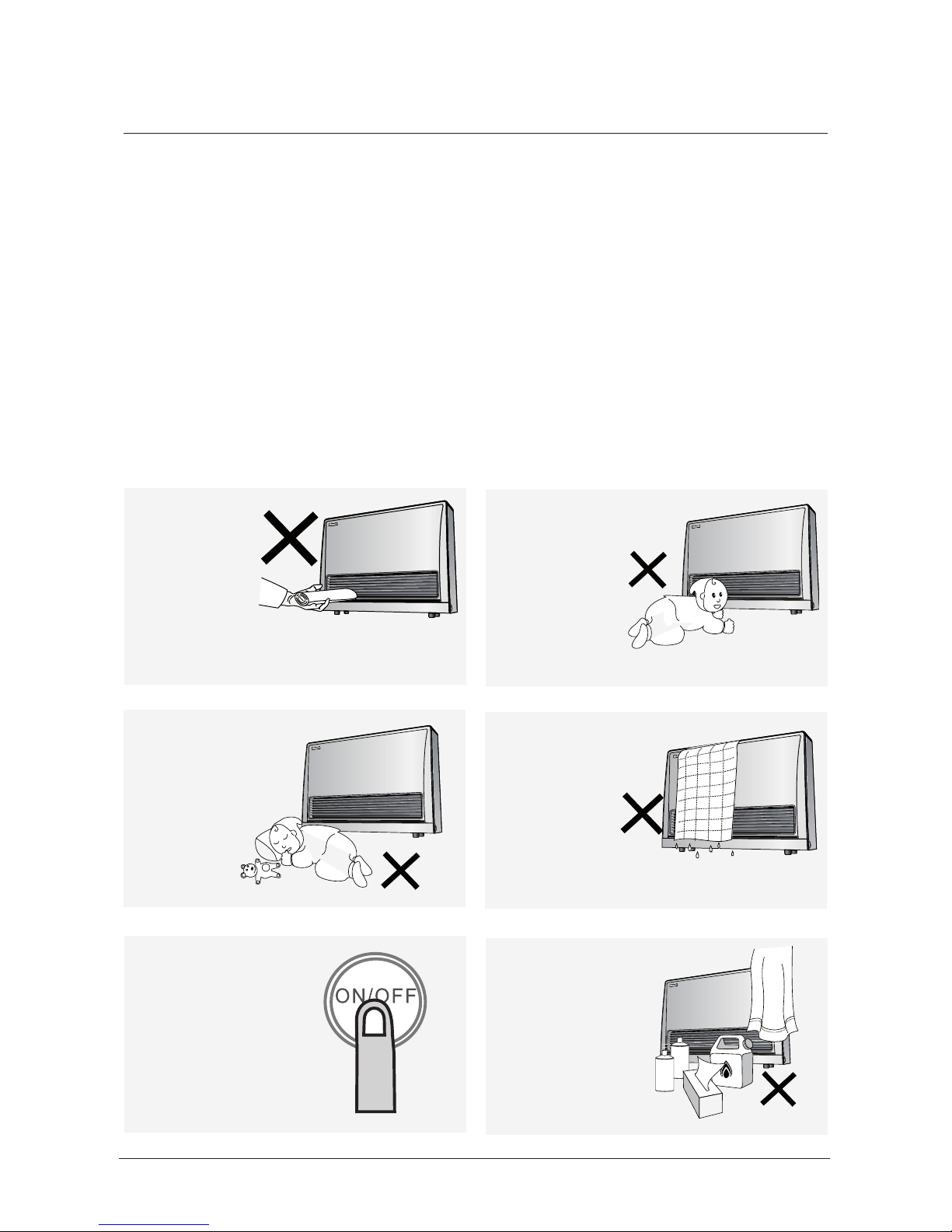

General safety
NOT TO BE CONNECTED TO AN LPG GAS CYLINDER LOCATED INDOORS
DO NOT PLACE ARTICLES ON OR AGAINST THIS APPLIANCE
DO NOT USE OR STORE FLAMMABLE MATERIALS NEAR THIS APPLIANCE
DO NOT MODIFY THIS APPLIANCE
DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS IN
OPERATION
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instructions concerning the use of this appliance by a person responsible
for their safety.
This heater must not be located directly below a power socket outlet (potential re hazard).
•
•
•
•
•
Do not allow
anyone to post
articles through
into the heater.
Children should
be supervised
at all times to
ensure they do
not play with
the heater.
Hand or body
contact with the
heater must be
avoided.
Do not allow
anyone to sit,
lean or sleep
directly in front
of the heater.
Do not cover or
place articles on
or against the
heater. It must
not be used for
any purpose
other than
heating.
Always turn the
heater OFF after
use.
Keep the heater
away from
ammable
materials.
Do not allow curtains
or other combustible
materials to come
into contact with the
appliance.

Rinnai New Zealand Energysaver®Operation and Installation Manual:
RHFE-309FT and RHFE-559FT (01-10)
8
Safety

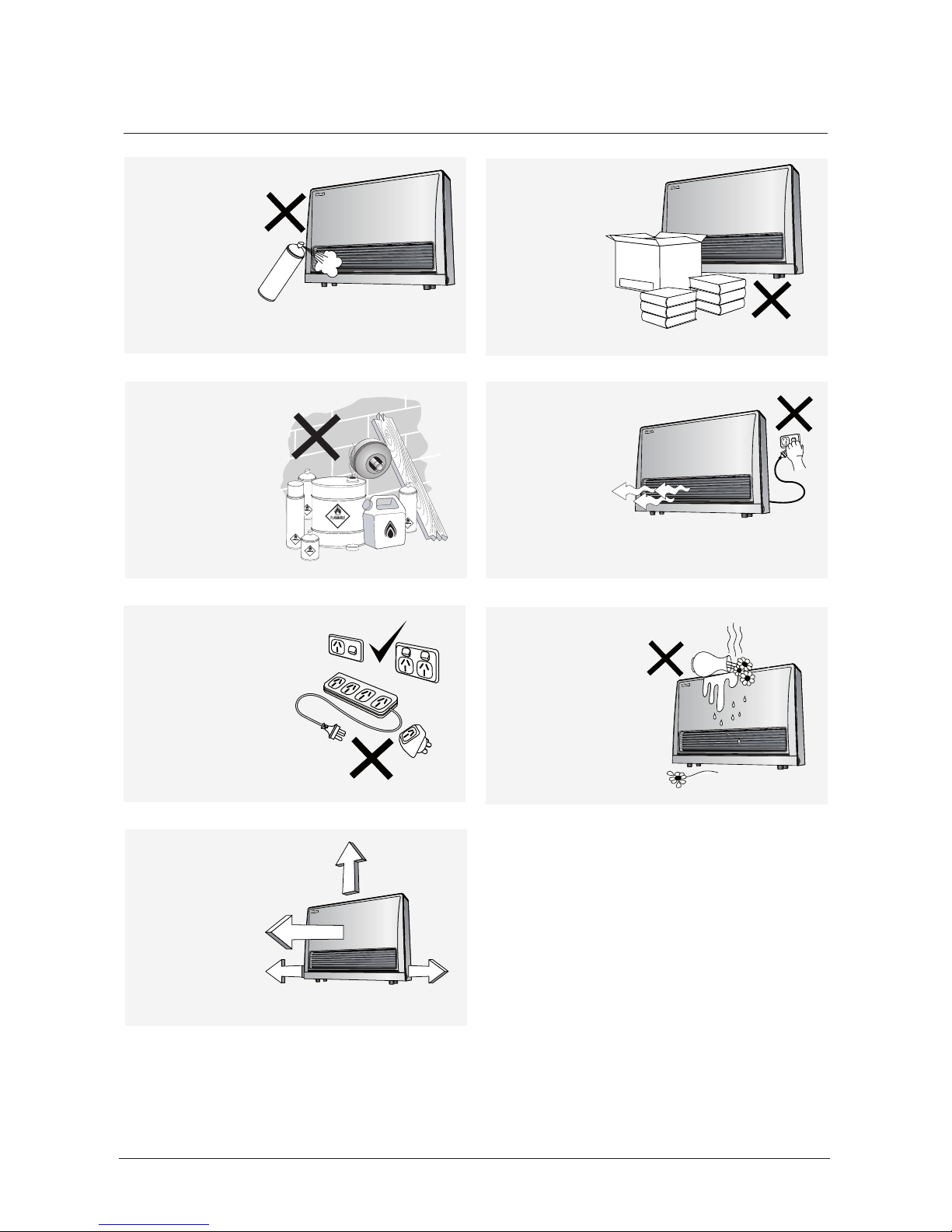

Do not spray
aerosols while
the appliance is
operating. Most
contain butane
gas which can
be a re hazard
if used near the
appliance.
Do not restrict
the warm air
discharge
by placing
articles
directly in
front of the
heater.
Do not unplug
the heater
while it is still
in use or while
the fan is on.
Do not turn
the heater OFF
by unplugging
it from the wall.
Keep ammable
materials, trees
shrubs etc. away
from ue terminal.
Areas subject to
heavy snow―keep
snow clear of the
flue terminal.
A dedicated 240 V
10 Amp power point
must be used with
this heater. Do not
use double adaptors
to operate this
appliance.
Do not place
containers of
liquid on top of
the heater. Liquid
spillage can cause
extensive damage
to the heater and
may result in
electric shock.
This heater
must not be
built-in. The
clearances
shown
must be
maintained
(including
curtains).
250mm
1000 mm
50mm50 mm
TOP
FRONT
LEFT SIDE RIGHT SIDE

Rinnai New Zealand Energysaver®Operation and Installation Manual:
RHFE-309FT and RHFE-559FT (01-10)
9
General information
Before operation
Read these instructions to get an overview of how to operate, maintain and service your
Rinnai Energysaver®.
Filters
During peak operating periods the lters should be cleaned weekly, however if
the lter warning indicator ashes, immediately turn off the appliance and clean
lters before further use. Refer to `Care of your Energysaver®´.
Electrical connection
The electrical connection is to the right hand side of the heater (passes out of
the rear of the appliance). A 3-pin plug is supplied, this must be connected to
a dedicated earthed power point. The power point must be to the side of the
heater and a maximum of 1500 mm (cord supplied is 1500 mm). It must not
be above the unit as this is a potential re hazard.
If the supply cord is damaged and requires replacing, it must be replaced by a licensed
tradesperson. This must be a genuine replacement part available from Rinnai.
Floor protection
The Rinnai Energysaver® discharges a large volume of warm air at a
low level. Heat emanating from the heater may over time affect the
appearance of some materials used for ooring, such as, carpet, vinyl,
cork or timber. This may be amplied if the air contains cooking vapours
or cigarette smoke. To avoid this occurring, it is recommended that a mat
be placed in front of the appliance.
AT LEAST
750 mm
Humidier tray
Ensure the access panel and humidier tray are in place before using your Energysaver®.
Rinnai recommend you ll the tray to the water level indicator as marked—taking care not to
overll.

Rinnai New Zealand Energysaver®Operation and Installation Manual:
RHFE-309FT and RHFE-559FT (01-10)
10

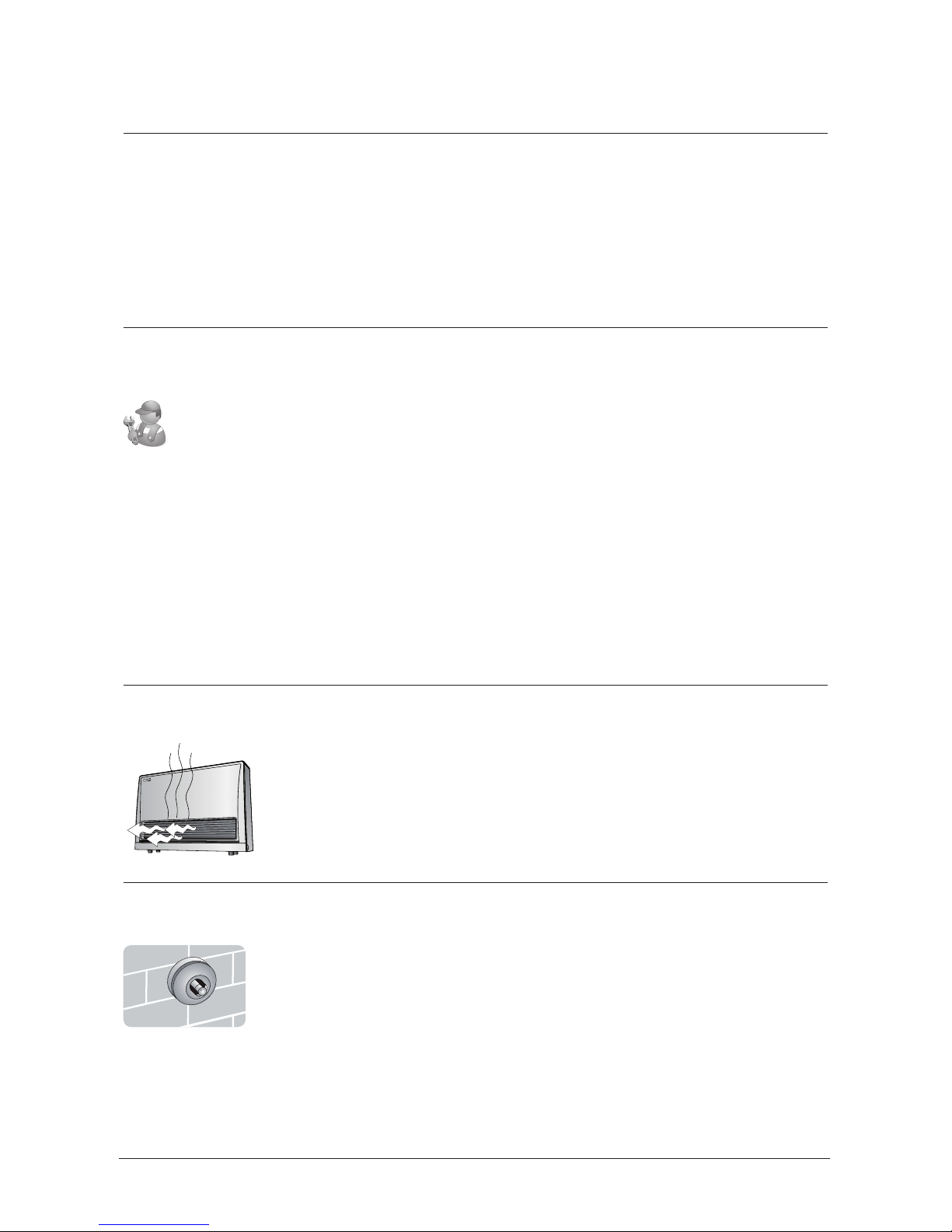

General information
Installation by a licensed tradesperson
Ensure your installer talks to you about the use and care of this appliance and that you
understand these instructions. They also need to complete their installer details at the back of
this manual and leave the manual with you.
Improper installation, adjustment, service or maintenance can cause serious injury, property
damage or death. Please ensure your installation is completed by a licensed tradesperson.
Odours coming from your heater
When the heater is operated for the rst time or after long periods of non
use a slight odour may be emitted. This is normal. If odours persist switch
off the heater and contact Rinnai.
Do not use aerosols, paint, polishes etc. while the heater is in use as this
may cause unpleasant odours.
Outside ue terminal
On cold days steam may be discharged from the ue terminal. This is normal
with high efciency appliances such as the Energysaver® range and does not
indicate a fault.
Regularly check the outside ue terminal to make sure it is clear of plant
growth and from other obstructions.
Maintenance/servicing
Rinnai has a maintenance, service and spare parts network with personnel who are
fully trained and equipped to give the best advice on your Rinnai appliance. If your
appliance needs maintenance or servicing for repair, please call Rinnai (0800 746 624)
from a land line and select option one for a service centre in your area.
For reliable operation the Rinnai Energysaver® should be checked (by a licensed tradesperson)
every two years (including inspection of the ue system). If located in a particularly dusty
environment or subject to excess lint, for example dog hair or where there are newly laid
carpets then annual maintenance would be benecial.
Regular maintenance or servicing is not covered by the Rinnai warranty.
Do not attempt to carry out any maintenance or service work other than that mentioned in the
troubleshooting section. If you have any other faults or problems, please refer to your installer
or call Rinnai.

Rinnai New Zealand Energysaver®Operation and Installation Manual:
RHFE-309FT and RHFE-559FT (01-10)
11
Heater operation
Turning the heater on
Press the ON/OFF button. The indicator will glow green, the spark generator will be heard
before the burner ignites and the indicator glows red (indicates the heater is alight).
When the heater warms up the fan will automatically start.
If the heater does not ignite, there may be air remaining in the gas supply line. If this is the
case, the spark generator will only continue for 15 seconds. After this, it will be necessary to
press the ON/OFF button OFF then ON again.
If the appliance fails to ignite after four attempts, contact Rinnai as a service call may be
required.
Turning the heater off
Press the ON/OFF button and the indicator light will go out. The fan will continue to operate
(to cool the appliance) for several minutes after the burner has gone out. Do not unplug the
heater while the fan is still operating.
Adjusting the room temperature
Pressing the and buttons will change the preset temperature by increments of 1 °C.
Temperature will be displayed to conrm that the function has been initiated.
The temperature can be preset to:
L (Low) continuous combustion on low
16-26 °C (in 1 °C steps) combustion rate varies to maintain selected temperature
H (High) continuous combustion on high
The room temperature sensor is located behind the Energysaver® so the temperature on the
display may vary slightly from the actual room temperature.
•
•
•

Rinnai New Zealand Energysaver®Operation and Installation Manual:
RHFE-309FT and RHFE-559FT (01-10)
12
Heater operation
Economy mode
The Economy function is an energy saving feature designed to control the room temperature
and prevent the room from overheating. The Economy mode can only be operated when the
heater is turned on and remains set until deactivated.
Press the Economy button to start the economy function, the Economy indicator will glow.
Press the Economy button once more to switch off the economy function.
Child lock
The Child Lock function will help prevent accidental operation as well as prevent small children
from altering the controls.
To activate, press the Child Lock button, the function is activated immediately and the Child
Lock indicator will glow. To deactivate hold the Child Lock button down for two seconds and the
Child Lock indicator will go out.
During normal operation the Child Lock may be activated and all controls (other than the off
switch) will be locked. Deactivating the Child Lock releases all the controls. If the Child Lock is
activated while the heater is turned off, then all functions will be locked (including turning the
heater on) until deactivated.
Fan operation
The fan turns on automatically when the heater warms up and when it cools down. This helps
prevent cold draughts and maximises efciency.

Rinnai New Zealand Energysaver®Operation and Installation Manual:
RHFE-309FT and RHFE-559FT (01-10)
13
Setting the clock and timers
When the appliance is rst plugged in or after a power failure, the digital display will
show --:--
Setting the clock (example: setting the clock to 10:35am)
Press the Set Times button once, the Clock indicator will ash.
Press and hold the button, the minutes will change rst followed by hours.
Release the button when AM 10:00 shows on the digital display. Conrm you have
selected AM, a small indicator on the left hand side of the digital display indicates the AM
setting.
Press and hold the button again and release when display shows AM 10:35. If you go
past the time you can use the button to change the time setting in reverse.
Press the Set Times button ve times to lock in the set time. The Clock and Timer
indicators will go out and a small indicator on the display will ash to show the clock is
operating. The display will dim approximately 10 seconds after the last control.
1.
2.
3.
4.
5.
Setting the ON/OFF timers
Before programming the Timers you must ensure the clock has been set to the correct time. If
during setting no buttons are pressed for one minute the setting sequence will automatically
cancel and the display will revert to the normal display.
Example, programming Timer 1 to heat the room by 7:10 am and nish at 9:00 am.
Press the Set Times button twice. The digital display will show AM 6:00 and the Timer 1
indicator will ash. Press the button until AM 7:00 appears, release the button, then
press again until AM 7:10 appears.
Press the Set Times button again, the Timer 1 OFF indicator will ash. Press the button
until AM 9:00 appears.
Press the Set Button three times to lock in the programmed time. The digital display will
show the current time.
Timer 2 is programmed in the same way, remember to ensure that the Timer 2 indicator is
ashing when you program the desired setting.
The programmed time must be selected and locked-in within one minute of the timer indicators
ashing otherwise the programmed times will not be retained in the system memory.
Don’t worry if you make a mistake during programming. By pressing the Set Times button
you can cycle through the different programming options (clocks and timers) and change if
required.
1.
2.
3.

Rinnai New Zealand Energysaver®Operation and Installation Manual:
RHFE-309FT and RHFE-559FT (01-10)
14
Operating the timers
The timers can be programmed to operate for any two time periods in 24 hours. Before
operating the timer, the clock must be set and a timer start and nishing time must be
entered. The two timers operate in the same way.
To select the timer(s) to commence heating
Press the Set Times button and check the time shown on the digital display is correct. Press
the Set Times button again to stop the ashing on the timer indicator(s).
Check the ON and OFF times, for both timers if necessary.
Press the ON/OFF button to operate the heater without the Clock and Timer indicators
ashing. The ON indicator will glow green.
Select the desired temperature setting.
Press the Timer 1 and/or Timer 2 button(s). The timer indicator(s) will glow and the heater will
remain on standby until one hour prior to the time programmed into the selected Timer(s) is
reached. When this time is reached, the Timer indicator will ash and the heater will operate.
Set and forget operation
Your heater can be operated to alternate between the timers automatically during cold weather
by selecting Timer 1 and Timer 2 buttons together. Both timer indicators will glow and the
appliance will remain on standby between the timer periods.
Power disruption
If there is a power failure (or if the unit is switched off at the wall) the system memory will
retain the Timer programs but the clock will stop at the time the power goes off. The clock will
restart when the power comes back on, but the time will be slow by the duration of the power
failure.
1.
2.
3.
4.

Rinnai New Zealand Energysaver®Operation and Installation Manual:
RHFE-309FT and RHFE-559FT (01-10)
15
Override
This is used to manually override the timers so the heater can be operated outside the timer
settings. When selected, the Override indicator will ash. To deactivate press the Override
button again, the indicator light will turn off and the heater will return to standby mode.
Preheat
Automatically functions in conjunction with the timers. When a timer is selected, the heater
may operate anywhere within an hour prior to the programmed on time.
The preheat function ensures the room reaches the desired temperature by the programmed
on time. This is achieved by sensing the room temperature one hour prior to start.
Humidier tray
Your heater is tted with a tray behind the air outlet so you can humidify the air. To ll the tray,
open the access panel as shown, and using the spout built into the access panel ll the tray to
the water level indicator as marked—taking care not to overll.
The high efciency of the Energysaver®causes condensate to form
in the ue system, this drains into the humidier tray. If you notice
water in the tray that you have not placed there, don’t be alarmed,
this is normal.
If the humidier tray is used, it will need lling approximately once
a day during the heating season.
Humidier tray may become hot
Do not ll the humidier tray while the heater is operating
Do not ll the humidier tray for at least ve minutes after
the heater stops
Do not operate the heater without the humidier tray and
access panel in place
Vertical louvre adjustment
When the heater is turned off the warm air ow direction may be altered by carefully inserting
a screwdriver or similar tool and gently bending the vertical louvres to the left or right. These
louvres are not designed to be adjusted more than six times as the louvres will weaken and
break.
•
•
•
•
Operation: Other features

Rinnai New Zealand Energysaver®Operation and Installation Manual:
RHFE-309FT and RHFE-559FT (01-10)
16
Care of your Energysaver®
The following information will keep your Energysaver® looking good and working efciently.
Before you clean any part of the Energysaver®, ensure the appliance is turned off and has
cooled down.
All parts of the heater can be cleaned using a soft damp cloth and mild detergent,
DO NOT use solvents
If the humidier tray gets dirty, wash in warm soapy water
•
•
Fan lter
To protect the appliance from dust particles or lint, a lter is situated at the rear of the heater.
If the lter becomes blocked, the lter indicator will ash to indicate that is should be cleaned.
The build up of dust on the lter reduces the air ow through to the heater. This reduces the
heater’s efciency and can lead to the appliance shutting down. Regular (weekly) lter cleaning
during the heating season will stop this from happening.
If you do not clean the lter at regular intervals and the Filter indicator is allowed to remain
ashing, the appliance will stop (ON indicator will ash and the display will show error code
14). The lter will need to be cleaned before operating the appliance again.
Do not remove the lter when the appliance is operating
Do not use the heater with the Filter indicator ashing as this may cause overheating
How to clean the fan lter
Dust: use a duster or vacuum to remove dust
Oil: wash the fan lter with a mild detergent, drain off the water and dry the lter
•
•
WARNING
Remove filter by pulling straight
up and out from appliance.
Ensure the fan lter is tted back into the appliance after cleaning. DO NOT operate the
appliance without the lter in place.

Rinnai New Zealand Energysaver®Operation and Installation Manual:
RHFE-309FT and RHFE-559FT (01-10)
17
Error code messages
The Energysaver® has built-in technology to continually monitor its own performance. If a fault
occurs, an error message will ash on the digital display on the control panel. This assists with
diagnosing the fault and may enable you to overcome a problem without a service call.
Code Displayed Probable Cause Suggested Solution
11 Ignition failure
Check gas supply is turned on, turn heater off then
on again. If ignition failure continues, a service call
will be required.
12 Flame failure As above.
14 Overheat Clean lter, service call if repeated.
16 Room overheat Lower room temperature to less than 40 °C.
31
32 Room temperature sensor faulty Service call.
33
34 Overheat temperature sensor faulty Service call.
53 Sparker failure Service call.
61 Combustion fan failure Service call.
62 Convection fan failure Service call.
70 Faulty On/OFF switch Service call.
71 Faulty solenoids Service call.
72 Faulty ame rod Service call.
73 Communication error Service call.
In all cases, you may be able to clear the error message by turning the heater off then on
again. If the error message remains or returns when the heater is used again, contact Rinnai
or a Rinnai Service Centre.
Faults caused by an insufcient gas supply, gas quality, installation or operation errors are not
covered by the Rinnai warranty.

Rinnai New Zealand Energysaver®Operation and Installation Manual:
RHFE-309FT and RHFE-559FT (01-10)
18
Troubleshooting
Check the following information before making a service call as some performance
characteristics are a normal part of operation. If you are still unsure or concerned after reading
this section, please contact Rinnai.
Using the heater for the rst time or after long periods of non-use
Ignition may not occur the rst time it is operated due to air in the gas pipes. If ignition does
not occur within approximately 60 seconds the appliance will attempt to re-light. If ignition
does not occur the unit will switch off automatically. Try operating the heater again if this
occurs.
The heater may make noises after ignition or switching off. This is due to expansion and
contraction of the internal components and is normal.
General heater characteristics
Characteristic Explanation
When turning
on
Warm air does not start when the burner
lights.
The room air fan starts automatically after a short
delay. This is to allow the appliance to warm up,
helping avoid cold draughts.
Smoke or strange smells are produced
when rst operating the appliance after
installation.
This is caused by grease, oil or dust within the
appliance. This will stop after a short time.
Sharp clicking noises at ignition, or when
the unit thermostat modulates to a lower
or higher setting, or shuts down.
This is expansion and contraction of the heat
exchanger and is a normal part of operation.
During
operation
Clunking noise when the thermostat
operates.
This is the sound of the gas valve opening and closing
to regulate the ow of gas.
When turning
off
Fan continues to run after the heater is
turned off.
This is to remove residual heat from within the
appliance. This stops once the unit cools.
Other Steam is discharged from the ue terminal
outside.
High efciency appliances tend to discharge water
vapour on cold days. This is normal.
Heater doesn’t start when the ON button is
pushed and thermostat is on High.
Check timer. Timer must be in the OFF position for
manual operation.
Room temperature is hotter than the High setting.
Timers Timer(s) do not operate at the set time. They may be inactivated or incorrectly programmed.
Check timers are set correctly and the clock is on the
correct time.
Timer operates for a short time and then
cuts out.
Room temperature may be higher than the set
temperature. Increase temperature if desired.

Rinnai New Zealand Energysaver®Operation and Installation Manual:
RHFE-309FT and RHFE-559FT (01-10)
19
Troubleshooting
Checklist
Probable Cause Fault Condition Possible Solution
No
display
on
control
panel
Burner
doesn’t
ignite
Unusual
combustion
Combustion
stops during
operation
Smell
of gas
Noisy
ignition
Not plugged in or
turned off   Plug in power cord or press ON/OFF button
Mains power failure    Re-ignite manually after
power is restored
Air in gas pipe
when initially
installed
Installer to purge air
from gas supply
Gas lter blocked   Service call
Ignition problem   Check operating
information
Flue terminal
obstructed    Clear obstruction
Flue manifold not
connected   Service call
Louvre obstructed Clear obstruction
Air lter blocked Clean lter (weekly)
Gas escape Service call
ON timer is set Cancel ON Timer or press
the Override button
Gas turned off at
meter Turn gas on at meter
Child Lock set Deactivate Child Lock

Rinnai New Zealand Energysaver®Operation and Installation Manual:
RHFE-309FT and RHFE-559FT (01-10)
20
Installer information
The following section of this manual is intended for the licensed tradesperson installing the
Energysaver®. It should be used in conjunction with the Energysaver®Flue Installation Manual.
Before installation
The Energysaver® and supplied components (securing brackets, rear cover set and
bolt pack) are supplied in one carton. Unpack the appliance and ue components
(purchased and supplied separately) and check for damage. DO NOT install any
damaged items.
Check all components have been supplied and that you have the correct gas type.
The carton should contain:
1 x Rinnai space heater (RHFE-309FT or RHFE-559FT)
1 x Rear cover set, comprising of left, right and top cover panels
1 x Bolt pack containing:
Stainless steel sheath clamp
2 x securing brackets
2 x 8 g x 30 mm stainless steel securing bracket screws
2 x plastic inlet hose clamps
1 x 150 mm long cable tie
1 x HD stainless steel ue clamp
2 x 6 g x 10 mm button head screws
4 x 6 g x 8 mm pan head screws
Read these instructions to get an overview of the steps required before starting the
installation. Failure to follow these instructions could cause a malfunction of the
appliance. This could result in serious injury and property damage.
•
•
•
•
•
•
•
•
