Rinnai Neo RIB2310L User manual

NEO
Installaon Manual
Appliance must be installed, commissioned and serviced by a licensed tradesperson in
accordance will all applicable local rules and regulations.
For installations into a combustible opening, a Rinnai zero clearance box and ue kit are
mandatory.
Before installation:
• Unpack the appliance and components and check for damage—DO NOT install any
damaged items
• Check all components have been supplied and that you have the correct gas type
• Read these instructions to get an overview of the steps required before starting the
installation
Failure to follow these instructions could cause a malfunction of the appliance. This could result
in serious injury and property damage.
RIB2310N
RIB2310L

Contents
WARNING
Improper installaon, adjustment, alteraon, service or maintenance can cause
property damage, personal injury or loss of life.
For assistance or addional informaon contact Rinnai on 0800 RINNAI
(0800 746 624).
Checklist 3
Specication 4
Dimensions 5
Location 6
Enclosure dimensions 9
Gas supply 10
Flueing options and components 11
General ueing information 12
Masonry installations 14
Mock chimney installations 16
Freestanding installations 18
Log set installation 20
Granule pack installation 21
Test pressures 22
Checking the ame pattern 24
Fitting the frame assembly 25
Commissioning 26
Wiring diagram 27

Rinnai New Zealand Limited Neo Installation Manual: 11906-B
02-11
3
Checklist
Engine - masonry installation:
1. Rinnai Neo heater (engine)
2. Outer (attached to heater with 2 x 8 g black screws)
3. Glass outer dress guard
4. Inner frame
5. Log set (inside appliance)
6. Packet of burner granules
7. Semi rigid stainless steel gas pipe with 5/8 " UNF are connection
8. Flared brass adaptor 5/8 " UNF - ½ " BSPT
9. Foam sealing strip
10. Operation and installation manual
7
8
6
5
9
23
14
5
10
Inbuilt mock chimney installation:
A Engine set (see above)
1. Spigot adaptor
2. Spigot guide panel
3. Spigot guide rails
4. Zero clearance box top panel
5. Zero clearance box rear panel
6. Zero clearance box left and right panels
7. Zero clearance box base panel
8. Hardware pack
A
3
7
2
1
8
5
6
4
Freestanding console installation:
A Engine set (refer masonry installation)
1. Spigot adaptor
2. Console top panel
3. Console right side panel
4. Console left side panel
5. Console rear panel
6. Console pillar
7. Hardware pack
1
A
3
2
7
4
5
6
Freestanding plinth installation:
A Engine set (refer masonry installation)
1. Spigot adaptor
2. Plinth top panel
3. Plinth right side panel
4. Plinth left side panel
5. Plinth rear panel
6. Plinth pillar
7. Plinth base
8. Hardware pack
1
A3
2
4
5
6
7
8
Remote/thermostat - comes with all ETR models
1. RF combination remote/thermostatic control with wall mount
2. AA batteries (x2)
3. Operation manual
1
2
3

Rinnai New Zealand Limited Neo Installation Manual: 11906-B
02-11
4
Specicaon
Description • Inbuilt gas space heater
• Burning log eect
• Glass front with glass dress guard
• Convection fan, top air discharge
Installation Inbuilt masonry, inbuilt mock chimney, and freestanding options
Combustion Method Bunsen type burner
Data Plate Inside appliance on the front left hand side
Flue - Masonry Rinnai strongly recommends the use of a Rinnai exiliner ue system (exi Ø 100 mm).
Failure to meet this criteria may result in an unsafe situation.
Installation without a exiliner ue is permissible as long as the chimney is checked for
soundness and ability to achieve a good draw. Terminal 240 mm x 45 mm rear discharge
(spigot).
Flue - Decorative
(mock chimney) and
Freestanding
Natural draft twin skin ue. An approved 100 mm cowl must be tted to all installations.
Decorative chimney installations require a Rinnai zero clearance box and zero clearance
ue kit.
Flue dimensions:
• Outer - 150 mm
• Inner - 100 mm
Gas Connection ½ " BSPT, the gas supply terminates inside the heater at the front lower right hand side
of the appliance
Gas Type NG and General Product LPG
Convection Fan 2-speed centrifugal, double diameter 160 x 180 mm
Heating Area • Up to 107 m2 (NG)
• Up to 93 m2 (ULPG)
Ignition Continuous spark electronic ignition
Input/Output Input NG: 14-30 MJ/h
Input ULPG: 14-27 MJ/h
Output NG: 3.24-6.94 kW
Output ULPG: 2.98-6.04 kW
Noise Level 37-45 dB(A)
Power Consumption High 50 W
Standby <3 W
1500 mm cord is supplied with 3-pin plug on the rear left of the appliance
Safety Devices Overheat switch, electrical fuse, ame failure sensing system, and power failure
protection
Temperature Control Manual models, manual control on unit
ETR models, thermostatic, temperature control range 7-32 °C
Thermal Eciency NG - 80.5%
ULPG - 80%
Eciency star rating: 4.10 stars
Weight 60 kg

Rinnai New Zealand Limited Neo Installation Manual: 11906-B
02-11
5
A A
AA
EE
E
E
BB FF
BB
G
G
G
C D C D
C D C D
FF
H H
HH
II
I
I
J J
JJ
Inbuilt masonry Inbuilt mock chimney
Freestanding console Freestanding plinth
Dimensions (mm)
Model External dimensions Gas connection
A B C D E F G H I J
Inbuilt masonry 865 660 359 62 691 589 -305 45 235
Inbuilt mock chimney 865 660 363 62 795 650 280 305 45 240
Freestanding console 865 760 363 62 865 760 280 305 140 235
Freestanding plinth 865 837 363 62 865 837 280 305 215 235

Rinnai New Zealand Limited Neo Installation Manual: 11906-B
02-11
6
Locaon
The main points governing location are ueing and warm air distribution. The heater must not
be installed where curtains or other combustible materials could come into contact with the
appliance. In some cases curtains may need restraining. The Neo gas replace is not designed
to be built into bookcases.
Standard ued appliances draw the air for combustion from the room itself so there is a need
for xed ventilation. Fixed ventilation must be provided as per NZS 5261.

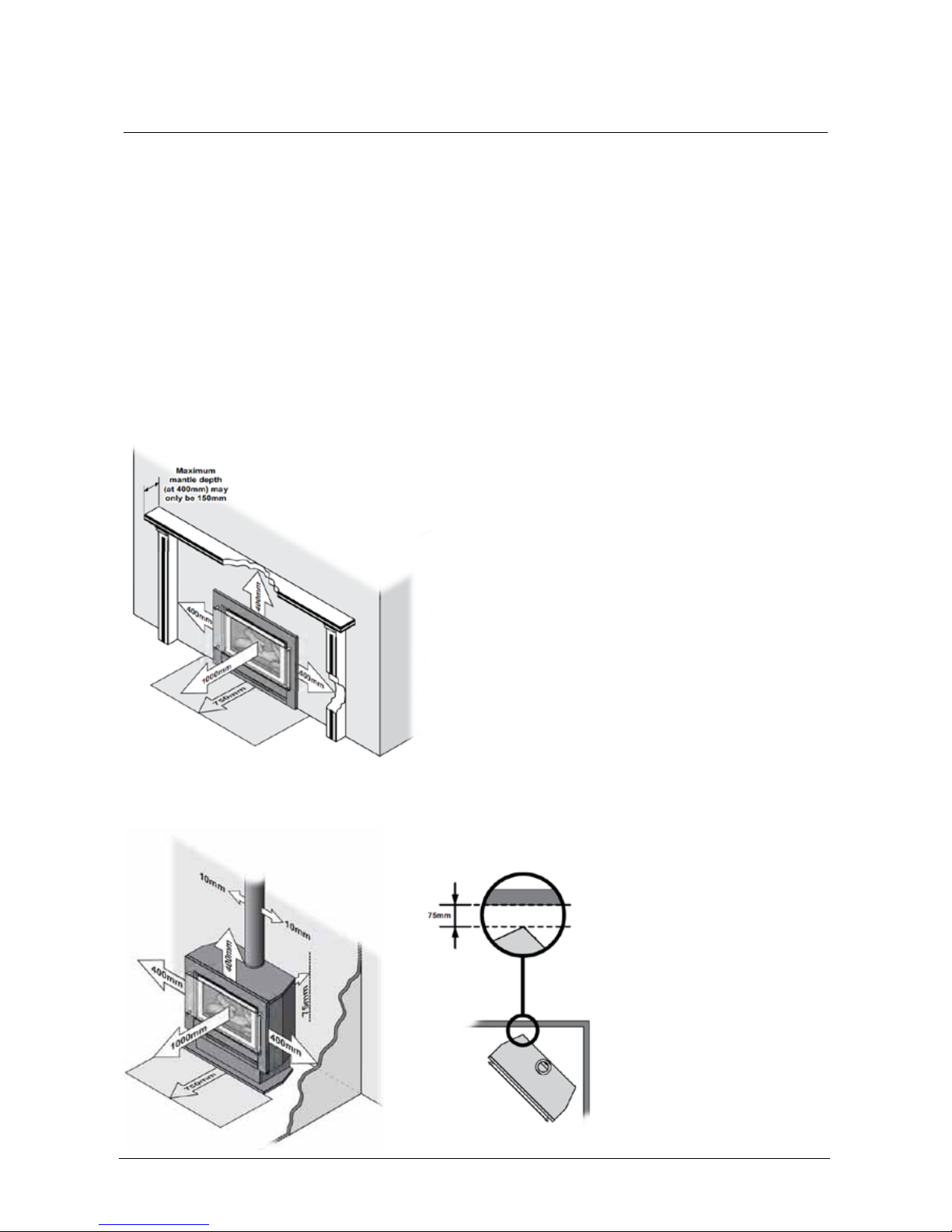

Clearances
The clearances listed below are minimum clearances unless otherwise stated.
Inbuilt models
Freestanding models (can be posioned directly on the oor)

Rinnai New Zealand Limited Neo Installation Manual: 11906-B
02-11
7
Locaon
Mantels, surrounds, and hearths for inbuilt installaons
A mantel and surround are allowed providing they are outside the minimum clearances shown
on the previous page.
Minimum clearance
The minimum clearance from the top of the appliance is 400 mm. The depth of the mantel/
surround at this minimum clearance must not exceed 150 mm.
Additional mantel/surround depth
For every 50 mm of added mantel depth/surround, there must be an additional 100 mm of
clearance. For example; a 200 mm mantel depth will require a 500 mm clearance from the top
of the appliance.
Hearths
A hearth is not necessary but can be used for decorative purposes or protection of sensitive
ooring if required. It must not obscure the front of the re.

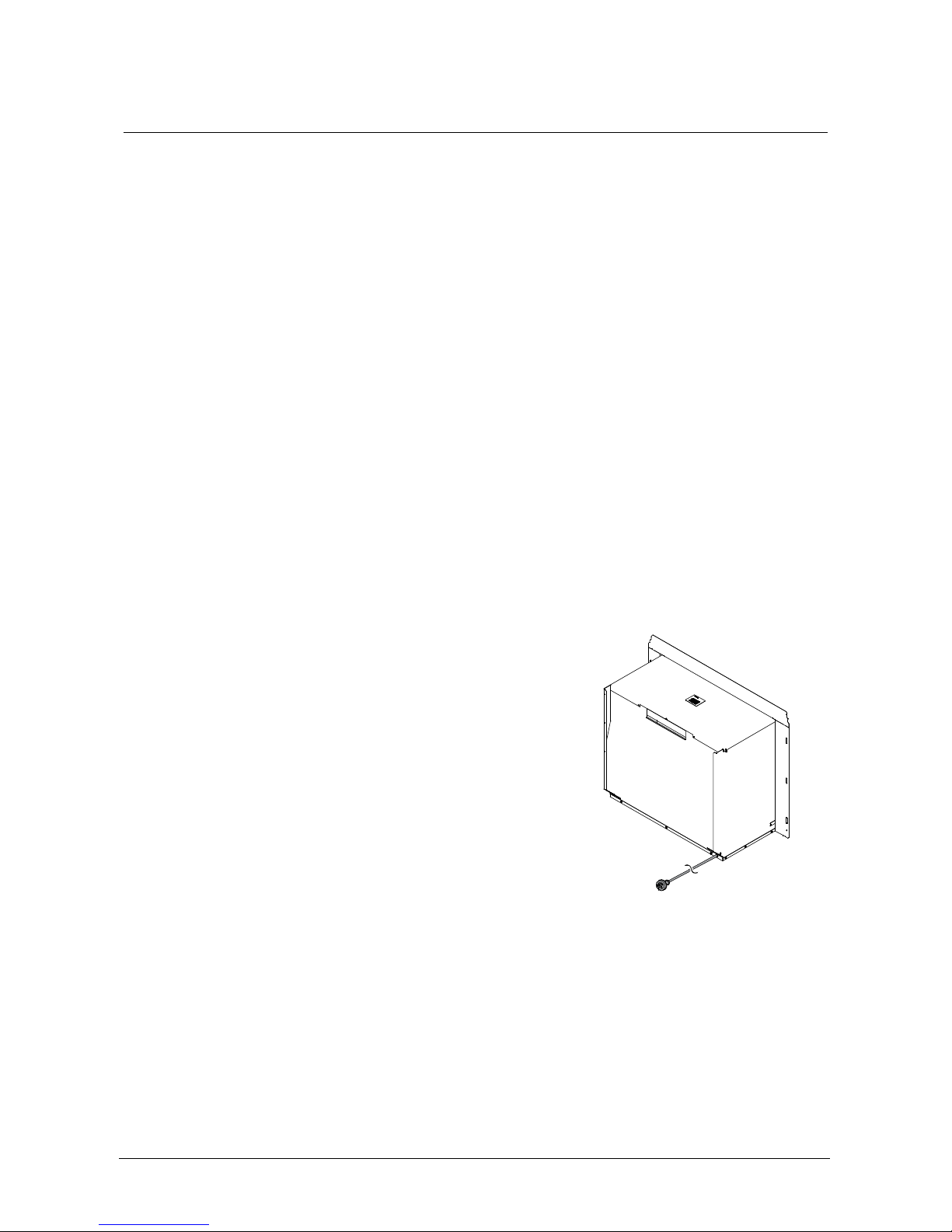

Electrical connecon
The Neo is supplied with a power cord (length 1500 mm)
and a 3-pin plug. The standard electrical connection passes
through the rear panel, but can also pass through the left
and right hand side of the unit by removing the knockout
tab from the bottom edge of the front panel. If changing
the electrical position use the rubber grommet from the
rear of the appliance for cable protection.
Rinnai recommend the heater is plugged into a dedicated
240 V, 10 A earthed power point. The power point must not
be located above the heater (potential re hazard). If the
supplied plug and power cord is to be used with an external
power point then the power cord will need to be tted with
the supplied grommet.
A suitable means of electric isolation must be provided which is adjacent to the appliance and
accessible with the appliance installed.
The electrical cord is not re rated and should not come into contact with the unit. If the
supply cord is damaged, it must be replaced by a licensed tradesperson. This must be a genuine
replacement part available from Rinnai—part number 6765B.

Rinnai New Zealand Limited Neo Installation Manual: 11906-B
02-11
8
Locaon
TV installaon above a replace
If installing a at screen TV above the re the main issue is heat. Heat from the re and heat
from the ueing components that sit behind the TV, especially if recessed.
The Neo gas res have a fan that distributes warm air from the top of the appliance out into
the room. As warm air is dispersed outwards as opposed to directly upwards, installation of a
TV may be an option. The diagram below outlines recommended minimum clearances when
installing a TV directly above the Neo inbuilt models. All dimensions are in millimetres.
Mantel
400
TV
Rinnai
Neo Inbuilt
400
75
200
20
Flue Flue
TV
Rinnai
Neo Inbuilt
The 400 mm dimension is the
minimum clearance required
to combustibles and to a
mantel.
For a TV mounted directly
above the Neo, the mantel
must be at least the depth
of the TV to deect the heat
away from the appliance.
It is up to the customer to check the TV installation instructions with the TV supplier to verify
clearances. Some TV manufacturers have warranty conditions that state a TV is not to be
installed above a replace.
Rinnai does not accept any responsibility for damage to a TV resulting from the use of this
information.

Rinnai New Zealand Limited Neo Installation Manual: 11906-B
02-11
9
Enclosure dimensions
The enclosure dimensions specied are critical to the successful installation of this appliance.
The appliance must be positioned within the enclosure on a at level surface. If the appliance is
to be elevated from the ground, a base must be constructed with supporting joists capable of
supporting a minimum of 1.5 times the weight of the appliance.
Model Minimum dimensions (mm)
Height (H) Width (W) Depth (D)
Inbuilt masonry 600 695 370
Inbuilt mock chimney 650 800 370
Inbuilt masonry installaons Inbuilt mock chimney installaons
Important
The total cavity depth MUST also include the
thickness of the external cladding as the zero
clearance box MUST BE installed ush with the
cladding surface to ensure alignment of the
ue.

Rinnai New Zealand Limited Neo Installation Manual: 11906-B
02-11
10
Gas supply
Gas pipe sizing must consider the gas input to this appliance as well as all other gas appliances
in the premises. The gas meter and regulator must be specied for the total gas rate. An
approved sizing chart such as the one in NZS 5261 should be used.
The gas supply termination is inside the heater and enters through the rear of the appliance.
Gas supply location
1
2
Gas supply locaon
3
Mark o the location for the vertical centre line of the heater
enclosure . To the right of the vertical centre line, mark o
the vertical and horizontal
3
locations for the gas supply
penetration.
1
2
Inbuilt Freestanding
Masonry Mock Chimney Console Plinth
305 mm to right of
appliance centre line
305 mm to right of
appliance centre line
265 mm to right of
appliance centre line
305 mm to right of
appliance centre line
45 mm from base of
enclosure
45 mm from base of
enclosure
140 mm from oor level 219 mm from oor level
Terminate 230 mm from
front of enclosure
Terminate 230 mm from
front of enclosure
Terminate at wall
clearance plus 125 mm
Terminate at wall
clearance plus 125 mm
2
3
4
FRONTOFENCLOSURE
REAR OF
ENCLOSURE
4
WALL
4
Minimum
clearance75mmBack of heater
Inbuilt installaons Freestanding installaons
The length of the gas supply
termination is measured from the
front of the enclosure.
The length of the gas supply
termination is measured from the
back of the heater plus 125 mm.
5
5
Installer to terminate to suit, and
t supplied gas connection .
Leak test the joint between
the exible gas connection and
termination.
STEP 1 STEP 2
Gas supply pipe Brass adaptor Flexi
½ ” BSPT
Installer, terminate to suit
Gas connection:

Rinnai New Zealand Limited Neo Installation Manual: 11906-B
02-11
11
Flueing opons and components
Installation Components available
Part no. Description
Inbuilt masonry R1756
R1761
RIB2310 exi ue kit 4 m
Flexiliner extension 2 m (extends to 3.6 m)
Inbuilt mock chimney,
straight vertical ueing
R2340
R2345
R1762Z
R1763Z
R1763SS
RIB2310 zero clearance box
RIB23 spigot assembly
Flue kit galvanised 3.6 m (same as Timberame Radius)
Flue extension 1.2 m galvanised
Flue extension 1.2 m stainless steel
Inbuilt mock chimney,
vertical oset ueing R1764
R1766
All of the above components, plus:
45 ° bend kit (same as Timberame)
Wall penetration kit galvanised (same as Timberame Radius)
Freestanding straight
vertical ueing
R2345
R1762GL
R1763GL
RIB23 spigot assembly
Freestanding ue kit galvanised black 3.6 m
Freestanding ue extension galvanised black 1.2 m
Freestanding vertical
oset ueing R1766GL
R1765GL
All of the above components plus:
Freestanding wall penetration kit galaxy black
Freestanding 45 ° bend kit galaxy black
Inbuilt masonry installaons Inbuilt mock chimney installaons
Freestanding installaons
A =Direct ue (straight vercal)
B = Oset ue
Without exiliner With exiliner
A =Direct ue (straight vercal)
B = Oset ue

Rinnai New Zealand Limited Neo Installation Manual: 11906-B
02-11
12
General ueing informaon
Flashings
Flashings to the top of chimney structure do not form part of the ue kit and must be specied.
Clearance to combusbles
For installations using the Rinnai zero clearance ue components, the minimum clearance from
inner ue to combustible material must be greater than 50 mm. This equates to 25 mm from
the outer ue when using the Rinnai twin-skin ue.
Flue length and number of bends
Minimum ue length
This is required to ensure adequate draw and prevents spill-back of combustion products which
can cause the safety sensors to shut down the unit.
• minimum ue length before any bends or osets = 1.0 m
• minimum vertical ue length = 3.6 m
Maximum ue length and number of bends
Rinnai recommend a maximum ue length of 8 m with a maximum of two 45° bends.
Self-supporng ue
The weight of the ue system should not be supported by the appliance—it
should be self-supporting. Supporting the ue is usually completed during the
framing stage with ue supports or straps within the cavity.
Every gas replace requires a ue system that will draw eectively and clear ue products
safely under all potential wind and climatic conditions. It is the responsibility of the installer to
ensure that the appliance is provided with an eective ue.
For installations requiring a ue, a Rinnai ue system must be used. The ue system must be
fully assembled and secured in place before the appliance is installed.

Rinnai New Zealand Limited Neo Installation Manual: 11906-B
02-11
13
General ueing informaon
Shared ues
Gas appliances must not be connected to a chimney or ue serving a separate fuel burning
appliance.
Flue cowl clearance
To ensure products of combustion are cleared, adequate clearance for the building is required
and the below guideline is recommended.
Flue cowl should have a 500
mm clearance from any part of
the building. This also applies
to steeped and pitched roofs
which should be clear of the
ridge line as shown below.
Lesser clearances may provide
perfectly adequate ue systems
depending on the installation.
Minimum clearances are shown
in NZS 5261.

Rinnai New Zealand Limited Neo Installation Manual: 11906-B
02-11
14
Masonry installaons
1. Check dimensions of the opening
Refer 'Enclosure dimensions' and if necessary bring them to the required dimensions.
Check the chimney height as inadequate height can eect product performance. Some
installations may require the chimney height to be extended to reduce down drafts.
2. Check ueway
• Ensure there are no obstructions
• Provide a rm, at and sealed base (sealed means no holes or openings in the replace)
• Ensure adequate support of the appliance (if not properly supported noise and vibration
may result)
3. Install exiliner ue system
To ensure adequate draw for maximum performance of the appliance, Rinnai strongly
recommends the use of a Rinnai exiliner ue system for masonry installations. Failure to meet
this installation criteria may result in an unsafe situation. Performance issues resulting from
inadequate ueing is not covered by the warranty.
Installation without a exiliner is permissible in masonry installations as long as the chimney
has been checked for soundness and ability to achieve a good draw.
Chimney plate
Inbuilt masonry without a flexiliner flue Inbuilt masonry with a flexiliner flue
Mortar
Approved chimney
cowl
Minimum
200 mm
Minimum
3.6 m
Chimney plate
Mortar
Approved chimney
cowl
Minimum
200 mm
Minimum
3.6 m
Adaptor
Flexible chimney
liner
Appliance
adaptor
Masonry installaon without a flexiliner flue Masonry installaon with a flexiliner flue

Rinnai New Zealand Limited Neo Installation Manual: 11906-B
02-11
15
Masonry installaons

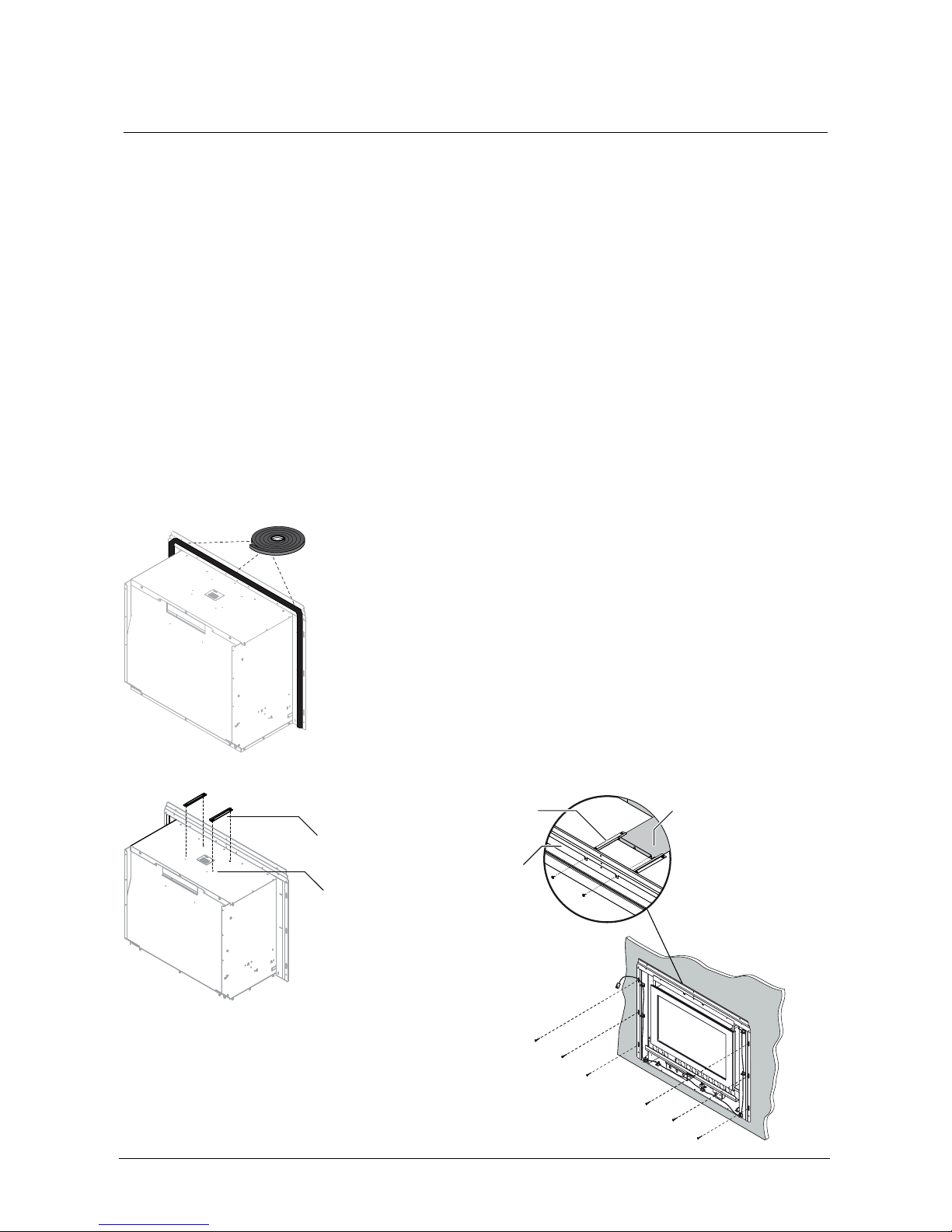

4. Installing the heater into the replace
Apply the supplied foam seal strip to the rear of the heater. The strip is intended to form a seal
between the heater and the replace. If an adequate seal cannot be formed with this strip
another means of sealing must be used (non-combustible insulation) between the replace and
the heater body.
If using a exiliner ue, prepare the heater engine by drilling four x Ø 3.2 mm holes in the pre-
pressed dimples on the top panel of the heater. Attach the ue guide rails from the ue kit
using the supplied screws. Align the guide rails with the guide plate and slide the heater engine
into the enclosure until the guide plate is fully against the rear of the front assembly-this will
ensure the heater and ue spigot are correctly aligned.
Carefully move the appliance into the enclosure ensuring the gas supply feeds into the rear
access hole and fasten heater to the replace.
Drill
4 x Ø 3.2mm
holes
Flue guide rails
Guide rails Guide plate
Rear of front
assembly

Rinnai New Zealand Limited Neo Installation Manual: 11906-B
02-11
16
Mock chimney installaons
1. Construct frame and install zero clearance box
Refer 'Enclosure dimensions' and construct frame. Assemble and install the RIB2310 zero
clearance box. Installation needs to be on a level base. If this is not done the appliance may
twist and become damaged—this will void any product warranty.
The zero clearance box is installed ush with the cladding surface.
For installations into a mock chimney a Rinnai zero clearance box and zero clearance ue kit is
required to isolate the appliance from combustible materials. Failure to meet this installation
criteria will void any product warranty.
800 mm
650 mm min.
370 mm min.
7
2. Install the ue and complete electrical connecon
The weight of the ue system should not be supported by the appliance—it should be self-
supporting. Supporting the ue is usually completed during the framing stage with ue
supports or straps within the cavity. Flue supports have been included with the ue kit to assist
with this. These are to be riveted to the ue.
Please note, a twin-skin ue requires a 25 mm clearance (from the outer ue) from
combustibles.
Combusble Material
(must be greater than 50 mm from inner flue)
Flue
Inner flue 100 mm
Outer flue 150 mm

Rinnai New Zealand Limited Neo Installation Manual: 11906-B
02-11
17
Mock chimney installaons
Clamping spacer Flue cowl
Sealing collar
(not supplied)
Twin-skin flue
Outer flue 150 mm
Inner flue 100 mm
Any residual heat in the zero clearance box is ducted
away via the outer ue
3. Installing the heater into the replace
Carefully move the appliance into the enclosure ensuring the gas supply feeds into the rear
access hole and fasten heater to the replace with the four xings either side of the unit as
shown below.
50 mm
Bring the ue down within 50 mm of the unit and then
use the slip collar provided in the ue kit.

Rinnai New Zealand Limited Neo Installation Manual: 11906-B
02-11
18

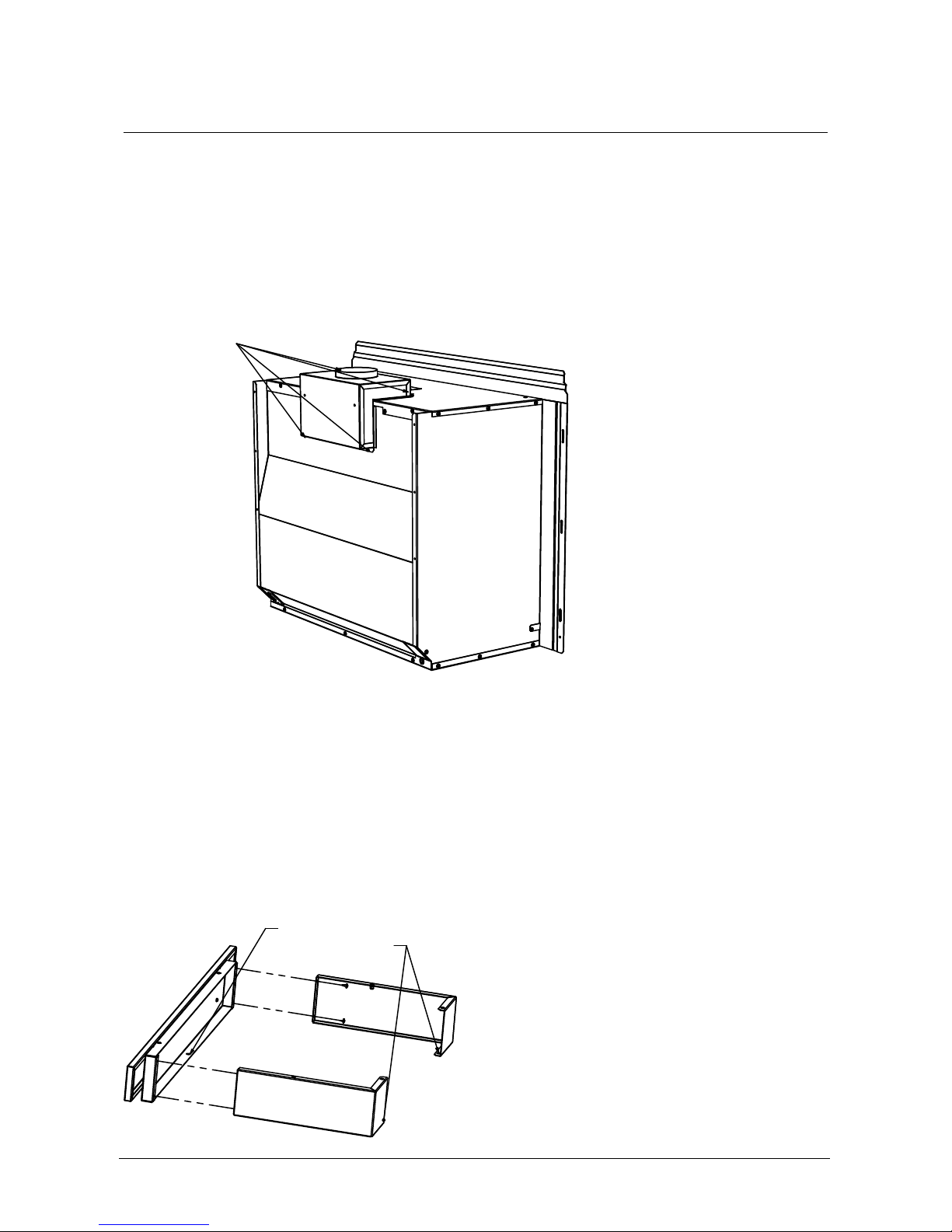

Freestanding installaons
1. Aach the ue spigot to the Neo engine
Using a 3.3 mm drill bit, drill through the four dimples at the rear of the back panel of the Neo
engine. Attach the ue spigot (ordered separately) with the screws provided.
Aach flue spigot
2. Assemble, posion and secure base assembly to the oor
Assemble the base assembly provided in the Neo freestander kit and place on the oor where
the Neo is to be located. Using three appropriate bolts or screws secure the base assembly to
the oor. This also acts as a seismic constraint.
The diagram below shows the base assembly for the Neo Console model. The Neo Plinth base
assembly has a pillar section attached.
Fixing posions
While the following diagrams depict the Neo Freestanding Console model, the steps to
constructing the Neo Freestanding Plinth are the same.

Rinnai New Zealand Limited Neo Installation Manual: 11906-B
02-11
19

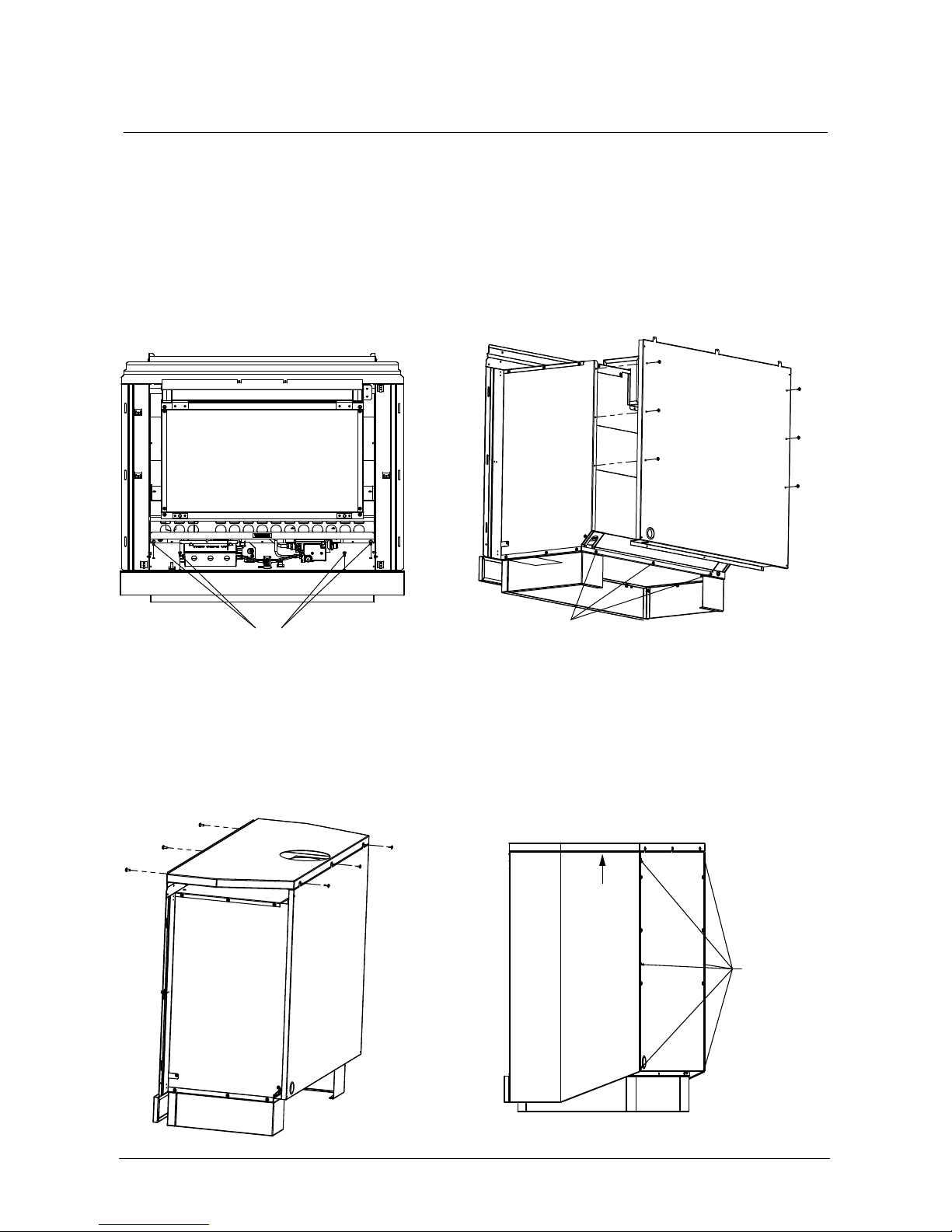

Freestanding installaons
3. Aach heater to base assembly and t back panel
Lift the Neo freestanding engine into position over the base assembly and x into position
using the four M5 x 10 screws supplied.
Remove the three screws from the base of the unit (do not discard) and screw the back
freestanding panel into position—nine screws in total.
Four screw posions for
securing the unit to the
base assembly
4. Add top and side panels
Install the freestanding top panel using three M5 x 10 and three self tapping screws. Install the
freestanding side panels (ensure you push up to minimise the gap) using six screws per side.
1
2
3
4
5
6
Three screws from unit base (screws 7,8 & 9)
Self tapping screws
M5 x 10 screws
Screw posions for
side panels
Minimise
gap

Rinnai New Zealand Limited Neo Installation Manual: 11906-B
02-11
20
Log set installaon
The granule pack and log set, consisting of ve log
pieces, comes packaged inside the appliance, you will
need to remove the glass retainer (four screws) before
installing the granules and log set. Use extreme care
when handling the log pieces, they are made from a
fragile material and will damage easily.
It is important you position the pieces in the order
shown below. Incorrect placement can create carbon build up and eect performance.
Malfunctioning due to improper log placement is not covered under warranty. The unit must
never be used with broken logs and should not be mixed with other burn media (except the
Rinnai Neo granules).
1. Check to ensure that the ports of the main
burner are clean and clear of any particles and all
packaging.
1
2. Select the thicker ‘Y’ log and t into position by
lining up the two pin holes onto the two pins of
the locating bracket that is xed to the centre of
the main burner.
2
1
3. Select the thick straight log and t onto the
metal locators on the left rear of the panel. When
correctly located this log will be touching the
burner box walls.
4. Select the thinner ‘Y’ log and t into position by
linking up the two pin holes onto the two pins of
the rst two logs. Ensure this log is seated all the
way down until it touches logs 1 and 2.
3
1
2
5. Select the longest log and t onto the metal
locators at the right rear of the panel. When
correctly located this log will be touching the
burner box walls and resting on log 1.
4
1
3
4
6. Locate the nal bowed log onto the metal locater
at the base of the right side panel and the bracket
xed to the main burner. Lean the log back until
it rests on log 4.
