Rinnai RDV600ER User manual

Gas Fireplace
Installation Manual
Models:
Rinnai 650 Gas Fire (RDV600ER)
Rinnai 750 Gas Fire (RDV700ER)

Rinnai 2 RDV 600_700ER IM
Congratulations on the purchase of your Rinnai 650 or 750 Gas Fire. We trust you will have many years of comfort
and enjoyment from your appliance.
IMPORTANT
BEFORE USING THIS APPLIANCE
Before proceeding with the operation or installation read this manual thoroughly and gain a full
understanding of the appliance, to ensure safe and correct use.
This version of the Installation Manual supersedes and replaces all previous issues of the
combined Operation & Installation Manuals Part Number: 12891.
For details on how to use this appliance refer the Operation Manual Part Number: 12902.
This appliance must be installed in accordance with:
• Manufacturer’s Installation Instructions
• Current AS/NZS 3000, AS/NZS 3500 & AS/NZS 5601
• Local Regulations and Municipal Building Codes
including local OH&S requirements
This appliance must be installed, maintained and removed
ONLY by an Authorised Person.
For continued safety of this appliance it must be installed
and maintained in accordance with the manufacturer’s
instructions.

Rinnai 3 RDV 600_700ER IM
WARNING
This appliance MUST be installed, maintained and removed ONLY by an Authorised Person.
For continued safety of this appliance it MUST be installed and maintained in accordance with
the manufacturers instructions.
Warnings & Important Information 5
Before Using or Installing This Appliance ........................................................................................................................ 5
Regulatory Information ....................................................................................................................................................... 5
Notice to Victorian Consumers .......................................................................................................................................... 5
Dress Guard Warnings ........................................................................................................................................................ 5
Mandatory Inspection Prior To Installation ....................................................................................................................... 5
Modications ........................................................................................................................................................................ 6
General Safety Warnings .................................................................................................................................................... 6
Before You Start 7
Installation Requirements ................................................................................................................................................... 7
Certication .......................................................................................................................................................................... 7
General Installation Information 8
Location ................................................................................................................................................................................ 8
TV & Ornamentation Warning ............................................................................................................................................. 8
Enclosure Requirements .................................................................................................................................................... 8
Framing 9
False Fireplace Installation ................................................................................................................................................. 9
Enclosure Dimensions ........................................................................................................................................................ 9
Supply Connections 10
Gas Supply ......................................................................................................................................................................... 10
Installation of Consumer Piping �������������������������������������������������������������������������������������������������������������������������������������� 10
Purging Gas Supply �������������������������������������������������������������������������������������������������������������������������������������������������������� 10
Leak Testing the Connection ������������������������������������������������������������������������������������������������������������������������������������������� 10
Electrical Supply .................................................................................................................................................................11
GPO (General Purpose Outlet) ����������������������������������������������������������������������������������������������������������������������������������������11
Direct Wired Installations �������������������������������������������������������������������������������������������������������������������������������������������������11
Flueing 12
Flue Installation Options ................................................................................................................................................... 12
Flue Installation Options ................................................................................................................................................... 12
Flue Components .............................................................................................................................................................. 13
Basic Flue Kits ................................................................................................................................................................... 14
Additional Flue Components ............................................................................................................................................ 14
Flue Installation Dimensions & Restrictions Flue Terminal Clearances ...................................................................... 15
Flue Terminal Clearances (extract from AS/NZS 5601) ................................................................................................. 16
TABLE OF CONTENTS

Rinnai 4 RDV 600_700ER IM
WARNING
This appliance MUST be installed, maintained and removed ONLY by an Authorised Person.
For continued safety of this appliance it MUST be installed and maintained in accordance with
the manufacturers instructions.
Installation 17
Masonry Installation .......................................................................................................................................................... 17
Flue Installation Options ................................................................................................................................................... 17
False Fireplace Installation ............................................................................................................................................... 19
Installation 22
Connecting Gas 23
Connecting The Gas Supply ............................................................................................................................................ 23
Leak Testing ....................................................................................................................................................................... 23
Burner Media Installation 24
Ceramic Log Set Installation ............................................................................................................................................ 24
Ceramic Stone Set Installation ......................................................................................................................................... 25
Commissioning 27
General Information ........................................................................................................................................................... 27
Commissioning The Appliance For Di󰀨erent Gas Type ................................................................................................. 30
Attaching Fascia Assembly .............................................................................................................................................. 31
Burn Media Installation ..................................................................................................................................................... 32
Abnormal Flame Pattern ................................................................................................................................................... 32
Specications 33
Table 1. Appliance Details ................................................................................................................................................. 33
Table 2. Dimensions .......................................................................................................................................................... 34
Wiring Diagram .................................................................................................................................................................. 35
Contacts 36
INSTALLATION TABLE OF CONTENTS

Rinnai 5 RDV 600_700ER IM
IMPORTANT
BEFORE USING OR INSTALLING THIS APPLIANCE
Before proceeding with the operation or installation read this manual thoroughly and gain a full
understanding of the appliance, to ensure safe and correct use.
Failure to carefully read and follow all instructions in this manual can result in equipment
malfunction, re or explosion, property damage, personal injury and/or death.
DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in
personal injury or death.
WARNINGS: Indicates a potentially hazardous situation which, if not avoided, could result in
personal injury or death.
CAUTIONS: Indicates a potentially hazardous situation which, if not avoided, could result in
minor or moderate injury or damage to the appliance. It may also be used to alert against unsafe
practices.
WARNING
REGULATORY INFORMATION
This appliance shall be installed in accordance with:
Manufacturer’s Installation Instructions.
Current AS/NZS 3000, AS/NZS 3500 & AS/NZS 5601.
Local Regulations and Municipal Building Codes including local OH&S requirements.
This appliance has been certied by the Australian Gas Association. The A.G.A. Certication
Number is shown on the data plate.
This appliance MUST be installed, maintained and removed ONLY by an Authorised Person.
For continued safety of this appliance it MUST be installed and maintained in accordance with
the manufacturer's instructions.
NOTICE TO VICTORIAN CONSUMERS
This appliance MUST be installed by a person licensed with the Victorian Building Authority.
ONLY a licensed person will have insurance protecting their workmanship.
So make sure you use a licensed person to install this appliance and ask for your Compliance
Certicate. For further information contact the Victorian Building Authority on 1300 815 127.
WARNING
DRESS GUARD WARNINGS
The guard is tted to this appliance to reduce the risk of re or injury from burns and
no part of it should be permanently removed. For protection of young children or the
inrm, a secondary guard is required.
The glass dress guard supplied with this appliance MUST NOT be permanently removed as it
fulls an operational safety function. Additional dress guards including free standing types may
be used in conjunction with, but NOT replace, the dress guard supplied with this appliance.
WARNING
MANDATORY INSPECTION PRIOR TO INSTALLATION
Immediately report any damage or discrepancies to the Supplier of the appliance. This
appliance was inspected and tested at the time of manufacture and packaging, and released for
transportation without known damage. Upon receipt, inspect the exterior for evidence of rough
handling in shipment. Ensure that the appliance is labelled correctly for the gas and electrical
supply, and/or other services it is intended to be connected to.
For safety and warranty purposes, appliances that may be damaged or incorrect MUST NOT be
installed or operated under ANY circumstances. Installation of damaged or incorrect appliances
may contravene local government regulations. Rinnai disclaims any liability or responsibility
whatsoever in relation to the installation or operation of damaged or incorrect appliances.
Take care when opening or unpacking this appliance. Failure to do so may result in serious injury
or product failure.
Check the label for the correct gas type (refer rating plate, inside the appliance). Refer to local gas
authority for conrmation of the gas type if you are in doubt.
WARNINGS & IMPORTANT INFORMATION

Rinnai 6 RDV 600_700ER IM
WARNING
MODIFICATIONS
DO NOT MODIFY THIS APPLIANCE,modifying from original specications may create a
dangerous situation and will void your warranty. Failure to comply with these instructions could
result in a re or explosion, which could cause serious injury, death or property damage.
DO NOT modify the electrical wiring of this appliance.
If the power cord is damaged or deteriorated it MUST be replaced by an authorised person.
Failure to do so may result in electric shock, re, serious injury or product failure.
Improper installation, adjustments, service or maintenance can cause serious injury, death or
property damage. Such work MUST ONLY be performed by an authorised person.
WARNING
GENERAL SAFETY WARNINGS
This appliance is HEAVY, during installation the use of a mechanical lifting aid is recommended,
noting that improper lifting may result in serious injury.
WARNING: This heater MUST NOT be used if any of the glass panels are damaged.
Flue terminal MUST always vent directly to outdoors. DO NOT extend the ue vertically or
horizontally in ways other than prescribed in this appliance manufacturer’s installation
instructions. ONLY the ue components specied by Rinnai MUST be used.

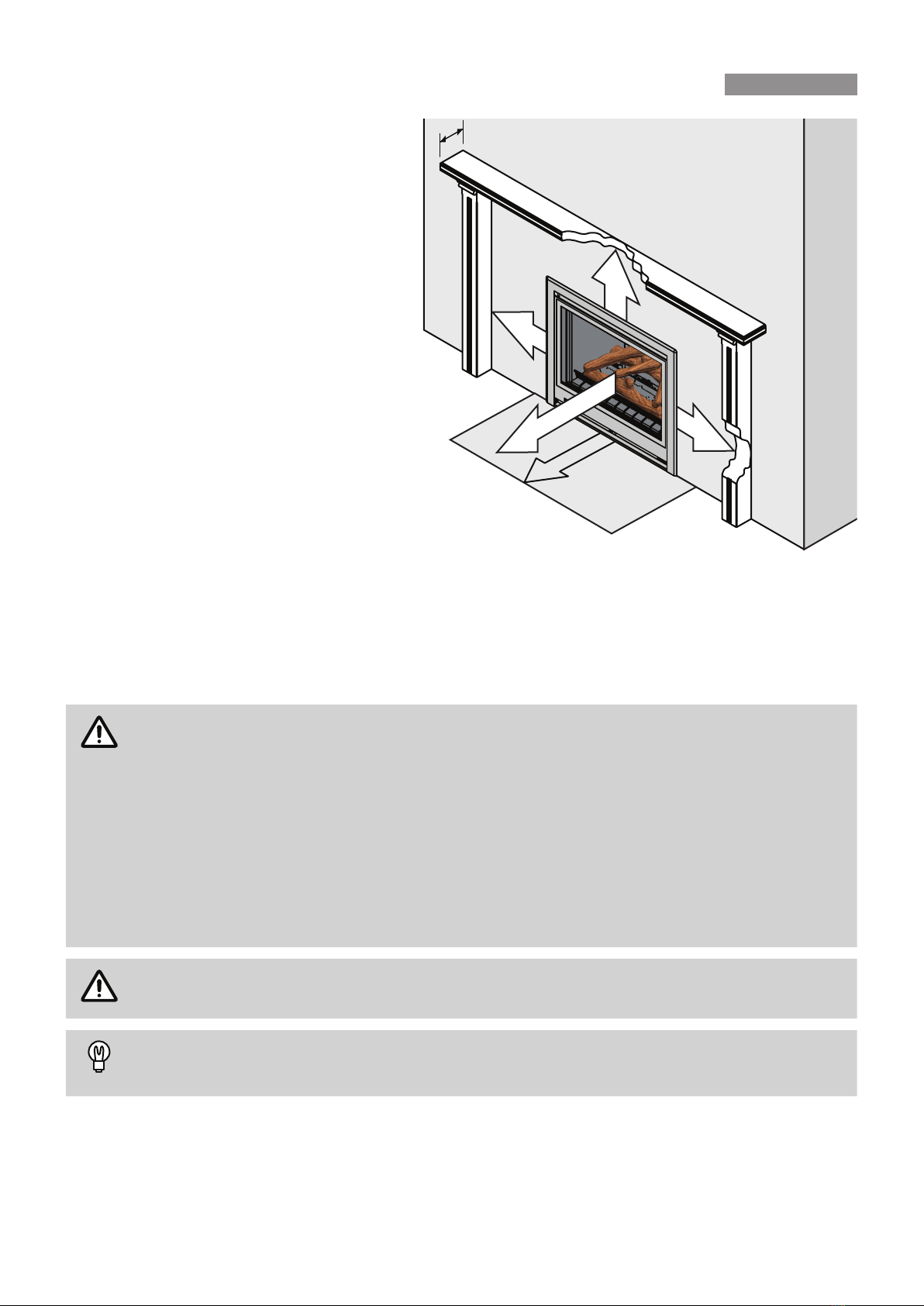

When considering installation ensure minimum
clearances as follows are adhered to, refer Fig. 1.
Heat radiating from the front of this heater
may over time a󰀨ect the appearance of some
materials used for ooring such as carpet, vinyl,
cork or timber. This e󰀨ect may be amplied if
the air in the room contains cooking vapours,
candle vapours and cigarette smoke, etc. To
avoid this possibility, it is recommended that a
mat or similar protective sheet be placed in front
of the appliance, extending at least 750 mm in
front of the dress guard. Refer to "Location"
on page 8 for mantle clearances, additional
installation information and warnings.
This appliance MUST NOT be installed where
curtains or other combustible materials could
come into contact with it. In some cases curtains
may need restraining.
This appliance is NOT intended for use by persons (including children) with reduced physical,
sensory or mental capabilities or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their
safety.
The appliance is NOT intended for use by young children or inrm persons without supervision.
Young children and the inrm SHOULD be supervised at all times when in the vicinity of this
heater while it is in operation.
The heater MUST NOT be located immediately below a power socket outlet.
A dedicated 230 V earthed 10 Amp power point must be used with this appliance.
Refer to local gas authority for conrmation of the gas type if you are in doubt.
Suitable ONLY for indoor installation.
DO NOT operate this appliance before leak checking hoses and gas cylinder connection.
This heater MUST NOT be used if either of the glass panels are damaged.
NOT to be connected to an LP gas cylinder located indoors.
Please keep this instruction booklet in a safe place for future reference. All dimensions referred
to in these instructions are in millimetres, unless otherwise specied.
Note: The three sided fascia is shown for illustrative purposes
750mm
1000mm
350mm 350mm
350mm
WARNINGS & IMPORTANT INFORMATION

Rinnai 7 RDV 600_700ER IM
INSTALLATION REQUIREMENTS
This heater MUST be installed ONLY by an authorised person.
The installation MUST conform to local regulations.
The installation MUST also comply with the instructions supplied by Rinnai.
Service and removal MUST be carried out ONLY by an authorised person.
CERTIFICATION
The Rinnai 650 and 750 Gas Fires have been certied by the Australian Gas Association.
The AGA Certication Number is shown on the appliance data plate.
No parts or functions should be modied or permanently removed from the heater.
Please keep these instructions in a safe place for future reference.
CARTON CONTENTS / ITEM CHECKLIST
The components for Rinnai 650 and 750 Gas Fires are supplied in separate cartons, the following tables list which
components are in each carton. Ensure that the components listed for the installation method being installed are
present before proceeding with the installation.
IMPORTANT
The Engine, Fascia and Burner Media are packed into three separate cartons. One of each are
required for all installation types.

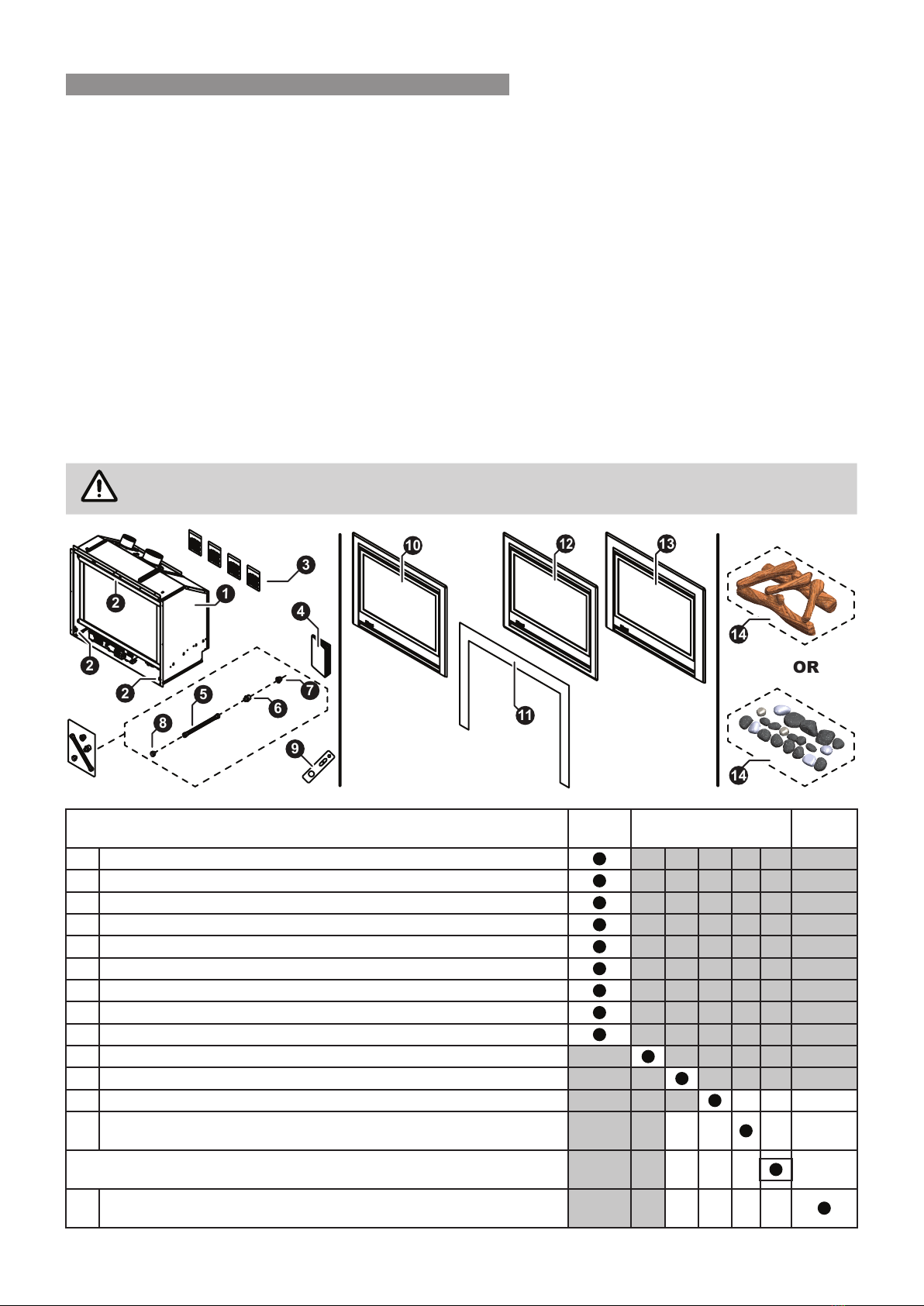

Major component descriptions and carton contents Engine Fascia Options Burner
Media
(1) Rinnai 650 or 750 Engine (RVD600ER or RVD700ER).
(2) Fascia attachment screws (3 x 8g black, pre-tted within the heater engine).
(3) Four Satchels - granule pack (x2), crushed glass (x1) and rockwool (x1).
(4) Operation and Installation manual.
(5) Semi rigid stainless steel gas pipe with 5/8” connections (x1).
(6) ½” BSP - 5/8” UNF ared brass adaptors (x1).
(7) ½” BSP Flared nut (x1).
(8) 5/8” UNF Plug (x1).
(9) Remote Control, Infra Red (IR).
(10) Three sided fascia.*
(11) Three sided fascia inll (used to create a inll for masonry installations).
(12) Four sided fascia (used for elevated installations).*
(13) Three sided masonry fascia (alternative to inll, available for RVD700ER models
Only).
*False re place (Zero clearance) applications will require the use of a Zero clearance
frame.
(14) Ceramic log set OR Ceramic stone set, there is a different set of each for each
model.
4
5
6
7
8
9
OR
5
14
5
14
1
2
2
10
5
3
12 13
11
2
BEFORE YOU START

Rinnai 8 RDV 600_700ER IM
LOCATION
• When positioning the heater, the main
variables governing the location are
Flueing and Warm Air Distribution.
• This heater MUST NOT be installed
where curtains or other combustible
materials could come into contact with it. In
some cases curtains may need restraining.
Refer to the warnings on page 6 for
clearances to furnishings, adjacent
walls, curtains and combustibles.
• Mantles and surrounds can be added to
compliment the design provided that they
conform to the clearances shown in the
diagrams (as shown right).
• The minimum clearance from the edge
of the appliance to non-combustibles is
150mm on the sides and 350mm above.
• The minimum clearance from the edge of
the appliance to combustibles is 350mm
on the sides and 350mm above.
• The depth of the mantle / surround at
the minimum clearance may not exceed
150mm (as shown right).
• An additional 100mm of clearance is required for every extra 50mm of mantle depth, i.e. for a 300mm deep
mantle the minimum clearance is 450mm.
TV & ORNAMENTATION WARNING
CAUTION
INSTALLATION OF TV OR ORNAMENTATION ABOVE THE HEATER
The installation of electrical appliances above and in the vicinity of the heater such as, but
not limited to, Plasma TV, LCD TV, Home Theatre Screens, Speakers, etc., MUST comply with
their manufacturer's' instructions. It is the responsibility of the installer/end-user to check the
installation instructions of these items and to ensure the location is suitable.
This caution also extends to, but is not limited to, ornaments such as: Paintings, Prints,
Photographs, Tapestries, Mirrors, Stu󰀨ed Animals, etc.
Please note the recommended clearances as per the diagram above. The temperature of the wall
surface directly above the appliance may be elevated and may discolour paint nishes or distort
vinyl wall coverings. For durability of surfaces you should contact the relevant manufacturer for
their specication.
WARNING
RINNAI DOES NOT TAKE ANY RESPONSIBILITY FOR ANY DAMAGE OCCURRING TO
ANY ITEMS INSTALLED ABOVE AND IN THE VICINITY OF THE HEATER.
IDEA
Use either a shelf or mantle below the TV or ornament or alternately you can construct a recess
to mount TV or ornament in. Check the manufacturer's installation instructions for these items
and ensure the recess is suitable.
ENCLOSURE REQUIREMENTS
MASONRY FIREPLACE
The appliance MUST be positioned within the replace on a at level surface.
If the appliance is elevated from the ground within the structure, a base MUST be constructed using suitable
material with supporting joists capable of supporting a minimum of 1.5 times the weight of the appliance.
750mm
1000mm
(A) (A)
Maximum mantle depth (at 350mm) = 250mm
(A) = 150mm to non-combustibles
(A) = 350mm to combustibles
Note: The three sided fascia shown for illustrative purposes
350mm
GENERAL INSTALLATION INFORMATION

Rinnai 9 RDV 600_700ER IM
FALSE FIREPLACE INSTALLATION
Framework of the installation MUST conform to local building codes. Non-combustible materials need not be
used. If the appliance is elevated from the ground within the structure, a base MUST be constructed using
suitable material with supporting joists capable of supporting a minimum of 1.5 times the weight of the appliance.
CAUTION
AS/NZS 5601 “GAS INSTALLATIONS” requires that ue components be supported independently
of the appliance.
ENCLOSURE DIMENSIONS
Enclosure dimensions are shown below. The enclosure dimensions specied are critical to the successful
installation of this appliance and MUST be strictly adhered to.
Enclosure Type (All dimensions are minimums and are in mm unless otherwise stated)
Masonry False Fireplace Corner ‡
Models Height
(H1)
Width
(W1)
Depth
(D)
Chimney
(X)
Height
(H2)
Width
(W2)
Depth
(D)
Support
(Y)
Face
(A)
Sides
(B)
Depth
(C)
Clearance
(E)
RDV600ER 600 600 400 * 200 x 200 700 # 700 # 400 * Max 600 § 1400 976 676 25
RDV700ER 600 700 400 * 200 x 200 700 # 800 # 400 * Max 600 § 1500 1047 726 25
WARNING
§ Framing MUST include supports for the mounting of the co-linear to coaxial ue adaptor.
The co-linear exible ue MUST NOT come into contact with ANY combustible material.
# The enclosure dimension for False Fireplace installations are larger, to make allowances for the
tment of the zero clearance frame. The tment of this frame is necessary to provide the required
clearances from any combustibles.
CAUTION
For clarity the consumer piping gas supply, electrical connections have been omitted, refer to
page 10 and page 11 for details. Construction details have also been simplied.
* As the heater engine is installed ush with the external surface, when preparing the cavity
the minimum depth needs to be inclusive of the external cladding thickness for false replace
installations. It is the installers responsibility that adequate clearance be provided between the
heater engine and any electrical connections on the inside of a masonry replace.
‡ Corner installations use False Fireplace enclosure dimensions and framing specications.
NOTE
In a masonry replace, use a slurry of sand and cement to level the base as required. Refer to
page 19 and page 20 for “False Fireplace Elevated Installation”
MASONRY FALSE FIREPLACE CORNER
H1
W1
DH2
Y
W2
D
Level base with a slurry of sand
and cement.
Refer to Elevated Installation section. Minimum internal dimensions
and clearances.
B
A
C
E
E
FRAMING

Rinnai 10 RDV 600_700ER IM
GAS SUPPLY
WARNING
Gas pipe sizing MUST consider the gas input to this appliance as well as all other gas appliances
in the premises. The gas meter and regulator MUST be specied for the total gas rate.
A suitable sizing chart such as the one in AS/NZS 5601 should be used.
The use of rubber hose for any gas connection to a xed appliance is NOT authorised by the
manufacturer.
IMPORTANT
Conrm correct gas type (see labels located on top or rear panels). Refer to local gas authority
for conrmation of gas type if you are in doubt.
Installation of Consumer Piping
The gas supply (consumer piping), termination is inside the heater and enters
through the rear of the appliance.
Refer to the dimensional drawings on page 34 for appliance gas inlet location
and other relevant dimensions.

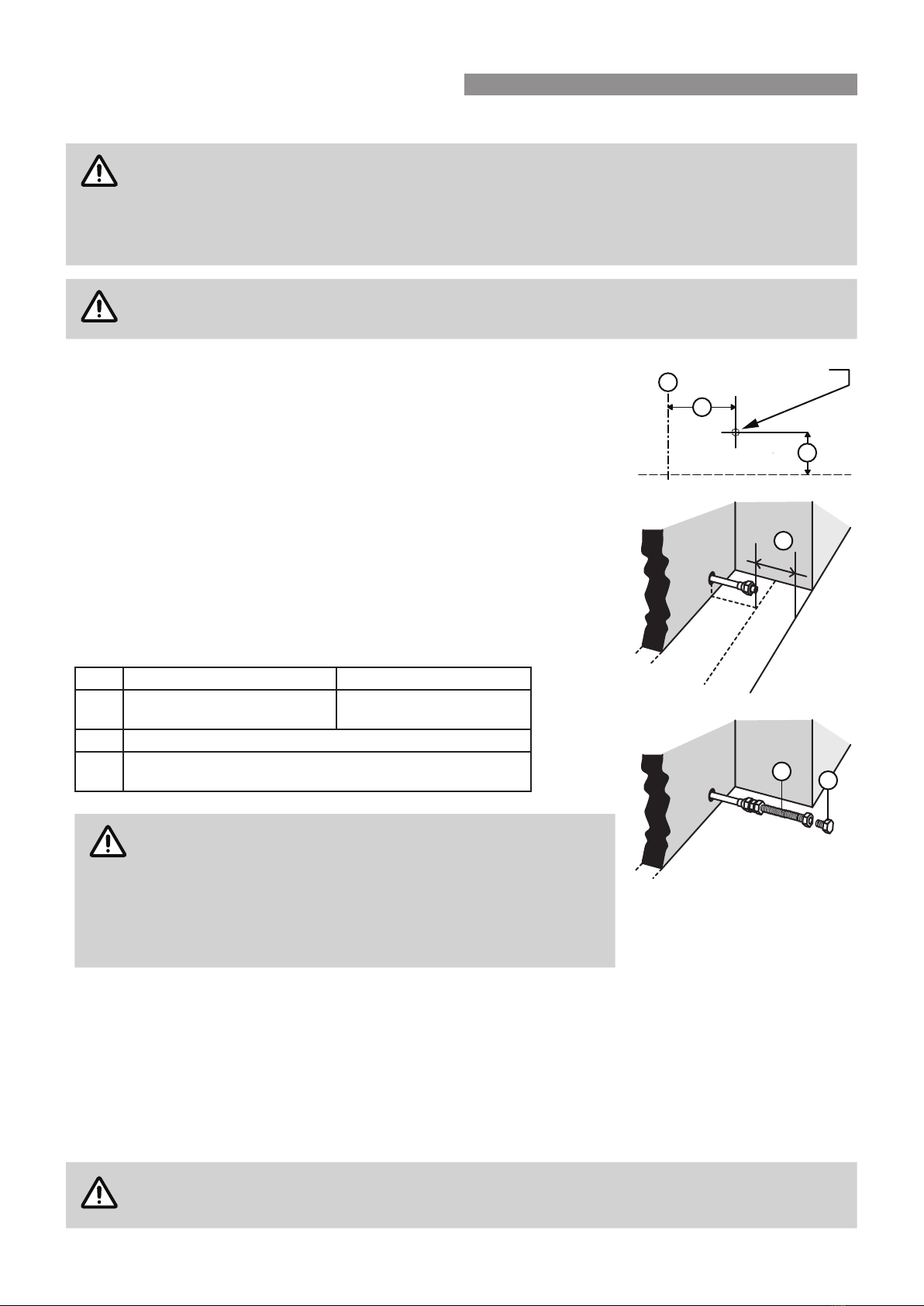

Mark o󰀨 the location for the vertical centre line (1)of the heater enclosure (inbuilt
installations) or heater (freestanding installations).
To the right of the vertical centre line (1), mark o󰀨 both the vertical (2)and
horizontal (3)location for the gas supply penetration (consumer piping). For
measurements refer to the Gas Supply Dimension Table below.
The length of the gas supply (consumer piping) termination (4)is measured from
the front of the enclosure.
Gas Supply Dimension Table
RDV600ER RDV700ER
(2)265 mm to the right of the
appliance centre-line
312 mm to the right of the
appliance centre-line
(3)18mm from base of enclosure
(4)Consumer piping to be terminated 295 mm from the front of
enclosure.
IMPORTANT
For masonry replace installations:
Gas supply dimension (4)MUST include the thickness of an
inll panel (when tted). A standard Rinnai inll panel adds
2mm to the front of the enclosure.
For false replace installations:
Gas supply dimension (4)MUST include the thickness of the
cladding to be used.
Once the consumer piping has been terminated to the above requirements the supplied exible gas connection
(5) may then be tted.
Purging Gas Supply
Foreign materials and debris such as swarf, lings, etc. MUST be purged/removed from the gas supply, failure to
do so may cause damage to the gas control valve causing it to malfunction.
Leak Testing the Connection
With the supplied plug inserted into the end of the exible gas connection leak test all joints.
CAUTION
Use a soapy solution to test all gas connections. If a leak is present bubbles will form at the leak
point. When nished remove any residue with a rag. Prevent any soapy solution from coming in
contact with electrical components.
FRONT OF ENCLOSURE
LOSURE
REAR OF
ENC
4
1
2
Gas supply location
3
56
Gas supply pressure
to be 1.13 to 2.75 kPa
SUPPLY CONNECTIONS

Rinnai 11 RDV 600_700ER IM
ELECTRICAL SUPPLY
GPO (General Purpose Outlet)
Where a power point is used it MUST be 230 V, rated at 10A and MUST be
earthed. This power point MUST NOT be located above the heater. Alternatively
the appliance can be direct wired if the power supply is to be concealed.
The heater engine is tted with a 1.5 m power cord and three pin plug (7a) which
exits the appliance from the rear panel at the lower left.
Direct Wired Installations
Alternatively the appliance can be direct wired if so required.
IMPORTANT
A qualied electrician will need to be consulted where a direct
wired installation is required.
Any such installation MUST comply with the requirements
of AS/NZS 5601, AS/NZS 3000 and any other relevant local
regulations.
7a
SUPPLY CONNECTIONS

Rinnai 12 RDV 600_700ER IM
FLUE INSTALLATION OPTIONS
WARNING
The following diagrams illustrate the ue installation options that are available for the RDV600ER
and RDV700ER space heaters. ONLY the genuine Rinnai ue is certied as part of the space
heaters installation requirements.
ONLY an authorised person MUST install, service and remove the Rinnai RDV600ER and
RDV700ER space heater and ue system.
Only the ue system components described in this Manual are suitable and MUST be used. ‘DO
NOT USE AN UNLINED MASONRY CHIMNEY AS THE FLUE FOR THIS APPLIANCE’.
Components that are not described in that manual, whether manufactured by Rinnai or otherwise,
are NOT compatible and MUST NOT be used.
Rinnai appliance warranty conditions may be voided if non Rinnai Flue Components are tted.
AS/NZS 5601 “GAS INSTALLATIONS” requires that ue components be supported independently
of the appliance.

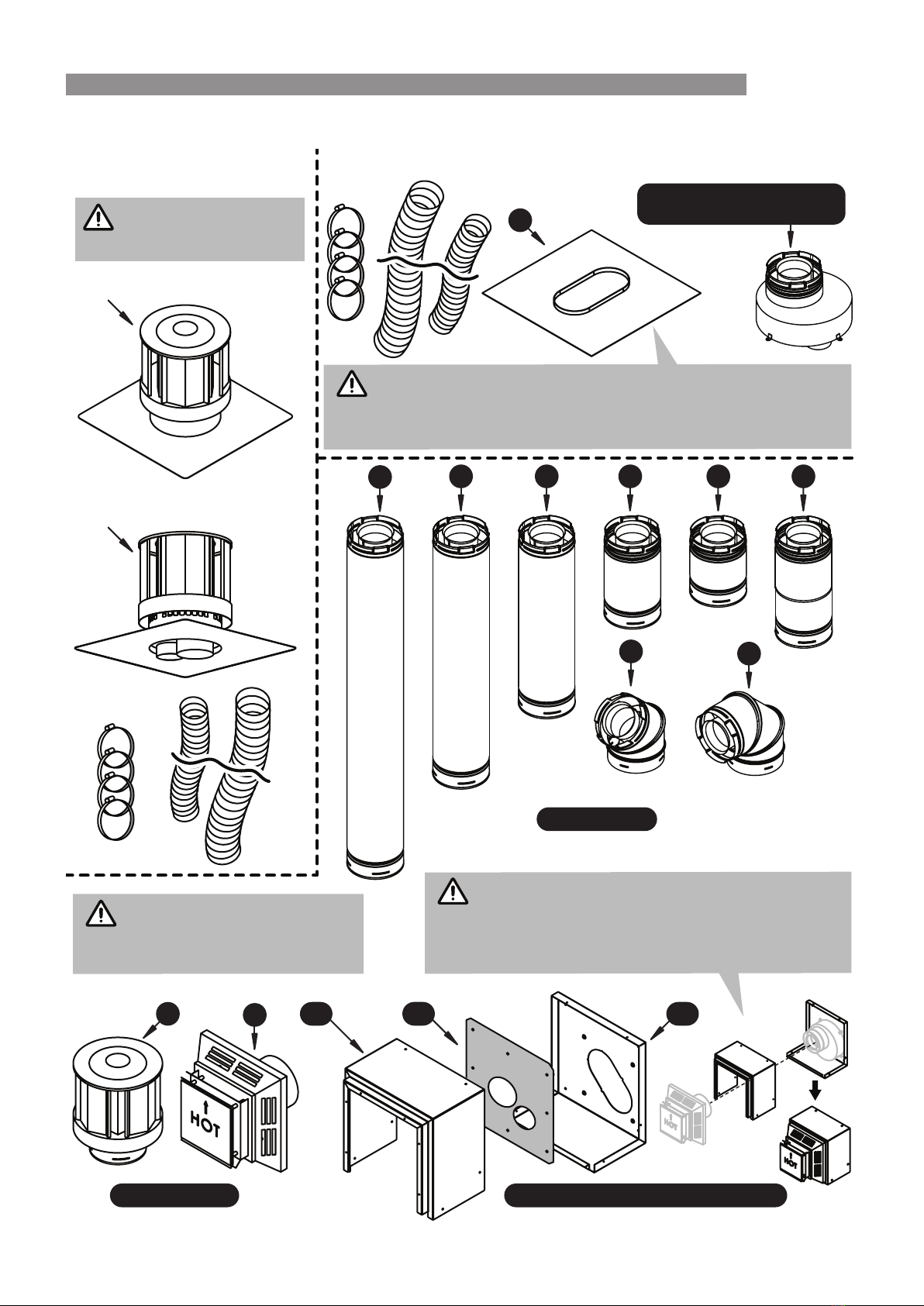

FLUE INSTALLATION OPTIONS
(A) Masonry (Co-linear) cowl
(B) Co-linear to coaxial adaptor & support plate/mount
(C) Flexi pipes (100Ø exhaust / 75Ø air intake)
(D) Spigot plate (this is part of the heater engine)
(E) Heater engine
(F) Coaxial pipe components (170Ø outer pipe, a max of 2 x 45º bends ONLY are allowed)
(G) Vertical cowl
(H) Horizontal terminal
(I) Weather proof box.
False Fire Place / Raised Fire Place
i. Vertical
Masonry
ii. Vertical Offset
iii. Horizontal
ii. Horizontal
i. Vertical
Weather Proof Box
Reduces the internal
footprint requirements
of the heater engine
A
C
C C
E E E E
D
A
C
E
DD
FF
G
B
DC D
B
F
H
H
B
i
ii
H
B
i
ii
iii
I
FLUEING

Rinnai 13 RDV 600_700ER IM
FLUE COMPONENTS

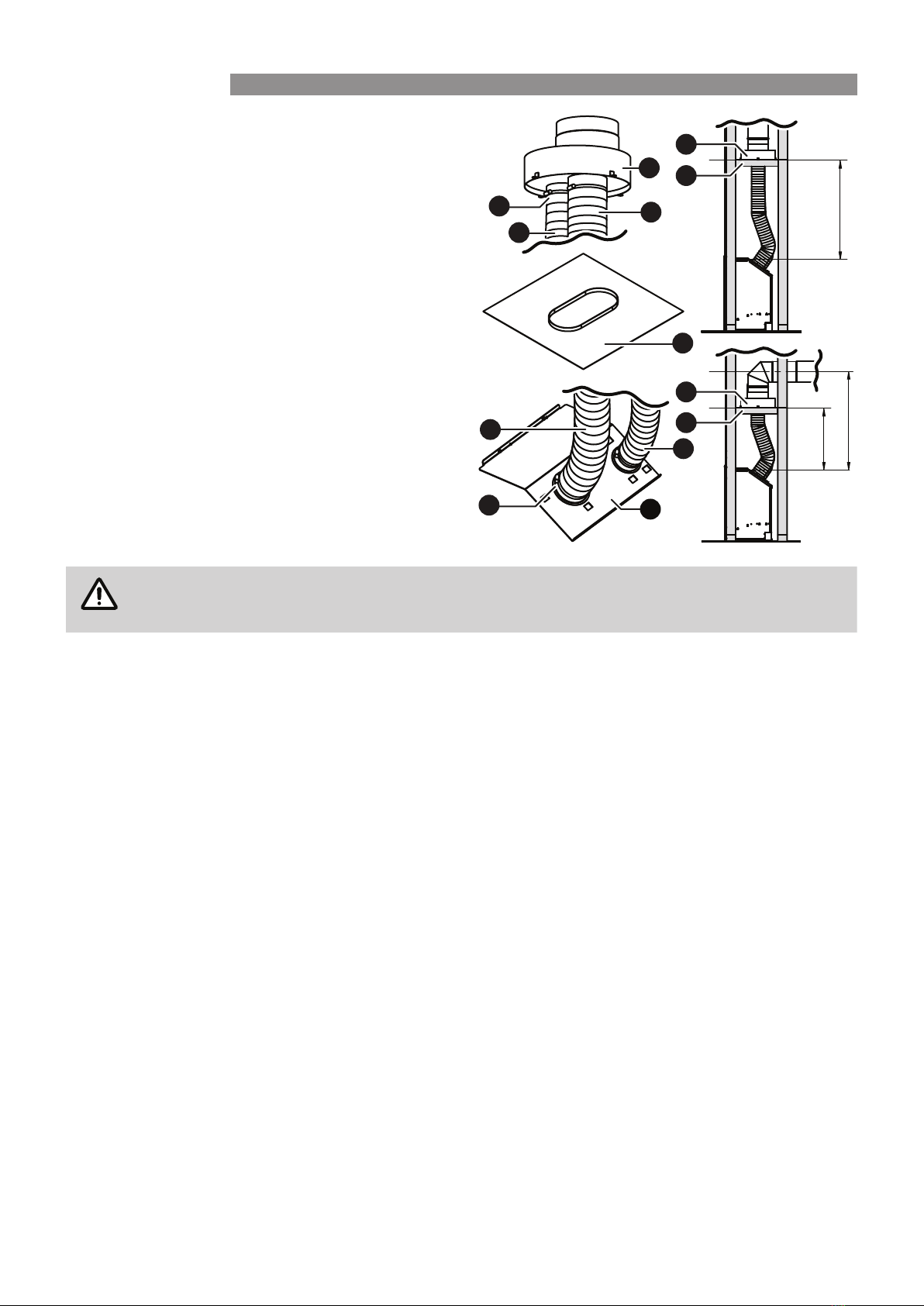

RDVFF (RDV Flexi Flue)
For Masonry Installations ONLY
RDVFA (RDV Flue Adaptor)
RDVFF is NOT suitable
for combustible material
constructions.
WARNING
13 42 5 6
8
7
910
Connects to coaxial pipe &
terminal flue components
Minimum and maximum flue
length requirements MUST be
observed, refer to page 15 for
details.
IMPORTANT
E
The coaxial mounting plate (E), is used for vertical and
horizontal False Fireplace installations ONLY. The coaxial
mounting plate (E), may require cutting to size on some
installations.
IMPORTANT
A horizontal masonry installation MUST use a
horizontal masonry terminal mount (11) to affix
both the co-linear adaptor (supplied with RDVFA)
and the horizontal terminal (10) (supplied as an
additional flue component) to the exterior wall.
IMPORTANT
11b11a 11c

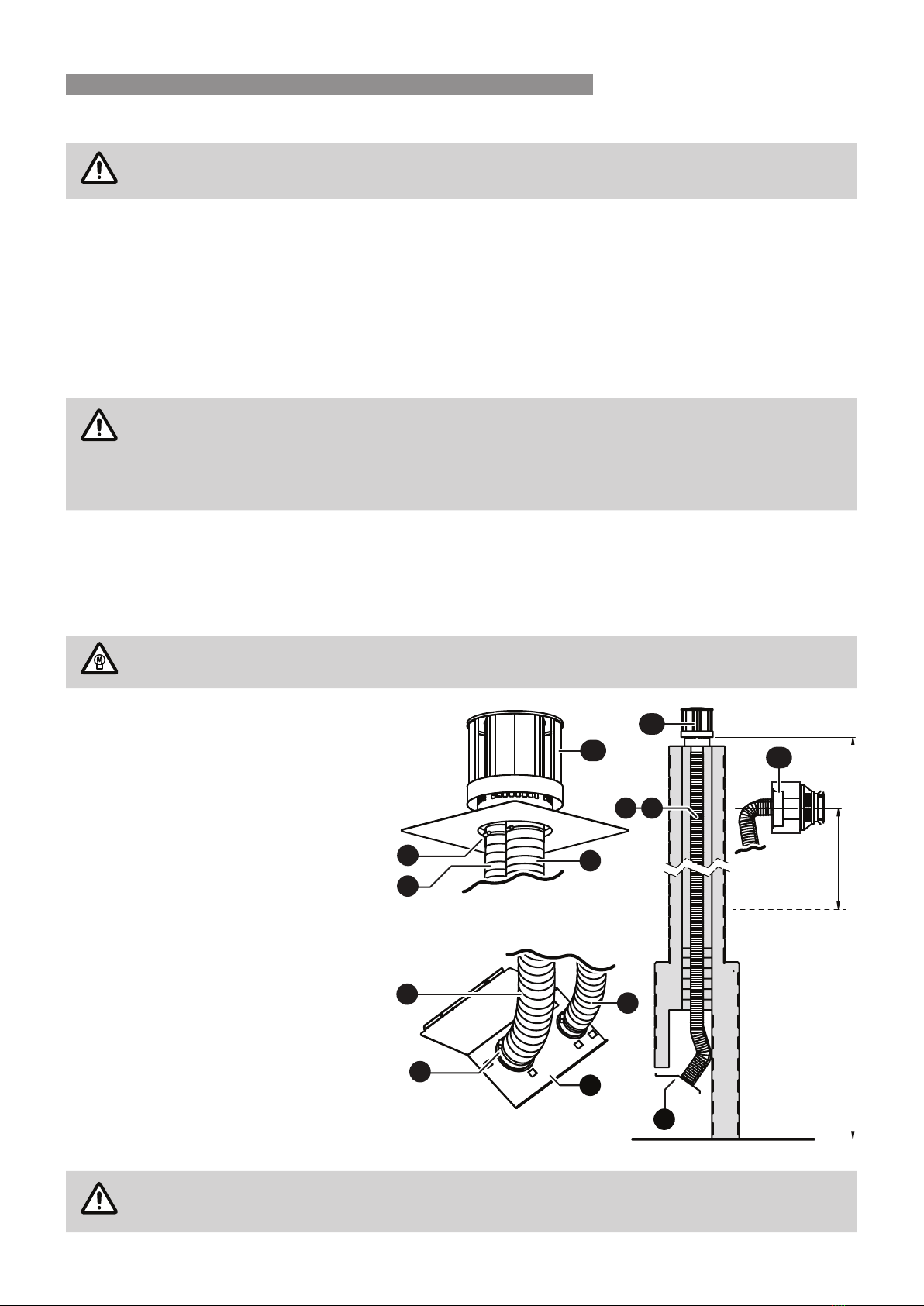

Flue Pipes
Flue Terminals Horizontal Masonry Terminal Mount
RDVFF Terminal Topside View
RDVFF Terminal Underside View
FLUEING

Rinnai 14 RDV 600_700ER IM
BASIC FLUE KITS
RDVFF Masonry chimney kit - RDV Flexi Flue 650/750.
2 x exi pipes, 4x pipe clips and high wind terminal cap.
Rinnai Order Code: RDVFF
WARNING
RDVFF is NOT suitable for combustible material constructions.
RDVFA False Fire place base kit - RDV Flue Adaptor 650/750.
2 x exi pipes, 4x pipe clips, co-linear to coaxial adaptor and coaxial mounting plate (E).
Rinnai Order Code: RDVFA
IMPORTANT
A horizontal masonry installation will utilise the RDVFA as the basis for the installation.
A horizontal masonry installation MUST use a horizontal masonry terminal mount (11) to a󰀩x
both the co-linear adaptor (supplied with RDVFA) and the horizontal terminal (10) (supplied as
an additional ue component) to the exterior wall.
ADDITIONAL FLUE COMPONENTS
(1) Pipe length 48 inch - (1200mm), Rinnai Order Code: - RDV902
(2) Pipe length 36 inch - (900mm), Rinnai Order Code: - RDV903
(3) Pipe length 24 inch - (600mm), Rinnai Order Code: - RDV904
(4) Pipe length 12 inch - (300mm), Rinnai Order Code: - RDV906
(5) Pipe length 9 inch - (230mm), Rinnai Order Code: - RDV907
(6) Adjustable Pipe Length 11 - 14 inch - (275 - 375mm), Rinnai Order Code: - RDV911 7
(7) 45° Elbow, Rinnai Order Code: - RDV945G
(8) 90° Elbow, Rinnai Order Code: - RDV990G
(9) High Wind Terminal Cap (Vertical Cowl) - Rinnai Order Code: - RDV991
NOTE
RDV991 may ONLY be used in conjunction with RDVFA (RDV Flue Adaptor). NOT suitable for
use with RDVFF (RDV Flexi Flue).
(10) Square Horizontal Terminal Cap (Horizontal Terminal), (600mm), Rinnai Order Code: - RDV984
(11) Horizontal Masonry Terminal Mount Kit - Rinnai Order Code: RDVHFS. This kit exists of three
components:
(11a) = Mount Cowl Masonry
(11b) = Plate Chimney Mount and
(11c) = Template. (This template is used for the installation only, discard this template after use).
FLUEING

Rinnai 15 RDV 600_700ER IM

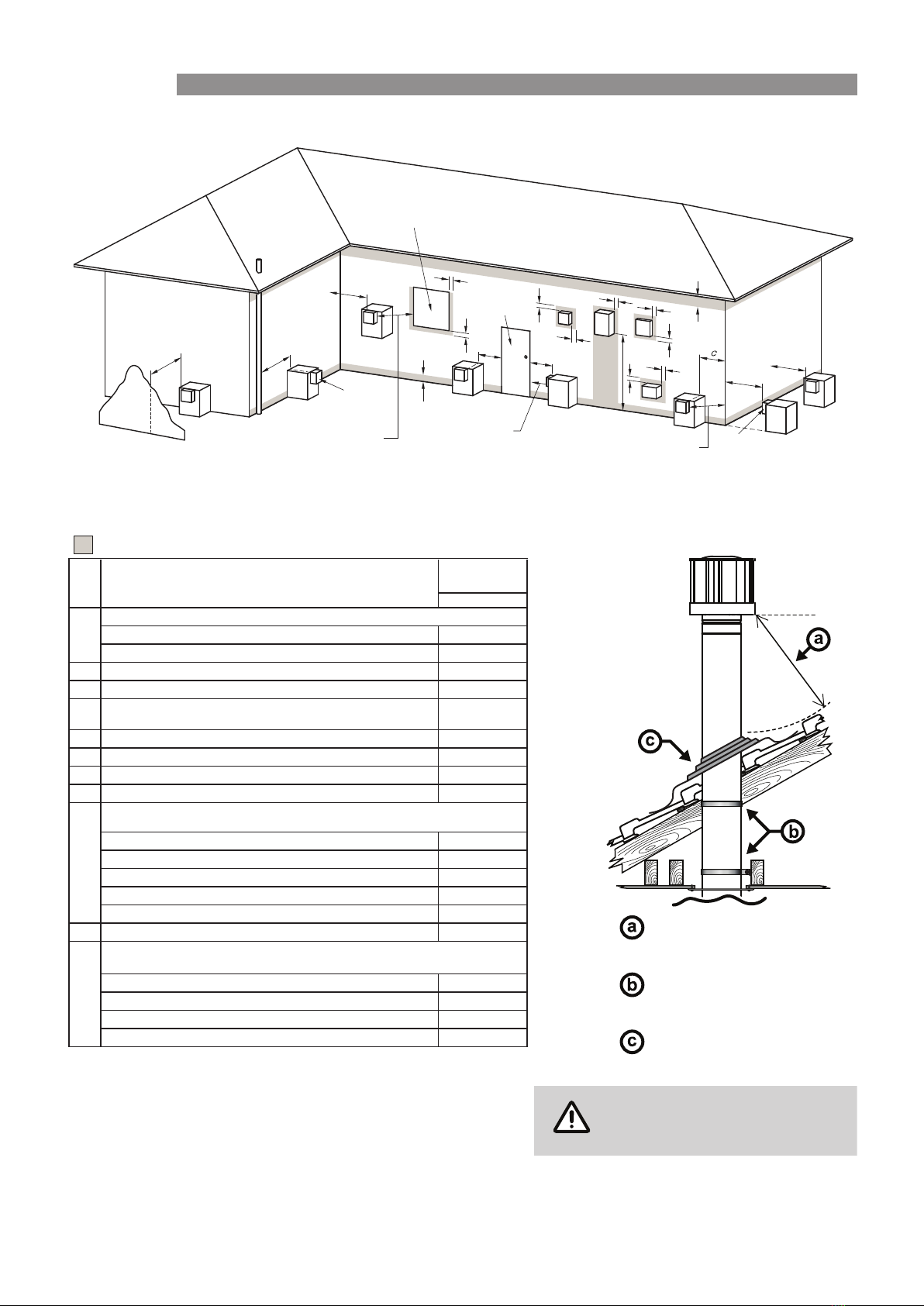

FLUE INSTALLATION DIMENSIONS & RESTRICTIONS FLUE TERMINAL CLEARANCES
Max 600
Min 3000 / Max 8000
Max 600
Min 3000 / Max 8000
Max 2000
Max 600
Max 2000
Max 2000
255
Min 3000 / Max 8000
Min 600
285
Min 245
Max 410
255
Max 600
Vertical Extended HorizontalDirect HorizontalOff-Set
HorizontalVertical
Min 600
False Fireplace
Masonry Fireplace (Non-combustible ONLY)
This method NOT
suitable for
combustible material constructions.
WARNING
All dimensions
in mm
All dimensions
in mm
FLUEING

Rinnai 16 RDV 600_700ER IM
FLUE TERMINAL CLEARANCES (EXTRACT FROM AS/NZS 5601)
Min. Clearances
(mm)
Natural Draught
•Appliances up to 50 MJ/h input 300
•Appliances over 50 MJ/h input 500
003*ecafrusrehtoroynoclabaevoba,dnuorgehtmorFb
005*renroclanretxerollawnruteratnorFc
d
From a gas meter (M) (see 5.11.5.9 for vent terminal location of regulator )
(see Table 6.6 for New Zealand requirements) 1000
eFrom an electricity meter or fuse box (P) † 500
epipliosroepipniardamorFf
gHorizontally from any building structure* = or obstruction facing a terminal 500
hFrom any other flue terminal , cowl, or combustion air intake † 500
•Appliances up to 150 MJ/h input * 500
•Appliances over 150 MJ/h input up to 200 MJ/h input * 1500
•Appliances over 200 MJ/h input up to 250 MJ/h input * 1500
•Appliances over 250 MJ/h input * 1500
• All fan-assisted flue appliances , in the direction of discharge -
0051rewolbapsagnidulcni,telnirialacinahcemamorFk
051tupnirh/JM05otpusretaehecapS•
• Other appliances up to 50 MJ/hr input 500
•Appliances over 50 MJ/h input and up to 150 MJ/h input 1000
•Appliances over 150 MJ/h input 1500
1Where dimensions c, j or kcannot be achieved an equivalent horizontal distance
measured diagonally from the nearest discharge point of the terminal to the opening
may be deemed by the Technical Regulator to comply.
2See Clause 6.9.4 for restrictions on a flue terminal under a covered area.
3See Figure J3 for clearances required from a flue terminal to an LP Gas cylinder.
Aflue terminal is considered to be a source of ignition.
4For appliances not addressed above acceptance should be obtained from the
Technical Regulator.
metI.feR
a
Below eaves, balconies and other projections:
FIGURE 6.2 (in-part) MINIMUM CLEARANCES REQUIRED FOR FAN-ASSISTED FLUE TERMINALS,
ROOM-SEALED APPLIANCE TERMINALS AND OPENINGS OF OUTDOOR APPLIANCES
* - unless appliance is certified for closer installation
n
j
Horizontally from an openable window, door, non-mechanical air inlet, or any other opening into a
building with the exception of sub-floor ventilation:
Vertically below an openable window, non-mechanical air inlet, or any other opening into a
building with the exception of sub-floor ventilation:
NOTES:
† - Prohibited area below electricity meter or fuse box extends to ground level.
150
Shadi ng in dicate s pro hibited a rea for flue ter minals
LEGEND:
I= Mec han i cal a ir i nle t
M= Gas m eter
P= E le c tr i c it y m eter or fuse b ox
S= Str ucture
T= Fl ue terminal
Z= Fan-a ssi ste d app lia nce o nly
Direction of
discha rge
See N ote 1
See N ote 1
Opening int o
a building
T
T
T
T
T
T
T
C
M
d
d
e
e
h
j
j
j
n
b
f
a
h
P
Z
S
k
k
g
g
g
I
T
Door
Minimum clearance 500 mm
to nearest part of roof.
Minimum clearance 25 mm
to combustible materials.
Decktite or lead collar flashing.
This appliance is a natural draft
appliance and does not contain
a combustion fan.
NOTE
FLUEING

Rinnai 17 RDV 600_700ER IM
MASONRY INSTALLATION
IMPORTANT
Read this manual thoroughly and gain a full understanding of the requirements before undertaking
installation. Ensure gas supply to heater is turned o󰀨 for the rst stages of this instruction.
FLUE INSTALLATION OPTIONS
Step 1 Prepare Site – p. 17 Step 7 Insert Heater Engine Into Fireplace – p.18
Step 2 Unpack the Heater – p. 17 Step 8 Securing The Heater Engine – p.18
Step 3 Masonry Flue Installation – p.17 Step 9 CONNECTING THE GAS SUPPLY – p.23
Step 4 Positioning The Heater Engine – p.18 Step 10 LEAK TESTING – p.23
Step 5 Connect Electrical Supply – p.18 Step 11 BURNER MEDIA INSTALLATION – p.24
Step 6 Prepare Gas Supply – p.18 Step 12 COMMISSIONING INSTRUCTIONS – p.27
Step 1. Prepare Site
IMPORTANT
Ensure the intended enclosure meets the requirements of the dimensions as stipulated in
“ENCLOSURE REQUIREMENTS” on page 8 and that gas and electrical supplies have been
prepared in accordance with the dimensions stipulated in “GAS SUPPLY” on page 10 and
“ELECTRICAL SUPPLY” on page 11.
In a masonry replace use a slurry of sand and cement to level the base as required.
Step 2. Unpack The Heater Engine
The heater engine is supplied in one carton, check to ensure you have all contents as listed under “BEFORE
YOU START” on page 7 at the start of this manual before proceeding. Carefully remove carton by removing
the straps and lifting the carton o󰀨 the appliance. Remove all packaging materials and check all components for
damage. If ANY damage is evident DO NOT install or operate this appliance. Contact your supplier for advice.
HINT
Retain the cardboard carton for use in the “Positioning The Heater Engine” on page 18.
Step 3. Masonry Flue Installation
Connect both the Ø 100mm exhaust pipe
(A) and the Ø 75mm inlet pipe (B) ues to
the masonry cowl (C1) / co-linear to coaxial
adaptor (C2), noting that the larger diameter
pipe is for the exhaust, securing both pipes
to the cowl / co-linear to coaxial adaptor
rmly with pipe clamps (D).
Feed the exi-liner ue pipes down the
chimney ensuring that exhaust pipe (A) is
on the right when being viewed from the
front of the replace. Once the pipe ends
are accessible from re place, the cowl /
co-linear to coaxial adaptor components
may then be secured and weather sealed in
place.
At the re place attach both exhaust pipe
(A) and inlet pipe (B) ues to the engines
spigot plate (E), noting again that the larger
diameter pipe is for the exhaust, when
viewed from the front this will be to the right.
Secure both pipes to the spigot plate (E)
rmly with pipe clamps (F).
IMPORTANT
A horizontal masonry installation MUST use a horizontal masonry terminal mount to a󰀩x the
co-linear adaptor and the horizontal wall terminal to the exterior wall
Min 5000 / Max 8000
A
E
B
C1
A
F
D
B
A
C1
B
E
Min 600
From the top of
the heater engine
C2
INSTALLATION

Rinnai 18 RDV 600_700ER IM

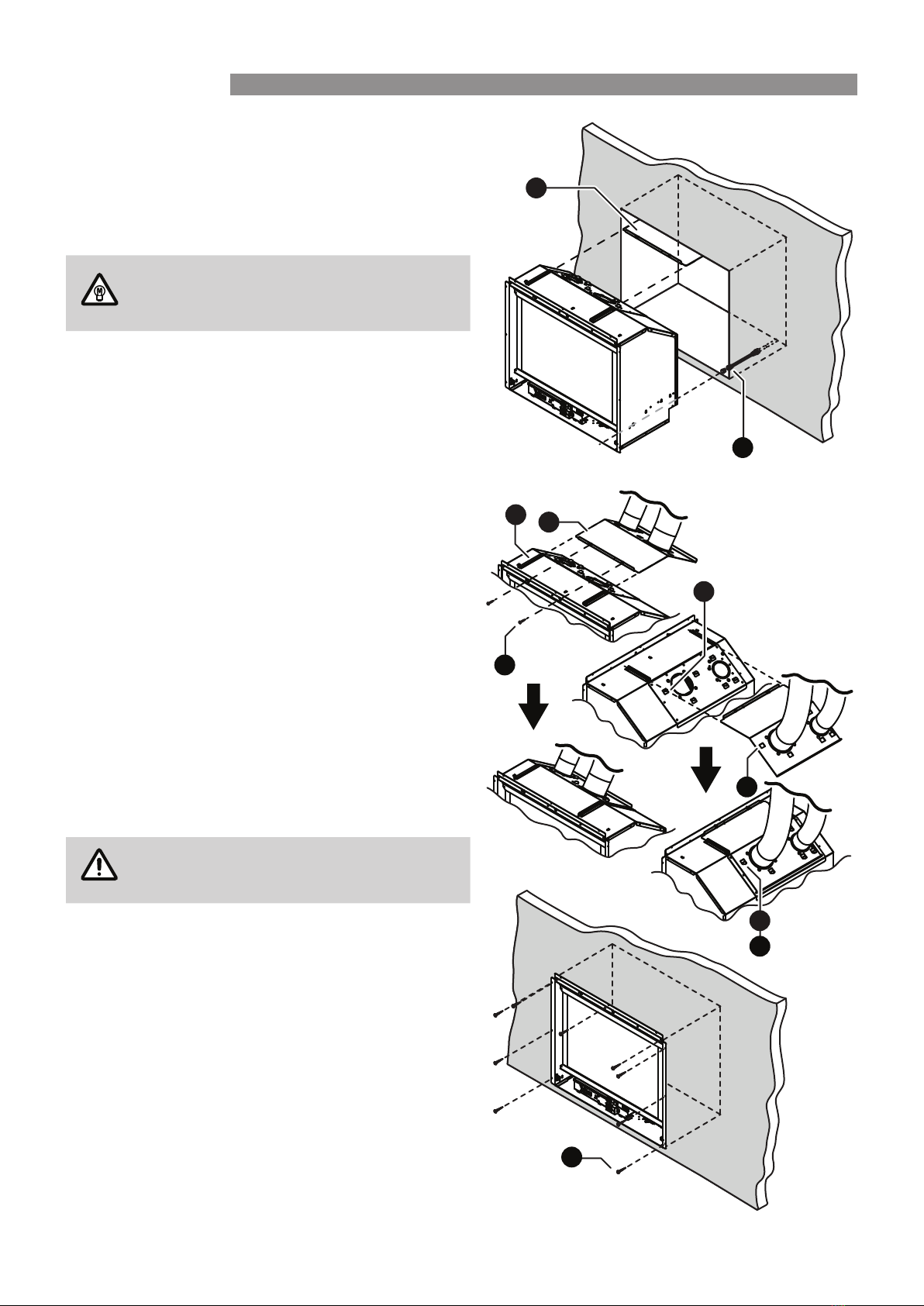

Step 4. Positioning the Heater Engine
Before installing the heater, check it is labelled for the
correct gas type, (refer to the gas type label on the top
body panel of the heater). Refer to the local gas authority
for conrmation of gas type if you are in doubt.
Place the heater engine in front of the replace enclosure.
HINT
A panel from the cardboard packing carton
placed on the oor underneath the heater
will help prevent possible damage to
ooring.
Step 5. Connect Electrical Supply
Ensure that the external isolation switch is OFF before
connecting the power to the heater engine.
Step 6. Prepare Gas Supply
Remove the threaded brass plug from the S/S exi pipe
consumer gas supply pipe.
Step 7. Insert Heater Engine Into Fireplace
Position the heater engine so that the outer edges of the
spigot plate (E) can be aligned with the guide rails (G) on
to of the engine. Then carefully move the heater engine
into the replace ensuring that the gas supply pipe and
ttings (H) feed into the rear access hole and that the
outer edges of the spigot plate (E) engage the guide rails
(G).
Use two screw bolts (I) located in the upper ange of the
heater to engage the nutserts installed in the front tab of
the spigot plate (E).
The tighten these screw bolts, to pull the spigot plate (E)
forward and allows the six locating / locking tabs (J) of
the engine to engage the corresponding holes (K) of
the spigot plate (E) and form a seal between the ue
components and the engine.
CAUTION
Take care so that the electrical cord loosely
coils up behind the heater engine to avoid
pinching.
Step 8. Securing The Heater Engine
Fasten the heater to the masonry work using appropriate
fasteners (not supplied) using the three holes across the
top of the fascia assembly mounting panel and the 3 holes
on each side of the side panels as shown (L).
Step 9. Connecting Gas
Continue to “CONNECTING GAS” on page 23.
H
E
E
J
K
G
K
J
I
L
INSTALLATION

Rinnai 19 RDV 600_700ER IM
FALSE FIREPLACE INSTALLATION
WARNING
When installing the Rinnai Ember into a purpose built mock chimney or chase, which is not open
to the roof space of the building, you will need to add cavity vents.
Heat from the re lost through the outer skin of the appliance and the ue system will not be able
to adequately vent. This can lead to a build-up of excess heat in the cavity. In some cases the re
may overheat and the overheat safety mechanisms may operate.
Adding two vents of at least 200 cm2 one at oor level and one at ceiling level, will allow adequate
airow in a cavity of approximately 1.2 m wide x 2.4 m high and 0.8 m deep. An additional benet
is that the ventilation of the cavity will return some of this heat Into the room.
IMPORTANT
Read this manual thoroughly and gain a full understanding of the requirements before undertaking
installation. Ensure gas supply to heater is turned o󰀨 for the rst stages of this instruction.
Step 1 Prepare Site – p.19 Step 8 Prepare Gas Supply – p.22
Step 2 Unpack The Heater Engine – p.19 Step 9 Inserting Heater Engine & Connecting Flue
Spigot Plate – p.22
Step 3 Install Flue – p.20 Step 10 Securing The Heater Engine – p.22
Step 4 “Zero Clearance Frame Installation” – p.21 Step 11 CONNECTING THE GAS SUPPLY – p.23
Step 5 Install Cladding – p.21 Step 12 LEAK TESTING – p.23
Step 6 Positioning the Heater Engine– p.22 Step 13 BURNER MEDIA INSTALLATION – p.24
Step 7. Connect Electrical Supply – p.22 Step 14 COMMISSIONING INSTRUCTIONS – p.27
Step 1. Prepare Site
IMPORTANT
Ensure the intended enclosure meets the requirements of the dimensions as stipulated in
“ENCLOSURE REQUIREMENTS” on page 8 and that gas and electrical supplies have been
prepared in accordance with the dimensions stipulated in “GAS SUPPLY” on page 10 and
“ELECTRICAL SUPPLY” on page 11.
Ensure there are no wall studs, noggins, ceiling joists, wiring or other obstruction within the wall
and or ceiling cavity where the ue is proposed to penetrate.
Step 2. Unpack The Heater Engine
The heater engine is supplied in one carton, check to ensure you have all contents as listed under “BEFORE
YOU START” on page 7 at the start of this manual before proceeding. Carefully remove carton by removing
the straps and lifting the carton o󰀨 the appliance. Remove all packaging materials and check all components for
damage. If ANY damage is evident DO NOT install or operate this appliance. Contact your supplier for advice.
HINT
Retain the cardboard carton for use in the “Positioning The Heater Engine” on page 22.
INSTALLATION

Rinnai 20 RDV 600_700ER IM
Step 3. Install Flue
Connect both the Ø 100mm exhaust pipe (A) and the Ø
75mm inlet pipe (B) ues to co-linear to coaxial adaptor
(C), noting that the larger diameter pipe is for the exhaust,
securing both pipes to the co-linear to coaxial adaptor
rmly with pipe clamps (D).
A󰀩x the coaxial mounting plate (E) with the ange fold
upwards to the framing (max from top of heater height
600mm). Feed the exi-liner ue pipes through the coaxial
mounting plate (E) and down to the enclosure opening
ensuring that exhaust pipe (A) is on the right when being
viewed from the front of the opening, then secure co-linear
to coaxial adaptor (C) to the coaxial mounting plate (E).
Once the pipe ends are accessible from the opening, the
adaptor and other ue components may then be secured
in place and weather sealed where necessary
At the enclosure opening attach both exhaust pipe (A)
and inlet pipe (B) ues to the engines spigot plate (F),
noting again that the larger diameter pipe is for the
exhaust, when viewed from the front this will be to the
right. Secure both pipes to the spigot plate (F) rmly with
pipe clamps (G).
IMPORTANT
If pre-tting ue prior to engine delivery, leave su󰀩cient lengths of both the Ø 100mm exhaust
pipe (A) and the Ø 75mm inlet pipe (B) within the enclosure opening. This will enable connection
of the ues to the engine spigot plate (E) which is on the heater to be installed.
A
E
B
F
B
A
C
D
Max 600
Min 600
C
E
C
E
G
Max
600
INSTALLATION
