Ripmax Polar Violence Cross-Country User manual

• Car Scale: 1:10
• Car Battery: 7.4V 2200mAh Li-Po
• Driving Time: 10-15min (Approx)
• Car Charging Time: 3 Hours (Approx)
• Tx Max Control Range: 30m
• Tx Frequency: 2.4GHz
• Tx Batteries: 4x ‘AA’ 1.5V (Required)
Specifications
Recommended Tools
Congratulations on your purchase of a Ripmax Polar Violence R/C car, please read these
instructions carefully and fully before use and we hope you enjoy your car. The instructions
apply to all the ‘Polar Violence’ 1/10 car range including the All Sport 4WD, Extremo 4x4,
2000 Fast and the Survival Force.
Your R/C car is supplied in ‘Ready to Run’ format so you do not need any tools to operate it.
Over time you may require the tools below to perform more in-depth maintenance and repairs.
2mm Allen Key Hobby Knife Phillips Screwdriver
Small
Side Cutters
Phillips Screwdriver
Large Scissors Pliers Set
Cross Spanner Thread
Lock

Make sure you read this safety information and the instructions before using your model.
Follow exactly the recommended procedures and settings given in the instructions.
If you are operating a radio-controlled model car for the first time, we recommend that you
enlist the help of an experienced modeler to guide you. There are also special clubs or
modeling associations that offer training services and assistance.
Safety Information
Radio-controlled models are not toys in the usual sense, and young people under 14 years of
age should not operate them unless supervised by an experienced adult. You are allowed to
operate them for sports and recreational purposes, but sometimes authorization from the local
council may be required to use a model in certain locations.
The building and operating of models requires technical expertise, manual skill, a careful
attitude and use of safety-conscious behavior. Errors, negligence and omissions in building
these models can result in serious personal injury or damage to property. Changes to the
construction and deviating from the operating manual will invalidate any warranty or liability
claims.
Since the manufacturers and vendors of the equipment have no means of checking that your
models are built and operated correctly, we explicitly bring your attention to these risks and
deny all further liability.
A properly constructed model may still be dangerous if used incorrectly.
Never reach into moving parts as this may cause serious injuries.
Note that motors & controllers can reach high temperatures during
operation. Avoid all contact with such parts.
The tools needed for assembly can also cause injuries. Even metal or plastic parts which
are broken or untrimmed can cause injuries. Adhesives and paints may contain hazardous
substances like solvents etc. Please observe the manufacturer’s information and wear safety
equipment (goggles, gloves etc.) when necessary. Rubber parts (e.g. rubber bands) may
become old and brittle and fail. Such parts have to be checked before use.
Keep well clear of the electric motors and all moving components when the battery is
connected. Mistakes happen and in spite of all safety precautions and there is always a
risk of damage and injury from moving parts. For example, by you may unintentionally move
the throttle stick on the transmitter during setup. Also ensure that other hazards such as pets are
not able to come in contact with moving parts!
Always keep yourself at a safe distance from your model and pay particular attention
while jumping for obstacles.
Observe the instructions of the battery and charger manufacturer.
Use only recommended battery chargers and recharge your battery only for the specified
charging time/level. Excess or incorrect charging methods can lead to the battery exploding.
Pay extra attention to ensure correct polarity.
Protect your equipment from dust, dirt and moisture. Do not expose the device to excessive
heat, cold or vibration. The remote control operation may be performed only within the
specified temperature range, avoid unusually hot/cold days.
Check your equipment regularly for damage and always replace damaged components with
original spare parts.
Important R/C Modelling Safety Notices

Don’t re-use any equipment or devices which have been subject to crash or water damage.
Either return to the Service Department for repair or replace. Hidden problems may occur after
crash or water damage which can lead to problems or total failure later in operation.
Use only recommended components and accessories. On remote control systems no changes
may be made.
Routine Pre-Flight Checks
• Before switching on the receiver, ensure that the throttle control on the transmitter is in the
motor stop position.
• Always switch on the transmitter first and then the receiver.
• Always switch off the receiver first, then the transmitter.
• Before use perform a range test.
• Check if the correct model memory is selected (if appropriate).
• Perform a function test before each use, ensuring to check the direction of travel, movement
and all other functions including mixing functions and default switch positions.
• Ensure all batteries are fully charged.
Operating the Model
• Never operate your car towards spectators and maintain a safe distance at all times.
• Never endanger people or animals!
• Do not operate your model in the vicinity of canals, locks or open waterways.
• Do not operate your model from public roads, busy paths and squares etc.
• Do not operate your models in thunderstorms as they could interfere with
the radio remote control systems.
Aerial Position
Never “point” the transmitter aerial straight at the model when in operation. The signal
generated by the transmitter is at its weakest in an imaginary line extending straight from the
aerial. It is always best for the user to stand in a position where the long side of the aerial
points towards the model.
Insurance
Ground-based models are usually covered by standard personal third-party insurance policies.
Check your insurance policy that you are suitably covered and abide by its guidelines.
Liability Exclusion:
We have no control over the use of this product outside of the parameters of the instructions,
regarding methods of assembly/installation, operation, misuse and poor maintenance of the
product or it’s components. Therefore, we assume no liability for any loss, damage or costs
arising from the improper use/operation. Ripmax shall not be liable for any loss, consequential
loss, damage or expense arising from the improper use or operation in anyway.
In as far as legally permitted, compensation shall be limited to the invoice value of the Ripmax
products directly involved in the damage-causing event. This does not affect your statutory
rights.

1. Plug the battery charger into the wall adaptor and plug the wall adaptor into a mains
socket. The power LED indicator should illuminate GREEN.
2. Connect the lithium battery using the short battery balance lead into the side of the charger
and the charger LED will illuminate RED.
3. The battery is now charging, this should take approximately 3 hours.
4. Once the battery is fully charged the RED charger LED indicator will turn off to indicate that
the battery is fully charged.
5. Disconnect the battery and unplug the wall adaptor.
The car battery is easy to install thanks to the quick release ‘hook and loop’ strap. Follow these
easy steps to install or reverse the order to remove it.
1. Turn the car upside down and ensure the power switch is set to ‘OFF’.
2. Locate the battery tray just in front of the spare wheel. Pull the strap end up to loosen.
3. Slot the battery into position in the tray.
4. Slot the strap though the end slot and securely the end of the strap.
5. Check the power switch is still set to ‘OFF’ and plug the battery in.
6. The car is now ready to use when the switch (underneath the car towards the rear) is
activated.
• Only plug the charger into a conforming mains socket.
• Do not force the battery connector in upside down.
• Do not charge the battery if it is hot or has sustained any damage.
• Do not drop, crush, puncture or set fire to the battery.
• Do not leave the battery in direct sunlight for an extended period.
• Do not leave the charger unattended while charging.
• Do not over-charge the battery.
• If the battery is hot or smells, stop charging immediately and move it to a safe location.
• Disconnect the battery after use and store fully charged.
• Do not store the battery near a heat source.
• After use, if the battery is warm, do not use or recharge until it has cooled down.
• If you have any questions about safe battery use, contact your dealer.
Battery Charging Instructions
Battery Installation
IMPORTANT BATTERY WARNINGS
Mains Wall Adaptor
Balance Charger
Li-Po Battery

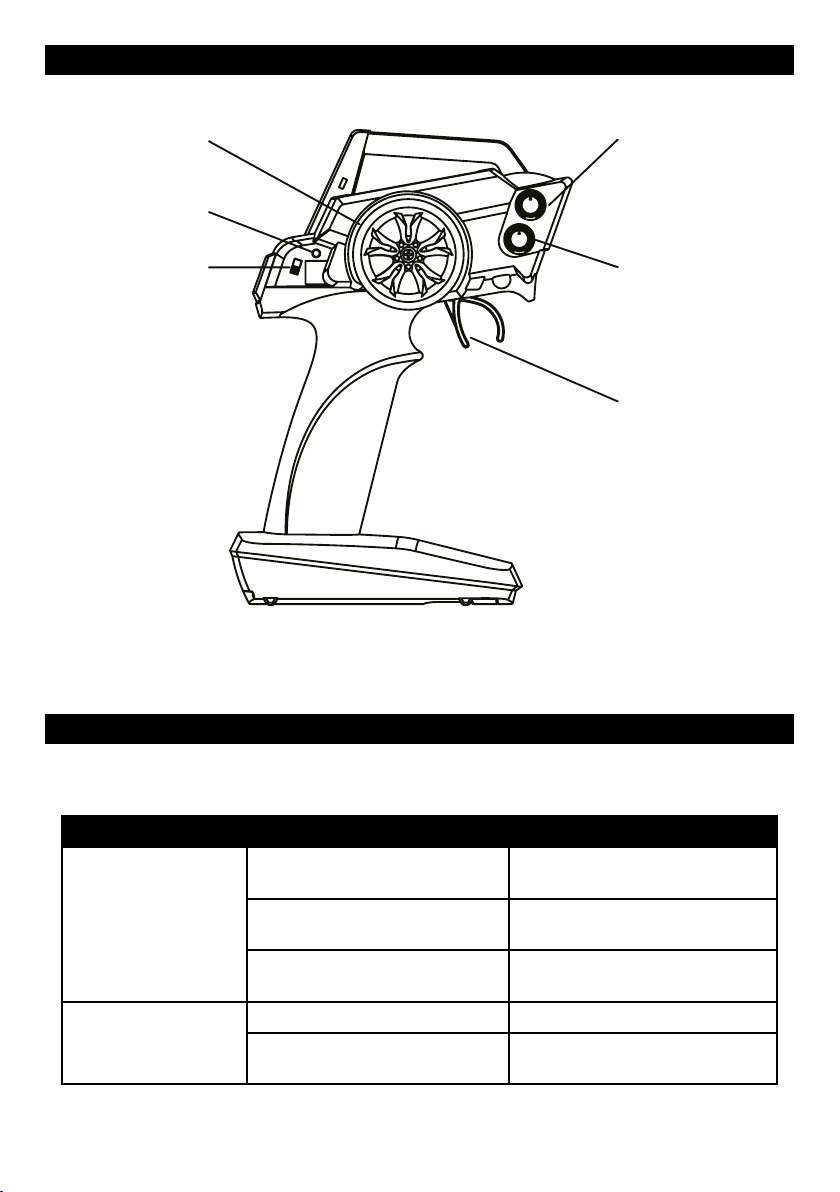

Study the diagram below to understand the controls on your transmitter.
It is important to always ensure there is a signal to the car at all times. Always turn the
transmitter on before you turn on the car and always turn the car off before you turn off the
transmitter. This way there is always a control signal going to the car.
Transmitter Guide
Steering Wheel Steering Trim
Power Indicator
Power Switch Throttle Trim
Throttle/Brake
Trigger
If you are having troubles with your car then please try the following trouble shooting guide for
help:
Problem Possible Cause Solution
The car does not
operate at all.
The Transmitter or receiver is off. Turn on both the car and
transmitter.
The batteries are not the correct
way around in the transmitter.
Remove and re-insert the
batteries checking polarity.
The batteries are flat. Replace the transmitter batteries
and recharge the car battery.
The car does not do
what I ask and the
control range is short.
You are near large interference. Try the car in a different location.
The batteries are flat. Replace the transmitter batteries
and recharge the car battery.
If you are still having trouble then please contact the staff at the location you purchased the car
for assistance.
Trouble Shooting Guide

Note: Always ensure the transmitter is on when
the car is on. To do this switch on the transmitter
first before use and turn it off last.
The steering is controlled by the steering wheel,
turn it anti-clockwise to turn left and clockwise to
go right when driving forward.
The throttle trigger controls power to the wheel
power. Pull the trigger back to accelerate, release
to coast. You can push the trigger forward to apply
brake. When stationary push the trigger forward
to engage reverse.

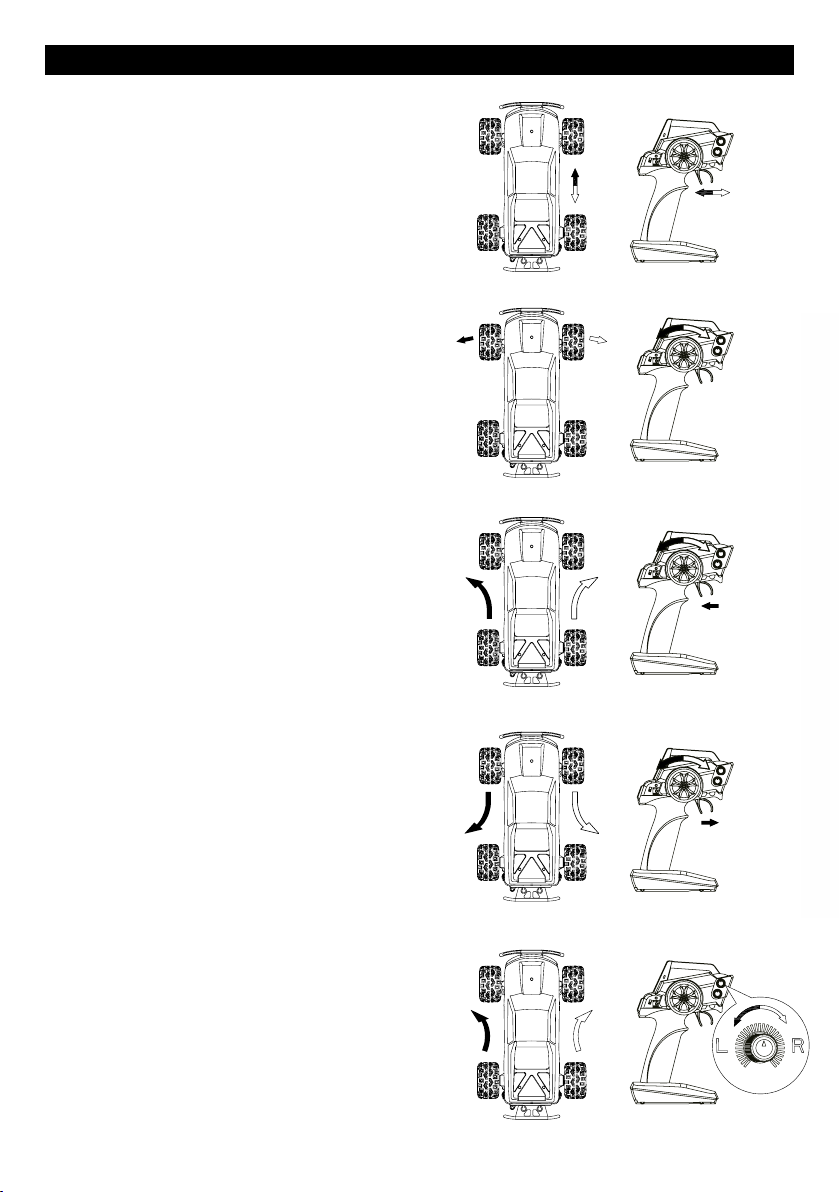

The diagrams on the right are a useful guide to
what each control does.
This product is suitable for use on or off road on
surfaces such as tarmac, carpet, concrete, short
grass and compacted dirt. Do not use on sand or
loose gravel as this may be ingested into the motor
and cause damage. Long grass or other extreme
surfaces may cause excessive friction and overheat
the motor so caution is recommended.
Do not drive the car to the point where the battery
is completely flat, this will greatly extend the cars
usable life. When the car drives slowly, stop and
recharge the battery. When the power indicating
LED on the transmitter starts flashing, replace the
batteries immediately as the control range will be
decreased.
Always switch off the car and transmitter after
use to avoid draining the batteries further. After
each use re-charge the battery before storage.
Leaving the battery in an uncharged state will
cause damage, reduce performance and shorten
its usable life.
Operating Instructions

All Ripmax products are supplied with the legally prescribed 24 month warranty. If you want
to make a warranty claim please consult with your dealer directly as they are a great source of
knowledge and will be responsible for handling and dealing with Ripmax on your behalf. We
will work to correct any operating deficiencies in manufacturing or material defects that are not
related to over or incorrect use. Further claims such as consequent damage are not included in
the warranty.
You are responsible for the transportation of the product to an approved service centre. Prepaid
shipments will not be accepted. We cannot assume liability for damage in shipping or the loss
of your shipment. We therefore recommend an appropriate insurance.
To process your warranty claim please ensure the following:
• Please include a copy of your proof of purchase (receipt / invoice).
• You have used the product correctly in the non-commercial sector.
• You have only used the recommended power source and/or recommended accessories.
• The product is free of moisture damage, tampering, reversed polarity, overloads and
mechanical damage.
• Please include a note with a concise report of the fault or defect to help our customer service
team.
Electrical equipment marked with the crossed wheelie bin symbol must not be
discarded in the standard household waste; instead it should be taken to a suitable
specialist disposal location or your dealer.
Batteries marked with the crossed wheelie bin symbol must not be discarded in the
standard household waste; instead it should be taken to a suitable specialist disposal
location or your dealer.
Hereby Ripmax Ltd., declares that this device is in compliance with the essential
requirements and other relevant provisions of the relevant EU directives. The original
declaration of conformity can be found on the internet at www.ripmax.com in the
respective device description on the “Declaration of Conformity”.
Manufactured for and distributed by:
Ripmax Ltd., 241 Green Street, Enfield, EN3 7SJ. United Kingdom.
Website: www.ripmax.com
This manual may be subject to errors, omissions and technical changes.
Warranty
WEEE - Waste Electrical & Electronic Equipment
Waste Battery Disposal
Declaration of Conformity
Made in China

Spare Parts List | Spare Parts List
Website: www.ripmax.com Webseite: www.ripmax.de
Item number English Name German Name
M-GEK949-76 540 Motor Motor 540
O-GEK949-78 7.4V 2S1P 2200mAh Li-Po Battery LiPo 2S2200mAh Akku
P-GEK949-110 6kg Servo Servo 6kg
P-GEK949-343 2.4GHz Transmitter 2.4Ghz Handsender
P-GEK949-474 2.4GHz Receiver 2.4Ghz Empfänger
Z-GEK929-606163 Screw Bags 60/61/63 Schraubenbeutel 60/61/63
Z-GEK929-727375 Screw Bags 72/73/75 Schraubenbeutel 72/73/75
Z-GEK929-7981 Screw Bags 79/81 Schraubenbeutel 79/81
Z-GEK929-869091 Set Screw Bag 86/90/91 Schraubenbeutel 86/90/91
Z-GEK929-9495 M4 & M3 Locknuts M4 M3 Stopmuttern
Z-GEK939-5272 Bearing Set (x8) Lager Set (8Stk)
Z-GEK949-0205 Tyre & Sponge Set (x2) Reifen & Schaumst. Set (2Stk)
Z-GEK949-0304 Wheel Hub & Ring (x2) Radaufnahme und Ring
Z-GEK949-0607 Front Gearbox & Differential case Getriebebox vo. & Diff Gehäuse
Z-GEK949-08 Front Arm Support Fronthebel Halter
Z-GEK949-09 Left & Right Front Swing Arms Front Federarme re & li
Z-GEK949-10 Left & Right Front Upright Front Upright li & re
Z-GEK949-106 Bumper Plate Rammer
Z-GEK949-11 Left & Right Steering Arms Lenkhebel re & li
Z-GEK949-12 Hex Set (x4) Sechskant Set (4Stk)
Z-GEK949-1314 Left & Right Front Suspension Arms Front Querlenker li & re
Z-GEK949-18 Servo Locating Arms Left & Right Servo Hebel li & re
Z-GEK949-26 Back Suspension Holder hinterer Dämpfer Halter
Z-GEK949-2829 Rear Swing Arms & Hold hintere Federarme & Halter
Z-GEK949-3031 Rear Axle Pull Rod Hinterachs Zugstrebe
Z-GEK949-32 Rear Axle Box Hinterachs Box
Z-GEK949-327328 Red.Gear & Drive Gears Getriebe & Zahnräder
Z-GEK949-329330 Transmission Shaft & Opt Axis Antriebswelle & Opt Achse
Z-GEK949-331332 Main Shaft & Opt Axis Hauptwelle & Opt Achse
Z-GEK949-335562 17T Motor Gr & Bevel Gear 17T Motor Gr & Kegelrad
Z-GEK949-336338 Rear Drive Shaft & Axle Shaft hintere Antriebswelle & Achswelle
Z-GEK949-341 Rear Shocks (x2) hintere Stoßdämpfer (2Stk)
Z-GEK949-344 Ball Head x 5 types (40pcs) Kugelkopf 5 Typen (40Stk)
Z-GEK949-3676869 Rod Bag 367/368/369 Lenker Beutel 367/368/369
Z-GEK949-47 Differential Cup (x2) Differential Kupplung (2Stk)
Z-GEK949-475 Front Differential Unit Front Differentialeinheit
Z-GEK949-4750 Differential Cups & Steering Shaft Diff Kupplung & Lenkwelle
Z-GEK949-4751 Differential Cup & Steering Shaft Diff Kupplung & Lenkwelle
Z-GEK949-48 Steering Rod Lenkstange
Z-GEK949-51 Main Drive Link Hauptantriebs Anlenkung
Z-GEK949-561 Differential Gears Differential Zahnräder
Z-GEK949-60 Front Universal Drive Shaft Front Univ. Antriebswelle
Z-GEK949-61 Universal Drive Shaft Universal Antriebswelle
Z-GEK949-636465 Arm Parts Hebel Teile
Z-GEK949-757 Body Shell Karosserie
Z-GEK949-808284 Bearings 80/82/83 Lager 80/82/83
Z-GEK949-878889 Screw Bags 87/88/89 Schraubenbeutel 87/88/89
Z-GEK949-919293 Screw Bags 91/92/93 Schraubenbeutel 91/92/93
Z-GEK949-949596 Screw Bags 94/95/96 Schraubenbeutel 94/95/96
Z-GEK949-97321334 Screw Bags 97/321/334 Schraubenbeutel 97/321/334
