Riva RC3512HD-6311 User manual

www.rivatech.de
Specification subject to change without notice
RC3512HD-6311
Installation Guide

RC Series RC3512HD-6311 Installation Guide
04-2017-A www.rivatech.de 2
Precautions & Notes
Please read this manual carefully before installing the unit.
Never disassemble the camera. Unauthorized disassembly may cause equipment
failure or damage to the unit.
Please do not install the camera in a place exposed to direct sunlight.
Do not operate the camera in environments beyond the specified temperature.
Refer to Environment Condition on APPENDIX (A): SPECIFICATIONS in this manual.
Before applying power to the camera, check the power source to ensure that it is
within the specifications. Refer to Electrical Characteristics on APPENDIX (A):
SPECIFICATIONS.

RC Series RC3512HD-6311 Installation Guide
04-2017-A www.rivatech.de 3
Table of Contents
Precautions & Notes................................................................................................. 2
1. FEATURES............................................................................................................. 4
2. PACKAGE CONTENTS............................................................................................. 5
3. PART NAMES ........................................................................................................ 6
4. INSTALLATION ...................................................................................................... 7
4.1. Installing the camera.......................................................................................................... 7
4.1.1. Installation without bracket........................................................................................ 7
4.1.2. Compatible Accessories ............................................................................................ 10
4.2. Adjusting angle of the camera ......................................................................................... 11
4.3. Adjusting zoom and focus ................................................................................................ 12
4.4. Setting the Image Attributes............................................................................................ 12
5. CONNECTIONS.................................................................................................... 13
6. CONFIGURATION ................................................................................................ 15
6.1. Set up network environment ........................................................................................... 15
Generic IP Environment ...................................................................................................... 15
Custom IP Environment ...................................................................................................... 16
6.2. View video on web page .................................................................................................. 17
6.2.1. ActiveX Installation.................................................................................................... 17
6.2.2. View video using IPAdmin Tool................................................................................. 18
6.3. Reboot.............................................................................................................................. 19
6.4. Factory Default................................................................................................................. 19
6.5. Safe Mode ........................................................................................................................ 20
APPENDIX (A): SPECIFICATIONS .............................................................................. 21
Summary ................................................................................................................................. 21
Electrical Characteristics ......................................................................................................... 22
Environment Condition ........................................................................................................... 22
Mechanical Condition ............................................................................................................. 22
APPENDIX (B): POWER OVER ETHERNET ................................................................. 23
Power Comparison.................................................................................................................. 23
APPENDIX (C): DIMENSIONS ................................................................................... 24
APPENDIX (D): HEXADECIMAL-DECIMAL CONVERSION TABLE ................................. 25
REVISION HISTORY ................................................................................................. 26

RC Series RC3512HD-6311 Installation Guide
04-2017-A www.rivatech.de 4
1. FEATURES
Camera
1/2.9” 1080p CMOS Image Sensor
True Day / Night
DC Auto Iris Lens
WDR
Remote Zoom/Focus Control (One Click AF)
Weather proof (IP66)
Vandal proof (IK10)
Video
H.264 Baseline, Main, High Profile(MPEG-4 Part 10 / AVC), MJPEG(Motion JPEG)
Max 30fps in 1080p
Text Overlay
Network
10 / 100 Base-T Ethernet
Integration
Software Development Kit (SDK) available
ONVIF Compliant (Profile S & Profile G)
General
Micro SD/SDHC slot
Power Over Ethernet (PoE)
Video Contents Analytics (VCA)
VCA Presence (Standard)
* Licenses with higher specifications than VCA Presence are optional.

RC Series RC3512HD-6311 Installation Guide
04-2017-A www.rivatech.de 5

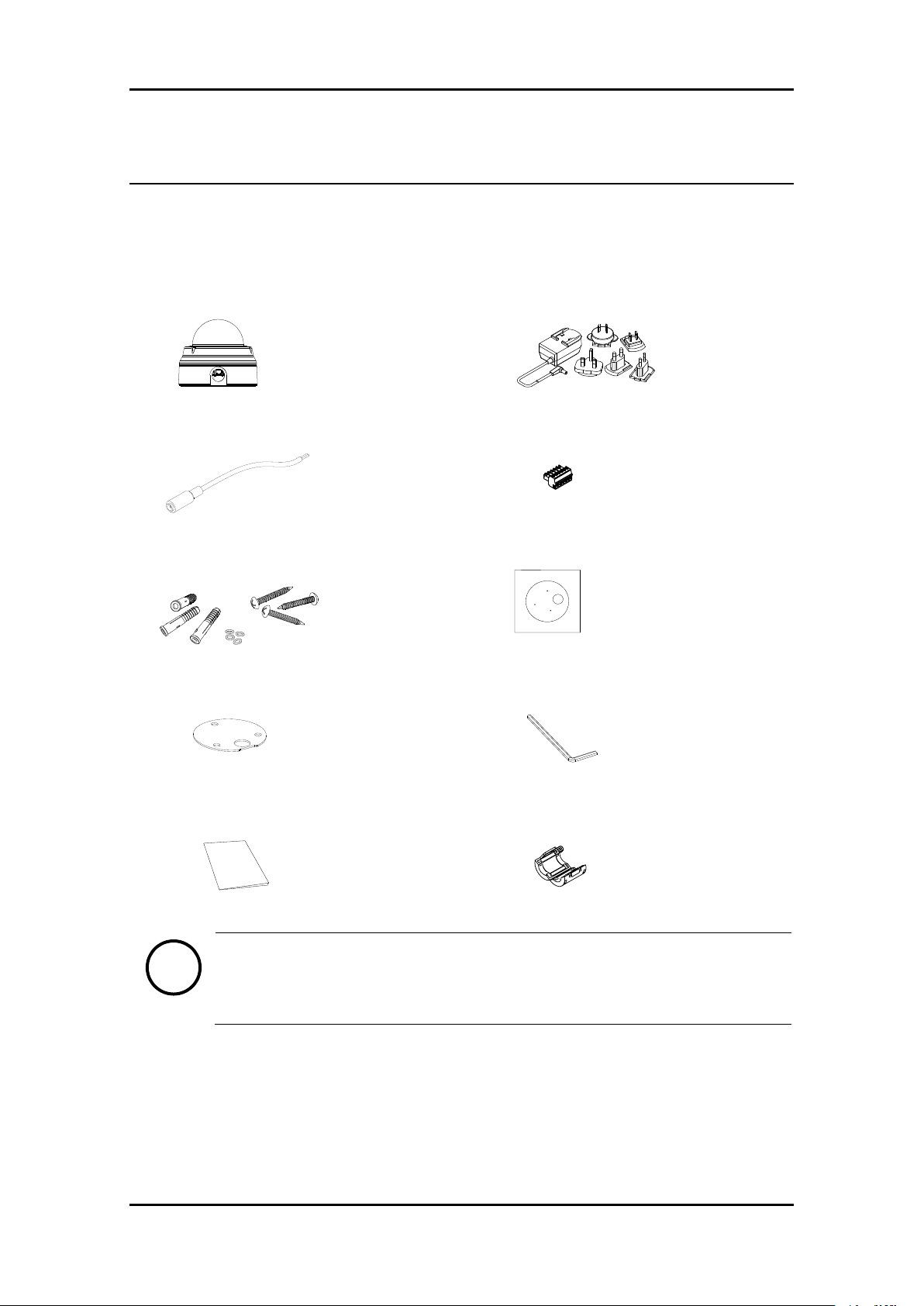

2. PACKAGE CONTENTS
Please unpack the package carefully and handle the equipment with care.
The packaging contains:
Camera
DC Power Adaptor & Plugs
DC Power Jack Cable
Terminal Block
Screws(M4x30) / Plastic Anchors / O-rings
Installation Template
Silicon Waterproof Band
Hex Wrench (3mm)
Quick Installation Guide
Ferrite Core
Note
i
The contents above are subject to change without prior notice.

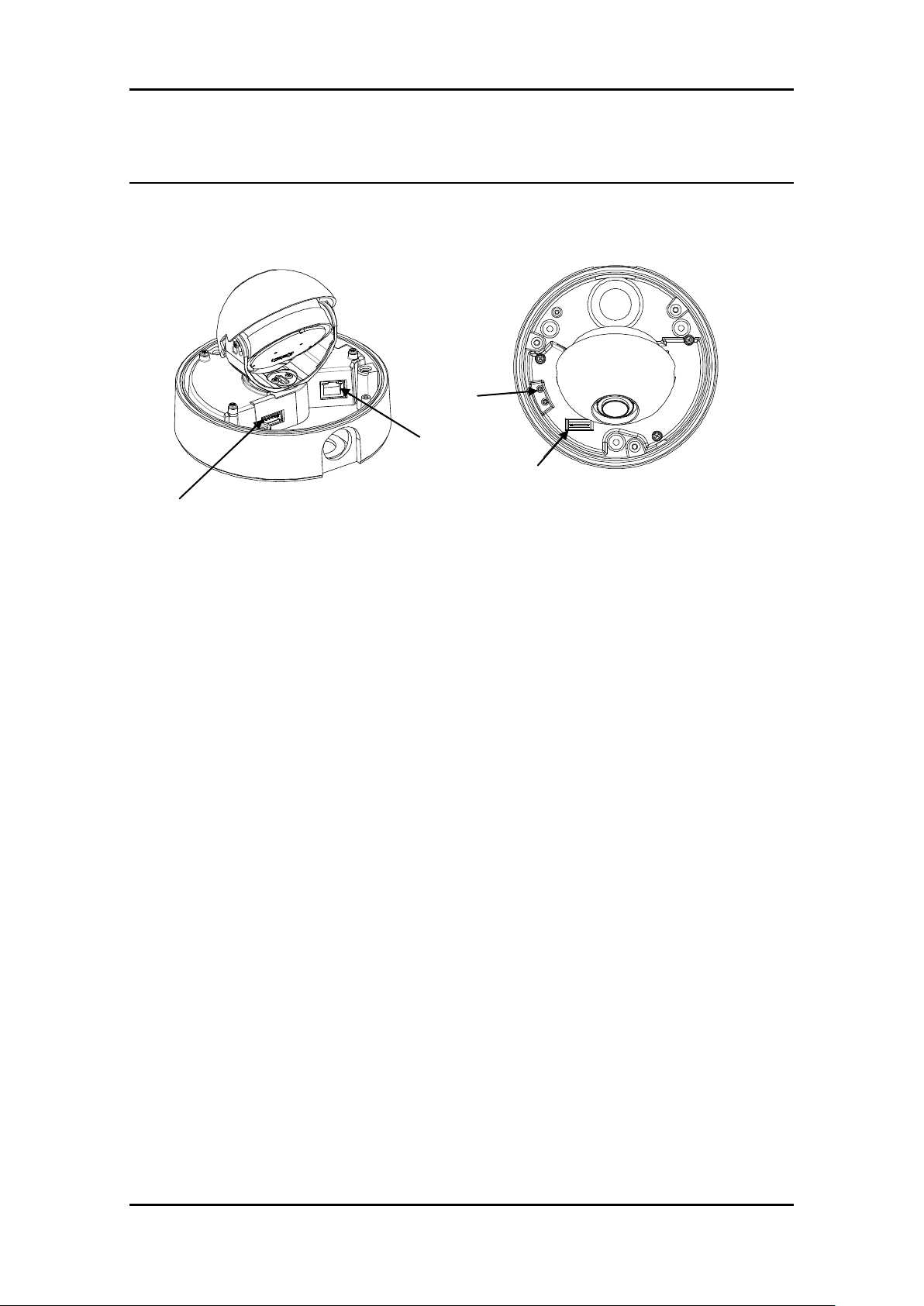

DO DI
1 1C C
+
DC12V
ETHERNET
RESET
MICRO
SD
DO DI
1 1C C
+
DC12V
ETHERNET
RESET
MICRO
SD
ETHERNET
WIRE
DO DI
1 1C C
+
DC12V
ETHERNET
RESET
MICRO
SD
DO DI
1 1C C
+
DC12V
ETHERNET
RESET
MICRO
SD
ETHERNET
WIRE
DO DI
1 1C C
+
DC12V
ETHERNET
RESET
MICRO
SD
DO DI
1 1C C
+
DC12V
ETHERNET
RESET
MICRO
SD
ETHERNET
WIRE
