Rixen TK-62 User manual

II. Care and Maintenance
1. This instrument functions with accurate Cold-junction
Temperature Compensation, but, if it is used in the place with
high temperature or high humidity, it will produce deference or
error message.
2. The temperature measurement of this instrument is based on
thermocouple. In order to avoid damage to the instrument and
electric shock, when the measured material has voltage or
static electricity, please clear the voltage or cut off the power
and then go to measure.
3. For getting the most accurate value, please keep it stable for a
while.
4. To avoid the incorrect reading, if the low symbol appears,
please replace the battery before using.
5. When not in use, please remove the battery from the
instrument, put the main instrument and all accessories into
the protection case and keep the kit in a dry, dust-free
environment out of direct sunlight.
6. Please contact the local agent or our customer service
department for any question or product repair.

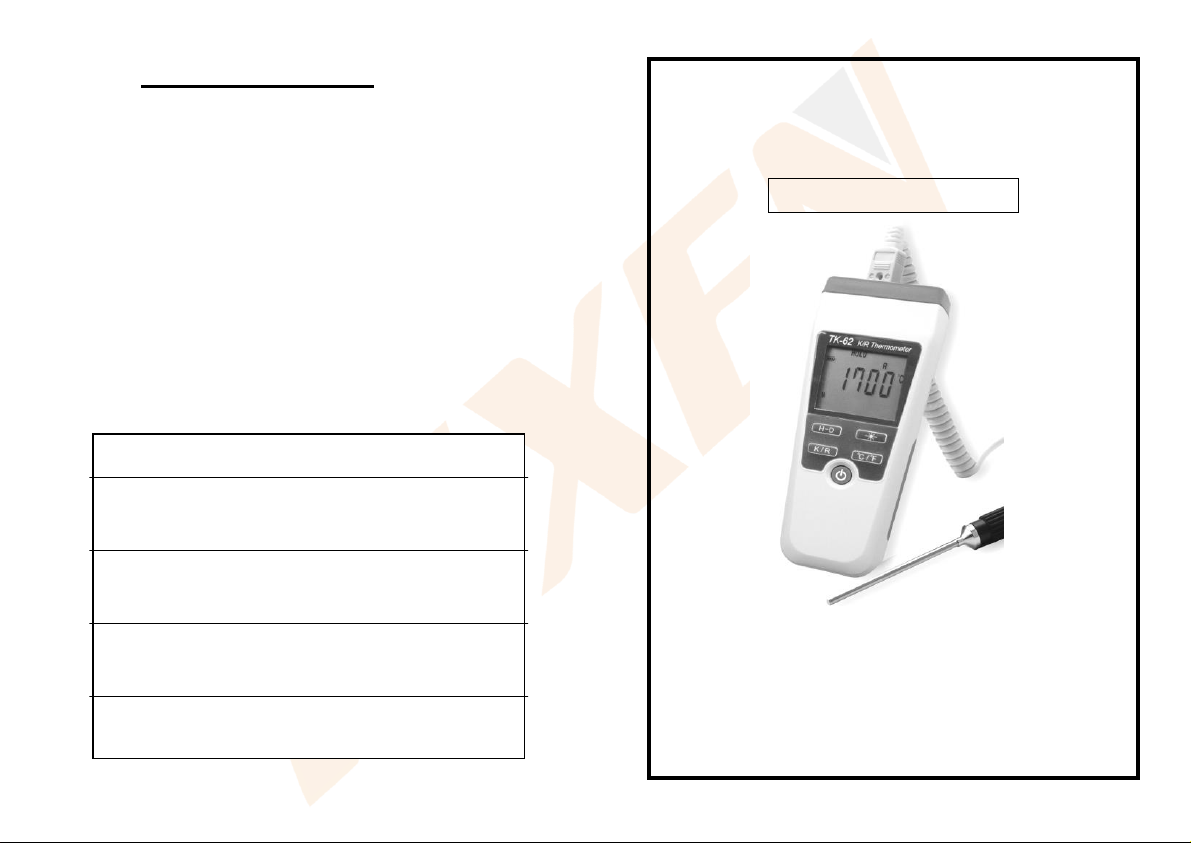

TK-62 Digital Thermometer
Dual K/R Thermocouple Input
Instruction Manual
TK-62 Digital Thermometer has distinctively ergonomic
design for fast and easy operating. TK-62 is a gorgeous
temperaturemeasuring instrument which functions with dual
K/R thermocouples, and it can be used to monitor the whole
process of temperature changes from raw material to end
products; besides, it can be switched to general
K(CA)-TYPE or R(PR)-TYPE - for high temperature.
MEMO

1. Input for thermocouple
probes
2. LCD display（with
Back-light）
3. key (Hold &
Data)
4. key
5. key（power）
6. External power supply
(AC adapter)
7. CAL calibration key
8. key(Back-light)
9. key
10. Signal output
11. Instrument model no.&
S/N no.
12. Battery cover
Specification of TK-62
※Above data of “Accuracy” and “Sampling rate” exclude the error of temperature
probes.
※The specification of TK-62 will be the lasted version of Rixen, and it’s subject to
change without notice.
RS-232 Transmission Functions
The RS-232 transmission port of TK-62 is single side data transmission, it
functions with 3 signal composed grounding wires to receive and input. We
suggest that you choose the original transmission cable or shorter than 10
meters cable to connect PC and instrument.
a. Transmission Status: 57600 / 8 / N / 1
b. Transmission Content (8BIT):
START
TYPE
MOD
MSD
LSD
CHECK
END
A8H
HI-DATA
LO-DATA
FFH
8AH
：BIT [7:0] = Instrument Model
TK-62.R=00H
：BIT [7:4] = Thermocouple Type
BIT [3:2] = Instrument Status
BIT [1] = Power Model
Automatic Power Off = 0
Manual Power Off = 1
BIT [0] = Power
Enough Power = 0
Low Power = 1
c. Illustration of Connection:
Instrument Description
Input
Thermocouple K-TYPE (CA)
Thermocouple R-TYPE
(PR)
Measuring Range
- 200 ~ +1372℃(-328.0 ~
+ 1372℉)
- 20 ~ +1772℃(- 4 ~
+3221℉)
Resolution
0.1℃Between -199.9 to +199.9℃
1℃Above 200℃(Auto Ranging)
Accuracy(at 25℃)
± 0.1% of rdg+0.2℃，± 0.1% of rdg+1℃( Above 200℃)
Sampling rate
Approx. 0.5 sec/reading
RS-232 output
0.1℃/1Bit (- 200.0 ~ +1800.0℃) , Baud Rate=57600
Power supply
9V006P Battery × 1 About 160 hours for continuing use
or DC-9VAdaptor (option)
Dimension/Weight
140 x 56 x 32 mm (L xW x D),Approx.120g (without battery)
※Notice: RS-232 transmission can not configure a variety of
instruments on the same port.
K
0000
R
0100
J
0001
S
0101
E
0010
N
0110
T
0011
B
0111
NORMAL
00
HOLD
01
MAX
10
MIN
11

Key Description
III. Operating Instructions
A. Preparation
A-1 Please check all accessories of the instrument before using (each
item: 1pc)：
◇Main instrument -----------------------------------NO.TK-62
◇Soft portable leather case ----------------------NO.765C
◇9V battery (option)--------------------------------NO.B09V
◇RS-232 cable---------------------------------------NO.6201C
◇Instruction manual
A-2 Set battery:
◇Press the round mark on the instrument battery cap and push the cap
below and set the batteries by⊕polarity and push back the battery
cap. ※Notice: Please be sure to buckle the battery and please notice
the wire can’t be squeezed.
A-3 Insert the temperature probe into ⊕, and make sure the probe
is fully inserted and firm.
A-4 Power on and power model：
◇Auto power off mode→ Press key to turn on TK-62, if there is no
any operation within 5 minutes, it will turn off automatically. ※At
about 5 seconds before auto power off, this instrument will make a
Key Description
IV. Operating Instructions
B. Preparation
A-1 Please check all accessories of the instrument before using (each
item: 1pc)：
◇Main instrument -----------------------------------NO.TK-62
◇Soft portable leather case ----------------------NO.765C
◇9V battery (option)--------------------------------NO.B09V
◇RS-232 cable---------------------------------------NO.6201C
◇Instruction manual
A-2 Set battery:
◇Press the round mark on the instrument battery cap and push the cap
below and set the batteries by⊕polarity and push back the battery
cap. ※Notice: Please be sure to buckle the battery and please notice
the wire can’t be squeezed.
A-3 Insert the temperature probe into ⊕, and make sure the probe
is fully inserted and firm.
A-4 Power on and power model：
Auto power off mode→ Press key to turn on TK-62, if there is no any
operation within 5 minutes, it will turn off automatically. ※At about 5
seconds before auto power off, this instrument will make a
"Be" sound alert.
Key
Function
Description
LCD display
Power key
Press once for power on or off
(If the instrument without any button
operation, it will automatically turn off
after 5 minutes.)
When power off, hold then press
to turn on and process manual operating
mode.
8 8 8 8
(about 2 seconds )
A. (HOLD) Hold
value, Max./Min.
value.
First press Hold Value
Second Max. Value
Third Min. Value
Forth Measuring mode
Measuring→
HOLD
HOLD→ MAX
MAX → MIN
→Measuring mode
B. Manual power
off
+ as above
M
Select K/R type
thermocouple
Press this key to switch thermocouple type（K or
R-TYPE）
K → R→ K
LCD back-light key
Press this key to turn on/off the back-light of LCD.
※LCD Back-light will be auto power off after 2
min. for saving power.
℃/℉Switchable
Press this key to switch ℃/ ℉
℃→ ℉, ℉→ ℃
Key
Function
Description
LCD display
Power key
Press once for power on or off
(If the instrument without any button
operation, it will automatically turn off
after 5 minutes.)
When power off, hold then press
to turn on and process manual operating
mode.
8 8 8 8
(about 2 seconds )
A. (HOLD) Hold
value, Max./Min.
value.
First press Hold Value
Second Max. Value
Third Min. Value
Forth Measuring mode
Measuring→
HOLD
HOLD→ MAX
MAX → MIN
→Measuring mode
B. Manual power
off
+ as above
M
Select K/R type
thermocouple
Press this key to switch thermocouple type（K or
R-TYPE）
K → R→ K
LCD back-light key
Press this key to turn on/off the back-light of LCD.
※LCD Back-light will be auto power off after 2
min. for saving power.
℃/℉Switchable
Press this key to switch ℃/ ℉
℃→ ℉, ℉→ ℃

◇Manual power off mode→When power off, hold and press
to turn on TK-62 and the instrument will process manual power off
mode, except for pressing or battery exhausted, the instrument
will not turn off automatically.
※Whatever auto/manual power off mode, just press for
power off.
B. Measurement method
B-1 Finish the power on steps as above, please check the battery power
indicator to sure the power is enough and it is available to process
temperature measurement and every function operating.
B-2 Please select corresponding thermocouple type to get accrete
temperature on the display.
C. Record function operating –use as the operation below:
C-1 Reading value hold function（HOLD）
When get reading value at B-2 step, press one time to hold the
value on the display.
C-2 Maximum reading value function（MAX）
Press the key twice in the normal mode to read the maximum value.
C-3 Minimum reading value function（MIN）
Press the key thrice in the normal mode to read the minimum value.
※Press above key again, and it will return to the normal mode.
D. LCD Back-light function
On：In the normal mode, press to turn on back-light.
Off：When back-light is on, press to turn off back-light.
※If there is no any operation within 120 seconds,
back-light will be turned off automatically.
※Back-light function will deplete power speedily, if it is not
necessary, please don’t use back-light as possible.
E. Calibration and adjustment function
This instrument has been adjusted completely before ex-factory. If the
condition is special and needs to adjust the instrument, please use
Standard Thermocouple Calibrator to adjust TK-62 by using small type
screwdriver to fine tune this instrument to get the correct calibration value.
◆Before calibrating, please check if the power is enough and then process
the calibration.
◆If you don’t know if the instrument needs to be adjusted, please contact
our technical department firstly and don’t change any original setting.
F. Power inspection function
The display left above has a power indicator symbol, if the power is not
enough, the symbol will flash and make a voice “Be” warning about 5
seconds. Please replace the new batteries immediately and then operate the
instrument again.
"Be" sound alert.
◇Manual power off mode→When power off, hold and press
to turn on TK-62 and the instrument will process manual power off
mode, except for pressing or battery exhausted, the instrument
will not turn off automatically.
※Whatever auto/manual power off mode, just press for
power off.
G. Measurement method
B-1 Finish the power on steps as above, please check the battery power
indicator to sure the power is enough and it is available to process
temperature measurement and every function operating.
B-2 Please select corresponding thermocouple type to get accrete
temperature on the display.
H. Record function operating –use as the operation below:
C-1 Reading value hold function（HOLD）
When get reading value at B-2 step, press one time to hold the
value on the display.
C-2 Maximum reading value function（MAX）
Press the key twice in the normal mode to read the maximum value.
C-3 Minimum reading value function（MIN）
Press the key thrice in the normal mode to read the minimum value.
※Press above key again, and it will return to the normal mode.
I. LCD Back-light function
On：In the normal mode, press to turn on back-light.
Off：When back-light is on, press to turn off back-light.
※If there is no any operation within 120 seconds,
back-light will be turned off automatically.
※Back-light function will deplete power speedily, if it is not
necessary, please don’t use back-light as possible.
J. Calibration and adjustment function
This instrument has been adjusted completely before ex-factory. If the
condition is special and needs to adjust the instrument, please use
Standard Thermocouple Calibrator to adjust TK-62 by using small type
screwdriver to fine tune this instrument to get the correct calibration value.
◆Before calibrating, please check if the power is enough and then process
the calibration.
◆If you don’t know if the instrument needs to be adjusted, please contact
our technical department firstly and don’t change any original setting.
K. Power inspection function
The display left above has a power indicator symbol, if the power is not
enough, the symbol will flash and make a voice “Be” warning about 5
seconds. Please replace the new batteries immediately and then operate the
instrument again.
