Roberts CR9955 User manual

Please read this manual before use
ROBERTS
Sound for Generations
CR9955
2 Band Auto Set Dual Alarm
Clock Radio
Untitled-1 1/24/2003, 11:42 AM1

1
Contents
Contents ............................................................................ 1
Controls .......................................................................... 2-5
Switching on ...................................................................... 6
Setting the time manually ................................................. 6
Setting the year manually ................................................. 7
Setting the date manually ................................................. 7
Setting alarm times ........................................................... 8
Setting alarm mode ........................................................... 8
Setting alarm day .............................................................. 9
Weekday alarm ................................................................. 9
Weekend alarm ............................................................... 10
Everyday alarm ................................................................ 10
Monday to Saturday alarm .............................................. 11
Sunday only alarm ........................................................... 11
Checking alarm times ..................................................... 12
Checking alarm mode ..................................................... 12
Snooze control ................................................................ 13
Sleep timer ...................................................................... 13
Listening to the radio ...................................................... 14
Dimmer switch ................................................................. 15
Back-up battery............................................................... 15
Changing the back-up battery ........................................ 16
Time zones ...................................................................... 17
Specifications.................................................................. 18
General ............................................................................ 19
Notes .......................................................................... 20-21
Guarantee ........................................................................ 22
Untitled-1 1/24/2003, 11:42 AM2

If you need any further advice, please call our Technical Helpline on :-
020 8758 0338 (Mon-Fri)
Controls
(Top)
11 10 9
1
87 6
4
3
2
5
2
1. Up/Hi button
2. Time button
3. Date button
4. Snooze button
5. Sleep button
6. Alarm days button
7. Alarm mode button
8. Down/Low button
9. On/Off button
10. Alarm 2 button
11. Alarm 1 button
Untitled-1 1/24/2003, 11:42 AM3

Controls
(Front)
12. PM indicator
13. Low battery indicator
14. Tuning dial
15. Alarm 'On' indicator
12
1415
12
3
13
Untitled-1 1/24/2003, 11:42 AM4

If you need any further advice, please call our Technical Helpline on :-
020 8758 0338 (Mon-Fri)
Controls
(Right side)
16. Tuning control
17. Wave band selector switch
18. Volume control
16
18 17
4
Untitled-1 1/24/2003, 11:42 AM5

(Base)
Controls
20
20. Battery compartment
5
Untitled-1 1/24/2003, 11:42 AM6

If you need any further advice, please call our Technical Helpline on :-
020 8758 0338 (Mon-Fri)

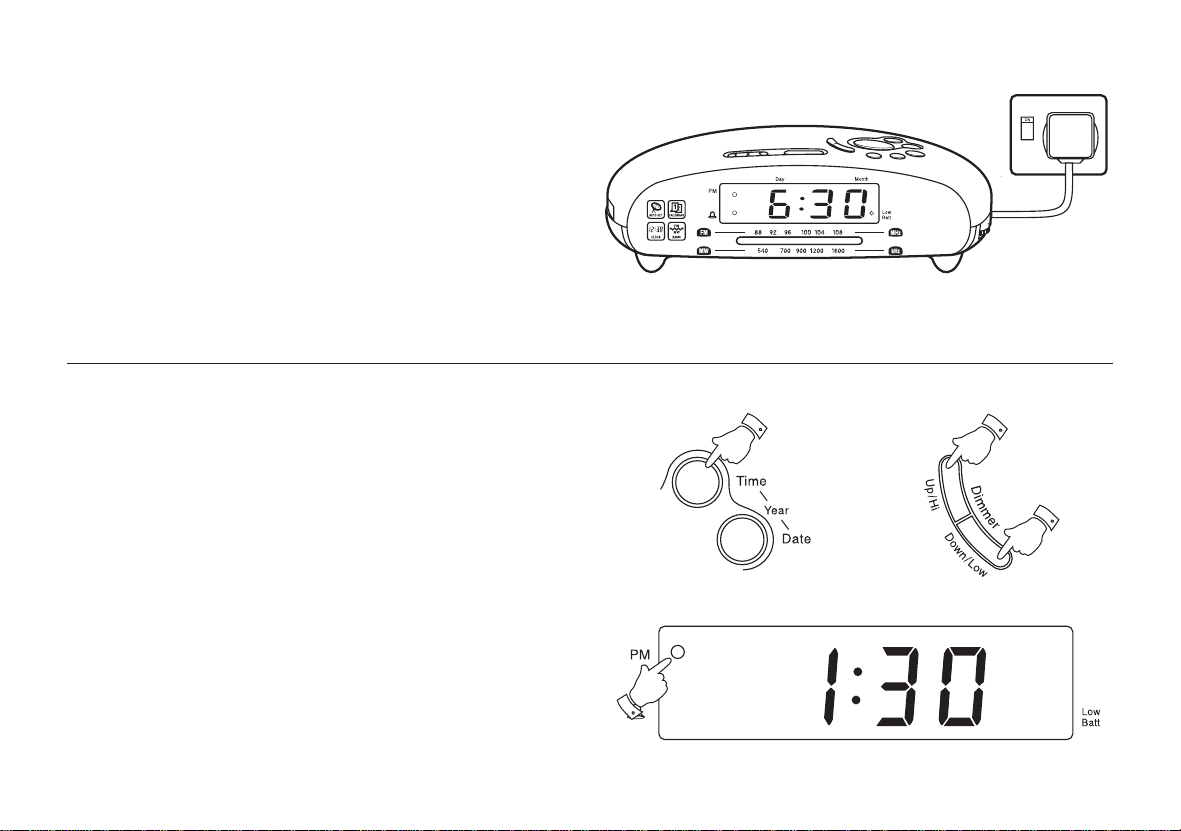

Switching on
1. Place your clock radio on a flat surface. Plug the power cord into the
wall socket and switch on.
2. After a few seconds the time, day and date will set automatically.
Your clock radio is fitted with a long life back-up battery to maintain
the factory set time, day and date. Your clock radio will automatically
reset to the correct time should the power source be interrupted. It
will also automatically adjust for summer/winter time.
See section on Back-up battery on page 15 .
Should the time, date or year require adjustment follow the procedure
shown in the next sections.
6

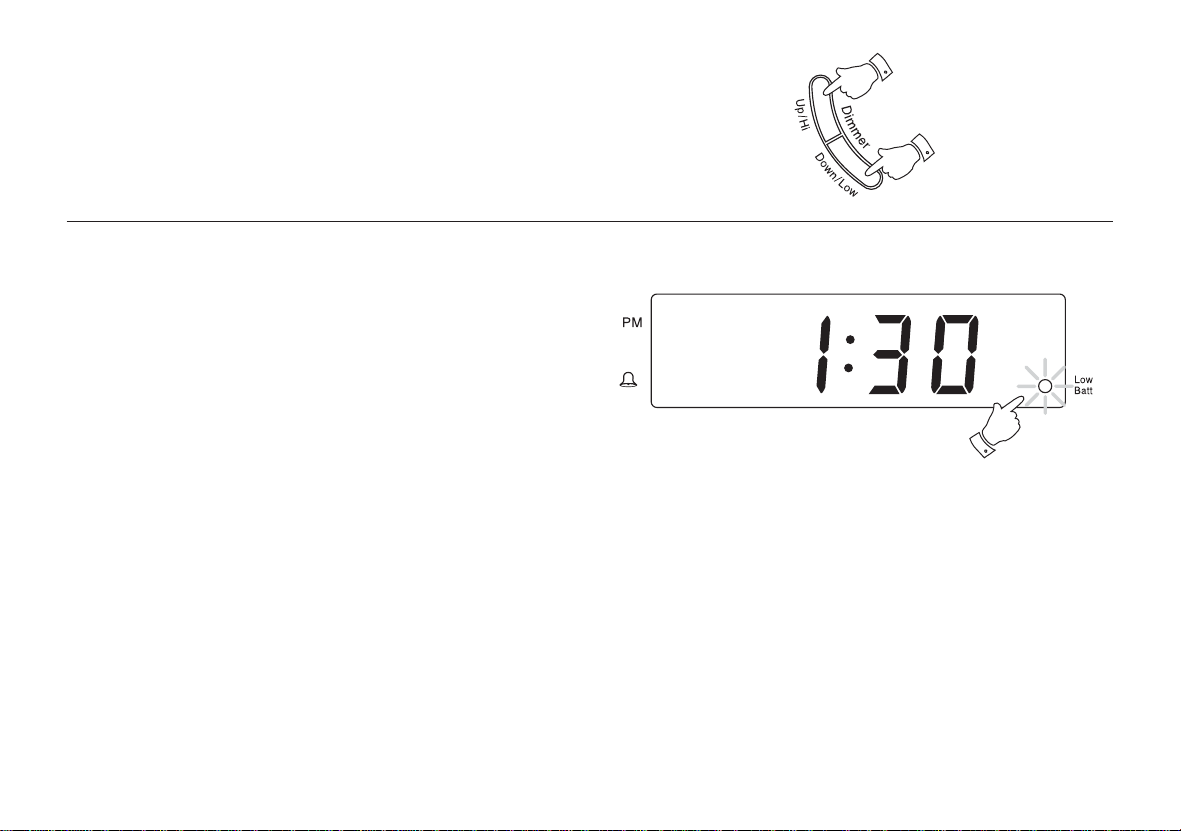

Setting the time manually
1. Press and hold down the Time button.
2. Whilst holding down the Time button press the Up or Down
buttons to set the time. Release the buttons when the correct time
is reached.
The clock uses a 12 hour display with a PM indicator. Ensure that
the correct 12 hour cycle is selected.
12
2
Untitled-1 1/24/2003, 11:42 AM7

Setting the date manually
1. To set the date hold down the Date button.
2. Whilst holding down the Date button set the correct date using the
Up or Down buttons.
7
Setting the year manually
1. To set the year hold down both theTime and Date buttons. The
display will change to show the year.
2. Whilst holding down the Time and Date buttons set the correct
year by using the Up or Down buttons. When the Time and Date
buttons are released the display will revert to showing the time.
1
1
2
2
1
2
2
Untitled-1 1/24/2003, 11:42 AM8

If you need any further advice, please call our Technical Helpline on :-
020 8758 0338 (Mon-Fri)
Setting alarm times
Your clock radio has two separate alarms which can be set to activate
at different times.
8

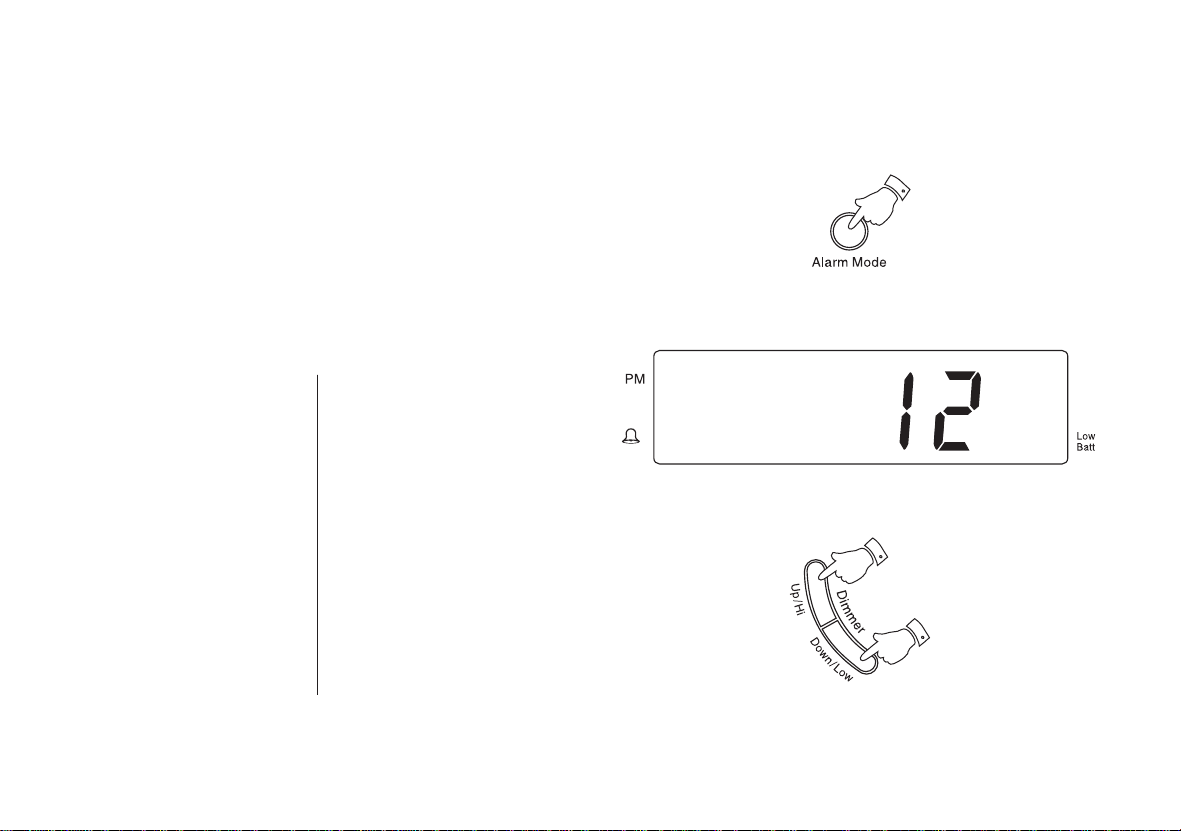

Setting alarm mode
The alarms can be set to wake you by either the buzzer or the radio.
1. Whilst holding down the Alarm 1 or Alarm 2 buttons repeatedly
press and release the Alarm mode button until the display shows
the required alarm mode e.g. Buzzer ( ),Radio ( ) or Off ( ).
Release the buttons when the required alarm mode is reached. The
display will return to showing normal time.
It is possible to set Alarm 1 to wake to buzzer and Alarm 2 to wake
to radio or vice versa.
The Alarm indicator will illuminate when one or both of the alarms
are set to either Buzz or Radio mode.
The Alarm indicator will extinguish when both Alarms are set to
Off.
1. Press and hold down the Alarm 1 or Alarm 2 buttons.
2. Whilst holding down the Alarm 1 or Alarm 2 buttons press the
Up or Down buttons to set the alarm time. Release the buttons
when the correct alarm time is reached. The clock uses a 12 hour
display with a PM indicator. Ensure that the correct 12 hour cycle
is selected. 2
2
1
2
Untitled-1 1/24/2003, 11:42 AM9

Setting alarm day
Your clock radio has five different day options for each of the alarms.
The Alarm days are:
Weekdays only display shows 1-5
Weekends only display shows 6-7
Everyday display shows 1-7
Monday to Saturday display shows 1-6
Sunday only display shows 7-7
Weekday alarm
1. Press and hold down the Alarm 1 or Alarm 2 buttons (depending
on which alarm you wish to set day for).
2. Whilst holding down Alarm 1 or Alarm 2 buttons repeatedly press
and release the Alarm Days button until display shows 1-5.
3. The alarm will sound every day at the preset time for 1 hour. To
switch off the alarm until the next day press the On/off button.
4. To switch off the alarms permanently press and hold down the
Alarm 1 or Alarm 2 button. Whilst holding down the Alarm 1 or
Alarm 2 button repeatedly press the Alarm mode button until
the display shows .
9
12
Untitled-1 1/24/2003, 11:42 AM10

If you need any further advice, please call our Technical Helpline on :-
020 8758 0338 (Mon-Fri)
10

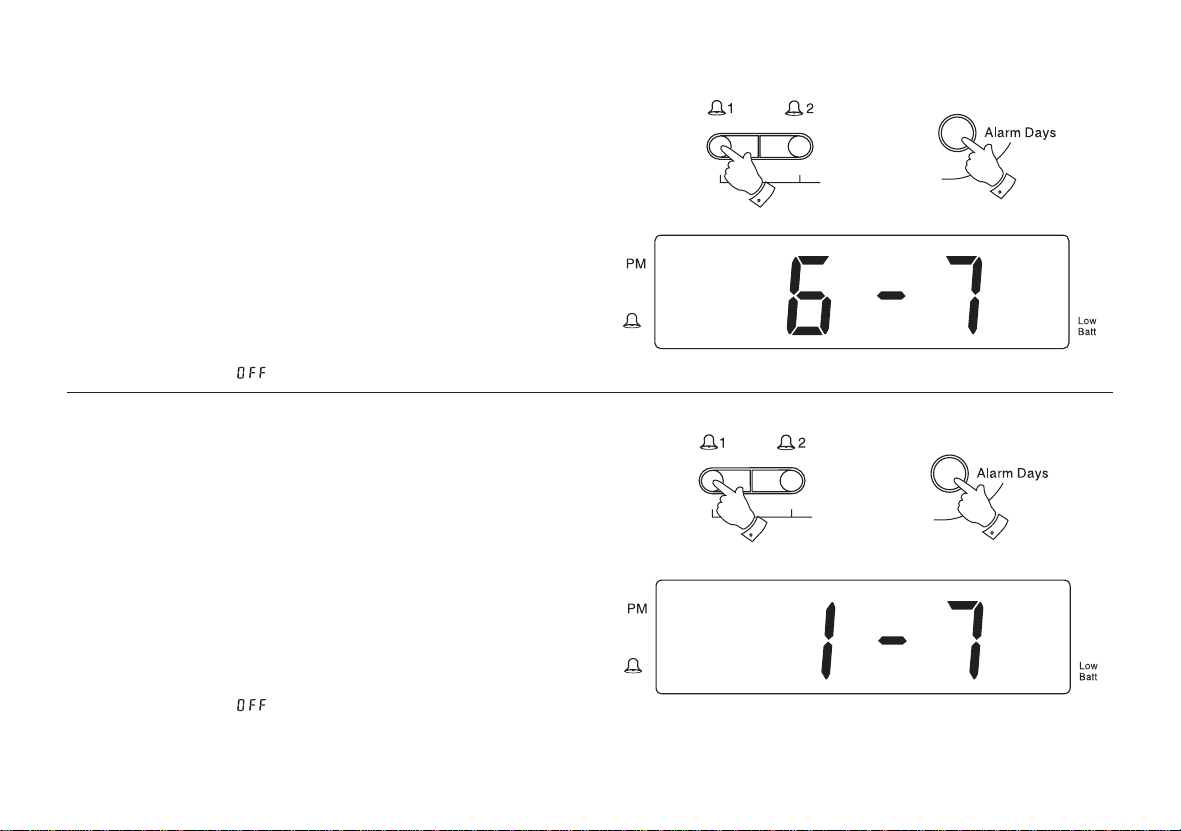

Weekend alarm
1. Press and hold down the Alarm 1 or Alarm 2 buttons (depending
on which alarm you wish to set day for).
2. Whilst holding down Alarm 1 or Alarm 2 buttons repeatedly press
and release the Alarm days button until display shows 6-7.
3. The alarm will sound on Saturday and Sunday at the preset time for
1 hour. To switch off the alarm until the next day press the On/off
button.
4. To switch off the alarms permanently press and hold down the
Alarm 1 or Alarm 2 button. Whilst holding down the Alarm 1 or
Alarm 2 button repeatedly press the Alarm mode button until
the display shows .
Everyday alarm
1. Press and hold down the Alarm 1 or Alarm 2 buttons (depending
on which alarm you wish to set day for).
2. Whilst holding down Alarm 1 or Alarm 2 buttons repeatedly press
and release the Alarm days button until display shows 1-7.
3. The alarm will sound at the preset time for 1 hour. To switch off the
alarm until the next day press the On/off button.
4. To switch off the alarms permanently press and hold down the
Alarm 1 or Alarm 2 button. Whilst holding down the Alarm 1 or
Alarm 2 button repeatedly press the Alarm mode button until
the display shows .
12
12
Untitled-1 1/24/2003, 11:42 AM11

11
Monday to Saturday alarm
1. Press and hold down the Alarm 1 or Alarm 2 buttons (depending
on which alarm you wish to set day for).
2. Whilst holding down Alarm 1 or Alarm 2 buttons repeatedly press
and release the Alarm days button until display shows 1-6.
3. The alarm will sound at the preset time for 1 hour. To switch off the
alarm until the next day press the On/off button.
4. To switch off the alarms permanently press and hold down the
Alarm 1 or Alarm 2 button. Whilst holding down the Alarm 1 or
Alarm 2 button repeatedly press the Alarm mode button until
the display shows .
Sunday only alarm
1. Press and hold down the Alarm 1 or Alarm 2 buttons (depending
on which alarm you wish to set day for).
2. Whilst holding down Alarm 1 or Alarm 2 buttons repeatedly press
and release the Alarm days button until display shows 7-7.
3. The alarm will sound at the preset time for 1 hour. To switch off the
alarm until the next day press the On/off button.
4. To switch off the alarms permanently press and hold down the
Alarm 1 or Alarm 2 button. Whilst holding down the Alarm 1 or
Alarm 2 button repeatedly press the Alarm mode button until
the display shows .
12
12
Untitled-1 1/24/2003, 11:42 AM12

If you need any further advice, please call our Technical Helpline on :-
020 8758 0338 (Mon-Fri)
12
Checking alarm times
1. Press and hold down either Alarm 1 or Alarm 2 buttons depending
which alarm you want to check. The display will change from normal
time to alarm time. Release the Alarm 1 or Alarm 2 buttons to
return to normal time. To adjust the alarm time refer to instructions
on pages 8 - 9.
Checking alarm mode
1. Press and hold down either Alarm 1 or Alarm 2 buttons depending
which alarm you want to check.
2. Whilst holding down Alarm 1 or Alarm 2 buttons press the Alarm
mode button. The display will change from normal time to alarm
mode. Release the buttons to return to normal time. To adjust the
alarm mode refer to instructions on pages 8 - 9.
1
1
2
Untitled-1 1/24/2003, 11:42 AM13

13

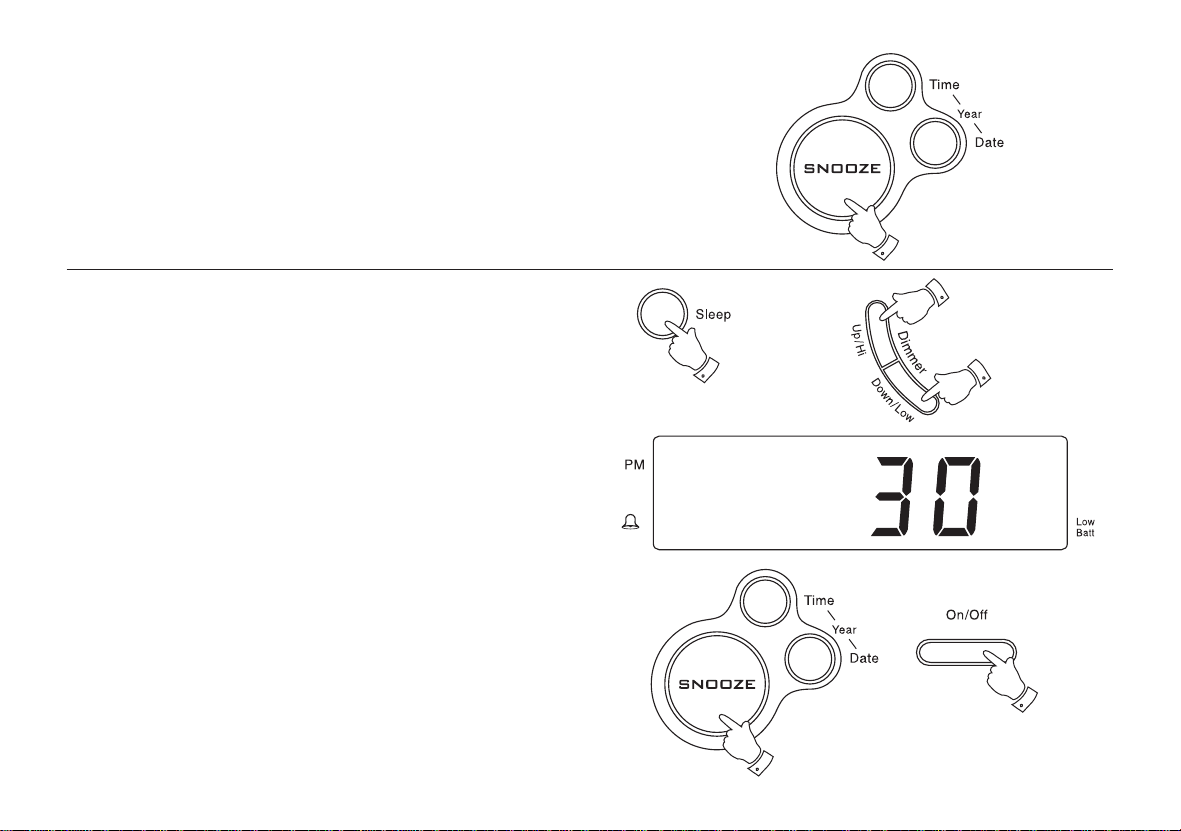

Snooze control
1. The radio or buzzer alarm can be silenced for approximately 9
minutes by pressing the Snooze button. This sequence can be
repeated during the 60 minute alarm period.
Sleep timer
You can program your clock radio to play the radio for up to 90 minutes
and then switch off.
1. Press the Sleep button. The display will show the sleep time.
2. To increase or decrease the amount of time the radio will play before
switching off, hold down the Sleep button and increase or
decrease the sleep time using the Up or Down buttons (maximum
90 minutes - minimum 2 minutes).
3. To cancel the sleep timer before the sleep time has elapsed press
the Snooze or On/Off buttons.
1
1
2
2
3
3
Untitled-1 1/24/2003, 11:42 AM14

If you need any further advice, please call our Technical Helpline on :-
020 8758 0338 (Mon-Fri)

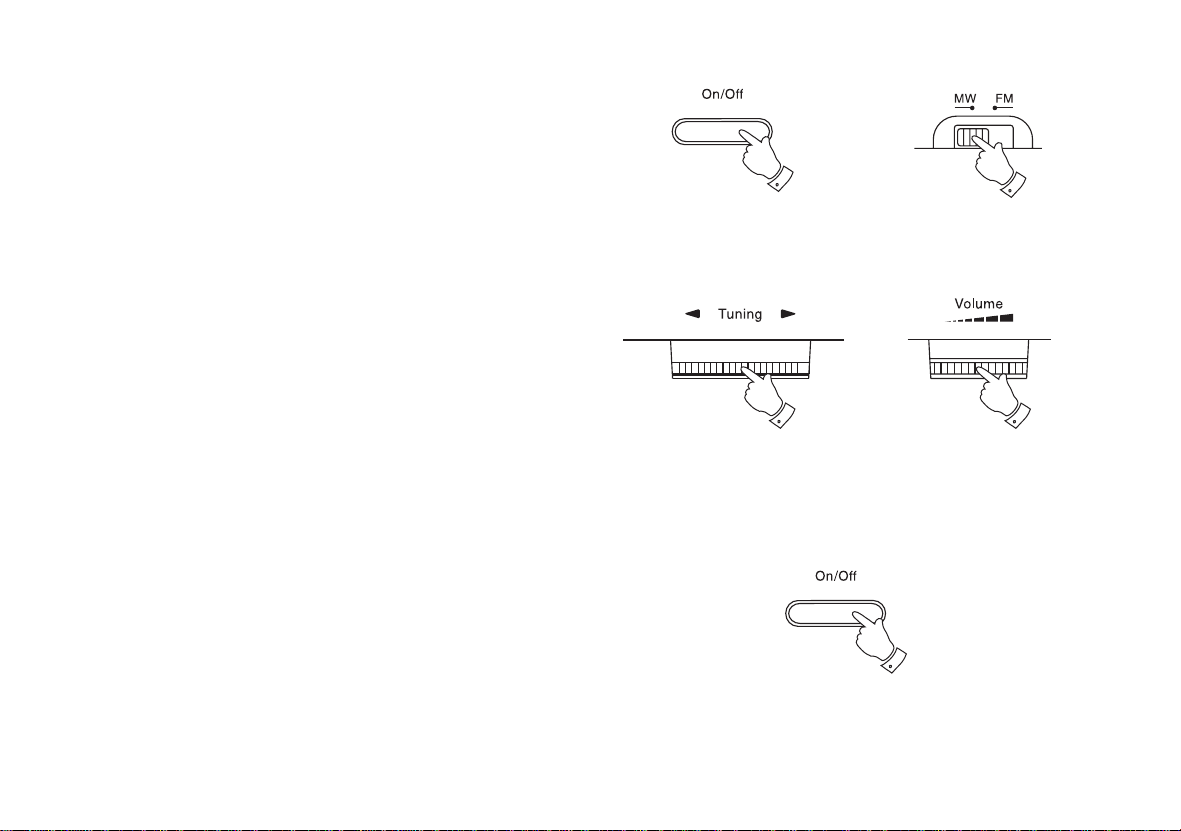

Listening to the radio
1. Switch on the radio by pressing the On/Off button.
2. Select the required waveband using the Waveband switch.
3. Tune in to the desired station using the Tuning control.
4. Adjust volume using the Volume control.
5. The Wire aerial located on the rear of your clock radio is for FM
reception. The wire should be fully extended and positioned for
optimum reception.
For MW reception there is a built in ferrite aerial. Rotate your clock
radio to the position giving best reception.
6. To switch off press the On/Off button.
14
12
34
6
Untitled-1 1/24/2003, 11:42 AM15

Dimmer switch
The Dimmer switch on your clock radio will allow you to adjust the
intensity of the clock display to suit room brightness.
1. Use the High or Low buttons to adjust the intensity of the display.
Back-up battery
As with all batteries, eventually the built in lithium battery will need to be
replaced. A number of factors, such as the length of time between the
date your clock radio was manufactured and the date you plugged it in
for the first time, determine the amount of time before battery replacement.
During this initial storage period the lithium backup battery is supplying
power to your clock radio’s computer memory. Once you connect your
clock radio to the household AC mains supply the battery no longer
supplies power to your clock radio’s computer memory. A fresh backup
battery can supply power to your clock radio’s computer memory for 3
years even if it is never connected to a mains supply. If your clock radio
was connected to the AC mains supply within a few months after it was
manufactured and you experience only short interruptions to the mains
supply, your battery may last for up to 5 years or even longer.
When the battery drops below a certain level the Low battery indicator
will light. When you see this indicator you should change the battery as
soon as it is convenient to do so.
See following page for details on battery replacement.
15
1
1
Untitled-1 1/24/2003, 11:42 AM16

If you need any further advice, please call our Technical Helpline on :-
020 8758 0338 (Mon-Fri)
16
Changing the back-up battery
1. Purchase a replacement lithium backup battery type CR2032 or
equivalent.
2. Remove the new battery from its packaging so that it is ready to
install.
3. Important: Maintain connection to AC mains supply during battery
replacement. This will provide power whilst the original battery is
removed.
4. Use a small screwdriver to remove the small screw securing the
battery holder on cabinet base.
5. Remove the battery holder from cabinet.
6. Remove old battery from holder. Replace new battery with +sign
facing direction shown in drawing opposite.
7. Replace the holder into cabinet back.
8. Refit the small screw to secure holder.
9. Check that the 'Battery low' indicator is not lit.
4
9
Untitled-1 1/24/2003, 11:42 AM17

Time Zones
Your clock radio is set to UK time zone 12 GMT (UTC). Should you wish
to take your clock radio to other countries the time zone will need to be
reset.
1. Press and hold down the Alarm mode button - the display will
show the time zone currently selected e.g. 12.
2. Whilst holding down the Alarm mode button adjust the time zone
using the Up or Down buttons. See following table for details of
time zones and their offsets relative to GMT.
Zone Offset (Hours)
12 GMT 0
13 GMT -1
14 GMT -2
15 GMT -3
16 GMT -4
16 GMT -5
18 GMT -6
19 GMT -7
20 GMT -8
21 GMT -9
22 GMT -10
23 GMT -11
Zone Offset (Hours)
00 GMT +/-12
01 GMT +11
02 GMT +10
03 GMT +9
04 GMT +8
05 GMT +7
06 GMT +6
07 GMT +5
08 GMT +4
09 GMT +3
10 GMT +2
11 GMT +1
17
1
2
2
Untitled-1 1/24/2003, 11:42 AM18

If you need any further advice, please call our Technical Helpline on :-
020 8758 0338 (Mon-Fri)
18
Specifications
Power Requirements
Mains AC 230 volts, 50Hz only
Back-up Battery 1 x CR2032 Lithium (3 - 5 year life)
Frequency Coverage
FM 87.5 - 108MHz
MW 515 - 1635 kHz
Circuit features
Loudspeaker 8 ohms
Output power 180mW
Aerial System FM Wire Aerial
MW Built-in Ferrite aerial
The Company reserves the right to amend the specification without notice.
Untitled-1 1/24/2003, 11:42 AM19

19
Fuse
This apparatus must be protected by a 3A fuse (BS1362) in a 13A plug
(BS1363). If another type of plug is used a 5A fuse should be fitted in
the plug, adaptor or distribution board.
IF IN DOUBT - CONSULT A QUALIFIED ELECTRICIAN.
The wire coloured BLUE must be
connected to the terminal marked N
or coloured BLACK.
The wire coloured BROWN must be
connected to the terminal marked L
or coloured RED.
General
Do not allow this unit to be exposed to moisture (e.g. dripping or
splashing) or to temperatures exceeding 70 degrees centigrade. It is
recommended that the FM band be used wherever possible as better
results in terms of quality and freedom from interference will usually be
obtained than on the MW band.
Mains supply
The CR9955 will operate from a supply of AC 230volts, 50Hz only.
For your convenience this product is supplied with a plug which is fitted
with a fuse of the appropriate rating. If the plug supplied is not suitable
for your socket outlet, it should be removed by unscrewing the plug top,
the terminal screws, and removing the cable.
The correct style of plug to suit your household together with a correctly
rated fuse should be fitted.
IF IN DOUBT - CONSULT A QUALIFIED ELECTRICIAN
IMPORTANT. DO NOT make any connection to the larger terminal which
is marked with the letter E or by the safety earth symbol or coloured
Green or Green-and-yellow.
The wires in the mains lead are coloured in accordance with the
following codes :-
BLUE - NEUTRAL BROWN - LIVE
As these colours may not correspond with the coloured markings
identifying the terminals in your plug, proceed as follows:-
Untitled-1 1/24/2003, 11:42 AM20
