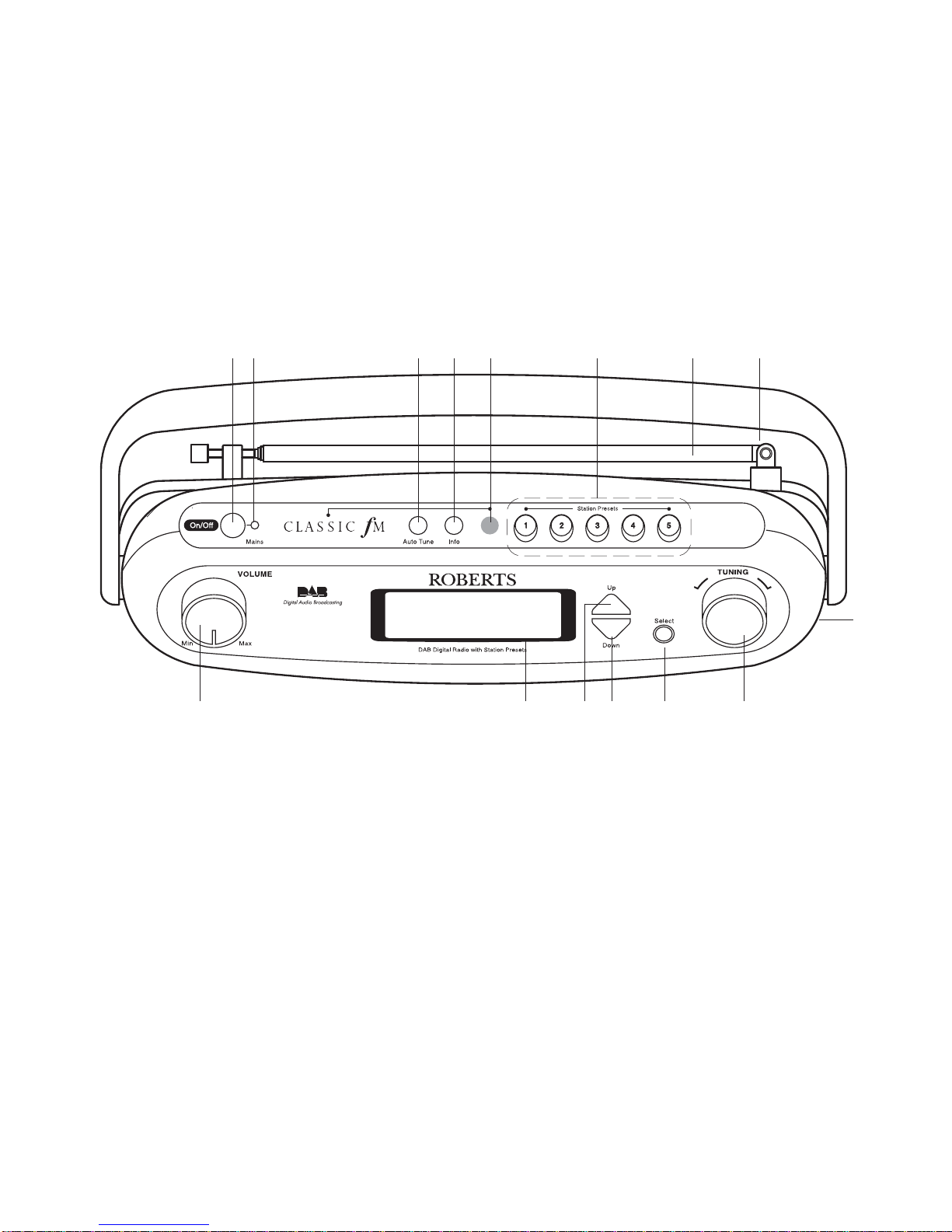

Controls
1. On/Off button
2. Mains LED indicator
3. Auto Tune button
4. Info button
5. Classic FM button
6. Station presets
(Top) 1467
10
14
15 12
35
13 11
2
13. Tuning up button
14. Liquidcrystaldisplay(LCD)
15. Volume control
7. Telescopic aerial (on rear)
8. Line out socket (on rear)
9. Headphone socket (on end)
10. Tuning control
11. Select button
12. Tuning down button
9
8

3

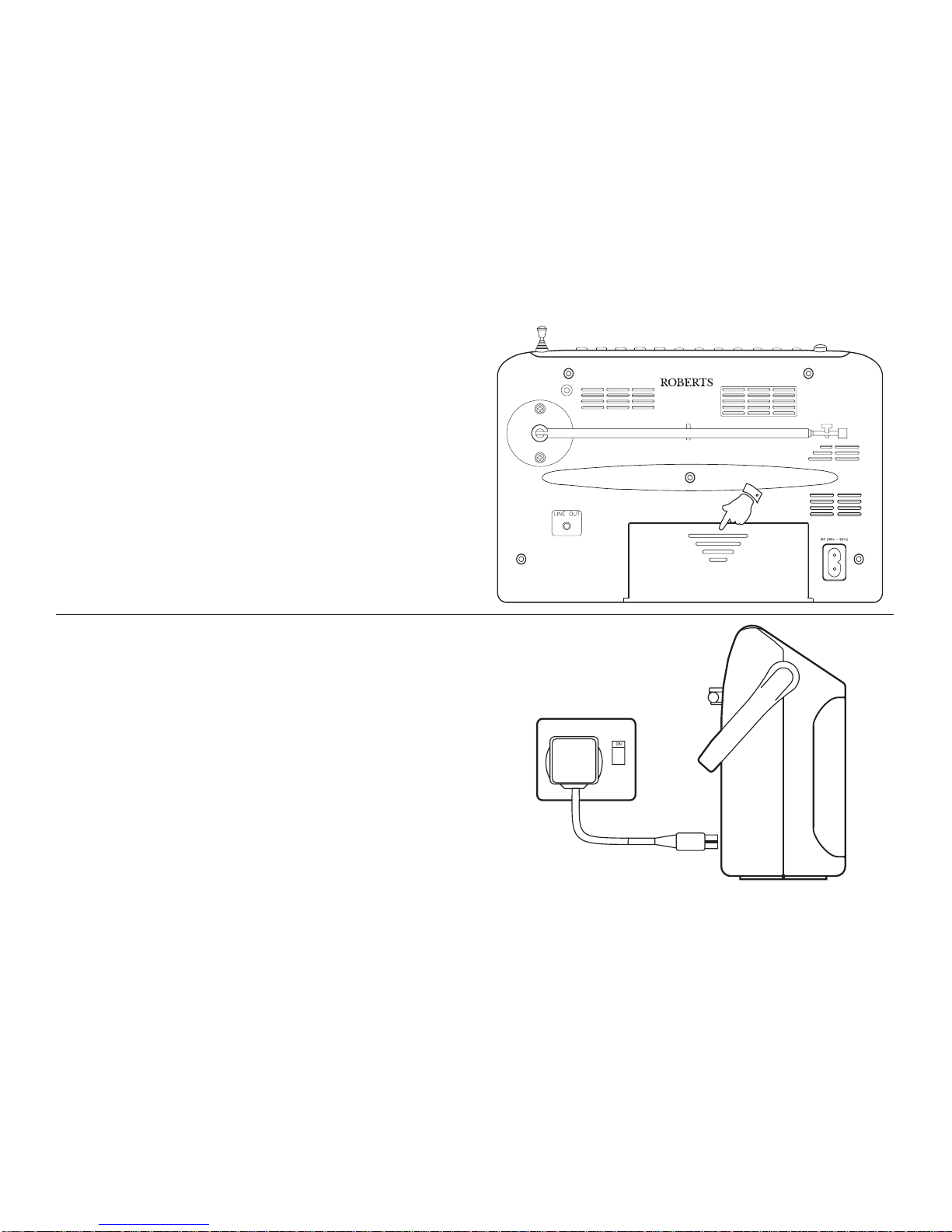

Battery operation
1. Remove the Battery cover on the rear of the unit by pushing the
battery door in and downwards. .
2. Insertsix LR14(Csize)batteriesintothespacesinthecompartment.
Takecareto ensure allbatteriesare insertedwiththecorrect polarity
asshowninsidethebatterycompartment.Replacethebatterycover.
3. Reduced power, distortion and a ‘stuttering’ sound are all signs that
the batteries may need replacing.
4. If the radio is not to be used for any extended period of time it is
recommended that the batteries are removed from the radio.
We would recommend for economy that the RD-12CFM is used on
the mains whenever possible with battery operation for occasional
or stand-by use only.
Mains operation
1. Place your radio on a flat surface.
2. Plug the mains lead into the Socket located on the rear of your radio
ensuring that the plug is pushed fully into the socket.
3. Plug the other end of the mains lead into a wall socket and switch on
the wall socket.
1

If you need any further advice, please call our Technical Helpline on :-
020 8758 0338 (Mon-Fri) 4

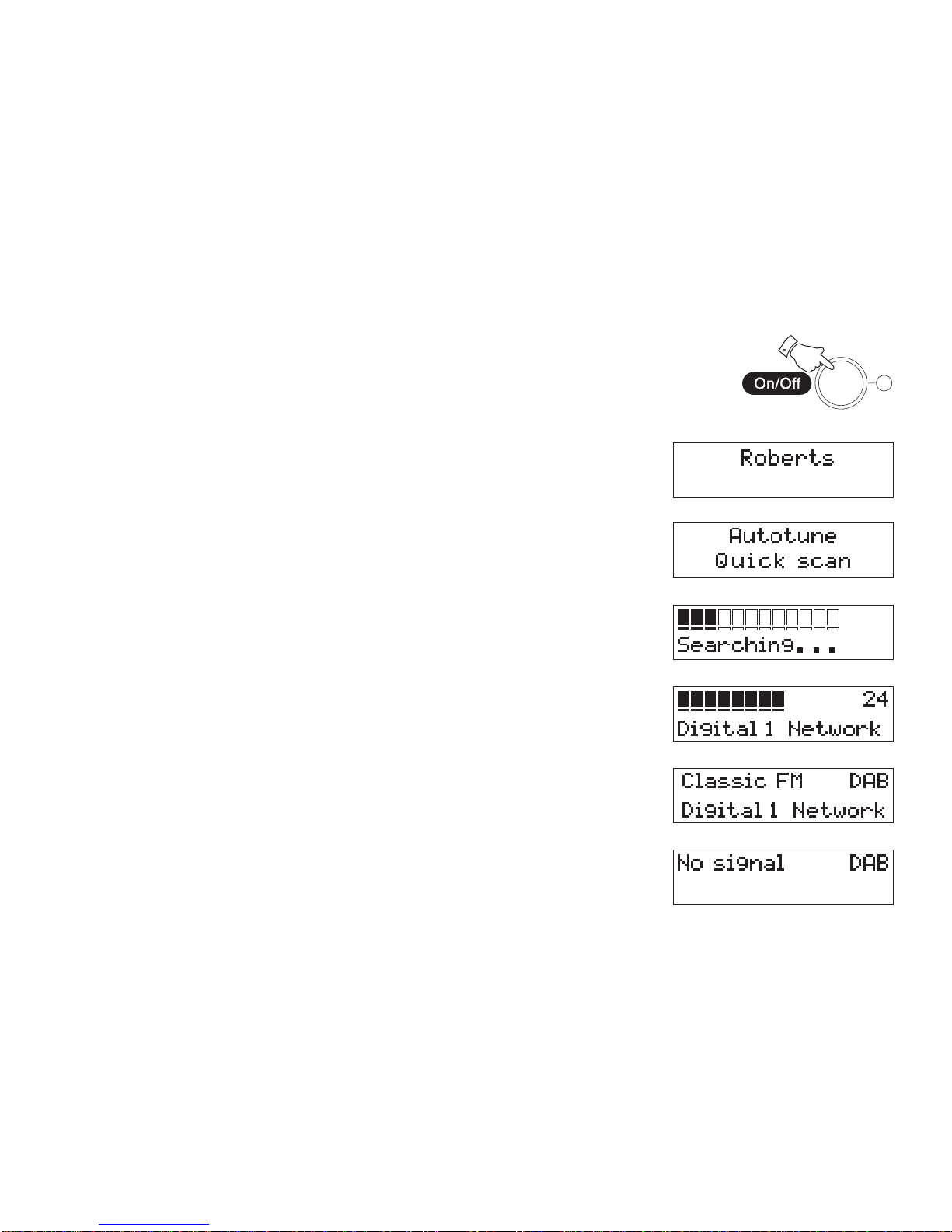

Operating your radio
1. Fully extend the telescopic aerial
2. Press the On/Off button to switch on your radio. The display will
show "Roberts DAB digital radio" for a few seconds.
3. IfthisisthefirsttimetheradioisusedaquickscanofUK BandIIIDAB
channels will be carried out. The display will show "Autotune Quick
scan". If the radio has been used before the last used station will be
selected.
4. DuringAutotuneaseachgroupofstationsisdetectedthebottomline
ofthedisplaywillshowitsnameandthestationcountwillbeupdated.
The top line of the display shows a bargraph indicating progress of
the Autotune.
5. When the Auto tune is complete the first station (in numeric-alpha
order 0...9...A....Z) will be selected.
6. Ifthe station listis still emptyafter the Autotuneyou radio willdisplay
"No Signal".
7. If no signals are found it may be necessary to relocate your radio
to a position giving better reception.
2

5

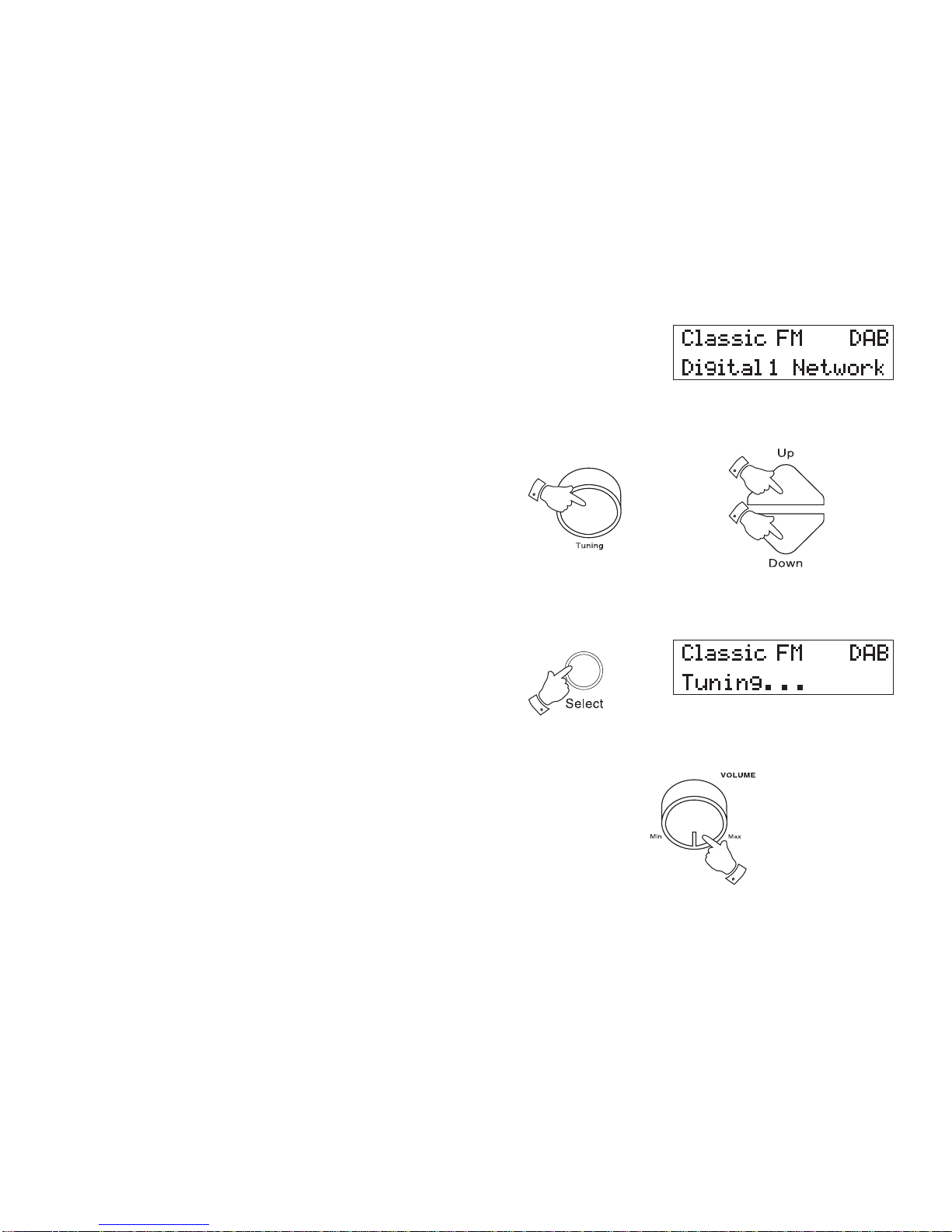

Selecting a station
1. The top line of the display shows the name of the station currently
selected.
2. RotatetheTuningcontrolorpresstheUporDownbuttonstoscroll
through the list of available stations.
3. PressandreleasetheSelectbuttontoselectthestation.Thedisplay
may show "Tuning" while your radio finds the new station.
4. Adjust the Volume control to the required setting.
Note: If after selecting a station the display shows "Not Available" it
may be necessary to relocate your radio to a position giving better
reception.
4
22
2
3

If you need any further advice, please call our Technical Helpline on :-
020 8758 0338 (Mon-Fri) 6
Displaymodes
Your radio has five display modes:-
1. Press the Info button to cycle through the various modes.
a. Scrolling text Displays scrolling text messages such
as artist/track name, phone in number,
etc.
b. Programme Type Displaystypeofstationbeinglistenedto
e.g. Pop, Classic, News, etc.
c. Multiplex Name Displays name of multiplex to which
current station belongs.
d. Signal strength Displayssignalstrengthforstationbeing
listened to.
e. Time and date Displays current time and date.
Secondaryservices
1. Certain radio stations have one or more secondary services asso-
ciated with them. If a station has a secondary service associated
withitthe displaywillshow">" nexttothestation nameonthe station
list. The secondary service will then appear immediately after the
primary service as you turn the tuning control.
a
b
c
d
e
1

7
Finding new stations
As time passes new stations may become available. To find new
stations proceed as follows:-
1. Press and release the Auto Tune button, the display will show
Autotune Quick scan. Your radio will perform a scan of the UK DAB
frequencies. As new stations are found the station counter on the
right-handside ofthe displaywill increaseand stationswill be added
to the list
2. To carry out a full scan of the entire DAB Band III frequencies press
and hold down the Auto Tune button for more than 2 seconds and
then release. The display will show Autotune Full scan. As new
stations are found the station counter on the right-hand side of the
display will increase and stations will be added to the list
Autoselect
As an alternative to pressing the Select button to select a station your
radio can be set so as to automatically select a station.
1. Rotate the Tuning control a few clicks in either direction, immedi-
ately press and hold down the Select button until the display shows
Autoselect ON.
2. RotatetheTuningcontrolorpresstheUporDownbuttons untilthe
station you require is visible on the display. After a few seconds your
radio will automatically select the station shown on the display.
3. To switch off autoselect rotate the Tuning control a few clicks in
eitherdirection, immediately pressand hold downthe Selectbutton
until the display shows Autoselect OFF.
1
2
1
1

If you need any further advice, please call our Technical Helpline on :-
020 8758 0338 (Mon-Fri) 8

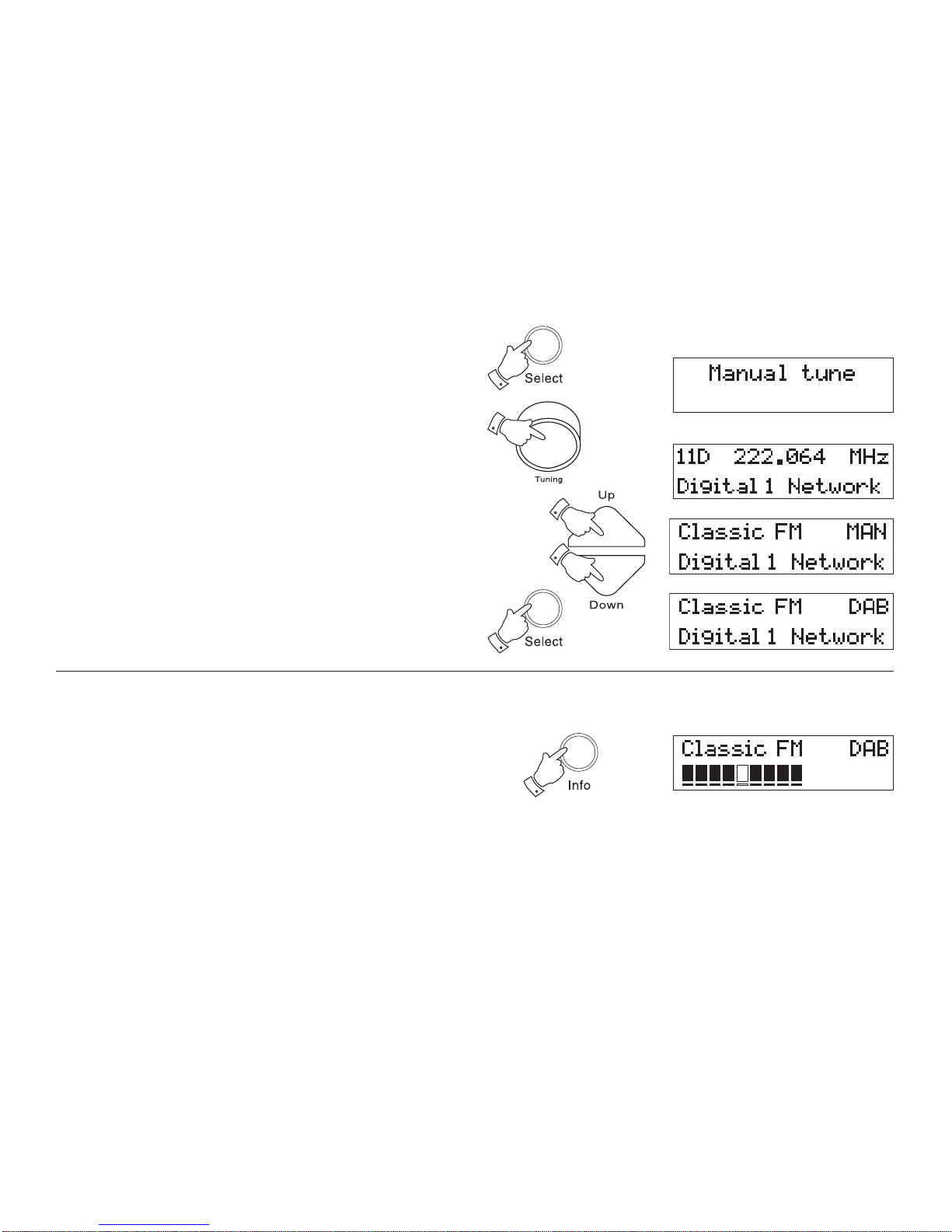

Manual Tuning
Manual tuning allows you to tune directly to the various Band III DAB
channels.UKDABstationsarecurrentlylocatedintherange11Bto12D.
1. Press and hold down the Select button until the display shows
Manual tune. Release the Select button.
2. Rotate the Tuning control or press the Up or Down buttons to
select the required DAB channel.
3. Press and release the Select button to select the channel.
4. Rotate the Tuning control or press the Up or Down buttons to
select the stations contained within the Multiplex (group of stations)
for the selected DAB channel.
5. Press and release the Select button to return to normal tuning
mode.
Signal strength display
1. Repeatedly press and release the Info button until the lower line
of the display shows signal strength.
2. Positionyour radio andangle the telescopic aerialfor best reception
using the signal strength display as guide. Move your radio around
and position so as to give maximum number of black rectangles on
signal strength display.
3. The clear unfilled rectangle indicates minimum signal level required
for satisfactory reception.
1
2
2
3
2
1

9

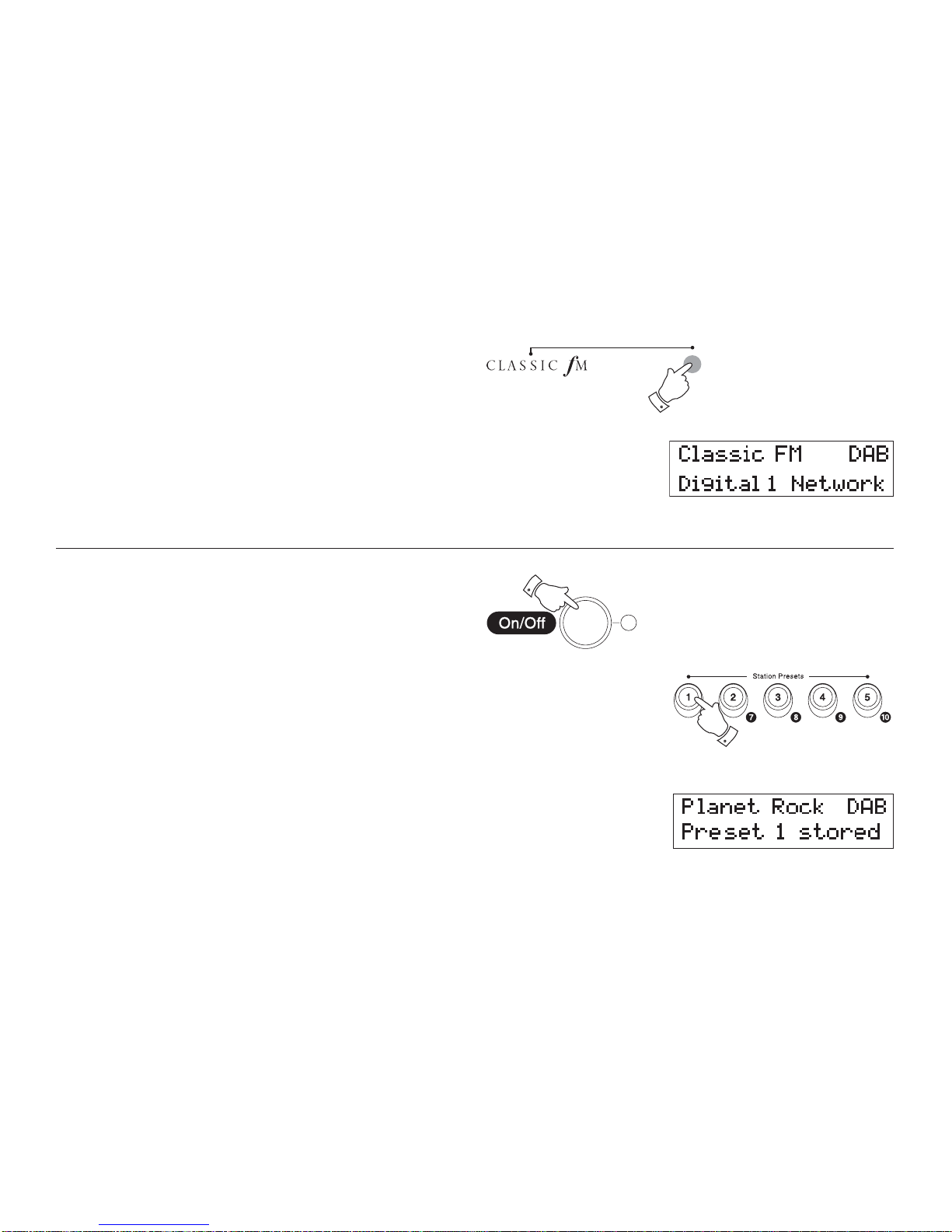

Presettingstations
There are 5 memory presets.
1. Press the On/Off button to switch on your radio.
2. Tune to the required station as previously described.
3. Press and hold down the required Preset button until the display
shows e.g. Preset 1 stored. The station will be stored under the
chosen preset button. Repeat this procedure for the remaining
presets.
4. Stations stored in preset memories may be overwritten by following
the above procedure.
1
3
ClassicFMbutton
Your radio is fitted with a button which when pressed will automatically
tune your radio to Classic FM.
1. Press the Classic FM button.
2. Your radio will automatically tune to Classic FM.
Note: If Classic FM is not available in your area the display will show
"Not Found"
1

If you need any further advice, please call our Technical Helpline on :-
020 8758 0338 (Mon-Fri) 10
Recalling a preset station
1. Press the On/Off button to switch on your radio..
2. Momentarily press the required Preset button, your radio will tune
to the station stored in preset memory.
1
2

11
Systemreset
If your radio fails to operate correctly, or some digits on the display are
missing or incomplete carry out the following procedure.
1. Switch off your radio
2. Switch on your radio - as soon as the screen shows Roberts DAB
digital radio press and hold down the Select button until the display
shows System Reset.
3. A full reset will be performed and all presets and station lists will be
erased.
4. A Quick scan will then be performed.
If a problem persists our technical staff would be pleased to help
offer any assistance on operating the radio. Our technical helpline
number is 020 8758 0338.
1
2
2

If you need any further advice, please call our Technical Helpline on :-
020 8758 0338 (Mon-Fri) 12
Headphonesocket
A3.5mmHeadphoneSocket locatedontheright-handendofyouradio
is provided for use with either headphones or an earpiece. Inserting a
plug automatically mutes the internal loudspeaker.
Displaybacklight
1. The display backlight will be switched on for approximately 12
seconds when any button is pressed.
2. When your radio is powered by AC mains the display backlight will
always be switched on.
Line out socket
A 3.5mm Line out socket located on the rear of you radio is provided
forconnectingtheaudiosignaltoanexternalamplifier.Insertingalineout
audiocablewillnotmutetheinternalloudspeaker.Setthevolumecontrol
to minimum if desired.

13
General
Do not allow this radio to be exposed to water, steam or sand. Do not
leave your radio where excessive heat could cause damage such as in
a parked car where the heat from the sun can build up even though the
outside temperature may not seem too high.
Specifications
Power Requirements
Mains AC 230 volts, 50Hz only
Batteries 6 x LR14 (C size)
Battery Life Approx. 17 hours of listening for 4 hours a day
at normal volume using alkaline cells.
Frequency Coverage
DAB 174.928 - 239.200MHz
CircuitFeatures
Loudspeaker 92mm4ohms
Output Power 3W into 4ohms
Headphone socket 3.5mmdia
Aerial System Telescopic aerial

If you need any further advice, please call our Technical Helpline on :-
020 8758 0338 (Mon-Fri) 14
The wire coloured BLUE must be connected to the terminal marked N or
coloured BLACK.
The wire coloured BROWN must be connected to the terminal marked L
or coloured RED.
Mainssupply
TheRD-12CFMwilloperatefromasupplyofAC230volts,50Hz only.
DO NOT cut off the mains plug from this equipment. If the plug
fitted is not suitable for the power points in your home or the cable is too
shortto reach apower point,then obtain anappropriate safetyapproved
extension lead or adaptor. If in doubt consult your dealer.
If nonetheless the mains plug is cut off, remove the fuse and dispose of
the plug immediately to avoid a possible shock hazard by inadvertent
connection to the mains supply.
If this product is not supplied with a mains plug, or one has to be fitted,
then follow the instructions given below:
IMPORTANT.DONOTmakeanyconnectiontothelargerterminalwhich
ismarked with the letter Eor bythe safetyearth symbol or coloured
Green or Green-and-yellow.
Thewiresinthemains leadarecolouredinaccordancewiththefollowing
codes :-
BLUE - NEUTRAL BROWN - LIVE Fuse
When replacing the fuse only a 3A ASTA approved to BS1362 type
should be used and be sure to re-fit the fuse cover.
IF IN DOUBT - CONSULT A QUALIFIED ELECTRICIAN.
Replacement fuse holders are available from Roberts Radio Technical
Services at the address shown on the rear of this manual.

Guarantee
Thisinstrumentisguaranteedfortwelvemonthsfromthedateofdeliverytotheoriginalowneragainstfailureduetofaultyworkmanshiporcomponent
breakdown, subject to the procedure stated below. Should any component or part fail during this guarantee period it will be repaired or replaced free
of charge.
The guarantee does not cover: 1. Damage resulting from incorrect use.
2. Consequential damage.
3. Receivers with removed or defaced serial numbers.
N.B. Damaged or broken telescopic aerials will not be replaced under guarantee.
Procedure:
Any claim under this guarantee should be made through the dealer from whom the instrument was purchased. It is likely that your Roberts' dealer
will be able to attend to any defect quickly and efficiently, but should it be necessary the dealer will return the instrument to the company’s service
departmentfor attention.Inthe eventthat itisnot possibleto returntheinstrument tothe Roberts'dealer from whomit waspurchased, pleasecontact
Roberts Radio Technical Services at the address shown below.
Issue 1
ROBERTS RADIO TECHNICAL SERVICES
97-99 Worton Road
Isleworth Middlesex
TW7 6EG
Technical Helpline :- 020 8758 0338 (Mon-Fri during office hours)
