Roberts Stream 205 User manual

ROBERTS
Enjoy Listening
DAB / DAB+ / FM / WiFi Internet Radio with Music Player and Last.fm
Please read this manual before use
Now supports remote control from iPhone or iPod touch and Windows 7 'Play to' function

Introduction......................................................................................... 2-9
Before you can use this product.......................................................... 3
About this instruction manual............................................................... 4
Controls and connections................................................................. 5-6
Battery operation ................................................................................. 7
Navigation controls........................................................................... 8-9
Configuration.................................................................................. 10-21
Plugging in and language selection.............................................. 10-11
Clock and time settings ..................................................................... 12
Connecting to your computer network.......................................... 13-17
Manual network configuration....................................................... 18-20
Network remote control options......................................................... 21
Internet Radio mode....................................................................... 22-35
Internet Radio - the basics................................................................. 22
Selecting a radio station by location and genre............................ 23-25
Searching for a radio station by name............................................... 26
Selecting a new or popular station .................................................... 27
Selecting a podcast / BBC Listen Again ............................................ 28
Presetting stations............................................................................. 29
Display modes.............................................................................. 30-31
Customising your radio................................................................. 32-35
Music Player mode......................................................................... 36-51
Use with Windows, Apple Mac, Linux, USB memory ........................ 36
Accessing your audio files via UPnP using Windows 7................ 37-38
Locating and playing media files using UPnP .............................. 39-43
Using USB memory devices......................................................... 44-45
Playlists ........................................................................................ 46-48
Prune servers .................................................................................... 49
Wake On LAN.................................................................................... 49
Windows 7 'Play To' function ........................................................ 50-51
Last.fm mode .................................................................................. 52-60
Last.fm - the basics ........................................................................... 52
Set up a Last.fm user account........................................................... 53
Listening to Last.fm ...................................................................... 55-57
Display modes................................................................................... 58
Your Recent Stations / History........................................................... 59
Deleting details of a Last.fm account................................................. 60
Scrobbling - On / Off control.............................................................. 60
Contents
DAB mode ....................................................................................... 61-69
Selecting a DAB radio station............................................................ 62
Display modes ............................................................................. 63-64
Finding new DAB radio stations ........................................................ 65
Manual Tuning .................................................................................. 66
Dynamic Range Control settings ...................................................... 67
Station order setup ............................................................................ 68
Prune stations.................................................................................... 69
FM mode.......................................................................................... 70-75
Manual tuning.................................................................................... 71
Display modes................................................................................... 72
Scan setting....................................................................................... 73
Stereo / Mono switching .................................................................... 74
Presetting stations in DAB and FM modes........................................ 75
Clock and Alarms .......................................................................... 76-84
Automatically updating the clock ....................................................... 76
Setting the clock format .................................................................... 77
Manually setting the clock ............................................................ 78-79
Setting the alarm clock ................................................................ 80-82
Disabling alarms ............................................................................... 83
Snooze timer .................................................................................... 83
Sleep timer ....................................................................................... 84
Display and Audio .......................................................................... 85-88
Brightness control.............................................................................. 85
Contrast / viewing angle control ........................................................ 86
Headphone socket............................................................................. 87
Auxiliary input socket......................................................................... 88
Information.................................................................................... 89-102
Factory reset...................................................................................... 89
Software update ................................................................................ 90
Network profiles................................................................................. 91
Software version display.................................................................... 92
Troubleshooting............................................................................ 93-94
Accessing audio files via UPnP using Windows Vista and XP .... 95-96
Audio codecs .................................................................................... 97
Cautions and Specifications ......................................................... 98-99
Guarantee........................................................................................ 102

If you need any further advice, please call our Technical Helpline on 020 8758 0338 (Mon-Fri)
Introduction
Stream 205 Internet Radio features
The Roberts Stream 205 provides the following features in an attractive
compact unit:-
●Listen to local, regional, national and international broadcasts using FM,
DAB and Internet radio
●Listen to over 1000 radio stations from around the country, and over
10,000 from around the world without using your PC.
●Listen to previously broadcast material from the BBC (using Podcasts /
Listen Again)
●Listen to podcasts from a wide range of broadcasters.
●15 radio station presets (5 Internet Radio, 5 DAB and 5 FM).
●Use the Music Player to play your music collection from your computer
(using Windows Media Player 11 or 12). Connection to Apple and Linux
based computers is also possible.
●Playback of audio files from USB memory devices.
●MP3, WMA, AAC, FLAC, WAV and Real Audio formats are supported
(Real Audio for Internet Radio only).
●The Stream 205 connects to your home computer network, either using
WiFi or via a wired Ethernet connection.
●WiFi Protected Setup (WPS) is supported for simpler setting up with
compatible wireless routers.
●Works with Windows 7 'Play to' function (as UPnP renderer).
2
●Supports remote control from Apple iPhone or iPod touch using Roberts
ConnectR app.
●Works with Last.fm, an on-line music service with millions of tracks
available. It plays personalised radio stations based on your choice
of artists, songs, listening history and similar tracks based on the
preferences of other Last.fm listeners with similar music tastes.
●Multi-language menu system (menus may be displayed in English,
French, German, Italian, Danish, Dutch, Finnish, Norwegian, Polish,
Portuguese, Spanish, Swedish, Turkish).
●All radio station presets, network configuration details and user settings
are retained in the event of a power failure.
●Large clock display with time and date when in Stand-by.
●Two alarm timers with snooze feature to wake you to either buzzer or
radio alarm.
●Adjustable sleep timer, can be set to turn the radio off between 15 and
120 minutes.
●Easy-to-read graphic display.
●Adjustable display backlight.
●Auxiliary input socket for playing audio from MP3 players, iPods or other
audio equipment.
●Stereo headphone socket for private listening.
●Mains or battery powered operation using supplied mains adapter, or 6 x
LR20 (D size) alkaline cells (not included).
Introduction

Before you can use this product
Before you can use your radio, you must have the following:
●A broadband Internet connection (not required for DAB, FM or Music
Player functions).
●Awireless access point (WiFi) or a wired Ethernet connection connected
to your broadband Internet Service Provider, preferably via a router.
In many cases the broadband modem, router and wireless access
point will be a single combined unit supplied by your Internet Service
Provider or bought from a computer store.
●If your wireless network is configured to use Wired Equivalent Privacy
(WEP) or WiFi ProtectedAccess (WPA/WPA2) data encryption then you
either need to know the WEP, WPA or WPA2 key used for encryption
so you can get the radio to communicate with the network, or your
router needs to offer WiFi Protected Setup (WPS).
If connecting using WiFi, the radio will typically work within a 10-20 metre
radius from your wireless access point. The actual range achieved will
depend upon the building type, other nearby wireless networks, and possible
interference sources. DAB and FM radio functions can operate wherever
the radio is able to receive a suitable broadcast signal.
IMPORTANT: Before you continue, make sure that your wireless access
point or router is powered up and working with your broadband Internet
service (use your computer to verify this). To get this part of the system
working you must read the instructions supplied with the wireless access
point or router.
3

If you need any further advice, please call our Technical Helpline on 020 8758 0338 (Mon-Fri)
About this instruction manual
This instruction manual is split into sections for each of the different
operating modes of your Roberts Stream 205 radio. Each section is
clearly identified by the shaded heading in the top right hand corner of
each pair of pages.
Before using the Internet Radio and Music Player functions, you will need
to connect your radio to your computer network using either the WiFi or
Ethernet connection. This is covered in the section titled Configuration.
The Internet Radio section describes how to find radio stations to listen
to. These can be radio stations that you already know and listen to
conventionally, or new stations you may search for. You may set up stations
that you like as Favourites so that they are more readily accessible.
The section for the Music Player describes how you may play music files
that you may have stored on a computer connected to your network. The
use of Shared Media (using UPnP) and USB playback is explained.
The Last.fm section explains the use of the radio in conjunction with the
Last.fm internet based music streaming service.
The two sections for DAB Radio and FM Radio describe how to use the
radio to listen to conventional radio broadcasts.
The section titled Clock and Alarms describes the different ways by
which the clock in the radio may be set, as well as explaining the use of
the alarms, snooze and sleep timer features.
The Display and Audio section shows how to adjust the display and
connect your radio to other audio equipment.
The Information section includes troubleshooting, specifications and
warranty information.
4
Configuration
Internet Radio
Music Player
DAB Radio
FM Radio
Clock and Alarms
Display and Audio
(page 10)
(page 36)
(page 22)
(page 70)
(page 61)
(page 76)
(page 85)
Information (page 89)
Introduction
Last.fm (page 52)

5
Controls and connections
Top view
1. Last.fm Ban button
2. Last.fm Love button
3. Volume Down button
4. Volume Up button
5. On / Off button
6. Telescopic aerial
7. LCD display
8. Tuning / Select / Snooze control
9. Menu Forward button
10. Menu Back button
11. Loudspeaker x 2
12. Info button
13. Menu button
14. Mode button
15. Preset 5 / Play button
16. Preset 4 / Pause button
17. Preset 3 / Fast-forward button
18. Preset 2 / Rewind button
19. Preset 1 / Alarm On/Off button
1
3
2
4
5 6 7 8
9
10
1213141516171819
11
11

If you need any further advice, please call our Technical Helpline on 020 8758 0338 (Mon-Fri) 6
Controls and connections - cont.
Rear view
20. Headphone socket
21. Auxiliary input socket
22. USB socket (for service use only)
23. USB socket for USB memory
24. Ethernet socket (RJ-45)
25. DC input socket
26. Battery compartment
27. WiFi antenna (internal)
Introduction
26
20
25
21 22 23 24
27

7
Battery operation
We recommend for economy that your radio is used via the AC adaptor
whenever possible with battery operation for occasional use only. Inserting
the adaptor plug into the DC input socket will disconnect the batteries.
If using batteries, only alkaline types should normally be used. Battery
life will vary according to the use of the radio, but between 40 and 80
hours should be possible. WiFi use takes much more power than DAB
listening, for example.
To install batteries in your radio follow these steps.
1. Remove the Battery cover on the rear of the unit by pushing the top
of battery door in slightly and then sliding it downwards.
2. Insert six LR20 (D size) batteries into the spaces in the compartment.
Take care to ensure all batteries are inserted with the correct polarity
as shown inside the battery compartment. Replace the battery cover.
3. Reduced power, a stuttering sound, distortion or the radio switching
itself off are all signs that the batteries may need replacing.
4. If the radio is not to be used for any extended period of time it is
recommended that the batteries are removed from the radio.
Rechargeable Nickel Metal Hydride (NiMH) cells can be used in the radio
but must be charged outside the radio using an external charger. Note that
commercially available D size NiMH cells have a capacity which is only
a small fraction of that of D size Alkaline cells and so they will power the
radio for only a few hours before needing recharging. Never mix batteries
of different types, capacities or brands in the radio.
IMPORTANT: The batteries should not be exposed to excessive heat
such as sunshine, fire or the like. After use, disposable batteries should
if possible be taken to a suitable recycling centre. On no account
should batteries be disposed of by incineration.
1

If you need any further advice, please call our Technical Helpline on 020 8758 0338 (Mon-Fri)
Introduction
8
Navigation controls
These pages describe the basic means of controlling your Stream 205
radio. Instructions for each operating mode are given in the later sections
of this book.
1. Pressing the On/Off button brings your radio out of Stand-by mode if
running from mains or switches it on if using batteries.
Pressing the On/Off button while the radio is in use will cause it to
return to the Stand-by mode with the clock display when running from
the mains, or will switch it off after a short delay when running on
batteries (alarms cannot be used when running on batteries).
2. Pressing the Mode button gives you access to each of the operating
modes in turn: Internet Radio, Music Player, Last.fm, DAB radio, FM
radio and Auxiliary Input.
3. Pressing the Menu button will access the menu system.
4. Many operations require the user to make a selection from the menu.
This is done using the Tuning/Select control. Turn the control clockwise
or anti-clockwise to highlight the desired menu item then press the
control to select that item.
If there are more than five items in a menu, then the display will
automatically scroll up or down so that the additional items become
visible. A sliding bar on the right will give an indication showing the
current portion of the menu that is displayed.
If there are many items in a menu, then the radio allows the menu
to 'wrap around' in either direction. This can make it easier to reach
items at the end of a long menu, such as a list of countries or Internet
radio stations.
4
2
3
1

9
Navigation controls cont.
5. The Forward button may be used to make selections from the menus.
If an error is made when navigating the menus, it is generally possible
to go back to a higher level menu by pressing the Back button.
6. The Info button allows the display of information relating to the radio
station or music file being played.
Note: In this booklet, press always means press and release.

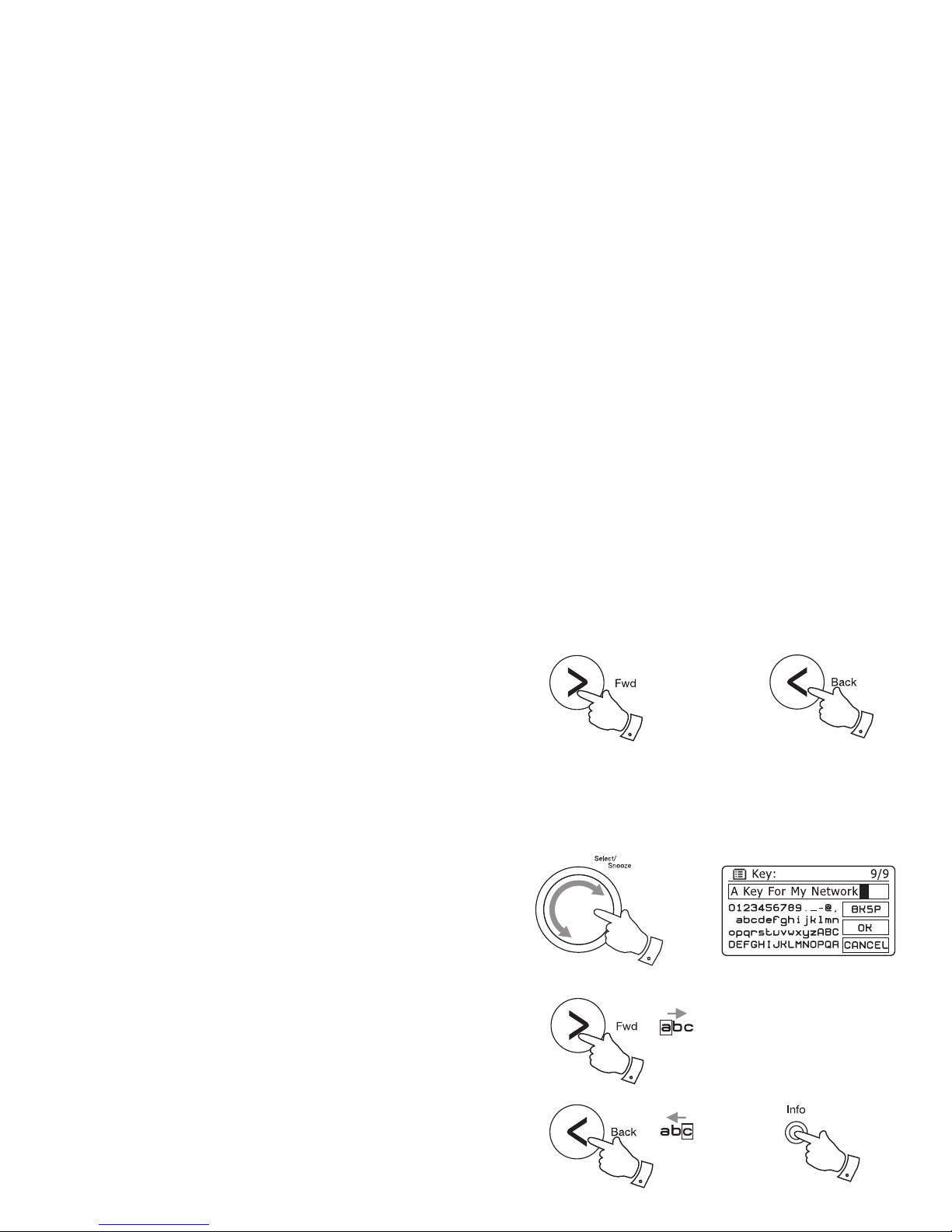

Text entry
There are several occasions when you may need to enter text characters
into your radio, for example, when setting up the WiFi connection, or when
searching for artists or albums. When entering text you can use the Tuning/
Select control alone or in conjunction with the buttons.
1. Rotate the Tuning/Select control to highlight each character as needed
and press the control to enter each character into the radio.
Alternatively
2. To highlight the next character in the character display press the
Forward button. Press and hold to move more quickly.
3. To highlight the previous character in the character display press the
Back button. Press and hold to move more quickly.
4. To enter the highlighted character press the Tuning/Select control.
5. The Info button allows quick access to the Backspace control. You
can then use the Tuning/Select control to access the OK and Cancel
options. Press Info again to go back to the character selection.
5
5
5
1,4
2
3

If you need any further advice, please call our Technical Helpline on 020 8758 0338 (Mon-Fri)
Configuration
10
5,6
Configuration

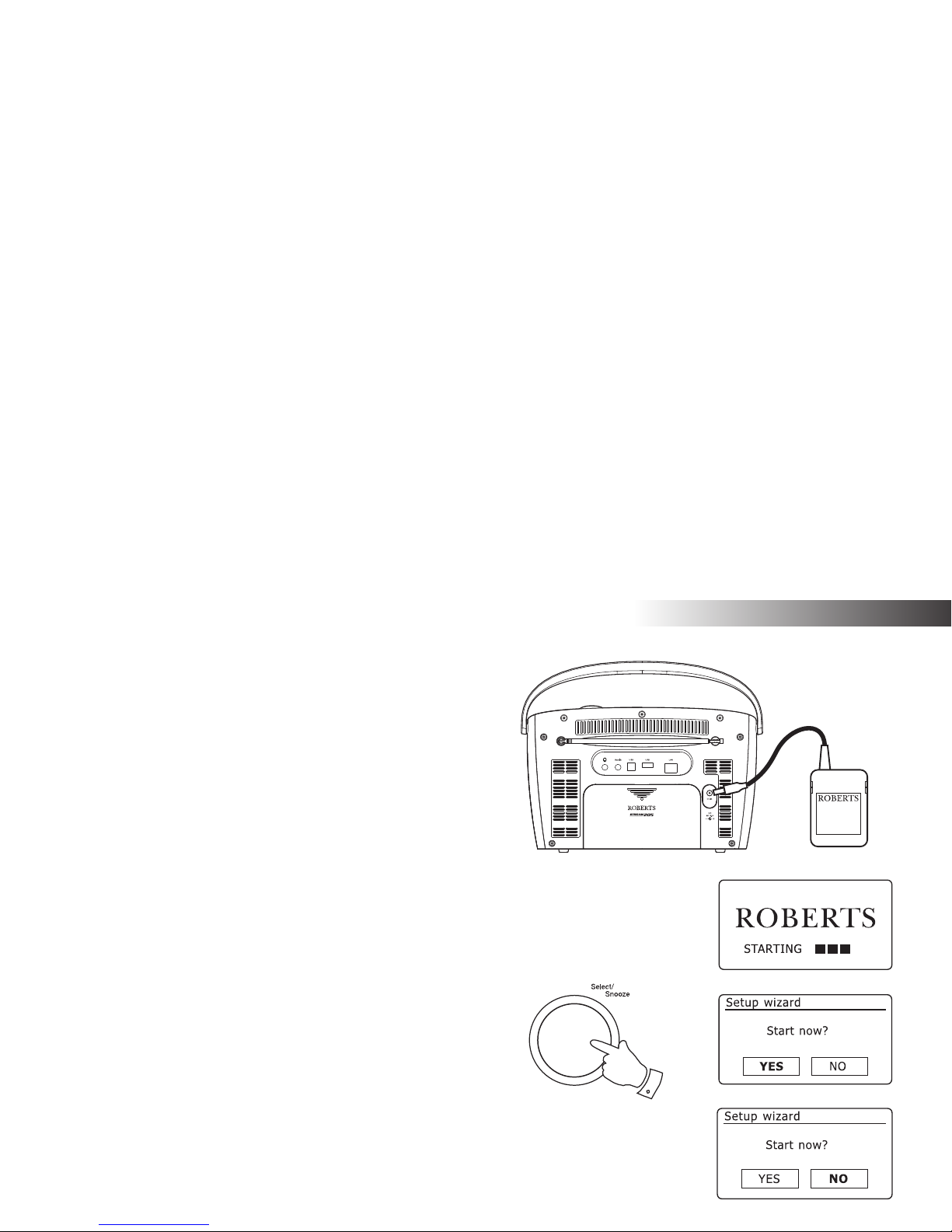

Plugging in and language selection
1. Place your radio on a flat surface and plug the cable from the mains
adaptor into the DC input socket located at the rear of your radio
(marked 'DC in') ensuring that the plug is pushed fully into the socket.
2. If you wish to use a wired network connection, plug the Ethernet cable
into the RJ-45 socket at the back of the radio.
3. Plug the mains adaptor into a wall socket and switch on the socket.
IMPORTANT: The mains adaptor is used as the means of connecting
the radio to the mains supply. The mains socket used for the radio
must remain accessible during normal use. In order to disconnect the
radio from the mains, the mains adaptor should be removed from the
mains socket outlet completely.
4. When you apply power, the display on the radio will light up and say:
'ROBERTS' and 'STARTING' with a progress indicator. The first time
that you use your radio (or after a Factory Reset) the display will show
'Setup wizard' and 'YES' will be highlighted on the screen.
5. By default your radio will display all menus and messages in English.
If English is your preferred language then press the Tuning/Select
control to select 'YES' and to begin setting up your radio. Then please
skip to step 1 on page 12.
6. If your preferred language is not English, then rotate the Tuning/
Select control so that the 'NO' option is highlighted.
Press the Tuning/Select control to enter the selection.
Continue on the next page.

11
7-12
Plugging in and language selection - cont.

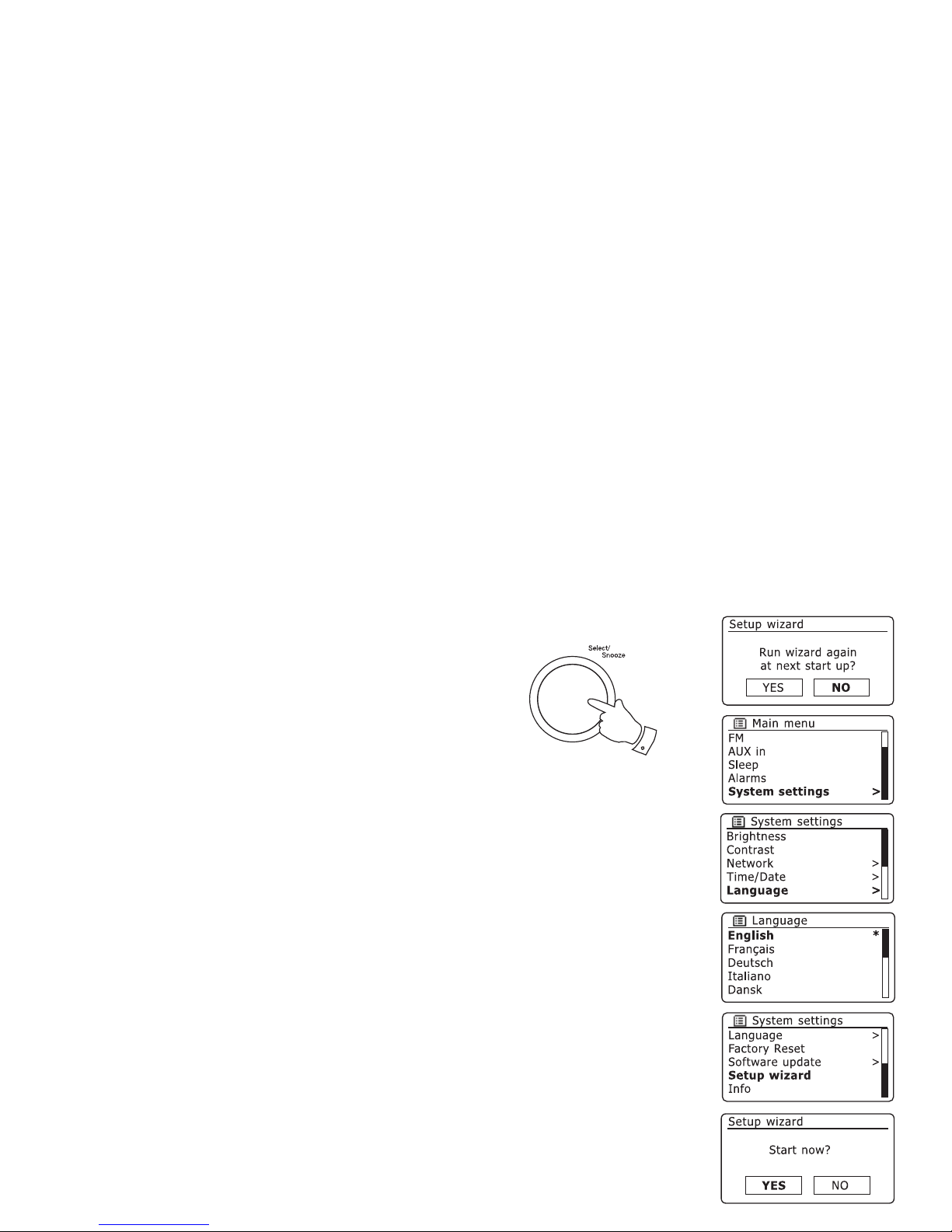

7. Your radio will ask whether the Setup Wizard should be run at the next
start up. The 'NO' option will be highlighted.
Press the Tuning/Select control to select the 'NO' option.
8. Your radio will then display the Main Menu. Rotate the Tuning/Select
control until ‘System settings’ is highlighted on the screen.
Press the Tuning/Select control to enter the System settings menu.
9. Rotate the Tuning/Select control until ‘Language’ is highlighted on
the screen.
Press the Tuning/Select control to enter the Language options menu.
10. Rotate the Tuning/Select control until the desired language is
highlighted on the screen.
Press the Tuning/Select control to select the chosen language option.
The display will then change to show the System settings menu in the
chosen language.
11. Rotate the Tuning/Select control until the ‘Setup wizard’ option is
highlighted on the screen and then press the control.
If you change the language you will not see 'Setup wizard' in English.
You will see an equivalent menu item in your language - for example,
'Assistant réglages' in French, or 'Inställningsguide' in Swedish.
12. Rotate the Tuning/Select control until ‘YES’ is highlighted on the
screen and press the control to select it.
This will cause the radio to run the set up procedure as if it had just
been switched on for the first time, but it will do this using the language
selected in step 10, above.
13. Continue setting up your radio on the next page.

If you need any further advice, please call our Technical Helpline on 020 8758 0338 (Mon-Fri) 12
Configuration
1-5
Clock and time settings
The following instructions assume that you have either just plugged in your
radio (see page 10) or that you have just specified the language option
for the menus (see page 11).
1. Rotate the Tuning/Select control to highlight the desired clock format
(either 12 or 24 hour) then press the control to enter your selection.
2. Next, the way in which the radio updates its clock is set. A menu
allowing you to specify the auto-update option for the clock will be
shown. The 'Update from Network' option will be best for most users.
3. Rotate the Tuning/Select control to choose an auto-update option for
the clock. This can be updated from DAB or FM radio, from the Network,
or not updated. The default is to auto-update from the network. If you
choose another option go to 'Connecting to your computer network'
on page 13. Otherwise you will first need to select the correct time
zone and daylight savings setting, see the next steps. If you choose
'No update' you will need to set the clock manually later, see page 78.
Press the control to confirm your choice.
4. Rotate the Tuning/Select control to highlight the time zone for your
current location. Press the Tuning/Select control to enter the setting.
5. You will then need to set the Daylight Savings option according to your
location (Daylight Savings is also known as Summer/Winter time or
BST/GMT adjustment).
Rotate the Tuning/Select control to highlight 'ON' or 'OFF' as required.
The asterisk shows the current setting.
In the UK, 'ON' is equivalent to British Summer Time and 'OFF' is
equivalent to Greenwich Mean Time.
6. Continue setting up your radio on the next page.

13
Connecting to your computer network
Before you can use your Stream 205 radio to listen to internet radio or to
music streamed from your computer, it must first be connected to your
computer network.
This section of this book describes how to connect the radio to your
network using either the wireless (WiFi) connection or the wired (Ethernet)
connection.
The following instructions assume that you have just set up the clock and
time options using the Setup Wizard as described on the preceding page.
These instructions also apply to the Network Wizard in the Network Settings
menu (from step 2 onwards).
1. After setting the Daylight Savings options (see page 12), the display

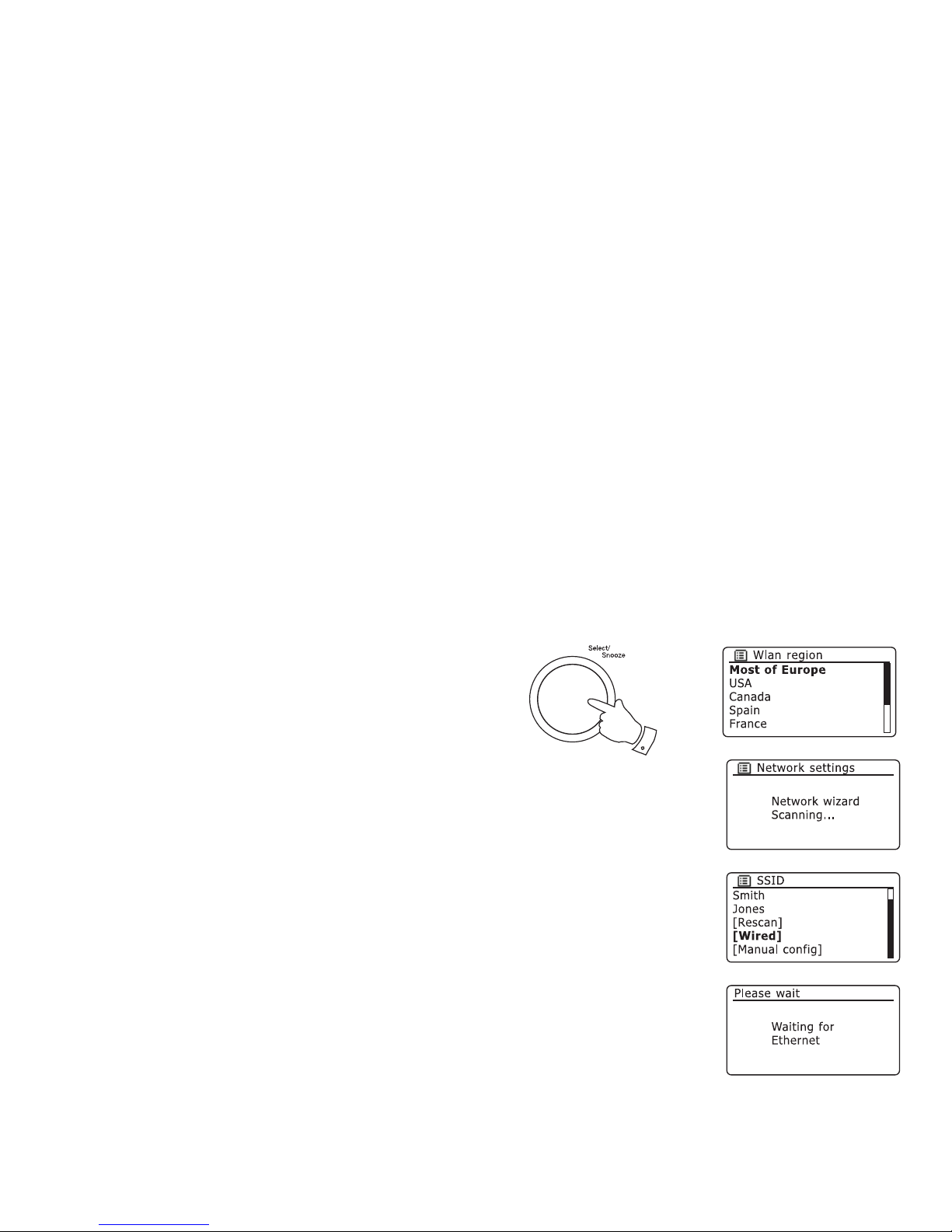

will show a list of WiFi regional options for the network set up.
Rotate the Tuning/Select control to highlight the required region (for
the UK choose 'Most of Europe'), and then press the control to make
the selection. Do this even if you are planning to use the wired Ethernet
connection.
Your radio will then scan for available WiFi networks.
2. The radio will enter the Network Settings Wizard and will display
'Scanning...'. After a short while the display will show a list of the
available WiFi networks. If you are intending to use the WiFi connection,
go to step 3 on the next page.
To use the Ethernet connection to your router (with automatic
configuration), rotate the Tuning/Select control to point to the '[Wired]'
menu item. Press the control and the radio will attempt to connect.
If your network allows automatic configuration (which is normal) the radio
will acquire a network address. The screen should say 'Connecting...',
and then 'Setup wizard completed'. Press the Tuning/Select control
to exit the setup wizard and show the main menu. You can then skip
to paragraph 10 on page 16.
1,2

If you need any further advice, please call our Technical Helpline on 020 8758 0338 (Mon-Fri) 14
Configuration
3-4
Connecting to your computer network - cont.

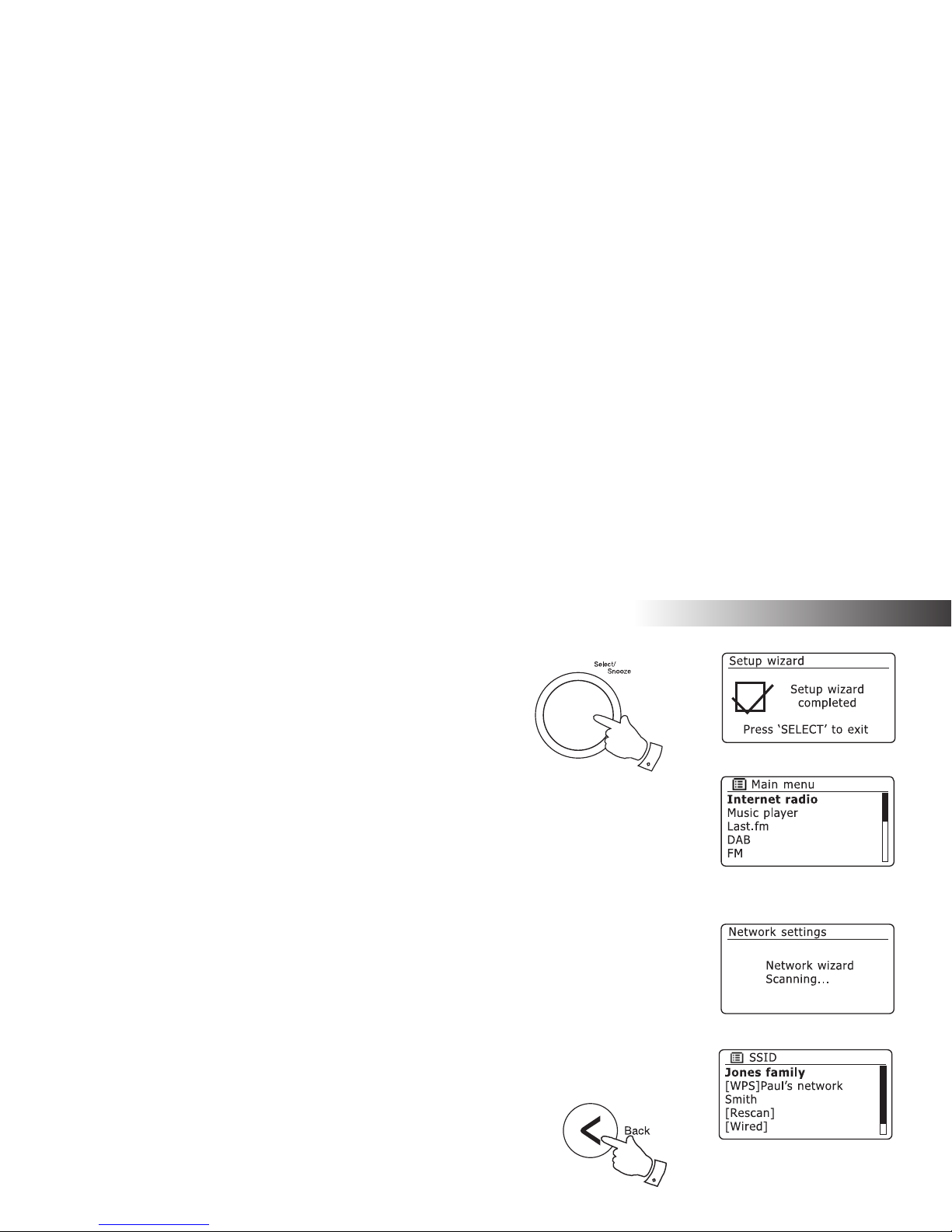

There are two indicator lights incorporated into the RJ-45 connector.
If you have problems with your wired connection, they may help you
to identify the possible cause of the problem.
Green ON = Link established; OFF = no connection
Green Flashing = Data transfer
Yellow ON = 100 Mbits/sec link; OFF = 10 Mbits/sec link
If your network does not support automatic configuration or if you wish
to set it up manually then you should select '[Manual config]' instead
of selecting '[Wired]' in the Network Wizard, then go to page 18.
3. If you plan to use a WiFi connection, you will first need to identify your
network in the list of network names presented by the Network Wizard.
If no networks are found then you may have to get your wireless router
working (please see the instructions supplied with it) or you may be
too far from the router.
When the radio finds your wireless network, it displays the Network
Name (SSID) for the wireless access point on the screen. This is a
name that is allocated to the access point in your router by the person
who set up the network - for example: 'Jones family' or 'Paul's network'.
If the router supports WiFi Protected Setup, then '[WPS]' will be shown
in front of the SSID.
It is possible, and in some locations highly likely, that your radio will
find more than one wireless network, in which case you should choose
which one you need to connect to.
4. Rotate the Tuning/Select control to see the SSID for each wireless
network that has been found. If your network is shown proceed to step
6 on the next page. If it is not shown then proceed to step 5, also on
the next page.
If you make a mistake at any point, use the Back button to go back
to the previous screen.
4

15
Connecting to your computer network - cont.

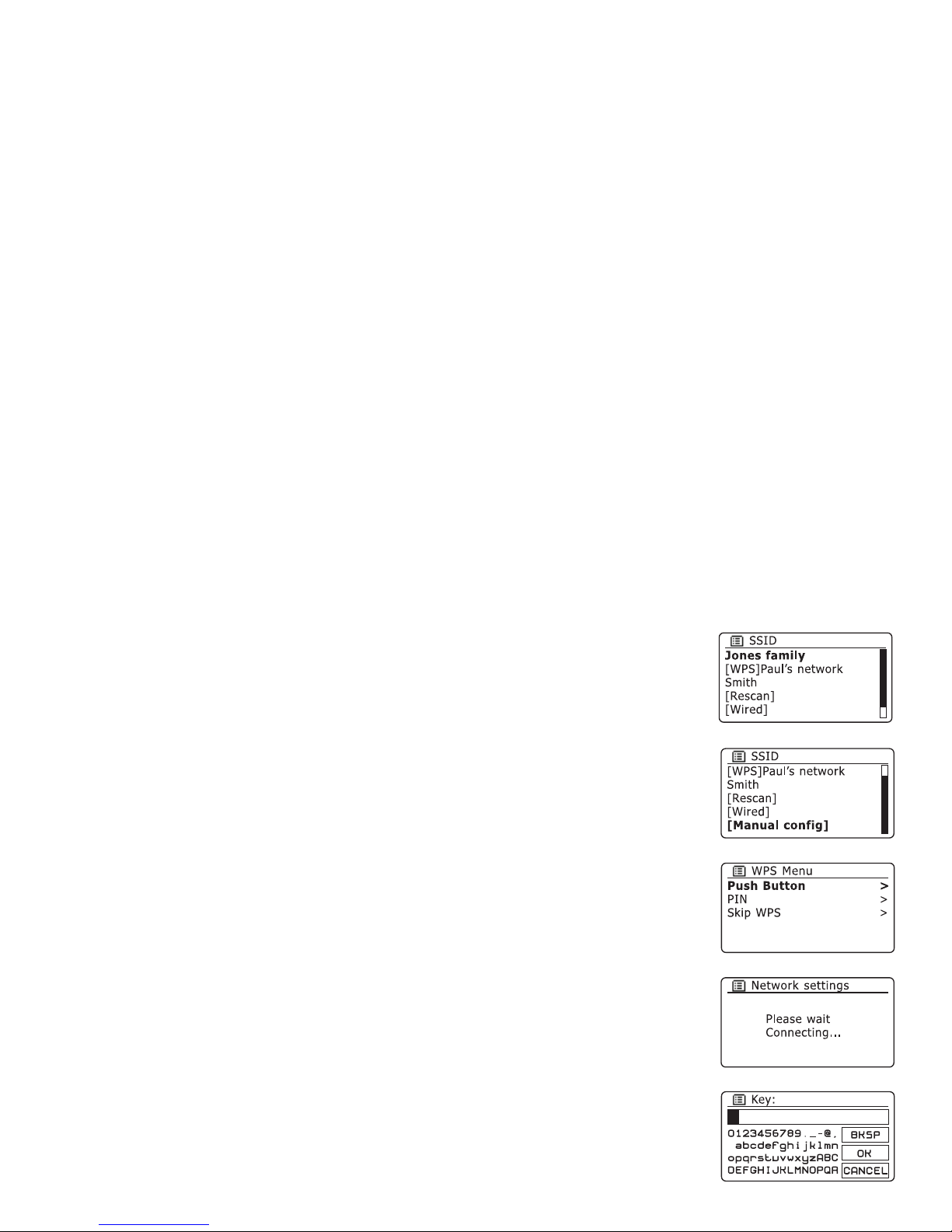

5. If your network is not found, it may be because the router is configured not to broadcast the SSID. You
should then use the Tuning/Select control to highlight and select the '[Manual config]' option in order to
enter the network details manually. This is described in 'Manual Network Configuration', see page 18.
If your network name is being broadcast, and it was not found, then try re-scanning (press the Back
button), and if necessary try moving your radio to a location closer to your access point / router.
6. When the SSID for the wireless network you wish to connect to is highlighted on the screen, press the
Select control. If WiFi Protected Setup (WPS) was indicated, you will see an additional menu at this point,
otherwise proceed to step 7.
Choose one of the WPS menu options as required for your router (WPS may be via push button, or using
an identification number).
'Push Button' - the display prompts you to press the WPS button on your router and then the Select control
on the radio. The two devices should then connect with the encryption key sent automatically to the radio.
'PIN' - the display shows an identification number which you must enter into your router using a web browser
(refer to your router's user documentation). You should then press the Select control on the radio. The
two devices should then connect with the encryption key sent automatically to the radio.
'Skip WPS' - if you wish to enter the encryption key yourself (or if it was previously entered).
If you chose Push Button or PIN the screen will then show 'Connecting...' and then 'Setup wizard completed'.
Press the Tuning/Select control to exit the setup wizard and then go to paragraph 10 on the next page.
7. If your network is configured without an encryption key, the screen should say 'Connecting...', and then
'Setup wizard completed'. Press the Tuning/Select control to exit the setup wizard and show the main
menu. If this is the case then you have successfully connected your radio to your network, so please go
to paragraph 10 on the next page.
8. If the screen displays 'Key:', it is because the network is using one of the encryption systems: Wired
Equivalent Privacy (WEP) or WiFi Protected Access (WPA). You will need to enter the correct WEP or
WPA key into the radio to allow it to communicate with your wireless network. If you do not have the WEP
or WPA key, then you should obtain it from the person who set up your network. Some wireless routers
may come with an encryption key already set up by the supplier, in which case you should refer to the
documentation provided with it. WPA is used here to also include WPA2.

If you need any further advice, please call our Technical Helpline on 020 8758 0338 (Mon-Fri) 16
Configuration
Connecting to your computer network - cont.
WEP keys are 10 or 26 characters long (using 0 - 9, and A - F). Some wireless
routers can also use pass-phrases for WEP but these are not supported by the radio.
WPA keys are usually set up using a pass-phrase of between 8 and 63 characters.
Your radio accepts pass-phrases for WPA keys.
9. To enter the WEP or WPA key, characters are selected and entered using the
Tuning/Select control. As you rotate the control, the highlight scrolls through
the available characters as well as the three controls on the right. The character
currently highlighted will be entered when you press the Tuning/Select control.
Do this as needed until the complete key has been entered. Remember, WEP
keys only use the numbers 0-9 and letters A-F. WPA keys are sensitive to upper
and lower case characters. You must enter the key exactly or the radio will not
connect to the network.
The three controls on the right-hand side of the screen have special functions. You
can quickly access these by pressing the Info button and then using the Tuning/
Select control as needed:
select ' ' to erase a character just entered (long press to clear); Info
again to continue
select ' ' when the complete key has been entered
select ' ' to cancel and re-run the Network Wizard
If a WEP or WPA key has previously been entered for the selected SSID then the
display will show 'Key: [Set]'. If you have previously entered a different key, you must
clear this by selecting the ' ' symbol. This will remove the '[Set]' indication.
After the final character of the WEP or WPA key has been entered, highlight the '
' symbol and press the Tuning/Select control.The screen will show 'Connecting...'
and then 'Setup wizard completed'. Press the Tuning/Select control to the exit
setup wizard. The radio should now be able to connect to the network.
10. Once you have connected your radio to the network (and therefore also to the
Internet) it will display the main menu. Press the On/Off button to put the radio
into standby mode. It should then display the time as obtained from the Internet.
If the time display is not correct for any reason, it can easily be adjusted later, see
page 78, 'Manually setting the clock'.
10
9-10

17
Connecting to your computer network - cont.
If you have followed the steps on the preceding pages successfully, your radio will have connected to your
router, and then made a connection to the Internet and set its clock. If this is the case, then you can try
listening to radio stations via the Internet as described on page 22 onwards.
Changing the network connection
In the sections above, you chose how your radio would be connected to your network, either using a WiFi
connection or using a wired Ethernet cable. From time to time, you may find that you need to connect to
different computer networks. The network settings menu allows you to change your radio’s network settings,
scan for an alternative wireless network, or to manually configure the network parameters.
The steps outlined below describe how you can do this - see also the section 'Network profiles' on page 91.
If you have no need to do this, however, please skip to page 22.
Configuring the radio to use an alternative WiFi connection
1. From the Network settings menu select 'Network wizard'. This will present you with details of any WiFi
networks that are found. Scroll down the list using the Tuning/Select control to the desired network
name. Press the control to select this network.
The radio will then use its WiFi system to communicate with the network. Depending on the settings
for the new network you may need to enter an encryption key (see pages 15-16). By default the radio
will then acquire an IP address and other network settings from your router using DHCP.
Configuring the radio to use the wired Ethernet connection
2. Connect your radio to your router using an Ethernet cable plugged into the RJ-45 socket at the back of
the unit. From the Network settings menu select 'Network wizard'. This will present you with details of
any WiFi networks that are found. Scroll down the list to the '[Wired]' option using the Tuning/Select
control. Press the control to select this.
The radio will then use its Ethernet connection to communicate with the network. By default the unit
will then acquire an IP address and other network settings from your router using DHCP.

If you need any further advice, please call our Technical Helpline on 020 8758 0338 (Mon-Fri) 18
Configuration
Manual network configuration
If you do not wish to use DHCP for automatic configuration, or if your network is configured with a hidden
SSID, then you will need to enter some network settings manually. (Note - a hidden SSID may prevent
casual observers from detecting your network, but it is not recommended as a means of network security.)
1. From the radios Network settings menu, select 'Manual settings'. You must then choose whether to
connect using 'Wired' or 'Wireless' connections. If you choose 'Wireless' there are as many as nine
settings screens, shown by the '1 of 9' progress marker in the top right corner of the display. If you
choose 'Wired' there are five screens and the progress marker will reflect this, although the steps to
set up the network parameters are basically the same.
2. The next menu asks whether you wish to use DHCP to configure your network parameters (IP address,
subnet mask, gateway address, etc.). Unless you are familiar with networking and related terminology,
we recommend that you allow the use of DHCP. Choose 'DHCP enable' unless you need to specify
the network details manually.
If you have chosen 'Wired' and then 'DHCP enable', your radio should now establish a connection to
the router using the Ethernet cable. Please skip to step 11 on page 20.
If you chose 'Wireless' and 'DHCP enable', please skip to step 6 on page 19 in order to set up the
wireless connection details.
If you chose 'DHCP disable' for either connection method, the next step is to set up the IP address.
3. The manually specified IP address should be chosen to be compatible with the settings in your router
and must be a unique address on your network. If you are using DHCP for some devices and static
(manually configured) IP addresses for others, the IP address used should fall outside the range that
the router may allocate using DHCP. Typically, the first three groups of digits will be the same for all
devices on your network. To enter the IP address, rotate the Tuning/Select control to set the value for
each group of digits and then press the control to enter the value and to move on to the next group.
When the IP address has been entered, the subnet mask should be entered. The subnet mask defines
which parts of the IP address are common across your network. For most small networks the subnet
mask will be 255.255.255.0 and this is entered in the same way.
4. The Gateway address is normally the IP address of the router through which the radio connects to the
internet and is entered in the same way as the previous addresses.

19
Manual network configuration - cont.
5. In most installations the DNS settings (DNS = Domain Name Server) will be set to the same IP address
as your router. In this case the secondary DNS may be left at zero.
To enter the DNS address, rotate the Tuning/Select control to set the value for each group of digits
and then press the control to enter the value and to move on to the next group. Repeat this until all
eight groups of digits have been entered.
If you previously specified 'Wired' and then 'DHCP disable', your radio should now connect to the router
using the Ethernet cable (in which case skip to step 11).
6. If you specified 'Wireless', the next step is to set up the WiFi connection, starting with the name of the
wireless network (SSID) followed by the encryption options and password.
To enter the SSID, characters are selected and entered using the Tuning/Select control. As you rotate
the control, the radio scrolls through the available characters as well as the three controls on the right.
The character currently highlighted will be entered when you press the Tuning/Select control.
Do this as needed until the complete network name has been entered. The SSID setting is sensitive
to upper and lower case characters and symbols. You must enter it exactly as set up in your router.
The three controls on the right-hand side of the screen have special functions. You can quickly access
these by pressing the Info button and then use the Tuning/Select control as needed:
select ' ' to erase a character just entered (long press to clear); Info again to continue
select ' ' when the complete SSID has been entered
select ' ' to cancel and go back to the DNS settings screen
7. Having entered the SSID, you must enter details of the encryption system used on your wireless network.
This should be the same as specified in your router settings. If your network does not use encryption,
then select the 'Open' option. Your radio should then connect to the network, so skip to step 11. If your
network uses WEP (Wired Equivalent Privacy) select the 'Pre-Shared Key' option then go to step 8.
The remaining options are for WPA or WPA2 (WiFi Protected Access) - see step 9.
8. If you chose 'Pre-Shared Key' in step 7, you should then choose the WEP option. The key should be
entered using only the numbers 0-9 and the letters A-F. The key will be 10 characters long for 64-bit
encryption and 26 characters long for 128-bit encryption. The radio will accept lower-case letters a-f
as equivalent to upper-case A-F. Spaces or special symbols are not permitted in WEP keys.
