Roborock Xiaowa User manual

Roborock Xiaowa Robotic Vacuum Cleaner Manual
Please read this manual carefully before using the product and store it properly

Safety Information
Restrictions
This product is designed for indoor floor cleaning only, do not use it outdoors (such
as on an open-ended terrace), on any surface other than the ground (such as a
sofa), or in any commercial or industrial environment
Do not use this product on elevated surfaces without barriers such as the floor of a
loft, an open-ended terrace, or on top of furniture
Do not use the product when the ambient temperature is higher than 40℃,lower
than 4℃, or if there are liquids or tacky substances on the floor
Before using the product, move wires off the ground or place them to the side to
prevent them being pulled on by the cleaner
To prevent blocking the product and to avoid damage to valuables, remove
lightweight items (such as plastic bags) and fragile objects (such as vases) from
the floor before cleaning
Children should be supervised to ensure that they do not interfere with the product
This product is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or a lack of experience and
knowledge, unless they have been given supervisor instruction concerning use
of the product by a person responsible for their safety（CB）
1

Safety Information
This product can be used by children aged age 8 years and above and persons
with reduced physical, sensory or mental capabilities or a lack of experience
and knowledge once they have been given supervision or instruction
concerning the safe use of the product and understand the hazards involved.
Children should not play with the appliance. Cleaning and maintenance should
not be carried out by children without supervision（EU）
Keep the main brush cleaning tools out of reach of children
Do not place any object (including children and pets) on the product, whether
it is in operation or not
Keep hair, loose clothing, fingers, and all parts of the body away from openings
and moving parts
Do not use the product on burning objects (such as cigarette butts)
Do not use the product on high pile carpets (product effectiveness may also be
reduced on dark carpets)
Do not use the product to clean hard or sharp objects (such as glass and nails)
Do not carry the product using the laser scanner cap, main unit cover, or collision
buffer
2

Safety Information
The product must be switched off and the plug must be removed from socket-
outlet before cleaning or maintaining the appliance
Do not use wet cloth or liquids for cleaning the product
Do not use the mopping module on carpets
Use the product according to the manual. Any loss or damage caused from
improper use will be borne by the user
Battery and Charging
WARNING
For the purposes of recharging the battery, only use the detachable supply Unit
Xiaowa CDZ03RR or CDZ04RR provided with this product
Do not dismantle, repair or modify the battery or charging dock
Keep the charging dock away from heat (such as heating vents)
The battery must be removed from the product before it is disposed of
The product must be disconnected from the mains supply when removing the
battery
The battery must be disposed of safely. Do not discard waste batteries. Leave them
with a professional recycling organization
Do not wipe or clean the charger prongs with wet cloth or wet hands
3

Safety Information
If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard
Make sure the product is powered off before shipment. Use of the original packaging
is advised
If to be left unused for a long period of time, fully charge the product and switch it off
before storing it in a cool, dry place. Charge it at least every three months to avoid
over discharging the battery
Table of Faults of Robotic Vacuum Cleaner
Table of Faults of Robotic Vacuum Cleaner
Item
Faults
Functions do not work
Main unit
Does not power on
Main brush, side brush, fan or main wheel issue
Charging dock
Main unit does not charge
Power cable
Charging dock has no power
Charging dock Xiaowa CDZ03RR/ CDZ04RR s Xiaowa C1
Rechargeable Li-on battery pack information
BRR-1P4S-2600S/BRR-1P4S-2600D
2600mAh/37.44Wh
Cell number
4
4

Introduction

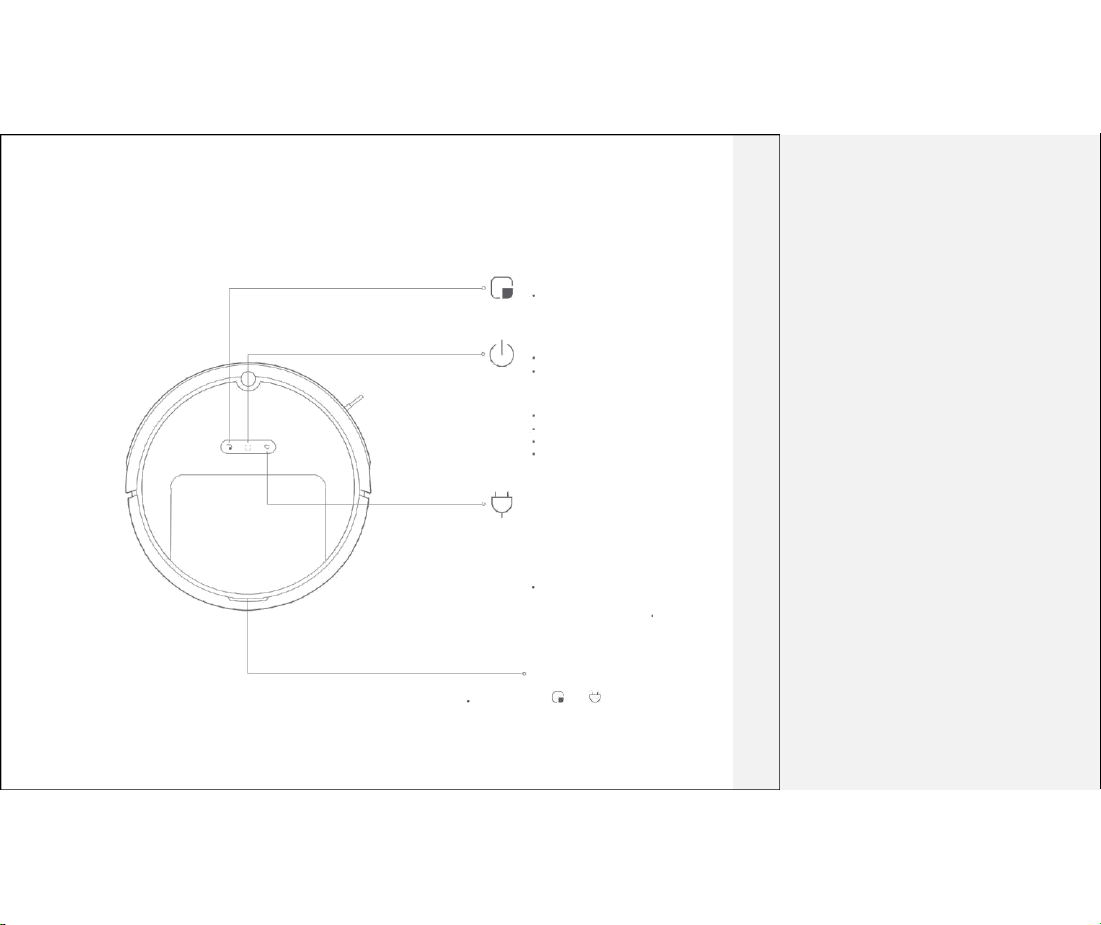

Main unit
Spot cleaning
Press to start spot
cleaning
Clean/ON&OFF
Press to start cleaning
Press and hold to power
on or off
POWER light
White: battery capacity ≥
30%
Red: battery capacity ＜
30%
Slow flashing: Charging or
starting up
Flashing red: Error
Recharge
Press to return to charging
dock
Note: press any button to
pause cleaning,
recharging or spot cleaning
Reset WIFI
Press and hold and for 3 seconds
Cover latch

5

Introduction

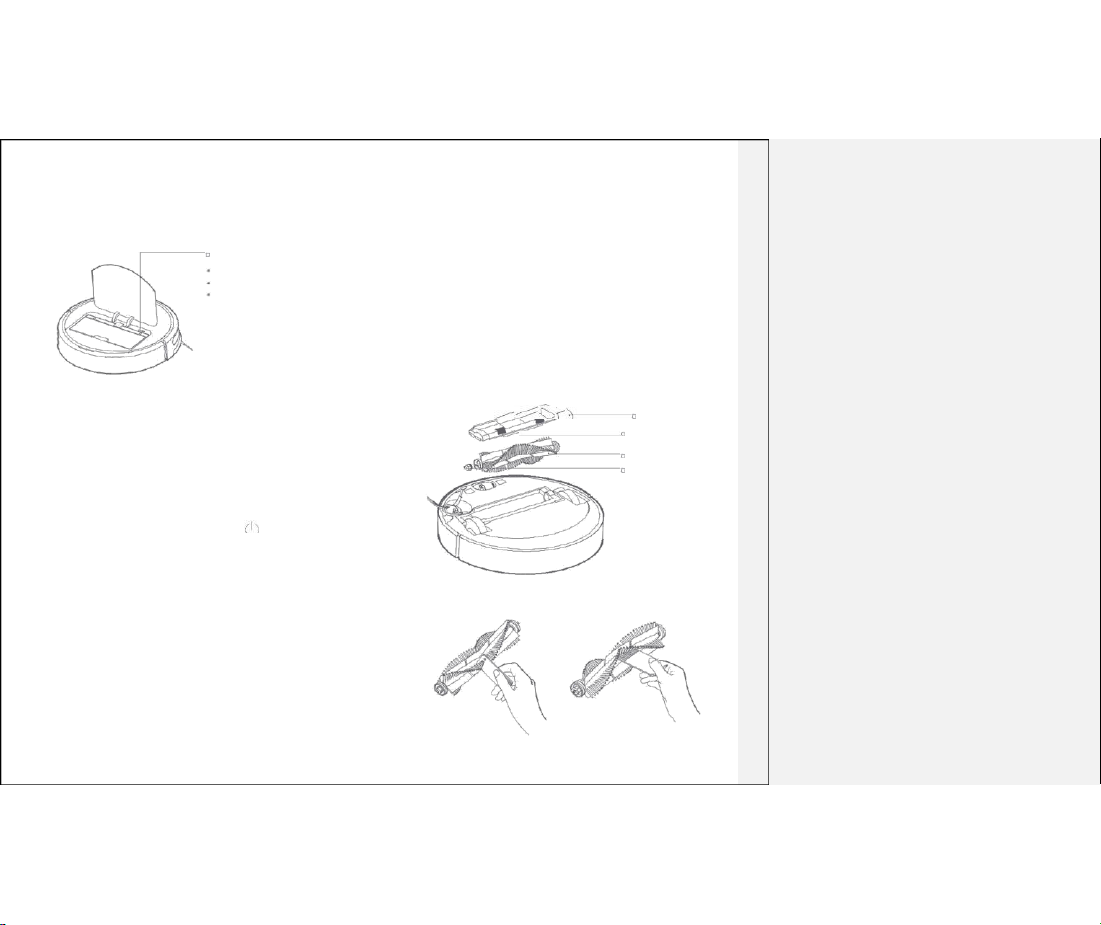

Dust bin Main unit
Dustbin lid
Dustbin latch
Strainer

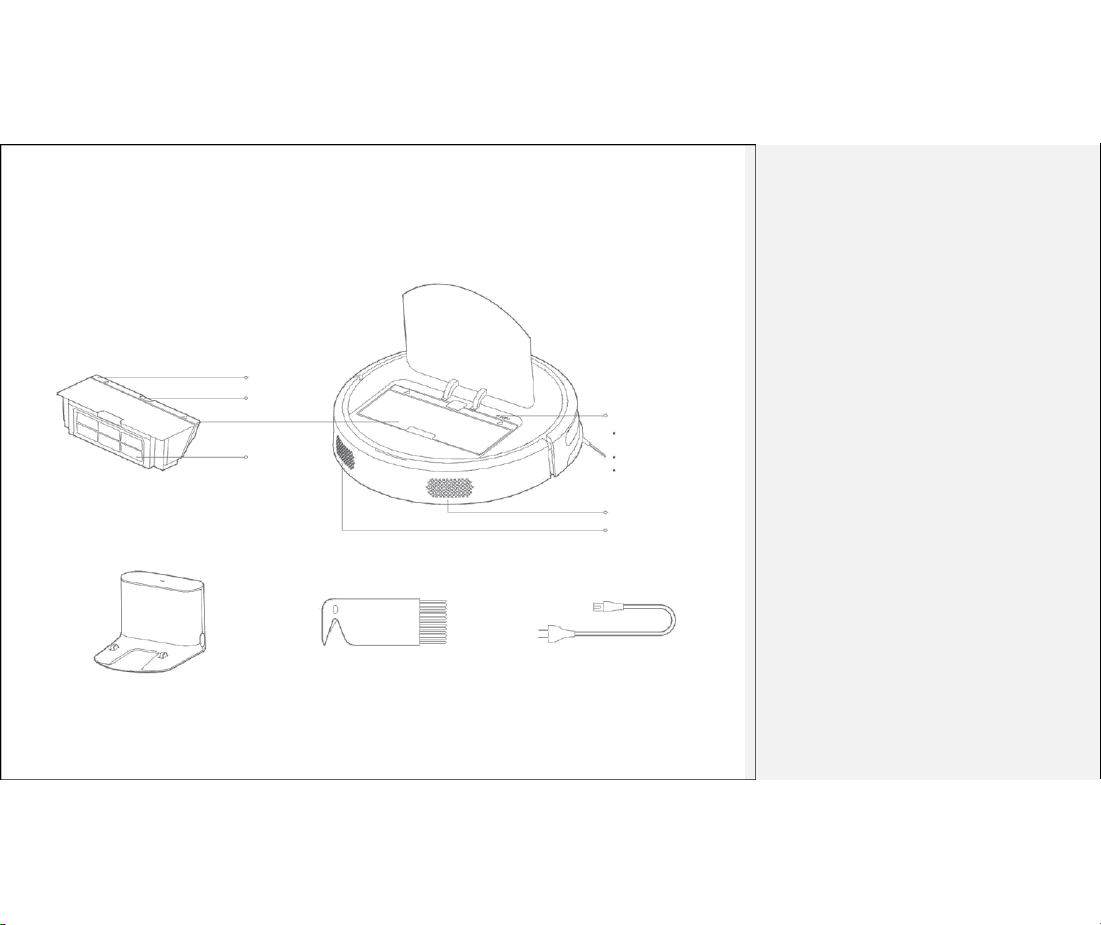

Accessories
Charging dock Main brush cleaning tool
WIFI indicator
Slow blinking:
Waiting to connect
Fast blinking: Connecting
Stable: WIFI is
connected
Air vent
Speaker
Power cable
6

Introduction

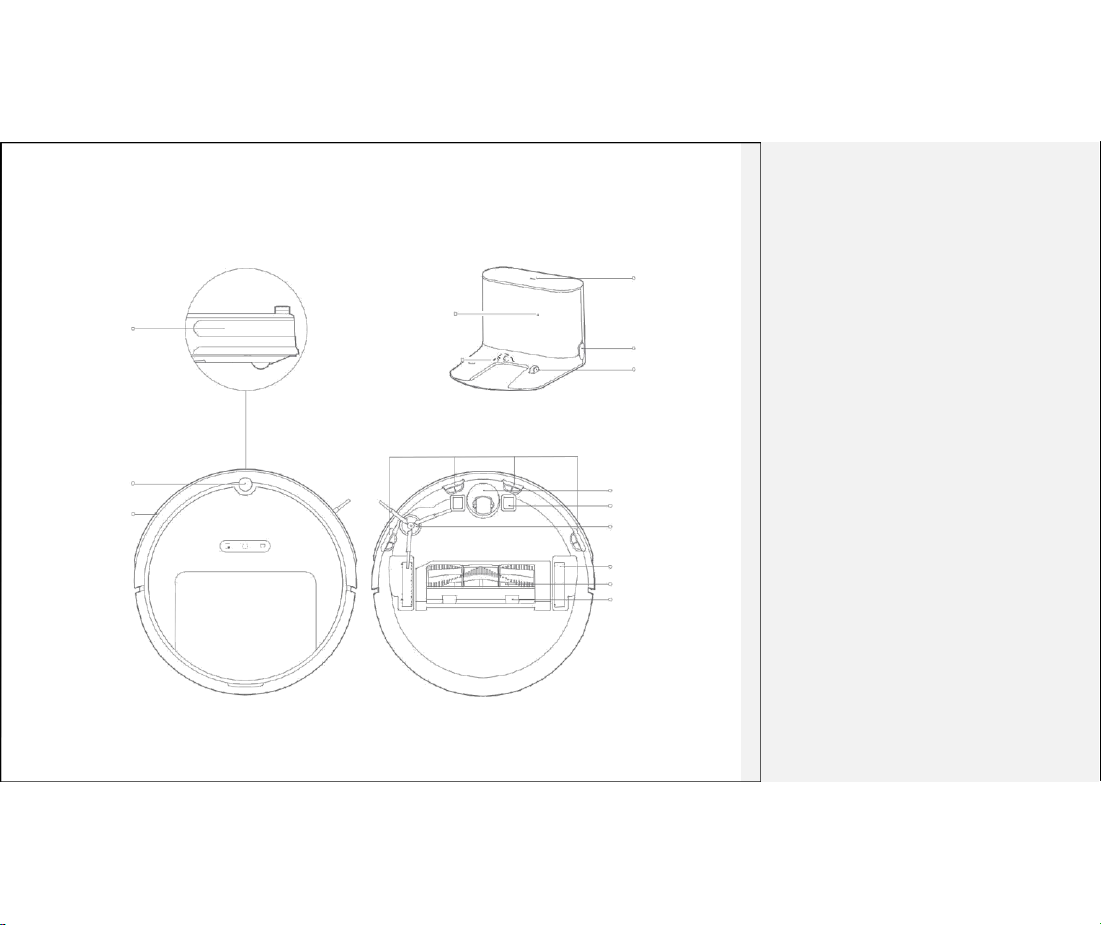

Main unit and sensors Charging dock
Charging dock
indicator
Signal transmission area
Infrared deceleration sensor
Power connector
Charging point Charging point
Cliff Sensor
Omni-directional
Omni-directional wheel
charging dock sensor
Charging contact points
Bumper
Side brush
Main wheels
Main brush
Main brush cover latch
7

Installation

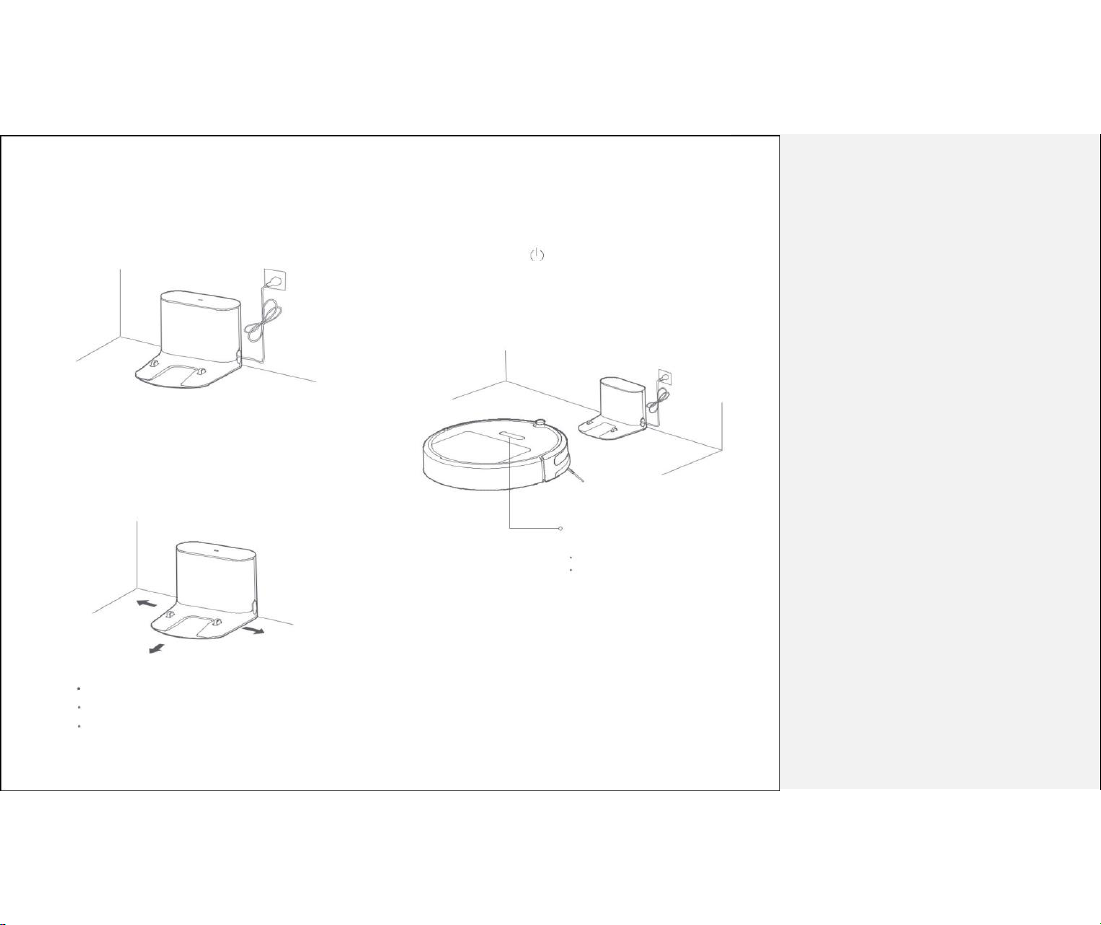

1 Connect the power cable and use a cable
tie to clear excess wiring
2 Place the charging dock on a level surface, flat
against a wall, plugged into a power outlet.
More than 0.5 m
More than 0.5 m
More than 1.5 m
Notes:
Leave at least 20in (50cm) either sides, and at least 60in (150cm) in front of the
charging dock
Poor placement may cause the charging dock to be dragged by the product,
causing power dropout.
The charging dock indicator light switches on when plugged into a power outlet,
and is off when the when main unit is being charged.
Placement in an open area will improve cleaning efficiency
3 Powering on and charging
Press and hold the button to power on, wait until the
power light sops flashing, then dock the main unit to the
charging dock to charge
The product is equipped with a high-performance lithium-
ion rechargeable battery. Keep the product charged for
maximum battery performance.
The color of the power light
indicates battery level
White: battery capacity ≥ 30%
Red: battery capacity ＜30%
Note: The product may not switch on when power is low.
Connect it to a charging dock before switching on.
4Connect to smartphone (optional)
8
