RoboVent FloorSaver Series User manual

Owner’s
Manual
Installation, Operation
& Maintenance
Revised 11-30-20
FloorSaver Series (DFS-)
Dust Collectors

Models:
DFS-2000-2
DFS-3000-3
DFS-4000-4
DFS-6000-6
DFS-8000-8
DFS-12000-12
Owner’s Manual
Installation, Operation & Maintenance
Manufactured by:
RoboVent
37900 Mound Road Sterling Heights, MI 48310 USA
[phone] www.robovent.com
©2016 RoboVent All rights reserved.

3 ROBOVENT • DFS SERIES OWNER’S MANUAL
Dear Customer,
Thank you for purchasing the DFS FloorSaver Dust Collector. This manual will help you
use the many features available to customize the unit to your specific welding needs.
When your DFS unit needs scheduled maintenance, keep in mind that your local RoboVent
distributor has technicians specially trained in servicing our collectors. We would be pleased to
set up a preventative maintenance program or answer your questions and concerns.
At RoboVent we are committed to making your plant a safe and healthy environment
for your workers. Please take time to read this manual thoroughly before installing and
operating the unit.
Congratulations!

ROBOVENT • DFS SERIES OWNER’S MANUAL 4
Important Safety Instructions................Section 100................... Page 5
Features of the DFS Series Collectors .........Section 200..................Page 6-8
Receiving & Inspection ....................Section 300................... Page 9
General Description .......................Section 400.................. Page 10
Specifications ...........................Section 500...............Pages 11-16
Installation..............................Section 600...............Pages 17-18
Operation...............................Section 700...............Pages 19-20
Standard Maintenance Procedure ............Section 800...............Pages 21-22
Filter Change Maintenance Procedure .........Section 800...............Pages 23-25
VFD Maintenance Procedure. ... ..........Section 900. ............Pages 26-27
Motor Greasing Guide. . . . . . . . . . . . . . . . . . . Section 1000 . . . . . . . . . . . . .Pages 28-37
Troubleshooting . ......................Section 1100. ............Pages 38-39
Appendix A: ePad Electronic Programmable Controller - Instruction Manual
Appendix B: General Wiring Diagrams
Appendix C: Parts List
Table of Contents

5 ROBOVENT • DFS SERIES OWNER’S MANUAL
Failure to follow all instructions may result in electric
shock, bodily injury and/or destruction of the unit.
Use of controls, adjustments, or performance of
procedures other than those specified herein, may
result in electrical shock.
IMPORTANT SAFETY INSTRUCTIONS
1. Read all instructions thoroughly.
2. Heed all warnings.
3. Do not block intake or exhaust vents. Keep the exhaust vent
free from debris and materials that could restrict airflow.
Prolonged restriction could damage the motor and electrical
components. Any blockage of the air flow will decrease
efficiency of this unit.
4. Refer all service matters to qualified service personnel.
Servicing is required when the unit is damaged in any way
including the control panel, supply wiring or in the case of
excessive filter loading.
5. Risk of serious personal injury or death!
Use extreme care to make sure you are never in a position
where your body (or any item you are in contact with,
such as a screwdriver or test instrument) can accidentally
touch the blower wheel.
6. Disconnect power before working on the motor or
blower wheel. The motor or blower wheel should be
disassembled only by a factory authorized technician.
SECTION 100
Important Safety Instructions

ROBOVENT • DFS SERIES OWNER’S MANUAL 6
1. The DFS Ductless System
The DFS FloorSaver system is a self-contained air
cleaning unit that captures fumes at the source,
filters impurities and returns clean air into the
work place. Your DFS unit is part of the RoboVent
FloorSaver system that can be customized to any
weld cell configuration and requires no footprint in
the plant.
Energy cost, floor space and improved air quality are
only some of the benefits from the DFS product line.
2. Vertical Filter Design
The DFS ductless system utilizes a vertical
cartridge filter concept to overcome the tendency
for dust in the collector to be re-entrained back
onto the filter cartridges after it has been removed
from the filters by the Self Cleaning System. The
unique design increases filter life by 30% to 40%
over traditional horizontal filter placement.
3. High Performance Blower Design
Each DFS Series Dust Collector comes with Air
Foil blowers with direct drive motors. This highly
efficient blower design and direct drive system
maximizes the airflow (CFM) delivered by the
motor power requirements. (see Figure 2).
4. Filter Self-Cleaning System (FSS)
The DFS FloorSaver Series comes equipped with
an automatic Filter Self-Cleaning System (FSS)
utilizing a calculated pulse of high-pressure air into
the core of the cartridge filters. This reverse-jet
cleaning system can be programmed to best fit
your welding application.
5. Pulse Cleaning Cones and Nozzles
The DFS Model Collector utilizes a special cleaning
cone and nozzle combination which optimizes the
cleaning pulse by ensuring that the developed
overpressure in the filter is even throughout the
filter element. (see Figure 3).
SECTION 200
Features of DFS Series Collectors
FIGURE 1
FIGURE 2
FIGURE 3

7 ROBOVENT • DFS SERIES OWNER’S MANUAL
SECTION 200
Features of DFS Series Collectors(continued)
6. Automatic Maintenance Indication
The ePad Controller constantly monitors the
differential pressure between the dirty and clean
sides of the cartridge filters letting you know when
the filters should be changed. The ePad is preset
with default settings to assure the longest life of
your filters. Default settings can be changed to
meet your particular situation. See Appendix A for
changing the default setting of the ePad Controller.
7. Control Panel Station
The DFS Series come fully equipped with all
needed controls in one compact, control panel. The
ePad Controller can be accessed from the front
panel allowing ease in changing the ePad Controller
settings. (see Figure 5).
8. Sturdy 10 GA Reinforced
Collector Housing Construction
This heavy-duty construction secures a lifetime
of industrial use. Seams are robotic welded and
ground to assure there are no leaks or cracks that
could contaminate the facility air system. Each unit
is pre-tested for air leaks during construction and
again before installation.
9. Large Dust Storage Capacity
Your DFS unit comes equipped with an oversized
dust tray. (see Figures 6). The dust tray is designed
to capture and store particulate pulsed off the filter
cartridges and minimize “re-entrainment.”
(Re-entrainment is the term used for picking up
dust that has already been removed from the filter
and re-depositing it on the filter.)
FIGURE 5
FIGURE 6

ROBOVENT • DFS SERIES OWNER’S MANUAL 8
SECTION 200
Features of DFS Series Collectors(continued)
10. Front Door Filter Access
Both the spark arrester baffles and the cartridge
filters are easily accessible through the filter access
door. Filter replacement is made easy and requires
less time and effort than traditional side loading
systems. (see Figure 7)
11. Acoustic Motor Plenum
High-density sound materials and Bass Trap
Acoustics have been implemented as part of the
blower compartment. The acoustically designed
plenum greatly reduces motor and blower noise
levels and decreases ambient noise into the facility.
(see Figure 8)
12. Smoke Detection Shut-Down System
Each DFS unit is equipped with a Smoke Detection
Shut-Down System. In the event that a fire or
excessive smoke should appear in the clean air
plenum, the blower wheel and ePad Controller will
automatically shut down and a strobe light will be
activated.
13. High Efficiency Pre-Coated Filters
High efficiency filter media is used in the
construction of the pleated cartridge filters. The
high density, pre-coated filter allows the air to flow
slowly past the filter media to lay the dust gently
on the outside surface, allowing it to be pulsed off
easily. Filter construction, media and the pre-coat
process assures more efficient smoke capture and
longer filter life.
FIGURE 8
FIGURE 7

9 ROBOVENT • DFS SERIES OWNER’S MANUAL
Receiving
RoboVent Equipment is typically shipped on skids or in crates. The number of skids/
crates will vary, depending on the type, size and accessories ordered. These skids/
crates are too heavy to lift by hand, and will need to be unloaded by an industrial fork-
truck or similar equipment.
Inspection
A visual inspection of your equipment should be performed before it is removed from
the truck. Dents, scratches, and other damages should be noted on the shipping
documents, and also photographed. The structural integrity of the housing can be
adversely affected by large dents. RoboVent should be immediately notified of any
structural damage to your equipment. It is the purchaser’s responsibility to file shortage
reports and damage claims with the carrier and with your RoboVent Representative.
The carrier is responsible for any damage to the equipment while it is in transit unless
specific arrangements are made otherwise.
Compare the number of items received against the carrier’s bill of lading. Inspect all items for
apparent damage. Immediately report any shortages or obvious damage to the carrier and to
your local RoboVent Representative, or call the factory at 1-(888)-762-6836.
When all skids are completely unpacked and uncrated, check all items received against the
packing lists. Further inspect the unit and components for hidden damage. Again, report
any shortage or damage to the carrier and to your local RoboVent Representative.
The filter cartridges are typically shipped installed in your collector. Be sure to check them
for alignment, as they may have shifted during transit. If they have shifted, it is possible that
damage may have been done. Remove all filter cartridges and inspect thoroughly.
Note: Do not return any damaged components without first contacting your RoboVent
Representative to obtain a Returned Goods Authorization (RGA).
Small Parts
Carefully inspect all packing material before it is discarded, to be sure that no small parts
have been missed.
SECTION 300
Receiving & Inspection

ROBOVENT • DFS SERIES OWNER’S MANUAL 10
The DFS Series Collectors are a compact, continuous
duty, self-contained dust collector. The units consist
of a housing with blower, motor, integral silencer, filter
cartridges, spark arrester baffles and pulse cleaning
system. (see Figure 9).
The Filter Self-Cleaning System (FSS)
The DFS Series is a reverse jet-pulse dust collector
with a powerful Filter Self-Cleaning System (FSS).
The FSS utilizes a calculated reverse jet-pulse of air
into the inner core of the cartridge filter. (see Figure
10). This shock wave of reverse air will dislodge
particulate that has caked on the outside of the
cartridge filter. As the filter cartridges are mounted
vertically, the dislodged dust eventually works its
way down to the lower collection tray. This process
reconditions the filter media and can prolong
cartridge life for several months (filter life depends
upon your application).
General Operation
Dust and smoke laden air is drawn through the floor
of an enlarged intake plenum where it passes through
a dual layered spark arrestor before entering the
cartridge plenum. Dust particles are then collected on
the surface of the pleated filter cartridges as air flows
through the high efficiency media and into the clean air
duct. Recycled air is then exhausted by the blower fan
through an acoustically designed motor plenum.
To operate your new DFS unit, you will need to connect
both electrical power and compressed air.
See “Installation”.
SECTION 400
General Description: DFS Series Collectors
FIGURE 9
DIRTY
AIR
DIRTY
AIR
CLEAN
AIR
FIGURE 10

11 ROBOVENT • DFS SERIES OWNER’S MANUAL
SECTION 500
Specifications
Inlet
Clean Air Exhaust
Filter Access Door
Motor Enclosure Door
Electrical Enclosure
Standard Features:
PowerFlex™: Pulsing System to
deliver constant pulsing pressure
across entire filter
E-Pad™: Control Board - Touch
Screen Panel to control all system
Functions
SafeSensor™: Particulate
Monitoring Device
Heavy Duty Construction: Fully
welded 7-10 Gauge Steel
Nema 12 Super Seal Doors and
Control Panel Enclosure
Internal Slide-Out Dust Tray: For
Fast and Easy Removal of Accumu-
lated Particulate
Available Options:
E-Drive™: Automatically adjust
the Airflow via a Flow Monitor
and VFD to extend Filter Life and
Reduce Energy Cost by up to 30%.
AutoSaver™: Auto On/Off Feature.
Supprex-200™: A Proprietary
Engineered Fire Suppression
System designed specifically for
Collector systems.
HEPA After Filters
Acoustical Sound Plenum:
Reduces Sound Levels up to 50%.
E-Pad™ XE: Premium Controls
Upgrade
Model DFS-2000-2
Filter Media: Comparable to 710 square feet
Filter Cartridges: (2) EX-14D36-A13, Blended Non-Woven Media,
Nanofiber
Electrical Requirements: 480 Volt, 3 phase, 3.0 amps, 3.7 amps**
Built-in Spark Arrestance:
(2) Metal Mesh (Part#: MM-17402)
(2) Spark Arrestance Baffles (Part#: FB-17402)
Pulse Valves: (2) 1", Electronically Actuated Solenoids
Compressed Air Requirements: 1.0 SCFM On-Line Pulse; 6.0 SCFM Off-
Line Pulse @ 80 PSI
Silencing: Built-in Acoustical Lining
Weight: 1,190-1,330 Lbs. (depends on options) without stand
Dimensions: 59" W x 30" D x 60" H
ePad Controls: Included
60”
30”
59”
DFS-2000-2 shown with
RVH Hood
DFS-2000-2-M1530 2 HP/15” @ 30% 1200 @ 5” 1.7:1
DFS-2000-2-M1632 3 HP/16” @ 32% 1850 @ 5” 2.6:1
DFS-2000-2-M1830-V 5 HP/18” @ 30% w/VFD 1700 @ 12” 2.4:1
Model Number Configuration CFM IN W.C Air to
Cloth Ratio
This system is covered by one or more of the following patents: #6,758,875;
#4,610,704 and other patents pending. Due to continued engineering, all
specifications are subject to change without notice. ©2014 RoboVent
888.ROBOVENT (888.762.6836)
Specifications
Rev.#1 7/21/11

ROBOVENT • DFS SERIES OWNER’S MANUAL 12
SECTION 500
Specifications
Standard Features:
PowerFlex™: Pulsing System to
deliver constant pulsing pressure
across entire filter
E-Pad™: Control Board - Touch
Screen Panel to control all system
Functions
Safe Sensor™: Particulate
Monitoring Device
Heavy Duty Construction: Fully
welded 7-10 Gauge Steel
Nema 12 Super Seal Doors and
Control Panel Enclosure
Internal Slide-Out Dust Tray: For
Fast and Easy Removal of Accumu-
lated Particulate
Available Options:
E-Drive™: Automatically adjust
the Airflow via a Flow Monitor
and VFD to extend Filter Life and
Reduce Energy Cost by up to 30%.
AutoSaver™: Auto On/Off Feature.
Supprex-200™: A Proprietary
Engineered Fire Suppression
System designed specifically for
Collector systems.
HEPA After Filters
Acoustical Sound Plenum:
Reduces Sound Levels up to 50%.
E-Pad™ XE: Premium Controls
Upgrade
Model DFS-3000-3
Filter Media: Comparable to 1,065 square feet
Filter Cartridges: (3) EX-14D36-A13, Blended Non-Woven Media, Nanofiber
Electrical Requirements: 480 Volt, 3 phase, 3.7 amps, 6.2 amps,
and 9.2 amps**
Built-in Spark Arrestence:
(2) Metal Mesh (Part#: MM-17402)
(2) Spark Arrestence Baffles (Part#: FB-17402)
Pulse Valves: (3) 1", Electronically Actuated Solenoids
Compressed Air Requirements:
1.0 SCFM On-Line Pulse; 6.0 SCFM Off-Line Pulse @ 80 PSI
Silencing: Built-in Acoustical Lining
Weight: 1,410-1,560 Lbs. (depends on options) without Stand
Dimensions: 73" W x 30" D x 60" H
ePad Controls: Included
Inlet
Clean Air Exhaust
Filter Access Door
Motor Enclosure Door
Electrical Enclosure
DFS-3000-3 shown with
RVH Hood
60”
30”
73”
DFS-3000-3-M1632 3 HP/16” @ 32% 1850 @ 5” 1.7:1
DFS-3000-3-M1830 5 HP/16” @ 30% 2650 @ 5” 2.5:1
DFS-3000-3-M2030-V 10 HP/20” @ 30% w/VFD 2700 @ 13” 2.5:1
Model Number Configuration CFM IN W.C Air to
Cloth Ratio
This system is covered by one or more of the following patents: #6,758,875;
#4,610,704 and other patents pending. Due to continued engineering, all
specifications are subject to change without notice. ©2014 RoboVent
888.ROBOVENT (888.762.6836)
Specifications
Rev.#1 7/21/11

13 ROBOVENT • DFS SERIES OWNER’S MANUAL
SECTION 500
Specifications
Standard Features:
PowerFlex™: Pulsing System to
deliver constant pulsing pressure
across entire filter
E-Pad™: Control Board - Touch
Screen Panel to control all system
Functions
SafeSensor™: Particulate
Monitoring Device
Heavy Duty Construction: Fully
welded 7-10 Gauge Steel
Nema 12 Super Seal Doors and
Control Panel Enclosure
Internal Slide-Out Dust Tray: For
Fast and Easy Removal of Accumu-
lated Particulate
Available Options:
E-Drive™: Automatically adjust
the Airflow via a Flow Monitor
and VFD to extend Filter Life and
Reduce Energy Cost by up to 30%.
AutoSaver™: Auto On/Off Feature.
Supprex-200™: A Proprietary
Engineered Fire Suppression
System designed specifically for
Collector systems.
HEPA After Filters
Acoustical Sound Plenum:
Reduces Sound Levels up to 50%.
E-Pad™ XE: Premium Controls
Upgrade
Model DFS-4000-4
Filter Media: Comparable to 1,420 square feet
Filter Cartridges: (4) EX-14D36-A13, Blended Non-Woven Media, Nanofiber
Electrical Requirements: 480 Volt, 3 phase, 6.2 amps, 9.2 amps,
17.5** amps
Built-in Spark Arrestance:
(2) Metal Mesh (Part#: MM-17402)
(2) Spark Arrestance Baffles (Part#: FB-17402)
Pulse Valves: (2) 1.5", Electronically Actuated Solenoids
Compressed Air Requirements:
1.3 SCFM On-Line Pulse; 7.8 SCFM Off-Line Pulse @ 80 PSI
Silencing: Built-in Acoustical Lining
Weight: 1,850-2,100 Lbs. (depends on options) without Stand
Dimensions: 60" W x 60" D x 60" H
ePad Controls: Included
Inlet
Clean Air Exhaust
Filter Access Door
Motor Enclosure Door
Electrical Enclosure
60”
60”
60”

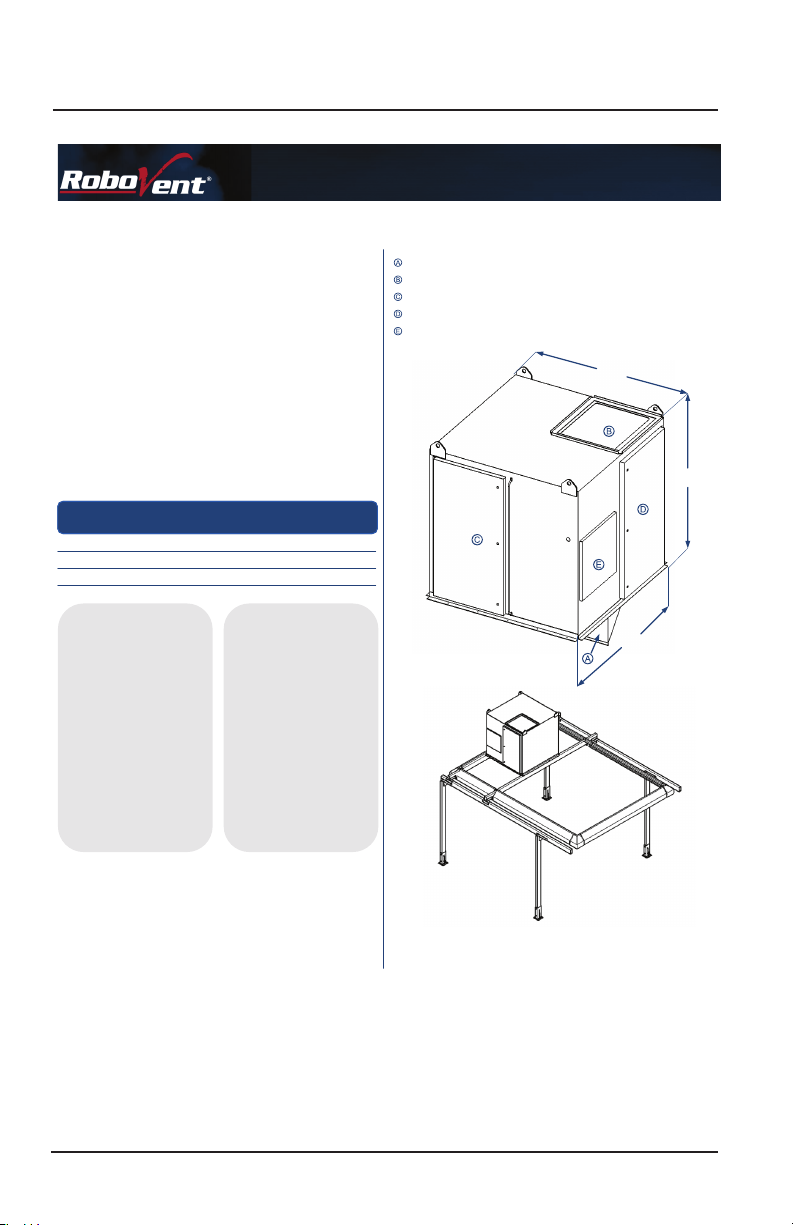

DFS-4000-4 shown with
RVH Hood
DFS-4000-4-M1830 5 HP/18” @ 30% 2650 @ 5” 1.9:1
DFS-4000-4-M1836 7.5 HP/18” @ 36% 3200 @ 5” 2.3:1
DFS-4000-4-M2230-V 15 HP/22” @ 30% w/VFD 3000 @ 19” 2.2:1
Model Number Configuration CFM IN W.C Air to
Cloth Ratio
This system is covered by one or more of the following patents: #6,758,875;
#4,610,704 and other patents pending. Due to continued engineering, all
specifications are subject to change without notice. ©2014 RoboVent
888.ROBOVENT (888.762.6836)
Specifications
Rev.#1 7/21/11

ROBOVENT • DFS SERIES OWNER’S MANUAL 14
SECTION 500
Specifications
Standard Features:
PowerFlex™: Pulsing System to
deliver constant pulsing pressure
across entire filter
E-Pad™: Control Board - Touch
Screen Panel to control all system
Functions
SafeSensor™: Particulate
Monitoring Device
Heavy Duty Construction: Fully
welded 7-10 Gauge Steel
Nema 12 Super Seal Doors and
Control Panel Enclosure
Internal Slide-Out Dust Tray: For
Fast and Easy Removal of Accumu-
lated Particulate
Available Options:
E-Drive™: Automatically adjust
the Airflow via a Flow Monitor
and VFD to extend Filter Life and
Reduce Energy Cost by up to 30%.
AutoSaver™: Auto On/Off Feature.
Supprex-200™: A Proprietary
Engineered Fire Suppression
System designed specifically for
Collector systems.
HEPA After Filters
Acoustical Sound Plenum:
Reduces Sound Levels up to 50%.
E-Pad™ XE: Premium Controls
Upgrade
Model DFS-6000-6
Filter Media: Comparable to 2,130 square feet
Filter Cartridges: (6) EX-14D36-A13 Blended Non-Woven Media,
Nanofiber
Electrical Requirements: 480 Volt, 3 phase, 9.2 amps, 9.2 amps,
23.5 amps**
Built-in Spark Arrestance:
(3) Metal Mesh (Part#: MM-17402)
(3) Spark Arrestance Baffles (Part#: FB-17402)
Pulse Valves: (2) 1.5", Electronically Actuated Solenoids
Compressed Air Requirements:
2.0 SCFM On-Line Pulse; 12.0 SCFM Off-Line Pulse @ 80 PSI
Silencing: Built-in Acoustical Lining
Weight: 2,080-2,290 Lbs. (depends on options) without Stand
Dimensions: 76" W x 60" D x 60" H
ePad Controls: Included
Inlet
Clean Air Exhaust
Filter Access Door
Motor Enclosure Door
Electrical Enclosure
60”
60”
76”

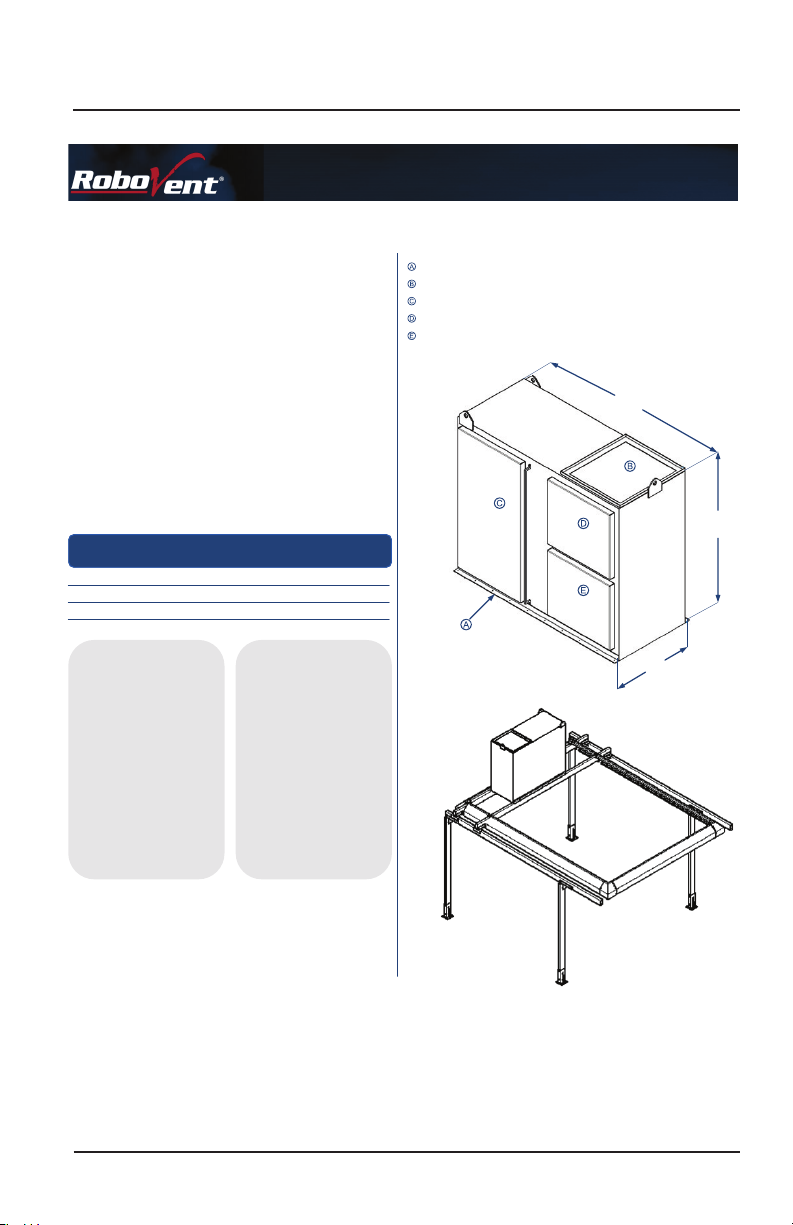

DFS-6000-6 shown with
RVH Hood
DFS-6000-6-M1846 7.5 HP/18” @ 46% 4050 @ 5” 1.9:1
DFS-6000-6-M1855 10 HP/18” @ 55% 4900 @ 5” 2.3:1
DFS-6000-6-M2235-V 20 HP/22” @ 35% w/VFD 4650 @ 15” 2.2:1
Model Number Configuration CFM IN W.C Air to
Cloth Ratio
This system is covered by one or more of the following patents: #6,758,875;
#4,610,704 and other patents pending. Due to continued engineering, all
specifications are subject to change without notice. ©2014 RoboVent
888.ROBOVENT (888.762.6836)
Specifications
Rev.#1 7/21/11

15 ROBOVENT • DFS SERIES OWNER’S MANUAL
SECTION 500
Specifications
Model DFS-8000-8 FloorSaver Dust Collector
Standard Features:
PowerFlex™: Pulsing System to
deliver constant pulsing pressure
across entire filter
E-Pad™: Control Board - Touch
Screen Panel to control all system
Functions
SafeSensor™: Particulate
Monitoring Device
Heavy Duty Construction: Fully
welded 7-10 Gauge Steel
Nema 12 Super Seal Doors and
Control Panel Enclosure
Internal Slide-Out Dust Tray: For
Fast and Easy Removal of Accumu-
lated Particulate
Available Options:
E-Drive™: Automatically adjust
the Airflow via a Flow Monitor
and VFD to extend Filter Life and
Reduce Energy Cost by up to 30%.
AutoSaver™: Auto On/Off Feature.
Supprex-200™: A Proprietary
Engineered Fire Suppression
System designed specifically for
Collector systems.
HEPA After Filters
Acoustical Sound Plenum:
Reduces Sound Levels up to 50%.
E-Pad™ XE: Premium Controls
Upgrade
Model DFS-8000-8
Filter Media: Comparable to 2,840 square feet
Filter Cartridges: (8) EX-14D36-A13, Blended Non-Woven Media,
Nanofiber
Electrical Requirements: 480 Volt, 3 phase, 9.2 amps, 17.5 amps,
23.5 amps**
Built-in Spark Arrestance:
(4) Metal Mesh (Part#: MM-17402)
(4) Spark Arrestance Baffles (Part#: FB-17402)
Pulse Valves: (2) 2", Electronically Actuated Solenoids
Compressed Air Requirements:
6.5 SCFM On-Line Pulse; 39.0 SCFM Off-Line Pulse @ 80 PSI
Silencing: Built-in Acoustical Lining
Weight: 2,310-2,495 Lbs. (depends on options) without Stand
Dimensions: 92" W x 60" D x 60" H
ePad Controls: Included
.
Inlet
Clean Air Exhaust
Filter Access Door
Motor Enclosure Door
Electrical Enclosure
60”
60”
92”
DFS-8000-8 shown with
RVH Hood
DFS-8000-8-M1855 10 HP/18” @ 55% 4900 @ 5” 1.7:1
DFS-8000-8-M1870 15 HP/18” @ 70% 6200 @ 5” 2.2:1
DFS-8000-8-C2245-V 20 HP/22” @ 45% w/VFD 6000 @ 15” 2.1:1
Model Number Configuration CFM IN W.C Air to
Cloth Ratio
This system is covered by one or more of the following patents: #6,758,875;
#4,610,704 and other patents pending. Due to continued engineering, all
specifications are subject to change without notice. ©2014 RoboVent
888.ROBOVENT (888.762.6836)
Specifications
Rev.#1 7/21/11

ROBOVENT • DFS SERIES OWNER’S MANUAL 16
SECTION 500
Specifications
Model DFS-12000-12 FloorSaver Dust Collector
Standard Features:
PowerFlex™: Pulsing System to
deliver constant pulsing pressure
across entire filter
E-Pad™: Control Board - Touch
Screen Panel to control all system
Functions
SafeSensor™: Particulate
Monitoring Device
Heavy Duty Construction: Fully
welded 7-10 Gauge Steel
Nema 12 Super Seal Doors and
Control Panel Enclosure
Internal Slide-Out Dust Tray: For
Fast and Easy Removal of Accumu-
lated Particulate
Available Options:
E-Drive™: Automatically adjust
the Airflow via a Flow Monitor
and VFD to extend Filter Life and
Reduce Energy Cost by up to 30%.
AutoSaver™: Auto On/Off Feature.
Supprex-200™: A Proprietary
Engineered Fire Suppression
System designed specifically for
Collector systems.
HEPA After Filters
Acoustical Sound Plenum:
Reduces Sound Levels up to 50%.
E-Pad™ XE: Premium Controls
Upgrade
Model DFS-12000-12
Filter Media: Comparable to 4,260 square feet
Filter Cartridges: (12) EX-14D36-A13, Blended Non-Woven Media
Nanofiber
Electrical Requirements: 480 Volt, 3 phase, 17.5 amps, 17.5 amps,
23.5 amps, 36.0 amps**
Built-in Spark Arrestance:
(6) Metal Mesh (Part#: MM-17402)
(6) Spark Arrestance Baffles (Part#: FB-17402)
Pulse Valves: (2) 1.5", Electronically Actuated Solenoids
Compressed Air Requirements:
2.6 SCFM On-Line Pulse; 15.6 SCFM Off-Line Pulse @ 80 PSI
Silencing: Built-in Acoustical Lining
Weight: 3,990-4,120 Lbs. (depends on options) without Stand
Dimensions: 124" W x 60" D x 60" H
ePad Controls: Included
Inlet
Clean Air Exhaust
Filter Access Door
Motor Enclosure Door
Electrical Enclosure
60”
60”
124”
DFS-12000-12 shown with
RVH Hood
DFS-12000-12-15-M1870 15 HP/18” @ 70% 6200 @ 5” 1.5:1
DFS-12000-12-15-M1890 15 HP/18” @ 90% 7950 @ 5” 1.9:1
DFS-12000-12-30-M18100 20 HP/18” @ 100% 8900 @ 5” 2.1:1
DFS-12000-12-30-C2270-V 30 HP/22” @ 70% w/VFD 8700 @ 17” 2.0:1
Model Number Configuration CFM IN W.C Air to
Cloth Ratio
This system is covered by one or more of the following patents: #6,758,875;
#4,610,704 and other patents pending. Due to continued engineering, all
specifications are subject to change without notice. ©2014 RoboVent
888.ROBOVENT (888.762.6836)
Specifications
Rev.#1 7/21/11

17 ROBOVENT • DFS SERIES OWNER’S MANUAL
Electrical Hook-Up
The DFS Collectors require a 3 phase, 460 volt
electrical feed. (Other voltages are also available).
Amperage requirements for the motor can be found
under “Specifications” for the particular DFS model.
Electrical connections should only be done by a
licensed electrician and in accordance with NEC and all
applicable local codes.
Note: The complete enclosure of the DFS Model is
CSA certified. The control panel and all electrical
mechanical components are UL certified. CSA and UL
certification numbers are located on each component
and or on the control panel door and the cartridge filter
door. If further documentation is needed for CSA or UL
certification contact the RoboVent Service Department
at 800-470-3430.
A 460 volt, 3 phase service should be connected to the
provided lugs inside the J-box as shown in Figure 11.
Compressed Air Hook-Up
IMPORTANT! First and foremost, your DFS unit needs
a clean, dry compressed air source, approximately
90 PSI. Many problems can be traced back to the
presence of either oil or water in the compressed air
stream. If contamination is present, both the cartridges
and cleaning system will suffer.
The DFS series come complete with an air regulator
and accumulator. In most cases the provided
accumulator will trap a low volume of oil and water in
your systems air lines. In some rare cases however, a
larger accumulator might be needed.
On the back of the DFS unit is a 3/4" pipe for
connecting the provided air regulator. Install as shown
in Figure 12.
SECTION 600
Installation
FIGURE 11
FIGURE 12

ROBOVENT • DFS SERIES OWNER’S MANUAL 18
After running the DFS for 50 hours unscrew the filter
element from the accumulator housing and examine
the filter element. If the element already shows
excessive contamination, a larger accumulator will
need to be installed. A dryer may also need to be
placed in the line before the accumulator.
Blower Rotation
IMPORTANT! Check blower rotation of the unit
by jogging the motor. Blower rotation should be
CLOCKWISE when viewed from above the unit. The
blower will still draw air if the motor is running
backward but the air draw will only be a fraction of
what it should be! (see Figure 13).
A visual inspection will verify that the motor is turning
clockwise when viewed from above the unit.
Accessories
If your DFS Dust Collector is supplied with some of the
available optional accessories, these may need to be
wired into the system.
Auto On/Off Option
For the Automatic Operation Option, the supplied current transformer must be positioned
around one of the power conductors to the welding power supply, and secured so as to avoid
physical damage. This usually involves disconnecting the conductor, installing the current
transformer, and then re-connecting the system.
Fire Suppression System
Your DFS equipment comes standard with the “Smoke Detection Shut-Down” system. This
equipment will shut down the blower and ePad Controller but will not extinguish a fire. The
optional Fire Suppression System uses a FM-200 agent to suppress a fire along with extra
controls that shut off the intake and exhaust plenums. This system is wired into the control
panel when purchased with the equipment.
Automatic VFD Drives
A Variable Frequency Drive (VFD) Option is also available on the DFS equipment. VFD’s and
velocity transmitters are pre-wired into the control panel and DFS unit.
SECTION 600
Installation (continued)
FIGURE 13
Motor
Blower
Wheel
Venturi
Rotation

19 ROBOVENT • DFS SERIES OWNER’S MANUAL
Before operating your DFS Dust Collector, double
check the following items:
1. Be sure all electrical connections are secure and
wired properly.
2. Double check blower rotation. (see Figure 13).
3. Check the compressed air connection.
4. Before starting the unit make sure the motor
plenum door is locked shut.
Starting the DFS Collector
The DFS system comes complete with full electrical
controls and automatic pulsing system. The entire
contents of the control systems are installed inside the
electrical enclosure.
The Electrical Control Panel inside the equipment
cabinet contains the Service Disconnect, Motor
Starters and Controller. With the Service Disconnect in
the “ON” position press the “SYSTEM START” button
on the touch screen (this may either be remote, or
mounted on the unit) to energize the control system,
then continue through the “MAN FAN” and “LIGHTS”
and/or “START MODE” screens (if these option are
applicable) to the “BLOWER CONTROL” to engage the
Motor Starters and start the system blowers.
Auto On/Off Option
If your system is equipped with the Auto-Start Feature,
a “START MODE SELECTOR” screen will appear during
the above process (see Figure 15). Touch the selector
switch image to toggle between HAND and AUTO. In
the “AUTO” mode, the blower is cycled automatically
when triggered by welder operation and automatically
turns the unit off after approximately 3 minutes of
inactivity. The “HAND” position overrides this function
and the blower operates continuously.
SECTION 700
Operation
FIGURE 15
