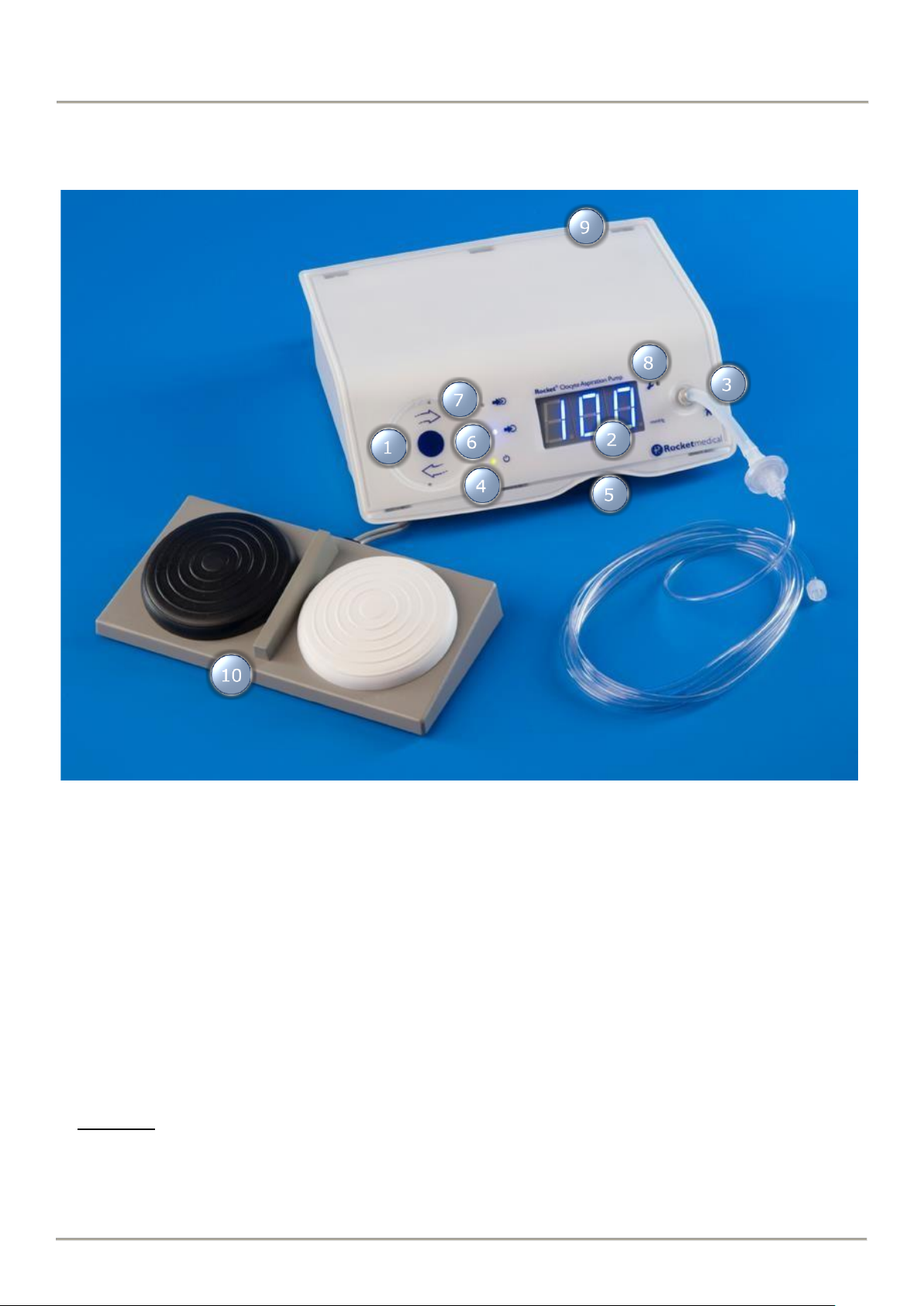

1. GENERAL ASSEMBLY
1. Touch sensitive Suction Control Dial –clockwise to increase, anticlockwise to decrease the setvalue
2. Suction Display in mmHg-1
3. Patient connection port –only for use with R57686 Filter Set for Oocyte Aspiration Pump
4. Power On Indicator LED (Green, 12VDC)
5. Footswitch connection ports
6. User Set Suction Indicator LED (Blue,50-300mmHg-1)
7. Pre-set (Max) Suction Indicator LED (Orange, 500mmHg-1)
8. Service Indicator LED (Yellow)
9. O/I 12V Power On/Off switch
10. Dual footswitch –air controlled
Not shown:
11. Power Supply Unit (PSU) Model: MPU30
12. Power cords, IEC UK & EC types.

Oocyte Aspiration Pump –Operators Guide
4
Copyright© 2009-2021 Rocket® Medical plc .
All rights reserved.
ZDOCK193
Rev:27
2021-03-08
WARNING:
READ THIS MANUAL
CAREFULLY: Please
familiarise yourself with
the contents of this
manual before
attempting to use the
device.
Failure to observe
these instructions may
result in damage to the
pump or cause injury to
the patient or user.
This device should only
be used by suitably
qualified personnel.
2. GENERAL INFORMATION
2.1. COPYRIGHT
This manual contains information that is subject to copyright. All rights reserved. This
manual should not be photocopied, duplicated or distributed completely or in partwithout
the approval of Rocket® Medical plc.
2.2. MODEL NUMBERS:
Pump: R29700. Power Supply: MPU30
2.3. MANUAL REVISION:
Revision 1:
First Release
11/12/09
Revision 2:
Update to Tube Set image
15/03/10
Revision 3:
Pre-evaluation corrections & update
11/08/10
Revision 4
Correction to pedal designations
16/08/10
Revision 5
Addition of set-up schematic
09/05/11
Revision 6
Update to accuracy statement
19/05/11
Revision 7
Addition of ZDOCK code and © statement
15/06/11
Revision 8
Service intervals
14/07/11
Revision 9
Symbol tables and storage conditions
27/10/11
Revision 10
CE mark, year of manufacture statement
21/11/11
Revision 11
PSU markings, EMC statement added
08/12/11
Revision 12
Addition of Classification statements
20/12/11
Revision 13
Amendment to vacuum type
13/02/12
Revision 14
Amendment to control increments
08/03/12
Revision 15
Updated cover images
07/01/13
Revision 16
Standardisation of accuracy limits
13/08/13
Revision 17
Update to images and latex statement, symbol.
06/11/13
Revision 18
Update: power consumption, YOM, footer
16/07/14
Revision 19
Amend CE mark
27/08/14
Revision 20
Addition of procedural instructions, EMC data.
17/06/16
Revision 21
Addition of symbols and warning statements
17/06/16
Revision 22
Correction of mains voltage statement, Sterile Statement
10/08/16
Revision 23
Update Service Agents & Warranty period & EU Rep.
25/02/19
Revision 24
Revision 25
Revision 26
Update to include FDA Rx only symbol
Update to Service Agents and CE mark
Addition of Italian
21/05/19
19/08/20
14/01/21
Revision 27
Update to Section 4.3 and Product Name Change
08/03/21

Oocyte Aspiration Pump –Operators Guide
5
Copyright© 2009-2021 Rocket® Medical plc .
All rights reserved.
ZDOCK193
Rev:27
2021-03-08
2.4. MANUFACTURER:
Rocket Medical plc
Sedling Road
WASHINGTON
Tyne & Wear NE38 9BZ.
UK.
CAUTION:
Any adjustment,
modification or repairs
to the equipment
should only be carried
out by authorised
service agents.
2.5. SERVICE AGENTS:
UK & European Service Agents:
IVFSynergy Ltd.,
Old School,
Tresillian,
Cornwall
TR2 4BA
Tel: [phone]
Email: [e-mail]
Website: www.ivfsynergy.co.uk
UK Customer Services:
Rocket Medical plc. Sedling Road. WASHINGTON. NE38 9BZ.ENGLAND
Tel: [phone]. Fax: [phone]
Email: [e-mail]
Australia Service Agent
DTS Q-Tech,
8/79 Newton Road,
Wetherill Park, NSW 2164
Australia
Tel: [phone]
Email: [e-mail]
Website: www.dtsqtech.solutions
Rocket Medical GmbH
Am Rosengarten 48,
15566 Schöneiche.
Germany

6
Copyright© 2009-2021 Rocket® Medical plc .
All rights reserved.
ZDOCK193
Rev:27
2021-03-08
Rocket® Oocyte Aspiration Pump –Operators Guide
2.6. GENERAL DESCRIPTION:
The Oocyte Aspiration Pump has been developed to provide smooth, low volume/high
suction (vacuum) at a pre-determined negative pressure. Suction is activated by a foot
operated toggle air switch controlled by the surgeon performing the oocyte collection.
The range of suction is variable from 50-300mmHg-1 and at a pre-set 500mmHg-1 in ‘Max’
suction mode.
The Oocyte Aspiration Pump requires a disposable filter set.
2.7. INTENDED USE:
A device for the generation of low volume/high (vacuum) suction of between 50-300 mmHg-
1 to permit the aspiration of follicular fluid, oocytes and ovarian fluid as part of the treatment
for infertility relating to IVF and other related procedures.
This device should only be used by, or under the supervision of, appropriately trained
personnel in conjunction with clinical practice guidelines such as those published by the
National Institute of Clinical Excellence and the Human Fertilisation & Embryology Authority.
2.8. CONTRAINDICATIONS:
Not intended for use where ovarian aspiration or the aspiration of ovarian fluid is
contraindicated such as patients with vaginal infections, sexually transmitted diseases,
suspected pregnancy and where the pelvic anatomy cannot be accurately assessed by
ultrasonography. Not intended for surgical suction or other applications.
2.9.CLASSIFICATION
IEC 60601-1
Type of protection against electric shock: Class II
Degree of protection against electric shock: Type B
Vacuum type: high vacuum/low volume
Suitable for continuous operation.
Not suitable for use in the presence of flammable gases.
Not suitable for use in conditions which expose the device to the ingress of fluids.
Not suitable for sterilisation.
2.10. REFERENCES:
Craft I, McLeod F. Edmonds K, ‘Human embryo transfer technique’. Lancet 1961 ii1104-5
Craft I, Diahanbakch O. McLeod F et al ‘Human pregnancy following oocyte and sperm transfer to the
uterus.’ Lancet 1992 i 1031-3
Craft I, (1984) ‘Clinical Methodology’ British Journal of Hospital Medicine90-102
Reeves G, Scott R T, et al (1989) Journal of Assisted Reproduction and Genetics Volume 6, Number
6 / December, 1989

7
Copyright© 2009-2021 Rocket® Medical plc .
All rights reserved.
ZDOCK193
Rev:27
2021-03-08
Rocket® Oocyte Aspiration Pump –Operators Guide
WARNING:
This device should only
be operated by
appropriately qualified
personnel.
3. SAFETY INSTRUCTIONS
This manual describes the operation and intended use of the device and the associated
consumables and it is essential that you use this document to familiarise yourself with the
correct function and operation of the device before use.
Failure to follow these instructions may result in serious injury to the patient or operator and
can lead to damage or breakdown of the device. In case the device fails during an operation,
a replacement device and replacement disposables should be kept within reach so that the
operation maybe completed.
This manual does not provide a detailed description of the oocyte harvesting procedure and
is not intended as a training guide for users inexperienced in thetechnique.
• POWER SUPPLY:
The device is only for use with power supply Model Number: MPU30. Attachment of any
other power supply may severely damage the device.
CAUTION: Disconnection from the mains supply can only be achieved with the removal of
the mains power lead from the wall socket.
• CONSUMABLES:
The device must only be used with R57686 Filter Set for Oocyte Aspiration Pump. The use
of non-approved tubing or filter sets may impair pump performance, lead to increased risk to
patients and harvested oocytes and will invalidate the Warranty.
The hydrophobic filter sets are designed to prevent fluid contamination of the suction pump.
If the device has been used with a non-approved filter set or there is any evidence or
suspicion that the pump may have been contaminated with fluid during use, it must be
removed from service and returned for examination immediately. Please contact your
nearest Service Centre for advice.
• TERMINOLOGY:
Throughout this manual the term “suction” is used to denote aspiration of fluid with vacuum
or negative pressure. The use of the term ‘suction’ is in observance of the requirements of
the ISO6061-1 Standard as amended.

8
Copyright© 2009-2021 Rocket® Medical plc .
All rights reserved.
ZDOCK193
Rev:27
2021-03-08
Rocket® Oocyte Aspiration Pump –Operators Guide
WARNING:
This device must only
be operated with
approved consumables.
WARNING:
Device can cause
explosion in the
presence of flammable
gases.
WARNING:
Protect the device from
ingress of liquid. Should
any liquid enter the
device, discontinue use
immediately and refer
to an authorised service
agent
WARNING:
Ensure the suction level
is appropriate.
• WARNINGS:
Users should be familiar with and adhere to all warnings, cautions and instructions for use
that are labelled on the device and included in the User Manual.
• This device should only be used by, or under the supervision of, appropriately
trained personnel and in conjunction with current local clinical practiceguidelines.
• The device is not approved for connection to any other device except the R57686
Filter Set for Oocyte Aspiration Pump
• The R57686 Filter set for Oocyte Aspiration Pump is single use and its instructions
for use must be followed at all times.
• Do NOT use the R57686 Filter set for Oocyte Aspiration Pump if the packaging is
broken.
• Do not use in an area where flammable gases are present.
• Regular periodic maintenance of the device is recommended as indicated by the
service indicator.
• Precautions for EMC safety should be observed. The device complies with
EN60601-1-2:2015 for use in a Professional healthcare facilityhowever:
o Electronic equipment in the vicinity of the device may affect its operation
and potentially cause unpredictable operation of the device.
o Wherever possible the device should be distanced from surrounding
electromagnetic equipment and cables to this equipment in order to reduce
possible electromagnetic interference.
o The Oocyte device power cable should only be connected to a correctly
wired receptacle in order to avoid the risk of electrical shock and ONLY use
the cable supplied by Rocket Medical.
• When positioning the unit, ensure that access is available to the DC power cable
located on the rear of the unit.
• To avoid damage to the unit only use the approved mains power adaptor supplied
with the unit, Model Number: MPU30.
• Fluids should not be allowed to enter the device as this mayresult in damage to the
system.
• User should be aware of the status of unit at all times during theprocedure.
• Only qualified personnel should service the device and the device must not be
opened except by these personnel due to the risk of hazardous electrical shock and
premature damage to the device. All service requirements should be referred to a
Rocket Medical authorised representative.
• All equipment should be thoroughly cleaned after each use (refer to section 6
Cleaning Guidelines).
WARNING: Do not modify this equipment without written authorisation of the
manufacturer.
The use of high suction levels may lead excessive fluid flow rates which may result in
damage to the oocyte and reduced fertilisation rates. Damage to oocytes inharvesting
systems is principally caused by turbulent flow which can lead to physical shearing
stresses on the cumulus sufficient to denude or damage the fragile zona (Reeves et al 1989).
Flow rate is a function needle set configuration and the suctionapplied.
Therefore, the 500mmHg-1 (Max) suction setting must only be used to clear
blockages from a needle set and must NOT be used in contact with the patient. Refer
to Section 6 for recommended suction setting for given needle setconfigurations.

9
Copyright© 2009-2021 Rocket® Medical plc .
All rights reserved.
ZDOCK193
Rev:27
2021-03-08
Rocket® Oocyte Aspiration Pump –Operators Guide
WARNING:
ELECTRIC SHOCK
HAZARD.
This device is only for
use with electrical
systems complying with
the appropriate IEC,
CEC and NEC
requirements.
WARNING:
ELECTRIC SHOCK
HAZARD.
Do not immerse the
device.
WARNING:
Device can cause
explosion in the
presence of flammable
gases.
• SUPPLY VOLTAGE SELECTION
The device operates at a voltage of 12VDC supplied via a universal medical grade power
supply unit (PSU).
Input voltage: 12VDC
Universal power supply range 100V to 240 VAC @ 50 / 60Hz
Ensure that the correct power cord is connected.
• ELECTROMAGNETIC COMPATIBILITY
The Oocyte Aspiration Pump complies with the electromagnetic compatibility (EMC)
limits for medical devices as specified by EN60601-1-2:2015. These limits are designed
to provide a reasonable degree of protection against harmful interference found in typical
medical installations.
Medical electrical equipment requires special precautions regarding EMC and the device
must be installed, positioned and operated according to the instructions contained in this
manual to ensure continued electromagnetic compatibility.
It is possible that high levels of radiated or conducted radio-frequency electromagnetic
interference (EMI) from portable and mobile RF communications equipment or otherstrong
or nearby radio-frequency sources could result in performance disruption of the suction
pump.
Evidence of EMC interference may include erratic digital displays, an inability to correctly
set the desired suction, the device failing to operate, or other incorrect functioning.
If this occurs, stop using the aspiration pump and contact Customer Services or Rocket®
Medical authorised distributor.
• PACKAGING
The packaging has been carefully designed to allow secure transportation of the pump and
its accessories.
After unpacking, re-assemble and retain the packaging for transport for servicingwhen
required.
• POSITIONING and PLACEMENT of the DEVICE
The Oocyte Aspiration Pump must be placed on a secure, level surface, away from
sources of heat, water splashes, mists or cooling vents and with due regard to EMC
protection (Section 4.6)
Do not expose to direct sunlight.
Do not expose to flammable gases.
Operating temperature Range: +5°C and +40°C

10
Copyright© 2009-2021 Rocket® Medical plc .
All rights reserved.
ZDOCK193
Rev:27
2021-03-08
Rocket® Oocyte Aspiration Pump –Operators Guide
• SYMBOLS USED ON OOCYTE ASPIRATION PUMP.
12 V DC Power ON/OFF.
This device operates on 12V DC power provided by a
separate power supply module supplied with the device.
Disconnection from the mains supply can only be achievedwith
the removal of the mains power lead from the wall socket.
This device is Type B
Connection point for filter set
Footswitch connection
This device is powered by a Class II
power supply unit.
Indicates the Service Interval Indicator
Suction Display Touch control symbol.
Indicates activation of the pre-set (Max) 500mmHg-1 mode
Indicates activation of the user set 50-300mmHg-1 mode
Dispose of this device in accordance with
WEEE directive (2002/96/EC)
CE Mark
Consult the Instructions for Use
CAUTION: consult accompanying documents
SN
Indicates device serial number
Indicates manufacturer

11
Copyright© 2009-2021 Rocket® Medical plc .
All rights reserved.
ZDOCK193
Rev:27
2021-03-08
Rocket® Oocyte Aspiration Pump –Operators Guide
• SYMBOLS USED ON POWER SUPPLY UNIT.
Read the manual before connection and use
WARNING: Risk of electric shock.
The PSU should not be opened
Device is only for use indoors
Class II Power Supply Unit
12V DC connection polarity
Dispose of this device in accordance with
WEEE directive (2002/96/EC)
PSU conforms to EN60601-1 & IEC60601-1
CE Mark
• SYMBOLS USED ON R57686 FILTER SET FOR OOCYTE
ASPIRATION PUMP .
Read the Instruction for Use before connection and use
Device is for Single Use Only
Batch number for sterile device
Device is sterilised by Ethylene Oxide
The device is not manufactured with natural latex
CE Mark

12
Copyright© 2009-2021 Rocket® Medical plc .
All rights reserved.
ZDOCK193
Rev:27
2021-03-08
Rocket® Oocyte Aspiration Pump –Operators Guide
WARNING:
ELECTRIC SHOCK
HAZARD.
The equipment is to be
used only with electrical
systems complying with
all IEC, CEC and NEC
requirements.
WARNING:
This device must only
be operated with
approved consumables.
WARNING:
Protect the device from
ingress of liquid. Should
device, discontinue use
immediately and refer
to an authorised service
agent

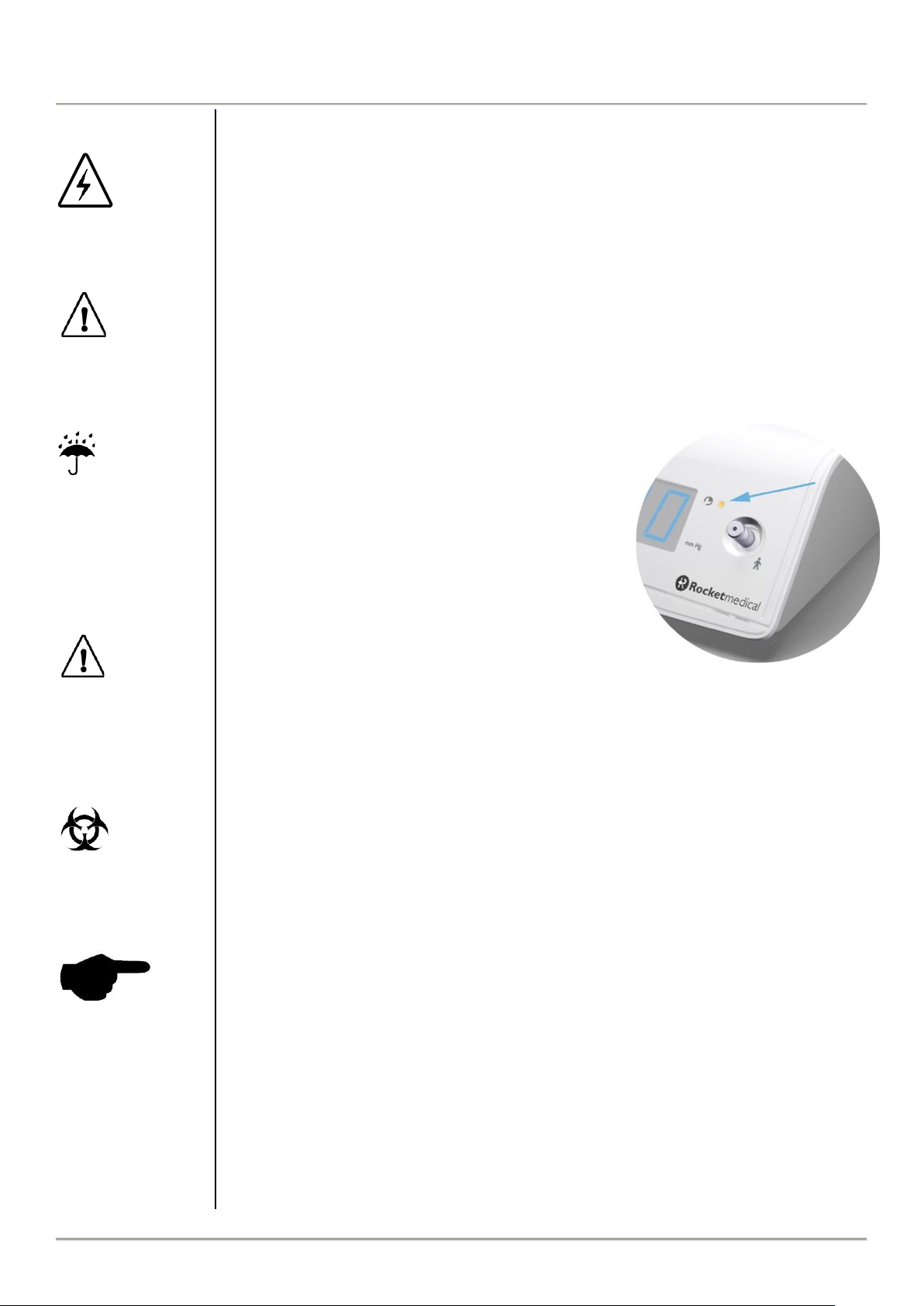

4. OPERATING THE PUMP
any liquid enter the
1. Unwrap the footswitch and attach the air tubing to
the male/female ports on the underside of the pump
casing. The footswitch is normally left attached to
unit in daily use unless removal for storage is
required.
2. Connect the correct mains lead to the 12V power
supply module - Model number: MPU30 and connect
to an electrical supply 100V to 240 VAC @ 50 /
60Hz. The power supply module is self-regulating to
generate 12VDC.
3. Turn the power switch 0-I (rear panel) to on. The
green LED (indicated) on the front panel will
illuminate.
4. The main display will display an initial value of
100mmHg-1
5. Using aseptic technique, un-pack the R57686 Filter
Set for Oocyte Aspiration Pump and attach the short
length of silicone tubing to the spigot (indicated). The
tubing should be a light push-on fit.
6. Pass the longer patient connection tube into the
operative field. The filter set is for single patient use
and must be replaced for each patient.
NOTE: The hydrophobic filter set is specially
designed to prevent ingress of fluid to the pump.
If the filter material becomes contaminated with
fluid it will occlude thereby protecting the pump
mechanism. Immediately replace the filter set if it
becomes contaminated and between every
patient.
The pump must NOT be operated without the
correct filter set attached.
Operation without the correct filter set will
invalidate the Warranty.

13
Copyright© 2009-2021 Rocket® Medical plc .
All rights reserved.
ZDOCK193
Rev:27
2021-03-08
Rocket® Oocyte Aspiration Pump –Operators Guide
WARNING:
Ensure the set suction
level is appropriate to
the patient’s needs and
has taken into
consideration the
needle and tube set
configuration
7. On Start-Up, the pump is pre-set to 100mmHg-1
suction. To increase this value, use a circular motion,
lightly drawing a finger clockwise over the outer zone
of the control dial in the direction of the arrows.
8. Refer to Table 1 for recommend values forvarious
needle and tube set combinations
9. The active dial zone will sense the motion and
increase the display in 5mmHg-1 increments.
10. To decrease the set value, use an anticlockwise
circular motion.
11. When the desired value is reached, hold the finger
still for 2 seconds when an audible ‘beep’ will confirm
the new setting.
12. If the new setting is not correctly saved, the value will
return to its previous set value in 10 seconds.
13. If the new value has not been stored, repeat from #7.

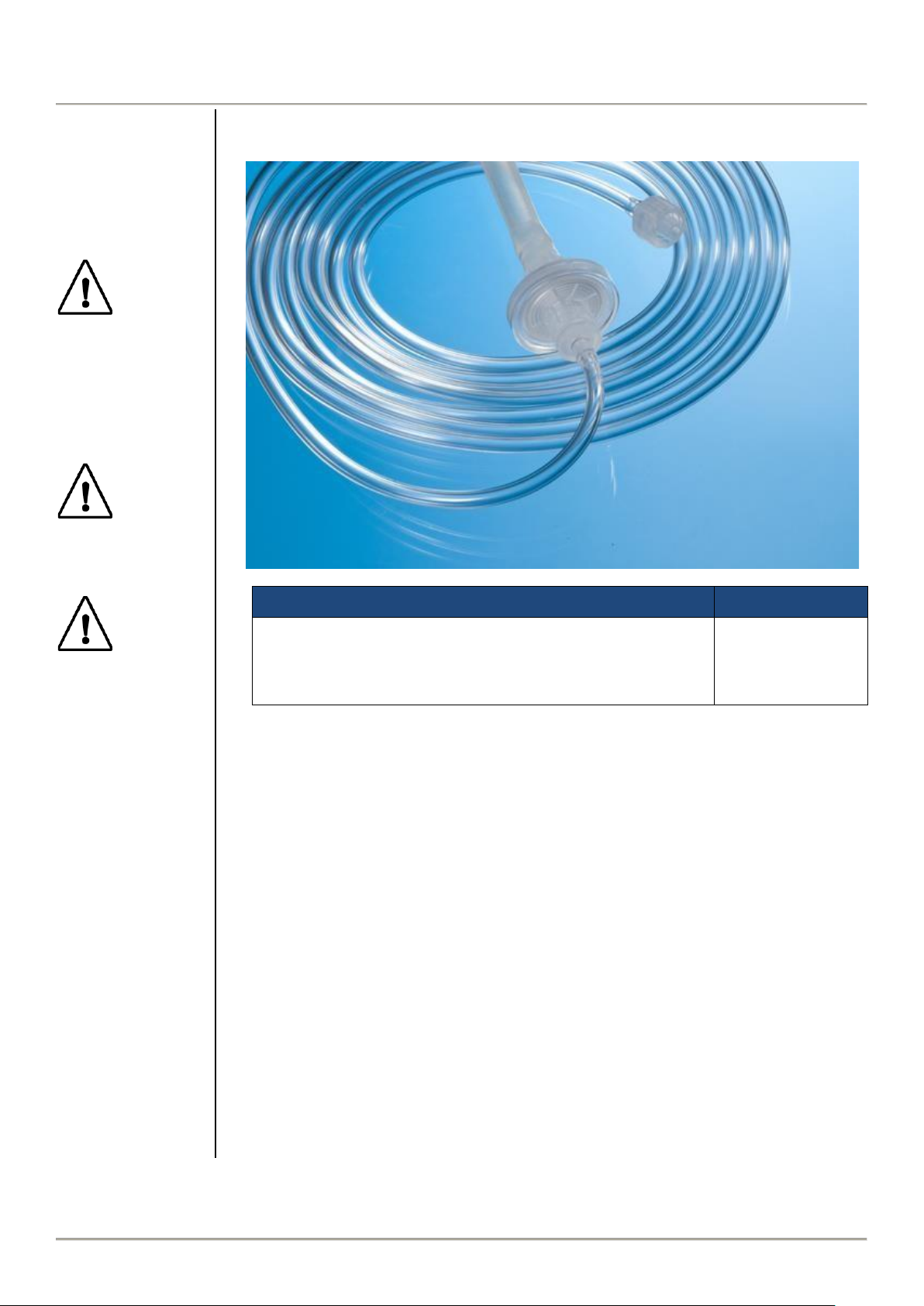

4.1. TABLE 1 RECOMMENDED SUCTION SETTINGS
14. Connect the patient filter set to a suitable luer fitting
(indicated) such as that found on the Oxford
Tube Set found on Single and Double Lumen
Oocyte Aspiration Needles and attach a
collection tube to the bung.
15. The luer connection is also suitable for connection to
other standard ISO 6% luer taper adaptors and
fittings.
Single Lumen
Double Lumen
16G
17G
16G
17G
Tube Set Length
Recommended Suction -mmHg
55cm
80
110
130
150
70cm
90
130
150
170
90cm
100
150
170
190

14
Copyright© 2009-2021 Rocket® Medical plc .
All rights reserved.
ZDOCK193
Rev:27
2021-03-08
Rocket® Oocyte Aspiration Pump –Operators Guide
WARNING:
HIGH SUCTION MODE
aspirate oocytes as this
may result in damage
to the oocyte and lead
to reduced fertilisation
rates.
HIGH suction settings
may only be used to
a needle set and must
NOT be used in
contact with the
patient.
must NOT be used to
clear blockages from
3. The footswitch control operates on a toggle switch.
Depress a pedal once for ON and depress again for
OFF. A tone will sound to indicate activation of the
footswitch.
4. To activate the suction pump to deliver the set value
–depress the WHITE pedal once.
18. Once activated, the pump will commence to deliver
the suction level previously set. The display indicates
the actual suction set by the user.
19. The blue LED will illuminate and flash rapidly to
confirm suction (50-300mmHg-1) is active.
20. To stop suction, depress the pedal once again. The
pump will immediately stop and vent to air and the
user set suction LED will go out.
21. To activate the pre-set Max suction, depress the
BLACK Pedal once –the pump will immediately
deliver a nominal suction of 500mmHg-1
22. Both suction indicator LED’s will illuminate.
23. To stop max suction, depress the BLACK pedal once
or depress the WHITE pedal to continue to evacuate
at the previously set suction level.

15
Copyright© 2009-2021 Rocket® Medical plc .
All rights reserved.
ZDOCK193
Rev:27
2021-03-08
Rocket® Oocyte Aspiration Pump –Operators Guide
4.2. PUMP SET-UP PROCEDURE SCHEMATIC

16
Copyright© 2009-2021 Rocket® Medical plc .
All rights reserved.
ZDOCK193
Rev:27
2021-03-08
Rocket® Oocyte Aspiration Pump –Operators Guide
WARNING
This device should only
be used by, or under
the supervision of,
appropriately trained
personnel in
conjunction with clinical
practice guidelines
4.3. PROCEDURE
Preparation: ROCKET MEDICAL PLC strongly recommend that the position of the uterus and pelvic
organs are confirmed by ultrasonography prior to the procedure. Similarly, the presence of developed
follicles should have been confirmed by serial ultrasound duringthe 10 days prior to the procedure. The
procedure is normally be carried out under local analgesia and/or supplemented light sedation.
General anaesthesia may be necessary in very anxious patients.Follicular Aspiration: It is essential for
a successful outcome that oocytes areharvested with the least possible trauma to bothpatient
and ova.
Using aseptic technique:

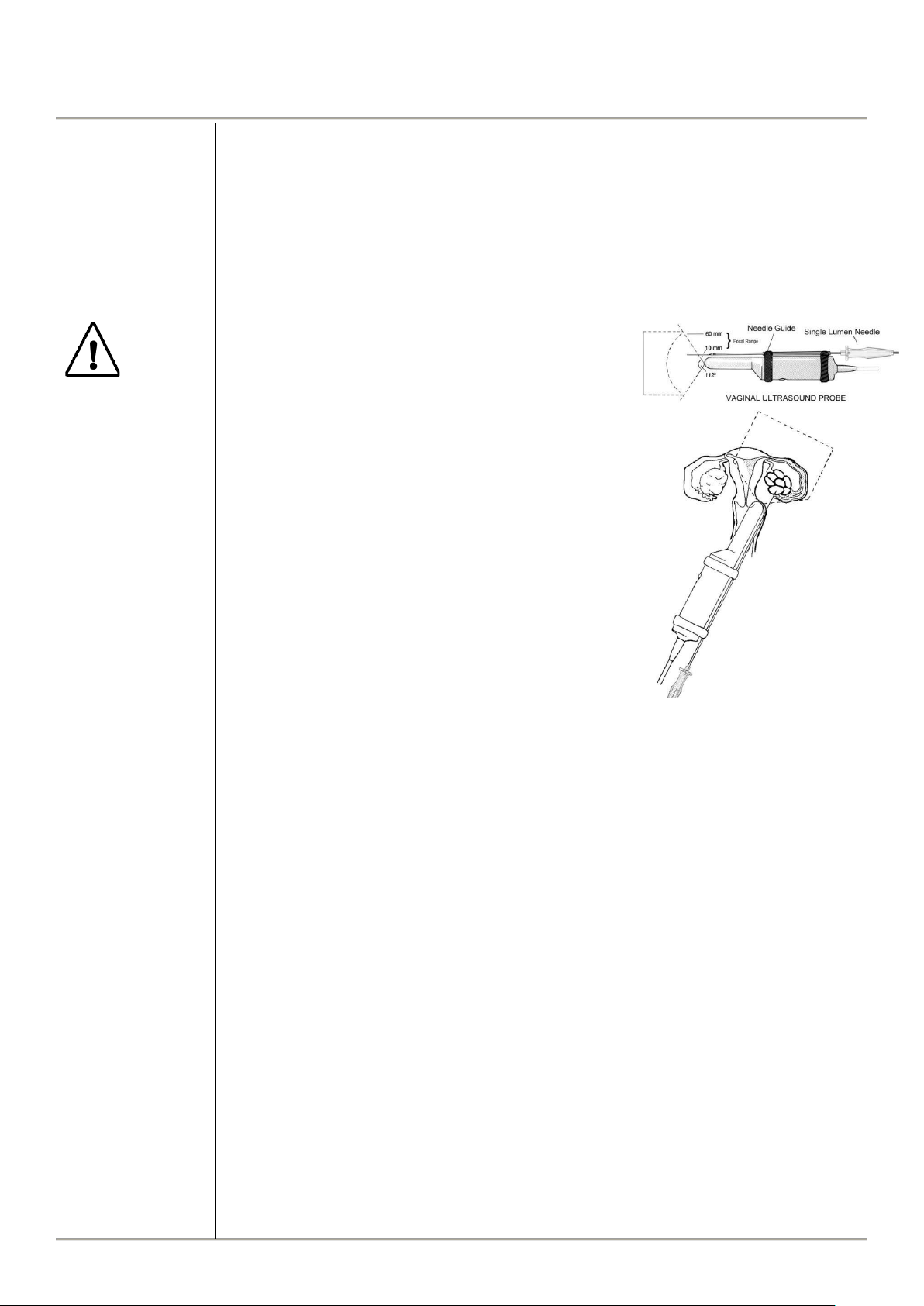

1. Following the manufacturers guidelines, cover the
transvaginal ultrasound probe with a sterile sheath. A
small amount of ultrasound gel may be added to improve
picture definition.
2. Select a sterile needle guide approved for use with the
vaginal ultrasound probe and assemble following the
manufacturer’s instructions.
3. Open the needle pack carefully, taking care not to touch
or damage the needle bevel. The use of damaged
needles will cause increased discomfort to the patient
and may result in loss of the oocyte.
4. For double lumen needles/flushing technique: prior to
inserting the needle into the needle guide, attach a syringe
of flushing media to the flushing port, open the tap and flush
the channel with 2ml of media. Close the 2-way tap. For
single lumen needles: prime (if required) using the
connection port on the underside of the bung/stopper.
5. Attach a sterile sample (Falcon) tube to the
bung/stopper
6. Connect the tubing connector to a lowpower vacuum pump such as the R29655 CRAFT™Pump.
7. For double lumen needles/flushing technique: set the pump to deliver a vacuum of 200mmHg.
Aspirate 2-5ml of flushing media into the Falcon tube and discard.
8. Place the needle into the needle guide following the manufacturer’s instructions. Figure 1 shows a
common probe and needle assembly.
9. Set the aspiration vacuum level to your personal preference using the table as a guide.
10. Ensure all connections are air tight and the tube set is
free from any constrictions as these cause turbulences
which greatly increases the risk of oocyte damage.
11. With the patient in lithoto my, introduce the needle/probe assembly into the vagina, advancing into
the anterior fornix to visualise each ovary. Once the ovaries have been identified, introduce the
needle and advance through the vaginal wall and ovarian stroma into the target follicle.
12. Activate the vacuum pump and aspirate the follicular fluid into the sampling tube. Check
microscopically for the presence of an oocyte. For double-lumen needles, if desired, 2-5ml of media
can be injected via the flushing limb (after opening the 2-way tap) to distend the follicle prior to
subsequent aspiration. When using single lumen needles, follicular flushing can be performed via the
flushing port on the underside of the bung/stopper. Complete the harvesting from one ovary before
commencing on the other.
13. If the needle becomes blocked during the procedure, rotate the needle within the follicle to ensure
that the needle is not blocked by follicular wall tissue
Single lumen blockage: if the needle remains blocked, remove the needle from the patient and
flush through with media using the flushing port on the underside of the bung/stopper.
Double lumen blockage: the needle can be flushed without removal from the ovary.
Check that the needle is clear by aspirating media through the needle set. If the blockage is still
present, high vacuum aspiration (400-500mmHg) may be performed with the needle outside the
patient. WARNING: the use of high suction when the needle is inside the ovary should not be
performed. This may lead to turbulent flow, which may damage the oocyte.
14. Flushing may be performed following harvesting to clear the needle prior to oocyte identification.

17
Copyright© 2009-2021 Rocket® Medical plc .
All rights reserved.
ZDOCK193
Rev:27
2021-03-08
Rocket® Oocyte Aspiration Pump –Operators Guide
WARNING:
This device must only
be operated with
approved consumables
which are specifically
designed to provide the
correct flow rates and
protect the device from
ingress of liquid.
WARNING:
Do not use Aspiration
set if the packaging is
broken.
WARNING:
Should any liquid
enter the device,
discontinue use
immediately and
refer to an
authorised
service agent
5. CONSUMABLES
Description
Code
Filter Set for Oocyte Aspiration Pump Set 5µm filter set, 2.5m
patient connection tube with male luer connector.Supplied sterile, for single
use in cartons 10units.
R57686
5.1. PATIENT CONNECTION SET DISPOSAL
The patient connection set is supplied sterile for single use and should be handled and disposed of in
accordance with local hospital policy and with regard to all applicable regulations, including but without
limitation to, those pertaining to human health & safety and care of the environment.

18
Copyright© 2009-2021 Rocket® Medical plc .
All rights reserved.
ZDOCK193
Rev:27
2021-03-08
Rocket® Oocyte Aspiration Pump –Operators Guide
WARNING:
ELECTRIC SHOCK
HAZARD.
Do not immerse the
device.
WARNING:
Do NOT attempt to
sterilise the device
WARNING:
Protect the device from
ingress of liquid. Should
any liquid enter the
device, discontinue use
immediately and refer
to an authorised service
agent
WARNING:
No user serviceable
parts inside.
HAZARD:
Do NOT include used
consumables as these
pose a significant
contamination risk
IMPORTANT
A decontamination
certificate MUST be
included with every
returned pump.
Repair or servicing
cannot be commenced
unless the service
agent is in possession
of this certificate
6. CLEANING THE PUMP CASING
At the end of each clinical session, turn off the device at the rear panel and disconnect
the PSU from mains power supply.
Using an aqueous 70% alcohol solution (eg. IMS or isopropyl BP) solution, moisten a cloth
and wipe all external surfaces of the device. If the surface has become contaminated with
proteinaceous material, remove with a light detergent solution before surfacing cleaning with
an alcohol solution.
Do NOT use a 100% alcohol or any other solvent to clean the device as this may cause
damage to the casing surface and display.
Prevent any fluid from entering the device.
7. SERVICE INDICATOR
Service intervals are based on 1000 hours of pump
operating time measured when the unit is providing
suction. This equates to approximately 3000
aspiration cycles before the pump requires servicing.
The Service Indicator LED (arrowed) will remain
illuminated indicating the pump now requires
servicing. After 50 hours of usage without servicing,
the Service Indicator will flash continuouslyindicating
servicing is now overdue.
Illumination of the service indicator does notinhibit
pump function.
Once illuminated, the pump must be returned for
servicing as soon as possible.
8. RETURNING THE PUMP FOR SERVICE:
All devices to be returned must be prepared as described below for the protection of the
servicing team and for safety during transport.
1. Surface clean the pump as described in Section 8 above.
2. Seal in a plastic bag and seal within a second plasticbag.
3. Place in the original packaging.
4. Enclose the following information:
• Contact name
• Centre address
• Decontamination Certificate
• Description of the fault or service required
• Accompanying Order to authorise servicing –contact your local Customer
Services Team for details.

19
Copyright© 2009-2021 Rocket® Medical plc .
All rights reserved.
ZDOCK193
Rev:27
2021-03-08
Rocket® Oocyte Aspiration Pump –Operators Guide
9. YEAR OF MANUFACTURE:
10. STORAGE & TRANSPORTATION:
The device must be transported/stored at temperatures between
-10°C to + 50°C
The device must be transported/stored at relative humidity levels
between 20% to 95%
The device must be stored in a clean, dry condition, ideally in its
original packaging which should be retained to return the unitfor
servicing
Protect the device from ingress of liquid. Should any liquid enterthe
device, discontinue use immediately and refer to an authorised
service agent
Units manufactured before 2014: The year in which the device was
manufactured is indicated by the first 2 numbers of the serial number.
For example: a serial number starting
11
180776 indicates the device
was manufactured in 2011
For units manufactured after 01/04/14, the year of manufacture is
shown on the rear rating plate label opposite the model number.

20
Copyright© 2009-2021 Rocket® Medical plc .
All rights reserved.
ZDOCK193
Rev:27
2021-03-08
Rocket® Oocyte Aspiration Pump –Operators Guide
11. OPERATING ENVIRONMENT:
The device must be operated at temperatures between +5°C to +
40°C
The device must be operated at relative humidity levels between
15% to 93%
The device must be operated at ambient pressure levels between
70kPa to 106kPa.
The device is FRAGILE and must be transported in its original
packaging to ensure protection.
If the original packaging is not available please contact your local
Customer Services Agent who will provide replacement packaging.
Dimensions:
W - 248mm
H - 86mm
D - 194mm
Weight:
Unit –2.56Kg
Footswitch –0.51Kg
Protect the device from ingress of liquid. Should any liquid enterthe
device, discontinue use immediately and refer to an authorised
service agent
Altitude
This device is intended for use below 2000meters.
