Installation Instructions
FLEX Ex 8 Input Analog, HART, and Noise Filter
Analog Modules
Catalog Numbers 1797-IE8, 1797-IE8H, 1797-IE8NF
Topic Page
Important User Information 3
Environment and Enclosure 4
Prevent Electrostatic Discharge 5
Removal and Insertion Under Power 5
EMC Directive 6
Installation in Zone 1 7
Installation in Zone 22 7
Install the Module 8
Wire the Module to a 1797-TB3 or 1797-TB3S Terminal Base Unit 10
Ground the Module 12
Inputs 12
1797-IE8 and 1797-IE8NF Input Map (Read Words) 16
1797-IE8H Input Map (Read Words) 17
1797-IE8H Input Map (Read Words) 18
1797-IE8 and 1797-IE8NF Output Map (Write Words) 19
1797-IE8H Output Configuration Map 19
Fault Mode - Write Words 0 and 1 22
“Add-on” Filter Selections - Write Words 0 and 1 or Filter Cutoff Selections 22

2FLEX Ex 8 Input Analog, HART, and Noise Filter Analog Modules
Publication 1797-5.5 - September 2011
Remote Transmitter Error Up/Down - Write Words 0 and 1 22
Data Format - Write Words 0 and 1 22
Data Format - Write Words 2 and 3 23
Error Level 0.1 mA Steps 24
1797-IE8H Secondary Master Enable (SME)/ Primary Master Inhibit (PMI) 25
Byte Order Configuration 26
Digital Filter 26
HART Input Data 30
HART Input Data Descriptions 34
HART Read Back Threshold 35
Square Root Threshold 35
Field Descriptions 27
Repair 36
Status Indicators 36
Specifications 37
Entity Parameters 41
Topic Page

FLEX Ex 8 Input Analog, HART, and Noise Filter Analog Modules 3
Publication 1797-5.5 - September 2011
Important User Information
Solid state equipment has operational characteristics differing from those of electromechanical
equipment. Safety Guidelines for the Application, Installation and Maintenance of Solid State Controls
(Publication SGI-1.1 available from your local Rockwell Automation sales office or online at
http://literature.rockwellautomation.com) describes some important differences between solid state
equipment and hard-wired electromechanical devices. Because of this difference, and also because of the
wide variety of uses for solid state equipment, all persons responsible for applying this equipment must
satisfy themselves that each intended application of this equipment is acceptable.
In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages
resulting from the use or application of this equipment.
The examples and diagrams in this manual are included solely for illustrative purposes. Because of the
many variables and requirements associated with any particular installation, Rockwell Automation, Inc.
cannot assume responsibility or liability for actual use based on the examples and diagrams.
No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits,
equipment, or software described in this manual.
Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell
Automation, Inc., is prohibited.
Throughout this manual, when necessary, we use notes to make you aware of safety considerations.
WARNING
Identifies information about practices or circumstances that can cause an explosion in
a hazardous environment, which may lead to personal injury or death, property
damage, or economic loss.
IMPORTANT
Identifies information that is critical for successful application and understanding of
the product.
ATTENTION
Identifies information about practices or circumstances that can lead to personal injury
or death, property damage, or economic loss. Attentions help you identify a hazard,
avoid a hazard, and recognize the consequences.
SHOCK HAZARD
Labels may be located on or inside the equipment (for example, drive or motor) to alert
people that dangerous voltage may be present.
BURN HAZARD
Labels may be located on or inside the equipment (for example, drive or motor) to alert
people that surfaces may be dangerous temperatures.

4FLEX Ex 8 Input Analog, HART, and Noise Filter Analog Modules
Publication 1797-5.5 - September 2011
Environment and Enclosure
ATTENTION
This equipment is intended for use in a Pollution Degree 2 industrial
environment, in overvoltage Category II applications (as defined in IEC 60664-1),
at altitudes up to 2000 m (6562 ft) without derating.
This equipment is considered Group 1, Class A industrial equipment according
to IEC/CISPR 11. Without appropriate precautions, there may be difficulties with
electromagnetic compatibility in residential and other environments due to
conducted and radiated disturbances.
This equipment is supplied as open-type equipment. It must be mounted within
an enclosure that is suitably designed for those specific environmental
conditions that will be present and appropriately designed to prevent personal
injury resulting from accessibility to live parts. The enclosure must have suitable
flame-retardant properties to prevent or minimize the spread of flame,
complying with a flame spread rating of 5VA, V2, V1, V0 (or equivalent) if
non-metallic. The interior of the enclosure must be accessible only by the use of
a tool. Subsequent sections of this publication may contain additional
information regarding specific enclosure type ratings that are required to comply
with certain product safety certifications.
In addition to this publication, see:
•Industrial Automation Wiring and Grounding Guidelines, for additional
installation requirements, Allen-Bradley publication 1770-4.1.
•NEMA Standards 250 and IEC 60529, as applicable, for explanations of
the degrees of protection provided by different types of enclosure.
ATTENTION
This product is grounded through the DIN rail to chassis ground. Use zinc plated
yellow-chromate steel DIN rail to assure proper grounding. The use of other DIN
rail materials (for example, aluminum or plastic) that can corrode, oxidize, or are
poor conductors, can result in improper or intermittent grounding. Secure DIN
rail to mounting surface approximately every 200 mm (7.8 in.) and use
end-anchors appropriately.

FLEX Ex 8 Input Analog, HART, and Noise Filter Analog Modules 5
Publication 1797-5.5 - September 2011
Prevent Electrostatic Discharge
Removal and Insertion Under Power
ATTENTION
This equipment is sensitive to electrostatic discharge, which can cause internal
damage and affect normal operation. Follow these guidelines when you handle
this equipment:
•Touch a grounded object to discharge potential static.
•Wear an approved grounding wriststrap.
•Do not touch connectors or pins on component boards.
•Do not touch circuit components inside the equipment.
•Use a static-safe workstation, if available.
•Store the equipment in appropriate static-safe packaging when not in
use.
•Post a sign near these modules:
Attention! Avoid electrostatic charging.
ATENÇÃO! PREVENIR CONTRA O ACÚMULO DE CARGA
ELETROSTÁTICA
For your convenience, a sign that can be cut out and posted is included
in this publication.
WARNING
These modules are designed so you can remove and insert them under
power. However, take special care when removing or inserting modules in an
active process. I/O attached to any module being removed or inserted can
change states due to its input/output signal changing conditions.
If you insert or remove the terminal base while backplane power is on, an
electrical arc can occur. This could cause an explosion in hazardous location
installations.
Be sure that power is removed or the area is nonhazardous before proceeding.

6FLEX Ex 8 Input Analog, HART, and Noise Filter Analog Modules
Publication 1797-5.5 - September 2011
European Communities (EC) Directive Compliance
If this product has the CE mark it is approved for installation within the
European Union and EEA regions. It has been designed and tested to meet
the following directives.
EMC Directive
These products are tested to meet the Council Directive 2004/108/EC by
applying the following standards:
•EN 61000-6-4:2007, Electromagnetic Compatibility (EMC) - Part 6-4:
Generic Standard for Industrial Environments (Class A)
•EN 61000-6-2:2005, Electromagnetic Compatibility (EMC) - Part 6-2:
Generic Standards - Immunity for Industrial Environments
•EN61326-1:2006 (Industrial), Electrical Equipment For
Measurement, Control, and Laboratory Use - Industrial EMC
Requirements
ATEX Directive
These products are tested in conjunction with associated I/O modules to
meet the Council Directive 94/9/EC (ATEX) Equipment and Protective
Systems Intended for Use in Potentially Explosive Atmospheres by applying
the following standards:
•EN60079-11:2007, Explosive atmospheres - Part 11 : equipment
protection by intrinsic safety "i"
•EN60079-0:2006, Electrical apparatus for explosive gas atmospheres -
Part 0 : general requirements
•EN 60079-26 : 2004, Electrical apparatus for explosive gas
atmospheres - Part 26 : construction, test and marking of Group II
Category 1 G electrical apparatus
•EN61241-0 : 2006, Electrical apparatus for use in the presence of
combustible dust - Part 0: General requirements
•EN61241-11:2006, Electrical apparatus for use in the presence of
combustible dust – Part 11: Protection by intrinsic safety 'iD'

FLEX Ex 8 Input Analog, HART, and Noise Filter Analog Modules 7
Publication 1797-5.5 - September 2011
Installation in Zone 1
These modules must not be exposed to the environment. Provide a suitable
metal enclosure. This module has a protection factor of IP20.
Installation in Zone 22
When the module is installed in Zone 22, the following cabinets must be used:
IVK2-ISRPI-V16LC; IVK2-ISRPI-V8HYW; or IVK2-ISRPI-V8LC. These
cabinets can be purchased from:
Pepperl+Fuchs GmbH
Konigsberger Allee 85-87, D-68307
Mannheim, Germany
Attn: PA Sales Dept.
Kirsten Becker
Telephone [phone]
www.pepperl-fuchs.com
The IS-RPI cabinets (type IVK2-ISRPI-V8LC, IVK2-ISRPI-V8HYW, or
IVK2-ISPRI-V16LC) ensures the basic protection for the intrinsically safe
apparatus of the FLEX Ex system for use in Zone 22. It corresponds with
category 3D according to RL 94/9 EG and with the type label marked with
the following information:
Pepperl+Fuchs GmbH
68307 Mannheim
IVK2-ISRPI-V8LC (or IVK2-ISRPI-V8HYW or
IVK2-ISRPI-V16LC)
II 3 D Ex tD A22 IP54 T70 °C X
CE
Serial (manufacturing) number
Model year
WARNING
These modules cannot be used in an intrinsically safe
environment after they have been exposed to non-intrinsically
safe signals.

8FLEX Ex 8 Input Analog, HART, and Noise Filter Analog Modules
Publication 1797-5.5 - September 2011
Install the Module
Read this for information about how to install the module which must be
used with a 1797-TB3 or 1797-TB3S intrinsically safe terminal base unit.
ATTENTION
This equipmment is considered Group 1, Class A industrial equipement
according to IEC/CISPR Publication 11. Without appropriate precautions, there
may be potential difficulties ensuring electromagnetic compatibility in other
environments due to conducted as well as radiated disturbance.
This equipment is supplied as open-type equipment. It must be mounted within
an enclosure that is suitably designed for those specific environmental
conditions that will be present and appropriately designed to prevent personal
injury resulting from accessiblity to live parts. The interior of the enclosure must
be accessible only by the use of a tool. Subsequent sections of this publication
may contain additional infromation regarding specific enclosure type ratings
that are required to comply with certain productsafety certifications.
ATTENTION
During mounting of all devices, be sure that all debris (such as metal chips or
wire strands) is kept from falling into the module. Debris that falls into the
module could cause damage on power up.
4
3
7
1
8
2
6
5
Labelhereorunderhere 40231

FLEX Ex 8 Input Analog, HART, and Noise Filter Analog Modules 9
Publication 1797-5.5 - September 2011
To install the module on a 1797 terminal base, see the figure and complete the
following.
1. Rotate keyswitch (1) on terminal base unit (2) clockwise to position 3
(1797-IE8 and 1797-IE8NF) or position 8 (1797-IE8H) as required
for the particular type of module.
2. Make certain the flexbus connector (3) is pushed all the way to the left
to connect with the neighboring terminal base/adapter.
3. Make sure the pins on the bottom of the module are straight so they
align properly with the connector in the terminal base unit.
4. Position the module (4) with its alignment bar (5) aligned with the
groove (6) on the terminal base.
5. Press firmly and evenly to seat the module in the terminal base unit,
noting that the module is seated when the latching mechanism (7) is
locked into the module.
6. Remove cap plug (8) and attach another intrinsically safe terminal base
unit to the right of this terminal base unit if required.
ATTENTION
Do not remove or replace a Terminal Base unit while power is applied.
Interruption of the backplane can result in unintentional operation or machine
motion.
IMPORTANT
Do not change the position of the keyswitch after wiring the terminal base
unit.
IMPORTANT
You cannot install the module unless the connector is fully extended.
IMPORTANT
Make certain that you only connect terminal base units to other intrinsically
safe system modules or adapters to maintain the integrity of the intrinsically
safe backplane.

10 FLEX Ex 8 Input Analog, HART, and Noise Filter Analog Modules
Publication 1797-5.5 - September 2011
Wire the Module to a 1797-TB3 or 1797-TB3S Terminal Base Unit
Module Wiring
1. Connect the individual input wiring to (+) terminals (0, 4, 8, 12) on
the 0…15 row (A) and on the 16…33 row (B) (terminals 17, 21, 25,
29) as indicated in the table, Wire Connections on page 11.
2. Connect the associated input to the corresponding (sig) terminal (1, 5,
9, 13) on the 0…15 row (A), and on the 16…33 row (B) (terminals 18,
22, 26, 30) for each input as indicated in the table, Wire Connections
on page 11.
WARNING
If you connect or disconnect wiring while the field-side power is on, an electrical
arc can occur. This could cause an explosion in hazardous location installations.
Be sure that power is removed or the area is nonhazardous before proceeding.
41307
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
16 17 18 19 20 21 22 23 24 25 26 27
28
29 30 31 32 33
34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51
Row A
Row B
Row C
+- +-+-+-
+-+-+-+-
Ch 0 Ch 1 Ch 2 Ch 3
Ch 7Ch 6Ch 5Ch 4
+V -V +V -V
40071
sig sig sig sig
sigsigsigsig
No connections allowed to terminals 16, 33, 36, 40, 41, 42, 43, 44, 45, and 49.

FLEX Ex 8 Input Analog, HART, and Noise Filter Analog Modules 11
Publication 1797-5.5 - September 2011
3. For other configurations, see the wiring diagrams in the section,
Inputs on page 12.
4. Connect +V DC power to terminal 34 on the 34…51 row (C).
5. Connect -V to terminal 35 on the 34…51 row (C).
6. If continuing power to the next terminal base unit, connect a jumper
from terminal 50 (+V) on this base unit to terminal 34 on the next
base unit.
7. If continuing common to the next terminal base unit, connect a
jumper from terminal 51 (-V) on this base unit to terminal 35 on the
next base unit.
WARNING
Make certain that you power these modules with an intrinsically safe power
supply. Do not exceed the values listed in the specifications for these modules.
If you connect or disconnect wiring while the field-side power is on, an electrical
arc can occur. This could cause an explosion in hazardous location installations.
Be sure that power is removed or the area is nonhazardous before proceeding.
ATTENTION
To reduce susceptibility to noise, power analog modules and digital modules
from separate power supplies.
Wire Connections
Input Input
Source
Input
Signal
Input
Return
Input Input
Source
Input
Signal
Input
Return
Input 0 A-0 A-1 A-2 Input 4 B-17 B-18 B-19
Input 1 A-4 A-5 A-6 Input 5 B-21 B-22 B-23
Input 2 A-8 A-9 A-10 Input 6 B-25 B-26 B-27
Input 3 A-12 A-13 A-14 Input 7 B-29 B-30 B-31
+V Terminals 34 and 50
-V Terminals 35 and 51

12 FLEX Ex 8 Input Analog, HART, and Noise Filter Analog Modules
Publication 1797-5.5 - September 2011

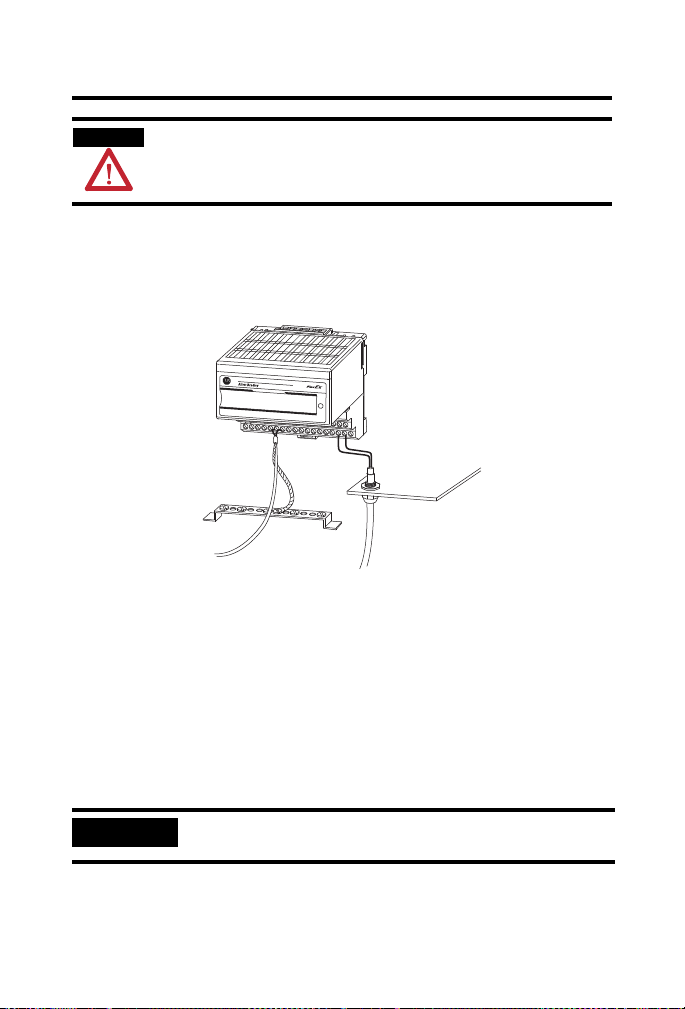

Ground the Module
All I/O wiring must use shielded wire. Shields must be terminated external to
the module, such as bus bars and shield-terminating feed throughs.
Inputs
Each input can be operated from an analog field device signal. Do not apply
any nonintrinsically safe signals to these modules.
When using an intrinsically safe electrical apparatus according to EN50020,
the European Community directives and regulations must be followed.
The channels in these modules are electrically connected to each other and
have a common plus-line.
ATTENTION
Do not use the unused terminals on this terminal base unit. Using these
terminals as supporting terminals can result in damage to the module, or
unintended operation of your system, or both.
IMPORTANT
When interconnecting several lines, you must consider the total
accumulated power and check for intrinsic safety.
44862

FLEX Ex 8 Input Analog, HART, and Noise Filter Analog Modules 13
Publication 1797-5.5 - September 2011
Flexbus Bus
uC
+V
-V
+
Sig
4…20 mA
Xmit 4…20 mA
Xmit
IPP
I
40072
22 Ω
273 Ω
21.5V
-P
I
Isolated
Power
4…20 mA
Xmit
1797-IE8 and
1797-IE8NF
Flexbus Bus
uC
+V
-V
+
Sig
4…20 mA
Xmit 4…20 mA
Xmit
IPP
I
43852
10 Ω
-
1797-IE8H
HART
Modem
273 Ω
23.7V

14 FLEX Ex 8 Input Analog, HART, and Noise Filter Analog Modules
Publication 1797-5.5 - September 2011
1797-IE8 and 1797-IE8NF Field Transmitter Supply Characteristic
The field transmitter supply can be modeled as a 21.5V source with a 273 Ω
series resistance. (See the following graph.) This provides a simple and useful
mechanism to determine transmitter and loop compatibility.
The actual transmitter supply contains three ranges of impedance with the
following characteristics:
•The output voltage is ≈21.5V for load currents of 0 mA.
•If the load is more than ≈680 Ωbut less than ∞Ω, the transmitter
supply is in a constant resistance region (≈273 Ω).
•For load impedance between 0 and ≈680 Ω, the transmitter supply
current is in constant current mode (≈22 mA).
If an intrinsic safety fault occurs in the field transmitter supply of any channel,
every channel’s field transmitter power is shutdown.

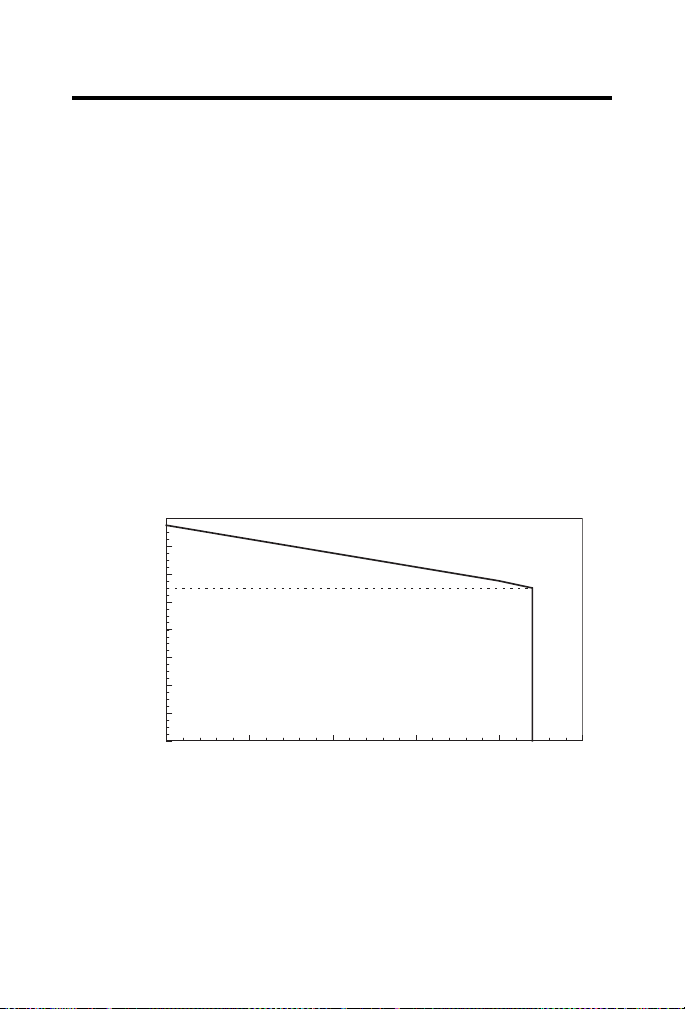

The following graph depicts the typical transmitter load characteristic.
The normal module field side power consumption is 7.5 W when all channel
21.5V sources (+) are loaded. If field devices are used that are powered
separately, the module field-side power consumption can be determined by
Field_Side_Power = 9.5V x (300 mA + n x 55 mA). Where n is the number of
field devices that are supplied by the 1797-IE8 or 1797-IE8NF.
Voltage
mA
16
14
12
10
8
6
4
0 5 10 15 20 25
43002
2
0
18
20
22
V DC

FLEX Ex 8 Input Analog, HART, and Noise Filter Analog Modules 15
Publication 1797-5.5 - September 2011
1797-IE8H Field Transmitter Supply Characteristic
The field transmitter supply can be modeled as a 23.7V source with a 273 Ω
series resistance. (See the following graph.) This provides a simple and useful
mechanism to determine transmitter and loop compatibility.
The actual transmitter supply contains three ranges of impedance with the
following characteristics:
•The output voltage is ≈23.7V for load currents of 0 mA.
•If the load is more than ≈750 Ωbut less than ∞Ω, the transmitter
supply is in a constant resistance region (≈273 Ω).
•For load impedance between 0 and ≈750 Ω, the transmitter supply
current is controlled by the field device to a maximum of ≈22 mA.
If an intrinsic safety fault occurs in the field transmitter supply of any channel,
every channel’s field transmitter power is shutdown.
The following graph depicts the typical transmitter load characteristic.
The normal module field side power consumption is 7.1 W when all channel
23.7V sources (+) are loaded. If field devices are used that are powered
separately, the module field-side power consumption can be determined by
Field_Side_Power = 9.5V x (180 mA + n x 69 mA). Where n is the number of
field devices that are supplied by the 1797-IE8H.
Voltage
mA
17
04 812 2024
43850
0
24
23
16
15
14
3
2
1
16
V DC

16 FLEX Ex 8 Input Analog, HART, and Noise Filter Analog Modules
Publication 1797-5.5 - September 2011
1797-IE8 and 1797-IE8NF Input Map (Read Words)
Bit
Word 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
0 Channel 0 Input Data
1 Channel 1 Input Data
2 Channel 2 Input Data
3 Channel 3 Input Data
4 Channel 4 Input Data
5 Channel 5 Input Data
6 Channel 6 Input Data
7 Channel 7 Input Data
8OA
Ch7
OA
Ch6
OA
Ch5
OA
Ch4
OA
Ch3
OA
Ch2
OA
Ch1
OA
Ch0
UA
Ch7
UA
Ch6
UA
Ch5
UA
Ch4
UA
Ch3
UA
Ch2
UA
Ch1
UA
Ch0
9RF
Ch7
RF
Ch6
RF
Ch5
RF
Ch4
RF
Ch3
RF
Ch2
RF
Ch1
RF
Ch0
LF
Ch7
LF
Ch6
LF
Ch5
LF
Ch4
LF
Ch3
LF
Ch2
LF
Ch1
LF
Ch0
10 Diagnostic Status
11 Res
Flg
Module command response Module response data
Where: Ch = channel
OA = Over Alarm
UA = Under Alarm
RF = Remote Fault
LF = Local Fault
Res Flg = Response Flag

FLEX Ex 8 Input Analog, HART, and Noise Filter Analog Modules 17
Publication 1797-5.5 - September 2011
1797-IE8H Input Map (Read Words)
Bit
Word 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
0 Channel 0 Input Data
1 Channel 1 Input Data
2 Channel 2 Input Data
3 Channel 3 Input Data
4 Channel 4 Input Data
5 Channel 5 Input Data
6 Channel 6 Input Data
7 Channel 7 Input Data
8OA
Ch7
OA
Ch6
OA
Ch5
OA
Ch4
OA
Ch3
OA
Ch2
OA
Ch1
OA
Ch0
UA
Ch7
UA
Ch6
UA
Ch5
UA
Ch4
UA
Ch3
UA
Ch2
UA
Ch1
UA
Ch0
9RF
Ch7
RF
Ch6
RF
Ch5
RF
Ch4
RF
Ch3
RF
Ch2
RF
Ch1
RF
Ch0
LF
Ch7
LF
Ch6
LF
Ch5
LF
Ch4
LF
Ch3
LF
Ch2
LF
Ch1
LF
Ch0
10 Reserved H
Rbd
Reserved Diagnostic Status
11 H Rb
Ch7
H Rb
Ch6
H Rb
Ch5
H Rb
Ch4
H Rb
Ch3
H Rb
Ch2
H Rb
Ch1
H Rb
Ch0
H
Fail
Ch7
H
Fail
Ch6
H
Fail
Ch5
H
Fail
Ch4
H
Fail
Ch3
H
Fail
Ch2
H
Fail
Ch1
H
Fail
Ch0
12 H
Tmt
Ch7
H
Tmt
Ch6
H
Tmt
Ch5
H
Tmt
Ch4
H
Tmt
Ch3
H
Tmt
Ch2
H
Tmt
Ch1
H
Tmt
Ch0
H
Cm
Ch7
H
Cm
Ch6
H
Cm
Ch5
H
Cm
Ch4
H
Cm
Ch3
H
Cm
Ch2
H
Cm
Ch1
H
Cm
Ch0
Where: Ch = channel
OA = Over Alarm
UA = Under Alarm
RF = Remote Fault
LF = Local Fault
H Rbd = HART Rebuild
H Rb = HART Readback
H Fail = HART Failure
H Tmt = HART Transmitter
H Cm = HART Communication

18 FLEX Ex 8 Input Analog, HART, and Noise Filter Analog Modules
Publication 1797-5.5 - September 2011
1797-IE8H Input Map (Read Words)
Word Bit
15 14 13 12 11 10 9876543210
0 Input Data Channel 0
1 Input Data Channel 1
2 Input Data Channel 2
3 Input Data Channel 3
4 Input Data Channel 4
5 Input Data Channel 5
6 Input Data Channel 6
7 Input Data Channel 7
8HA
Ch 7
HA
Ch 6
HA
Ch 5
HA
Ch 4
HA
Ch 3
HA
Ch 2
HA
Ch 1
HA
Ch 0
LA
Ch 7
LA
Ch 6
LA
Ch 5
LA
Ch 4
LA
Ch 3
LA
Ch 2
LA
Ch 1
LA
Ch 0
9SA
Rem.
Ch 7
SA
Rem.
Ch 6
SA
Rem.
Ch 5
SA
Rem.
Ch 4
SA
Rem.
Ch 3
SA
Rem.
Ch 2
SA
Rem.
Ch 1
SA
Rem.
Ch 0
OR
Ch7
OR
Ch6
OR
Ch5
OR
Ch4
OR
Ch3
OR
Ch2
OR
Ch1
OR
Ch0
10 Reserved HR Reserved Diagnostic Status
11 HCF
Ch 7
HCF
Ch 6
HCF
Ch 5
HCF
Ch 4
HCF
Ch 3
HCF
Ch 2
HCF
Ch 1
HCF
Ch 0
HF
Ch 7
HF
Ch 6
HF
Ch 5
HF
Ch 4
HF
Ch 3
HF
Ch 2
HF
Ch 1
HF
Ch 0
12 HP
Ch 7
HP
Ch 6
HP
Ch 5
HP
Ch 4
HP
Ch 3
HP
Ch 2
HP
Ch 1
HP
Ch 0
HC
Ch 7
HC
Ch 6
HC
Ch 5
HC
Ch 4
HC
Ch 3
HC
Ch 2
HC
Ch 1
HC
Ch 0
Where: HA = high alarm
LA = low alarm
SA = second alarm
OR = out of range
Res. = reserved
HR = HART rebuilding
HCF = HART current fault
HF = HART communication fault
HP = HART present
HC = HART communication

FLEX Ex 8 Input Analog, HART, and Noise Filter Analog Modules 19
Publication 1797-5.5 - September 2011
1797-IE8 and 1797-IE8NF Output Map (Write Words)
Bit
Word 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
0 Reserved High and Low Error Level
0…3
u/d
0…3
Filter Cutoff
0…3
Data Format
0…3
Flt
Md
0…3
1 Sq Rt Th High and Low Error Level
4…7
u/d
4…7
Filter Cutoff
4…7
Data Format
4…7
Flt
Md
4…7
2 CF Module Command Module Command Data
Where: u/d = Up/Down
Flt Md = Fault Module
Sq Rt Th = Square Root Threshold
CF = Command Flag
1797-IE8H Output Configuration Map
Bit
Word 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
0 Reserved High and Low Error Level
0…3
u/d
0…3
Filter Cutoff
0…3
Data Format
0…3
Flt
Md
0…3
1 Sq Rt Th High and Low Error Level
4…7
u/d
4…7
Filter Cutoff
4…7
Data Format
4…7
Flt
Md
4…7
Where: u/d = Up/Down
Flt Md = Fault Module
Sq Rt Th = Square Root Threshold

20 FLEX Ex 8 Input Analog, HART, and Noise Filter Analog Modules
Publication 1797-5.5 - September 2011
1797-IE8H Configuration Map
Word Bit
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
0NFVRFE
Ch7
FE
Ch6
FE
Ch5
FE
Ch4
Byte
Order
Group B(1)
HS
LEDs
HSI FE
Ch3
FE
Ch2
FE
Ch1
FE
Ch0
Byte
Order
Group A(1)
1HD
Ch7
HD
Ch6
HD
Ch5
HD
Ch4
HD
Ch3
HD
Ch2
HD
Ch1
HD
Ch0
HHE
Ch7
HHE
Ch6
HHE
Ch5
HHE
Ch4
HHE
Ch3
HHE
Ch2
HHE
Ch1
HHE
Ch0
2 Data Format Ch3 Data Format Ch2 Data Format Ch1 Data Format Ch0
3 Data Format Ch7 Data Format Ch6 Data Format Ch5 Data Format Ch4
4 HART Read Back
Threshold Ch1
Digital Filter
Ch1
HART Read Back
Threshold Ch0
Digital Filter
Ch0
5 HART Read Back
Threshold Ch3
Digital Filter
Ch3
HART Read Back
Threshold Ch2
Digital Filter
Ch2
6 HART Read Back
Threshold Ch5
Digital Filter
Ch5
HART Read Back
Threshold Ch4
Digital Filter
Ch4
7 HART Read Back
Threshold Ch7
Digital Filter
Ch7
HART Read Back
Threshold Ch6
Digital Filter
Ch6
8 Square
root
Limit
Ch7
Square
root
Limit
Ch6
Square
root
Limit
Ch5
Square
root
Limit
Ch4
Square
root
Limit
Ch3
Square
root
Limit
Ch2
Square
root
Limit
Ch1
Square
root
Limit
Ch0
9 High Alarm Limit Ch0
10 Low Alarm Limit Ch0
11 High High Alarm Limit (Remote) Ch0
12 Low Low Alarm Limit (Remote) Ch0
13 High Alarm Limit Ch1
14 Low Alarm Limit Ch1
15 High High Alarm Limit (Remote) Ch1
16 Low Low Alarm Limit (Remote) Ch1
17 High Alarm Limit Ch2
18 Low Alarm Limit Ch2
19 High High Alarm Limit (Remote) Ch2
20 Low Low Alarm Limit (Remote) Ch2
21 High Alarm Limit Ch3
