Rockwell Automation Allen-Bradley 1732E-IT4IM12R User manual

ArmorBlock Dual-port
EtherNet/IP 4-point Isolated
Thermocouple and RTD Input
Modules
Catalog Numbers 1732E-IT4IM12R, 1732E-IR4IM12R
User Manual Original Instructions

2Rockwell Automation Publication 1732E-UM004B-EN-P - October 2021
ArmorBlock Dual-port EtherNet/IP 4-point Isolated Thermocouple and RTD Input Modules User Manual
Important User Information
Read this document and the documents listed in the additional resources section about installation, configuration, and
operation of this equipment before you install, configure, operate, or maintain this product. Users are required to familiarize
themselves with installation and wiring instructions in addition to requirements of all applicable codes, laws, and standards.
Activities including installation, adjustments, putting into service, use, assembly, disassembly, and maintenance are required to
be carried out by suitably trained personnel in accordance with applicable code of practice.
If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be
impaired.
In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use
or application of this equipment.
The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and
requirements associated with any particular installation, Rockwell Automation, Inc. cannot assume responsibility or liability for
actual use based on the examples and diagrams.
No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or software
described in this manual.
Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation, Inc., is
prohibited.
Throughout this manual, when necessary, we use notes to make you aware of safety considerations.
Labels may also be on or inside the equipment to provide specific precautions.
WARNING: Identifies information about practices or circumstances that can cause an explosion in a hazardous environment, which
may lead to personal injury or death, property damage, or economic loss.
ATTENTION: Identifies information about practices or circumstances that can lead to personal injury or death, property
damage, or economic loss. Attentions help you identify a hazard, avoid a hazard, and recognize the consequence.
IMPORTANT Identifies information that is critical for successful application and understanding of the product.
SHOCK HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that dangerous
voltage may be present.
BURN HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that surfaces may
reach dangerous temperatures.
ARC FLASH HAZARD: Labels may be on or inside the equipment, for example, a motor control center, to alert people to potential
Arc Flash. Arc Flash will cause severe injury or death. Wear proper Personal Protective Equipment (PPE). Follow ALL Regulatory
requirements for safe work practices and for Personal Protective Equipment (PPE).

Rockwell Automation Publication 1732E-UM004B-EN-P - October 2021 3
Table of Contents
Preface
About This Publication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Summary of Changes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Who Should Use this Manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Purpose of this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Additional Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Chapter 1
Overview of the ArmorBlock
Thermocouple and RTD Input
Modules
Module Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Physical Features of Your Module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Types of Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Hardware/Software Compatibility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Thermocouple Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Cold Junction Compensation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
RTD Sensor Types. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Module Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Input Overrange Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Input Underrange Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Process Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Digital Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Chapter 2
Install Your ArmorBlock I/O
Module
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Install the Module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Set the Network Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Mount the Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Wire the Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Chapter 3
Configure Your Thermocouple
and RTD Input Modules
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Set Up the Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Create the Example Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Configure Your I/O Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Studio 5000 Logix Designer Configuration Application . . . . . . . . . 21
Overview of the Configuration Process. . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Add the Module to Your Project. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Add the I/O module as a child of the 1756-L85E controller module 22
Download the Program to Your Controller. . . . . . . . . . . . . . . . . . . . . . . . . 23
Edit Your Module Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
General Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Connection Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Configuration Tab for 1732E-IR4IM12R . . . . . . . . . . . . . . . . . . . . . . . . 27
Configuration Tab for 1732E-IT4IM12R . . . . . . . . . . . . . . . . . . . . . . . . 29
Alarm Configuration Tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Internet Protocol Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

4Rockwell Automation Publication 1732E-UM004B-EN-P - October 2021
Table of Contents
Port Configuration Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Calibration Tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Status and Monitoring Tabs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Chapter 4
Configurable Features for the
Thermocouple and RTD Input
Modules
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Configure Your Input Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Configurable Options and Their Effect on the Channels . . . . . . . . . . . . 38
Sensor Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Temperature Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Notch Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Digital Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Cold Junction Compensation (1732E-IT4IM12R only) . . . . . . . . . . . . 40
Data Tables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Chapter 5
Calibrate Your Modules Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Calibrate the Thermocouple Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Calibrate the RTD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Appendix A
Troubleshoot the Module Interpret Status Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Check for Faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Appendix B
ArmorBlock Embedded Web
Server
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Typical Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Browser Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Enable or Disable the Web Server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Access the Home Page of the Web Server . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Log On to the Web Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Navigate the ArmorBlock I/O. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Access Diagnostic Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Access Configuration Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Appendix C
Module Tag Definitions Module Tags for 1732E-IT4IM12R. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Module Tags for 1732E-IR4IM12R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Access the Module Tags. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Rockwell Automation Publication 1732E-UM004B-EN-P - October 2021 5
Preface
About This Publication Read this preface to familiarize yourself with the rest of the manual. It
provides information concerning:
• who should use this manual
• the purpose of this manual
• related documentation
• conventions used in this manual
Summary of Changes This publication contains the following new or updated information. This list
includes substantive updates only and is not intended to reflect all changes.
Translated versions are not always available for each revision.
Who Should Use this Manual Use this manual if you are responsible for designing, installing, programming,
or troubleshooting control systems that use ArmorBlock® EtherNet/IP™ Dual
Port 4-Point Thermocouple and RTD Modules.
You should have a basic understanding of electrical circuitry and familiarity
with relay logic. If you do not, obtain the proper training before using this
product.
Purpose of this Manual This manual is a reference guide for the 1732E-IT4IM12R, 1732E-IR4IM12R
modules. It describes the procedures you use to install, wire, troubleshoot, and
use your module.
Additional Resources These documents contain additional information concerning related products
from Rockwell Automation.
Topic Page
Reworded feature descriptions 7
Improved descriptions of module features 8
Added section Enable or Disable the Web Server 14
Improved pinout and wiring description 17
Improved description of input module configuration options 37
Improved description of calibration overview 47
Updated module status indicator description 54
Corrected web server user name and password details 59
Corrected configuration tag descriptions 61
Resource Description
Pinout Guide for ArmorBlock I/O Dual Port EtherNet/IP Analog Modules 1732E-
WD003 Information on wiring the ArmorBlock Dual-Port EtherNet/IP 4-Point Analog Modules (1732E- IF4M12R, 1732E-OF4M12R, 1732E-IT4IM12R, 1732E-IR4IM12R).
ArmorBlock Dual-port EtherNet/IP 4-point Thermocouple and RTD Input Modules
Installation Instructions, publication 1732E-IN005 Information on installing the ArmorBlock EtherNet/IP module.
EtherNet/IP Device Level Ring Application Technique, publication ENET-AT007 A manual on how to install, configure and maintain linear and Device-level Ring (DLR) networks
using Rockwell Automation EtherNet/IP devices with embedded switch technology.
EtherNet/IP Network Devices User Manual, ENET-UM006 Describes how to configure and use EtherNet/IP devices to communicate on the EtherNet/IP
network.

6Rockwell Automation Publication 1732E-UM004B-EN-P - October 2021
Preface
You can view or download publications at rok.auto/literature.
Ethernet Reference Manual, ENET-RM002 Describes basic Ethernet concepts, infrastructure components, and infrastructure features.
System Security Design Guidelines Reference Manual, SECURE-RM001 Provides guidance on how to conduct security assessments, implement Rockwell Automation
products in a secure system, harden the control system, manage user access, and dispose of
equipment.
Industrial Components Preventive Maintenance, Enclosures, and Contact Ratings
Specifications, publication IC-TD002 Provides a quick reference tool for Allen-Bradley® industrial automation controls and
assemblies.
Safety Guidelines for the Application, Installation, and Maintenance of Solid-State
Control, publication SGI-1.1
Designed to harmonize with NEMA Standards Publication No. ICS 1.1-1987 and provides general
guidelines for the application, installation, and maintenance of solid-state control in the form of
individual devices or packaged assemblies incorporating solid-state components.
Industrial Automation Wiring and Grounding Guidelines, publication 1770-4.1 Provides general guidelines for installing a Rockwell Automation industrial system.
Product Certifications website, rok.auto/certifications. Provides declarations of conformity, certificates, and other certification details.
Resource Description

Rockwell Automation Publication 1732E-UM004B-EN-P - October 2021 7
Chapter 1
Overview of the ArmorBlock Thermocouple and
RTD Input Modules
Module Features The 1732E-IT4IM12R and 1732E-IR4IM12R modules let you configure a sensor
type for each of four input channels that linearizes analog signal into a
temperature value. The RTD module, 1732E-IR4IM12R, linearizes ohms into
temperature and the Thermocouple module, 1732E-IT4IM12R, linearizes
millivolts into temperature.
The modules have the following features:
• Sensor type
• Preset sensor range for each sensor type
• Fault mode
•ProcessAlarms
• Overrange and underrange detection
To learn more about module features, see Configurable Features for the
Thermocouple and RTD Input Modules on page 37.
You must use the Studio 5000 Logix Designer® application to configure these
features. For a detailed how-to-configure instructional guide, see the chapter,
Configure Your Thermocouple and RTD Input Modules on page 19.
Physical Features of
Your Module
The modules have the following components:
• Node address switches
• Connectors (two EtherNet/IP D-code M12 connectors, two micro-style
Power in/out connectors, four I/O M12 connectors)
• Status indicators (Link, I/O, Module, Network, and Auxiliary power
status indicators)
•Functionalearthground
Topic Page
Module Features 7
Physical Features of Your Module 7
Types of Modules 8
Hardware/Software Compatibility 9
Thermocouple Types 9
RTD Sensor Types 10
Digital Filters 11
Module Alarms 11

8Rockwell Automation Publication 1732E-UM004B-EN-P - October 2021
Chapter 1 Overview of the ArmorBlock Thermocouple and RTD Input Modules

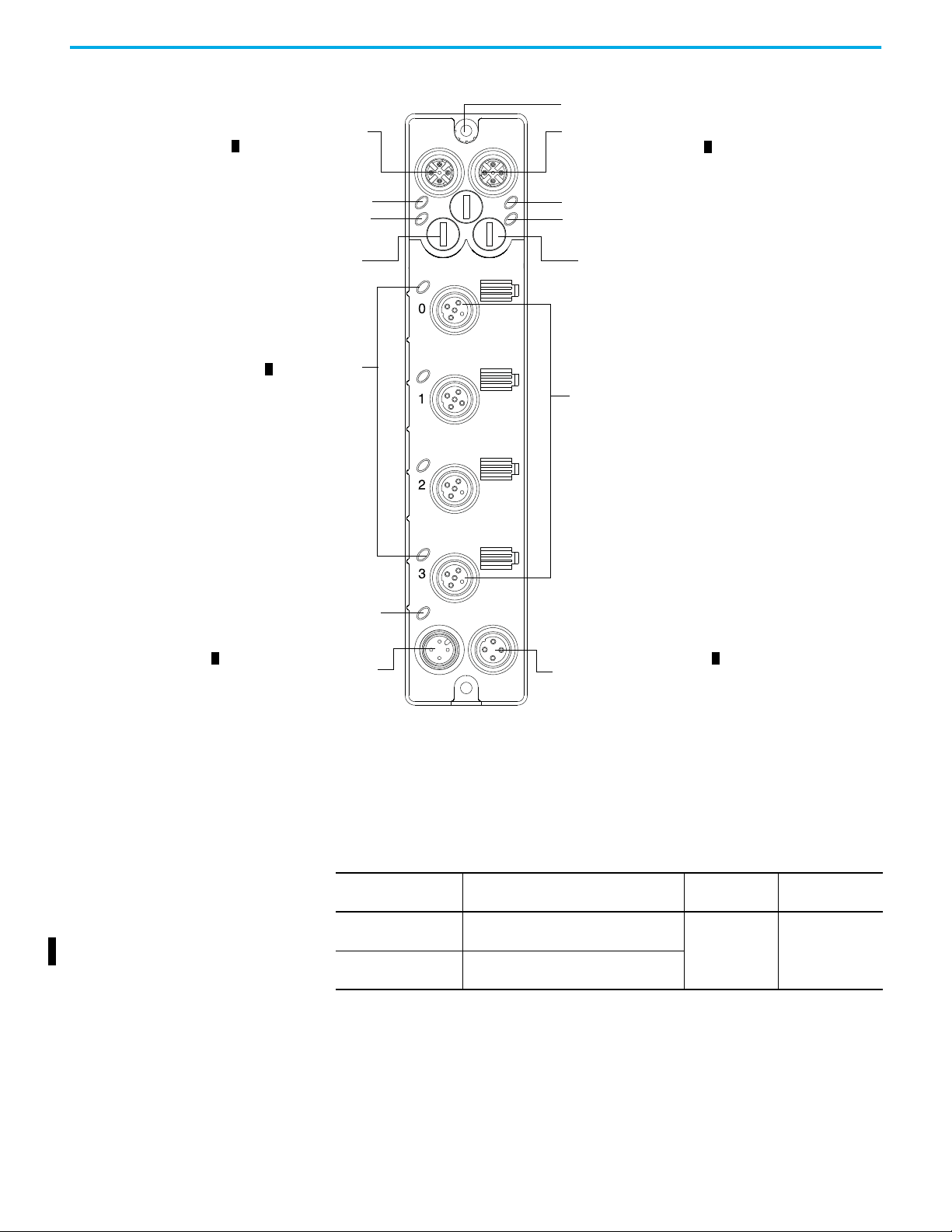

Physical Features of 1732E-IT4IM12R and 1732E-IR4IM12R Modules
(1) Functional Earth grounds the I/O block’s EtherNet/IP communication circuitry which is designed to mitigate the effect of noise on
the network. The device requires a solid earth ground connection, either through a metal screw to a grounded metal panel or
through a wire.
Types of Modules The Thermocouple and RTD modules are as follows.
Link 1 status indicator
EtherNet/IP D-code
M12 connector – Link 2
Node address switches
M12 style, A-coded
I/O connectors
M12 style, A-coded power, male
I/O status
indicators
EtherNet/IP D-code M12
connector – Link 1
Link 2 status indicator
Node address switches
Network status indicator
Module status indicator
Auxiliary Power
status indicator
Functional Earth Ground(1)
M12 style, A-coded power, female
Table 1 - Module Description
Catalog Number Description Network
Connector Power Connector
1732E-IT4IM12R 24V DC power, 4-Point Isolated Thermocouple
Input, Dual-Port EtherNet/IP Module Dual D-code M12 Dual 4-pin M12 style,
A-coded
1732E-IR4IM12R 24V DC power, 4-Point Isolated RTD Input,
Dual-Port EtherNet/IP Module

Rockwell Automation Publication 1732E-UM004B-EN-P - October 2021 9
Chapter 1 Overview of the ArmorBlock Thermocouple and RTD Input Modules
Hardware/Software
Compatibility
The module and the applications described in this manual are compatible with
the firmware versions and software releases shown in Table 2.
Thermocouple Types The 1732E-IT4IM12R module supports the following thermocouples.
Cold Junction Compensation
When using thermocouples, cold junction compensation is required at the
termination of the thermocouple wire. The actual cold junction is outside of
the module at the CJC wiring block. The external thermistor provides the
reference temperature of the cold junction.
Accomplish a cold junction in the following ways:
• Enter an estimated temperature (Cold Junction Compensation Offset).
• Use external cold junction compensators to measure the cold junction
temperature directly.
To compensate for cold junction the 1732E-IT4IM12R thermocouple module
has to determine the actual cold junction temperature. If the module is
configured to provide cold junction compensation, then the user must use a
CJC Terminal Chamber, such as Allen-Bradley 871A-TS4CJC-DM or 871A-
TR4CJC-DM(1) as shown in the next diagram.
Table 2 - Module Compatibility
Product Firmware Version / Software Release
1732E-IT4IM12R and 1732E-IR4IM12R Firmware rev. 1.1 or later
1756-EN2T, 1756-EN2TR, 1756-EN3TR 3.x version when using Studio 5000 Logix Designer v20 or later
Studio 5000 Logix Designer software(1)
(1) The Studio 5000 Logix Designer application is the re-branding of RSLogix 5000® software and will continue to be the product to
program Logix 5000™ controllers for discrete, process, batch, motion, safety, and drive-based solutions.
20 or later
RSLinx® software 2.56 or later
Table 3 - Supported Thermocouple Types
Type Material Temperature Range
°C (°F) Voltage Range
B Pt /30% Rh vs. Pt/5% Rh 40…1820 (104…3308) 0.000…13.820 mV
C W/5% Re vs. W/26% Re 0…2320 (32…4208) 0.000…37.107 mV
E Ni/Cr vs. Cu/Ni -270…1000 (-454…1832) -9.835…76.373 mV
J Fe vs. Cu/Ni -210…1200 (-346…2192) -8.095…69.553 mV
K Ni/Cr vs. Ni/Al -270…1372 (-454…2501.6) -6.458…54.886 mV
NNi/14.2%Cr/1.4%Si vs.
Ni/4.4%Si/0.1%Mg -270…1300 (-454…2372) -4.345…47.513 mV
R Pt/13%Rh vs. Pt -50…1768 (-58…3214.4) -0.226…21.101 mV
S Pt/10%Rh vs. Pt -50…1768 (-58…3214.4) -0.236…18.693 mV
T Cu vs. Cu/Ni -270…400 (-454…752) -6.258…20.872 mV
(1) The Allen-Bradley 871A-TS4CJC-DM or 871A-TR4CJC-DM terminal chamber has an
embedded thermistor, which facilitates thermocouple-based temperature measurement.
The thermistor types supported are Thermometrics MF65F302V/W, or DC95F302V/W.

10 Rockwell Automation Publication 1732E-UM004B-EN-P - October 2021
Chapter 1 Overview of the ArmorBlock Thermocouple and RTD Input Modules
Use an external thermistor to deduce the cold junction temperature to
accurately compensate the hot junction measured temperature.
The compensation voltage to be applied can also be estimated by applying
fixed cold junction correction using a fixed offset directly through the Studio
5000 Logix Designer application. The module supports hardware CJC from
0…70 °C.
The Thermocouple module also supports CJC error detection if a channel CJC
module is selected but is not correctly connected to the correct channel. The
module detects the open circuit condition and triggers the warning status bit
and fault LED.
Cold junction compensation is supported on all four channels of the
1732E-IT4IM12R module.
RTD Sensor Types The 1732E-IR4IM12R module supports 100 Ω -200 Ωα = 0.00385/0.003916 Pt
RTDs, 100/120
Ω Ni RTDs, and a 10 Ω Cu α =0.00427 RTD.
It supports 2-wire to 4-wire RTD. The following RTD input types are
supported.
The module uses lead wire compensation wire to measure and correct for any
cable lead resistance. The compensation circuit depends on an outside module
jumper to connect the third wire if the compensating lead wire is not available
(that is, if a 2-wire RTD is connected to the I/O connector).

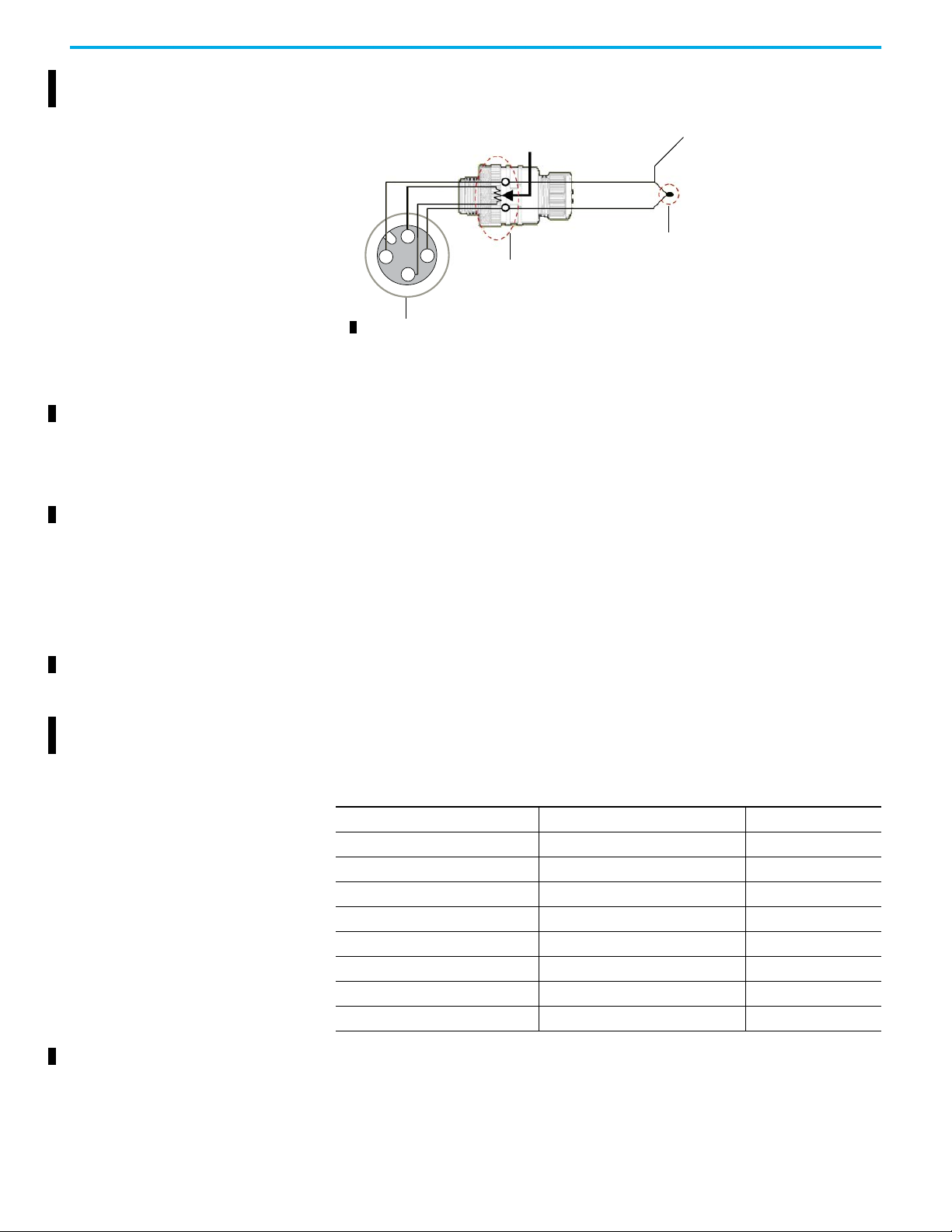

3
4
1
2
Thermistor resistance used by the module to determine a
baseline for the thermocouple Thermocouple
Hot junction
Cold junction
Face of module connector
871A-TS4CJC-DM or 871A-TR4CJC-DM
Terminal Chamber shown
Table 4 - Supported RTD Types
RTD type Temperature Range °C (°F) Voltage Range
100 Ω Pt 385 0…390.48 Ω -200…850 °C (-328…1562 °F) 0…150 mV
200
Ω Pt 385 0…781 Ω -200…650 °C (-328…1202 °F) 0…300 mV
100 Ω Pt 3916 0…337.03 Ω -200…630 °C (-328…1166 °F) 0…156.25 mV
200 Ω Pt 3916 0…674.06 Ω -200…630 °C (-328…1166 °F) 0…312.5 mV
10
Ω Cu 427 0…19.116 Ω -320…500 °C (-544…932 °F) 0…19.47 mV
120 Ω Ni 672 0…445.10 Ω -70…445 °C (-94…833 °F) 0…156.25 mV
100 Ω Ni 618 0…198.88 Ω -60…180 °C (-76…356 °F) 0…75 mV
120 Ω Ni 618 0…238.65 Ω -90…140 °C (-130…284 °F) 0…75 mV

Rockwell Automation Publication 1732E-UM004B-EN-P - October 2021 11
Chapter 1 Overview of the ArmorBlock Thermocouple and RTD Input Modules
Module Alarms The ArmorBlock Thermocouple and RTD modules are capable of generating
the following alarms.
• Input Overrange
• Input Underrange
• Process (low, low-low, high, high-high)
• Open-wire detection
Input Overrange Alarm
The channel overrange alarm is set if the input is greater than the maximum
range selected – thermocouple or RTD range dependent.
Input Underrange Alarm
The input channel underrange alarm is set if the input is less than the
minimum temperature – thermocouple or RTD range dependent.
Process Alarms
The following process alarms are available.
•Low
• Low-Low
•High
•High-High
When the channel input goes below a low alarm or above a high alarm, a bit is
set in the data table. All Alarm Status bits can be read individually or by reading
the Channel Status Byte (see page 41).
You can configure the channel alarm set point individually for each channel.
Digital Filters The modules also support a digital low-pass filter to smooth input data noise
transients on each input channel. This value specifies the time constant for a
digital first order or low-pass lag filter on the input. It is specified in units of
milliseconds. A digital filter value of 0disables the filter.
To learn how to configure digital filters, see page 24.
IMPORTANT Open-wire detection is not supported for 1732E analog modules with analog
differential input.

12 Rockwell Automation Publication 1732E-UM004B-EN-P - October 2021
Chapter 1 Overview of the ArmorBlock Thermocouple and RTD Input Modules
Notes:

Rockwell Automation Publication 1732E-UM004B-EN-P - October 2021 13
Chapter 2
Install Your ArmorBlock I/O Module
Overview This chapter shows you how to install and wire the ArmorBlock EtherNet/IP
Dual Port 4-Point Thermocouple and RTD Input modules. The only tools you
require are a flat or Phillips head screwdriver and drill.
Install the Module To install the module:
• Set the network address
•Mountthemodule
• Connect the I/O, Network, and Auxiliary cables to the module.
Set the Network Address
The I/O block ships with the rotary switches set to 999 and DHCP enabled. To
change the network address, you can do one of the following:
• adjust the node address switches on the front of the module.
• use a Dynamic Host Configuration Protocol (DHCP) server, such as
Rockwell Automation® BootP/DHCP.
• retrieve the IP address from nonvolatile memory.
The I/O block reads the switches first to determine if the switches are set to a
valid number. To set the network address:
1. Remove power.
2. Remove the switch dust caps.
3. Rotate the three (3) switches on the front of the module using a small
blade screwdriver.
4. Line up the small notch on the switch with the number setting you wish
to use.
Valid settings range from 001…254.
5. Replace switch dust caps. Make sure not to over tighten.
6. Reapply power.
7. Record IP address on product label found on the side of enclosure.
Topic Page
Install the Module 13
Set the Network Address 13
Mount the Module 15
Wire the Module 16

14 Rockwell Automation Publication 1732E-UM004B-EN-P - October 2021
Chapter 2 Install Your ArmorBlock I/O Module
Set Network Address
When the switches are set to a valid number, the I/O block’s IP address is
192.168.1.xxx, where xxx represents the number set on the switches. The I/O
block’s subnet mask is 255.255.255.0 and default gateway address is set to
192.168.1.1.
When the I/O block uses the network address set on the switches, the I/O block
does not have a host name assigned to it or use any Domain Name Server.
If the switches are set to an invalid number (for example, 000 or a value greater
than 254 excluding 888), the I/O block checks to see if DHCP is enabled. If
DHCP is enabled, the I/O block asks for an address from a DHCP server. The
DHCP server also assigns other Transport Control Protocol (TCP) parameters.
(The modules are shipped with the network switches set to 999.)
If DHCP is not enabled, the I/O block uses the IP address (along with other
TCP configurable parameters) stored in nonvolatile memory.
Network Address Switch value 001
The module IP address cannot be the same as the gateway address. If the
address switches are set to 001, the module IP address becomes 192.168.1.1,
which is the same as the default gateway address. In this case, the module
gateway address will be set to 0.0.0.0.
Default Factory Configuration
The switch value 888 resets the module to default factory configuration on
power up. The module will not operate properly when powered up with this
setting. The switches must be set to a different (and valid) value and then
power cycled after a reset.
While in reset state, the module LED flashes red and the network LED goes off.
Enable or Disable the Web Server
With firmware revision 1.013 or later, the web server feature is disabled by
default. Use the network address switches to enable or disable the web server
for your application.
Value Description
000 Enables the web server. Cycle power to the module for the setting to take effect. When you apply power, the module LED flashes
red to indicate that the web server is enabled.
901 Disables the web server. Cycle power to the module for the setting to take effect. When you apply power, the module LED flashes
red to indicate that the web server is disabled.
0
2
4
6
8
0
2
4
6
8
0
2
4
6
8
Note: You need to remove the protective
switch dust caps before you can adjust the
address settings.
Example shows network switches set at
163, which sets the module IP address to
192.168.1.163.

Rockwell Automation Publication 1732E-UM004B-EN-P - October 2021 15
Chapter 2 Install Your ArmorBlock I/O Module
For steps to enable or disable the web server, see Enable or Disable the Web
Server on page 57.
Mount the Module To mount the module on a wall or panel, use the screw holes provided in the
module. Refer to the drilling dimensions illustration to guide you in mounting
the module.
Mounting Dimensions
Install the mounting base as follows:
1. Lay out the required points as shown above in the drilling dimension drawing.
2. Drill the necessary holes for #6 (M3) pan head screws.
IMPORTANT For modules in field ControlFLASH™, the module does not disable the web
server by default. You need to Factory reset the module in order for the
web server to be disabled by default.
IMPORTANT To reduce the likelihood of exploitation and associated security risk, we
recommend that you keep the web server disabled.
37 (1.46)
16.2 (0.64)
168.6 (6.64)
(1.26)
32
(1.70)
43.3
(0.78)
19.8
166.5 (6.56)
27
(1.06)
6LGH0RXQWLQJ
)URQW0RXQWLQJ
179 (7.05)
18
(0.71)
Millimeters
(Inches)
Functional Earth
Grounds the I/O block EtherNet/IP
communication circuitry which is
designed to mitigate the effect of noise
on the network, and to provide a path
to earth for network surge events. It
requires a solid earth ground
connection, either through a metal
screw to a grounded metal panel or
through a wire.

16 Rockwell Automation Publication 1732E-UM004B-EN-P - October 2021
Chapter 2 Install Your ArmorBlock I/O Module
3. Mount the module using #6 (M3) screws.

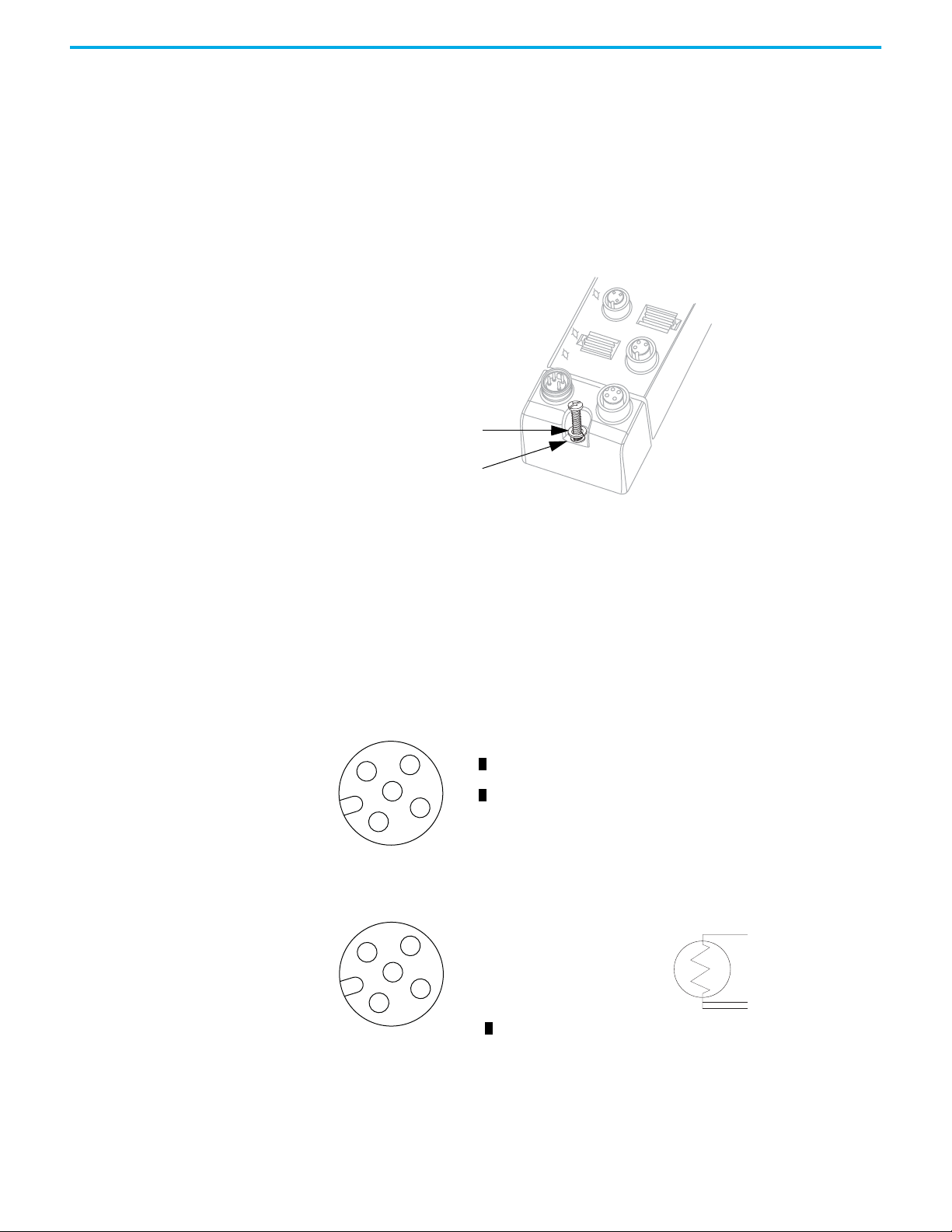

Mount the Module in High Vibration Areas
If you mount the module in an area that is subject to shock or vibration, we
recommend you use a flat and a lock washer to mount the module. Mount the
flat and the lock washer as shown in the mounting illustration. Torque the
mounting screws to 0.68 N•m (6 lb•in).
High Vibration Area Mounting
Wire the Module The 1732E-IT4IM12R and 1732E-IR4IM12R modules have 5-pin micro-style M12
I/O connectors. We provide caps to cover the unused connectors on your
module. Connect the quick-disconnect cord sets you selected for your module
to the appropriate ports.
I/O Connectors(1)
Micro-style M12 5-Pin Input Female Connector – 1732E-IT4IM12R
Micro-style M12 5-Pin Input Female Connector – 1732E-IR4IM12R
Lock washer
Flat washer
(1) Only 4 of the 5 pins are active. The center pin (5) is internally tied to signal ground to minimize
external noise pickup.
3
4
1
2
5
(View into connector)
Pin 1 CJC
Pin 2 TC +
Pin 3 CJC
Pin 4 TC -
Pin 5 Signal shield
Shell No connect
A
C
B
3
4
1
2
5
(View into connector)
Pin 1 No connect
Pin 2 A
Pin 3 B
Pin 4 C
Pin 5 No connect
Shell No connect

Rockwell Automation Publication 1732E-UM004B-EN-P - October 2021 17
Chapter 2 Install Your ArmorBlock I/O Module
Ethernet Connector
D-Code Micro Network Female Connector
Power Connectors
Attach an M12 cordset to the micro-style 4-pin M12 connector as shown below.
Micro-style 4-Pin Input Male Receptacle (Front view)
The power required by the module is based on a 4-pin micro-style connector
system. Power can be daisy chained through the module either left to right or
right to left. The standard configuration is with Module/Auxiliary power
entering the module on the left connector.
Both modules require two 24V DC (nominal) supplies. These supplies are called
the Module Power and the Auxiliary Power. The Module power supplies the
microprocessor, Ethernet, and the module I/O, while Auxiliary power is
daisychained through the module.
IMPORTANT Use the 1585D–M4DC–H: Polyamide small body unshielded mating
connectors for the D-Code M12 female network connector.
Note that the distance between the center of each Ethernet connector is
16.2 mm (see Mounting Dimensions on page 15). Rockwell Automation
recommends the use of suitable cable based on this measurement. Some
of the recommended cables are 1585D-M4TBJM-x and 1585D-M4TBDM-x
for daisychains.
IMPORTANT Use two twisted pair CAT5E UTP or STP cables.
42
3
1
5
(View into connector)
Pin 1 M12_Tx+
Pin 2 M12_Rx+
Pin 3 M12_Tx-
Pin 4 M12_Rx-
Pin 5 Connector shell shield GND
D-Code
M12 Pin Wire Color Signal 8-way Modular RJ45 Pin
1White-orangeTX+1
2 White-green RX+ 3
3OrangeTX-2
4 Green RX- 6
1
4
3
2
Male Input Female Output
Pin 1 Auxiliary power+
Pin 2 Module power+
Pin 3 Module power-
Pin 4 Auxiliary power-
Shell No connect
3
4
1
2
Left side Right side

18 Rockwell Automation Publication 1732E-UM004B-EN-P - October 2021
Chapter 2 Install Your ArmorBlock I/O Module
Internally, the Module Power and Auxiliary Power are electrically isolated.
IMPORTANT The maximum current that any pin on the power connectors can carry is 4
A.
To comply with the CE Low Voltage Directive (LVD), this equipment and all
connected I/O must be powered from a source compliant with the following:
Safety Extra Low Voltage (SELV) or Protected Extra Low Voltage (PELV).
ATTENTION: To comply with UL restrictions, this equipment must be powered
from a source compliant with the following: Limited Voltage/Limited Current.
The device meets UL Type 1 Enclosure rating.
ATTENTION: Nonmetallic enclosures do not provide grounding between conduit
connections. Use grounding type bushings and jumper wires.
IMPORTANT The 1732E-IR4IM12R and the 1732E-IT4IM12R modules require a functional
earth connection to the top earth grounding tab in order to mitigate network
surge, ESD, or EMC events.

Rockwell Automation Publication 1732E-UM004B-EN-P - October 2021 19
Chapter 3
Configure Your Thermocouple and RTD
Input Modules
Introduction This chapter guides you through the steps required to configure your modules
using the Studio 5000 Logix Designer application. Note that the modules
presented in this chapter can be configured using the Studio 5000 Logix
Designer application, version 20, or later.
Configuring the two modules using the Studio 5000 Logix Designer
application involves the same general procedure. Note, however, that the two
modules do not have exactly similar Module Definition properties. These are
distinctly covered in this chapter.
Set Up the Hardware In this example, a ControlLogix® chassis contains the 1756-L85E processor in
slot 1. The ArmorBlock module is mounted remotely.
Topic Page
Set Up the Hardware 19
Create the Example Application 20
Configure Your I/O Module 21
Overview of the Configuration Process 21
Add the Module to Your Project 22
Download the Program to Your Controller 23
Edit Your Module Configuration 24

20 Rockwell Automation Publication 1732E-UM004B-EN-P - October 2021
Chapter 3 Configure Your Thermocouple and RTD Input Modules
To work along with this example set up your system as shown.
• Note that in the example application, the ControlLogix 5580 processor is
assumed to be in the slot shown.
• Verify the IP addresses for your programming terminal and ArmorBlock
Ethernet module.
• Verify that you connected all wiring and cabling properly.
• Be sure you configured your communication driver (for example,
AB_ETH-1 or AB-ETHIP-1) in RSLinx software.
Create the
Example Application
Perform the following steps to create the example application:
1. From the File menu, select New.
Local
Cbassis
ArmorBlock I/O
ControlLogix 5580
Data
Switch
192.168.1.100
Programming
Terminal
0ArmorBlock Ethernet Module
192.168.1.3
32Slot 1
Embedded
Technology
4
