Rohde & Schwarz AREG100A User manual

R&S®AREG100A
Automotive Radar Echo
Generator
Getting Started
Getting Started
Version 04
1430357202
(>NSÖ2)

This document describes the R&S®AREG100A, stock no. 1430.3508K02.
© 2019 Rohde & Schwarz GmbH & Co. KG
Mühldorfstr. 15, 81671 München, Germany
Phone: [phone] - 0
Fax: [phone]
Email: [email protected]
Internet: www.rohde-schwarz.com
Subject to change – Data without tolerance limits is not binding.
R&S® is a registered trademark of Rohde & Schwarz GmbH & Co. KG.
Trade names are trademarks of the owners.
1430.3572.02 | Version 04 | R&S®AREG100A
Throughout this manual, products from Rohde & Schwarz are indicated without the ® symbol , e.g.
R&S®AREG is indicated as R&S AREG.

Contents
R&S®AREG100A
3Getting Started 1430.3572.02 ─ 04
Contents
1 Safety Information................................................................. 7
2 Preface....................................................................................8
2.1 Key Features......................................................................................... 8
3 Documentation Overview......................................................9
3.1 Getting Started Manual.........................................................................9
3.2 User Manuals and Help........................................................................ 9
3.3 Tutorials............................................................................................... 10
3.4 Service Manual....................................................................................10
3.5 Instrument Security Procedures....................................................... 10
3.6 Basic Safety Instructions................................................................... 10
3.7 Data Sheets and Brochures............................................................... 10
3.8 Release Notes and Open Source Acknowledgment (OSA).............11
3.9 Application Notes, Application Cards, White Papers, etc...............11
4 Preparing for Use.................................................................12
4.1 Putting into Operation........................................................................ 12
4.1.1 EMI Suppression...................................................................................14
4.1.2 Unpacking and Checking the Instrument.............................................. 14
4.1.3 Accessory List.......................................................................................15
4.1.4 Placing or Mounting the Instrument...................................................... 15
4.1.5 Connecting AC Power...........................................................................17

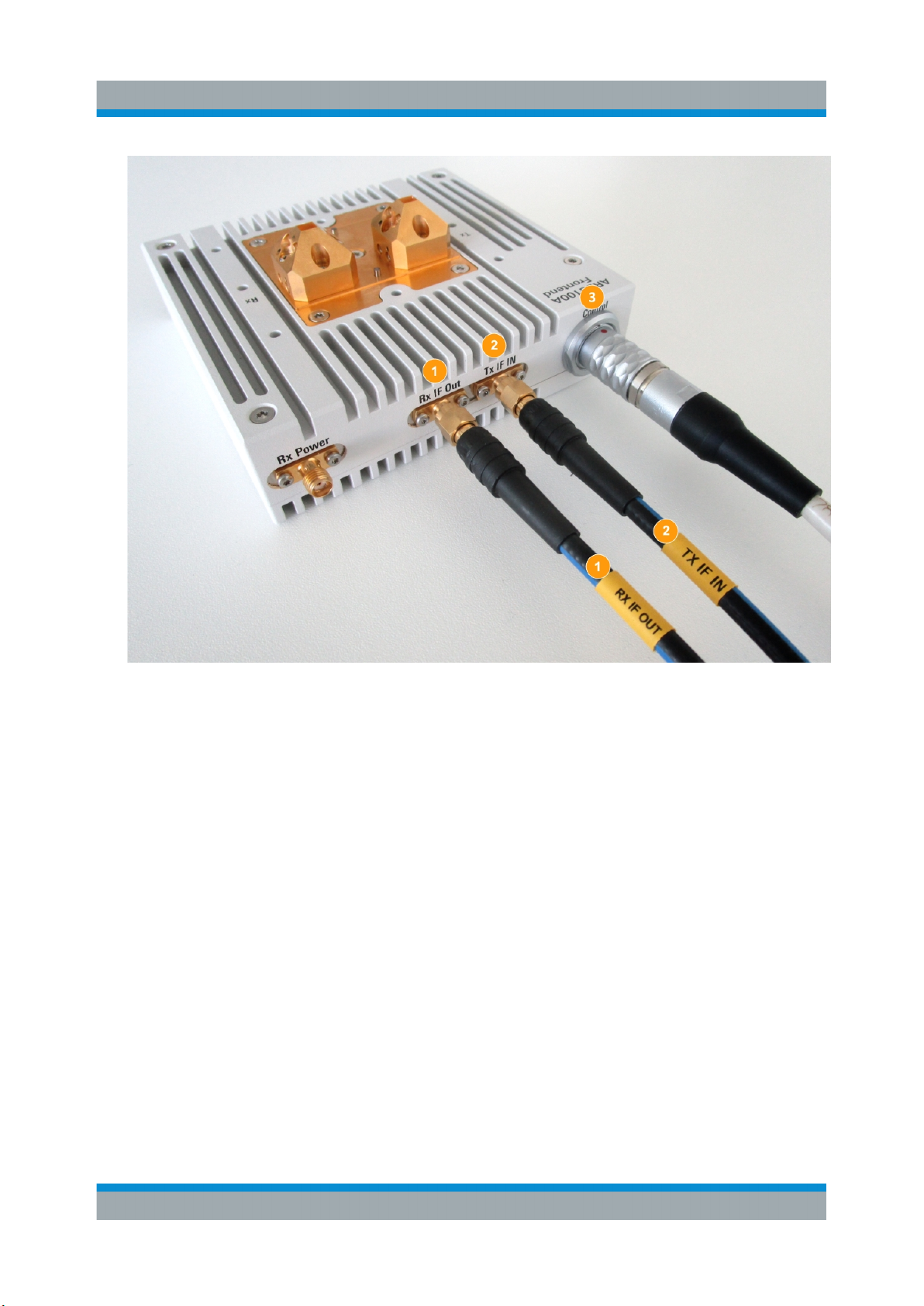

4.1.6 Cabling of Front End and Base Unit..................................................... 17
4.1.7 Turning the Instrument On and Off....................................................... 19
4.1.8 Functional Check.................................................................................. 21
4.1.9 Checking the Supplied Options and Licenses...................................... 21

Contents
R&S®AREG100A
4Getting Started 1430.3572.02 ─ 04
4.2 Connecting USB Devices................................................................... 21
4.3 Setting Up a Network (LAN) Connection.......................................... 22
4.3.1 Connecting the Instrument to the Network............................................23
5 Instrument Tour................................................................... 25
5.1 Front Panel Tour..................................................................................25
5.1.1 Touchscreen..........................................................................................26
5.1.2 Utility Keys............................................................................................ 26
5.1.3 On/Standby........................................................................................... 27
5.1.4 Function Keys....................................................................................... 27
5.1.5 Keypad..................................................................................................27
5.1.6 Navigation Controls...............................................................................28
5.1.6.1 Rotary Knob.......................................................................................... 28
5.1.6.2 Editing Keys.......................................................................................... 28
5.1.6.3 Navigation Keys.................................................................................... 29
5.1.7 Display Keys......................................................................................... 30
5.1.8 [USB] Connector................................................................................... 30
5.1.9 Sensor...................................................................................................30
5.2 Rear Panel Tour...................................................................................31
5.2.1 Connectors............................................................................................31
5.3 Frontend.............................................................................................. 32
5.3.1 Connectors............................................................................................33
6 Trying Out the Instrument...................................................35
6.1 Generating Radar Echo Signals........................................................ 35
6.2 Saving and Recalling Settings...........................................................38
6.3 Use Case Example - Testing Radar Sensors Against Interferers... 40
7 Instrument Control.............................................................. 42

Contents
R&S®AREG100A
5Getting Started 1430.3572.02 ─ 04
7.1 Possible Ways to Operate the Instrument........................................ 42
7.2 Means of Manual Interaction..............................................................43
7.3 Understanding the Display Information............................................43
7.3.1 Additional Display Characteristics.........................................................44
7.4 Accessing the Functionality.............................................................. 44
7.5 Entering Data.......................................................................................45
7.5.1 Entering Numeric Parameters...............................................................46
7.5.2 Entering Alphanumeric Parameters...................................................... 47
7.5.3 Undo and Redo Actions........................................................................ 47
7.6 Getting Information and Help............................................................ 47
7.7 Remote Control................................................................................... 49
7.8 Remote Operation over VNC..............................................................50
Index..................................................................................... 51

Contents
R&S®AREG100A
6Getting Started 1430.3572.02 ─ 04

Safety Information
R&S®AREG100A
7Getting Started 1430.3572.02 ─ 04
1 Safety Information
The product documentation helps you to use the R&S AREG safely and effi-
ciently. Follow the instructions provided here and in the printed "Basic Safety
Instructions". Keep the product documentation nearby and offer it to other users.
Intended use
The R&S AREG is designated for the development, production and verification of
electronic components and devices in industrial, administrative, and laboratory
environments. Use the R&S AREG only for its designated purpose. Observe the
operating conditions and performance limits stated in the data sheet.
Where do I find safety information?
Safety information is part of the product documentation. It warns you about the
potential dangers and gives instructions how to prevent personal injuries or dam-
age caused by dangerous situations. Safety information is provided as follows:
●The printed "Basic Safety Instructions" provide safety information in many lan-
guages and are delivered with the R&S AREG.
●Throughout the documentation, safety instructions are provided when you
need to take care during setup or operation.

Preface
R&S®AREG100A
8Getting Started 1430.3572.02 ─ 04
2 Preface
2.1 Key Features
The R&S AREG Automotive Radar Echo Generator sets standards in RF per-
formance and usability. Outstanding key features are:
●Remote frontends supporting different frequencies (e.g. 24 GHz) and up to 4
GHz signal bandwidth
●Simultaneous simulation of up to four objects
– Up to three individually switchable paths for simulation of fixed object dis-
tances from 5 m to 300 m
– One additional switchable path for fixed short object distance of 4m
(including 0.8m air gap)
●Individually controllable amplitude for each path
●Frontend available with single antenna (best for testing MIMO radars) or two
antennas (best isolation between Rx/Tx path)
●Optional Doppler frequency offset for each path for simulation of radial velocity
●Remote configuration and operation
For a detailed specification refer to the data sheet.
Key Features

Documentation Overview
R&S®AREG100A
9Getting Started 1430.3572.02 ─ 04
3 Documentation Overview
This section provides an overview of the R&S AREG user documentation. Unless
specified otherwise, you find the documents on the R&S AREG product page at:
www.rohde-schwarz.com/manual/areg100a
3.1 Getting Started Manual
Introduces the R&S AREG and describes how to set up and start working with the
product. Includes basic operations, typical measurement examples, and general
information, e.g. safety instructions, etc. A printed version is delivered with the
instrument.
3.2 User Manuals and Help
Separate user manuals are provided for the base unit and the firmware applica-
tions:
●Base unit manual
Contains the description of all instrument modes and functions. It also pro-
vides an introduction to remote control, a complete description of the remote
control commands with programming examples, and information on mainte-
nance, instrument interfaces and error messages. Includes the contents of the
getting started manual.
●Firmware application manual
Contains the description of the specific functions of a firmware application,
including remote control commands. Basic information on operating the R&S
AREG is not included.
The contents of the user manuals are available as help in the R&S AREG. The
help offers quick, context-sensitive access to the complete information for the
base unit and the firmware applications.
All user manuals are also available for download or for immediate display on the
Internet.
User Manuals and Help

Documentation Overview
R&S®AREG100A
10Getting Started 1430.3572.02 ─ 04
3.3 Tutorials
Tutorials offer guided examples and demonstrations on operating the R&S AREG.
They are provided on the product page of the internet.
3.4 Service Manual
Describes the performance test for checking the rated specifications, module
replacement and repair, firmware update, troubleshooting and fault elimination,
and contains mechanical drawings and spare part lists.
The service manual is available for registered users on the global
Rohde & Schwarz information system (GLORIS):
3.5 Instrument Security Procedures
Deals with security issues when working with the R&S AREG in secure areas. It
is available for download on the Internet.
3.6 Basic Safety Instructions
Contains safety instructions, operating conditions and further important informa-
tion. The printed document is delivered with the instrument.
3.7 Data Sheets and Brochures
The data sheet contains the technical specifications of the R&S AREG. It also
lists the firmware applications and their order numbers, and optional accessories.
The brochure provides an overview of the instrument and deals with the specific
characteristics.
See www.rohde-schwarz.com/brochure-datasheet/areg100a
Data Sheets and Brochures

Documentation Overview
R&S®AREG100A
11Getting Started 1430.3572.02 ─ 04
3.8 Release Notes and Open Source Acknowledg-
ment (OSA)
The release notes list new features, improvements and known issues of the cur-
rent firmware version, and describe the firmware installation.
The open source acknowledgment document provides verbatim license texts of
the used open source software.
See www.rohde-schwarz.com/firmware/areg100a
3.9 Application Notes, Application Cards, White
Papers, etc.
These documents deal with special applications or background information on
particular topics.
See www.rohde-schwarz.com/application/areg100a
Application Notes, Application Cards, White Papers, etc.

Preparing for Use
R&S®AREG100A
12Getting Started 1430.3572.02 ─ 04
4 Preparing for Use
●Putting into Operation..................................................................................... 12
●Connecting USB Devices................................................................................21
●Setting Up a Network (LAN) Connection.........................................................22
4.1 Putting into Operation
This section describes the basic steps to be taken when setting up the R&S
AREG for the first time.
Risk of injury due to disregarding safety information
Observe the information on appropriate operating conditions provided in the
data sheet to prevent personal injury or damage to the instrument. Read
and observe the basic safety instructions provided with the instrument, in
addition to the safety instructions in the following sections. In particular:
●Do not open the instrument casing.
Risk of injury due to laser radiation
A laser (laser class 1M) is installed in the device.
Do not open the device. The device may only be opened by authorized ser-
vice personnel.
Risk of instrument damage due to inappropriate operating conditions
Specific operating conditions are required to ensure accurate measure-
ments and to avoid damage to the instrument. Observe the information on
appropriate operating conditions provided in the basic safety instructions
and the instrument's data sheet.
Putting into Operation

Preparing for Use
R&S®AREG100A
13Getting Started 1430.3572.02 ─ 04
Instrument damage caused by electrostatic discharge
Electrostatic discharge (ESD) can damage the electronic components of the
instrument and the device under test (DUT). Electrostatic discharge is most
likely to occur when you connect or disconnect a DUT or test fixture to the
instrument's test ports. To prevent electrostatic discharge, use a wrist strap
and cord and connect yourself to the ground, or use a conductive floor mat
and heel strap combination.
Risk of instrument damage due to inappropriate operating conditions
An unsuitable operating site or test setup can damage the instrument and
connected devices. Before switching on the instrument, observe the infor-
mation on appropriate operating conditions provided in the data sheet. In
particular, ensure the following:
●All fan openings are unobstructed and the airflow perforations are unim-
peded. A minimum distance of 10 cm to other objects is recommended.
●The instrument is dry and shows no sign of condensation.
●The instrument is positioned as described in the following sections.
●The ambient temperature does not exceed the range specified in the
data sheet.
●Signal levels at the input connectors are all within the specified ranges.
●Signal outputs are connected correctly and are not overloaded.
Putting into Operation

Preparing for Use
R&S®AREG100A
14Getting Started 1430.3572.02 ─ 04
Risk of instrument damage due to inappropriate handling
Handle all waveguide components with care.
●If the R&S AREG is not used, cover the antenna to prevent dust or other
objects from getting into the waveguide.
●Do not plug or unplug the TRX CTRL cable from the R&S AREG fron-
tend or base unit if the device is running.
●Do not subject the TRX CTRL or IF cables to a tight bend radius.
4.1.1 EMI Suppression
Electromagnetic interference (EMI) may affect the measurement results.
To suppress generated Electromagnetic Interference (EMI),
●Use suitable shielded cables of high quality. For example use double-shielded
RF, BNC and LAN cables (CAT6 STP).
Note: USB cables are of varying and often poor quality. Therefore, check the
quality of each individual USB cable as described in the service manual.
●Always terminate open cable ends.
Note the EMC classification in the data sheet.
4.1.2 Unpacking and Checking the Instrument
Unpack the R&S AREG carefully and check the contents of the package.
●Check if all items listed on the delivery note, including this getting started
manual, are included in the delivery.
●Check the R&S AREG for any damage.
If the contents are damaged, immediately contact the carrier who delivered
the package.
Putting into Operation

Preparing for Use
R&S®AREG100A
15Getting Started 1430.3572.02 ─ 04
Packing material
Retain the original packing material. If the instrument needs to be transpor-
ted or shipped later, you can use the material to protect the control ele-
ments and connectors.
4.1.3 Accessory List
The instrument comes with the following accessories:
●Power cable
●Getting Started printed manual
4.1.4 Placing or Mounting the Instrument
The R&S AREG is designed for use under laboratory conditions, either on a
bench top or in a rack using the standard rackmount kit.
Bench top operation
If the R&S AREG is operated on a bench top, the surface must be flat. The instru-
ment can be used in horizontal position, standing on its feet, or with the support
feet on the bottom extended.
Risk of injury if feet are folded out
The feet can fold in if they are not folded out completely or if the instrument
is shifted. Collapsing feet can cause injury or damage the instrument.
●Fold the feet completely in or out to ensure stability of the instrument.
Never shift the instrument when the feet are folded out.
●When the feet are folded out, do not work under the instrument or place
anything underneath.
●The feet can break if they are overloaded. The overall load on the fol-
ded-out feet must not exceed 500 N.
Putting into Operation

Preparing for Use
R&S®AREG100A
16Getting Started 1430.3572.02 ─ 04
Risk of injury when stacking instruments
A stack of instruments can tilt over and cause injury if not stacked correctly.
Furthermore, the instruments at the bottom of the stack can be damaged
due to the load imposed by the instruments on top.
Observe the following instructions when stacking instruments:
●Never stack more than three instruments. If you need to stack more
than three instruments, install them in a rack.
●The overall load imposed on the lowest instrument must not exceed
500 N.
●It is best if all instruments have the same dimensions (width and length).
If you need to stack smaller instruments on the top, the overall load
imposed on the lowest instrument must not exceed 250 N.
●If the instruments have foldable feet, fold them in completely.
Mounting in a rack
The R&S AREG can be installed in a rack using a rack adapter kit (Order No. see
data sheet). The installation instructions are part of the adapter kit.
Risk of instrument damage due to insufficient airflow in a rack
If you mount several instruments in a rack, you need an efficient ventilation
concept to ensure that the instruments do not overheat. Insufficient airflow
for a longer period can disturb the operation and even cause damage.
Putting into Operation

Preparing for Use
R&S®AREG100A
17Getting Started 1430.3572.02 ─ 04
4.1.5 Connecting AC Power
The R&S AREG is equipped with an AC power supply connector, that can be
operated with different AC power voltages. Once it is connected, the instrument
automatically adjusts to the given voltage. Refer to the data sheet for the require-
ments of voltage and frequency. There is no need to set the voltage manually or
change fuses.
To connect the AC supply
► Connect the R&S AREG to the AC power source using the supplied power
cable.
Note: Since the instrument is designed in compliance with standard EN
61010-1 safety class I, it must only be connected to an outlet that has a
ground contact.
Characteristics of the AC power supply:
●100 V to 240 V AC
4.1.6 Cabling of Front End and Base Unit
To connect the front end
1. Connect the IF cable with the label RX IF OUT to the Rx IF Out connector of
the front end.
2. Connect the IF cable with the label TX IF IN to the Tx IF IN connector of the
front end.
3. Connect the control cable to the Control connector of the front end.
Putting into Operation

Preparing for Use
R&S®AREG100A
18Getting Started 1430.3572.02 ─ 04
Figure 4-1: Cabling of front end
1 = Rx IF Out
2 = Tx IF IN
3 = Control
To connect the base unit
1. Connect the IF cable with the label RX IF IN to the RX IF In connector of the
base unit.
2. Connect the IF cable with the label TX IF IOUT to the Tx IF OUT connector of
the base unit.
3. Connect the control cable to the Control connector of the base unit.
Putting into Operation

Preparing for Use
R&S®AREG100A
19Getting Started 1430.3572.02 ─ 04
Figure 4-2: Cabling of base unit
1 = Rx IF In
2 = Tx IF Out
3 = Control
4.1.7 Turning the Instrument On and Off
To turn on the R&S AREG
1. Connect the instrument to the AC supply.
2. Turn on the main AC power switch at the rear panel of the R&S AREG (posi-
tion "I" (on)).
The instrument is supplied with AC power.
Putting into Operation

Preparing for Use
R&S®AREG100A
20Getting Started 1430.3572.02 ─ 04
To start the R&S AREG
Starting the R&S AREG requires that it is connected and turned on.
► At the front panel, press the [On/Standby] key briefly.
The instrument boots the operating system and starts the instrument firmware.
After booting, the instrument is in the state before the last power off (standby
or ready), indicated by the color of the [On/Standby] key's LEDs:
● Green: the R&S AREG is running and ready for operation.
All modules are power-supplied.
● Orange: the R&S AREG is in standby mode (main AC power switch is in
position "I").
To switch between standby and ready state, briefly press the [On/Standby]
key.
If a previous session was terminated regularly, the instrument uses the last setup
with the relevant instrument settings.
► To set up a new configuration, press the [Preset] key to return the instrument
to its defined reset/preset state.
To shut down and turn off the R&S AREG
Risk of losing data
If you switch off the running instrument using the rear panel switch or by
disconnecting the power cord, the instrument loses its current settings. Fur-
thermore, program data can be lost.
Press the On/Standby key first to shut down the application properly.
1. Press the [On/Standby] key.
The current setup is saved, the operating system shuts down and sets the
instrument to standby state.
The [On/Standby] LED must be orange.
2. Turn off the main AC power switch at the rear panel of the R&S AREG (posi-
tion "0" (off)).
The instrument is no longer supplied with AC power.
Putting into Operation
