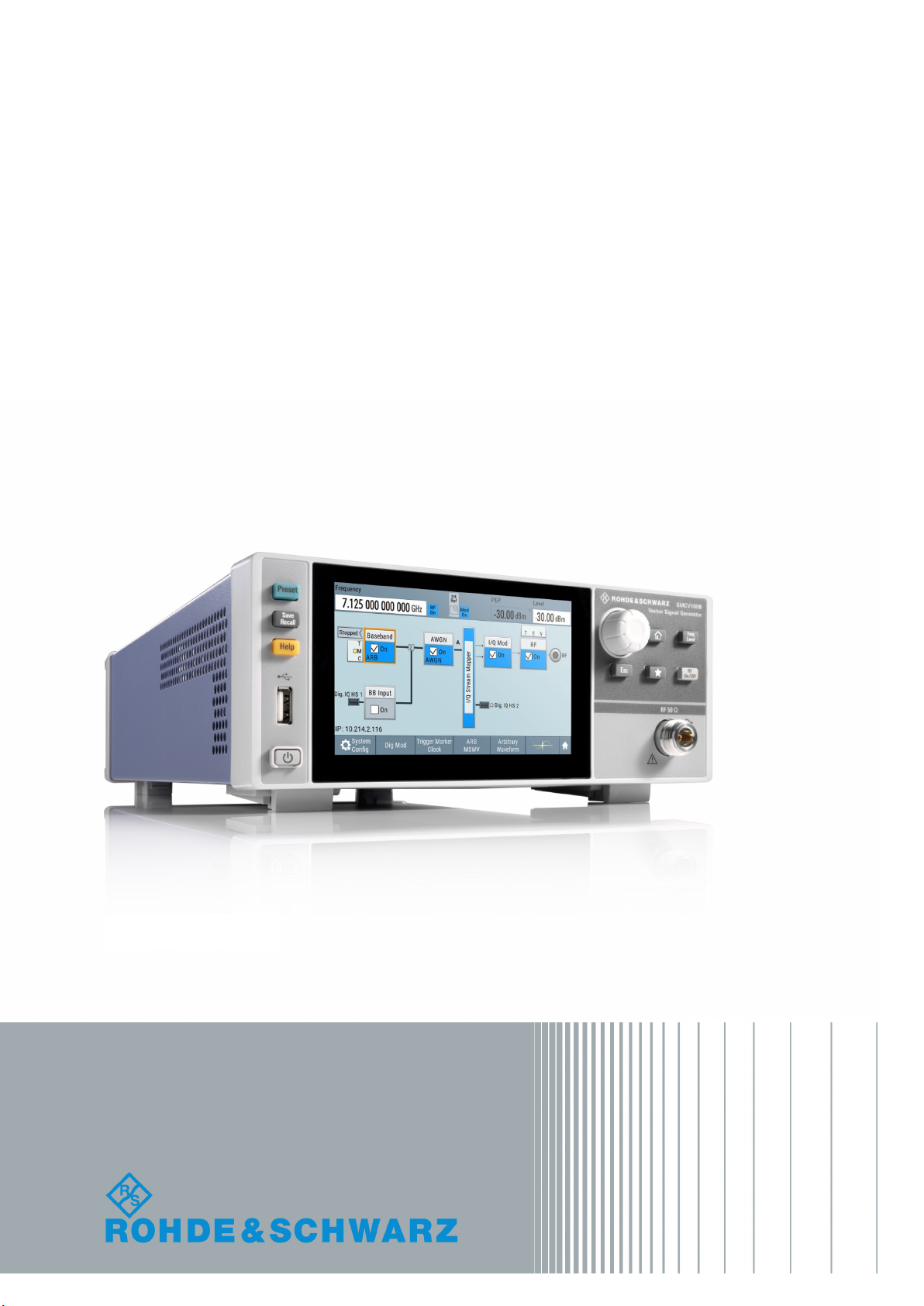

Rohde & Schwarz SMCV100B User manual

R&S®SMCV100B
Vector Signal Generator
Getting Started
Getting Started
Version 02
1432704602
(>PÔ^2)

This document describes the R&S®SMCV100B, stock no. 1432.7000.02 and its
options.
© 2020 Rohde & Schwarz GmbH & Co. KG
Mühldorfstr. 15, 81671 München, Germany
Phone: [phone] - 0
Email: [email protected]
Internet: www.rohde-schwarz.com
Subject to change – Data without tolerance limits is not binding.
R&S® is a registered trademark of Rohde & Schwarz GmbH & Co. KG.
Trade names are trademarks of the owners.
1432.7046.02 | Version 02 | R&S®SMCV100B
The following abbreviations are used throughout this manual: R&S®SMCV100B is abbreviated as
R&S SMCV100B, R&S®WinIQSIM2TM is abbreviated as R&S WinIQSIM2, R&S®VISA is abbreviated as
R&S VISA.

Contents
R&S®SMCV100B
3Getting Started 1432.7046.02 ─ 02
Contents
1 Safety and Regulatory Information...................................... 7
1.1 Safety Instructions................................................................................7

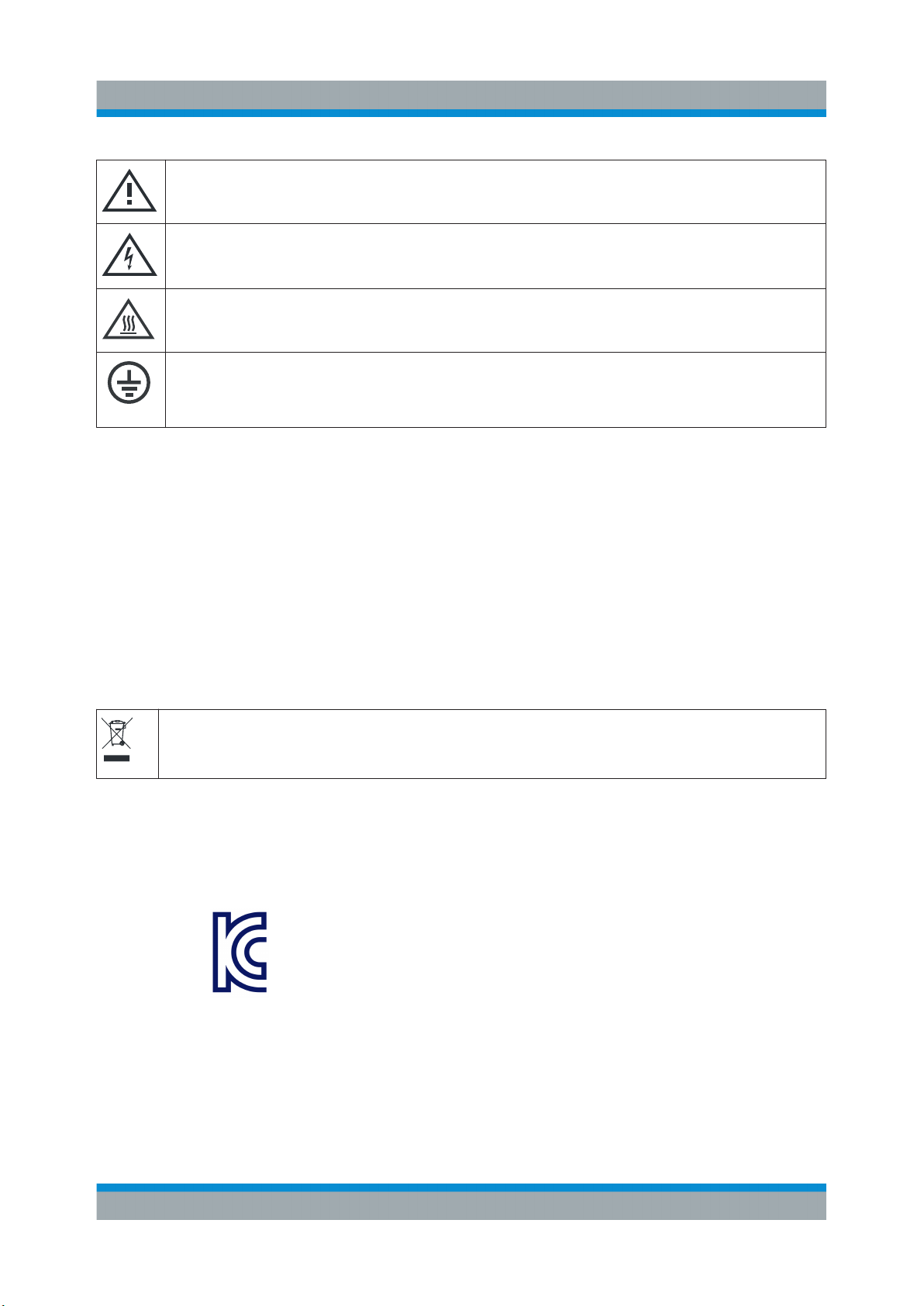

1.2 Labels on R&S SMCV100B.................................................................10
1.3 Korea Certification Class B................................................................10
2 Documentation Overview....................................................11
2.1 Getting Started Manual.......................................................................11
2.2 User Manuals and Help.......................................................................11
2.3 Service Manual....................................................................................12
2.4 Instrument Security Procedures....................................................... 12
2.5 Printed Safety Instructions................................................................ 12
2.6 Data Sheets and Brochures............................................................... 12
2.7 Release Notes and Open Source Acknowledgment (OSA).............13
2.8 Application Notes, Application Cards, White Papers, etc...............13
3 Key Features........................................................................ 14
4 Preparing for Use.................................................................15
4.1 Lifting and Carrying............................................................................15
4.2 Unpacking and Checking................................................................... 15
4.3 Choosing the Operating Site............................................................. 15
4.4 Setting Up the R&S SMCV100B......................................................... 16
4.4.1 Placing the R&S SMCV100B on a Bench Top...................................... 16
4.4.2 Mounting the R&S SMCV100B in a Rack............................................. 17
4.5 Important Aspects for Test Setup......................................................18
4.6 Connecting to Power.......................................................................... 19
4.7 Connecting to LAN............................................................................. 19

Contents
R&S®SMCV100B
4Getting Started 1432.7046.02 ─ 02
4.8 Connecting Monitor............................................................................ 20
4.9 Connecting USB Devices................................................................... 21
4.10 Connecting to RF 50 Ω....................................................................... 22
4.11 Connecting to Ref In/Ref Out.............................................................22
4.12 Connecting to Dig. IQ HS x................................................................ 23
4.13 Connecting to IP Data Interface.........................................................24
4.14 Switching On or Off............................................................................ 25
5 Instrument Tour................................................................... 28
5.1 Front Panel Tour..................................................................................28
5.1.1 Touchscreen..........................................................................................29
5.1.2 Keys...................................................................................................... 30
5.1.2.1 Utility Keys............................................................................................ 30
5.1.2.2 On/Standby........................................................................................... 30
5.1.2.3 Function Keys....................................................................................... 30
5.1.2.4 Editing Keys.......................................................................................... 31
5.1.2.5 Navigation Controls...............................................................................31
Rotary Knob.......................................................................................... 31
5.1.3 Connectors............................................................................................32
5.2 Rear Panel Tour...................................................................................32
5.2.1 Connectors............................................................................................33
6 Trying Out the Instrument...................................................36
6.1 Generating an Unmodulated Carrier................................................. 37
6.2 Generating a Digitally Modulated Signal.......................................... 39
6.3 Triggering the Instrument with an External Signal.......................... 41
6.4 Enabling and Configuring a Marker Signal...................................... 47
6.5 Verifying the Generated Signal with the Graphics Display............. 48
6.6 Saving and Recalling Settings...........................................................52

Contents
R&S®SMCV100B
5Getting Started 1432.7046.02 ─ 02
6.7 Generating a DAB Signal................................................................... 55
7 System Overview................................................................. 58
7.1 Brief Introduction to the Instrument's Concept............................... 58
7.2 Signal Flow at a Glance......................................................................58
7.3 Internal Baseband Source ("Baseband" Block)...............................60
7.4 Digital Baseband Input/Output ("BB Input"/ "I/Q Digital" Block)... 60
7.5 Additional White Gaussian Noise ("AWGN" Block)......................... 61
7.6 "I/Q Stream Mapper" Block................................................................ 61
7.7 I/Q Modulator ("I/Q Mod" Block)........................................................ 62
7.8 RF ("RF" Block)...................................................................................62
7.9 Applications Examples of the R&S SMCV100B............................... 62
8 Instrument Control.............................................................. 63
8.1 Possible Ways to Operate the Instrument........................................ 63
8.2 Means of Manual Interaction..............................................................64
8.3 Understanding the Display Information............................................64
8.3.1 Status Bar............................................................................................. 65
8.3.2 Block Diagram.......................................................................................66
8.3.3 Taskbar................................................................................................. 67
8.3.4 Additional Display Characteristics.........................................................68
8.4 Accessing the Functionality.............................................................. 70
8.5 Entering Data.......................................................................................71
8.5.1 Entering Numeric Parameters...............................................................72
8.5.2 Entering Alphanumeric Parameters...................................................... 72
8.5.3 Undo and Redo Actions........................................................................ 72
8.6 Getting Information and Help............................................................ 72
8.7 Remote Control................................................................................... 74

Contents
R&S®SMCV100B
6Getting Started 1432.7046.02 ─ 02
8.8 Remote Operation over VNC..............................................................75
9 Contacting Customer Support........................................... 76
Index..................................................................................... 77

Safety and Regulatory Information
R&S®SMCV100B
7Getting Started 1432.7046.02 ─ 02
1 Safety and Regulatory Information
The product documentation helps you use the product safely and efficiently. Fol-
low the instructions provided here and in the Chapter 1.1, "Safety Instructions",
on page 7.
Intended use
The product is intended for the development, production and verification of elec-
tronic components and devices in industrial, administrative, and laboratory envi-
ronments. Use the product only for its designated purpose. Observe the operating
conditions and performance limits stated in the data sheet.
Where do I find safety information?
Safety information is part of the product documentation. It warns you of potential
dangers and gives instructions on how to prevent personal injury or damage
caused by dangerous situations. Safety information is provided as follows:
●In Chapter 1.1, "Safety Instructions", on page 7. The same information is
provided in many languages as printed "Safety Instructions". The printed
"Safety Instructions" are delivered with the product.
●Throughout the documentation, safety instructions are provided when you
need to take care during setup or operation.
1.1 Safety Instructions
Products from the Rohde & Schwarz group of companies are manufactured
according to the highest technical standards. To use the products safely, follow
the instructions provided here and in the product documentation. Keep the prod-
uct documentation nearby and offer it to other users.
Use the product only for its intended use and within its performance limits. Inten-
ded use and limits are described in the product documentation such as the data
sheet, manuals and the printed safety instructions. If you are unsure about the
appropriate use, contact Rohde & Schwarz customer service.
Using the product requires specialists or specially trained personnel. These users
also need sound knowledge of at least one of the languages in which the user
interfaces and the product documentation are available.
Safety Instructions

Safety and Regulatory Information
R&S®SMCV100B
8Getting Started 1432.7046.02 ─ 02
If any part of the product is damaged or broken, stop using the product. Never
open the casing of the product. Only service personnel authorized by
Rohde & Schwarz are allowed to repair the product. Contact Rohde & Schwarz
customer service at http://www.customersupport.rohde-schwarz.com.
Lifting and carrying the product
The maximum weight of the product is provided in the data sheet. To move the
product safely, you can use lifting or transporting equipment such as lift trucks
and forklifts. Follow the instructions provided by the equipment manufacturer.
Choosing the operating site
Only use the product indoors. The product casing is not waterproof. Water that
enters can electrically connect the casing with live parts, which can lead to elec-
tric shock, serious personal injury or death if you touch the casing. If
Rohde & Schwarz provides a carrying bag designed for your product, you can
use the product outdoors.
Unless otherwise specified, you can operate the product up to an altitude of
2000 m above sea level. The product is suitable for pollution degree 2 environ-
ments where nonconductive contamination can occur. For more information on
environmental conditions such as ambient temperature and humidity, see the
data sheet.
Setting up the product
Always place the product on a stable, flat and level surface with the bottom of the
product facing down. If the product is designed for different positions, secure the
product so that it cannot fall over.
If the product has foldable feet, always fold the feet completely in or out to ensure
stability. The feet can collapse if they are not folded out completely or if the prod-
uct is moved without lifting it. The foldable feet are designed to carry the weight of
the product, but not an extra load.

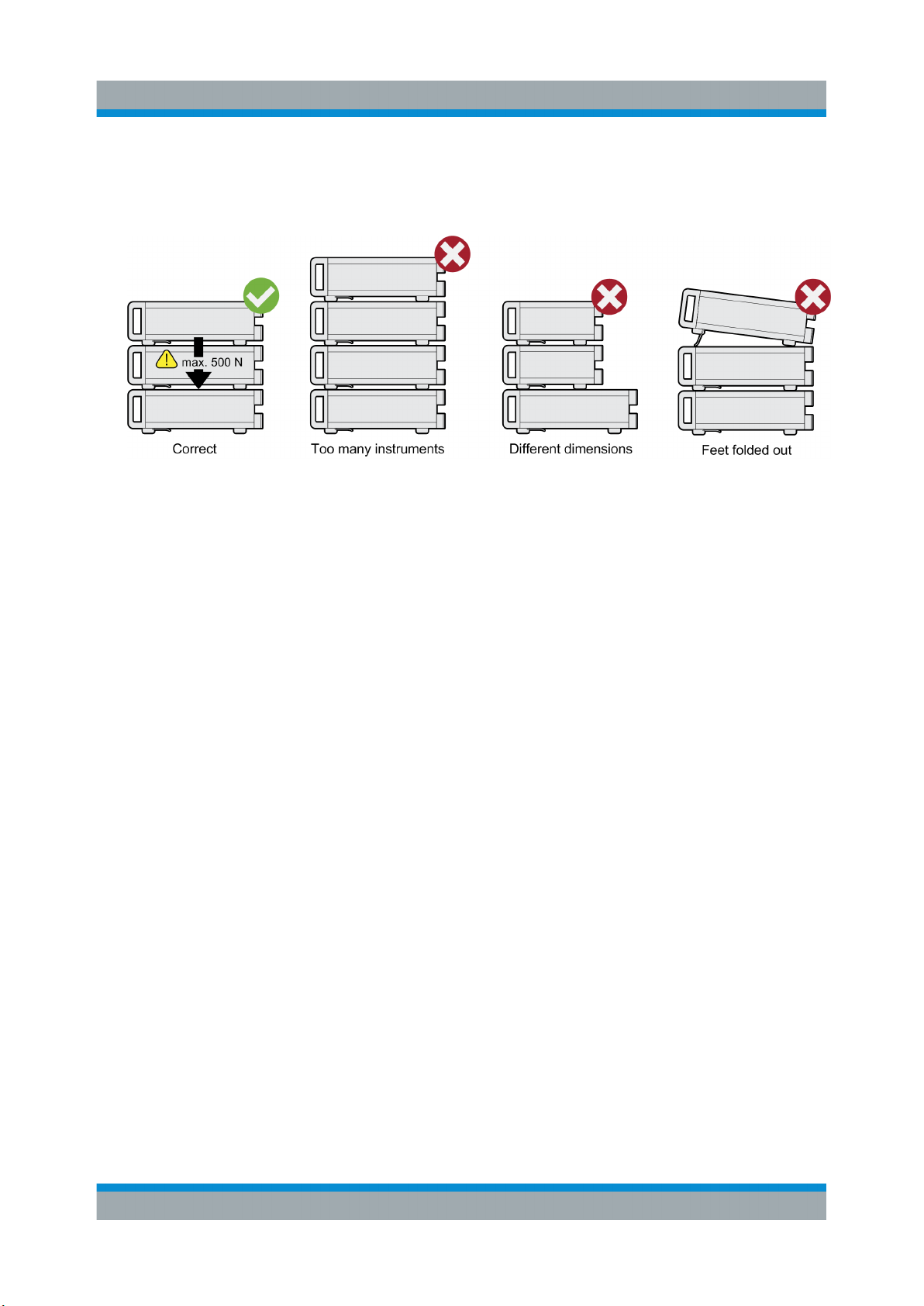

If stacking is possible, keep in mind that a stack of products can fall over and
cause injury.
If you mount products in a rack, ensure that the rack has sufficient load capacity
and stability. Observe the specifications of the rack manufacturer. Always install
the products from the bottom shelf to the top shelf so that the rack stands
securely. Secure the product so that it cannot fall off the rack.
Safety Instructions

Safety and Regulatory Information
R&S®SMCV100B
9Getting Started 1432.7046.02 ─ 02
Connecting to power
The product is an overvoltage category II product and has to be connected to a
fixed installation used to supply energy-consuming equipment such as household
appliances and similar loads. Be aware that electrically powered products have
risks, such as electric shock, fire, personal injury or even death.
Take the following measures for your safety:
●Before switching on the product, ensure that the voltage and frequency indica-
ted on the product match the available power source. If the power adapter
does not adjust automatically, set the correct value and check the rating of the
fuse.
●If a product has an exchangeable fuse, its type and characteristics are indica-
ted next to the fuse holder. Before changing the fuse, switch off the instrument
and disconnect it from the power source. How to change the fuse is described
in the product documentation.
●Only use the power cable delivered with the product. It complies with country-
specific safety requirements. Only insert the plug into an outlet with protective
conductor terminal.
●Only use intact cables and route them carefully so that they cannot be dam-
aged. Check the power cables regularly to ensure that they are undamaged.
Also ensure that nobody can trip over loose cables.
●If the product needs an external power supply, use the power supply that is
delivered with the product or that is recommended in the product documenta-
tion or a power supply that conforms to the country-specific regulations.
●Only connect the product to a power source with a fuse protection of maxi-
mum 20 A.
●Ensure that you can disconnect the product from the power source at any
time. Pull the power plug to disconnect the product. The power plug must be
easily accessible. If the product is integrated into a system that does not meet
these requirements, provide an easily accessible circuit breaker at the system
level.
Cleaning the product
Use a dry, lint-free cloth to clean the product. When cleaning, keep in mind that
the casing is not waterproof. Do not use liquid cleaning agents.
Meaning of safety labels
Safety labels on the product warn against potential hazards.
Safety Instructions

Safety and Regulatory Information
R&S®SMCV100B
10Getting Started 1432.7046.02 ─ 02
Potential hazard
Read the product documentation to avoid personal injury or product damage.
Electrical hazard
Indicates live parts. Risk of electric shock, fire, personal injury or even death.
Hot surface
Do not touch. Risk of skin burns. Risk of fire.
Protective conductor terminal
Connect this terminal to a grounded external conductor or to protective ground. This
protects you against electric shock should an electric problem occur.
1.2 Labels on R&S SMCV100B
Labels on the casing inform about:
●Personal safety, see "Connecting to power" on page 9.
●Product and environment safety, see Table 1-1.
●Identification of the product, see the serial number on the rear panel.
Table 1-1: Labels regarding R&S SMCV100B and environment safety
Labeling in line with EN 50419 for disposal of electrical and electronic equipment after
the product has come to the end of its service life. For more information, see the prod-
uct user manual, chapter "Disposal".
1.3 Korea Certification Class B
이 기기는 가정용(B급) 전자파 적합기기로서 주로 가정에서 사용하는 것을 목적으
로 하며, 모든 지역에서 사용할 수 있습니다.
Korea Certification Class B

Documentation Overview
R&S®SMCV100B
11Getting Started 1432.7046.02 ─ 02
2 Documentation Overview
This section provides an overview of the R&S SMCV100B user documentation.
Unless specified otherwise, you find the documents on the R&S SMCV100B
product page at:
www.rohde-schwarz.com/manual/smcv100b
2.1 Getting Started Manual
Introduces the R&S SMCV100B and describes how to set up and start working
with the product. Includes basic operations, typical measurement examples, and
general information, e.g. safety instructions, etc. A printed version is delivered
with the instrument.
2.2 User Manuals and Help
Separate manuals for the base unit and the software options are provided for
download:
●Base unit manual
Contains the description of all instrument modes and functions. It also pro-
vides an introduction to remote control, a complete description of the remote
control commands with programming examples, and information on mainte-
nance, instrument interfaces and error messages. Includes the contents of the
getting started manual.
●Software option manual
Contains the description of the specific functions of an option. Basic informa-
tion on operating the R&S SMCV100B is not included.
The contents of the user manuals are available as help in the R&S SMCV100B.
The help offers quick, context-sensitive access to the complete information for the
base unit and the software options.
All user manuals are also available for download or for immediate display on the
Internet.
User Manuals and Help

Documentation Overview
R&S®SMCV100B
12Getting Started 1432.7046.02 ─ 02
2.3 Service Manual
Describes the performance test for checking the rated specifications, module
replacement and repair, firmware update, troubleshooting and fault elimination,
and contains mechanical drawings and spare part lists.
The service manual is available for registered users on the global
Rohde & Schwarz information system (GLORIS):
https://gloris.rohde-schwarz.com
2.4 Instrument Security Procedures
Deals with security issues when working with the R&S SMCV100B in secure
areas. It is available for download on the Internet.
2.5 Printed Safety Instructions
Provides safety information in many languages. The printed document is deliv-
ered with the product.
2.6 Data Sheets and Brochures
The data sheet contains the technical specifications of the R&S SMCV100B. It
also lists the options and their order numbers and optional accessories.
The brochure provides an overview of the instrument and deals with the specific
characteristics.
See www.rohde-schwarz.com/brochure-datasheet/smcv100b
Data Sheets and Brochures

Documentation Overview
R&S®SMCV100B
13Getting Started 1432.7046.02 ─ 02
2.7 Release Notes and Open Source Acknowledg-
ment (OSA)
The release notes list new features, improvements and known issues of the cur-
rent firmware version, and describe the firmware installation.
The open-source acknowledgment document provides verbatim license texts of
the used open source software.
See www.rohde-schwarz.com/firmware/smcv100b
2.8 Application Notes, Application Cards, White
Papers, etc.
These documents deal with special applications or background information on
particular topics.
See www.rohde-schwarz.com/application/smcv100b
Application Notes, Application Cards, White Papers, etc.

Key Features
R&S®SMCV100B
14Getting Started 1432.7046.02 ─ 02
3 Key Features
The R&S SMCV100B is a new signal generator in the economy range developed
to meet demanding customer requirements. Offering excellent signal characteris-
tic and straightforward and intuitive operation, the signal generator makes signal
generation fast and easy.
Outstanding key features of the R&S SMCV100B are:
●First multi-standard platform for broadcast, navigation, cellular and wireless
applications
●Fully software defined vector signal generator
●Modern RF signal generation concept from 8 kHz to 7.125 GHz
●High RF output power of up to 25 dBm
●Modulation bandwidth up to 240 MHz with internal baseband
●Powerful internal baseband generator with internal broadcast real-time coder,
Custom Digital Modulation and internal baseband signal generation with ARB
●Support of terrestrial, satellite and audio broadcast standards such as ATSC
3.0, ATSC-M/H, DTMB, DVB-T2, DVB-T, ISDB-T, ISDB-TSB, T-DMB/DAB,
DVB-S2, DVB-S, DRM/DRM+, Audio AM/FM, RDS/RDBS/DARC
●Support of digital standard waveforms such as 5G NR, LTE including
eMTC/NB-IoT, WLAN IEEE 802.11a/b/g/n/j/p/ac/ax
●Intuitive operation via 5'' touchscreen with block diagram as key element
●Graphical signal monitoring at practically every point in the signal flow
●SCPI macro recorder and code generator for generating executable remote
control code from manual operating steps (for MATLAB®, CVI, etc.)
●Easily extendable with software options
●Full remote compatibility with R&S SFE/R&S SFE100
For more information, see data sheet.

Preparing for Use
R&S®SMCV100B
15Getting Started 1432.7046.02 ─ 02
4 Preparing for Use
This chapter describes the basic steps to be taken when setting up the product
for the first time.
4.1 Lifting and Carrying
See also "Lifting and carrying the product" on page 8.
For mounting the R&S SMCV100B in a rack, see Chapter 4.4.2, "Mounting the
R&S SMCV100B in a Rack", on page 17.
4.2 Unpacking and Checking
1. Unpack the R&S SMCV100B carefully.
2. Retain the original packing material. Use it to protect the control elements and
connectors when transporting or shipping the R&S SMCV100B later.
See also chapter "Transporting" in the user manual.
3. Using the delivery notes, check the equipment for completeness.
4. Check the equipment for damage.
If the delivery is incomplete or equipment is damaged, contact
Rohde & Schwarz.
4.3 Choosing the Operating Site
Specific operating conditions ensure accurate measurements and avoid damage
to the product and connected devices. For information on environmental condi-
tions such as ambient temperature and humidity, see the data sheet.
See also "Choosing the operating site" on page 8.
Choosing the Operating Site

Preparing for Use
R&S®SMCV100B
16Getting Started 1432.7046.02 ─ 02
Electromagnetic compatibility classes
The electromagnetic compatibility (EMC) class indicates where you can operate
the product. The EMC class of the product is given in the data sheet under "Gen-
eral data".
●Class B equipment is suitable for use in:
– Residential environments
– Environments that are directly connected to a low-voltage supply network
that supplies residential buildings
●Class A equipment is intended for use in industrial environments. It can cause
radio disturbances in residential environments due to possible conducted and
radiated disturbances. It is therefore not suitable for class B environments.
If class A equipment causes radio disturbances, take appropriate measures to
eliminate them.
4.4 Setting Up the R&S SMCV100B
See also:
●"Setting up the product" on page 8.
●"Intended use" on page 7.
4.4.1 Placing the R&S SMCV100B on a Bench Top
To place the product on a bench top
1. Place the product on a stable, flat and level surface. Ensure that the surface
can support the weight of the product. For information on the weight, see the
data sheet.
2. CAUTION! Foldable feet can collapse. See "Setting up the product"
on page 8.
Always fold the feet completely in or out. With folded-out feet, do not place
anything on top or underneath the product.
3. WARNING! A stack of products can fall over and cause injury. Never stack
more than three products on top of each other. Instead, mount them in a rack.
Stack as follows:
Setting Up the R&S SMCV100B

Preparing for Use
R&S®SMCV100B
17Getting Started 1432.7046.02 ─ 02
● If the products have foldable feet, fold them in completely.
● All products must have the same dimensions (width and length).
● The overall load on the lowest product must not exceed 500 N.
4. NOTICE! Overheating can damage the product.
Prevent overheating as follows:
● Keep a minimum distance of 10 cm between the fan openings of the prod-
uct and any object in the vicinity.
● Do not place the product next to heat-generating equipment such as radia-
tors or other products.
4.4.2 Mounting the R&S SMCV100B in a Rack
To prepare the rack
1. Observe the requirements and instructions in "Setting up the product"
on page 8.
2. NOTICE! Insufficient airflow can cause overheating and damage the product.
Design and implement an efficient ventilation concept for the rack.
To mount the R&S SMCV100B in a rack
1. Use an adapter kit that fits the dimensions of the R&S SMCV100B to prepare
the instrument for rack mounting. For information on the dimensions, see data
sheet.
a) Order the rack adapter kit designed for the R&S SMCV100B. For the order
number, see data sheet.
b) Mount the adapter kit. Follow the assembly instructions provided with the
adapter kit.
Setting Up the R&S SMCV100B

Preparing for Use
R&S®SMCV100B
18Getting Started 1432.7046.02 ─ 02
2. Lift the R&S SMCV100B to shelf height.
3. Push the R&S SMCV100B onto the shelf until the rack brackets fit closely to
the rack.
4. Tighten all screws at the rack brackets with a tightening torque of 1.2 Nm to
secure the R&S SMCV100B at the rack.
To unmount the R&S SMCV100B from a rack
1. Loosen the screws at the rack brackets.
2. Bring the lifting equipment to shelf height.
3. Remove the R&S SMCV100B from the rack.
4. If placing the R&S SMCV100B on a bench top again, unmount the adapter kit
from the R&S SMCV100B. Follow the instructions provided with the adapter
kit.
4.5 Important Aspects for Test Setup
Cable selection and electromagnetic interference (EMI)
Electromagnetic interference (EMI) can affect the measurement results.
To suppress electromagnetic radiation during operation:
●Use high-quality shielded cables, especially for the following connector types:
– BNC
Double-shielded BNC cables.
– USB
Double-shielded USB cables.
How to: Chapter 4.9, "Connecting USB Devices", on page 21.
See also chapter "Troubleshooting and Error Messages" in the user man-
ual.
– LAN
At least CAT6 STP cables.
How to: Chapter 4.7, "Connecting to LAN", on page 19
●Always terminate open cable ends.
●Ensure that connected external devices comply with EMC regulations.
Important Aspects for Test Setup

Preparing for Use
R&S®SMCV100B
19Getting Started 1432.7046.02 ─ 02
●Use the cable R&S DIGIQ-HS for connection to the "Dig. IQ HS x" interfaces
of the instrument. The cable is available under material number 3641.2948.03.
How to: Chapter 4.12, "Connecting to Dig. IQ HS x", on page 23
●Use an SFP+ to RJ-45 adapter and an RJ-45 cable for connection to the "IP
Data" interface of the instrument. We recommend that you use the adapter
"FCLF850P2BTL" from Finisar available under material number
3627.0570.00.
How to: Chapter 4.13, "Connecting to IP Data Interface", on page 24
Signal input and output levels
Information on signal levels is provided in the data sheet. Keep the signal levels
within the specified ranges to avoid damage to the R&S SMCV100B and connec-
ted devices.
4.6 Connecting to Power
For safety information, see "Connecting to power" on page 9.
1. Plug the AC power cable into the AC power connector on the rear panel of the
instrument. Only use the AC power cable delivered with the R&S SMCV100B.
2. Plug the AC power cable into a power outlet with ground contact.
The required ratings are listed next to the AC power connector and in the data
sheet.
4.7 Connecting to LAN
You can operate the R&S SMCV100B via LAN (local area network) or you can
operate it locally. This section describes how to connect the instrument to a LAN
to operate or control the instrument remotely via a PC in a LAN.
The connector is located on the rear panel.
► Connect the LAN socket via an RJ-45 cable to the LAN.
Connecting to LAN

Preparing for Use
R&S®SMCV100B
20Getting Started 1432.7046.02 ─ 02
By default, the R&S SMCV100B is configured to use DHCP (dynamic host config-
uration protocol) and no static IP address is configured.
If switched on and connected to the LAN, the R&S SMCV100B displays the
address information on the screen.

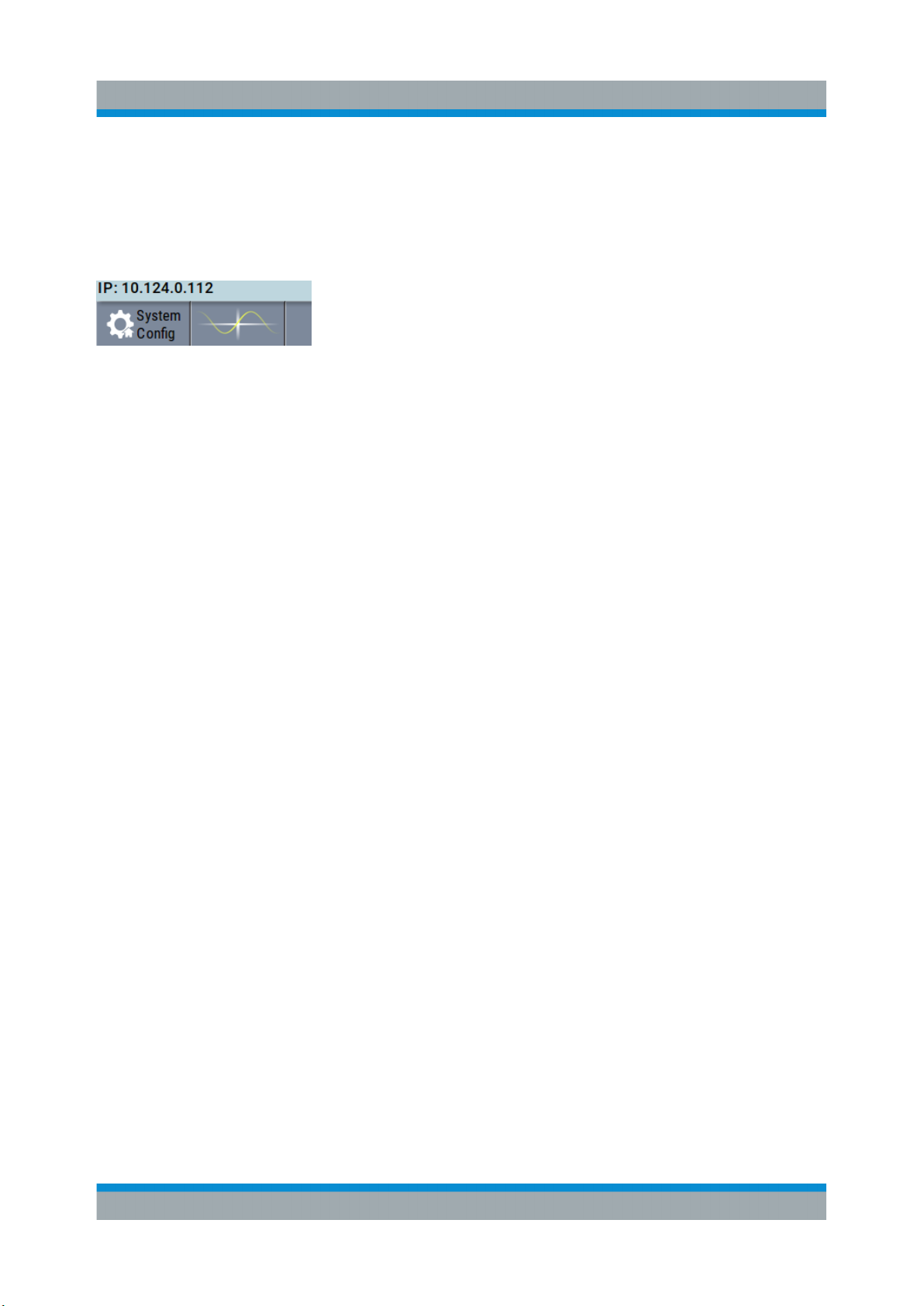

Figure 4-1: IP address indication on the screen (example)
See also the chapter "Connecting the Instrument to the Network (LAN)" in the
user manual.
4.8 Connecting Monitor
This section describes how to connect a monitor for direct operation of the
R&S SMCV100B. You can skip the following procedure, if you only operate the
R&S SMCV100B remotely.
The connector is located on the rear panel.
► Connect the monitor to the ""DVI-D"" socket.
You can connect the following types of monitor sockets:
● DVI-D: Connect it to the ""DVI-D"" socket.
DVI-A: not supported
DVI-I: not supported
● HDMI: You need an adapter. Use a passive DVI to HDMI adapter.
● VGA: You need an active adapter, DVI to VGA or Display Port to VGA.
Passive adapters do not work.
If the monitor provides touch functionality, an additional connection can be
required, for example, a USB connection. Refer to the documentation of your
monitor.
Connecting Monitor
