Rohde & Schwarz FSVA User manual

R&S® FSVA/FSV
Signal and Spectrum Analyzer
Operating Manual
Operating Manual
1176.7510.02 ─ 09
(;ÚÙ:2)
Test & Measurement

This manual describes the following R&S FSVA/FSV models with firmware version 3.20 and higher:
●R&S®FSVA4 (1321.3008K05)
●R&S®FSVA7 (1321.3008K08)
●R&S®FSVA13 (1321.3008K14)
●R&S®FSVA30 (1321.3008K31)
●R&S®FSVA40 (1321.3008K41)
●R&S®FSV4 (1321.3008K04)
●R&S®FSV7 (1321.3008K07)
●R&S®FSV13 (1321.3008K13)
●R&S®FSV30 (1321.3008K30)
●R&S®FSV40 (1321.3008K39/1321.3008K40)
It also applies to the following R&S®FSV models. However, note the differences described in Chapter 1.3,
"Notes for Users of R&S FSV 1307.9002Kxx Models", on page 7.
●R&S®FSV3 (1307.9002K03)
●R&S®FSV7 (1307.9002K07)
●R&S®FSV13 (1307.9002K13)
●R&S®FSV30 (1307.9002K30)
●R&S®FSV40 (1307.9002K39/1307.9002K40)
In addition to the base unit, the following options are described:
●R&S FSV-B9/10 (1310.9545.02/1310.9551.02)
●R&S FSVA-B11 (1321.3714.xx)
●R&S FSV-B17 (1310.9568.02)
●R&S FSV-B21 (1310.9597.02)
●R&S FSV-B22 (1310.9600.02)
●R&S FSV-B24 (1310.9616.13)
●R&S®FSVA-B40 (1329.0214.02) / R&S®FSV-B70 (1310.9645.02)
●R&S FSV-B160 (1311.2015.02/1311.2015.13/1311.2015.40)
●R&S FSV-K9 (1310.8203.02)
●R&S FSV-K14 (1310.8255.02)
© 2016 Rohde & Schwarz GmbH & Co. KG
Mühldorfstr. 15, 81671 München, Germany
Phone: [phone] - 0
Fax: [phone]
Email: [email protected]
Internet: www.rohde-schwarz.com
Subject to change – Data without tolerance limits is not binding.
R&S® is a registered trademark of Rohde & Schwarz GmbH & Co. KG.
Trade names are trademarks of the owners.
Throughout this manual, products from Rohde & Schwarz are indicated without the ® symbol , e.g. R&S®FSV is indicated as R&S
FSV.

Contents
R&S® FSVA/FSV
3Operating Manual 1176.7510.02 ─ 09
Contents
1 Preface.................................................................................................... 5
1.1 For Your Safety............................................................................................................. 5
1.2 Documentation Overview............................................................................................. 5
1.3 Notes for Users of R&S FSV 1307.9002Kxx Models.................................................. 7
1.4 Conventions Used in the Documentation...................................................................7
1.5 How to Use the Help System........................................................................................8
2 Quick Start............................................................................................10
2.1 Front and Rear Panel View.........................................................................................10
2.2 Preparing for Use........................................................................................................ 23
2.3 Firmware Update and Installation of Firmware Options..........................................59
2.4 Basic Operations.........................................................................................................61
2.5 Basic Measurement Examples...................................................................................89
2.6 Brief Introduction to Remote Control......................................................................117
2.7 Advanced Measurement Examples......................................................................... 137
3 Instrument Functions........................................................................ 167
3.1 General Settings, Printout and Instrument Settings..............................................170
3.2 Measurement Parameters........................................................................................ 215
3.3 Measurement Functions...........................................................................................278
3.4 Measurement Modes.................................................................................................435
3.5 Instrument Functions - I/Q Analyzer....................................................................... 440
3.6 Instrument Functions – Tracking Generator (Options R&S FSV-B9/ R&S FSV-B10)
.................................................................................................................................... 474
3.7 Instrument Functions - R&S Digital I/Q Interface (Option R&S FSV-B17)............499
3.8 Instrument Functions – External Mixer (Option R&S FSV-B21)........................... 517
3.9 Instrument Functions - Power Sensor (R&S FSV-K9)........................................... 538
3.10 Instrument Functions - Spectrogram Measurements............................................551
4 Remote Control.................................................................................. 564
4.1 Remote Control - Basics.......................................................................................... 565
4.2 Remote Control – Commands..................................................................................604
4.3 Remote Control – Programming Examples.......................................................... 1008

Contents
R&S® FSVA/FSV
4Operating Manual 1176.7510.02 ─ 09
5 Maintenance..................................................................................... 1052
5.1 Storing and Packing............................................................................................... 1052
5.2 List of Available Power Cables.............................................................................. 1052
6 Error Messages................................................................................ 1054
7 Appendix: LAN Interface................................................................. 1056
7.1 Configuring the Network........................................................................................ 1056
7.2 Operation with Windows Remote Desktop ..........................................................1063
7.3 Operation with a VNC Client.................................................................................. 1066
7.4 Starting and Terminating Remote Operation....................................................... 1067
7.5 Deactivating the R&S FSVA/FSV via Remote Operation..................................... 1069
List of Commands............................................................................1070
Index..................................................................................................1087

Preface
R&S® FSVA/FSV
5Operating Manual 1176.7510.02 ─ 09
1 Preface
This chapter provides safety-related information, an overview of the user documenta-
tion and the conventions used in the documentation.
1.1 For Your Safety
The R&S FSVA/FSV is designated for the development, production and verification of
electronic components and devices in industrial and laboratory environments. Use the
R&S FSVA/FSV only for its designated purpose. Observe the operating conditions and
performance limits stated in the data sheet.
The product documentation helps you to use the R&S FSVA/FSV safely and efficiently.
Keep the product documentation in a safe place and pass it on to the subsequent
users.
Safety information is part of the product documentation. It warns you about the poten-
tial dangers and gives instructions how to prevent personal injury or damage caused
by dangerous situations. Safety information is provided as follows:
●In the "Basic Safety Instructions", safety issues are grouped according to subjects.
For example, one subject is electrical safety. The "Basic Safety Instructions" are
delivered with the R&S FSVA/FSV in different languages in print.
●Throughout the documentation, safety instructions are provided when you need to
take care during setup or operation. Always read the safety instructions carefully.
Make sure to comply fully with them. Do not take risks and do not underestimate
the potential danger of small details such as a damaged power cable.
1.2 Documentation Overview
This section provides an overview of the R&S FSVA/FSV user documentation. You find
it on the product page at:
www.rohde-schwarz.com/manual/FSV
Quick start guide
Introduces the R&S FSVA/FSV and describes how to set up and start working with the
product. Includes basic operations, typical measurement examples, and general infor-
mation, e.g. safety instructions, etc.. A printed version is delivered with the instrument.
Online help
The online help offers quick, context-sensitive access to the complete information for
the base unit and the software options directly on the instrument.
Documentation Overview

Preface
R&S® FSVA/FSV
6Operating Manual 1176.7510.02 ─ 09
Operating manuals
Separate manuals for the base unit and the software options are provided for down-
load:
●Base unit manual
Contains the description of the graphical user interface, an introduction to remote
control, the description of all SCPI remote control commands, programming exam-
ples, and information on maintenance, instrument interfaces and error messages.
Includes the contents of the Quick Start Guide.
●Software option manuals
Contain the description of the specific functions of an option. Basic information on
operating the R&S FSVA/FSV is not included.
The online version of the user manual provides the complete contents for immediate
display on the internet.
Service manual
Describes the performance test for checking the rated specifications, module replace-
ment and repair, firmware update, troubleshooting and fault elimination, and contains
mechanical drawings and spare part lists.
The service manual is available for registered users on the global Rohde & Schwarz
information system (GLORIS, https://gloris.rohde-schwarz.com).
Instrument security procedures manual
Deals with security issues when working with the R&S FSVA/FSV in secure areas.
Basic safety instructions
Contains safety instructions, operating conditions and further important information.
The printed document is delivered with the instrument.
Data sheet and brochure
The data sheet contains the technical specifications of the R&S FSVA/FSV. It also lists
the options and their order numbers as well as optional accessories.
The brochure provides an overview of the instrument and deals with the specific char-
acteristics.
See www.rohde-schwarz.com/brochure-datasheet/FSV
Release notes and open source acknowledgment (OSA)
The release notes list new features, improvements and known issues of the current
firmware version, and describe the firmware installation.
The open source acknowledgment document provides verbatim license texts of the
used open source software.
See www.rohde-schwarz.com/firmware/FSV
Documentation Overview

Preface
R&S® FSVA/FSV
7Operating Manual 1176.7510.02 ─ 09
Application notes, application cards, white papers, etc.
These documents deal with special applications or background information on particu-
lar topics.
See www.rohde-schwarz.com/appnlication/FSV
1.3 Notes for Users of R&S FSV 1307.9002Kxx Models
Users of R&S FSV 1307.9002Kxx models should consider the following differences to
the description of the newer R&S FSVA/FSV 1321.3008Kxx models:
●Functions that are based on the Windows7 operating system (e.g. printing or set-
ting up networks) may have a slightly different appearance or require different set-
tings on the Windows XP based models. For such functions, refer to the Windows
documentation or the documentation originally provided with the R&S FSV instru-
ment.
●The R&S FSV 1307.9002K03 model is restricted to a maximum frequency of
3 GHz, whereas the R&S FSVA/FSV1321.3008K04 model has a maximum fre-
quency of 4 GHz.
●The bandwidth extension option R&S FSV-B160 (1311.2015.xx) is not available for
the R&S FSV 1307.9002Kxx models. The maximum usable I/Q analysis bandwidth
for these models is 28 MHz, or with option R&S FSV-B70, 40 MHz.
1.4 Conventions Used in the Documentation
1.4.1 Typographical Conventions
The following text markers are used throughout this documentation:
Convention Description
"Graphical user interface ele-
ments"
All names of graphical user interface elements on the screen, such as
dialog boxes, menus, options, buttons, and softkeys are enclosed by
quotation marks.
KEYS Key names are written in capital letters.
File names, commands,
program code
File names, commands, coding samples and screen output are distin-
guished by their font.
Input Input to be entered by the user is displayed in italics.
Links Links that you can click are displayed in blue font.
"References" References to other parts of the documentation are enclosed by quota-
tion marks.
Conventions Used in the Documentation

Preface
R&S® FSVA/FSV
8Operating Manual 1176.7510.02 ─ 09
1.4.2 Conventions for Procedure Descriptions
When describing how to operate the instrument, several alternative methods may be
available to perform the same task. In this case, the procedure using the touchscreen
is described. Any elements that can be activated by touching can also be clicked using
an additionally connected mouse. The alternative procedure using the keys on the
instrument or the on-screen keyboard is only described if it deviates from the standard
operating procedures.
The term "select" may refer to any of the described methods, i.e. using a finger on the
touchscreen, a mouse pointer in the display, or a key on the instrument or on a key-
board.
1.4.3 Notes on Screenshots
When describing the functions of the product, we use sample screenshots. These
screenshots are meant to illustrate as much as possible of the provided functions and
possible interdependencies between parameters.
The screenshots usually show a fully equipped product, that is: with all options instal-
led. Thus, some functions shown in the screenshots may not be available in your par-
ticular product configuration.
1.5 How to Use the Help System
Calling context-sensitive and general help
► To display the general help dialog box, press the HELP key on the front panel.
The help dialog box "View" tab is displayed. A topic containing information about
the current menu or the currently opened dialog box and its function is displayed.
For standard Windows dialog boxes (e.g. File Properties, Print dialog etc.), no context-
sensitive help is available.
► If the help is already displayed, press the softkey for which you want to display
help.
A topic containing information about the softkey and its function is displayed.
If a softkey opens a submenu and you press the softkey a second time, the submenu
of the softkey is displayed.
Contents of the help dialog box
The help dialog box contains four tabs:
How to Use the Help System

Preface
R&S® FSVA/FSV
9Operating Manual 1176.7510.02 ─ 09
●"Contents" - contains a table of help contents
●"View" - contains a specific help topic
●"Index" - contains index entries to search for help topics
●"Zoom" - contains zoom functions for the help display
To change between these tabs, press the tab on the touchscreen.
Navigating in the table of contents
●To move through the displayed contents entries, use the UP ARROW and DOWN
ARROW keys. Entries that contain further entries are marked with a plus sign.
●To display a help topic, press the ENTER key. The "View" tab with the correspond-
ing help topic is displayed.
●To change to the next tab, press the tab on the touchscreen.
Navigating in the help topics
●To scroll through a page, use the rotary knob or the UP ARROW and DOWN
ARROW keys.
●To jump to the linked topic, press the link text on the touchscreen.
Searching for a topic
1. Change to the "Index" tab.
2. Enter the first characters of the topic you are interested in. The entries starting with
these characters are displayed.
3. Change the focus by pressing the ENTER key.
4. Select the suitable keyword by using the UP ARROW or DOWN ARROW keys or
the rotary knob.
5. Press the ENTER key to display the help topic.
The "View" tab with the corresponding help topic is displayed.
Changing the zoom
1. Change to the "Zoom" tab.
2. Set the zoom using the rotary knob. Four settings are available: 1-4. The smallest
size is selected by number 1, the largest size is selected by number 4.
Closing the help window
► Press the ESC key or a function key on the front panel.
How to Use the Help System

Quick Start
R&S® FSVA/FSV
10Operating Manual 1176.7510.02 ─ 09
2 Quick Start
Note: the following chapters are identical to those in the printed R&S FSVA/FSV Quick
Start Guide.
●Front and Rear Panel View.....................................................................................10
●Preparing for Use....................................................................................................23
●Firmware Update and Installation of Firmware Options..........................................59
●Basic Operations.....................................................................................................61
●Basic Measurement Examples................................................................................89
●Brief Introduction to Remote Control.....................................................................117
●Advanced Measurement Examples...................................................................... 137
2.1 Front and Rear Panel View
2.1.1 Front Panel View
This chapter describes the front panel, including all function keys and connectors.

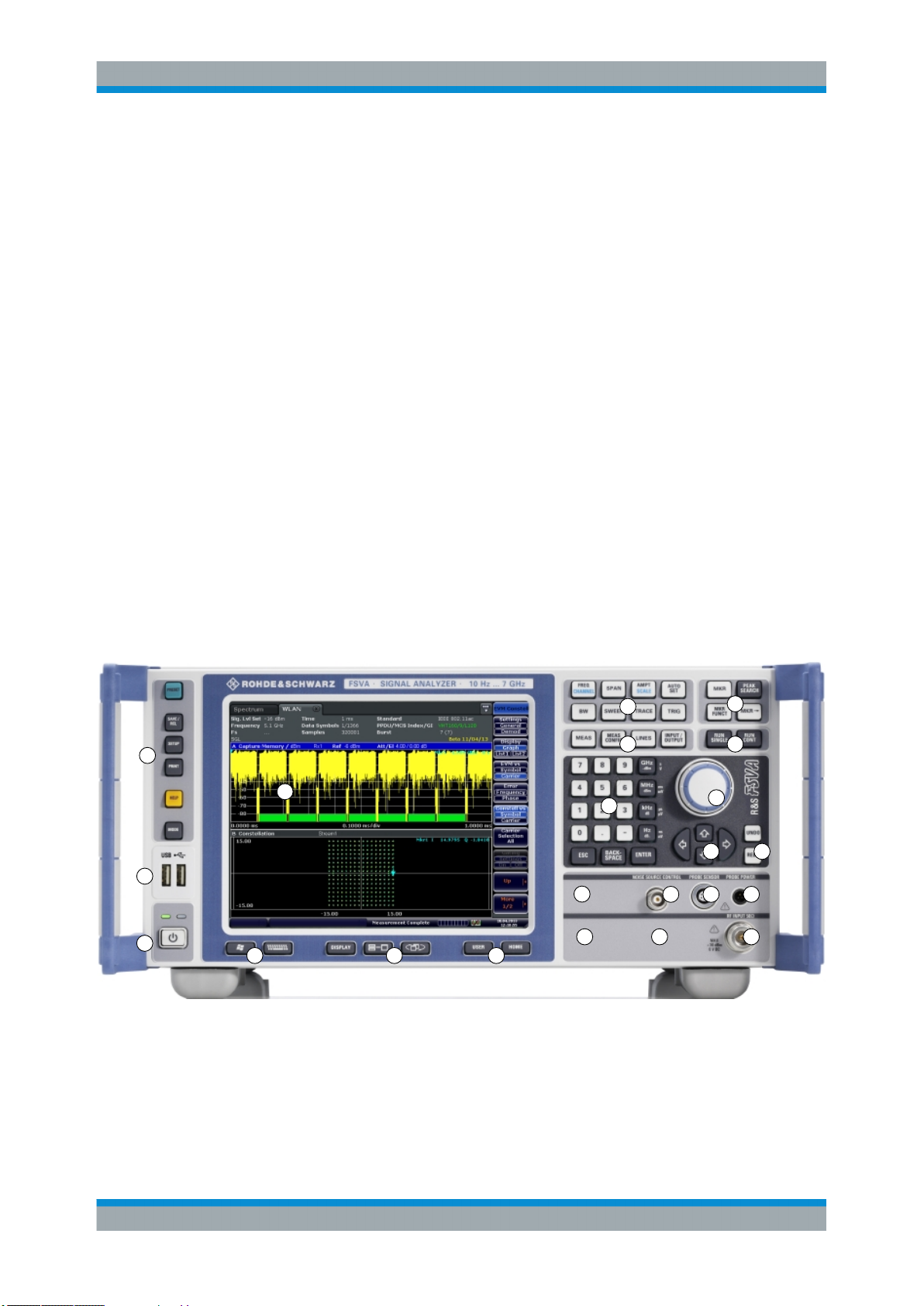

Figure 2-1 shows the front panel view of the R&S FSVA. (The R&S FSV is very simi-
lar.) The individual elements are described in more detail in the subsequent sections.
1
3
2
5 76
4
89
10 11
12 13
14 15
17 18
22
19
16
20 21
Figure 2-1: Front panel view of an R&S
FSVA
Front and Rear Panel View

Quick Start
R&S® FSVA/FSV
11Operating Manual 1176.7510.02 ─ 09
No. Description See
1 General device functions e.g. Change
mode, Setup, Default Settings, Help.
Chapter 2.1.1.1, "Function Keys on the Front Panel",
on page 12
2 USB connector for external devices, e.g.
keyboard, mouse
Chapter 2.1.1.3, "Connectors on the Front Panel",
on page 15
3 ON/OFF switch Chapter 2.2.1.8, "Switching the Instrument On and Off",
on page 33
4 Touchscreen; display area for measure-
ment results
Chapter 2.1.1.2, "Touchscreen Display", on page 14
5 Auxiliary functions to display Windows
Start menu or on-screen keyboard
Chapter 2.1.1.1, "Function Keys on the Front Panel",
on page 12
6 Display options for screen Chapter 2.4.4, "Changing the Display", on page 82
7 Navigation options for screen menu Chapter 2.4.2.6, "Arrow Keys, UNDO/REDO Keys",
on page 73
8 Measurement control settings, e.g. fre-
quency, levels
Chapter 2.1.1.1, "Function Keys on the Front Panel",
on page 12
9 Marker functions Chapter 2.1.1.1, "Function Keys on the Front Panel",
on page 12
10 Measurement configuration Chapter 2.1.1.1, "Function Keys on the Front Panel",
on page 12
11 Measurement start Chapter 2.1.1.1, "Function Keys on the Front Panel",
on page 12
12 Numeric keyboard, units and data entry
keys
Chapter 2.4.2.4, "Keypad", on page 71
13 Rotary knob Chapter 2.4.2.5, "Rotary Knob", on page 73
14 Arrow keys Chapter 2.4.2.6, "Arrow Keys, UNDO/REDO Keys",
on page 73
15 Undo/redo functions Chapter 2.4.2.6, "Arrow Keys, UNDO/REDO Keys",
on page 73
16 AF output with volume control, optional Chapter 2.1.1.4, "Optional Front Panel Connectors",
on page 16
17 Noise source control Chapter 2.1.1.3, "Connectors on the Front Panel",
on page 15
18 Power sensor, optional Chapter 2.1.1.4, "Optional Front Panel Connectors",
on page 16
19 Probe power connector - supply voltage
for measurement accessories
Chapter 2.1.1.3, "Connectors on the Front Panel",
on page 15
20 Tracking generator output, optional Chapter 2.1.1.4, "Optional Front Panel Connectors",
on page 16
21 External mixer (LO output, IF input),
optional
Chapter 2.1.1.4, "Optional Front Panel Connectors",
on page 16
22 RF input Chapter 2.1.1.3, "Connectors on the Front Panel",
on page 15
Front and Rear Panel View

Quick Start
R&S® FSVA/FSV
12Operating Manual 1176.7510.02 ─ 09
2.1.1.1 Function Keys on the Front Panel
A detailed description of the corresponding menus and the other function keys is provi-
ded in chapter 6 "Instrument Functions" of the Operating Manual.
Table 2-1: Front panel function keys
Function key Assigned functions
Switches the instrument on and off.
General device functions
PRESET Resets the instrument to the default state.
SAVE/RCL Provides the functions for saving/loading instrument settings and for
managing stored files.
SETUP Provides basic instrument configuration functions, e.g.:
●Reference frequency (external/internal), noise source
●Date, time, display configuration
●LAN interface
●Self-alignment
●Firmware update and enabling of options
●Information about instrument configuration incl. firmware version and
system error messages
●Service support functions (self test etc.)
PRINT Customizes the printout, selects and configures the printer.
HELP Displays the Online Help.
MODE Provides the selection between firmware options.
External functions
Displays Windows Start menu.
Toggles the on-screen keyboard display:
●at the top of the screen
●at the bottom of the screen
●off
Display options
DISPLAY Opens a dialog box to switch screen elements on or off.
Switches between maximized and split display of focus area.
Switches focus area between table and diagram.
Navigation functions
USER Allows you to define and use softkeys to load user-specific settings files.
HOME Jumps to the highest softkey menu level of the current firmware option.
Measurement settings
Front and Rear Panel View

Quick Start
R&S® FSVA/FSV
13Operating Manual 1176.7510.02 ─ 09
Function key Assigned functions
FREQ
(CHANNEL)
Sets the center frequency as well as the start and stop frequencies for
the frequency range under consideration. This key is also used to set the
frequency offset and the signal track function.
(CHANNEL for special applications)
SPAN Sets the frequency span to be analyzed.
AMPT
(SCALE)
Sets the reference level, the displayed dynamic range, the RF attenua-
tion and the unit for the level display.
Sets the level offset and the input impedance.
Activates the preamplifier (option RF Preamplifier, R&S FSV-B22).
(SCALE for special applications)
AUTO SET Enables automatic settings for level, frequency or sweep type mode.
BW Sets the resolution bandwidth and the video bandwidth.
SWEEP Sets the sweep time and the number of measurement points.
Selects continuous measurement or single measurement.
TRACE Configures the measured data acquisition and the analysis of the mea-
surement data.
TRIG Sets the trigger mode, the trigger threshold, the trigger delay, and the
gate configuration in the case of gated sweep.
Marker functions
MKR Sets and positions the absolute and relative measurement markers
(markers and delta markers).
PEAK SEARCH Performs a peak search for active marker. If no marker is active, normal
marker 1 is activated and the peak search is performed for it.
MKR FUNC Provides additional analysis functions of the measurement markers:
●Frequency counter (Sig Count)
●Fixed reference point for relative measurement markers (Ref Fixed)
●Noise marker (Noise Meas)
●Phase noise
●n dB down function
●AM/FM audio demodulation (with option R&S FSV-B3)
●Peak list
MKR-> Used for search functions of the measurement markers (maximum/mini-
mum of the trace).
Assigns the marker frequency to the center frequency, and the marker
level to the reference level.
Restricts the search area (Search Limits) and characterizes the maxi-
mum points and minimum points (Peak Excursion).
Measurement functions
Front and Rear Panel View

Quick Start
R&S® FSVA/FSV
14Operating Manual 1176.7510.02 ─ 09
Function key Assigned functions
MEAS Provides the measurement functions:
●Measurement of multicarrier adjacent channel power (Ch Power
ACLR)
●Carrier to noise spacing (C/N C/No)
●Occupied bandwidth (OBW)
●Spectrum emission mask measurement (Spectrum Emission Mask)
●Spurious emissions (Spurious Emissions)
●Measurement of time domain power (Time Domain Power)
●Signal statistics: amplitude probability distribution (APD) and cumu-
lative complementary distribution function (CCDF)
●Third-order intercept point (TOI)
●AM modulation depth (AM Mod Depth)
MEAS CONFIG Used to define measurement configuration.
LINES Configures display lines and limit lines.
INPUT/OUTPUT Displays softkeys for input/output functions.
Measurement start functions
RUN SINGLE Starts a single new measurement (Single Sweep Mode).
RUN CONT Starts a continuous measurement (Continuous Sweep Mode).
Function execution
UNDO Reverts last operation.
REDO Repeats previously reverted operation.
2.1.1.2 Touchscreen Display

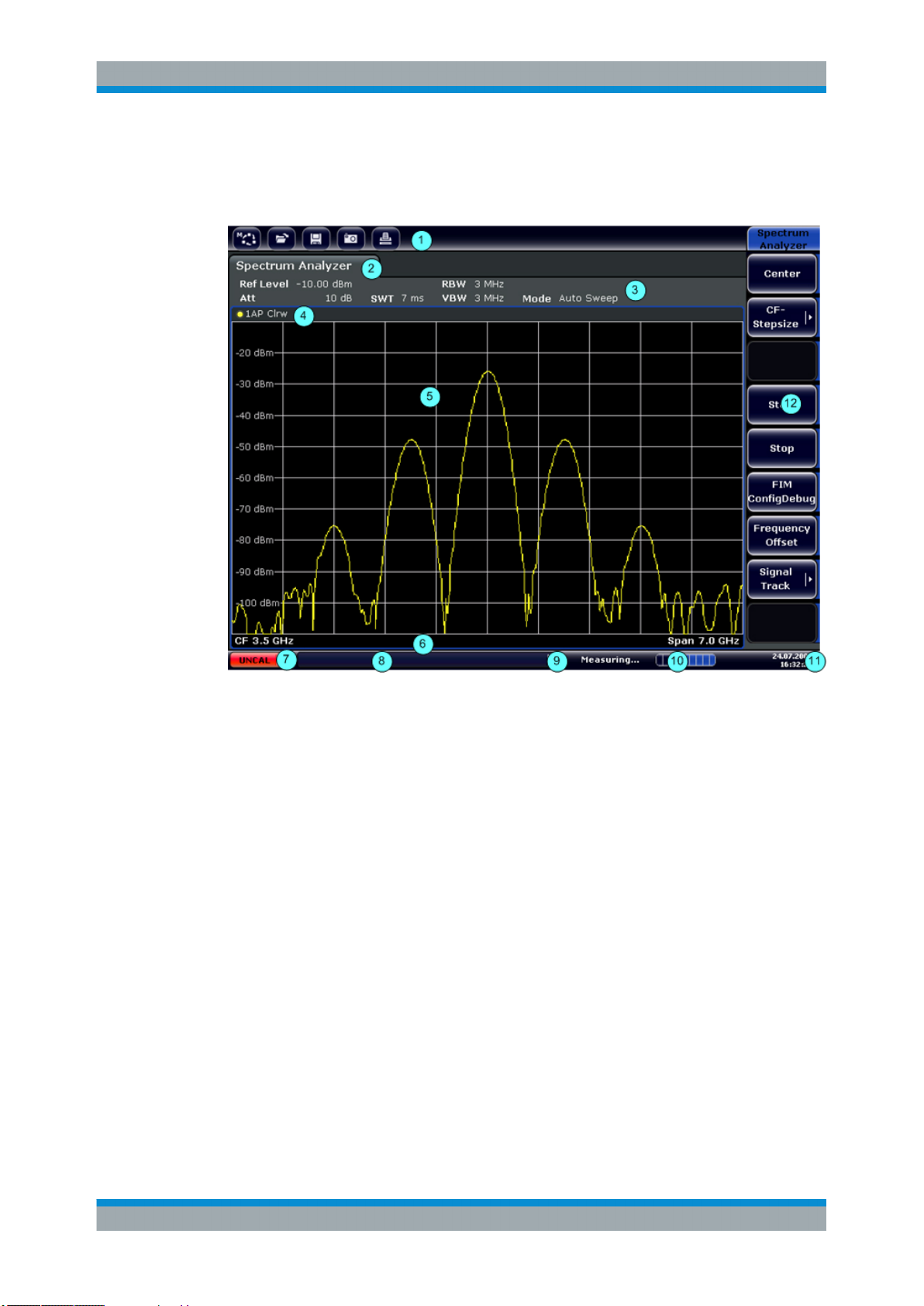

All measurement results are displayed in the screen on the front panel. Additionally,
the screen display provides status and setting information and allows you to switch
between various measurement tasks. The screen is touch-sensitive, offering an alter-
native means of user interaction for quick and easy handling of the device.
Risk of touchscreen damage during operation
Inappropriate tools or excessive force can damage the touchscreen.
Observe the following instructions when operating or cleaning the touchscreen:
●Never touch the screen with ball point pens or other pointed objects with sharp
edges.
●It is recommended that you operate the touchscreen by finger only.
As an alternative, you can use a stylus pen with a smooth soft tip.
●Never apply excessive force to the screen. Touch it gently.
●Never scratch the screen surface, for example with a finger nail.
Never rub it strongly, for example with a dust cloth.
Front and Rear Panel View

Quick Start
R&S® FSVA/FSV
15Operating Manual 1176.7510.02 ─ 09
The Figure 2-2 shows the touchscreen display of the R&S FSVA/FSV. The individual
elements are described in more detail in Chapter 2.4, "Basic Operations",
on page 61.
Figure 2-2: Touchscreen elements
1 = Toolbar with standard application functions, e.g. print, save/open file etc.
2 = Tabs for individual measurement tasks
3 = Channel information bar for current measurement settings
4 = Diagram header with diagram-specific (trace) information
5 = Measurement results area
6 = Diagram footer with diagram-specific information, depending on measurement mode
7 = Error indicator
8 = Error message, if available
9 = Device status
10 = Progress bar for measurement
11 = Date and time display
12 = Softkeys for menu access
2.1.1.3 Connectors on the Front Panel
This section describes the front connectors and interfaces of the R&S FSVA/FSV.
Optional connectors and interfaces are indicated by the option name in brackets. Most
connectors on the front panel (except for USB) are located at the bottom right-hand
side.
Front and Rear Panel View

Quick Start
R&S® FSVA/FSV
16Operating Manual 1176.7510.02 ─ 09
USB
The front panel provides two female USB connectors to connect devices like a key-
board or mouse. Also a memory stick can be connected to store and reload instrument
settings and measurement data.
NOISE SOURCE CONTROL
The noise source control female connector is used to provide the supply voltage for an
external noise source, e.g., to measure the noise figure and gain of amplifiers and fre-
quency converting DUTs.
Conventional noise sources require a voltage of +28 V in order to be switched on and
0 V to be switched off. The output supports a maximum load of 100 mA.
RF INPUT 50Ω
The RF input is to be connected to the DUT via a cable equipped with an appropriate
connector.
Risk of instrument damage
Do not overload the input. For maximum allowed values, see the data sheet.
For AC-coupling, a DC input voltage of 50 V must never be exceeded. For DC-cou-
pling, DC voltage must not be applied at the input. In both cases, noncompliance will
destroy the input mixers.
PROBE POWER
The R&S FSVA/FSV provides a connector for supply voltages of +15 V to -12 V and
ground for active probes and preamplifiers. A maximum current of 140 mA is available.
This connector is suitable as power supply for high-impedance probes from Agilent.
POWER SENSOR
The LEMOSA female connector is used to connect power sensors of the R&S NRP
family (requires option R&S FSVA/FSV-K9). For details on supported power sensors
see the data sheet.
2.1.1.4 Optional Front Panel Connectors
AF OUTPUT (Audio Demodulator option, R&S FSV-B3)
Headphones equipped with a miniature jack plug can be connected to the AF output
female connector. The internal impedance is 10 Ω. The output voltage can be set by
using the volume control to the right of the female connector. If a plug is connected, the
internal loudspeaker is automatically switched off.
Front and Rear Panel View

Quick Start
R&S® FSVA/FSV
17Operating Manual 1176.7510.02 ─ 09
The female connector and volume control are available only with the audio demodula-
tor option (R&S FSV-B3). To use the AF OUTPUT, in the "In-/Output" menu (INPUT/
OUTPUT key), select "Video Output". The output voltage (volume) is 1V.
Risk of hearing damage
To protect your hearing, make sure that the volume setting is not too high before put-
ting on the headphones.
Tracking Generator Output (GEN OUTPUT 50Ω, Option R&S FSV-B9)
The R&S FSVA/FSV is equipped with an optional tracking generator and therefore pro-
vides a tracking generator output connector.
The output of the tracking generator is to be connected to the DUT via a cable equip-
ped with a male N connector. The female connector is available only with the tracking
generator option (R&S FSV-B9).
If the output is active, the LED is green.
Risk of damaging the tracking generator
To avoid damaging the tracking generator, make sure that the reverse power (i.e. input
power caused, for example, by reflections in the test setup) never exceeds 1 W RF
power. Do not apply a DC voltage at the output.
For details, refer to the data sheet.
Sensitive DUTs concerning matching
For DUTs with sensitive RF characteristics with regard to matching (VSWR) at the
input, insert a 10 dB attenuator between the DUT and the tracking generator.
Connections for External Mixers (EXT MIXER, Option R&S FSV-B21)
External mixers can be connected at the LO OUT/IF IN and IF IN female connectors
(option R&S FSV-B21 for R&S FSVA/FSV 30 and R&S FSVA/FSV 40 instruments).
Both two-port and three-port mixers can be used. Connect the mixer as follows:
Use the supplied coaxial cable to feed in the LO signal. If no external mixers are con-
nected to the R&S FSVA/FSV, cover the two front connectors LO OUT / IF IN and IF
IN with the SMA caps supplied.
Front and Rear Panel View

Quick Start
R&S® FSVA/FSV
18Operating Manual 1176.7510.02 ─ 09
Three-port mixer
1. Connect the LO OUT / IF IN output of the R&S FSVA/FSV to the LO port of the
external mixer.
2. Connect the IF IN input of the R&S FSVA/FSV to the IF port of the external mixer.
3. Feed the signal to be measured to the RF input of the external mixer.
Two-port mixer
1. 1. Connect the LO OUT / IF IN output of the R&S FSVA/FSV to the LO/IF port of
the external mixer. The nominal LO level is 15.5 dBm.
Because of the diplexer contained in the R&S FSVA/FSV, the IF signal can be tap-
ped from the line which is used to feed the LO signal to the mixer.
Front and Rear Panel View

Quick Start
R&S® FSVA/FSV
19Operating Manual 1176.7510.02 ─ 09
2. Feed the signal to be measured to the RF input of the external mixer.
2.1.2 Rear Panel View
Figure 2-3 shows the rear panel view of the R&S FSVA/FSV. The individual elements
are described in more detail in the subsequent sections. Optional connectors and inter-
faces are indicated by the option name in brackets.
1
2345
8
11 12 13 14
15
16
910
67
Figure 2-3: Rear panel view
1 = LAN
2 = TRIGGER OUTPUT
3 = IF/VIDEO
4 = USB
5 = AUX PORT
6+7 = External generator control (option B10)
8 = EXT TRIGGER / GATE IN
9+10 = DIGITAL BASEBAND INPUT/OUTPUT connectors (option B17)
11 = MONITOR (VGA)
12 = REF IN
13 = REF OUT
14 = GPIB interface
15 = AC Power Supply Connection and Main Power Switch with fuse
16 = EXT REF with OCXO option (-B4)
2.1.2.1 Standard Rear Panel Connectors
AC Power Supply Connection and Main Power Switch
An AC power supply connector and main power switch are located in a unit on the rear
panel of the instrument.
Main power switch function:
Position 1: The instrument is in operation.
Front and Rear Panel View

Quick Start
R&S® FSVA/FSV
20Operating Manual 1176.7510.02 ─ 09
Position O: The entire instrument is disconnected from the AC power supply.
For details refer to Chapter 2.2.1.8, "Switching the Instrument On and Off",
on page 33.
Warm-up time for OCXO
When the instrument is switched on, the OCXO requires an extended warm-up time
(see data sheet).
LAN
The LAN interface can be used to connect the R&S FSVA/FSV to a local network for
remote control, printouts and data transfer. The assignment of the RJ-45 connector
supports twisted-pair category 5 UTP/STP cables in a star configuration (UTP stands
for unshielded twisted pair, and STP for shielded twisted pair).
MONITOR (VGA)
The female VGA connector is used to connect an external monitor. Step-by-step
instructions how to connect an external monitor are provided in Chapter 2.2.3, "Con-
necting an External Monitor", on page 36.
EXT TRIGGER / GATE IN
The female connector for external trigger/gate input is used to control the measure-
ment by means of an external signal. The voltage levels can range from 0.5 to 3.5 V.
The default value is 1.4 V. The typical input impedance is 10 kΩ.
REF IN
As a reference signal, you can either use the internal reference, or connect an external
one. The setup menu is used to switch between the internal and an external reference.
The REF IN female connector is used as an input for a 1-20 MHz reference signal. The
required input level is 0-10 dBm.
REF OUT
This connector can be used to provide an external reference signal (e.g. the OCXO or
ultra high precision reference signal) to other devices that are connected to this instru-
ment. The REF OUT female connector can output a 10 MHz reference signal with an
output level of 0 dBm.
GPIB interface
The GPIB interface is in compliance with IEEE488 and SCPI. A computer for remote
control can be connected via this interface. To set up the connection, a shielded cable
is recommended. For more details refer to chapter 7 "Remote Control Basics" in the
Operating Manual.
Front and Rear Panel View
