Rohde & Schwarz R&S FPC User manual

R&S®FPC
Spectrum Analyzer
User Manual
1178413002
Version 11
(;ÜYN2)

This document describes the following R&S®FPC models and options:
●R&S®FPC1000 (1328.6660.02)
●R&S®FPC1500 (1328.6660.03)
●R&S®FPC-B22 Preamplifier (1328.6690.02)
●R&S®FPC-B200 Wi-Fi Support (1328.6990.02)
●R&S®FPC-K7 AM, FM, ASK, FSK demodulation (1328.6748.02)
●R&S®FPC-K42 Vector Network Analysis (1328.7396.02)
●R&S®FPC-K43 Receiver (1328.6754.02)
●R&S®FPC-K55 Advanced Measurements (1328.6760.02)
The contents of this manual correspond to firmware version 1.70 and later.
© 2021 Rohde & Schwarz GmbH & Co. KG
Mühldorfstr. 15, 81671 München, Germany
Phone: [phone] - 0
Email: [email protected]
Internet: www.rohde-schwarz.com
Subject to change – data without tolerance limits is not binding.
R&S® is a registered trademark of Rohde & Schwarz GmbH & Co. KG.
Trade names are trademarks of the owners.
1178.4130.02 | Version 11 | R&S®FPC
Throughout this manual, products from Rohde & Schwarz are indicated without the ® symbol , e.g. R&S®FPC is indicated as
R&S FPC.

Contents
R&S®FPC
3User Manual 1178.4130.02 ─ 11
Contents
1 Safety and regulatory information........................................................7
1.1 Safety Instructions........................................................................................................7
1.2 Labels on R&S FPC.......................................................................................................9
1.3 Warning messages in the documentation................................................................ 10
1.4 Regulatory information...............................................................................................10
1.5 Korea certification class A......................................................................................... 10
2 Documentation overview.....................................................................11
3 Preparing for use................................................................................. 13
3.1 Lifting and carrying.....................................................................................................13
3.2 Unpacking and checking the instrument..................................................................13
3.3 Choosing the operating site.......................................................................................13
3.4 Setting up the R&S FPC............................................................................................. 14
3.5 Considerations for test setup.................................................................................... 15
3.6 Connecting AC power.................................................................................................15
3.7 Turning the R&S FPC on and off................................................................................16
4 Instrument tour.....................................................................................18

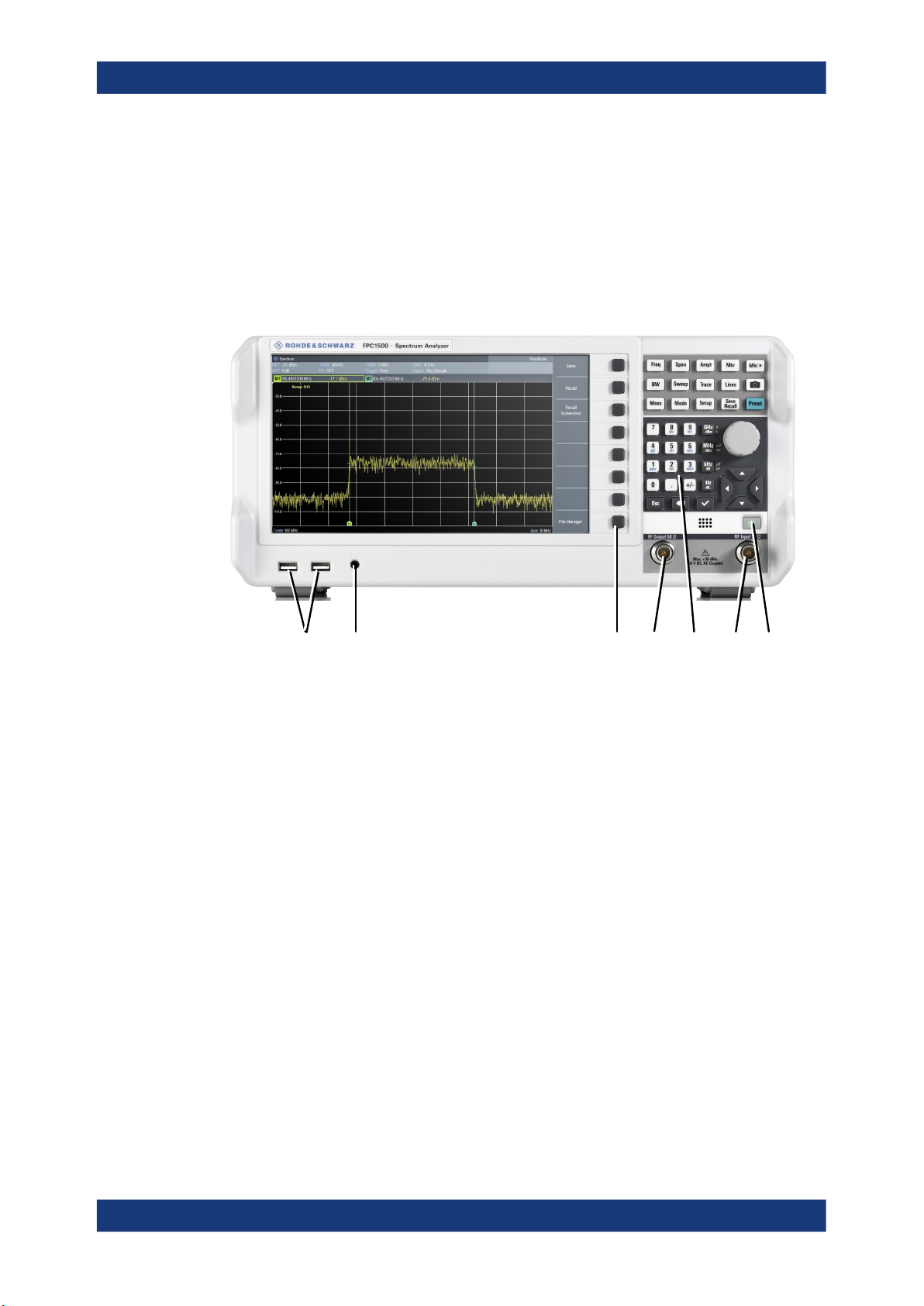

4.1 Front panel...................................................................................................................18
4.2 Rear panel....................................................................................................................20
5 Operation.............................................................................................. 22
5.1 Manual operation........................................................................................................ 22
5.2 Screen layout...............................................................................................................25
5.3 Remote operation........................................................................................................28
6 Firmware update.................................................................................. 36
7 Firmware options................................................................................. 38
8 Preset.................................................................................................... 41
9 Instrument setup..................................................................................43
9.1 BNC connector usage.................................................................................................43
9.2 Network configuration................................................................................................ 43
9.3 Date and time...............................................................................................................45

Contents
R&S®FPC
4User Manual 1178.4130.02 ─ 11
9.4 Regional settings........................................................................................................ 46
9.5 Display settings...........................................................................................................47
9.6 Audio settings............................................................................................................. 48
9.7 Power settings.............................................................................................................48
10 Data management................................................................................ 50
11 Signal source configuration................................................................57
12 Calibration............................................................................................ 59
13 Measurement wizard............................................................................65
14 The spectrum application....................................................................72
14.1 Configuration overview.............................................................................................. 72
14.2 Measurements and result displays........................................................................... 74
14.3 Frequency configuration.......................................................................................... 101
14.4 Amplitude configuration...........................................................................................106
14.5 Bandwidth configuration.......................................................................................... 114
14.6 Sweep configuration................................................................................................. 117
14.7 Trigger configuration................................................................................................ 119
14.8 Trace configuration...................................................................................................121
14.9 Marker configuration................................................................................................ 127
14.10 Marker functions....................................................................................................... 133
14.11 Display lines.............................................................................................................. 137
14.12 Limit lines.................................................................................................................. 138
15 The receiver application....................................................................142
15.1 Measurements and result displays......................................................................... 142
15.2 Frequency configuration.......................................................................................... 146
15.3 Amplitude configuration...........................................................................................150
15.4 Bandwidth configuration..........................................................................................151
15.5 Sweep configuration.................................................................................................152
15.6 Trace configuration...................................................................................................152
15.7 Limit lines.................................................................................................................. 153
15.8 Marker configuration................................................................................................ 153
16 Analog demodulation........................................................................ 155

Contents
R&S®FPC
5User Manual 1178.4130.02 ─ 11
16.1 Measurements and result displays......................................................................... 155
16.2 Frequency configuration.......................................................................................... 158
16.3 Amplitude configuration...........................................................................................158
16.4 Bandwidth configuration..........................................................................................159
16.5 Sweep configuration.................................................................................................164
16.6 Trigger configuration................................................................................................ 164
16.7 Limits..........................................................................................................................165
17 Digital demodulation..........................................................................167
17.1 Measurements and result displays......................................................................... 167
17.2 Measurement configuration..................................................................................... 172
17.3 Frequency configuration.......................................................................................... 175
17.4 Amplitude configuration...........................................................................................176
17.5 Sweep configuration.................................................................................................177
17.6 Trigger configuration................................................................................................ 177
18 Vector network analyzer....................................................................179
18.1 Measurements and result displays......................................................................... 179
18.2 Frequency configuration.......................................................................................... 188
18.3 Amplitude configuration...........................................................................................190
18.4 Bandwidth configuration..........................................................................................192
18.5 Sweep configuration.................................................................................................192
18.6 Trace configuration...................................................................................................193
18.7 Marker configuration................................................................................................ 195
18.8 Limit line configuration............................................................................................ 196
19 Remote control...................................................................................198
19.1 Remote control basics..............................................................................................198
19.2 Common commands.................................................................................................203
19.3 Preset......................................................................................................................... 206
19.4 Network connection..................................................................................................208
19.5 System configuration............................................................................................... 209
19.6 Display settings.........................................................................................................215
19.7 Audio settings........................................................................................................... 216
19.8 Data management..................................................................................................... 217

Contents
R&S®FPC
6User Manual 1178.4130.02 ─ 11
19.9 Signal source configuartion.....................................................................................227
19.10 Calibration................................................................................................................. 229
19.11 Applications...............................................................................................................232
19.12 Remote commands of the spectrum application................................................... 233
19.13 Remote commands of the receiver application..................................................... 296
19.14 Remote commands of the analog demodulation................................................... 304
19.15 Remote commands of the digital demodulation.................................................... 314
19.16 Remote commands of the VNA application............................................................325
19.17 Status reporting system........................................................................................... 344
20 Function reference.............................................................................358
20.1 Function reference: setup........................................................................................ 358
20.2 Function reference: data management................................................................... 361
20.3 Function reference: mode selection....................................................................... 362
20.4 Function reference: spectrum application............................................................. 363
20.5 Function reference: receiver application................................................................380
20.6 Function reference: analog demodulation............................................................. 390
20.7 Function reference: digital demodulation.............................................................. 394
20.8 Function reference: vector network analyzer.........................................................399
21 Contacting customer support...........................................................409
22 Maintenance, storage, transport and disposal................................410
22.1 Cleaning..................................................................................................................... 410
22.2 Changing fuses......................................................................................................... 410
22.3 Storage.......................................................................................................................410
22.4 Transporting.............................................................................................................. 410
22.5 Disposal..................................................................................................................... 411
List of commands.............................................................................. 412
Index....................................................................................................419

Safety and regulatory information
R&S®FPC
7User Manual 1178.4130.02 ─ 11
1 Safety and regulatory information
The product documentation helps you use the product safely and efficiently. Follow the
instructions provided here and in the following chapters.
Intended use
The product is intended for the development, production and verification of electronic
components and devices in industrial, administrative, and laboratory environments.
Use the product only for its designated purpose. Observe the operating conditions and
performance limits stated in the data sheet.
Where do I find safety information?
Safety information is part of the product documentation. It warns you of potential dan-
gers and gives instructions on how to prevent personal injury or damage caused by
dangerous situations. Safety information is provided as follows:
●In Chapter 1.1, "Safety Instructions", on page 7. The same information is provi-
ded in many languages as printed "Safety Instructions". The printed "Safety
Instructions" are delivered with the product.
●Throughout the documentation, safety instructions are provided when you need to
take care during setup or operation.
1.1 Safety Instructions
Products from the Rohde & Schwarz group of companies are manufactured according
to the highest technical standards. To use the products safely, follow the instructions
provided here and in the product documentation. Keep the product documentation
nearby and offer it to other users.
Use the product only for its intended use and within its performance limits. Intended
use and limits are described in the product documentation such as the data sheet,
manuals and the printed "Safety Instructions". If you are unsure about the appropriate
use, contact Rohde & Schwarz customer service.
Using the product requires specialists or specially trained personnel. These users also
need sound knowledge of at least one of the languages in which the user interfaces
and the product documentation are available.
Never open the casing of the product. Only service personnel authorized by
Rohde & Schwarz are allowed to repair the product. If any part of the product is dam-
aged or broken, stop using the product. Contact Rohde & Schwarz customer service at
http://www.customersupport.rohde-schwarz.com.
Lifting and carrying the product
The maximum weight of the product is provided in the data sheet. To move the product
safely, you can use lifting or transporting equipment such as lift trucks and forklifts. Fol-
low the instructions provided by the equipment manufacturer.
Safety Instructions

Safety and regulatory information
R&S®FPC
8User Manual 1178.4130.02 ─ 11
Choosing the operating site
Only use the product indoors. The product casing is not waterproof. Water that enters
can electrically connect the casing with live parts, which can lead to electric shock,
serious personal injury or death if you touch the casing. If Rohde & Schwarz provides
accessories designed for your product, e.g. a carrying bag, you can use the product
outdoors.
Unless otherwise specified, you can operate the product up to an altitude of 2000 m
above sea level. The product is suitable for pollution degree 2 environments where
nonconductive contamination can occur. For more information on environmental condi-
tions such as ambient temperature and humidity, see the data sheet.
Setting up the product
Always place the product on a stable, flat and level surface with the bottom of the prod-
uct facing down. If the product is designed for different positions, secure the product so
that it cannot fall over.
If the product has foldable feet, always fold the feet completely in or out to ensure sta-
bility. The feet can collapse if they are not folded out completely or if the product is
moved without lifting it. The foldable feet are designed to carry the weight of the prod-
uct, but not an extra load.
If stacking is possible, keep in mind that a stack of products can fall over and cause
injury.
If you mount products in a rack, ensure that the rack has sufficient load capacity and
stability. Observe the specifications of the rack manufacturer. Always install the prod-
ucts from the bottom shelf to the top shelf so that the rack stands securely. Secure the
product so that it cannot fall off the rack.
Connecting to power
The product is an overvoltage category II product. Connect the product to a fixed
installation used to supply energy-consuming equipment such as household applian-
ces and similar loads. Keep in mind that electrically powered products have risks, such
as electric shock, fire, personal injury or even death.
Take the following measures for your safety:
●Before switching on the product, ensure that the voltage and frequency indicated
on the product match the available power source. If the power adapter does not
adjust automatically, set the correct value and check the rating of the fuse.
●If a product has an exchangeable fuse, its type and characteristics are indicated
next to the fuse holder. Before changing the fuse, switch off the instrument and dis-
connect it from the power source. How to change the fuse is described in the prod-
uct documentation.
●Only use the power cable delivered with the product. It complies with country-spe-
cific safety requirements. Only insert the plug into an outlet with protective conduc-
tor terminal.
●Only use intact cables and route them carefully so that they cannot be damaged.
Check the power cables regularly to ensure that they are undamaged. Also ensure
that nobody can trip over loose cables.
Safety Instructions

Safety and regulatory information
R&S®FPC
9User Manual 1178.4130.02 ─ 11
●If the product needs an external power supply, use the power supply that is deliv-
ered with the product or that is recommended in the product documentation or a
power supply that conforms to the country-specific regulations.
●Only connect the product to a power source with a fuse protection of maximum
20 A.
●Ensure that you can disconnect the product from the power source at any time.
Pull the power plug to disconnect the product. The power plug must be easily
accessible. If the product is integrated into a system that does not meet these
requirements, provide an easily accessible circuit breaker at the system level.
Connecting headphones
Take the following measures to prevent hearing damage. Before using headphones,
check the volume and reduce it if necessary. If you monitor varying signal levels, take
off the headphones and wait until the signal has settled. Then adjust the volume.
Cleaning the product
Use a dry, lint-free cloth to clean the product. When cleaning, keep in mind that the
casing is not waterproof. Do not use liquid cleaning agents.
Meaning of safety labels
Safety labels on the product warn against potential hazards.
Potential hazard
Read the product documentation to avoid personal injury or product damage.
Electrical hazard
Indicates live parts. Risk of electric shock, fire, personal injury or even death.
Hot surface
Do not touch. Risk of skin burns. Risk of fire.
Protective conductor terminal
Connect this terminal to a grounded external conductor or to protective ground. This connec-
tion protects you against electric shock if an electric problem occurs.
1.2 Labels on R&S FPC
Labels on the casing inform about:
●Personal safety, see "Meaning of safety labels" on page 9
●Product and environment safety, see Table 1-1
●Identification of the product, see "Device ID" on page 21
Labels on R&S FPC

Safety and regulatory information
R&S®FPC
10User Manual 1178.4130.02 ─ 11
Table 1-1: Labels regarding R&S FPC and environment safety
Labeling in line with EN 50419 for disposal of electrical and electronic equipment after the prod-
uct has come to the end of its service life. For more information, see the product user manual,
chapter "Disposal".
1.3 Warning messages in the documentation
A warning message points out a risk or danger that you need to be aware of. The sig-
nal word indicates the severity of the safety hazard and how likely it will occur if you do
not follow the safety precautions.
CAUTION
Potentially hazardous situation. Could result in minor or moderate injury if not avoided.
NOTICE
Potential risks of damage. Could result in damage to the supported product or to other
property.
1.4 Regulatory information
Instruments with a serial number < 200000 have an internal Wi-Fi module. You can
access the regulatory information for this module in the firmware of the R&S FPC.
1. Press the "Setup" key.
The R&S FPC opens the "Instrument Setup" menu.
2. Select the "Regulatory Information" menu item in the "WiFi" category with the
"Enter" key.
The R&S FPC shows the regulations it complies with.
1.5 Korea certification class A
이 기기는 업무용(A급) 전자파 적합기기로서 판매자 또는 사용자는 이 점을 주의하시기
바라며, 가정외의 지역에서 사용하는 것을 목적으로 합니다.
Korea certification class A

Documentation overview
R&S®FPC
11User Manual 1178.4130.02 ─ 11
2 Documentation overview
This section provides an overview of the R&S FPC user documentation. You can find it
on the product page at:
www.rohde-schwarz.com/manual/fpc
Getting started manual
Introduces the R&S FPC and describes how to set up and start working with the prod-
uct. A printed version is included in the delivery.
User manual
The user manual contains the description of all instrument modes and functions. It also
provides an introduction to remote control, a complete description of the remote control
commands with programming examples, and information on maintenance, instrument
interfaces and error messages.
In addition to the R&S FPC user manual, there is a separate user manual for the
R&S InstrumentView software package. This manual contains a description of all fea-
tures of the R&S InstrumentView software package.
The online version (html format) of the user manual provides the complete contents for
immediate display on the internet.
The user manual is also integrated into the firmware (.chm format). You can export the
file to a memory stick ("Setup" > "User Preferences" > "Export Documentation". After
the export, you can connect the memory stick to a PC and read the .chm file.
Service manual
Describes the performance test for checking the rated specifications, module replace-
ment and repair, firmware update, troubleshooting and fault elimination, and contains
mechanical drawings and spare part lists.
The service manual is available for registered users on the global Rohde & Schwarz
information system (GLORIS, https://gloris.rohde-schwarz.com).
Basic safety instructions
Contains safety instructions, operating conditions and further important information.
The printed document is included in the delivery.
Data sheet and brochure
The data sheet contains the technical specifications of the R&S FPC. It also lists the
options and their order numbers as well as optional accessories.
The brochure provides an overview of the R&S FPC and shows its specific characteris-
tics.

Documentation overview
R&S®FPC
12User Manual 1178.4130.02 ─ 11
Release notes and open source acknowledgment
The release notes list new features, improvements and known issues of the current
firmware version, and describe the firmware installation.
The open source acknowledgment document provides verbatim license texts of the
used open source software.
www.rohde-schwarz.com/manual/fpc
The open source acknowledgement is also integrated into the firmware (.chm format).
You can export the file to a memory stick ("Setup" > "User Preferences" > "Export Doc-
umentation". After the export, you can connect the memory stick to a PC and read
the .chm file.
Application notes, application cards, white papers, etc.
These documents contain information about possible applications and background
information on various topics, see www.rohde-schwarz.com/appnotes.
Calibration certificates
The calibration certificates of your device are available online. Visit the R&S FPC prod-
uct page and select the item to download the calibration certificate. You will be forwar-
ded to a Gloris page.
https://gloris.rohde-schwarz.com/calcert
Enter the device ID of your R&S FPC and download the certificate. You can find the
device ID either in the "Setup" menu or on the label on the rear panel.

Preparing for use
R&S®FPC
13User Manual 1178.4130.02 ─ 11
3 Preparing for use
Here, you can find basic information about setting up the product for the first time.
●Lifting and carrying..................................................................................................13
●Unpacking and checking the instrument................................................................. 13
●Choosing the operating site.................................................................................... 13
●Setting up the R&S FPC......................................................................................... 14
●Considerations for test setup.................................................................................. 15
●Connecting AC power............................................................................................. 15
●Turning the R&S FPC on and off.............................................................................16
3.1 Lifting and carrying
See "Lifting and carrying the product" on page 7.
3.2 Unpacking and checking the instrument
1. Unpack the R&S FPC carefully.
2. Retain the original packing materials. Use it when transporting or shipping the
R&S FPC later.
3. Using the delivery notes, check the equipment for completeness.
4. Check the R&S FPC for any damage.
If the delivery is incomplete or the equipment is damaged, contact Rohde & Schwarz.
3.3 Choosing the operating site
Specific operating conditions ensure proper operation and avoid damage to the prod-
uct and connected devices. For information on environmental conditions such as ambi-
ent temperature and humidity, see the data sheet.
See also "Choosing the operating site" on page 8.
Electromagnetic compatibility classes
The electromagnetic compatibility (EMC) class indicates where you can operate the
product. The EMC class of the product is given in the data sheet under "General data".
●Class B equipment is suitable for use in:
– Residential environments
Choosing the operating site

Preparing for use
R&S®FPC
14User Manual 1178.4130.02 ─ 11
– Environments that are directly connected to a low-voltage supply network that
supplies residential buildings
●Class A equipment is intended for use in industrial environments. It can cause
radio disturbances in residential environments due to possible conducted and radi-
ated disturbances. It is therefore not suitable for class B environments.
If class A equipment causes radio disturbances, take appropriate measures to
eliminate them.
3.4 Setting up the R&S FPC
The R&S FPC is designed for use on a bench top or in a rack.
See also:
●"Setting up the product" on page 8
●"Intended use" on page 7
3.4.1 Placing the R&S FPC on a bench top
To place the product on a bench top
1. Place the product on a stable, flat and level surface. Ensure that the surface can
support the weight of the product. For information on the weight, see the data
sheet.
2. CAUTION! Foldable feet can collapse. See "Setting up the product" on page 8.
Always fold the feet completely in or out. With folded-out feet, do not place any-
thing on top or underneath.
3. Alternatively, you can mount several products in a rack.
3.4.2 Mounting the R&S FPC in a rack
To prepare the rack
1. Observe the requirements and instructions in "Setting up the product" on page 8.
2. NOTICE! Insufficient airflow can cause overheating and damage the product.
Design and implement an efficient ventilation concept for the rack.
To mount the R&S FPC in a rack
1. Use an adapter kit to prepare the R&S FPC for mounting.
a) Order the rack adapter kit designed for the R&S FPC (19" rack mount kit
R&S ZZA-FPC1 order no. 1328.7080.02).
Setting up the R&S FPC

Preparing for use
R&S®FPC
15User Manual 1178.4130.02 ─ 11
b) Mount the adapter kit. Follow the installation instructions provided with the
adapter kit.
2. Lift the R&S FPC to shelf height.
3. Push the R&S FPC onto the shelf until the rack brackets fit closely to the rack.
4. Tighten all screws in the rack brackets with a tightening torque of 1.2Nm to secure
the R&S FPC in the rack.
To unmount the R&S FPC from a rack
1. Loosen the screws at the rack brackets.
2. Remove the R&S FPC from the rack.
3. If placing the R&S FPC on a bench top again, unmount the adapter kit from the
R&S FPC. Follow the instructions provided with the adapter kit.
3.5 Considerations for test setup
Signal input and output
An unsuitable test setup can damage the instrument and connected devices. Before
you switch on the instrument, check that all inputs and outputs are correctly connected
and that the signal levels are within the specified ranges defined in the data sheet.
In particular, pay attention to the following limits to avoid damage to the R&S FPC:
●Do not overload the RF input and keep within the maximum allowed signal level
defined in the data sheet.
●Never exceed a DC input voltage of 50 V at the RF input.
●Never exceed a reverse power of 23 dBm at the signal source output.
Cable selection and electromagnetic interference (EMI)
Electromagnetic interference (EMI) can affect the measurement results.
To suppress electromagnetic radiation during operation:
●Use high-quality shielded cables, for example, double-shielded RF and LAN
cables.
●Always terminate open cable ends.
●Ensure that connected external devices comply with EMC regulations.
3.6 Connecting AC power
The AC power connector on the rear panel of the R&S FPC allows you to connect it to
the primary power supply.
Connecting AC power

Preparing for use
R&S®FPC
16User Manual 1178.4130.02 ─ 11
Included in the delivery of the R&S FPC are several common power plug types.
1. Select the cable with the plug type you need and firmly connect it to the R&S FPC.
2. Connect the AC plug to the power outlet to supply the R&S FPC with power.
The R&S FPC is assembled in line with the specifications for safety class
EN61010. Therefore, it may only be connected to an outlet that has a ground con-
tact.
The AC power supply has the following characteristics.
● Line voltage: 100 V AC to 240 V AC
● Line frequency: 50 Hz to 60 Hz; 400 Hz
● Current: 0.6 A to 0.4 A
See also "Connecting to power" on page 8.
3.7 Turning the R&S FPC on and off
After you have established a connection to the power supply, you can turn on the
R&S FPC.
Table 3-1: Overview of power states
Status LED Position of power switch
Off Off [0]
Standby orange [I]
Ready green [I]
Turning on the R&S FPC
► Turn on the main AC power switch on the rear panel of the R&S FPC (position "I").
The instrument is now supplied with AC power.
● "Power" key is highlighted orange: R&S FPC is in standby mode (main AC
power switch is in position "I").
● "Power" key is highlighted green: R&S FPC is running and ready for operation.
Turning off the R&S FPC
► Turn off the main AC power switch on the rear panel of the R&S FPC (position
"O").
The instrument is no longer supplied with AC power.
To disconnect from power
The product is in the standby state.
1. NOTICE! Risk of data loss. If you disconnect the product from power when it is in
the ready state, you can lose settings and data. Shut it down first.
Set the switch on the power supply to position [0].
Turning the R&S FPC on and off

Preparing for use
R&S®FPC
17User Manual 1178.4130.02 ─ 11
The LED of the Power key is switched off.
2. Disconnect the product from the power source.
Turning the R&S FPC on and off

Instrument tour
R&S®FPC
18User Manual 1178.4130.02 ─ 11
4 Instrument tour
The R&S FPC has various connectors on the front and rear panel.
4.1 Front panel
1 632 5 74
Figure 4-1: Front panel of the R&S FPC
1 = USB ports (type A)
2 = Headphone jack
3 = Softkeys
4 = Signal source output
5 = Function keys and alphanumeric keypad
6 = RF Input
7 = Power switch
Power switch
The power switch turns the R&S FPC on and off when it is supplied with power.
For more information, see Chapter 3.7, "Turning the R&S FPC on and off", on page 16.
Signal source output
Available on the R&S FPC1500.
The "Signal Source" output allows you to generate a signal that can be fed into the
DUT or other external accessories like frequency dividers or amplifiers. You can con-
nect the DUT or accessories with a cable that has a male N connector.
Front panel

Instrument tour
R&S®FPC
19User Manual 1178.4130.02 ─ 11
Headphone jack
The female headphone jack allows you to connect headphones (or external speakers)
with a miniature jack plug.
You can control the output voltage with the volume control integrated into the firmware.
Refer to the user manual for details.
If you connect headphones or external speakers, the R&S FPC automatically turns off
the internal speaker.
Note the safety information provided in "Connecting headphones" on page 9.
USB ports (type A)
The two USB 2.0 ports on the front panel (type A) allow you to connect devices like
memory sticks.
Function keys and alphanumeric keypad
The function keys provide access to the measurement settings and functions. The
alphanumeric keypad allows you to enter alphanumeric data if necessary.
Refer to the user manual for a comprehensive description of the function keys.
Softkeys
The softkeys allow you to access measurement settings and functions.
Softkeys are dynamic. A different list of softkeys is displayed depending on the
selected function key. A list of softkeys for a certain function key is also called a menu.
Softkeys can either perform a specific function or open a dialog box.
Refer to the user manual for a comprehensive description of the function keys.
RF Input
The RF input with an impedance of 50 Ω allows you to connect a DUT to the
R&S FPC. Typically, you connect the DUT with a cable and an appropriate connector
(for example a male N connector).
The frequency range of the RF input is specified in the datasheet.
The attenuation range is between 0 dB and 40 dB.
Front panel

Instrument tour
R&S®FPC
20User Manual 1178.4130.02 ─ 11
4.2 Rear panel
1 432
Figure 4-2: Rear panel of the R&S FPC
1 = Trigger input / external reference
2 = LAN
3 = USB port (type B)
4 = Power supply
Power supply
The AC power supply and main power switch are located in a unit on the rear panel of
the instrument.
The main power switch has the following states.
●Position "1": The instrument is supplied with power.
●Position "0": The instrument is disconnected from the power supply.
Trigger input / external reference
This female BNC connector allows you to connect an external trigger signal or an
external reference signal.
When you are using the connector as a trigger input, you can trigger measurements
with an external trigger. For more information about triggered measurements, refer to
the user manual.
Alternatively, you can use the connector to connect a 10 MHz reference signal to syn-
chronize the frequency with the external reference. Note that the reference signal must
be stronger than 0 dBm.
Rear panel
