Rohde & Schwarz NRP-Z00 User manual

R&S®NRP-Zxx
Power Sensors
Getting Started
1176882202
Version 04
(;ÚæF2)

This manual gives an introduction to the Rohde & Schwarz NRP-Z sensors.
© 2021 Rohde & Schwarz GmbH & Co. KG
Mühldorfstr. 15, 81671 München, Germany
Phone: [phone] - 0
Email: [email protected]
Internet: www.rohde-schwarz.com
Subject to change – data without tolerance limits is not binding.
R&S® is a registered trademark of Rohde & Schwarz GmbH & Co. KG.
Trade names are trademarks of the owners.
1176.8822.02 | Version 04 | R&S®NRP-Zxx
Throughout this manual, products from Rohde & Schwarz are indicated without the ® symbol, for example
R&S®NRP2 is abbreviated as R&S NRP2.

Contents
R&S®NRP-Zxx
3Getting Started 1176.8822.02 ─ 04
Contents
1 Safety Information................................................................. 5
2 Documentation Overview......................................................6
2.1 Getting Started Manual.........................................................................6
2.2 User Manuals.........................................................................................6
2.3 Tutorials................................................................................................. 6
2.4 Instrument Security Procedures......................................................... 6
2.5 Basic Safety Instructions..................................................................... 7
2.6 Data Sheets and Brochures................................................................. 7
2.7 Release Notes and Open Source Acknowledgment (OSA)...............7
2.8 Application Notes, Application Cards, White Papers, etc.................7
3 Key Features.......................................................................... 8
4 Preparing for Use.................................................................11
4.1 EMI Suppression.................................................................................12
4.2 Unpacking and Checking the Power Sensor....................................12

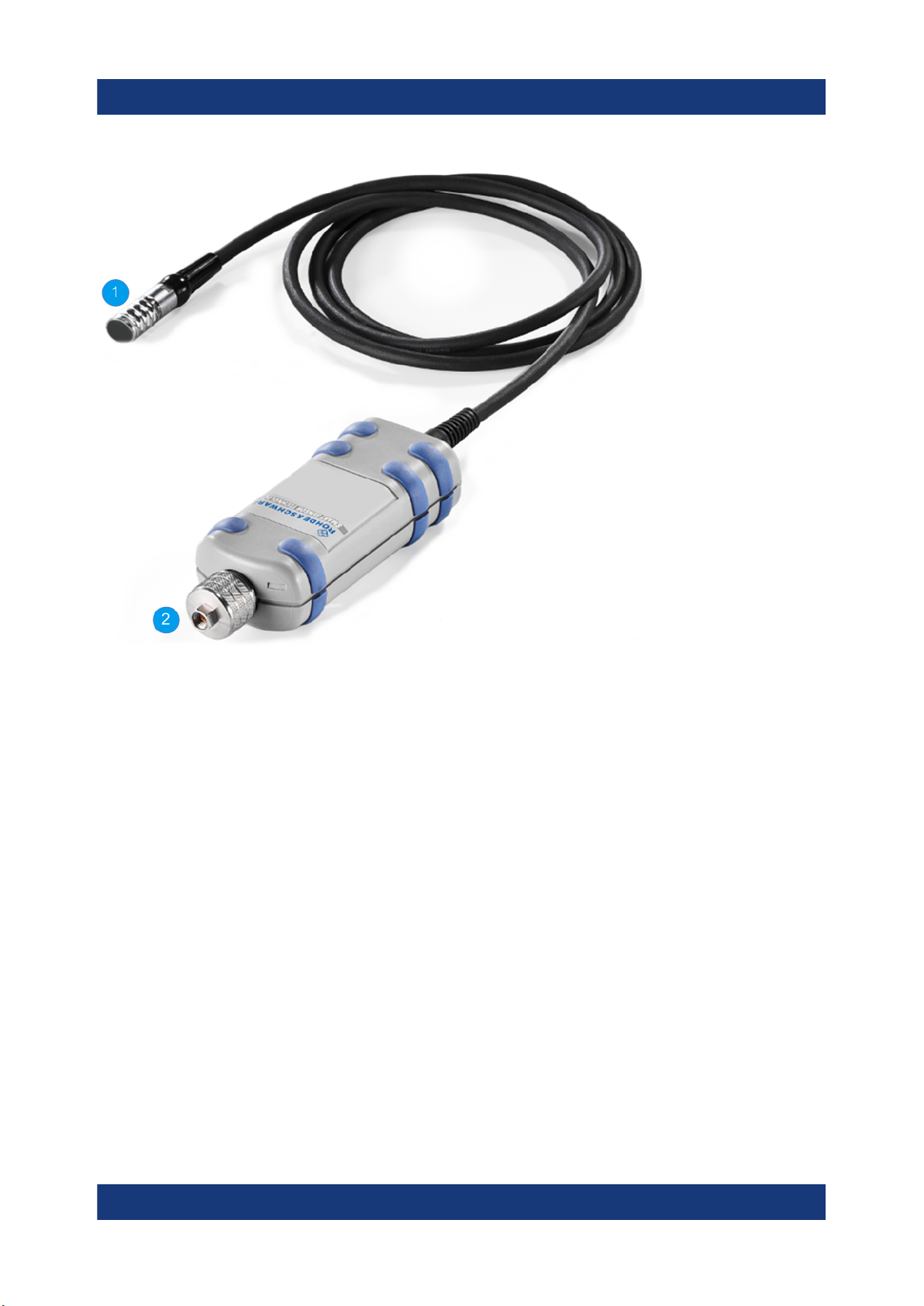

4.3 Connectors of the R&S NRP‑Z Power Sensors................................12

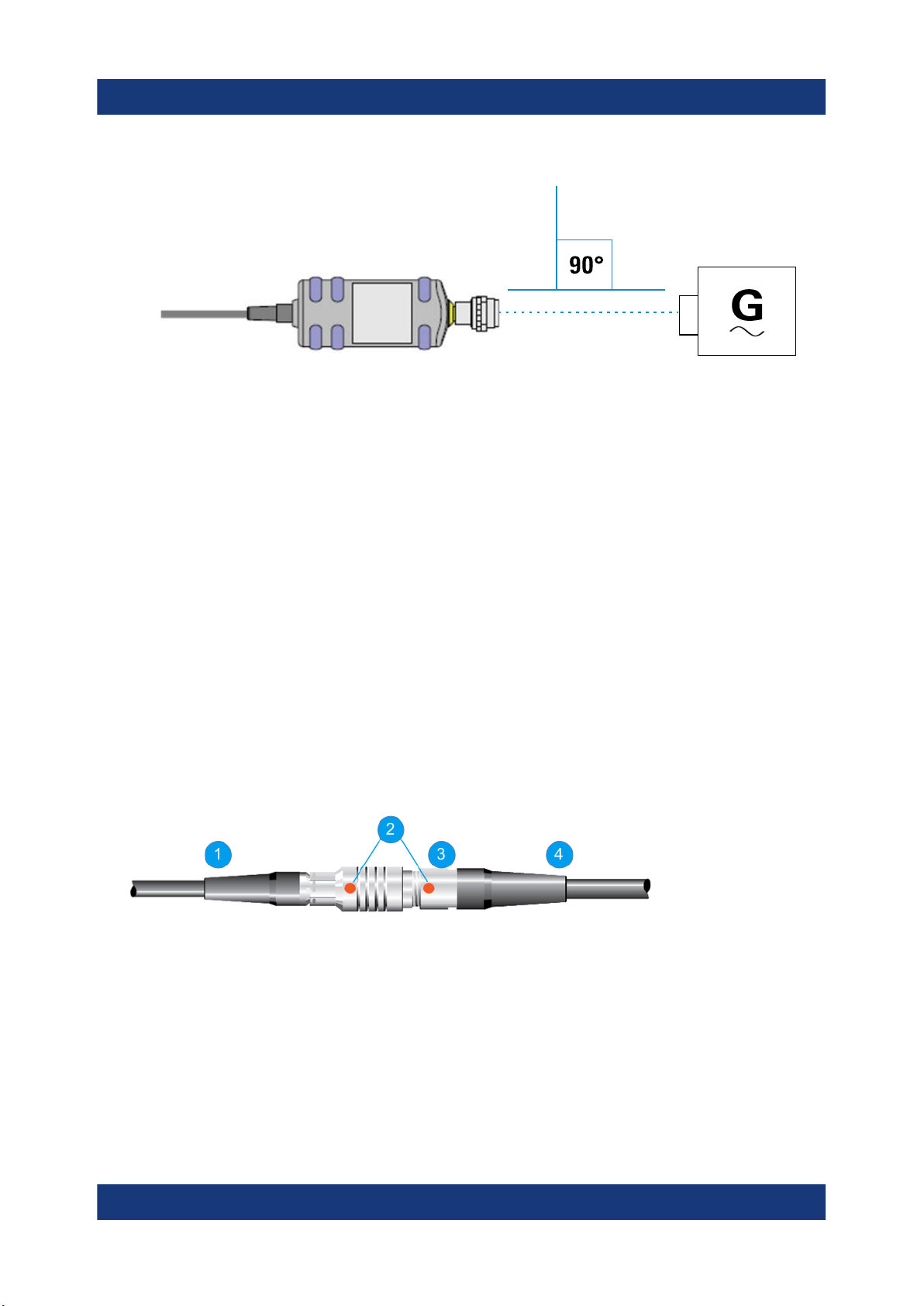

4.4 Connecting the R&S NRP‑Z Power Sensors.................................... 14

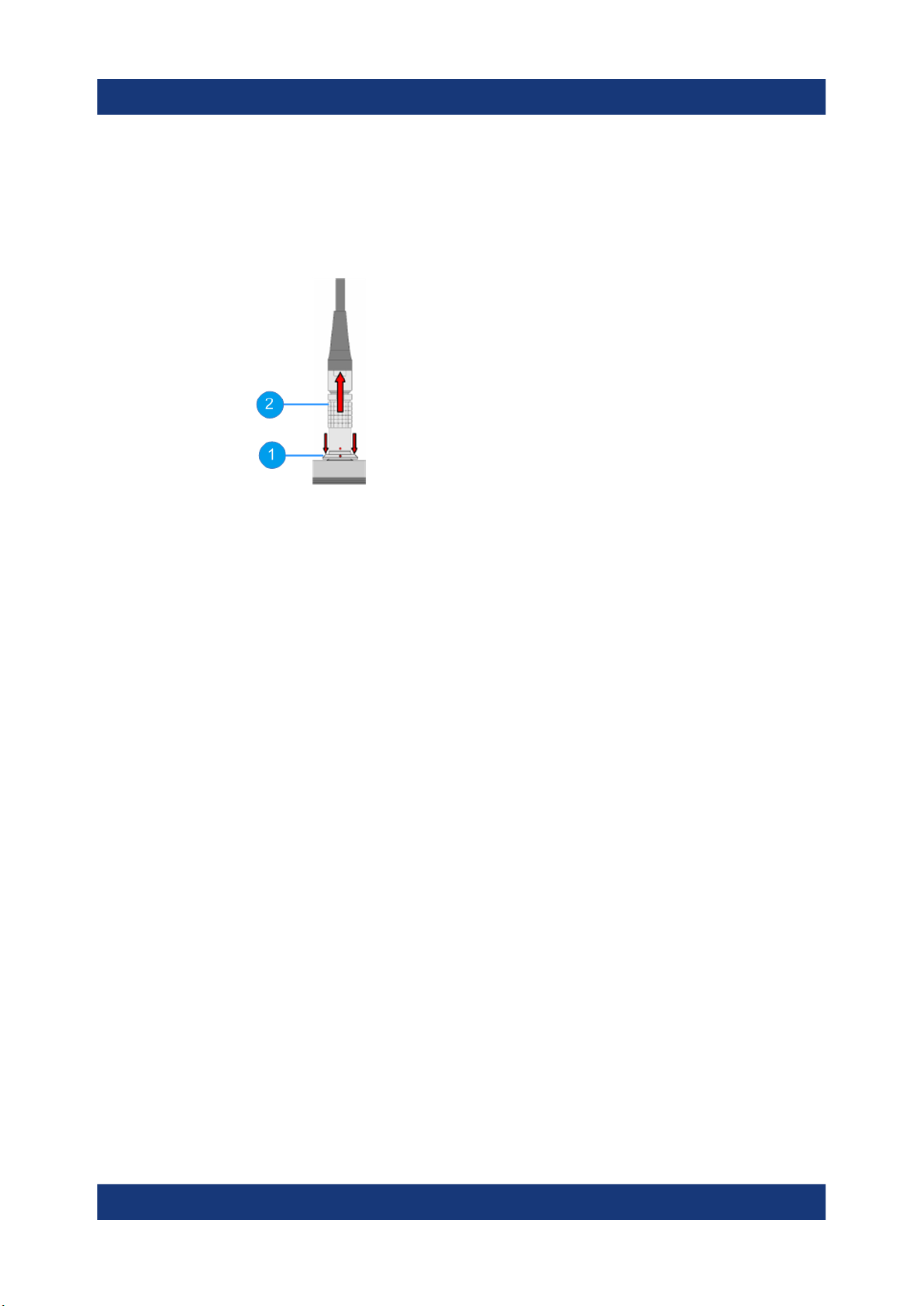

4.5 Disconnecting the R&S NRP‑Z Power Sensors............................... 16
4.6 Powering the R&S NRP‑Z Power Sensors........................................17
5 Connecting to a PC..............................................................18

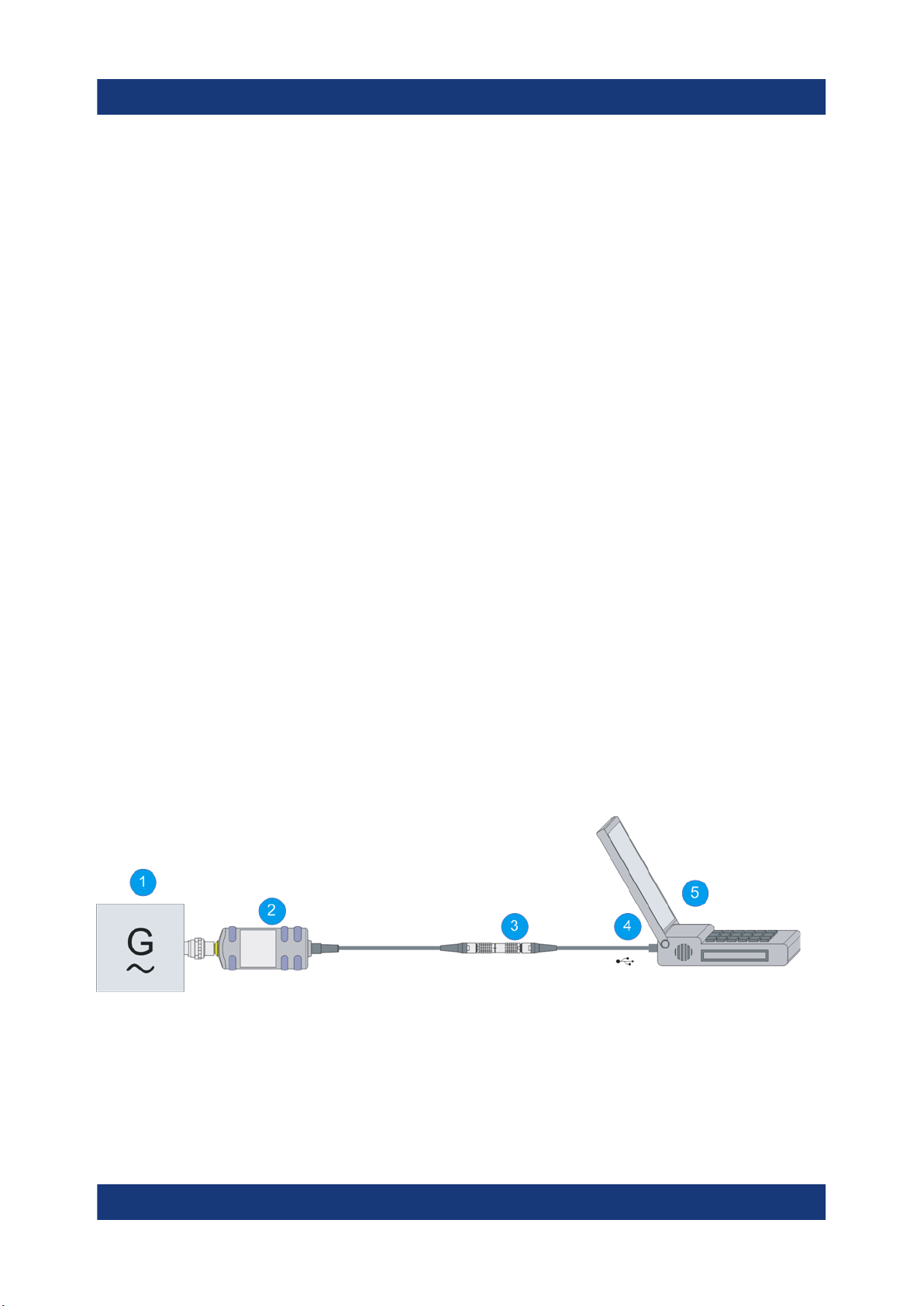

5.1 Using a Passive USB Adapter........................................................... 18
5.2 Using an Active USB Adapter............................................................19
5.3 Using an R&S NRP‑Z5 Sensor Hub................................................... 21
6 Operating Concepts............................................................ 24

Contents
R&S®NRP-Zxx
4Getting Started 1176.8822.02 ─ 04
6.1 R&S NRP Toolkit................................................................................. 24
6.2 R&S NRPV........................................................................................... 29
6.3 R&S Power Viewer.............................................................................. 31
6.4 R&S Power Viewer Mobile..................................................................32
6.5 R&S NRP2............................................................................................32
6.6 Compatible Instrument.......................................................................34
7 Remote Control....................................................................37
8 Contacting Customer Support........................................... 38
Index..................................................................................... 39

Safety Information
R&S®NRP-Zxx
5Getting Started 1176.8822.02 ─ 04
1 Safety Information
The product documentation helps you use the R&S NRP‑Z power sensor safely
and efficiently. Follow the instructions provided here and in the printed "Basic
Safety Instructions". Keep the product documentation nearby and offer it to other
users.
Intended use
The R&S NRP‑Z power sensor is intended for the development, production and
verification of electronic components and devices in industrial, administrative, and
laboratory environments. Use the R&S NRP‑Z power sensor only for its designa-
ted purpose. Observe the operating conditions and performance limits stated in
the data sheet.
Where do I find safety information?
Safety information is part of the product documentation. It warns you about the
potential dangers and gives instructions how to prevent personal injuries or dam-
age caused by dangerous situations. Safety information is provided as follows:
●The printed "Basic Safety Instructions" provide safety information in many lan-
guages and are delivered with the R&S NRP‑Z power sensor.
●Throughout the documentation, safety instructions are provided when you
need to take care during setup or operation.

Documentation Overview
R&S®NRP-Zxx
6Getting Started 1176.8822.02 ─ 04
2 Documentation Overview
This section provides an overview of the R&S NRP‑Z power sensor user docu-
mentation. Unless specified otherwise, you find the documents on the R&S
NRP‑Z power sensor product page at:
www.rohde-schwarz.com/product/nrpz
2.1 Getting Started Manual
Introduces the R&S NRP‑Z power sensor and describes how to set up and start
working with the product. Includes basic operations and general information, e.g.
safety instructions, etc. A printed version is delivered with the power sensor.
2.2 User Manuals
Contains the description of all instrument modes and functions. It also provides
an introduction to remote control, a complete description of the remote control
commands with programming examples, and information on maintenance and
interfaces. Includes the contents of the getting started manual.
2.3 Tutorials
Tutorials offer guided examples and demonstrations on operating the R&S NRP‑Z
power sensor. They are provided on the product page of the internet.
2.4 Instrument Security Procedures
Deals with security issues when working with the R&S NRP‑Z power sensor in
secure areas. It is available for download on the Internet.
Instrument Security Procedures

Documentation Overview
R&S®NRP-Zxx
7Getting Started 1176.8822.02 ─ 04
2.5 Basic Safety Instructions
Contains safety instructions, operating conditions and further important informa-
tion. The printed document is delivered with the instrument.
2.6 Data Sheets and Brochures
The data sheet contains the technical specifications of the R&S NRP‑Z power
sensor. It also lists the firmware applications and their order numbers, and
optional accessories.
The brochure provides an overview of the instrument and deals with the specific
characteristics.
See www.rohde-schwarz.com/brochure-datasheet/nrpz
2.7 Release Notes and Open Source Acknowledg-
ment (OSA)
The release notes list new features, improvements and known issues of the cur-
rent firmware version, and describe the firmware installation.
The open-source acknowledgment document provides verbatim license texts of
the used open source software.
See www.rohde-schwarz.com/firmware/nrpz
2.8 Application Notes, Application Cards, White
Papers, etc.
These documents deal with special applications or background information on
particular topics.
See www.rohde-schwarz.com/application/nrpz
Application Notes, Application Cards, White Papers, etc.

Key Features
R&S®NRP-Zxx
8Getting Started 1176.8822.02 ─ 04
3 Key Features
Power measurements performed with the R&S NRP‑Z power sensors can be
evaluated in various ways. This manual gives a short introduction to the solutions
offered by Rohde & Schwarz for viewing your power measurement results. Also,
you find a description of how to set up and measure power with your power sen-
sor.
You can view the results of your measurement on the following devices:
●PC/laptop
●Android 4.x device
●R&S NRP2 base unit
●Supported Rohde & Schwarz instrument
Using the R&S NRP‑Z power sensors with a PC/laptop
Install the R&S NRP Toolkit on the PC/laptop. The R&S NRP Toolkit is a free soft-
ware kit that provides drivers and tools. For details, see Chapter 6.1, "R&S NRP
Toolkit", on page 24:
For optional use, different software solutions are offered:
●R&S Power Viewer
Free software that supports all measurement modes and can perform mathe-
matical calculations during measurements. It can be used with one power
sensor at a time.
For details, see Chapter 6.3, "R&S Power Viewer", on page 31.
●R&S NRPV virtual power meter
Cost-effective measurement solution that can be used as a replacement for
the R&S NRP2 base unit. It supports all measurement modes and can per-
form different mathematical calculations during measurements. It can be used
with up to four power sensors simultaneously.
For details, see Chapter 6.2, "R&S NRPV", on page 29.
Using the R&S NRP‑Z power sensors with an Android device
Also, you can connect the power sensors to an Android device and view the
results with the free of charge R&S Power Viewer Mobile.
For details, see Chapter 6.4, "R&S Power Viewer Mobile", on page 32.

Key Features
R&S®NRP-Zxx
9Getting Started 1176.8822.02 ─ 04
Using the R&S NRP‑Z power sensors with an R&S NRP2 or a compatible
Rohde & Schwarz instrument
A short overview of the usage of the power sensors with the R&S NRP2 base unit
or a compatible Rohde & Schwarz instrument is given in this manual:
●Chapter 6.5, "R&S NRP2", on page 32
●Chapter 6.6, "Compatible Instrument", on page 34
For more information on this usage, refer to the operating manual of the corre-
sponding Rohde & Schwarz instrument.
Overview of the R&S NRP‑Z power sensor types
The R&S NRP‑Z power sensors are highly accurate standalone measuring instru-
ments that offer all the functionality of conventional power meters, and more,
within the small housing of a power sensor. With a high dynamic range, the differ-
ent types of R&S NRP‑Z power sensors are suitable for nearly every measure-
ment task:
●Three-path power sensors
With patented three-path technology. Suitable for many applications, thanks to
their wide dynamic and frequency range. The sensors feature high measure-
ment accuracy independent of the modulation type and speed and offer a
wide range of functions.
●Two-path power sensors
With slightly modified dynamic range and performance. A cost-effective solu-
tion ideal for production applications.
●Wideband power sensors
With high video bandwidth that permits accurate time-domain analysis of the
envelope power. Analysis is fast and easy thanks to also integrated measure-
ment functions such as automatic pulse analysis.
●Thermal power sensors
With outstanding measurement accuracy. They are the first choice for power
measurements in the frequency range from DC to 110 GHz as performed in
calibration labs, where measurement accuracy is the key requirement.
●Average power sensors
Specially developed for EMC applications and cover the required frequency
range from 9 kHz to 6 GHz.
●Level control sensors

Key Features
R&S®NRP-Zxx
10Getting Started 1176.8822.02 ─ 04
With an integrated splitter that can split the signal into two parts of equal
power. This feature allows you to feed power to a device under test (DUT) and
monitor the power at the same time.
●Power sensor modules
Developed for level calibration using the R&S FSMR measuring receiver.
You can find an overview of the available sensors and filter according to your
requirements at:
www.rohde-schwarz.com/product/nrpz

Preparing for Use
R&S®NRP-Zxx
11Getting Started 1176.8822.02 ─ 04
4 Preparing for Use
This section describes the basic steps to be taken when setting up the R&S
NRP‑Z power sensors for the first time.
Risk of injury due to disregarding safety information
Observe the information on appropriate operating conditions provided in the
data sheet to prevent personal injury or damage to the power sensor. Read
and observe the basic safety instructions provided with the power sensor, in
addition to the safety instructions in the following sections. In particular, do
not open the casing of the power sensor.
Risk of electrostatic discharge
Protect the work area against electrostatic discharge to avoid damage to
electronic components in the modules. For details, refer to the general
safety instructions.
Risk of instrument damage due to inappropriate operating conditions
An unsuitable operating site or test setup can damage the power sensor
and to connected devices. Before switching on the power sensor, observe
the information on appropriate operating conditions provided in the data
sheet. In particular, ensure the following:
●The power sensor is dry and shows no sign of condensation.
●The power sensor is connected as described in the following sections.
●The ambient temperature does not exceed the range specified in the
data sheet.
●Signal levels at the input connectors are all within the specified ranges.
●Signal outputs are correctly connected and are not overloaded.

Preparing for Use
R&S®NRP-Zxx
12Getting Started 1176.8822.02 ─ 04
4.1 EMI Suppression
Electromagnetic interference (EMI) can affect the measurement results.
To suppress generated electromagnetic interference:
●Use suitable shielded cables of high quality. For example, use double-shielded
RF cables.
●Always terminate open cable ends.
●Note the EMC classification in the data sheet.
4.2 Unpacking and Checking the Power Sensor
Check the equipment for completeness using the delivery note and the accessory
lists for the various items. Check the power sensor for any damage. If there is
damage, immediately contact the carrier who delivered the instrument. Make sure
not to discard the box and packing material.
Packing material and transportation
Always make sure that sufficient mechanical and electrostatic protection is
provided when transporting the power sensors.
4.3 Connectors of the R&S NRP‑Z Power Sensors
An R&S NRP‑Z power sensor has two connectors, as shown in Figure 4-1.
Connectors of the R&S NRP‑Z Power Sensors

Preparing for Use
R&S®NRP-Zxx
13Getting Started 1176.8822.02 ─ 04
Figure 4-1: Connectors of an R&S NRP ‑ Z power sensor
1 = Host connector
2 = RF connector
Host connector
See (1) in Figure 4-1.
Lemo type host connector. You can plug it:
●Directly to a compatible Rohde & Schwarz instrument
●To a R&S NRP2 power meter base unit
●Using an R&S NRP‑Z3 or R&S NRP‑Z4 USB adapter to a controlling device
(PC or other)
●Using an R&S NRP‑Z5 USB hub to a controlling device (PC or other)
RF connector
See (2) in Figure 4-1.
Connectors of the R&S NRP‑Z Power Sensors

Preparing for Use
R&S®NRP-Zxx
14Getting Started 1176.8822.02 ─ 04
Used to connect the power sensor to a device under test (DUT) or a signal gener-
ator.
Caused by their different frequency ranges, the R&S NRP‑Z power sensors have
different RF connectors. Also, for maximal measurement accuracy, the RF con-
nector must be tightened using a torque wrench with a specific nominal torque.
Refer to the operating manual of your R&S NRP‑Z power sensor for information
on your connector and the allowed nominal torque.
4.4 Connecting the R&S NRP‑Z Power Sensors
When connecting the R&S NRP-Z27/-Z28/-Z37/-Z98 sensors, there are
additional requirements to fulfill. Refer to the operating manual of the corre-
sponding sensor for a description on how to connect it.
4.4.1 Connecting the RF Connector of the R&S NRP‑Z Power
Sensors
Risk of damage to the center pin of the RF connector
When connecting the power sensor, always rotate only the union nut of the
RF connector. Do not rotate the sensor itself to avoid damage the center pin
of the connector.
1. Refer to the operating manual of your R&S NRP‑Z power sensor to find out
what kind of RF connector your sensor has and the recommended nominal
torque.
2. Insert the RF connector of the attenuator straight into the RF output of your
DUT. Do not tilt it.
Connecting the R&S NRP‑Z Power Sensors

Preparing for Use
R&S®NRP-Zxx
15Getting Started 1176.8822.02 ─ 04
3. To ensure a maximal measurement accuracy, tighten the RF connector using
a torque wrench with the recommended nominal torque (see the operating
manual of your power sensor).
4.4.2 Connecting the Host Connector of the R&S NRP‑Z Power
Sensors
To connect to an adapter
You can use an R&S NRP‑Z3 or R&S NRP‑Z4 adapter.
1. Rotate both cables, so that the red markings on the sleeves of both of them
are at the same position.
2. Insert the host connector of your sensor into the connector of your USB
adapter.
Figure 4-2: Connecting the host connector
1 = R&S NRP‑Z4 in this example
2 = Red marking
3 = Host connector
4 = R&S NRP‑Z power sensor
To connect to an R&S NRP‑Z5 sensor hub
► Insert the host connector, red marking upwards, into the SENSOR connector
of your sensor hub.
Connecting the R&S NRP‑Z Power Sensors

Preparing for Use
R&S®NRP-Zxx
16Getting Started 1176.8822.02 ─ 04
To connect to an Rohde & Schwarz instrument
► Insert the host connector, red marking upwards, into the SENSOR connector
of your instrument.
4.5 Disconnecting the R&S NRP‑Z Power Sensors
Additional requirements must be fulfilled when disconnecting the R&S NRP-
Z27/-Z28/-Z37/-Z98 sensors. Refer to the operating manual of the corre-
sponding sensor for a description on how to disconnect it.
4.5.1 Disconnecting the RF Connector of the R&S NRP‑Z Power
Sensors
Risk of damage to the center pin of the RF connector
When disconnecting the power sensor, always rotate only the union nut of
the RF connector. Do not rotate the sensor itself to avoid damage the cen-
ter pin of the connector.
► Carefully loosen the screw at the front of the sensor's RF connector and
remove the sensor.
4.5.2 Disconnecting the Host Connector of the R&S NRP‑Z
Power Sensors
To disconnect from an R&S NRP‑Z3 or R&S NRP‑Z4 adapter
► Pull at the host connector (Figure 4-2 (3) ) until it disconnects from the con-
nector of the USB adapter.
Disconnecting the R&S NRP‑Z Power Sensors

Preparing for Use
R&S®NRP-Zxx
17Getting Started 1176.8822.02 ─ 04
To disconnect from an Rohde & Schwarz instrument or an R&S NRP‑Z5 sen-
sor hub
► At the same time, press down the ring of the built-in plug (1) and pull off the
cable sleeve (2).
Figure 4-3: Disconnecting from a SENSOR connector
1 = Ring of the built-in plug
2 = Cable sleeve
4.6 Powering the R&S NRP‑Z Power Sensors
The R&S NRP‑Z power sensors can be powered in two ways:
●Self-powered from a separate power supply using the R&S NRP‑Z3 active
USB adapter or the R&S NRP‑Z5 sensor hub.
●Bus-powered from the PC or a USB hub with its own power supply (self-pow-
ered hub) using the R&S NRP‑Z3 active USB adapter or the R&S NRP‑Z4
passive USB adapter.
Requirements for the usage in the bus-powered mode:
●Laptop/PC with a self-powered USB hub
●Total available current per USB port of 500 mA
Powering the R&S NRP‑Z Power Sensors

Connecting to a PC
R&S®NRP-Zxx
18Getting Started 1176.8822.02 ─ 04
5 Connecting to a PC
There are different possibilities for connecting a power sensor to a PC, which can
differ depending on the type of power sensor and available accessories.
The following chapter gives an overview of the possible setups and what equip-
ment is needed for each of them.
For details on powering the R&S NRP‑Z power sensor, see Chapter 4.6, "Power-
ing the R&S NRP‑Z Power Sensors", on page 17.
5.1 Using a Passive USB Adapter
The R&S NRP‑Z power sensors can be used with the R&S NRP‑Z4 for power
measurements where no external triggering is required.
Required equipment
●R&S NRP‑Z power sensor
●R&S NRP‑Z4 passive USB adapter
●PC with installed R&S NRP Toolkit, see Chapter 6.1, "R&S NRP Toolkit",
on page 24
Setup
Figure 5-1: Setup with a passive USB adapter
1 = Signal source
2 = R&S NRP‑Z power sensor
3 = R&S NRP‑Z4
4 = USB connector
5 = PC with a USB interface
Using a Passive USB Adapter

Connecting to a PC
R&S®NRP-Zxx
19Getting Started 1176.8822.02 ─ 04
Incorrectly connecting/disconnecting the R&S NRP‑Z power sensors may
damage the power sensors or lead to erroneous results.
Ensure that you connect/disconnect your power sensors as described in
Chapter 4.4, "Connecting the R&S NRP‑Z Power Sensors", on page 14 and
Chapter 4.5, "Disconnecting the R&S NRP‑Z Power Sensors", on page 16.
1. Connect the cables as shown in Figure 5-1:
a) Connect the R&S NRP‑Z4 passive USB adapter to the power sensor.
b) Connect the power sensor passive USB adapter to the computer.
c) Connect the power sensor to the signal source.
2. On the PC, start a software application to view the measurement results. See
Chapter 6, "Operating Concepts", on page 24.
5.2 Using an Active USB Adapter
The R&S NRP‑Z power sensors can be used with the R&S NRP‑Z3 for power
measurements where an external power supply and/or external triggering is
required.
Required equipment
●R&S NRP‑Z power sensor
●R&S NRP‑Z3
●PC with installed R&S NRP Toolkit, see Chapter 6.1, "R&S NRP Toolkit",
on page 24
Using an Active USB Adapter

Connecting to a PC
R&S®NRP-Zxx
20Getting Started 1176.8822.02 ─ 04
Setup
Figure 5-2: Setup with an active USB adapter
1 = Signal source
2 = R&S NRP‑Z power sensor
3 = R&S NRP‑Z3
4 = USB connector
5 = PC with a USB interface
6 = Trigger source (optional)
7 = BNC cable (optional, not supplied)
8 = Plug-in power supply (optional, supplied)
9 = AC supply connector (optional)
Incorrectly connecting/disconnecting the R&S NRP‑Z power sensors may
damage the power sensors or lead to erroneous results.
Ensure that you connect/disconnect your power sensors as described in
Chapter 4.4, "Connecting the R&S NRP‑Z Power Sensors", on page 14 and
Chapter 4.5, "Disconnecting the R&S NRP‑Z Power Sensors", on page 16.
1. Connect the cables as shown in Figure 5-2:
a) Connect the R&S NRP‑Z3 active USB adapter to the power sensor.
b) Connect the power sensor passive USB adapter to the computer.
c) Connect the power sensor to the signal source.
d) Connect the R&S NRP‑Z3 with a BNC cable to the trigger source
(optional).
Using an Active USB Adapter
