Rohde & Schwarz ZNA User manual

R&S® ZNA
Vector Network Analyzers
User Manual
1178646202
Version 12
(;ÜÎÌ2)

This manual describes the following R&S® ZNA vector network analyzer models:
●R&S® ZNA26, 10 MHz to 26.5 GHz, 2 test ports, 3.5 mm (m) connectors, order no. 1332.4500.22
●R&S® ZNA26, 10 MHz to 26.5 GHz, 4 test ports, 3.5 mm (m) connectors, order no. 1332.4500.24
●R&S® ZNA43, 10 MHz to 43.5 GHz, 2 test ports 2.92 mm, order no. 1332.4500.42
●R&S® ZNA43, 10 MHz to 43.5 GHz, 4 test ports 2.92 mm, order no. 1332.4500.44
●R&S® ZNA43, 10 MHz to 43.5 GHz, 2 test ports 2.4 mm, order no. 1332.4500.43
●R&S® ZNA43, 10 MHz to 43.5 GHz, 4 test ports 2.4 mm, order no. 1332.4500.45
© 2020 Rohde & Schwarz GmbH & Co. KG
Mühldorfstr. 15, 81671 München, Germany
Phone: [phone] - 0
Email: [email protected]
Internet: www.rohde-schwarz.com
Subject to change – data without tolerance limits is not binding.
R&S® is a registered trademark of Rohde & Schwarz GmbH & Co. KG.
Trade names are trademarks of the owners.
1178.6462.02 | Version 12 | R&S® ZNA
Throughout this manual, products from Rohde & Schwarz are indicated without the ® symbol , i.e. R&S® is abbreviated as R&S.

Preface
R&S® ZNA
3User Manual 1178.6462.02 ─ 12
1 Preface
This chapter provides safety-related information, an overview of the user documenta-
tion and the conventions used in the documentation.
1.1 Documentation Overview
This section provides an overview of the R&S ZNA user documentation. Unless speci-
fied otherwise, you find the documents on the R&S ZNA product page at:
https://www.rohde-schwarz.com/manual/ZNA
1.1.1 Getting Started Manual
Introduces the R&S ZNA and describes how to set up and start working with the prod-
uct. Includes basic operations, typical measurement examples, and general informa-
tion, e.g. safety instructions, etc.
A printed version is delivered with the instrument. A PDF version is available for down-
load on the Internet.
1.1.2 User Manual and Help
The user manual contains the description of all instrument modes and functions. It also
provides an introduction to remote control, a complete description of the remote control
commands with programming examples, and information on maintenance, instrument
interfaces and error messages. Includes the contents of the getting started manual.
The contents of the user manual are available as help in the R&S ZNA. The help offers
quick, context-sensitive access to the complete information for the instrument and its
firmware.
The user manual is also available for download or for immediate display on the Inter-
net.
1.1.3 Service Manual
Describes the performance test for checking the rated specifications, module replace-
ment and repair, firmware update, troubleshooting and fault elimination, and contains
mechanical drawings and spare part lists.
The service manual is available for registered users on the global Rohde & Schwarz
information system (GLORIS):
https://gloris.rohde-schwarz.com
Documentation Overview

Preface
R&S® ZNA
4User Manual 1178.6462.02 ─ 12
1.1.4 Instrument Security Procedures
Deals with security issues when working with the R&S ZNA in secure areas. It is avail-
able for download on the Internet.
1.1.5 Basic Safety Instructions
Contains safety instructions, operating conditions and further important information.
The printed document is delivered with the instrument.
1.1.6 Data Sheets and Brochures
The data sheet contains the technical specifications of the R&S ZNA. It also lists the
firmware applications and their order numbers, and optional accessories.
The brochure provides an overview of the instrument and deals with the specific char-
acteristics.
See https://www.rohde-schwarz.com/brochure-datasheet/ZNA
1.1.7 Release Notes and Open Source Acknowledgment (OSA)
The release notes list new features, improvements and known issues of the current
firmware version, and describe the firmware installation.
The open-source acknowledgment document provides verbatim license texts of the
used open source software.
See https://www.rohde-schwarz.com/firmware/ZNA
1.1.8 Application Notes, Application Cards, White Papers, etc.
These documents deal with special applications or background information on particu-
lar topics.
See https://www.rohde-schwarz.com/application/ZNA
1.2 Conventions Used in the Documentation
1.2.1 Typographical Conventions
The following text markers are used throughout this documentation:
Conventions Used in the Documentation

Preface
R&S® ZNA
5User Manual 1178.6462.02 ─ 12
Convention Description
[Keys] Key and knob names are enclosed by square brackets.
This also applies to the virtual keys in the control window of the
R&S ZNA.
"Graphical user interface ele-
ments"
All names of graphical user interface elements on the screen, such as
dialog boxes, menus, options, buttons, and softkeys are enclosed by
quotation marks.
File names, commands,
program code
File names, commands, coding samples and screen output are distin-
guished by their font.
Input Input to be entered by the user is displayed in italics.
Links Links that you can click are displayed in blue font.
"References" References to other parts of the documentation are enclosed by quota-
tion marks.
1.2.2 Conventions for Procedure Descriptions
When operating the instrument, several alternative methods may be available to per-
form the same task. In this case, the procedure using the touchscreen is described.
Any elements that can be activated by touching can also be clicked using an addition-
ally connected mouse. The alternative procedure using the keys on the instrument or
the on-screen keyboard is only described if it deviates from the standard operating pro-
cedures.
The term "select" may refer to any of the described methods, i.e. using a finger on the
touchscreen, a mouse pointer in the display, or a key on the instrument or on a key-
board.
1.2.3 Notes on Screenshots
When describing the functions of the product, we use sample screenshots. These
screenshots are meant to illustrate as many as possible of the provided functions and
possible interdependencies between parameters. The shown values may not represent
realistic usage scenarios.
The screenshots usually show a fully equipped product, that is: with all options instal-
led. Thus, some functions shown in the screenshots may not be available in your par-
ticular product configuration.
Conventions Used in the Documentation

Safety Information
R&S® ZNA
6User Manual 1178.6462.02 ─ 12
2 Safety Information
The product documentation helps you use the R&S ZNA safely and efficiently. Follow
the instructions provided here and in the printed "Basic Safety Instructions". Keep the
product documentation nearby and offer it to other users.
Intended use
The R&S ZNA is intended for the development, production and verification of electronic
components and devices in industrial, administrative, and laboratory environments.
Use the R&S ZNA only for its designated purpose. Observe the operating conditions
and performance limits stated in the data sheet.
Where do I find safety information?
Safety information is part of the product documentation. It warns you about the poten-
tial dangers and gives instructions how to prevent personal injuries or damage caused
by dangerous situations. Safety information is provided as follows:
●The printed "Basic Safety Instructions" provide safety information in many lan-
guages and are delivered with the R&S ZNA.
●Throughout the documentation, safety instructions are provided when you need to
take care during setup or operation.

Firmware Version 2.10
R&S® ZNA
7User Manual 1178.6462.02 ─ 12
3 Firmware Version 2.10
This document describes version 2.10 of the R&S ZNA firmware. Compared to the pre-
vious version 2.01, firmware version 2.10 provides the following changes:
New functionality
●New software option R&S ZNA-K61 "True differential measurements" for 4-port
instruments:
– True differential operation mode (stimulation and measurement)
– Phase imbalance and amplitude imbalance sweep types
(Requires R&S ZNA-K6 "Phase-coherent source control")
See Chapter 5.7.5, "True Differential Mode", on page 212
●ALC for frequency converter ports
●Harmonics measurements (with option R&S ZNA-K4)
See Chapter 5.7.3.3, "Harmonics Measurements", on page 206
●Plugin interface and SDK for custom DLLs: extend the VNA firmware by custom
SW components
See Chapter 5.7.30, "External DLLs", on page 236
●Frequency converter power control (R&S ZNA-K8): new "Generic" power control
type allows you to reuse leveling data from other converter ports and configura-
tions
See "Power Control" on page 704
●New software option R&S ZNA-K50P: same functionality as R&S ZNA-K50 Mea-
surement Uncertainty Analysis, but with preinstalled METAS VNA Tools
New remote control features
●Commands for advanced calibration settings
See Chapter 8.3.14.5, "SENSe<Ch>:CORRection:ADVanced", on page 1061
Improvements
●Consistent default settings in "Pulse Modulation" dialog
●Mixer setup dialog leaves frequency settings of unaffected ports unchanged
●Support of calibration setups with manual and automatic calibration
●IMD measurements
– Simplified default calibration
– Aligned behavior of "CW Mode" and "Spectrum = Marker" functions
●Vector mixer measurements: more measured quantities directly accessible via
"Vector Mixer Meas" softtool tab (appearance aligned to "Vector Mixer Meas" tab)
See Chapter 6.2.14, "Vector Mixer Meas Tab", on page 297
●Enhanced selftest functionality:
– Detailed self test report now also available at service level 0
– Selftest execution can be triggered directly from System – [Setup] > "Setup"
softtool tab
– Test report comprises serial number and firmware version

Firmware Version 2.10
R&S® ZNA
8User Manual 1178.6462.02 ─ 12
– Overall and individual test results clearly highlighted ("PASS": green, "FAIL":
red)
See "Selftest Tab" on page 680
●Measurement uncertainty analysis (R&S ZNA-K50): zip archives created using
Export Data to METAS VNA Tools can now be directly unpacked to the user data
folder of a METAS VNA Tools installation for further offline analysis
●Source coherence mode (R&S ZNA-K6): direct phase control, without applying port
match and calibration
See "Use Port Match and Calibration" on page 549
●If compatible with the overall converter setup, the source providing the LO IN signal
to a frequency converter is automatically configured as permanent ("Source Gen")
●Segmented sweeps: changes take effect faster (less "prepare sweep" phases)
●Improved access to extended [Preset] functionality via menu bar
●Manual ALC control loop configuration: new parameters "Control Time" and "Auto
Settling"
See "Control Loop Parameters" on page 408
Solved issues
●Factory correction for Direct Access (B16) inputs was not applied in SA mode
●Frequency-converting measurements with Converter LO used as LO provider: the
"Power Result" displayed in the "Port Settings" dialog was not correct
●Frequency-converting measurements with external generator used as LO provider:
excessive retrace time
●Some timing/synchronization problems with external generator R&S SGS100A
●Misleading calibration instructions on "DUT Centric Wizard" start page
●Calibration setup dialog:
– redundant warning messages
– sometimes a warning message did not disappear after the underlying reason
has been eliminated
●IMD measurements:
– Inconsistent warning messages during default calibration
– Misspelled measured quantity for Through measurement during calibration
(now labeled LTO for "Lower Tone at DUT Out")
●Deleting a trace by dragging it to the recycle bin sometimes did not work
●Configured "Reference Receiver Cal Power" value not used for SMARTerCal
●Formula-defined limit lines: formula was not applied if entered directly in
"Response" dialog
●Impedance normalization failed for some special balanced port configurations
●*.calkit files created with R&S ZNA and containing snp data were not compati-
ble with R&S ZNB/BT/C/D firmware versions < 3.0 and R&S ZNL/LE firmware ver-
sions < 1.30

Firmware Version 2.10
R&S® ZNA
9User Manual 1178.6462.02 ─ 12
Firmware version
► To check your R&S ZNA firmware version, select "Help" > "About..." from the main
menu.

Getting Started
R&S® ZNA
10User Manual 1178.6462.02 ─ 12
4 Getting Started
4.1 Putting the Analyzer into Operation
This section describes the basic steps to be taken when setting up the analyzer for the
first time.
Simple measurement examples are provided in Chapter 4.4, "Performing Measure-
ments", on page 55; for a description of the operating concept refer to Chapter 4.3,
"Operating the Instrument", on page 28. For all background and reference informa-
tion concerning manual and remote control of the instrument, refer to your analyzer's
help system or user manual. A more detailed description of the hardware connectors
and interfaces is also part of the help system or user manual.
Risk of injury due to disregarding safety information
Observe the information on appropriate operating conditions provided in the data sheet
to prevent personal injury or damage to the instrument. Read and observe the basic
safety instructions provided with the instrument, in addition to the safety instructions in
the following sections. In particular:
●Do not open the instrument casing.
4.1.1 Unpacking and Checking the Instrument
Check the equipment for completeness using the delivery note and the accessory lists
for the various items. If you notice any damage, immediately contact the carrier who
delivered the instrument.
Packing material
Retain the original packing material. If the instrument needs to be transported or ship-
ped later, you can use the material to protect the control elements and connectors.
Risk of injury during transportation
The carrying handles at the front and side of the casing are designed to lift or carry the
instrument. Do not apply excessive force to the handles. If a handle is ripped off, the
falling instrument can cause injury.
As the R&S ZNA is very heavy (over 30 kg fully equipped), it must always be carried
by two people using both carrying handles to avoid personal injury or damage to the
instrument.
Putting the Analyzer into Operation

Getting Started
R&S® ZNA
11User Manual 1178.6462.02 ─ 12
4.1.2 Positioning the Instrument
The network analyzer is designed for use under laboratory conditions, either on a
bench top or in a rack.
Risk of instrument damage due to inappropriate operating conditions
An unsuitable operating site or test setup can damage the instrument and connected
devices. Before switching on the instrument, observe the information on appropriate
operating conditions provided in the data sheet. In particular, ensure the following:
●All fan openings are unobstructed and the airflow perforations are unimpeded. A
minimum distance of 10 cm to other objects is recommended.
●The instrument is dry and shows no sign of condensation.
●The instrument is positioned as described in the following sections.
●The ambient temperature does not exceed the range specified in the data sheet.
●Signal levels at the input connectors are all within the specified ranges.
●Signal outputs are connected correctly and are not overloaded.
Instrument damage caused by electrostatic discharge
Electrostatic discharge (ESD) can damage the electronic components of the instrument
and the device under test (DUT). Electrostatic discharge is most likely to occur when
you connect or disconnect a DUT or test fixture to the instrument's test ports. To pre-
vent electrostatic discharge, use a wrist strap and cord and connect yourself to the
ground, or use a conductive floor mat and heel strap combination.
During operation, if the firmware observes a serious unexpected disturbance (e.g. due
to ESD), it resets all hardware components to ensure proper instrument functioning. It
then restores the user settings to the state before the disturbance and indicates the
foregone hardware reset by an "Hardware communication problem [...]" information
popup.

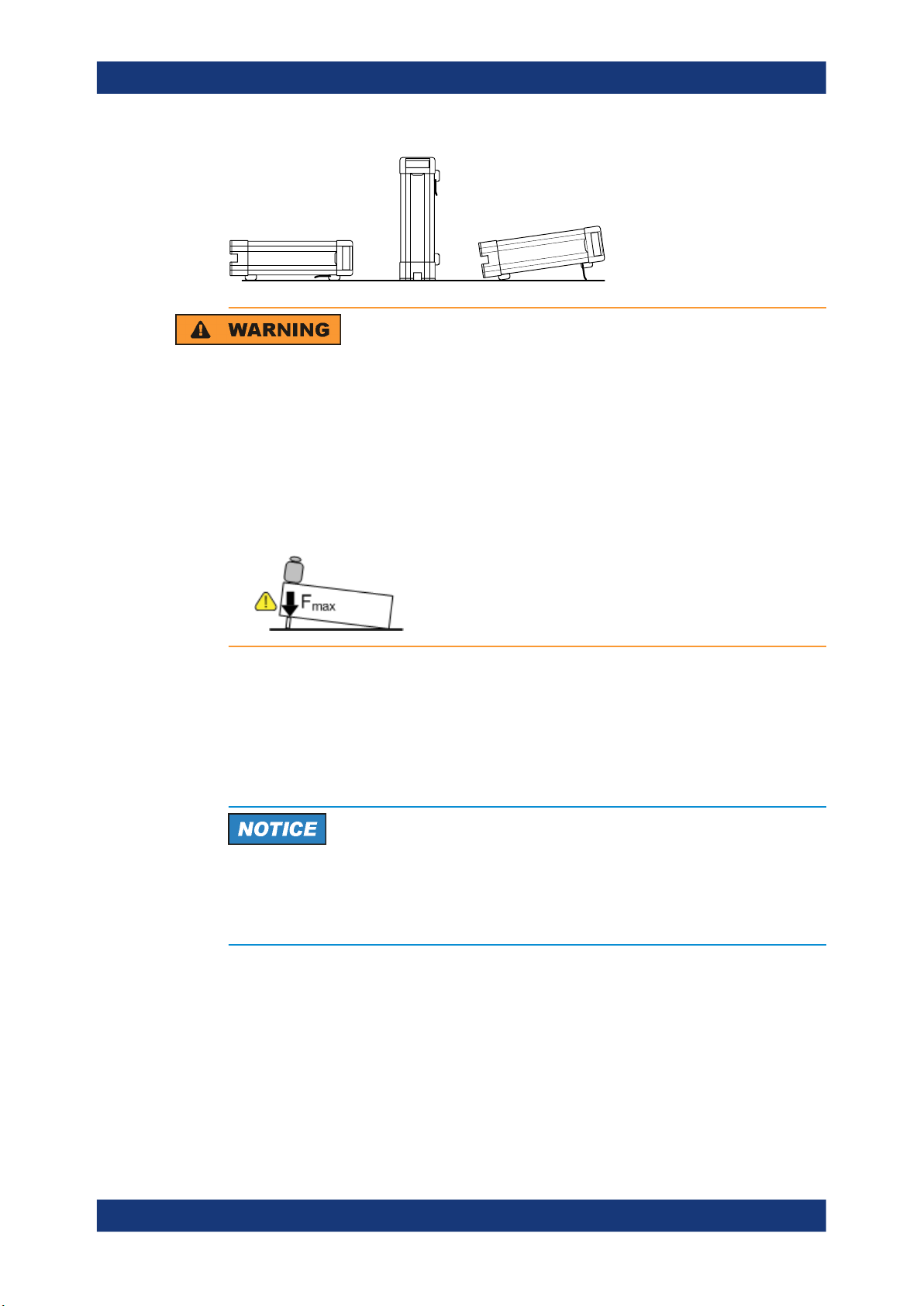

4.1.3 Bench Top Operation
If the analyzer is operated on a bench top, the surface must be flat. The instrument can
be used in horizontal or vertical position, standing on its feet, or with the support feet
on the bottom expanded.
Putting the Analyzer into Operation

Getting Started
R&S® ZNA
12User Manual 1178.6462.02 ─ 12
Risk of injury if feet are folded out
The feet can fold in if they are not folded out completely or if the instrument is shifted.
Collapsing feet can cause injury or damage the instrument.
●Fold the feet completely in or out to ensure stability of the instrument. Never shift
the instrument when the feet are folded out.
●When the feet are folded out, do not work under the instrument or place anything
underneath.
●The feet can break if they are overloaded. The overall load on the folded-out feet
must not exceed 500 N.
4.1.4 Operation in a 19" Rack
The R&S ZNA can be mounted in 19" racks using the adapter R&S ZZA-KN6 (order
number 1332.4498.02). Proceed according to the mounting instructions supplied with
the rack adapter.
Risk of instrument damage due to insufficient airflow in a rack
If you mount several instruments in a rack, you need an efficient ventilation concept to
ensure that the instruments do not overheat. Insufficient airflow for a longer period can
disturb the operation and even cause damage.
4.1.5 EMI Suppression
Electromagnetic Interference (EMI) can affect the measurement results.
To suppress generated Electromagnetic Interference:
●Use suitable shielded cables of high quality (see table below)
●Always terminate open cable ends
●Note the EMC classification in the data sheet
Putting the Analyzer into Operation

Getting Started
R&S® ZNA
13User Manual 1178.6462.02 ─ 12
Regarding length and quality, the following requirements have to be met for cable that
are directly connected to the R&S ZNA:
Table 4-1: Cable Requirements
Cable Type (Connector) Requirement
RF cables (PORT 1, ..., PORT N) Double shielded
BNC cables (various) Double shielded
DB-25 (User Port) Double shielded
Digital I/Q (External Handler IO, External Data Log-
ger, Direct Control)
R&S order no. 1402.4990.00 only
GPIB Standard cable
DisplayPort (Monitor) Standard cable
DVI-D (Monitor) 2 ferrite cores
LAN At least CAT6, S/FTP
PCIe Standard cable
USB Standard cables, length ≤ 3m
4.1.6 Connecting the Analyzer to the AC Supply
The network analyzer is automatically adapted to the AC supply voltage, which must
be in the range of 100 V to 240 V at 50 Hz to 60 Hz. A line frequency of 400 Hz is also
supported.
The mains connector is located in the upper part of the rear panel (see Chapter 4.2.2,
"Rear Panel", on page 25).
► Connect the network analyzer to the AC power source using the AC power cable
delivered with the instrument.
The maximum power consumption and the typical power consumption of the individual
analyzer models are listed in the data sheet.
4.1.7 Starting the Analyzer and Shutting Down
The AC power switch is located in the upper part of the rear panel, above the mains
connector; see Chapter 4.2.2, "Rear Panel", on page 25.
To start the analyzer, proceed as follows:
1. Switch the AC power switch to position I (On).
After power-on, the analyzer automatically goes to standby or ready state, depend-
ing on the state of the standby toggle key at the front panel when the instrument
was switched off last time.
Putting the Analyzer into Operation

Getting Started
R&S® ZNA
14User Manual 1178.6462.02 ─ 12
2. If necessary, press the standby toggle key on the front panel to switch the instru-
ment to ready state.
The instrument automatically performs a system check, boots the Windows® oper-
ating system and then starts the vector network analyzer (VNA) application. If it
was terminated regularly, the VNA application restores all recall sets and instru-
ment settings of the previous analyzer session.
To shut down the analyzer, proceed as follows:
1. Press the standby key.
Pressing the standby key causes the instrument to save all loaded recall sets, to
close the VNA application, to shut down Windows®, and to go to standby state. Of
course, you can also perform these steps manually, like in any Windows session.
2. If desired, set the AC power switch to position O (Off).
Risk of data loss
It is recommended to switch the analyzer to standby state before disconnecting it from
the AC supply. If you set the power switch to 0 while the VNA application is still run-
ning, you lose the current settings. Moreover, loss of program data cannot be excluded
if the application is terminated improperly.
The AC power switch can be permanently on. It is recommendable, however, to switch
it off if the instrument is not used for some time. When you switch the instrument back
on, be sure to comply with the extended warm-up phase specified in the data sheet.
To guarantee the specified functionality, after turning off the R&S ZNA, you have to wait
for at least 10 seconds before turning it on again. This rule applies to both the AC
power off and the standby state.
4.1.8 Standby and Ready State
The standby toggle key is located in the bottom left corner of the front panel.
The standby power only supplies the power switch circuits and the optional high preci-
sion quartz (R&S ZNA-B4, "Precision Oven Quartz Frequency Reference"). In this
state, it is safe to switch the AC power off and disconnect the instrument from the
power supply. In ready state, all modules are power-supplied. When switched to ready
state, the analyzer initiates its startup procedure.
Observe the instructions for startup and shutdown in Chapter 4.1.7, "Starting the Ana-
lyzer and Shutting Down", on page 13.
Putting the Analyzer into Operation

Getting Started
R&S® ZNA
15User Manual 1178.6462.02 ─ 12
4.1.9 Connecting External Accessories
The analyzer's standard PC interfaces (Monitor, USB, LAN) can be used to connect
various accessories:
●An external monitor displays the Windows® desktop plus the Vector Network Ana-
lyzer (VNA) application windows.
●External keyboard and mouse simplify local control, in particular manual (GUI)
operation of the VNA application.
●A printer can be used to create hard copies of the measurement diagrams and
traces from within the VNA application.
●A LAN connection can be established to access the analyzer's mass storage or
control the analyzer from an external PC.
●The R&S ZNA can also be remote controlled via USB.
External monitor, keyboard and mouse are not required for local operation. The
R&S ZNA can be fully controlled by tapping the touchscreen.
4.1.9.1 Connecting a Monitor
A standard monitor can be connected to the DVI-D connector of the R&S ZNA. No
extra configuration is required.
The R&S ZNA also offers a DisplayPort.
Safety aspects
The monitor must be connected while the instrument is switched off (or in standby
mode). Otherwise correct operation cannot be guaranteed.
4.1.9.2 Connecting a Keyboard
A keyboard can be connected to any of the USB connectors. After being auto-detected
by the operating system, it can safely be disconnected and reconnected even during
measurements.
Keyboard configuration
The default input language is English – US. Select "Settings" > "Time & language" >
"Region & language" from the Windows® Start menu to manage languages and key-
boards.
To access Windows®, use the button in the toolbar of the application window.
Putting the Analyzer into Operation

Getting Started
R&S® ZNA
16User Manual 1178.6462.02 ─ 12
4.1.9.3 Connecting a Mouse
A USB mouse can be connected to any of the USB connectors. After being auto-detec-
ted by the operating system, it can safely be disconnected and reconnected even dur-
ing measurements.
Mouse configuration
Select "Settings" > "Devices" > "Mouse & touchpad" from the Windows® "Start" menu
to configure the mouse properties.
To access Windows®, use the button in the toolbar of the application window.
4.1.9.4 Connecting a Printer
A printer can be connected to any of the USB connectors. After successful installation,
it can safely be disconnected and reconnected even during measurements.
Before printing (System – [File Print] > "Print"), the analyzer checks whether a printer is
connected and turned on and whether the appropriate printer driver is installed.
Printer driver installation
If necessary, the printer driver installation is initiated using the operating system's "Add
Printer Wizard". The wizard is self-explanatory. A printer driver must be installed only
once.
A great variety of printer drivers is available on the analyzer. To obtain the complete
list, select "Settings" > "Devices" > "Printers & scanners" from the Windows® "Start"
menu.
To access Windows®, use the button in the toolbar of the application window.
You can load updated and improved driver versions or new drivers from an installation
disk, USB memory stick or another external storage medium. Alternatively, if the ana-
lyzer is integrated in a network, you can install driver data stored in a network directory.
In either case, use the "Add Printer" wizard to complete the installation.
Printer configuration
Use the "Printer Setup" dialog of the firmware (System – [File Print] > "Print" >
"Print...") or the Windows® printer management to configure the printer properties and
printing preferences.
Putting the Analyzer into Operation

Getting Started
R&S® ZNA
17User Manual 1178.6462.02 ─ 12
4.1.9.5 Connecting a LAN Cable
A LAN cable can be connected to the LAN connector on the rear panel of the analyzer.
To establish a LAN connection, proceed as follows:
1. Refer to Chapter 11.1.3.1, "Assigning an IP Address", on page 1413.
2. Connect a CAT6 or CAT7 LAN cable to the LAN port.
The LAN port of the analyzer is an auto-crossover Ethernet port. You can connect it to
a network, but you can also set up a direct connection to a computer or another instru-
ment. For both connection types, you can use either crossover or straight through
(patch) cables.
The IP address information is displayed in the System – [Setup] > "Remote Settings"
softtool tab.
4.1.9.6 Connecting a USB Cable for Remote Control
The R&S ZNA can also be remote controlled via USB. To prepare for remote control
operation, connect a suitable USB cable to the type B "USB Device" port on the rear
panel of the instrument. With direct connection to a master device, a connecting cable
A-B (plug type A onto plug type B) must be used.
For more information, refer to Chapter 7.1, "Introduction to Remote Control",
on page 715.
4.1.10 Minimizing the VNA Application
With a minimized VNA application, you can access your analyzer's Windows® desktop
or run other applications.
To exit the default full-screen mode of the VNA application, deselect System – [Display]
> "View Bar" > "Title Bar Task Bar". Then use the standard Windows® titlebar functions
to minimize/maximize/close the application window.
To start the VNA application with a minimized window
1. Right-click the Vector Network Analyzer shortcut icon on the desktop and open the
"Properties" dialog.
2. In the "Shortcut" tab, select "Run: Minimized".
Putting the Analyzer into Operation

Getting Started
R&S® ZNA
18User Manual 1178.6462.02 ─ 12
A software update restores the original shortcut properties.
4.2 Instrument Tour
This chapter gives an overview of the control elements and connectors of the
R&S ZNA and gives all information that is necessary to put the instrument into opera-
tion and connect external devices.
4.2.1 Front Panel
The front panel of a R&S ZNA consists of a large-scale capacitive touchscreen and the
test port area below it.
Brief explanations on the controls and connectors can be found on the next pages.
Instrument Tour

Getting Started
R&S® ZNA
19User Manual 1178.6462.02 ─ 12
4.2.1.1 Touchscreen
The touchscreen is split into two parts: the application window with diagrams and soft-
tools on the left, and the control window with its (virtual) function keys and data entry
controls on the right. User interaction is touch-only, i.e. all hardkeys commonly used in
Rohde & Schwarz VNAs have been implemented in software.
Refer to the data sheet for the technical specifications of the touchscreen.
Instrument Tour

Getting Started
R&S® ZNA
20User Manual 1178.6462.02 ─ 12
Function
Keys
Data Entry
Panel
Application Window Control Window
Screen saver
The screen saver function of the operating system can be used to switch off the display
if the analyzer receives no command for a selectable period of time. The display is
switched on again when the touchscreen is touched.
Application Window
The left part of the touchscreen is reserved for the application window.
The application window presents the measurement results, mostly in form of diagrams.
The toolbar, softtools and menu bar give access to all instrument functions. For an
introduction to touchscreen operation, refer to Chapter 4.3.1, "Manual Operation ",
on page 28.
The following sections contain further useful information about manual control of the
instrument.
●Refer to Chapter 4.3, "Operating the Instrument", on page 28 to learn how to
handle traces and diagrams, and how to use menus, keys and softtools.
●Refer to Chapter 5.2.1, "Display Elements of a Diagram", on page 76 to obtain
information about the results in the diagram.
●Refer to Chapter 6.18, "Display Softtool", on page 647 to learn how to customize
the application window.
Control Window: Function Keys
Most of the (virtual) keys in the upper part of the control window call up a related soft-
tool of the analyzer GUI. Every softtool, in turn, provides access to a group of related
settings and actions (see Chapter 4.3.2.3, "Softtools", on page 35).
Instrument Tour
