1 Welcome to the DVB options
The R&S SMW-K52/-K116 are firmware applications that add functionality to generate
signals in accordance with:
●The DVB-H/T (Digital Video Broadcasting - Transmission System for Handheld Ter-
minals) standard
●The standards describing the second-generation DVB system for satellite commu-
nication DVB-S2 and the optional extension DVB-S2X.
DVB (digital video broadcasting) provides a communications infrastructure for powerful
transmission of MPEG-2-based data. Besides satellite-based (DVB-S), terrestrial
(DVB-T) and cable-bound (DVB-C) transmission schemes, the version (DVB-H) is for
portable/handheld terminals.
DVB-H is an extension to DVB and is compatible with the basic concept of the stan-
dard. The extensions bring advantages that are especially important for portable devi-
ces: low power consumption, small hardware and robustness against fading effects.
For DVB-H the current firmware supports non-hierarchical coding only.
The DVB-S2 standard is introduced as successor the DVB-S for the transmission of
digital video broadcasts over satellite links. The DVB-S2X standard is an optional
extension of the DVB-S2 standard. DVB-S2X allows an efficiency gain of up to 51%
compared to DVB-S2. With that, higher data rates can be transported over the same
satellite transponder capacity.
The main advantages of the DVB-H / DVB-T digital standard option R&S SMW-K52
are:
●Possibility to test both mobile communications standards (such as WCDMA 3GPP
FDD, TD-SCDMA, GSM/EDGE) and DVB-H or DVB-T using only one signal gener-
ator
●Simple generation of standard-compliant DVB-H or DVB-T signals
Option R&S SMW-K116 extends the functionalities with the following key features:
●Fully encoded DVB-S2 and DVB-S2X signal generation
●Support of the stream types: transport stream (TS), generic packetized (GP),
generic continuos (GC), generic stream encapsulated high efficiency mode (GSE-
HEM)
●Signal generation form arbitrary data sources and TS or GSE files
●Channel coding according to the standard, incl. scrambling, interleaving, outer
code (BCH), inner code (LDPC) with varying code rates from 1/4 to 31/45
●Support of all specified Walsh-Hadamard sequences for VL-SNR (very low signal
to noise ratio) mode
●Configurable header information, incl. baseband (BB) header, VL-SNR header, TS
header, GSE header
●Supported modulation schemes:
– For DVB-S2: QPSK, 8PSK, 16APSK, 32APSK
– For DVB-S2X: QPSK, 8APSK, 8PSK, 16APSK, 32APSK, 64APSK, 128APSK,
256APSK

Welcome to the DVB options
R&S®SMW-K52/-K116
6User Manual 1175.6778.02 ─ 19
– For VL-SNR: QPSK, pi/2 BPSK
●Pilot insertion and configuration
●Signals suitable for testing of satellite transponders, components and ground
modems
This user manual contains a description of the functionality that the application pro-
vides, including remote control operation.
All functions not discussed in this manual are the same as in the base unit and are
described in the R&S SMW user manual. The latest version is available at:
www.rohde-schwarz.com/manual/SMW200A
Installation
You can find detailed installation instructions in the delivery of the option or in the
R&S SMW service manual.
1.1 Accessing the DVB dialog
To open the dialog with DVB settings

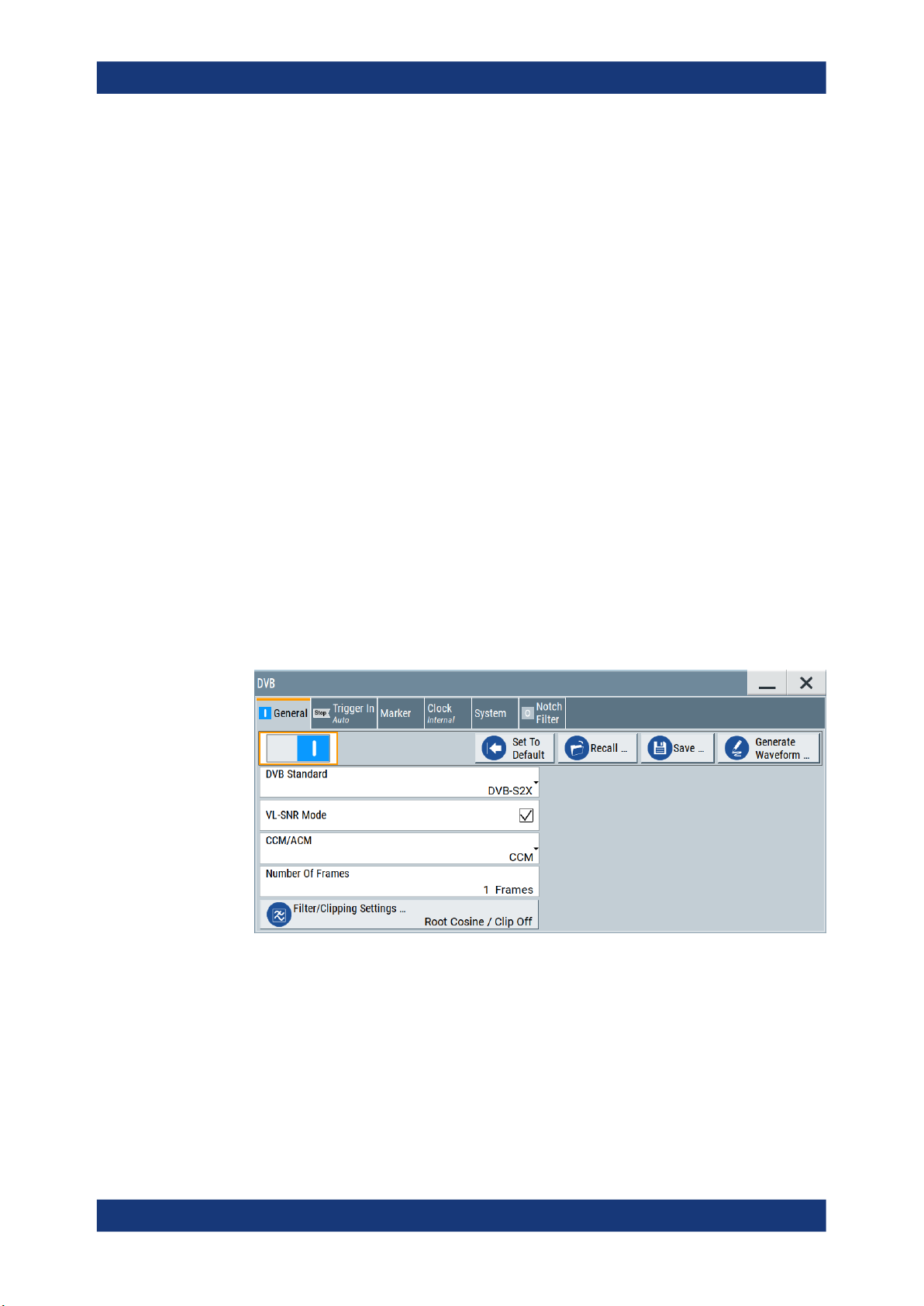

► In the block diagram of the R&S SMW, select "Baseband > DVB".
A dialog box opens that displays the provided general settings.
The signal generation is not started immediately. To start signal generation with the
default settings, select "State > On".
1.2 What's new
This manual describes firmware version FW 5.00.044.xx and later of the
R&S®SMW200A.
Compared to the previous version, it provides the new features listed below:
●Data settings for DVB-S2/S2X frame data:
– Complete sequence of pseudo-random noise data
See "Complete PN Sequence" on page 26.
– Number of baseband frames required for complete PN sequence transmission
See "BB Frames" on page 27.
●Gold sequence additional to the scrambling sequence for DVB-S2/S2X physical
layer scrambler
See "Gold Sequence" on page 31.
What's new

Welcome to the DVB options
R&S®SMW-K52/-K116
7User Manual 1175.6778.02 ─ 19
1.3 Documentation overview
This section provides an overview of the R&S SMW user documentation. Unless speci-
fied otherwise, you find the documents on the R&S SMW product page at:
www.rohde-schwarz.com/manual/smw200a
1.3.1 Getting started manual
Introduces the R&S SMW and describes how to set up and start working with the prod-
uct. Includes basic operations, typical measurement examples, and general informa-
tion, e.g. safety instructions, etc. A printed version is delivered with the instrument.
1.3.2 User manuals and help
Separate manuals for the base unit and the software options are provided for down-
load:
●Base unit manual
Contains the description of all instrument modes and functions. It also provides an
introduction to remote control, a complete description of the remote control com-
mands with programming examples, and information on maintenance, instrument
interfaces and error messages. Includes the contents of the getting started manual.
●Software option manual
Contains the description of the specific functions of an option. Basic information on
operating the R&S SMW is not included.
The contents of the user manuals are available as help in the R&S SMW. The help
offers quick, context-sensitive access to the complete information for the base unit and
the software options.
All user manuals are also available for download or for immediate display on the Inter-
net.
1.3.3 Tutorials
The R&S SMW provides interactive examples and demonstrations on operating the
instrument in form of tutorials. A set of tutorials is available directly on the instrument.
1.3.4 Service manual
Describes the performance test for checking compliance with rated specifications, firm-
ware update, troubleshooting, adjustments, installing options and maintenance.
The service manual is available for registered users on the global Rohde & Schwarz
information system (GLORIS):
https://gloris.rohde-schwarz.com
Documentation overview

Welcome to the DVB options
R&S®SMW-K52/-K116
8User Manual 1175.6778.02 ─ 19
1.3.5 Instrument security procedures
Deals with security issues when working with the R&S SMW in secure areas. It is avail-
able for download on the Internet.
1.3.6 Printed safety instructions
Provides safety information in many languages. The printed document is delivered with
the product.
1.3.7 Data sheets and brochures
The data sheet contains the technical specifications of the R&S SMW. It also lists the
options and their order numbers and optional accessories.
The brochure provides an overview of the instrument and deals with the specific char-
acteristics.
See www.rohde-schwarz.com/brochure-datasheet/smw200a
1.3.8 Release notes and open source acknowledgment (OSA)
The release notes list new features, improvements and known issues of the current
firmware version, and describe the firmware installation.
The open-source acknowledgment document provides verbatim license texts of the
used open source software.
See www.rohde-schwarz.com/firmware/smw200a
1.3.9 Application notes, application cards, white papers, etc.
These documents deal with special applications or background information on particu-
lar topics.
See www.rohde-schwarz.com/application/smw200a and www.rohde-schwarz.com/
manual/smw200a
Documentation overview

Welcome to the DVB options
R&S®SMW-K52/-K116
9User Manual 1175.6778.02 ─ 19
1.4 Scope
Tasks (in manual or remote operation) that are also performed in the base unit in the
same way are not described here.
In particular, it includes:
●Managing settings and data lists, like saving and loading settings, creating and
accessing data lists, or accessing files in a particular directory.
●Information on regular trigger, marker and clock signals and filter settings, if appro-
priate.
●General instrument configuration, such as checking the system configuration, con-
figuring networks and remote operation
●Using the common status registers
For a description of such tasks, see the R&S SMW user manual.
1.5 Notes on screenshots
When describing the functions of the product, we use sample screenshots. These
screenshots are meant to illustrate as many as possible of the provided functions and
possible interdependencies between parameters. The shown values may not represent
realistic usage scenarios.
The screenshots usually show a fully equipped product, that is: with all options instal-
led. Thus, some functions shown in the screenshots may not be available in your par-
ticular product configuration.
Notes on screenshots

About the DVB options
R&S®SMW-K52/-K116
10User Manual 1175.6778.02 ─ 19
2 About the DVB options
The digital video broadcasting (DVB) suite of standards described methods for data
and video signals transmission through different medium including cable, terrestrial,
mobile and satellite.
This section lists required options and provides brief background information on basic
terms and principles used in the DVB standards.
2.1 Required options
The basic equipment layout for generating DVB signals includes the:
●Standard or wideband Baseband Generator (R&S SMW-B10/-B9)
●Baseband main module (R&S SMW-B13) or wideband baseband main module
(R&S SMW-B13XT)
●Frequency option (e.g. R&S SMW-B1003)
●Digital standard DVB-H / DVB-T (R&S SMW-K52)
●Digital standard DVB-S2 / DVB-S2X (R&S SMW-K116)
You can generate signals via play-back of waveform files at the signal generator. To
create the waveform file using R&S WinIQSIM2, you do not need a specific option.
To play back the waveform file at the signal generator, you have two options:
●Install the R&S WinIQSIM2 option of the digital standard, e.g. R&S SMW-K255 for
playing LTE waveforms
●If supported, install the real-time option of the digital standard, e.g. R&S SMW-K55
for playing LTE waveforms
For more information, see data sheet.
2.2 About DVB-H/T
The Digital Video Broadcasting - Handheld (DVB-H) standard is based on the earlier
standard DVB-T, which is used for terrestrial digital broadcasting.
The block diagram on Figure 2-1 shows the components of the DVB-H transmission
system.
About DVB-H/T

About the DVB options
R&S®SMW-K52/-K116
11User Manual 1175.6778.02 ─ 19

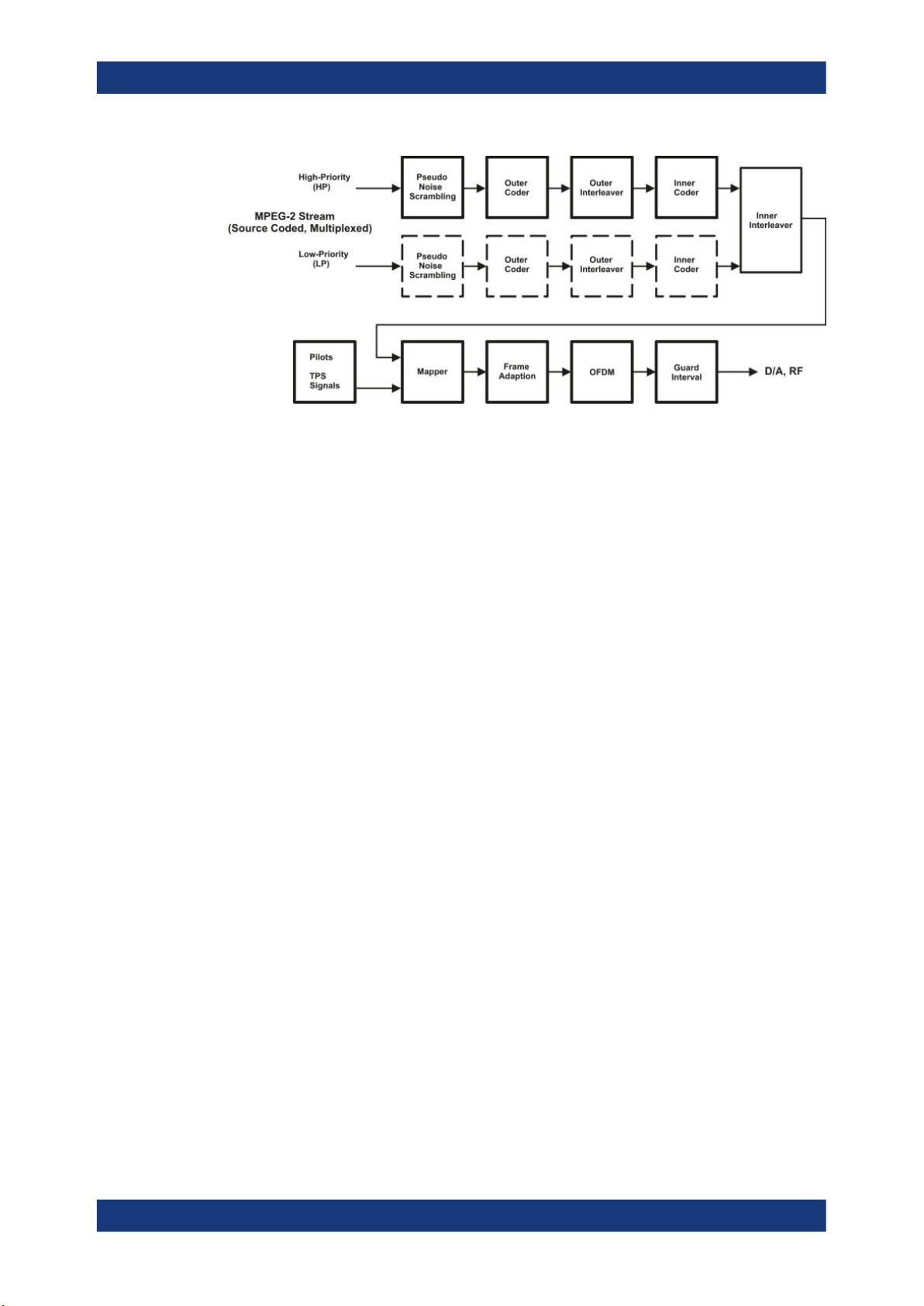

Figure 2-1: Components of the transmission system DVB-H
The current firmware does not support hierarchical coding including low-priority coding.
The Low-Priority (LP) path of the MPEG-2 Stream indicates this by dotted squares of
the low-priority coding procedure.
DVB-H provides features to meet the specific requirements for handheld, mobile termi-
nals such as:
●Power off some part of the reception chain to increase the battery duration
●Ease access to the services when receivers switching to the next cell
●Mitigate the effects of man-maid noise and severe mobile multipath channels on
the receiving capabilities
●Offer sufficient flexibility and scalability to allow reception of services at various
speeds
●Offer the flexibility to be used in various transmission bands and channel band-
widths
The basic technical extensions that make it possible to receive digital video broadcast-
ing services on handheld terminals are:
●4K mode and in-depth interleavers
●Time-slicing
●Forward error correction for multiprotocol encapsulated data (MPE-FEC)
2.3 About DVB-S2/S2X
Figure 2-2 illustrates schematically the components of the DVB-S2/S2X transmission
systems. The block diagram is a simplified version of the DVB-S2 system specified in
the DVB standard.
About DVB-S2/S2X

About the DVB options
R&S®SMW-K52/-K116
12User Manual 1175.6778.02 ─ 19
Figure 2-2: Components of the transmission system DVB-S2/S2X
FEC = Forward error correction
BCH = Bose-Chaudhuri-Hocquenghem multiple error correction binary block codes
LDPC = Low-density parity check
The main improvements of the second-generation DVB system for satellites (DVB-S2)
compared to DVB-S are:
●Input stream adapter, suitable for operation with single and multiple input streams
and different formats (packetized or continuous)
●FEC system based on LDPC codes concatenated with BCH codes
●Range of code rates (from 1/4 up to 9/10);
Four constellations with different spectrum efficiency and optimized for operation
over non-linear transponders
●Three predefined spectrum shapes with rolloff factors 0.35, 0.25 and 0.20
●Adaptive coding and modulation (ACM) functionality for optimized channel coding
and modulation on a frame-by-frame basis.
The DVB-S2X is an extension to the DVB-S2 standard. The DVB-S2X reuses the DVB-
S2 system architecture and improves it with the following:
●Adds finer MODCOD steps, higher-order modulations and complex constellations
●Three new sharper spectrum shapes
●Defines the VL-SNR (low signal to noise ratio) mode for example for mobile appli-
cations
●Optional periodic pilots and physical layer scrambles for easy synchronization
●GSE-Lite compliant signaling and streaming
●Adds a high-efficiency mode (GSE-HEM) intended to transport GSE and GSE-Lite
packets
About DVB-S2/S2X

DVB configuration and settings
R&S®SMW-K52/-K116
13User Manual 1175.6778.02 ─ 19
3 DVB configuration and settings
Access:
► Select "Baseband > DVB".
The remote commands required to define these settings are described in Chapter 5,
"Remote-control commands", on page 55.
●General settings......................................................................................................13
●DVB-T/DVB-H system settings............................................................................... 17
●DVB-T/DVB-H TPS settings....................................................................................20
●DVB-S2/DVB-S2X System settings........................................................................ 23
●MODCOD table configuration settings....................................................................31
●TS header configuration settings............................................................................ 34
●GSE header settings...............................................................................................36
●BB header configuration settings............................................................................ 38
3.1 General settings
Access:
► Select "Baseband > DVB > General".
This dialog provides general settings, the default and the "Save/Recall" settings,
and access to dialogs with further settings.
Settings:
State..............................................................................................................................14
Set to Default................................................................................................................ 14
Save/Recall...................................................................................................................15
Generate Waveform File............................................................................................... 15
DVB Standard............................................................................................................... 15
General settings

DVB configuration and settings
R&S®SMW-K52/-K116
14User Manual 1175.6778.02 ─ 19
Hierarchy Mode.............................................................................................................15
VL-SNR Mode...............................................................................................................15
CCM/ACM.....................................................................................................................16
Number of Super Frames..............................................................................................16
Number of Frames........................................................................................................ 16
Number of Samples / Duration......................................................................................16
Sample Rate / Data Rate.............................................................................................. 16
Filter/Clipping Settings.................................................................................................. 16
State
Activates the standard and deactivates all the other digital standards and digital modu-
lation modes in the same path.
Remote command:
[:SOURce<hw>]:BB:DVB:STATe on page 57
Set to Default
Calls the default settings. The values of the main parameters are listed in the following
table.
Parameter Value
State Not affected by "Set to default"
Number of Super-Frames 1
Hierarchy Mode Non-hierarchical
HP Source PN 23
Filter Type Cosine
Clipping Off
Cell Identification On
Time-Slicing On
ID [4 hex] 0000
MPE-FEC Off
PN Scrambler On
Outer Coder On
Outer Interleaver On
Inner Coder On
Rate 1/2
Inner Bit Interleaver On
Inner Symbol Interleaver On
Inner Interleaver Mode Native
TX Mode 2 K
OFDM/RF Bandwidth 8 MHz
General settings

DVB configuration and settings
R&S®SMW-K52/-K116
15User Manual 1175.6778.02 ─ 19
Parameter Value
Modulation QPSK
Alpha 1
Guard Interval 1/8
Remote command:
[:SOURce<hw>]:BB:DVB:PRESet on page 57
Save/Recall
Accesses the "Save/Recall" dialog, that is the standard instrument function for saving
and recalling the complete dialog-related settings in a file. The provided navigation
possibilities in the dialog are self-explanatory.
The settings are saved in a file with predefined extension. You can define the filename
and the directory, in that you want to save the file.
See also, chapter "File and Data Management" in the R&S SMW user manual.
Remote command:
[:SOURce<hw>]:BB:DVB:SETTing:CATalog? on page 57
[:SOURce<hw>]:BB:DVB:SETTing:LOAD on page 58
[:SOURce<hw>]:BB:DVB:SETTing:STORe on page 58
[:SOURce<hw>]:BB:DVB:SETTing:DELete on page 58
Generate Waveform File
With enabled signal generation, triggers the instrument to save the current settings of
an arbitrary waveform signal in a waveform file with predefined extension *.wv. You
can define the filename and the directory, in that you want to save the file.
Using the ARB modulation source, you can play back waveform files and/or process
the file to generate multi-carrier or multi-segment signals.
Remote command:
[:SOURce<hw>]:BB:DVB:WAVeform:CREate on page 58
DVB Standard
Selects the DVB standard to be used to generate the modulation signal.
Remote command:
[:SOURce<hw>]:BB:DVB:STANdard on page 59
Hierarchy Mode
Indicates the hierarchy coding mode, that is "Non-hierarchical".
The current firmware does not support hierarchical coding.
"Non-hierarchical"
The high priority input is used.
Remote command:
[:SOURce<hw>]:BB:DVB:DVBH|DVBT:HMODe on page 73
VL-SNR Mode
(requires option R&S SMW-K116)
General settings

DVB configuration and settings
R&S®SMW-K52/-K116
16User Manual 1175.6778.02 ─ 19
For "DVB Standard > DVB-S2X", includes the VL-SNR (very low - signal to noise ratio)
header in the physical layer frame.
Remote command:
[:SOURce<hw>]:BB:DVB:DVBX:VSMode on page 59
CCM/ACM
Option: R&S SMW-K116
Selects whether constant coding and modulation (CCM) or adaptive coding and modu-
lation (ACM) communication is used.
In ACM mode, for instance, the receiver sends feedback information on received signal
quality. Depending on this feedback, the channel coding and modulation is optimized
on a frame-by-frame basis.
Remote command:
[:SOURce<hw>]:BB:DVB:DVBS|DVBX:BHConfig:CACM on page 99
Number of Super Frames
Requires "DVB Standard > DVB-H/T".
Sets the number of super frames. Each super frame consists of four OFDM frames.
Remote command:
[:SOURce<hw>]:BB:DVB:DVBH|DVBT:SFRames on page 59
Number of Frames
Option: R&S SMW-K116
For "DVB Standard > DVB-S2/S2X", sets the number of the transmitted frames.
Remote command:
[:SOURce<hw>]:BB:DVB:DVBS|DVBX:FRAMes on page 60
Number of Samples / Duration
Requires "DVB Standard > DVB-H/T" and "State > On".
Displays the number of the transmitted samples and the signal duration.
Remote command:
[:SOURce<hw>]:BB:DVB:DVBH|DVBT:SAMPle:LENGth? on page 60
[:SOURce<hw>]:BB:DVB:DVBH|DVBT:DURation? on page 60
Sample Rate / Data Rate
Requires "DVB Standard > DVB-H/T" and "State > On".
Displays the sample rate and data rate.
Remote command:
[:SOURce<hw>]:BB:DVB:DVBH|DVBT:SAMPle:RATE? on page 60
[:SOURce<hw>]:BB:DVB:DVBH|DVBT:DRATe? on page 61
Filter/Clipping Settings
Accesses the dialog for setting baseband filtering and clipping, see Chapter 4.1, "Filter/
clipping settings", on page 41.
General settings

DVB configuration and settings
R&S®SMW-K52/-K116
17User Manual 1175.6778.02 ─ 19
3.2 DVB-T/DVB-H system settings
Access:
1. Select "DVB > DVB Standard > DVB-T/DVB-H"
2. Select "System".
The dialog provides settings to configure the DVB system. The DVB system is dis-
played in form of a block diagram including all parameters necessary to configure
the high priority path of DVB the system.
Hierarchical coding is not supported, the low priority path is not configurable.
Settings:
HP Source, Select File..................................................................................................17
PN Scrambler................................................................................................................18
Outer Coder (RS)..........................................................................................................18
Outer Interleaver........................................................................................................... 18
Inner Coder................................................................................................................... 18
Rate...............................................................................................................................18
Inner Bit Interleaver.......................................................................................................18
Inner Symbol Interleaver...............................................................................................18
Inner Interleaver Mode..................................................................................................19
Inner Interleaver Tx Mode.............................................................................................19
OFDM/RF Bandwidth....................................................................................................19
OFDM/RF Modulation................................................................................................... 19
OFDM/RF Alpha............................................................................................................19
OFDM/RF Guard Int......................................................................................................19
HP Source, Select File
Selects the data source for the high priority path.
DVB-T/DVB-H system settings

DVB configuration and settings
R&S®SMW-K52/-K116
18User Manual 1175.6778.02 ─ 19
Remote command:
[:SOURce<hw>]:BB:DVB:DVBH|DVBT[:HP|LP]:DATA on page 73
[:SOURce<hw>]:BB:DVB:DVBH|DVBT[:HP|LP]:DATA:DSELection on page 74
PN Scrambler
Activates PN scrambling. The data packets of the incoming transport stream are trans-
formed to a pseudo random binary sequence (PRBS). This transformation is performed
to obtain a bit sequence that has a positive effect on the transmitted RF spectrum.
Remote command:
[:SOURce<hw>]:BB:DVB:DVBH|DVBT[:HP|LP]:PNSCrambler[:STATe]
on page 75
Outer Coder (RS)
Activates the outer coder. The outer coder applies a Reed-Solomon error correction
code to the PRBS data stream.
Remote command:
[:SOURce<hw>]:BB:DVB:DVBH|DVBT[:HP|LP]:OCODer[:STATe] on page 74
Outer Interleaver
Activates the outer convolutional interleaver.
Remote command:
[:SOURce<hw>]:BB:DVB:DVBH|DVBT[:HP|LP]:OINTerleaver[:STATe]
on page 75
Inner Coder
Activates the inner coder. The inner coder is a punctured convolutional error-correcting
coder.
Remote command:
[:SOURce<hw>]:BB:DVB:DVBH|DVBT[:HP|LP]:ICODer[:STATe] on page 74
Rate
If "Inner Coder > On", selects the code rate of the inner coder.
For encoding incoming bits (m), the inner coder transforms the bits into a bit symbol
containing n bits. The ratio m/n is the code rate.
Remote command:
[:SOURce<hw>]:BB:DVB:DVBH|DVBT[:HP|LP]:ICODer:RATE on page 74
Inner Bit Interleaver
Activates the inner bit interleaver.
The inner interleaver consists of a bit-wise interleaving followed by symbol interleaving.
Both interleaving processes are block based.
Remote command:
[:SOURce<hw>]:BB:DVB:DVBH|DVBT:IINTerleaver:BIT[:STATe]
on page 75
Inner Symbol Interleaver
Activates the inner symbol interleaver.
DVB-T/DVB-H system settings

DVB configuration and settings
R&S®SMW-K52/-K116
19User Manual 1175.6778.02 ─ 19
Remote command:
[:SOURce<hw>]:BB:DVB:DVBH|DVBT:IINTerleaver:SYMBol[:STATe]
on page 76
Inner Interleaver Mode
Selects the inner interleaver mode. Interleaver mode in-depth is available only for
transmission mode 2K and 4K.
"Native" Available for all transmission modes ("Tx Mode").
"In-depth" Requires "Tx Mode > 2K/4K".
Remote command:
[:SOURce<hw>]:BB:DVB:DVBH|DVBT:IINTerleaver:SYMBol:MODE
on page 75
Inner Interleaver Tx Mode
Selects the transmission mode.
The transmission mode determines the number of the OFDM subcarriers.
For "Tx Mode > 8 K", the in-depth interleaver mode is not available. "Tx Mode > 4 K" is
available only for "Standard > DVB-H".
Remote command:
[:SOURce<hw>]:BB:DVB:DVBH|DVBT:IINTerleaver:SYMBol:TMODe
on page 76
OFDM/RF Bandwidth
Selects the system bandwidth.
Remote command:
[:SOURce<hw>]:BB:DVB:DVBH|DVBT:OFDM:BWIDth on page 76
OFDM/RF Modulation
Selects the constellation for the OFDM modulation.
Remote command:
[:SOURce<hw>]:BB:DVB:DVBH|DVBT:OFDM:MODulation on page 77
OFDM/RF Alpha
Displays the alpha value, that is fixed to "1" for non-hierachical coding.
Remote command:
[:SOURce<hw>]:BB:DVB:DVBH|DVBT:OFDM:ALPHa on page 76
OFDM/RF Guard Int.
Selects the length of guard interval. The guard interval extends the length of the trans-
mitted symbol. Guard interval values resemble fractions of a symbol period.
Remote command:
[:SOURce<hw>]:BB:DVB:DVBH|DVBT:OFDM:GINTerval on page 77
DVB-T/DVB-H system settings

DVB configuration and settings
R&S®SMW-K52/-K116
20User Manual 1175.6778.02 ─ 19
3.3 DVB-T/DVB-H TPS settings
Access:
1. Select "DVB > DVB Standard > DVB-T/DVB-H"
2. Select "TPS".
The dialog allows you to select the bits to transmit via the TPS signal and displays
the status of the parameter bits.
Settings:
Cell Identification...........................................................................................................20
ID (hex)......................................................................................................................... 20
Time Slicing...................................................................................................................21
MPE FEC...................................................................................................................... 21
TPS Table......................................................................................................................21
Cell Identification
Activates TPS cell identification. If activated, the cell from which the signal comes from
is identified.
Remote command:
[:SOURce<hw>]:BB:DVB:DVBH|DVBT:TPS:ID:STATe on page 91
ID (hex)
Sets the cell ID for cell identification.
The cell ID identifies the cell from which the signal is transmitted. This value is read by
the receiver if Cell Identification is activated.
Remote command:
[:SOURce<hw>]:BB:DVB:DVBH|DVBT:TPS:ID:PATTern on page 91
DVB-T/DVB-H TPS settings
