Perrin & Rowe® Bath Edwardian
PERRIN & ROWE® EDWARDIAN LOW LEVEL SPOUT WIDESPREAD
LAVATORY FAUCET
U.3705L (Lever Handles)
FEATURES
• 1.2 GPM
• 5 7/8” xed spout
• Brass construction
• 3 x 1 3/8” hole cutouts
• 1/4-turn ceramic disc control cartridges
• 1/2” NPSM connections
• Includes both porcelain and metal lever inserts
for U.3705L
• 1 1/2” max. deck depth
COLORS/FINISHES
• Polished Chrome
• Polished Nickel
• English Bronze
• Satin Nickel
•English Gold
WARRANTY
• Limited Lifetime
11" Centers Max
6" - 15 3/4" 5 7/8"
1" Min
ø2 1/8"
ø1 1/4"
12 1/2"
ø3"ø2 3/8"
3"
3 1/2"
2 5/8”
1/2”
NPT
COLD IN
HOT IN
Ø1 1/8”
Ø1 3/8”
hole 1 1/2”MAX
Consult your local ROHL showroom for additional information and specications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.

www.rohlhome.com
INSTALLATION INSTRUCTIONS
Consult your local ROHL showroom for additional information and specications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
The Traditional Bathroom Collection
Installation & User Guide
Perrin and Rowe is a registered trademark. 9003700U Issue 5
* Where indicated please specify color
• SPARES ••
3 HOLE
WIDESPREADS
• Recommended
Working Pressure:
Min 15 psi
Max 75 psi
Ideal performance obtained with equal hot & cold pressures.
• Temp Range:
Min 34ºF
Max 185ºF
ROHL WARRANTY POLICY
All products supplied by ROHL carry warranties against manufacturing defects.
Perrin & Rowe products carry a Limited Lifetime Warranty.
ROHL LLC will provide free of charge, as its options, replacement part(s) or product (or a comparable alternative product) to
replace those which have proven defective in materials or workmanship.
For full ROHL LLC WARRANTY please contact ROHL or visit www.rohlhome.com
SPARE PARTS & SERVICE
3 Parker
Irvine
CA 92618
[phone]
www.rohlhome.com
Perrin & Rowe products are manufactured in England using quality materials, the latest technology
and built to the highest standards.
We would like to thank you for purchasing this Perrin & Rowe product and invite you to view the
and bathroomware.
Please contact us to receive our latest product catalogues or view them online at www.rohlhome.com
HOT IN
1/2" NPT
COLD IN
1/2" NPT
• U.3705L / U.3706X
Ø1 3/8"
HOLE Ø1 1/8"
• U.3720L
• U.3721X
• U.3730L
• U.3731X
• U.3760L
• U.3761X
9.01451*/HOT
9.01451*/COLD
9.30195
9.24193*
9.26410
9.12451*
9.19193*
9.21370*
9.18700*
9.193784
9.15402
9.30195 COLD
9.30196 HOT
9.13195 COLD
9.13196 HOT
9.26411*
METAL
POCERLAIN
9.28400
9.25552
9.17384*
9.20372*
9.18380*
9.26400
9.18705*
9.20705*
9.25552
9.01730*
9.18730*
9.20730*
9.18380*
9.25552
9.20740*
9.19653*
9.26709*
9.26705*
• U.3700L
• U.3701X
9.25552
9.20703*
9.01625*
9.17625*
Ø1 1/8"
Ø1 3/8"
HOLE
1 1/4"
5 1/2"
6 " - 16" CENTERS
3 1/4"
7 1/4"
3 "
2 " MAX
7 1/2" CENTERS MAX
2Ø"
2Ø1/2"
1Ø1/4"
2 1/2" MAX
2Ø1/8"
6 " - 16"
3 3/8"
2Ø1/4"
8”
2 " MAX
3 3/4"
6 1/2"
1 "
5 1/2"
4 "
4 1/2"
5 1/4"
2 3/4"
5 "
5 1/4"

www.rohlhome.com
INSTALLATION INSTRUCTIONS
Consult your local ROHL showroom for additional information and specications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
Congratulations on the purchase of your Perrin and Rowe Bathroom Product. Correctly
installed and with sensible care, this product will give you many years of trouble free service.
• IMPORTANT INFORMATION •
Please read carefully to ensure correct installation.
Before you proceed... We recommend you engage the services of a registered
plumber to install this product.
For ease of possible future servicing, we also recommend the fitting of
conveniently placed isolating valves.
In addition to the guide below it is essential that the written information overleaf is
carefully read and understood.
• Preparation Check Box for Installer •
Flush the plumbing system before
installing the kitchen product.. Once unpacked, remove clamping plate and
nut ready for installation.
• CARE & MAINTENANCE •
Wipe down after use to avoid water spotting and mineral build up.
Occasional cleaning with warm soapy water, followed by a polish with a soft cloth is all
that is required to keep the plated finish in good condition.
Do not use proprietary abrasive liquids, powders, or pads to clean the tap. Do not use
any products with ammonia bleach or limescale remover. You will damage the plated
finish and void your guarantee.
• BEFORE USE •
• Carefully check the installation for leaks.
•If further building work is to be carried out in the vicinity, cover the tap to avoid damaging
the finish.
• Please ensure that the installation complies with local plumbing codes.
The Traditional Kitchen Collection
Installation & User Guide
••

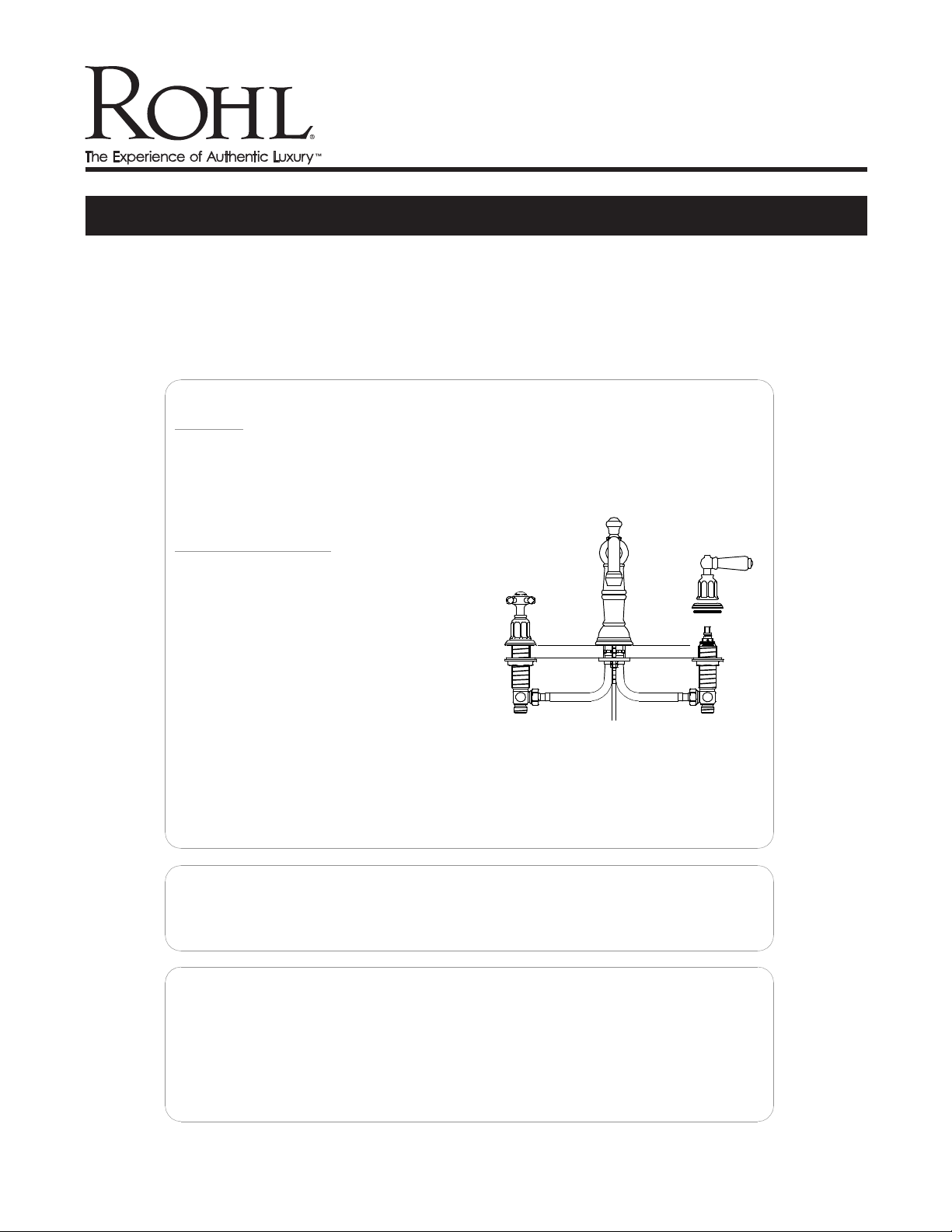

SPOUT
• Assemble the spout by placing the hoses
through the Ø1. 3/8" hole in the work surface,
ensuring the base ring & rubber seal are in
place.
• Place clamp plate and securing nut onto the
clamp bolt, tighten with spanner provided to
underside of work surface.
HANDLE SET
• To assemble the side valve, ensure the brass
backnut and washer are in place on the valve
body, then from the underside of work surface,
push the valve body through the hole. Assemble
base ring as shown so the valve body threads
show at the top.
• Ensure the connection for the flexible hose
from the sidevalves is facing the spout.
• Assemble the hood & handle onto the valve body
ensuring that it's aligned correctly. If not,
remove and turn a few splines until correct
alignment is achieved.
• Lever handles and the HOT & COLDwording on
crossheads should sit in a line parallel with the
rear wall.
• Screw the base ring up to the underside of
cover, repeat this procedure for the other side
valve.
• Tighten the brass backnut and washer to the
underside of the work surface. Connect the
valve body to the spout using the flexible hoses.
• Should the handles move out of alignment when
the backnut is tightened to the underside of the
bench, unscrew the hood and lift the handle
from the valve body. Rotate the handle
alignment vernier to another position and re-fit
the handle. By trial & error.
WORK SURFACE
Spout
Base
ring
Rubber
seal
2" MAX
Flexible
hose
Clamp plate
Spanner
O1 3/8"
hole
Fixing Nuts
6" - 16"
Rubber
Seal Ø1 1/8"
Base
Ring
Washer/
Back Nut
OPERATION
• This tap is fitted with quarter-turn ceramic
disc valve units. Water flow from off to fully
on is achieved by rotating the handles a
quarter-turn. Ceramic disc valves are
available opening in a clockwise or
anti-clockwise direction. Should the handle of
an installed faucet operate in the wrong
direction, this can be remedied by changing the
ceramic disc valveto the other version.
OPTIONAL LEVER INSERTS
• Perrin & Rowe lever handled faucets are
supplied fitted with brass lever inserts.
These can be replaced with lever inserts made
from porcelain if required.
• To fit replacement lever inserts, rotate the
metal rod running down the centre of the
brass lever insert in an anti-clockwise
direction to unscrew it from the faucet.
Removethe metal spacer and the rubber o-ring
from the rod and slide the brass insert off
the rod.
• When fitting a porcelain lever insert, slide it
onto the rod, re-fit the o-ring and spacer and
screw it back onto the faucet. When fitting a
brass lever insert, slip the thick o-ring
supplied with the insert upthe rod for it to sit
under the thick end of the insert. Then fit the
original o-ring and spacer and screw it back
onto the faucet.

www.rohlhome.com
INSTALLATION INSTRUCTIONS
Consult your local ROHL showroom for additional information and specications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
Congratulations on the purchase of your Perrin and Rowe Bathroom Product. Correctly
installed and with sensible care, this product will give you many years of trouble free service.
• IMPORTANT INFORMATION •
Please read carefully to ensure correct installation.
Before you proceed... We recommend you engage the services of a registered
plumber to install this product.
For ease of possible future servicing, we also recommend the fitting of
conveniently placed isolating valves.
In addition to the guide below it is essential that the written information overleaf is
carefully read and understood.
• Preparation Check Box for Installer •
Flush the plumbing system before
installing the kitchen product.. Once unpacked, remove clamping plate and
nut ready for installation.
• CARE & MAINTENANCE •
Wipe down after use to avoid water spotting and mineral build up.
Occasional cleaning with warm soapy water, followed by a polish with a soft cloth is all
that is required to keep the plated finish in good condition.
Do not use proprietary abrasive liquids, powders, or pads to clean the tap. Do not use
any products with ammonia bleach or limescale remover. You will damage the plated
finish and void your guarantee.
• BEFORE USE •
• Carefully check the installation for leaks.
•If further building work is to be carried out in the vicinity, cover the tap to avoid damaging
the finish.
• Please ensure that the installation complies with local plumbing codes.
The Traditional Kitchen Collection
Installation & User Guide
••
SPOUT
• Assemble the spout by placing the hoses
through the Ø1. 3/8" hole in the work surface,
ensuring the base ring & rubber seal are in
place.
• Place clamp plate and securing nut onto the
clamp bolt, tighten with spanner provided to
underside of work surface.
HANDLE SET
• To assemble the side valve, ensure the brass
backnut and washer are in place on the valve
body, then from the underside of work surface,
push the valve body through the hole. Assemble
base ring as shown so the valve body threads
show at the top.
• Ensure the connection for the flexible hose
from the sidevalves is facing the spout.
• Assemble the hood & handle onto the valve body
ensuring that it's aligned correctly. If not,
remove and turn a few splines until correct
alignment is achieved.
• Lever handles and the HOT & COLDwording on
crossheads should sit in a line parallel with the
rear wall.
• Screw the base ring up to the underside of
cover, repeat this procedure for the other side
valve.
• Tighten the brass backnut and washer to the
underside of the work surface. Connect the
valve body to the spout using the flexible hoses.
• Should the handles move out of alignment when
the backnut is tightened to the underside of the
bench, unscrew the hood and lift the handle
from the valve body. Rotate the handle
alignment vernier to another position and re-fit
the handle. By trial & error.
WORK SURFACE
Spout
Base
ring
Rubber
seal
2" MAX
Flexible
hose
Clamp plate
Spanner
O1 3/8"
hole
Fixing Nuts
6" - 16"
Rubber
Seal Ø1 1/8"
Base
Ring
Washer/
Back Nut
OPERATION
• This tap is fitted with quarter-turn ceramic
disc valve units. Water flow from off to fully
on is achieved by rotating the handles a
quarter-turn. Ceramic disc valves are
available opening in a clockwise or
anti-clockwise direction. Should the handle of
an installed faucet operate in the wrong
direction, this can be remedied by changing the
ceramic disc valveto the other version.
OPTIONAL LEVER INSERTS
• Perrin & Rowe lever handled faucets are
supplied fitted with brass lever inserts.
These can be replaced with lever inserts made
from porcelain if required.
• To fit replacement lever inserts, rotate the
metal rod running down the centre of the
brass lever insert in an anti-clockwise
direction to unscrew it from the faucet.
Removethe metal spacer and the rubber o-ring
from the rod and slide the brass insert off
the rod.
• When fitting a porcelain lever insert, slide it
onto the rod, re-fit the o-ring and spacer and
screw it back onto the faucet. When fitting a
brass lever insert, slip the thick o-ring
supplied with the insert upthe rod for it to sit
under the thick end of the insert. Then fit the
original o-ring and spacer and screw it back
onto the faucet.

www.rohlhome.com
INSTALLATION INSTRUCTIONS
Consult your local ROHL showroom for additional information and specications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
The Traditional Bathroom Collection
Installation & User Guide
Perrin and Rowe is a registered trademark. 9003700U Issue 5
* Where indicated please specify color
• SPARES ••
3 HOLE
WIDESPREADS
• Recommended
Working Pressure:
Min 15 psi
Max 75 psi
Ideal performance obtained with equal hot & cold pressures.
• Temp Range:
Min 34ºF
Max 185ºF
ROHL WARRANTY POLICY
All products supplied by ROHL carry warranties against manufacturing defects.
Perrin & Rowe products carry a Limited Lifetime Warranty.
ROHL LLC will provide free of charge, as its options, replacement part(s) or product (or a comparable alternative product) to
replace those which have proven defective in materials or workmanship.
For full ROHL LLC WARRANTY please contact ROHL or visit www.rohlhome.com
SPARE PARTS & SERVICE
3 Parker
Irvine
CA 92618
[phone]
www.rohlhome.com
Perrin & Rowe products are manufactured in England using quality materials, the latest technology
and built to the highest standards.
We would like to thank you for purchasing this Perrin & Rowe product and invite you to view the
and bathroomware.
Please contact us to receive our latest product catalogues or view them online at www.rohlhome.com
HOT IN
1/2" NPT
COLD IN
1/2" NPT
• U.3705L / U.3706X
Ø1 3/8"
HOLE Ø1 1/8"
• U.3720L
• U.3721X
• U.3730L
• U.3731X
• U.3760L
• U.3761X
9.01451*/HOT
9.01451*/COLD
9.30195
9.24193*
9.26410
9.12451*
9.19193*
9.21370*
9.18700*
9.193784
9.15402
9.30195 COLD
9.30196 HOT
9.13195 COLD
9.13196 HOT
9.26411*
METAL
POCERLAIN
9.28400
9.25552
9.17384*
9.20372*
9.18380*
9.26400
9.18705*
9.20705*
9.25552
9.01730*
9.18730*
9.20730*
9.18380*
9.25552
9.20740*
9.19653*
9.26709*
9.26705*
• U.3700L
• U.3701X
9.25552
9.20703*
9.01625*
9.17625*
Ø1 1/8"
Ø1 3/8"
HOLE
1 1/4"
5 1/2"
6 " - 16" CENTERS
3 1/4"
7 1/4"
3 "
2 " MAX
7 1/2" CENTERS MAX
2Ø"
2Ø1/2"
1Ø1/4"
2 1/2" MAX
2Ø1/8"
6 " - 16"
3 3/8"
2Ø1/4"
8”
2 " MAX
3 3/4"
6 1/2"
1 "
5 1/2"
4 "
4 1/2"
5 1/4"
2 3/4"
5 "
5 1/4"
