Rohl Perrin & Rowe U.1347LS User manual

www.rohlhome.com
COLORS/FINISHES WARRANTY
Consult your local ROHL showroom for additional information and specications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
FEATURES
PERRIN & ROWE® HOLBORN C-SPOUT HOT WATER FAUCET
U.1347LS
Ø1 1/4" HOLE
6 1/2"
5 1/2"
1 3/4"
MAX
10"
3 7/8"
2 3/8"
Ø1 7/8"
• Hot water faucet only
• Unique Anti-Scald lock: innovative push mechanism
with exclusive spring-back valve
• Long lasting brass construction
• Swivel spout for ease of lling containers
• For use with U.1998 high performance hot water tank
and U.1106 lter
• Polished Chrome
• Polished Nickel
• Satin Nickel
• English Bronze
• English Gold*
• Unlacquered Brass**
• 5-year Limited Warranty on Faucet
* 5-year Limited Warranty on English Gold
** No Warranty on Unlacquered Brass
Perrin & Rowe® Kitchen Filtered Hot Water Dispensers

www.rohlhome.com
Consult your local ROHL showroom for additional information and specications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
INSTALLATION INSTRUCTIONS
* Where indicated please specify color
Perrin & Rowe is a registered trademark. 9001307U Issue 1
SPARES
MINI INSTANT HOT DISPENSERS
Max Temp:
For Mains: 185°F
Recommended
Working Pressures:
Min 22psi
Max 72psi
*IMPORTANT!! ENSURE A PRESSURE REDUCING VALVE (PRV) IS USED IN-LINE
WITH COLD INLET AND IDEALLY SET TO 43.5PSI (3BAR). FAILURE TO DO SO MAY
RESULT IN REDUCED PRODUCT PERFORMANCE.**
IMPORTANT WARNING!!
PLEASE ENSURE THAT THE RECOMMENDED HEATER TANK UNIT (U.1998) AND FILTER KIT (U.1106)IS
USED.
TO AVOID PRESSURISED BOILING WATER AND TO COMPLY WITH US REGULATIONS THIS IS AN OPEN
VENTED PRODUCT.
DO NOT PLUG IN THE UNIT UNTIL ALL WATER CONNECTIONS HAVE BEEN MADE AND THE TANK HAS
FILLED COMPLETELY THEN FLUSHED TO REMOVE AIR.
*IMPORTANT!! ENSURE A PRESSURE REDUCING VALVE (PRV) IS USED IN-LINE WITH COLD INLET AND
IDEALLY SET TO 43.5PSI (3BAR). FAILURE TO DO SO MAY RESULT IN REDUCED PRODUCT PERFORMANCE.*
INSTANT HOT WATER TEMPERATURES CAN REACH 210°F. THE FAUCET IS DESIGNED WITH FEATURES
TO MINIMISE RISK AND POTENTIAL INJURY; TWO ACTION OPERATION, SPRING BACK VALVE AND
DELAYED DELIVERY; BUT SHOULD BE OPERATED OR SUPERVISED BY A RESPONSIBLE ADULT.
PLEASE READ AND FULLY UNDERSTAND THE HEATER TANK INSTRUCTIONS BEFORE USE.
Registration - Please visit
www.rohlhome.com/filtration-registration.aspx,
complete the registration card (postage paid) or
phone [phone] to register your product
.
O1 1/4"
HOLE
5
1/2
"
10"
61/2"
G3/8"
OUT TO FILTER
FOR HEATER TANK
O5 I.D
SILICONE TUBE
FROM TANK
O1 1/7"
BASE RING
5
1/2
"
91/2"
71/4"
5
1/2
"
10"
61/2"
U.1323: AQUITAINE U.1347: Mimas U.1307: Parthian
9.201887*
9.26400
9.15307 9.28620
9.28749
9.13325
9.202008*
9.201166*
U.PRF1
REPLACEMENT
NANO FILTER
9.18162* 9.18846*
9.12323*
9.12348*
9.14321*
9.17801
CARE & MAINTENANCE
• Occasional cleaning with warm soapy water, followed by a polish with a soft cloth is all that is
required to keep the plated finish in good condition.
• If you wish to occasionally polish your faucet and it has a Chrome, Nickel or Pewter finish, we
recommend a gentle metal cleaner or metal polish, which is available from hardware and automotive
parts stores.
• Do not use any cleaners on Gold or English Bronze Faucets.
• Do not use proprietary abrasive liquids, powders, or pads to clean the product. You will damage the
plated finish and void your warranty.
BEFORE USE
• Carefully check the installation for leaks.
• If further building work is to be carried out in the vicinity, cover the mixer tap to avoid damaging the
finish.
• Please ensure that the installation complies with the local plumbing codes.
NOTE: Diagram shows faucet
set up with u.1998 (heater
tank) and u.1106 (filter).
FLOW REGULATOR
TO BE FITTED TO
COLD INLET 9/16"-24
ROHL WARRANTY POLICY
All products supplied by ROHL carry warranties against manufacturing defects.
For full ROHL WARRANTY please contact ROHL or visit www.rohlhome.com
Please contact the local ROHL retailer or showroom where you purchased this product for all warranty
related claims.
SPARE PARTS & SERVICE
3 Parker
Irvine
CA 92618
[phone]
www.rohlhome.com
Perrin & Rowe products are manufactured in England using
quality materials, the latest technology and built to the highest
standards.
We would like to thank you for purchasing this Perrin & Rowe
product and invite you to view the comprehensive range of Perrin
& Rowe tapware, shower fittings, bathroom accessories, soap
dispensers and bathroomware.
Please contact us to receive our latest product catalogues or
view them online at www.rohlhome.com

www.rohlhome.com
Consult your local ROHL showroom for additional information and specications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
INSTALLATION INSTRUCTIONS
Preparation for the installation.
Flush the pipework before
installing this tapware.
Once unpacked, remove nuts and clamping
plate ready for installation
IMPORTANT INFORMATION
Before you proceed... We recommend you engage the services of a registered plumber to install this
product.
Perrin & Rowe taps require a maximum inlet pressure supply of 75psi. For installations where the
inlet water supply pressure is ever above 75psi, pressure-limiting valves must be installed prior to
this tap.
It is essential that the information contained herein is carefully read and understood prior to
installing and operating this tap.
Congratulations on the purchase of your Perrin and Rowe Kitchen Product. Correctly installed
and with sensible care, this product will give you many years of trouble free service.
The Mini Hot Dispensers Collection
Installation & User Guide
••
THREADED STUD
CLAMPING PLATE
NUT
BASE SEAL
WORK
SURFACE
NYLOCK NUT
BOX
SPANNER
(PROVIDED)
1 3/4" MAX
1

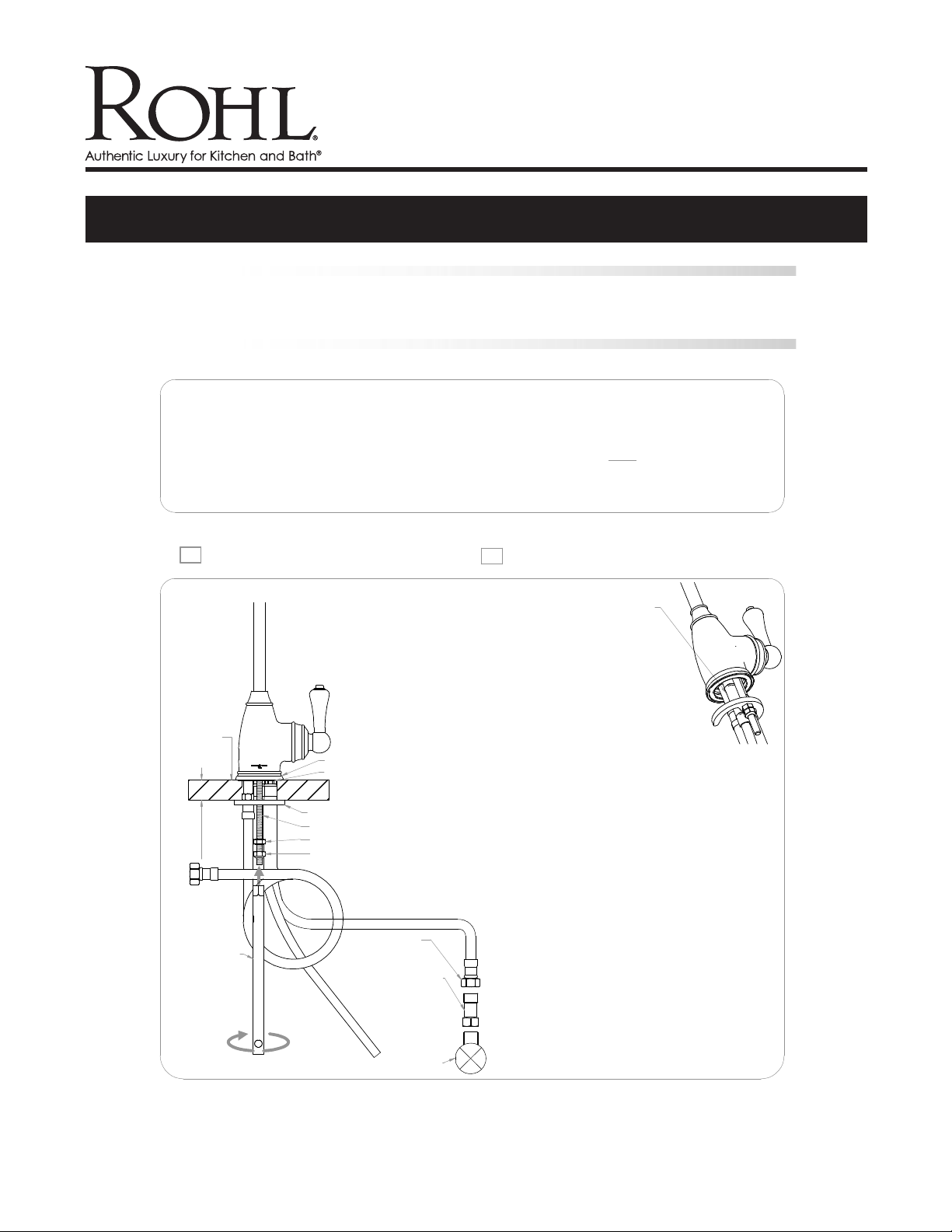

Mounting dispenser:
• Feed the flexible connections
through the ø1 1/4" work surface hole
ensuring the base seal is in place
between tap and mounting surface.
• Ensure the base ring and tap are
orientated correctly, Hot water lever
should rotate to point forwards. The
spout fixing screw should be at the
back.
• Secure by using the clamping plate
and nuts. (box spanner is provided)
Attach the flow regulator 9/16" to the
Cold inlet and then connect the 9/16"
flexible hose end to the flow
regulator.
Ensure all connections are firmly
tightened.
Consult the guide provided with the
heater tank to ensure correct
positioning and installation.
BASE RING
ENSURE THE SILICONE TUBE
PROTECTOR IS IN PLACE,
CENTRAL AGAINST THE BASE
OF THE TAP.
9/16"
COLD IN
3Silicone Hose
Trim the silicone hose to the right length for the installation. It must not be pulled taught, too
slack leading to a 'U' bend or twisted. Please make sure the tube isn't pinched between the
threaded stud and the braided hose as this may cause flow restriction. If the silicone is not
installed correctly it may effect the performance of the system.
4Operation
For instant hot water,
press down on the
lever/button and rotate
handle forward.
Once finished, release the
handle and the valve will
automatically close.
2
G3/8"
FEED TO
HEATER TANK
THROUGH FILTER
SILICONE TUBE
HOT FEED BACK
TO THE TAP
Connections to the filter (U.1106) and heater tank U.1998:
(See separate filter guide and heater tank installation for
further installation instructions)
• Mount the filter housing in an accessible location using
either screws in the bracket or the adhesive pad, ensuring the
mounting area is clean by using the wipe provided.
• Once the mains connections are made fit the G3/8" braided
hose to the filter as shown.
• Connect the silicone tube to the barbed connection on the
top of the heater tank as shown. (SEE NOTE 3 BELOW)
IMPORTANT: During installation the tank should remain
unplugged. The tank must be filled with water before power is
connected. A 'dry start' will void the warranty.
Avoid kinking tubes during installation as the resulting
restrictions could reduce flow and cause malfunctioning of
the expansion chamber. Do not use pipe sealing compounds on
any connections. These can foul the internal mechanics and
may cause objectionable taste and odor. Plumbing connections
must comply with all sanitary, safety and plumbing codes.
AVOID TRAPPING
SILICONE HOSE
BETWEEN STUD &
BRAIDED HOSES
SILICONE
TUBE
RETAINER
CLIP
FLOW REGULATOR
9/16" FEMALE - MALE
9/16" FLEXI-HOSE
FLOW REGULATOR
O3/8" COMPRESSION SERVICE VALVE
O3/8" COMPRESSION
SERVICE VALVE

www.rohlhome.com
Consult your local ROHL showroom for additional information and specications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
INSTALLATION INSTRUCTIONS
Preparation for the installation.
Flush the pipework before
installing this tapware.
Once unpacked, remove nuts and clamping
plate ready for installation
IMPORTANT INFORMATION
Before you proceed... We recommend you engage the services of a registered plumber to install this
product.
Perrin & Rowe taps require a maximum inlet pressure supply of 75psi. For installations where the
inlet water supply pressure is ever above 75psi, pressure-limiting valves must be installed prior to
this tap.
It is essential that the information contained herein is carefully read and understood prior to
installing and operating this tap.
Congratulations on the purchase of your Perrin and Rowe Kitchen Product. Correctly installed
and with sensible care, this product will give you many years of trouble free service.
The Mini Hot Dispensers Collection
Installation & User Guide
••
THREADED STUD
CLAMPING PLATE
NUT
BASE SEAL
WORK
SURFACE
NYLOCK NUT
BOX
SPANNER
(PROVIDED)
1 3/4" MAX
1
Mounting dispenser:
• Feed the flexible connections
through the ø1 1/4" work surface hole
ensuring the base seal is in place
between tap and mounting surface.
• Ensure the base ring and tap are
orientated correctly, Hot water lever
should rotate to point forwards. The
spout fixing screw should be at the
back.
• Secure by using the clamping plate
and nuts. (box spanner is provided)
Attach the flow regulator 9/16" to the
Cold inlet and then connect the 9/16"
flexible hose end to the flow
regulator.
Ensure all connections are firmly
tightened.
Consult the guide provided with the
heater tank to ensure correct
positioning and installation.
BASE RING
ENSURE THE SILICONE TUBE
PROTECTOR IS IN PLACE,
CENTRAL AGAINST THE BASE
OF THE TAP.
9/16"
COLD IN
3Silicone Hose
Trim the silicone hose to the right length for the installation. It must not be pulled taught, too
slack leading to a 'U' bend or twisted. Please make sure the tube isn't pinched between the
threaded stud and the braided hose as this may cause flow restriction. If the silicone is not
installed correctly it may effect the performance of the system.
4Operation
For instant hot water,
press down on the
lever/button and rotate
handle forward.
Once finished, release the
handle and the valve will
automatically close.
2
G3/8"
FEED TO
HEATER TANK
THROUGH FILTER
SILICONE TUBE
HOT FEED BACK
TO THE TAP
Connections to the filter (U.1106) and heater tank U.1998:
(See separate filter guide and heater tank installation for
further installation instructions)
• Mount the filter housing in an accessible location using
either screws in the bracket or the adhesive pad, ensuring the
mounting area is clean by using the wipe provided.
• Once the mains connections are made fit the G3/8" braided
hose to the filter as shown.
• Connect the silicone tube to the barbed connection on the
top of the heater tank as shown. (SEE NOTE 3 BELOW)
IMPORTANT: During installation the tank should remain
unplugged. The tank must be filled with water before power is
connected. A 'dry start' will void the warranty.
Avoid kinking tubes during installation as the resulting
restrictions could reduce flow and cause malfunctioning of
the expansion chamber. Do not use pipe sealing compounds on
any connections. These can foul the internal mechanics and
may cause objectionable taste and odor. Plumbing connections
must comply with all sanitary, safety and plumbing codes.
AVOID TRAPPING
SILICONE HOSE
BETWEEN STUD &
BRAIDED HOSES
SILICONE
TUBE
RETAINER
CLIP
FLOW REGULATOR
9/16" FEMALE - MALE
9/16" FLEXI-HOSE
FLOW REGULATOR
O3/8" COMPRESSION SERVICE VALVE
O3/8" COMPRESSION
SERVICE VALVE

www.rohlhome.com
Consult your local ROHL showroom for additional information and specications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
INSTALLATION INSTRUCTIONS
* Where indicated please specify color
Perrin & Rowe is a registered trademark. 9001307U Issue 1
SPARES
MINI INSTANT HOT DISPENSERS
Max Temp:
For Mains: 185°F
Recommended
Working Pressures:
Min 22psi
Max 72psi
*IMPORTANT!! ENSURE A PRESSURE REDUCING VALVE (PRV) IS USED IN-LINE
WITH COLD INLET AND IDEALLY SET TO 43.5PSI (3BAR). FAILURE TO DO SO MAY
RESULT IN REDUCED PRODUCT PERFORMANCE.**
IMPORTANT WARNING!!
PLEASE ENSURE THAT THE RECOMMENDED HEATER TANK UNIT (U.1998) AND FILTER KIT (U.1106)IS
USED.
TO AVOID PRESSURISED BOILING WATER AND TO COMPLY WITH US REGULATIONS THIS IS AN OPEN
VENTED PRODUCT.
DO NOT PLUG IN THE UNIT UNTIL ALL WATER CONNECTIONS HAVE BEEN MADE AND THE TANK HAS
FILLED COMPLETELY THEN FLUSHED TO REMOVE AIR.
*IMPORTANT!! ENSURE A PRESSURE REDUCING VALVE (PRV) IS USED IN-LINE WITH COLD INLET AND
IDEALLY SET TO 43.5PSI (3BAR). FAILURE TO DO SO MAY RESULT IN REDUCED PRODUCT PERFORMANCE.*
INSTANT HOT WATER TEMPERATURES CAN REACH 210°F. THE FAUCET IS DESIGNED WITH FEATURES
TO MINIMISE RISK AND POTENTIAL INJURY; TWO ACTION OPERATION, SPRING BACK VALVE AND
DELAYED DELIVERY; BUT SHOULD BE OPERATED OR SUPERVISED BY A RESPONSIBLE ADULT.
PLEASE READ AND FULLY UNDERSTAND THE HEATER TANK INSTRUCTIONS BEFORE USE.
Registration - Please visit
www.rohlhome.com/filtration-registration.aspx,
complete the registration card (postage paid) or
phone [phone] to register your product
.
O1 1/4"
HOLE
5
1/2
"
10"
61/2"
G3/8"
OUT TO FILTER
FOR HEATER TANK
O5 I.D
SILICONE TUBE
FROM TANK
O1 1/7"
BASE RING
5
1/2
"
91/2"
71/4"
5
1/2
"
10"
61/2"
U.1323: AQUITAINE U.1347: Mimas U.1307: Parthian
9.201887*
9.26400
9.15307 9.28620
9.28749
9.13325
9.202008*
9.201166*
U.PRF1
REPLACEMENT
NANO FILTER
9.18162* 9.18846*
9.12323*
9.12348*
9.14321*
9.17801
CARE & MAINTENANCE
• Occasional cleaning with warm soapy water, followed by a polish with a soft cloth is all that is
required to keep the plated finish in good condition.
• If you wish to occasionally polish your faucet and it has a Chrome, Nickel or Pewter finish, we
recommend a gentle metal cleaner or metal polish, which is available from hardware and automotive
parts stores.
• Do not use any cleaners on Gold or English Bronze Faucets.
• Do not use proprietary abrasive liquids, powders, or pads to clean the product. You will damage the
plated finish and void your warranty.
BEFORE USE
• Carefully check the installation for leaks.
• If further building work is to be carried out in the vicinity, cover the mixer tap to avoid damaging the
finish.
• Please ensure that the installation complies with the local plumbing codes.
NOTE: Diagram shows faucet
set up with u.1998 (heater
tank) and u.1106 (filter).
FLOW REGULATOR
TO BE FITTED TO
COLD INLET 9/16"-24
ROHL WARRANTY POLICY
All products supplied by ROHL carry warranties against manufacturing defects.
For full ROHL WARRANTY please contact ROHL or visit www.rohlhome.com
Please contact the local ROHL retailer or showroom where you purchased this product for all warranty
related claims.
SPARE PARTS & SERVICE
3 Parker
Irvine
CA 92618
[phone]
www.rohlhome.com
Perrin & Rowe products are manufactured in England using
quality materials, the latest technology and built to the highest
standards.
We would like to thank you for purchasing this Perrin & Rowe
product and invite you to view the comprehensive range of Perrin
& Rowe tapware, shower fittings, bathroom accessories, soap
dispensers and bathroomware.
Please contact us to receive our latest product catalogues or
view them online at www.rohlhome.com
