ROJEK FSN 550A How to use

SINGLE-SPINDLE MILLING MACHINE
WITH A TILTING SPINDLE AND SLIDING TABLE
FSN 550A
Service instructions handbook
original translation
updated 3 / 2017
WOODWORKING MACHINES Masarykova 16, 517 50 Častolovice
Czech Republic - Europe [email protected] www.rojek.cz
[phone], - 41 fax -323341, -322701
ROJEK

ROJEK a.s. 3 FSN 550A
Contents
Foreword
1 Use of the machine
1.1 Purpose of the machine
1.2 Workers‘ qualifications
1.3 Working environment
2 Machine marking
3 Technical specifications
3.1 Possible variants of the machine
3.2 Machine description
3.3 Values of chips removed, feed, and power output
3.4 Specifications concerning the noise of the device
3.5 List of used source documents.
4 Safety instructions
4.1 General
4.2 Basic safety requirements
4.3 Clothes and personal safety
4.4 Safety regulations for operators
4.5 Safety regulations for maintenance
4.6 Safety regulations for working place.
5 Transport and storage
5.1 Transport and storage.
5.2 Machine lifting
6 Positioning the machine
6.1 Working area
6.2 Levelling and fixing a machine.
6.3 Installment of demountable parts
7 Connecting exhaustion system
8 Connecting to the mains
8.1 Connection to the mains
8.2 Safety of operation
8.3 Direction of rotation
8.4 Change in the direction of rotation
8.5 Protection of electrical devices
8.6 Machine control
8.6.1 Machine lower control 4 kW
8.6.2 Machine lower control 5,5 kW

ROJEK a.s. 4 FSN 550A
9 Operating and adjusting the machine
9.1 Tool interchange and gripping
9.2 Spindle rotation speed change and indication
9.3 Height setting
9.4 Tilting
9.3 Setting the guide rulers
9.3.1 Guide rulers of the protection cover
9.3.2 Setting the cross guide ruler on sliding table CV
9.4 Tilting
9.5 Longitudinal milling
9.6 Milling with mechanical feed
9.7 Milling of narrow workpieces - tenon jointing
9.8 Milling of workpieces with small cross-section
9.9 Set-up of cross rule with tiltable stops
9.10 Guard for profiling milling
9.11 Protective aids
9.12 Working place
9.13 Protective aids
9.14 Forbidden handling
10 Tools
10.1 Recommended tools
10.2 Replacement of milling tools
11 Maintenance
11.1 Tightening the V-belt of the milling machine
11.2 Cleaning and lubricating
11.3 Troubleshooting
12 Scope of delivery
12.1 Accessories
13 Special accessories
14 Spare parts
15 Guarantee
16 Dealing with packing and machine service life expiry
16.1 Dealing with packing
16.2 Dealing with machine.
Enclosures :
A) Electrical wiring chart
B) List of electrical components.

ROJEK a.s. 5 FSN 550A
Foreword
These instructions have been created by the device manufacturer and are an integral part of the
machine delivery. They contain basic information for qualified operating staff and describe the
environment and manners of the machine use for which it has been designed, and also contain
any information necessary for the correct and safe operation.
The machine is equipped with various safety devices protecting both the operator and the ma-
chine for its common technological use. Nevertheless these measures cannot cover all safety
aspects and therefore it is necessary that the operator should read and understand these instruc-
tions before starting to use the machine. Errors made in the course of installation as well as dur-
ing operation itself will thus be avoided.
Do not try therefore to put the machine into operation before you have read all instruc-
tions for use supplied together with the machine and before you have understood all its
functions and working procedures.
Certain information or drawings may not be intended directly for the machine purchased by you
as these instructions contain any information for various variants of this type made by our com-
pany. By comparing the respective part of the instructions with a particular machine you will find
out whether or not they correspond to each other.
The manufacturer reserves the right to make partial alterations within continuous technical ma-
chine development.
For emphasis of important passages in the basic text the bald characters and marking with a
certain of the following symbols have been used:
The appeal recommending to use the procedure according to
the following regulation exclusively. A failure to observe this
regulation may result in death or serious injuries of the operat-
ing staff.
A warning against improper working procedures or use of the
machine that may cause a danger to human health, machine
functioning, the environment or economic losses.
Caution is an appeal to take due care while the following
activities are being performed. Any failure to comply with
this appeal may cause small injuries or damage to the ma-
chine.
Follow the instructions shown on the plates with which the machine is equipped. Do not remove
or damage such plates. In the case of any damage caused to the plate contact the manufacture
and renew the plate.
Note
The text and picture part of the instructions is an intellectual property of the ROJEK Co.
and will remain in the company´s ownership. No part of the instructions may be copied
or reproduced without a prior consent nor any third persons are allowed to become
acquainted with these instructions or with any part thereof.

ROJEK a.s. 6 FSN 550A
1. Use of the machine
1.1 Purpose of the machine
The machine enables semifinished products made of wood or materials based on wood
to be milled with a vertical spindle.
The machine is designed for operation performed by one worker only.
The machine may not be handled by children and youngsters in any manner.
1.2 Workers‘ qualifications
Only and expert skilled in the field of wood-machining or a worker instructed and trained by such
expert may operate the machine, regardless of the sex. While working on the machine the opera-
tor must get familiar with these instructions and comply with any safety rules, regulations and
provisions in force in the respective country.
1.3 Working environment
The machine must be operated in a workshop environment the temperature of which does not
exceed +40
o
and does not drop below +5
o
. The relative humidity of air from 30% to 95% - non-
condensing. The height above the sea level up to 1000 m. The environment classification – dan-
ger of inflammable dust fire (BE2N2).
2. Machine marking
The type of the machine may be identified according to the manufacturing plate fixed
to the machine stand.
FSN 550A vertical spindle milling machine with tilting spindle and sliding table CV

ROJEK a.s. 7 FSN 550A
Information plates as well as plates warning about a danger are placed on the machine.
1. Tightening 2. attention ! warning !
3. attention - electric component 4. Stop of spindle vertical position
5. proper profilling cutters 6. proper cutters for tenon jointing
7. vertical adjusting of spindle 8. spindle tilting
9. range of optimal spindle rotation speed 10. board rules setup
11. setting of spindle rotation speed 12. caution ! alert !

ROJEK a.s. 8 FSN 550A
3. Technical specifications
FS 550A milling machine
motor power kW 4; 5,5
motoru rotation speed /min 2 900 (3 480 at 60 Hz)
spindle diameter mm 30 (35_40_50)
spindle rotation speed /min 3 500_6 000_8 000_10 000
(3 500_6 000_8 000_12 500)
spindle lift mm
-above table mm
-under table mm
142
1
141
clamping spindle part length mm 140 for Ø 30
140 for Ø 35
180 for Ø 40
220 for Ø 50
spindle tilt -5° ÷ +45°
max. table bore Ø diameter mm 260
table dimensions mm 1 000 x 520
table height mm 897
table dimensions
length (at CV 360 - 1 200 mm) mm
length (at CV 360 - 2 000 mm) mm
width mm
width with supporting frame of CV 360 mm
max. machine height mm
1 360
2 160
1 050
2 220
1 320
lower exhausting nozzle diameter Ø mm 80
Profiling
Max./ min. tool diameter Ø mm 250 / 80
guide board rules length in front of/ beyond tool mm 460
guide board rules height mm 151
exhausting nozzle diameter Ø of profiling guard mm 120
Tenoning
Max./ min. tool diameter Ø mm 275 / 80
Max. tool diameter Ø under table mm 250
exhausting nozzle diameter Ø of tenoning guard mm 120
sliding table CV 360
table dimensions mm 360 x 1 200 (2 000)
travel length mm 1 500 (2 300)
supporting frame dimensions mm 870 x 630
other parameters
voltage/ frequency 3x400 V (3x230V) / 50(60) Hz
safeguarding A 25
weight brutto kg 410
weight netto kg 405
* el. motor with power output equal to 3.7 kW only for voltage 3 x 400 V / 50 (60) Hz

ROJEK a.s. 9 FSN 550A
3.1 Possible machine variants
Milling machine
motoru power - 4 kW
- 5,5 kW
operation voltage - 3 x 400V±10%; 50/60 Hz; (UL)
- 3 x 230V±10%; 50/60 Hz; (UL)
spindle diameter - 30 mm (with clamping length 140 mm)
- 40 mm (with clamping length 180 mm)
- 50 mm (with clamping length 220 mm)
spindle rotating speed - 3 500, 6 000, 8 000, 10 000 /min
- 3 500, 6 000, 8 000, 12 500 /min. by belt positi-
on change on multipled belt pulleys
front / rear table length extention - YES
- NO
supporting frame roll - ANO
- NO
spindle height change-over - by hand wheel
Indication of spindle height
change-over - wheel with indicator
- displaying unit
spindle rotation reversal - YES
- NO
control panel location - lower
Profiling - YES
- NO
guide boards - wood
- Al alloy
Tenoning - YES
- NO
sliding table CV360 - L = 1 200 mm
- L = 2 000 mm
supporting frame of CV360 - YES
- NO
eccentric fixture - YES
undercarriage - YES
- NO

ROJEK a.s. 10 FSN 550A

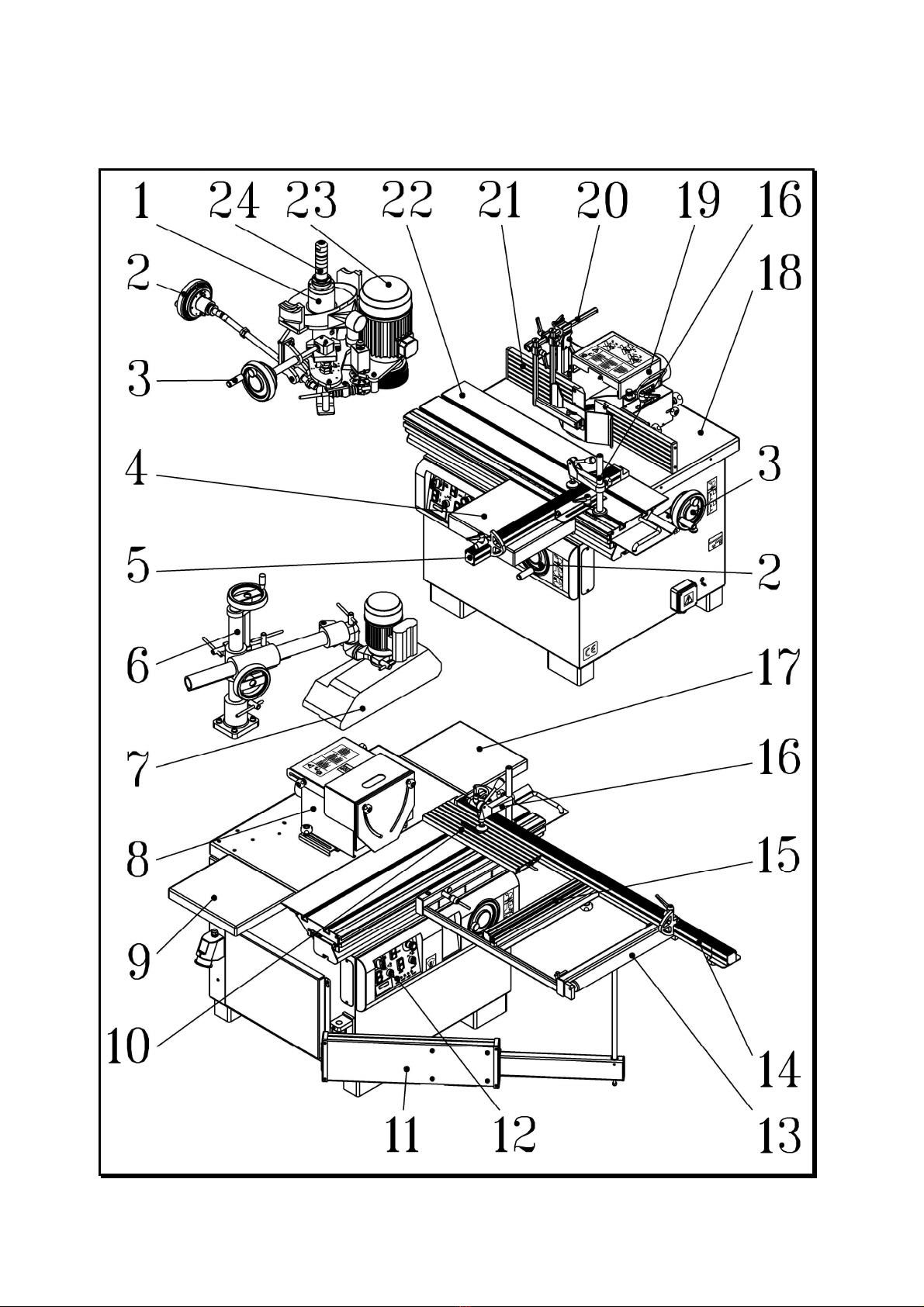

3.2 Machine description

ROJEK a.s. 11 FSN 550A
1 – Head stock
2 – spindle tilt hand wheel
3 – spindle height hand wheel
4 – supporting table
5 – angular rule
6 – lifter pole
7 – lifter
8 – tenoning guard
9 – rear table length extention
10 – instrument for short pieces tenoning
11 – supporting frame
12 – lower controlling panel
13 – supporting frame roll
14 – cross rule
15 – supporting frame
16 – eccentric fixture
17 – frontal table length extention
18 – milling table
19 – profiling guard
20 – down pressing instruments for profiling
21 – guide rules of profiling guard
22 – tenoning sliding table
23 – spindle drive motor
24 – spindle with spacer rings and clamping nut.
3.3 Values of chips removed, feed and power output
power
[kW]
feeding speed
[m/min]
machined width
[mm]
chip removal
[mm]
crosssection
removed [mm
2
]
3 5 130 7 910
4 5 130 8 1 040
5,5 5 160 10 1 600
5,5 8 160 6,25 1 000
The value given above apply for spruce wood of a common quality with humidity equal to
about 12 to 15%, with sharp tools These values may be thought initial while the machine is
being put into operation. The inverse proportion applies between the machined surface (ma-
chined width x chips removed) and the feed (the larger the surface the smaller the feed) and
the direct proportion applies between the machined surface and the power output (the larger
the surface the higher power output). The values in the table may roughly be used for both
planing and thicknessing as well as for milling with a vertical spindle. After a long use of the
machine these values may become changed a little. E.g. when hard wood is machined and
the tool is a bit blunt, an appropriate decrease of the values above should be taken into ac-
count.
The size of chips removed depending on the machined width and hardness of the workpiece
may be chosen only up to such values with which the driving electric motor does not become
overloaded. Otherwise the electric motor thermal protection will be engaged and the ma-
chine will stop.
While any material with a low thickness is being machined, a worse quality of machining
must be taken into account due to the part springing.

ROJEK a.s. 12 FSN 550A
3.4 Specifications concerning noise of the device (EN 1870-18 / 2013)
FSN 550A
Level of noise A in the place
of operation (L
p
A
eq
)
without technology L
p
A
eq
= 70.4 dB(A)
with technology L
p
A
eq
= 83.0 dB(A)
Level of acoustic output A (L
WA
)
EN ISO 3746:1995 K = 4 dB
without technology L
WA
= 78.6 dB(A)
with technology L
WA
= 88.5 dB(A)
The values given are those of emissions and do not necessarily mean any safe working val-
ues. Although there is a correlation between the value of emissions and the levels of expo-
sure, these values cannot be used for reliable determination whether or not additional
measures are necessary. The factors influencing actual levels of workers‘ exposure include
the properties of the working area, other sources of noise etc., e.g. the number of machines
and the other neighbouring procedures. Also the highest permissible levels of exposure may
vary in different countries. This information should help the machine user to evaluate the risk
and the risk rate in a better manner.
3.4 List of used source documents
Directive 2006/42/EU stating technical demand on machinery.
Directive 2014/30/EU about assessing products conformity from view point of electromagnetic com-
patibility when delivered on market
Directive 2014/35/EU about assessing conformity of electric devices intended for use under specific
limit voltages when delivered on market
EN ISO 12100 : 2011 (EN ISO 12100 : 2010)
Machinery safety - General fundamentals for designing - Risk assessing and reducing
EN ISO 13857 : 2008 (EN ISO 13857 : 2008)
Machinery safety - Safe distances to avoid dangerous places reaching by hands/arms ~ feet/legs
EN 349+A1 : 2008 (EN 349 : 1993 + A1 : 2008)
Machinery safety - the smallest gaps to avoid human parts being pressed
EN ISO 13850 : 2016 (EN ISO 13850 : 2015)
Machinery safety - Emergency stopping - Fundamentals for designing
EN ISO 14120 : 2016 (ISO 14120 : 2015) Machinery safety - Guards - General fundamentals for
designing and production of fixed and movable guards
EN ISO 13849-1: 2016 (EN ISO 13849-1 : 2015)
Machinery safety - Safety parts of cotroling systems - Part 1: General fundamentals for designing
EN 848-1+A2 : 2013 (EN 848-1 : 2007 + A2 : 2012) Woodworking machinery safety - One-sided
shapers with rotating tool - Part 1: One-spindle vertical shapers
EN 1037+A1 : 2008 (EN 1037 : 1995 + A1 : 2008) Machinery safety - avoiding an unwished start
EN ISO 14119 : 2014 (EN ISO 14119 : 2013)
Machinery safety. Blocking devices connected with guards. Fundamentals for designing +choice.
EN 55011 ed.3 : 2010 (EN 55011:2009) Industrial, scientific and medical equipments - Characteris-
tics of high frequency interference - Measuring limits and methods
EN 60204-1 ed. 2 : 2007 (EN 60204-1 : 2006)
Machinery safety - Electric equipment of machines - Part 1: General fundametals
EN 60073 ed.2 : 2003 (EN 60073 : 2002)
Basic and safety fundamentals for interface man-machine, for marking and identification -
informers and controlers coding fundamentals
EN 80416-1 ed.2 : 2009 (EN 80416-1 : 2009)
Basic rules for signs for using on objects - Part 1: Making of graphical signs for registration
EN 80416-2 : 2002 (EN 80416-2 : 2001)
Basic rules for graphical signs to be used on objects - Part 2: Arrows form and using.

ROJEK a.s. 13 FSN 550A
4. Safety instructions
4.1 General
This machine is equipped with various safety devices protecting both the operator and the
machine. Nevertheless, this cannot cover all safety aspects and therefore the operator, be-
fore putting the machine into operation, must read this chapter and understand it fully. Fur-
thermore the operator must also take into account other aspects of danger relating to the
surrounding conditions and material.
This handbook comprises 3 safety instructions categories.
The appeal recommending to use the procedure according
to the following regulation exclusively. A failure to observe
this regulation may result in a death or serious injuries of
the operating staff.
A warning against improper working procedures or use of
the machine that may cause a danger to human health,
machine functioning, the environment or economic losses.
Caution is an appeal to take due care while the following
activities are being performed. Any failure to comply with
this warning may cause small injuries or damage to the
machine.
Follow the instructions on plates with which the machine is equipped. Do not remove or
damage such plates. In the case of any damage caused to a plate contact the manufacturer
and renew the plate.
4.2 Basic safety requirements
Do not touch, under any circumstances, the low-voltage
devices on the electric control panel, transformers, motors
and terminal blocks which are equipped with a plate.
- Before connecting the machine to the mains make sure that all safety items are in their
active positions and check their functioning. If it is necessary to remove the doors or pro-
tective covers, switch off the main switch and lock it or disconnect the machine by pulling
the plug out.
Do not connect the machine to the mains while the door or
protective cover is removed.
In order to avoid improper operation get acquainted with
location of switches before switching the machine on.
Remember the position (location) of the emergency stop
switch so that you can use it promptly at any time.
- Be careful and do not touch any switches incidentally while the machine is being operated.
- Do not touch any rotating tool with naked hands or with any other object under any circum-
stances.
- In the case that you are not going to work on the machine, turn off the machine by the
switch on the control panel and disconnect the power supply from the machine.
- Before cleaning the machine, switch off and lock the main switch or disconnect the ma-
chine by pulling the plug out.
- Before doing any maintenance work inside the machine switch off and lock the main switch
or disconnect the machine by pulling the plug out.
- If the machine is used by more workers, do not proceed to other work without informing the
other worker about what procedure you want to use.

ROJEK a.s. 14 FSN 550A
- Do not alter the machine in any manner which might cause any risk to its safe operation.
- If you have any doubts on correctness of your procedure, contact a responsible person.
- Do not neglect performance of regular inspections in ac-
cordance with the instructions for use.
- Check and make sure that no disturbances occur on the
machine caused by the user.
- After the work is finished, adjust the machine so that it is
ready for another series of operations.
- Should a failure in power supply occur, switch off the main switch immediately or discon-
nect the machine by pulling the plug out.
- Do not paint, make dirty, cause any damage to, alter or remove safety plates. If they be-
come illegible or lost, contact the manufacturing plant and renew the plates.
4.3 Clothes and personal safety
- Experience shows that injuries are caused by various
personal articles, e.g. rings, watches, bracelets etc.
Therefore take them off before starting the work, button
the sleeves, take off a tie, which may be caught with var-
ious parts of the working machine. Pin your hair together so that it does not flutter freely
and wear suitable shoes recommended or prescribed by labour-safety regulations of all
countries.
- Wear safety outfit (goggles, apron, safety shoes etc.).
- In the case of any obstacles above your head – in the working area - wear a helmet.
- Always wear a protective mask while machining any material that produces dust while be-
ing machined.
- Never wear any loose working clothes.
- Do not work on the machine under influence of drugs or alcohol.
- If suffering from digginess, weakness or faintness, do not work on the machine.
4.4 Safety regulations for machine operator
Do not put the machine into operation before you get ac-
quainted with the contents of the instructions for use.
- Make sure that electric cables are not damaged so that injuries caused by electric current
leaking (electric shocks) are avoided.
- Check regularly that safety covers are mounted properly and that they are not damaged.
Repair damaged covers immediately or replace with other ones.
- Do not put the machine with the cover removed into operation.
- Never use any tools that are distorted or broken.
- Always use the tool suitable the work given, which corresponds to the machine specifica-
tions.
- Replace blunt tools as soon as possible as blunt tools are often a cause of injuries or dam-
age.
- Never use the tools at speeds higher than those recommended by the respective manufac-
turer.
- Do not remove or interfere otherwise in safety devices such as covers, end switches, and
do not block them mutually.
- While handling parts above your possibilities, ask for assistance.
- It is recommended not to work on the machine during a storm.

ROJEK a.s. 15 FSN 550A
4.5 Safety regulations for maintenance
Do not do any maintenance work before you get acquainted with the instructions for mainte-
nance thoroughly.
- Before you start to perform any maintenance work, always
turn off the main switch and lock it, or disconnect the ma-
chine by pulling the plug out. A possibility of accidental
putting the machine into operation by another person is
thus avoided.
- Any maintenance work on electric parts of the equipment
may be done by a qualified person only.
- Even if the machine is stopped, the power supply is not
disconnected. Always switch off the main switch and lock
it or disconnect the machine by pulling its plug out.
- Do not clean the machine or its peripheral devices even if the machine is completely out of
operation, unless the main switch is switched off and locked or the plug is pulled out from
the mains socket.
- Keep your fingers in a distance from belts and belt pulleys.
- While replacing electrical parts of the equipment, switch off the main switch, lock it or dis-
connect the machine by pulling the plug out. Faulty parts should be replaced only with
products having the same specifications as the original ones.
- Do not remove or alter blocking of limit switches or any other safety devices.
- Do not switch the machine on before all covers removed for the purposes of maintenance
are put in their places again.
- Always keep the maintenance area including the working place clean.
- Any maintenance work must be done by a qualified staff
in accordance with the instructions issued by the machine
manufacturer.
- Read the instruction manual for maintenance men care-
fully and completely.
- For replacement of parts and necessary things, get in advance those being identical with
the original type and complying with standards.
- Use only specified kinds or lubricating oils and grease or those equivalent to them.
- Do not use compressed air to clean the machine or to remove chips.
- Always check the results while a responsible person is present.
4.6 Safety regulations for working place
- Always ensure a sufficient working area and free access
to the machine and peripheral devices.
- Put tools and any other obstacles in the place designed
for this purpose, in a distance from the machine.
- Ensure sufficient lighting in the working area which will not create shadows or cause the
stroboscopic effect. For safe and quality work the hygienic standards specify the minimum
intensity 500 lx.
- Never put any tools or any other objects on working tables or covers.

ROJEK a.s. 16 FSN 550A
5. Transport and storage
5.1 Transport and storage
While transporting or handling the machine, be most careful and let this activity be done by
qualified personnel especially trained for this kind of activity.
While a machine is being loaded or unloaded,make sure
that no person or subject gets pressed by the machine !
Do not enter the area under the machine lifted
by a crane or a high-lift truck !
During transport or storage the machine must be protected
against excessive impacts and humidity.
It should be stored in a shelter at temperatures ranging from -25°C to 55°C.
As standard, the machine is wrapped up in a foil and is transported this way. Upon request
the machine may also be packed in a wooden box.
5.2 Machine lifting
The machine or its individual parts may only be lifted by
means of an approved lifting device with verified lifting ca-
pacity. It is recommended to use: D - high-lift truck E -
crane or any other lifting device F - manual lifting carriage
Use a high lift with forks of a sufficient length !
Prepare a high-lift truck (D) or a
manual lifting trolley (F) with suffi-
cient lifting capacity
- put the forks (G) below the ma-
chine.
Should you use a crane (E) or a
similar hoisting equipment, proceed
as follows:
- prepare four lifting ropes (H) of
sufficient lifting capacity or steel
ropes joint circles at least 4 m long
- fix the ropes to the hook of the
crane with the required capacity
- place the other end of the ropes on
the lifting rods according to figure
(rods are not part of delivery)
- use rope underlays and spreaders
not to damage the machine
- after lifting the machine slightly
check the stability of the machine
hanging on the ropes, eventually
change underlays and spreaders
placing under ropes
- lift the machine carefully and slowly
and then move it without rapid mov-
ing to chosen place.
The weight of FSN 550 A is 410 kg.

ROJEK a.s. 17 FSN 550A
6. Positioning the machine
Remove the protective coating from the working tables and other parts of the machine either
with paraffin oil or any similar solvent, do not use petrol or similar solvents for this acti-vity –
they might cause reduced corrosion resistance of certain parts of the machine.
The working area size depends on the type of the machine, assumed working operations
and size of material machined.
Do not forget about the space for location of a sufficiently effective exhausting system or
connecting hoses for the central exhaustion.
6.1 Working area
It is important to maintain free area
of 0.8 m around the machine, which is
required for the working place.
If any long material is machined, it is
necessary to have a sufficient room in
front of the machine as well behind it in
the places of material input and output.
6.2 Levelling and fixing the machine
In the lower part of the stand the machine
is equipped with legs with levelling bolts
and holes for anchoring bolts. Use steel
washers under the levelling bolts (includ-
ed in the delivery) and level the machine
horizontally with tolerance of 1mm/1000
mm and screw into the floor (anchor).
The attached drawing shows the location
of the anchoring holes on the machine.

ROJEK a.s. 18 FSN 550A
6.3 Instalation of demountable parts

ROJEK a.s. 19 FSN 550A
- Mount the supporting frame (2) into the side slot of sliding table (1) and fix the frame with
arresting screws against shifting; the frame must be shored up with supporting arm (7),
fastened on holder (8).
- Mount the sliding crossruler (4) onto the frame (2); mount the fixture (6) into upper slot (1)
of sliding table
- alternatively you can place the supporting table (3) with angular ruler (5) and fixture (6) into
the side slot of sliding table (1)
- It is possible to fix the frame roll (9) onto the supporting frame (9) end.
- Mount the profiling case (11) with rulers (13) and profiling down pressers (12) onto the
moulder table (10); Profiling down pressers are fixed by a pole with screws.
- The tennoning case (14) is fixed to table by hand screws. The tennoning case is used for
tennoning (machining across the wood fibres).
- It is possible to fix an aid (15) (for tennoning short pieces) into the upper slot (1) of sliding
table.
- Shifting device (18) is fixed to moulder table (10) by screws.
- The frontal (16) and rear (17) table prolongation is fixed by screws to moulder table.
Forcing-off screws with arresting nuts, are placed close to fixing screws for an easier pro
longation leveling with table plain.
- All machine parts must be mounted, set up and leveled very accurately. The machining
quality and precision are decisively influenced herewith. We recommend to order it at a
specialized company.
7. Connecting of exhaustion system
An exhaustion equipment of sufficient capacity for the proper machine functioning- see table.
Machine only with the exhaustion system running !
Start machining~exhausting always at the same time !
Minimum exhaustion capacity :
exhaustion soc-
ket diameter
Ø [mm]
dry particles
v
min.
= 20m/s
[m
3
/hod]
wet particles
v
min.
= 28m/s
[m
3
/hod]
lower exhaustion 80 545 760
upper exhaustion
- profiling case
- tenoning case
120
120
815
815
1 140
1 140
in all
- lower + profiling
- lower+tenoning
80 + 120
80 + 120
1 360
1 360
1 900
1 900
Use a flexible exhausting hose of adequate diameter. The lower exhaustion is lead out in the
rear machine section.
Wood waste should be liquidated in an environment-friendly manner so that the envi-
ronment does not become deteriorated.

ROJEK a.s. 20 FSN 550A
8. Connecting to the mains
The first connection of the machine to the mains may
only be realized by an electrotechnically qualified per-
son, knowing standard norms.
8.1 Connecting to the mains
8.1.1 Connecting the machine - up to 3 kW
(installed power output up to 3 kW inclusive)
For the power supply a four-wire cable with plug CEE 16 amperes and socket CEE 16 am-
peres is used. The socket from which the machine is supplied with power must be grounded
(or connected to the neutral wire) in compliance with regulations, protected by at least 16 A
cut-out fuse or circuit breaker L.
8.1.2 Connecting the machine - above 3 kW
(installed power output above 3 kW)
Before you start to connect the machine, make sure that the lead is not under voltage.
Unscrew the cover of terminal board (A), push the connecting cable through to the box with
the terminal board and connect individual phase conductors with the corresponding termi-
nals. Connect the protective conductor (yellow-green) to PE terminal and connect the central
conductor (light blue) to terminal A, if it is required. Cross-sections of the phase conductors
and of the protective wire must be in compliance with the standards prescribed.
Check that the connection is correct and screw the terminal board cover back.
