OWNER’S

MANUAL

Organ/Strings

RS-09

•

RS-09

is

a

keyboard

mechanism

that

produces

the

sound

of

the

strings

as

well

as

the

rich

sound

of

the

organ.

Equipped

with

a

2-channel

output

and

an

ensemble

capacity,

you

can

create

a

deep

and

wide

range

sound

with

a

stereo

or

PA

system.

And

with

the

external

input

jack,

you

can

add

the

ensemble

effect

to

the

sounds

of

various

electronic

and

electric

instruments,

in

connecting

RS-09

to

other

synthesizers

(SH-1),

you

can

get

a

simi¬

lar

effect

to

a

polyphonic

synthesizer.

FUNCTIONS

OF

THE

COMPONENTS

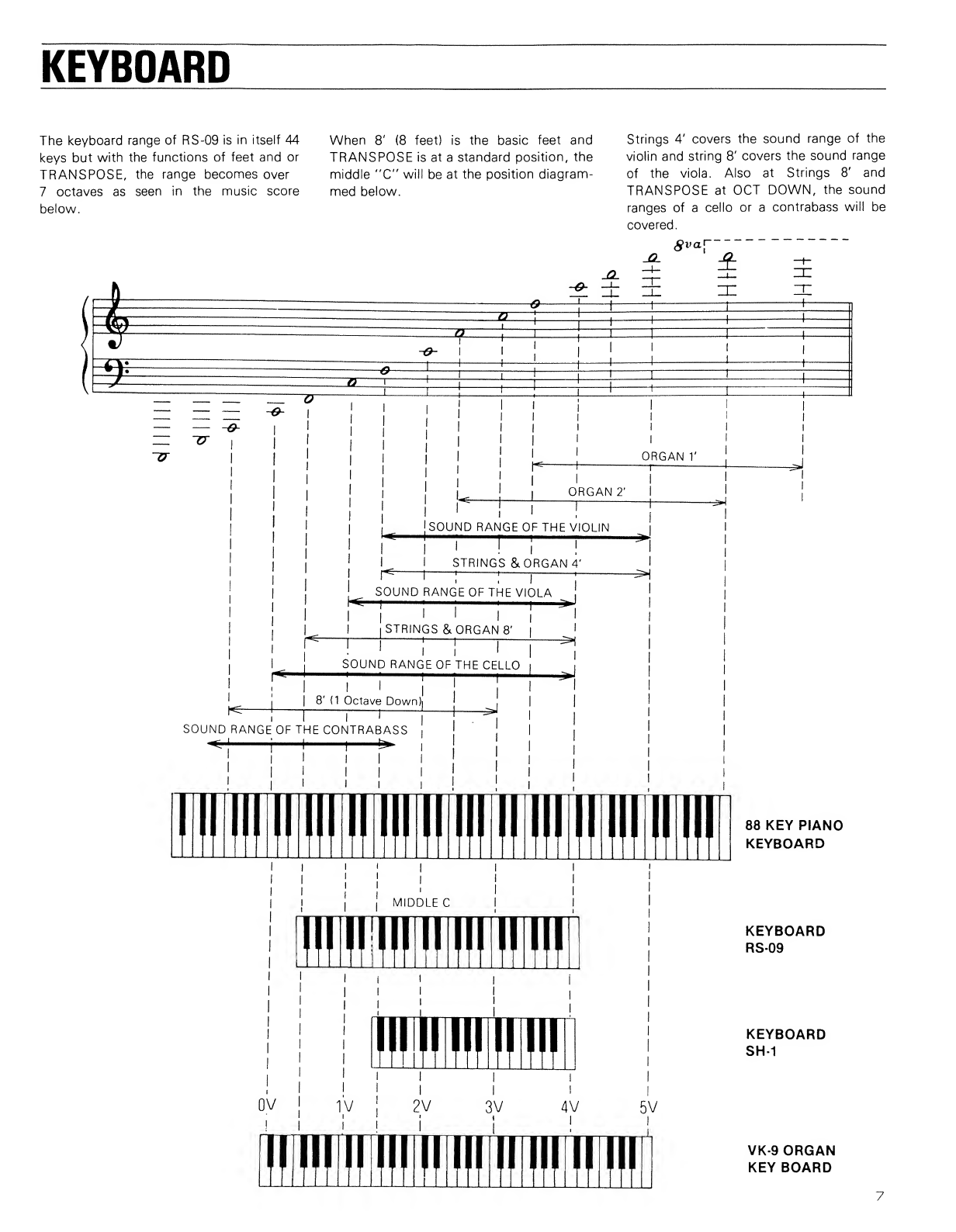

KEYBOARD

RS-09

is

in

itself

a

44-key,

3

1/2

octave

synthesizer.

However

with

feet

and

TRANSPOSE,

in

effect

the

sound

range

is

over

7

octaves

as

seen

in

the

score

(P.7)

(The

possible

simultaneous

sound

range

is

over

6

oc¬

taves.)

[H

POWER

(Power

Switch)

Switching

on

the

power

will

light

up

the

pilot

lamp

above

the

switch

and

RS-09

is

ready

for

operation.

53

VOLUME

(Master

Volume)

This

knob

determines

the

volume.

[3]

TONE

(Tone

Control)

This

slider

adjusts

the

tone

quality.

The

further

you

slide

it

upward,

the

more

em¬

phasis

is

put

on

the

higher

sound

range.

Make

adjustments

according

to

your

taste

and

to

the

kind

of

amplifier

used.

(4)

VIBRATO

RATE

This

slider

controls

the

speed

of

the

vibrato.

The

further

you

slide

it

upward

the

faster

it

becomes.

DEPTH

This

slider

controls

the

depth

of

the

vibrato.

The

further

you

slide

it

upward,

the

deeper

it

becomes.

DELAY

TIME

This

slider

determines

the

time

from

when

a

key

is

pressed

to

the

start

of

a

vibrato.

The

further

you

slide

it

upward,

the

longer

the

time.

This

is

effective

when

you

only

want

the

vibrato

effect

on

a

note

you

want

to

hold

for

a

long

time.

Slide

it

down

completely

when

you

want

the

vibrato

all

the

time.

[5]

TRANSPOSE

This

switch

lowers

the

sound

range

of

the

keyboard

by

one

octave.

Switching

it

to

DOWN

OCT

makes

8'

to

16',

4'

to

8'

and

2'

to

4'.

[6]

THE

ORGAN

SECTION

FEET

MIXING

VOLUME

This

volume

mixes

the

output

of

8',

4',

2',

and

V

at

a

desired

proportion

to

create

all

kinds

of

tone

colors.

4'

is

an

interval

one

octave

above

8',

2'

is

two

octaves

above

and

1'

is

an

interval

three

octaves

above.

TABLET

This

tablet

turns

on

or

off

the

organ

sound.

"ORGAN

RAW

OUT

on

the

rear

panel

with

on

relation

to

the

tablet

switch

generates

as

an

output,

sound

mixed

by

the

Feet

Mixing

Volume.

TONEIOrgan

Tone

Switch)

This

switches

the

tone

color

of

the

organ.

I

.

s

oft

tone

color

II

.

b

r

i

gh

t

tone

color

ENSEMBLE(Ensemble

Switch)

This

switch

turns

on

or

off

the

ensemble

effect.

m

STRINGS

(Strings

Section)

STRINGS

8’,

4’

Tablet

With

this

tablet

you

turn

on

or

off

the

strings'

sound.

There

are

8'

and

4'

for

strings.

4'

is

an

interval

one

octave

above

8',

ENSEMBLE

(Ensemble

Switch)

This

switch

turns

on

or

off

the

ensemble

switch.

2

STRINGS

ATTACK

(Attack

Time)

This

slider

controls

how

the

sound

is

pro¬

duced

from

the

minute

a

key

is

pressed.

The

further

you

move

it

upward

the

greater

the

decrease

in

speed

of

the

attack

time.

*The

function

of

ATTACK

does

not

occur

unless

the

key

is

replayed.

Therefore

for

legato

performance,

the

first

note

is

the

only

note

where

ATTACK

has

any

in¬

fluence

on.

ES

ENVELOPE

RELEASE

(Release

Time)

This

slider

adjusts

the

time

it

takes

for

a

sound

to

fade

out

after

a

key

is

released.

The

further

you

slide

it

upward,

the

longer

the

release

time.

MODE

(Release

Mode)

I

.

W

h

e

n

a

new

key

is

played,

a

sound

is

produced

after

the

sound

of

the

key

previously

pressed

fades

out

completely.

II

.

T

h

e

release

note

will

remain

until

the

established

time

is

up.

The

re¬

playing

of

a

key

does

not

affect

this

function.

m

ENSEMBLE

(Ensemble

Mode)

This

switches

the

ensemble

effect

between:

I

.

D

y

n

a

m

i

c

organization

with

a

rich

ensemble

effect.

II

.

N

a

t

u

r

al

ensemble

effect.

m

TUNING

This

knob

controls

the

pitch

of

RS-09.

It

works

simultaneously

for

both

the

organ

section

and

the

strings

section

and

the

varia¬

tion

range

is

over

high-low,

25

cent.

The

center

of

the

knob

is

tuned

to

A

(442

Hz}.

Use

this

level

when

tuning

to

other

instruments.

«BEFORE

STARTING*

•Power

supply

indicated

on

the

name

plate

must

be

used.

In

case

that

the

power

sup¬

ply

in

your

district

is

different

from

it,

it

must

be

adjusted,

using

the

voltage

regulator.

•Because

it

is

operated

by

AC

power,this

instrument

may

sometimes

generates

little

heat.

This,

however

is

not

a

sign

of

machine

failure.

«NOTES»

•Keep

away

from

interferences

that

induce

high

levels

of

noise.

Such

as

flourescent

lamps,

neon

lights

and

transformers

as

much

as

possible.

•Avoid

the

use

of

this

instrument

in

places

that

are

dusty,

of

high

temperature

or

high

humidity.

•Clean

the

control

pane!

with

neutral

deter¬

gent.

Use

a

soft,

dry

cloth

for

the

wooden

parts.

Do

not

use

Solvents

such

as

paint

thinner.

3

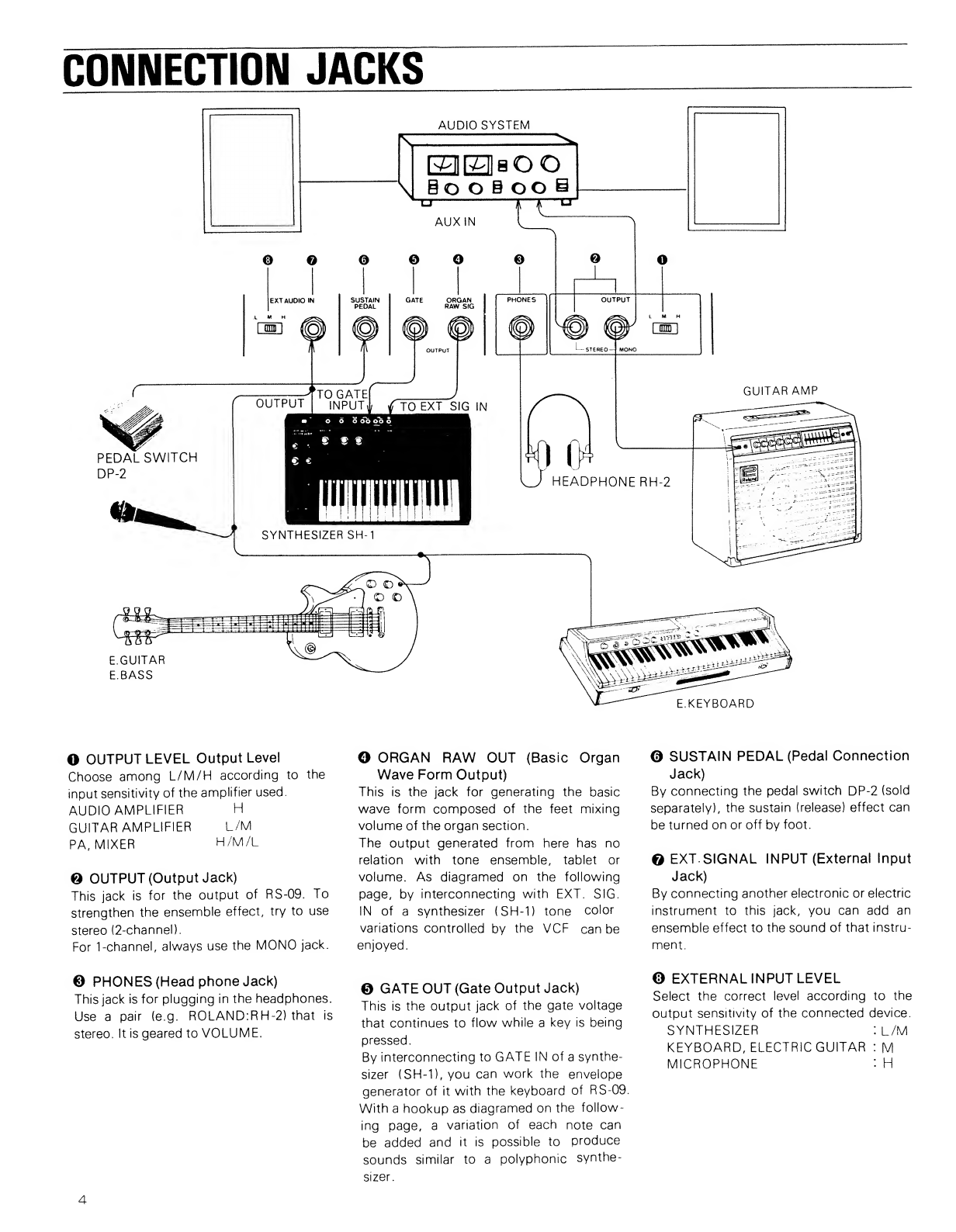

CONNECTION

JACKS

AUDIO

SYSTEM

\

FIRTbOO

lo

O

§

OO

B

l_-T—T

C

T*

AUX

IN

A

GUITAR

AMP

E.KEYBOARD

O

OUTPUT

LEVEL

Output

Level

Choose

among

L/M/H

according

to

the

input

sensitivity

of

the

amplifier

used.

AUDIO

AMPLIFIER

H

GUITAR

AMPLIFIER

L/M

PA,

MIXER

H/M/L

0

OUTPUT

(Output

Jack)

This

jack

is

for

the

output

of

RS-09.

To

strengthen

the

ensemble

effect,

try

to

use

stereo

(2-channel).

For

1-channel,

always

use

the

MONO

jack.

©

PHONES

(Head

phone

Jack)

This

jack

is

for

plugging

in

the

headphones.

Use

a

pair

(e.g.

ROLAND:RH-2)

that

is

stereo.

It

is

geared

to

VOLUME.

O

ORGAN

RAW

OUT

(Basic

Organ

Wave

Form

Output)

This

is

the

jack

for

generating

the

basic

wave

form

composed

of

the

feet

mixing

volume

of

the

organ

section.

The

output

generated

from

here

has

no

relation

with

tone

ensemble,

tablet

or

volume.

As

diagramed

on

the

following

page,

by

interconnecting

with

EXT.

SIG.

IN

of

a

synthesizer

(SH-1)

tone

color

variations

controlled

by

the

VCF

can

be

enjoyed.

©

GATE

OUT

(Gate

Output

Jack)

This

is

the

output

jack

of

the

gate

voltage

that

continues

to

flow

while

a

key

is

being

pressed.

By

interconnecting

to

GATE

IN

of

a

synthe¬

sizer

(SH-1),

you

can

work

the

envelope

generator

of

it

with

the

keyboard

of

RS-09

With

a

hookup

as

diagramed

on

the

follow¬

ing

page,

a

variation

of

each

note

can

be

added

and

it

is

possible

to

produce

sounds

similar

to

a

polyphonic

synthe¬

sizer.

©

SUSTAIN

PEDAL

(Pedal

Connection

Jack)

By

connecting

the

pedal

switch

DP-2

(sold

separately),

the

sustain

(release)

effect

can

be

turned

on

or

off

by

foot.

0

EXT.SIGNAL

INPUT

(External

Input

Jack)

By

connecting

another

electronic

or

electric

instrument

to

this

jack,

you

can

add

an

ensemble

effect

to

the

sound

of

that

instru¬

ment.

©

EXTERNAL

INPUT

LEVEL

Select

the

correct

level

according

to

the

output

sensitivity

of

the

connected

device.

SYNTHESIZER

:

L/M

KEYBOARD,

ELECTRIC

GUITAR

:M

MICROPHONE

:

H

4

RS-09+SH-1

(VCR

MIXER

JL.

JtL

STEREO

AMP

PA

SYSTEM

(RS-09)

<SH-1

)

ORGAN

RAW

OUT-EXT

AUDIO

IN

GATE

OUTPUT

—GATE

INPUT

EXT

AUDIO

IN

—OUTPUT

(LEVEL

M)

sensitivity

of

RS-09

to

"M"

and

the

master

volume

of

SH-1

to

a

level

where

the

sound

will

not

be

distorted.

By

processing

the

basic

organ

waveform

of

RS-09

with

the

VCF

of

SH-1,

it

is

pos¬

sible

to

create

a

sound

like

that

of

a

poly¬

phonic

synthesizer.

•SETUP

EXAMPLES

rs

09

SH-1

ffl

'off

i

TO*

CMSCMBlf

6

0

w

5

01

r

•

i

10

5

2.5

1.25

This

setup

is

in

correspondence

with

the

ratio

of

the

harmonic

content

and

a

sound

close

to

that

of

a

saw

tooth

wave

is

generated.

1

mrjiJiJTnjnjn

2

n_Jun_rL_r

1/4

Raising

RESONANCE

will

produce

the

"wah

wah"

tone

color

that

is

characteristic

of

a

synthesizer.

★

The

Determining

Factors

of

Tone

Color

relieves

on

the

setups

of

the

following:

•The

feet

mixer

of

the

Organ

Section

•The

VCR

Cutoff

Frequency

•VCF

Resonance

•VCF

ENV

8

1

♦

ORGAN

RAW

OUT

VARIATIONS

1.

Controlling

the

VCF

of

SH-1

WITH

A

MODULATOR.

You

can

use

the

LFO

to

produce

a

continuous

"wah

wah"

effect

or

pro¬

duce

a

Sample

&

Hold

sound

with

RANDOM.

2.

The

addition

of

the

original

RS-09

sound

to

the

processed

sound

of

SH-1.

a)

Strings

of

BRASS

+

SLOW

AT¬

TACK

This

is

processing

a

brass

sound

with

SH-1

and

adding

SLOW

AT¬

TACK

STRINGS

of

RS-09

to

it.

b)

STRINGS

+

PERCUSSION

Select

either

2'

with

the

feet

mixer

and

process

it

to

a

percussion

sound

with

an

ENV

of

form,

using

the

VCF

of

SH-1.

Add

the

STRINGS

of

RS-09

to

that.

5

SAMPLE

SOUNDS

Strings

4'

is

similar

in

sound

range

to

the

violin.

It

is

effective

to

get

the

attack

ef¬

fect

of

a

string

with

the

Strings

Attack

of

the

envelope.

[1]

THE

STRINGS

POWER

□

VOLUME

TONE

I

VIBRATO

TRANS

POSE

ORGAN

;

|

STRINGS

|

f

ENVELOPE

ENSEMBLE

MOOE

TUNING

<Q>

—

-

oei

T%4

_f

°-T

TE

OEP

0

—f

■

N_f

'

■

N

_

J

V

W

OFF

TONt

ENSfMBU

9Q

ENSEMBLE

—

o

-

ON

^

.

*

°-4

ACK

RtLt

A

St

MOOt

y

f21

THE

ORGAN

SOUND

The

combination

of

the

volume

of

feet

1

mixing

can

create

various

organ

sounds.

The

lengthening

of

release

time

is

also

effective.

VOLUME

TONE

|

VIBRATO

TRANS¬

POSE

ORGAN

IT

i

STRINGS

]

J

ENVELOPE

ENSEMBLE

MOOE

TUNING

o

—

—

_

r

Tt

Ot

—

8

W

'

IK

_

a

■

[

ON

|

TONC

ENSEMBi

f

8

8

OFF

off;

3

o

-

ftCK

RElE

*—II

A

St

MOOt

f;6

a

[3]

THE

SOUND

OF

A

COMBINATION

The

combination

of

strings

4',

organ

8',

4'

can

create

an

extremely

rich

sound.

POWER

□

[41

SUSTAIN

ORGAN

By

setting

the

Organ

Section

to

4'

and

V

1

'

and

RELEASE

at

"10",

you

will

be

able

to

produce

a

tone

color

with

a

strong

sustain-

effect

much

like

that

of

a

vibraphone.

POWER

□

[51

ORCHESTRA

SOUND

In

adjusting

the

tone

of

the

amplifier

by

^

lowering

TREBLE

to

minimum

and

raising

BASS

to

maximum,

the

tone

color

will

be

made

even

milder.

POWER

□

6

KEYBOARD

The

keyboard

range

of

RS-09

is

in

itself

44

keys

but

with

the

functions

of

feet

and

or

TRANSPOSE,

the

range

becomes

over

7

octaves

as

seen

in

the

music

score

below.

When

8'

(8

feet}

is

the

basic

feet

and

TRANSPOSE

is

at

a

standard

position,

the

middle

"C"

will

be

at

the

position

diagram¬

med

below.

Strings

4'

covers

the

sound

range

of

the

violin

and

string

8'

covers

the

sound

range

of

the

viola.

Also

at

Strings

8'

and

TRANSPOSE

at

OCT

DOWN,

the

sound

ranges

of

a

cello

or

a

contrabass

will

be

covered.

ov

I

j

1

j

MIDDLE

C

I

I

I

I

I

I

I

I

I

i

IV

2

V

3V

4V

I

V

88

KEY

PIANO

KEYBOARD

KEYBOARD

RS09

KEYBOARD

SH-1

VK-9

ORGAN

KEY

BOARD

7

BLOCK

DIAGRAM/SPECIFICATIONS

KEYBOARD

(44

keys,

3

1/2

octaves)

:1

STRINGS

SECTION

Tablet

(8',

4')

'2

Ensemble

Switch

(ON,

OFF)

:1

Attack

Time

*1

ORGAN

SECTION

Feet

Mixing

Volume

:4

(8',

4',

2',

V)

Tablet

(NO,

OFF)

:1

Tone

Switch

(I,

II)

:1

Ensemble

Switch

(ON,

OFF)

:1

ENVELOPE

CONTROL

Release

Time

:1

Release

Mode

Switch

(I,

II)

:1

VIBRATO

CONTROL

Rate

:1

Depth

:

1

Delay

Time

:1

ENSEMBLE

MODE

SWITCH

(I,

II)

:1

TONE

CONTROL

:1

TUNING

(

+

25

cent)

:1

TRANSPOSE

(DOWN

OCT)

:

1

VOLUME

:1

POWER

SWITCH

(with

a

pilot

lamp):1

REAR

PANEL

Output

Jack

:2

Output

Level

Selector

:1

(L

=

—

30dBm/

=

—

15dBm/H

=

0dBm)

Headphone

Jack

(8fi:

Stereo)

:1

Organ

Direct

Output

Jack

:1

(max.

0.5

Vp-p)

Gate

Voltage

Output

Jack

:1

(OFF:OV/ON:

+

14V)

Sustain

Pedal

Jack

:1

External

Signal

Input

Jack

:1

External

Signal

Input

Level

:1

(L

=

0dBm/M

=

-20dB/H=

-40dBm)

Power

Consumption

15

W

Dimensions

676(W)

x

306(

D)

X

102(H

)mm

Net

Weight

7.3kg

Accessories

(2.5m

connection

cord)

:2

RS-09

OWNER'S

MANUAL

Printed

in

JAPAN

SEPT.

79'

B-3

Roland

Corporation

jjBRojancT

10219

UPC

10219

Roland

Corporation
