Rollei RCP-7325XS User manual

EN-1
FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
Note:
This equipment has been tested and found to comply with the limits for Class B
digital devices, pursuant to Part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
JReorient or relocate the receiving antenna
JIncrease the separation between the equipment and receiver
JConnect the equipment into an outlet on a circuit different from that to
which the receiver is connected
JConsult the dealer or an experienced radio/TV technician for help
Use of shielded cable is required to comply with Class B limits in Subpart B of Part 15
of the FCC rules. Do not make any changes or modifications to the equipment unless
otherwise specified in the manual. If such changes or modifications should be made,
you could be required to stop operation of the equipment.

EN-2
TRADEMARK INFORMATION
JMicrosoft®and Windows®are U.S. registered trademarks of Microsoft Corporation.
JPentium®is a registered trademark of Intel Corporation.
JMacintosh is a trademark of Apple Computer, Inc.
JSDTM is a trademark.
JOther names and products may be trademarks or registered trademarks of their
respective owners.
READ THIS FIRST
Notice:
1. Product design and specifications are subject to change without notice. This
includes primary product specifications, software, software drivers, and user’s
manual. This User Manual is a general reference guide for the product.
2. The product and accessories that come with your camera may be different from
those described in this manual. This is due to the fact that different retailers often
specify slightly different product inclusions and accessories to suit their market
requirements, customer demographics, and geographical preferences. Products
very often vary between retailers especially with accessories such as batteries,
chargers, AC adapters, memory cards, cables, pouches, and language support.
Occasionally a retailer will specify a unique product color, appearance, and
internal memory capacity. Contact your dealer for precise product definition and
included accessories.
3. The illustrations in this manual are for the purpose of explanation and may differ
from the actual design of your camera.
4. The manufacturer assumes no liability for any errors or discrepancies in this user
manual.

EN-3
Safety Instructions
Read and understand all Warnings and Cautions before using this product.
WARNING
If foreign objects or water have entered the camera, turn the power OFF
and remove the battery and the AC power adapter.
Continued use in this state might cause fire or electric shock. Consult the
store of purchase.
If the camera has fallen or its case has been damaged, turn the power
OFF and remove the battery and the AC power adapter.
Continued use in this state might cause fire or electric shock. Consult the
store of purchase.
Do not disassemble, change or repair the camera.
This might cause fire or electric shock. For repair or internal inspection, ask
the store of purchase.
Use the specified AC power adapter only with the indicated power
supply voltage.
Use with any other power supply voltage might cause fire or electric shock.
Do not use the camera in areas near water.
This might cause fire or electric shock. Take special care during rain, snow,
on the beach, or near the shore.
Do not place the camera on inclined or unstable surfaces.
This might cause the camera to fall or tilt over, causing injury.
Keep the battery out of the reach of children.
Swallowing battery might cause poisoning. If the battery is accidentally
swallowed, immediately consult a physician.
Do not use the camera while you are walking, driving or riding a vehicle.
This might cause you to fall over or result in traffic accident.
During the course of a thunderstorm, please do not operate the camera or
use its AC adaptor.
Do not expose the camera to dripping or splashing water.
This might cause fire or electric shock.
Do not expose the battery to excessive heat such as sunshine, fire, etc.
This might cause fire or electric shock.
The socket-outlet has to be installed near the equipment and must be
easily accessible.

EN-4
CAUTION
Insert the battery paying careful attention to the polarity (+ or –) of the
terminals.
Inserting the battery with its polarities inverted might cause fire and injury, or
damage to the surrounding areas due to the battery rupturing or leaking.
Do not fire the flash close to anyone’s eyes.
This might cause damage to the person’s eyesight.
Do not subject the LCD monitor to impact.
This might damage the glass on the screen or cause the internal fluid to leak.
If the internal fluid enters your eyes or comes into contact with your body or
clothes, rinse with fresh water. If the internal fluid has entered your eyes,
consult a physician to receive treatment.
A camera is a precision instrument. Do not drop it, strike it or use excessive
force when handling the camera.
This might cause damage to the camera.
Do not use the camera in humid, steamy, smoky, or dusty places.
This might cause fire or electric shock.
Do not remove the battery immediately after long period of continuous use.
The battery becomes hot during use. Touching a hot battery might cause
burns.
Do not wrap the camera or place it in cloth or blankets.
This might cause heat to build up and deform the case, resulting in fire. Use
the camera in a well-ventilated place.
Do not leave the camera in places where the temperature may rise
significantly, such as inside a car.
This might adversely affect the case or the parts inside, resulting in fire.
Before you move the camera, disconnect cords and cables.
Failure to do this might damage cords and cables, resulting in fire and electric
shock.

EN-5
Notes on Battery Usage
When you use the battery, carefully read and strictly observe the Safety Instructions
and the notes described below:
JUse only the specified battery (3.7V).
JAvoid using the battery in extremely cold environments as low temperatures can
shorten the battery life and reduce camera performance.
JWhen you are using the new rechargeable battery or rechargeable battery that
has not been used for an extended period of time (the battery that passed the
expiry date is an exception) might affect the number of images that can be
captured. Therefore, to maximize its performance and lifetime, we recommend
that you fully charge the battery and discharge it for at least one complete cycle
before use.
JThe battery may feel warm after long period of continuous use of the camera or
the flash. This is normal and not a malfunction.
JThe camera may feel warm after long period of continuous use. This is normal and
not a malfunction.
JIf the battery is not to be used for a long period of time, remove it from the camera
to prevent leakage or corrosion.
JIf the battery is not to be used for a long period of time, store it after no battery
power left. If the battery is stored for a long time in a fully charged state, its
performance may be impaired.
JAlways keep the battery terminals in a clean state.
JRisk of explosion if battery is replaced by an incorrect type.
JDispose of used batteries according to the recycle instructions.
JWe recommend the battery should be charged 8 hours as first time use.
Lithium-ion battery specifications
Nominal Voltage: 3.7V
Capacity: Minimal 650mAh
Dimension: 39.5x31.35x5.85mm
Weight: Approx. 15.5g

EN-6
CONTENTS
7 INTRODUCTION
7 Overview
8 Package Contents
9 GETTING TO KNOW
THECAMERA
9 Front View
10 Rear View
12 LCD Monitor Icons
14 GETTING STARTED
14 Attaching the Camera Strap
14 Inserting and Removing the
Battery
15 Charging the Battery
16 Inserting and Removing the
SD Memory Card
17 Setting the Date and Time
18 Formatting the SD Memory Card
or Internal Memory
19 Setting Image Resolution and
Quality
21 PHOTOGRAPHY MODE
21 [ ] Capture Mode
22 Recording Voice Memos
23 Using the Digital Zoom
24 Setting the Flash
25 Setting the Focus
26 Setting the Self-timer
27 Exposure Compensation/
Backlight Correction
28 Setting the Scene Mode
30 Setting the Panorama Mode
31 Recording a Subject onto an
Existing Background Image
(Pre-Shot)
32 Combining Shots of Two
People into a Single Image
(Coupling Shot)”
33 [ ] Video Mode
34 [ ] PLAYBACK MODE
34 Playing Back Still Images
35 Playing Back Video Clips
35 Playing Back Still Images/
Video Clips on a TV
36 Attaching Voice Memos
36 Slideshow Display
37 Zoom Playback
38 Protecting Images
40 DPOF Settings
42 Resizing an Image
43 Changing the Camera Start
Logo Image
44 Erasing Images
46 MENU OPTIONS
46 Capture Menu (Capture)
48 Capture Menu (Function)
50 Video Menu (Capture)
51 Video Menu (Function)
52 Playback Menu
53 Setup Menu (In Photography
Mode)
54 Setup Menu (In Playback
Mode)
55 CONNECTING TO A PICTBRIDGE
COMPLIANT PRINTER
57 TRANSFERRING RECORDED
IMAGES AND VIDEOS TO YOUR
COMPUTER
57 Connecting the Camera to Your
Computer
58 Downloading Images and Video
Files
59 USING THE CAMERA AS A PC
CAMERA
59 Install the PC Camera Driver
6 0 Connect the Camera to Your
Computer
60 Run Your Application Software (i.
e. Windows NetMeeting)
6 1 EDITING SOFTWARE INSTALLATION
61 Installing Photo Explorer
61 Installing Photo Express
62 Installing Cool 360
63 CAMERA SPECIFICATIONS
64 TROUBLESHOOTING

EN-7
INTRODUCTION
Overview
Congratulations on your purchase of the new digital camera.
Capturing high-quality digital images is fast and easy with this state-of-the-art smart
camera. Equipped with a 7.0-megapixel CCD, this camera is capable of capturing
images with a resolution of up to 3072 x 2304 pixels.
Other features provided by the camera include the following:
LCD monitor - 2.5" full color LTPS-TFT LCD (230K pixels) monitor makes
it easy to frame your subject when capturing images. It
also displays the images you have captured.
Recording media - 32 MB internal memory (approx. 27 MB for image storage).
External memory supports SD memory card from 32 MB up
to 2 GB.
Optical zoom - 3x optical lens allows you to capture telephoto and wide-
angle images.
Digital zoom - 4x digital zoom and 3x optical zoom permit zoom photography
of up to 12 times; 4x playback captured images to enlarge
a selected portion of an image.
Voice memo - A voice memo can be recorded once for 30 seconds at
photography mode immediately following a still image
captured or at playback mode while viewing the images.
Thumbnail display - Display in sets of nine images on the LCD monitor for
easier and quicker selection of images.
Scene mode - Simply select the scene mode that suits specific shooting
conditions and subjects. This lets you shoot for the results
you desire without complicated settings.

EN-8
Package Contents
Carefully unpack your camera and ensure that you have the following items.
Common Product Components:
JDigital camera
JUser’s manual
JSoftware CD-ROM
JUSB cable
JAV cable
JCamera strap
JCamera pouch
JAC power adapter
JAdapter converter (for “DC Jack to mini USB cable”)
JRechargeable lithium-ion battery
Common (Optional) Accessories:
JSD memory card

EN-9
GETTING TO KNOW THE CAMERA
Front View
# Name Description
1. Shutter button Focuses and locks the exposure of the camera when pressed
halfway down, and capture the image when pressed all the way down.
2. POWER button Turns the camera power on and off.
3. Self-timer LED Blinks during Self-timer mode until image is captured.
4. Flash Provides flash illumination.
5. Lens 3x optical zoom lens allows you to capture telephoto and wide angle
images.
6. Microphone Records audio clips.
1
6
5
34 2

EN-10

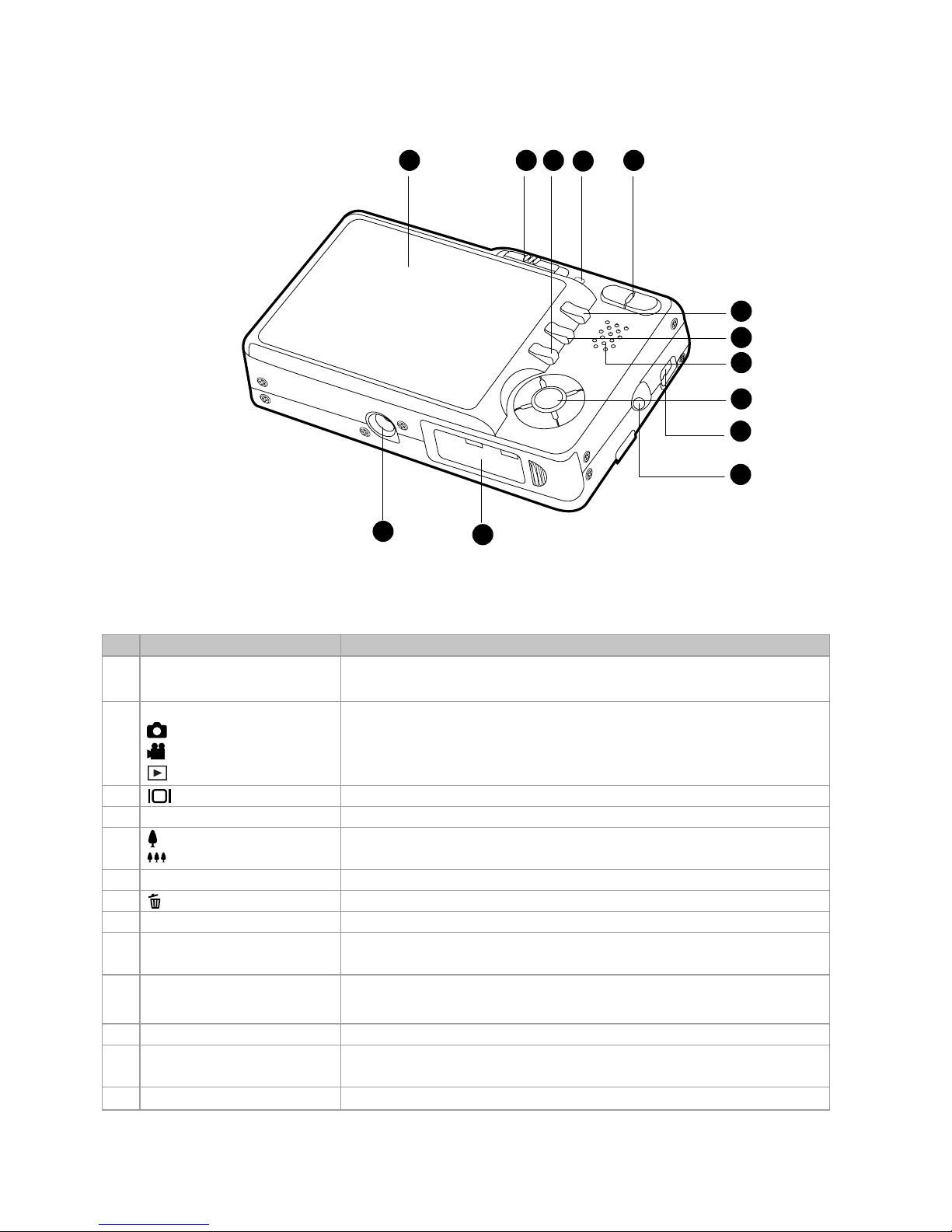

Rear View
# Name Description
1. LCD monitor Provides menu information to operate the camera, and
previews the image before capturing it and review it afterwards.
2.
Mode switch Sets the camera mode.
Capture mode Selects this when capturing still images.
Video mode Selects this when recording video clips.
Playback mode Performs image playback and deletion.
3. Display button Changes the information displayed on the LCD monitor.
4. Status LED Displays the camera current state.
5. Zoom in button Zooms the lens to telephoto position.
Zoom out button Zooms the lens to wide-angle position.
6. MENU button Toggles OSD menu on and off.
7. Erase button Allows you to erase the image.
8. Speaker Produces camera sounds and plays recorded audio.
9. SET /Direction button Allows you to scroll through menus and image, and then
select choices.
10. PC/AV terminal Allows you to connect an AC power adapter (via adapter
converter), a USB cable or an A/V cable to the camera.
11. Strap holder Camera strap attachment.
12. Battery / SD memory Allows access to the battery and insert or remove the
card cover memory card.
13. Tripod socket Allows tripod mounting.
1 2 3 45
6
11
9
8
7
13 12
10

EN-11
SET /Direction button
# Name Description
1. button Scrolls upwards.
Focus button Allows you to choose the appropriate focus setting.
2. button Scrolls right.
Flash button Allows you to choose the appropriate flash setting.
3. button Scrolls downwards.
Self-timer button Allows you to toggle the self-timer on and off, selects the
desired self-timer mode.
4. button Scrolls left.
Exposure Allows you to toggle the exposure compensation /
backlight correction on compensation and off.
/ Backlight correction
button
5. SET button Enters the menu page and confirms the chosen setting.

EN-12

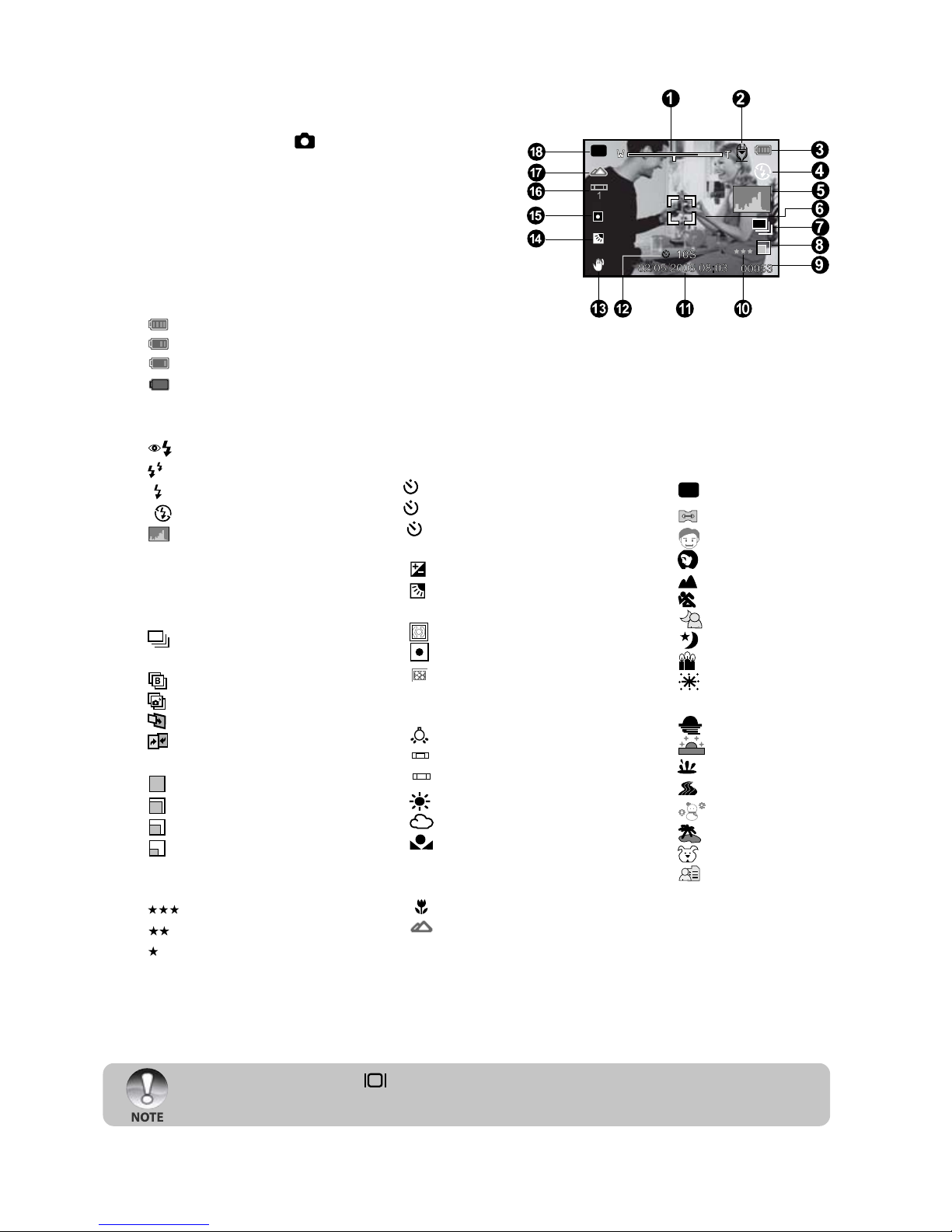

LCD Monitor Icons
Capture mode [ ]
1. Zoom status
2. Voice memo
3. Remaining battery status
[ ] Full battery power
[ ] Medium battery power
[ ] Low battery power
[ ] No battery power
4. Flash mode
[ Blank]Auto Flash
[ ] Red-eye Reduction
[ ] Pre-Flash
[ ] Forced Flash
[ ] Flash Off
5. [ ] Histogram
6. Focus area (When the shutter
button is pressed halfway)
7. Capture mode
[Blank] Single
[ ] Continuous
[ AEB] AEB
[ ] Burst
[ ] Series + flash
[ ] Pre-Shot
[ ] Coupling Shot
8. Image size
[ ] 3072 x 2304
[ ] 2560 x 1920
[ ] 1600 x 1200
[ ] 640 x 480
9. Possible number of shots
10. Quality
[ ] Fine
[ ] Standard
[ ] Economy
11. Date and time
P
12. Self-timer icon
[10s] 10 sec.
[2s ] 2 sec.
[ 10+2s ] 10+2 sec.
13. Unsteady hold warning icon
14. [ ] Exposure compensation
[ ] Backlight correction
15. Metering
[ ] Average
[ ] Spot
[ ] Multi
16. White balance
[Blank] Auto
[ ] Incandescent
[
1
] Fluorescent 1
[
2
] Fluorescent 2
[ ] Day Light
[ ] Cloudy
[ ] Manual
17. Focus mode
[Blank] Auto focus
[ ] Macro
[ ] Infinity
JEach press of the button switches one step in the sequence of OSD full
display, OSD full with Histogram, OSD display off.
18. Scene mode
[
P
] Program AE
[ ] Panorama
[ ] Portrait Man
[ ] Portrait Lady
[ ] Landscape
[ ] Sport
[ ] Night Portrait
[ ] Night Scene
[ ] Candlelight
[ ] Firework
[TEXT ] Text
[ ] Sunset
[ ] Sunrise
[ ] Splash Water
[ ] Flow Water
[ ] Snow
[ ] Beach
[ ] Pets
[ ] User Setting

EN-13
Video mode [ ]
1. [ ] Video mode
2. Zoom status
3. Remaining battery status
4. Image size
5. Possible recording time / elapsed time
6. Quality
7. Recording indicator
8. Self-timer icon
9. Focus icon
Playback mode [ ] -Still image playback
1. Playback mode
2. File number
3. Folder number
4. Protect icon
5. Voice memo
6. DPOF icon
Playback mode [ ]-Video playback
1. Video status bar
2. Elapsed time
3. File number
4. Folder number
5. Protect icon
6. Video mode
7. Playback mode
8. Sound off icon (When the Sbutton is pressed
during video playback.)
9. Total recorded time
07:30
10S
6
1
100-0011
35 46
Total
Play
0:10 0:06
1
2
9
78

EN-14
GETTING STARTED

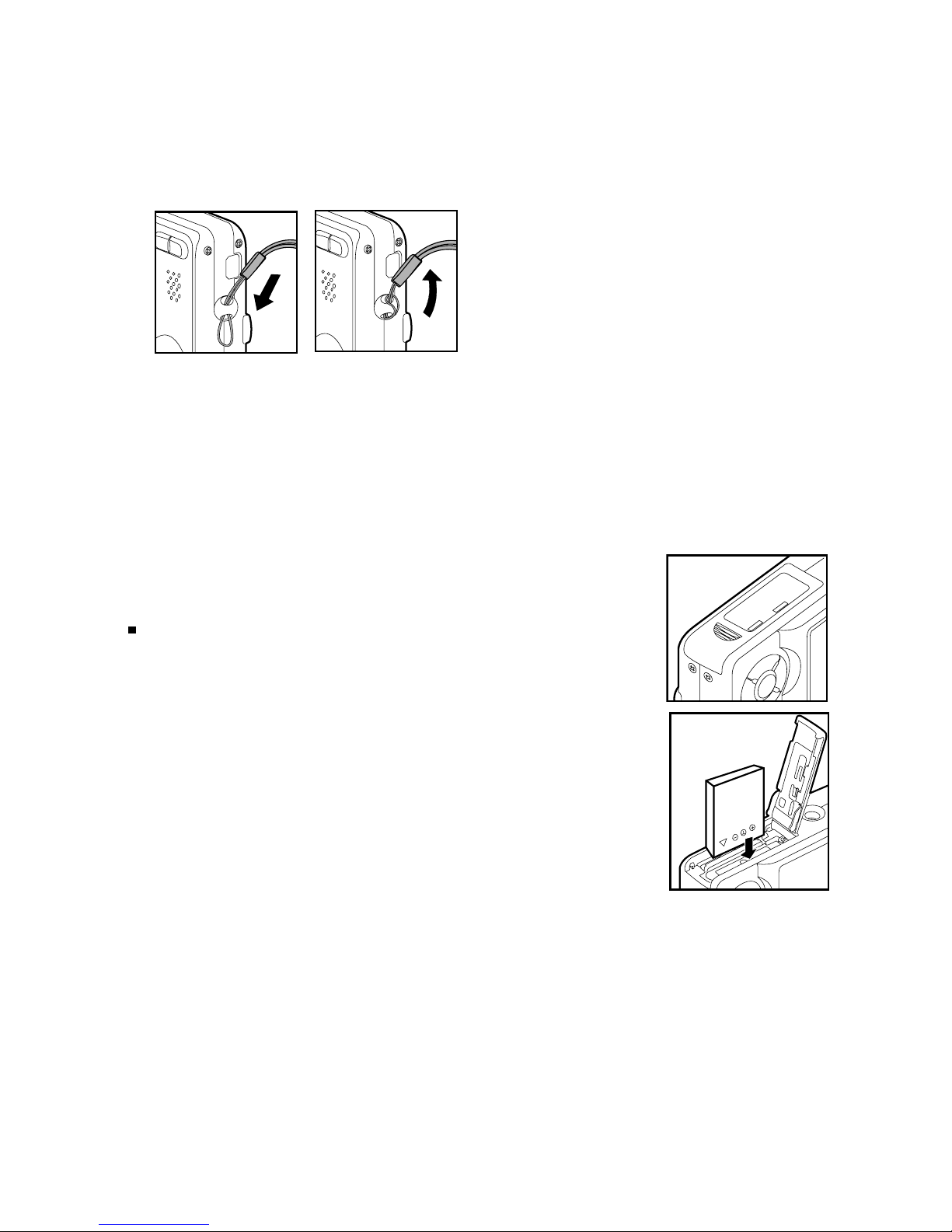

Attaching the Camera Strap
Attach the camera strap as shown in the illustration.
Inserting and Removing the Battery
We highly recommend using specified rechargeable lithium-ion battery (3.7V) to fully
demonstrate this camera’s function. Charge the battery before using the camera.
Make sure that the power of the camera is off before inserting or removing the battery.
Inserting the Battery
1. Open the battery/SD memory card cover.
2. Insert the battery in the correct orientation
shown.
Tilt the battery lock lever in the direction
of the arrow and orient the battery so that
its label is facing to the rear side of the
camera, and then insert the battery.
3. Close the battery/SD memory card cover.
Removing the Battery
Open the battery/SD memory card cover and then
release the battery lock lever. When the battery has
come out a little, slowly pull it out the rest of the way.

EN-15
Charging the Battery
Using the AC power adapter may charge the battery or operate the camera as power
supply. Make sure that the power of the camera is off and then insert the battery
before starting.
1. Connect one end of the adapter converter to the
end of the AC power adapter.
JThe camera need to be power off when
charging the battery.
2. Insert the other end of the adapter converter
to the PC/AV terminal on the camera.
3. Insert the other end of the AC power adapter
into a wall outlet.
JThe status LED lights green when charging
is started and lights off when charging is
completed. The LED lights red when a
charging error has occurred or no battery
is inserted inside the camera.
JIt is recommended to fully discharge the
battery before recharging.
JCharging time varies according to the
ambient temperature and the status of
battery.
1
2
3
JThis camera must be used with specified AC power adapter. Damage caused
by the use of an incorrect adapter is not covered under the warranty.
JAlways make sure that the camera is off before removing the battery.
JThe battery may feel warm after it has been charged or immediately after
being used. This is normal and not a malfunction.
JWhen using the camera in cold conditions, keep the camera and battery
warm by storing it in a warm place such as an interior pocket between shots.
JIf you open the battery cover without removing the battery, the battery
power will not be disconnected.
JIf you remove the battery, you have to insert the battery within 2 hours in
order to make sure that the date and time will not be reset.
JWhen charging the battery, do not place the camera at the high temperature
condition, such as inside the quilt, under sunshine…etc.

EN-16
Inserting and Removing the SD Memory Card
The digital camera comes with 32 MB of internal memory (approx. 27 MB for image
storage), allowing you to store captured still images or video clips in the digital
camera. However, you can also expand the memory capacity by using an SD memory
card so that you can store more files.
Inserting the SD memory card
1. Open the battery/SD memory card cover.
2. Insert the SD memory card in the correct
orientation shown.
JHold the SD memory card with its front
side of the SD memory card (printed arrow)
facing the rear side of the camera, and
then insert the card as far as it can go.
3. Close the battery/SD memory card cover.
Removing the SD memory card
Open the battery/SD memory card cover, press lightly on the edge of the SD memory
card and it will eject.
JTo prevent valuable data from being
accidentally erased from an SD memory
card you can slide the write-protected
tab (on the side of the SD memory card)
to “LOCK”.
JTo save, edit or erase data on an SD
memory card, you must unlock the card.
JBe sure to format an SD memory card with this digital camera before using it.

EN-17
Setting the Date and Time
The date/time needs to be set if/when:
Camera is turned on for the first time.
Camera is turned on after leaving the camera without the battery for an extended
period of time.
When the date and time information is not displayed on the LCD monitor, follow these
steps to set the correct date and time.
1. Slide the mode switch to [ ] or [ ].
2. Press the MENU button and select [Setup] menu
with the button.
3. Select [Date/Time] with the / buttons and
press the SET button.
The Date/Time setting screen will be displayed.
4. Select the item’s field with the / buttons and
adjust the value for the date and time with the 
/ buttons.
The date and time is set in the order year-
month-day-hour-minute.
The time is displayed in 24-hours format.
5. After confirming all settings are correct, press the
SET button.
SET:Adj.
Capture
20 : 00
2006 / 01 / 01
Date/Time
SET:Enter

EN-18
Formatting the SD Memory Card or Internal Memory
This utility formats the internal memory (or memory card) and erases all stored images
and data.
1. Slide the mode switch to [ ].
2. Press the MENU button and select [Setup] menu
with button.
3. Select [Format] with the / buttons, then press
the SET button.
4. Select [Execute] with the / buttons, and
press the SET button.
To cancel formatting, select [Cancel] and press
the SET button.
JTo format the internal memory, do not insert an SD memory card into the
camera. Otherwise, you will format the SD memory card.
JFormatting the SD memory card also erases the protected images. All data
other than images are also erased. Before formatting the card, make sure
that all the images are unnecessary.
JFormatting is an irreversible action and data cannot be recovered at a later
time.
JAn SD memory card having any problem cannot be properly formatted.
Play
SET:Adj.
MENU:Exit
Format
SET:Enter

EN-19
Setting Image Resolution and Quality
Resolution and quality settings determine the pixel size (dimension), image file size,
and compression ratio for your images. These settings affect the number of images
that can be stored. As you get to know the camera, it is recommended that you try
each quality and resolution setting to get an appreciation for the effects that these
settings will have on your images.
Higher resolution and higher quality images offer the best photographic results but
produce large file sizes. Therefore, few images will take up a lot of memory space.
High resolution and quality settings are recommended for printed output and situations
requiring the finest detail. Lower resolution/quality images take up less memory space
and may be quite suitable for sharing images via e-mail, in a report, or on a web page.
To change image resolution or image quality, perform these steps below:
1. Slide the mode switch to [ ] or [ ].
2. Press the MENU button.
J[Capture] menu is displayed.
3. Select [Size] with the / buttons, and
press the SET button.
4. Select the desired setting with the / 
buttons, and press the SET button.
5. Select [Quality] with the / buttons, and
press the SET button.
6. Select the desired setting with the / 
buttons, and press the SET button.
7. To exit from the menu, press the MENU
button.
Capture
SET:Adj.MENU:Exit
[ ] Mode
Capture
SET:Adj.MENU:Exit
[ ] Mode

EN-20
* If your memory card is not high speed write (over 2MB/Sec for random write), it will
cause video clip auto stop or unexpected results. Your camera has to set to QVGA
size and normal quality to prevent this problem if you want to use slow speed
memory card.
Possible recording time / sec (video clip)
320 x 240
Fine
Standard
Fine
Standard
640 x 480
Size
SD memory card capacity
Quality Internal
Memory
Possible number of shots (still image)
The table shows the approximate shots that you can capture at each setting based
on the capacity of the internal memory and the SD memory card.
32MB 64MB 128MB 256MB 512MB
2560 x 1920
Fine
Standard
Economy
Fine
Standard
Economy
Fine
Standard
Economy
Fine
Standard
Economy
3072 x 2304
1600 x 1200
640 x 480
Size
SD memory card capacity
Quality
1GB
Internal
Memory
6
10
14
8
13
18
15
24
34
61
86
111
6
10
15
9
14
19
17
26
36
66
92
118
13
22
31
18
29
40
34
54
75
135
188
242
27
45
63
37
59
81
70
110
151
272
381
489
54
90
126
76
119
163
141
221
304
547
766
984
108
181
254
152
239
326
283
443
610
1098
1536
1973
218
363
509
305
480
654
567
887
1222
2199
3067
3951
64MB
0:29
0:32
1:31
1:44
128MB
0:59
1:06
3:05
3:31
256MB
2:01
2:14
6:13
7:05
512MB
4:04
4:31
12:30
14:15
1GB
8:10
9:05
25:04
28:33
32MB
0:13
0:15
0:44
0:50
0:12
0:14
0:41
0:46
436
727
1019
611
960
1310
1135
1776
2447
4402
6157
7909
2GB
2GB
16:23
18:11
50:12
57:11
