PRODUCT MANUAL
46ST(V.5.0) |46ST FS (V.5.0.F)
50ST(V.2.0) |50ST FS (V.2.0.F)
RON-WPM-710246-46ST/46STFS/50ST/50STFS-Rev.6

EXPLODED VIEW
ITEM. 3
MODEL ST - PART No. 544521
ITEM. 12 - PART No. 775600/775650
ITEM. 17
MODEL STE AD - PART No. 748102
ITEM. 3
MODEL ST FS - PART No. 544530
ITEM. 13 - PART No. 775500
p2
46ST (V.5.0) |46ST FS (V.5.0.F)
50ST (V.2.0) |50ST FS (V.2.0.F)

PARTS LIST
ITEM NO. QTY. DESCRIPTION PART NO.
1 3 Screw 543311
2 1 Self-tailing arm - Model 46ST 734316
2 1 Self-tailing arm - Model 50ST 734411
3 1 Self-tailing top complete - Model ST 544521
3 1 Self-tailing top complete - Model ST FS 544530
3.1 1 Circlip 590300U
3.2 1 Top ring 595010
3.3 4 Screw 585100
3.4 1 Disc - Model ST (544521 only) 71210
4 1 Drum complete 735901
5 1 Drive shaft complete 782801
5.1 1 O-ring RD100302
6 1 Roller bearing complete 727400
7 1 Bushing (not removable) 716503
8 1 Upper base plate with bushings 775400
9 1 Bearing bushing (not removable) 734900
10 1 Bushing RD877000
11 1 Plug for deck plate 783900
12 1 Small ratchet gear complete - Model 46ST 775600
12 1 Small ratchet gear complete - Model 50ST 775650
12.1 2 Bushing 981410
12.2 1 Washer 524300
12.3 2 Pawl 713200
12.4 2 Arm spring 713300
12.5 1 Ratchet gear wheel - Model 46ST 523000
12.5 1 Ratchet gear wheel - Model 50ST 523050
12.6 1 Gear wheel 523802
12.7 1 Shaft for small ratchet gear 980300
13 1 Ratchet gear complete 775500
13.1 2 Bushing 981410
13.2 1 Pawl gear wheel 523903
13.3 2 Arm spring 713300
13.4 2 Pawl 713200
13.5 1 Bushing 525500
13.6 1 Ratchet gear wheel 525300
13.7 1 Shaft for ratchet gear 980410
14 6 Screw DIN912-A4-M6X12
15 3 Screw DIN912-A4-M6X8
16 1 Basecover 735321
17 1 Deck plate for STE Below Deck Motor
and manual operated winch 746801
17 1 Deck plate STE Above Deck Compact Motor 748102
18 3 Pin 713401
19 1 Sealing for aluminium deck (not included) 775800
1 Service kit 19 (not included) 710019
p3
46ST (V.5.0) |46ST FS (V.5.0.F)
50ST (V.2.0) |50ST FS (V.2.0.F)

MOUNTING INSTRUCTIONS

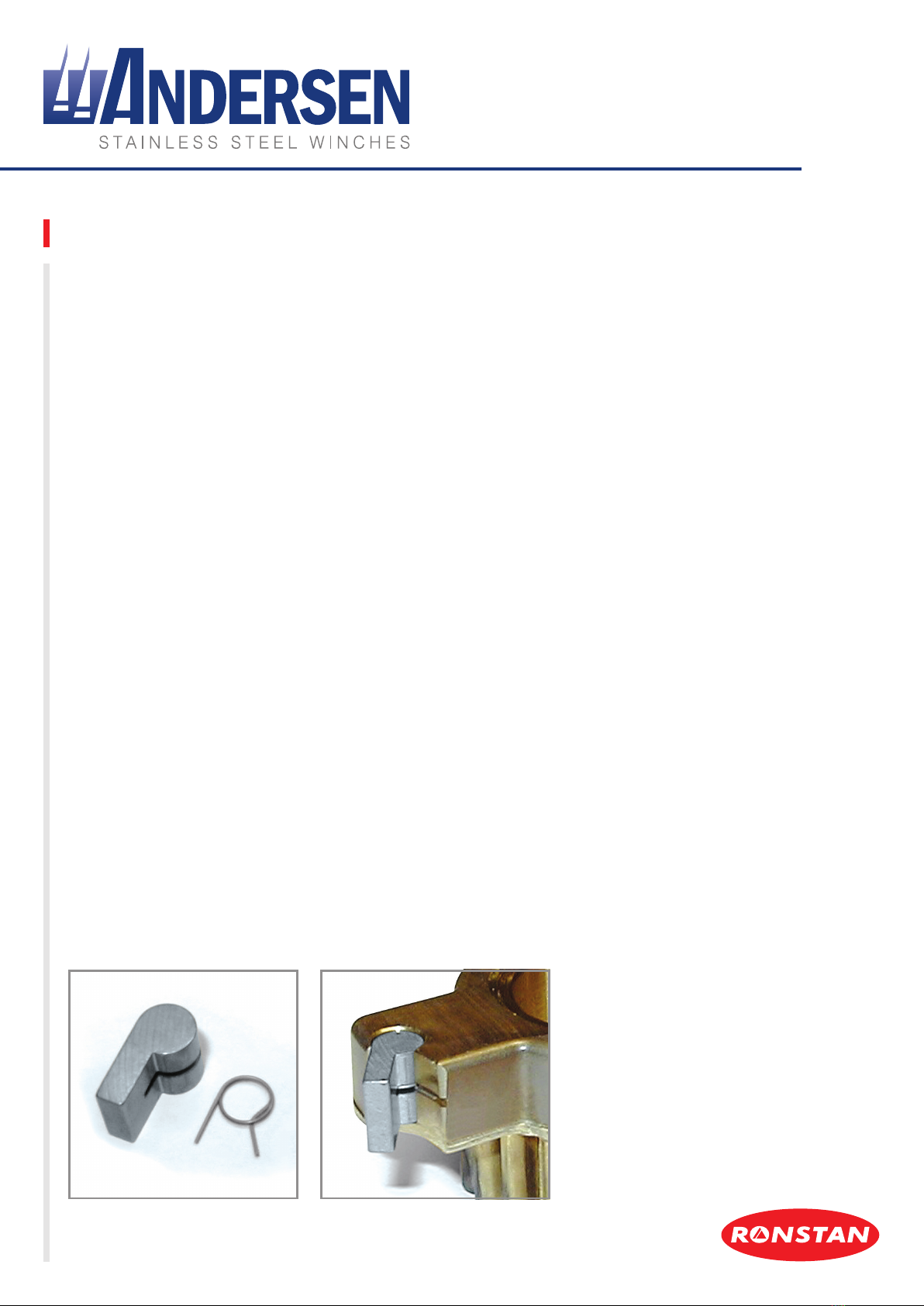

PAWL SPRING MOUNTING
Installing the winch is easy, if you follow these instructions. The numbers in ( ) refer to the
position numbers in the parts list.
Tools required for the installation:
• Allen key (4 mm)
• Allen key (5 mm)
• Allen key (6 mm)
• Ø8.5 mm (11/32”) drill
• Bedding compound
1. Drill bolt holes Ø8,5mm (11/32”) using the winch template.
Be sure that no dust comes in contact with the winch, while drilling.
2. Remove screws (1).
3. Remove self-tailing arm (2) and drum (4).
4. Apply a light coat of bedding compound, ensuring that each bolt hole is bedded.
Keep drain grooves clear.
5. Fasten lower base (19) into place using 5 pcs. M8 (5/16”) bolts.
Use large washers or a backing plate.
6. Assemble in reverse order.
7. Check that the winch is functioning correctly:
- The drum should operate smoothly, when turning the drum clockwise by hand.
- The drum must not turn when trying to turn the drum anti clockwise by hand.
- While turning the winch handle clockwise the drum should turn slowly.
- While turning the winch handle anti clockwise the drum should turn quickly.
Note the curved
spring “arm”
• 5 x M8 (5/16”) screws and corresponding nuts (length
depending on deck thickness)
• 5 x large washers or backing plate
• Ring spanner to match nuts
p4
46ST (V.5.0) |46ST FS (V.5.0.F)
50ST (V.2.0) |50ST FS (V.2.0.F)

SERVICE INSTRUCTIONS
Tools required for service:
• Allen key (4 mm)
• Allen key (5 mm)
• Screwdriver (small)
1. Remove screws (1).
2. Remove self-tailing arm (2) and drum (4).
3. Remove screws (14).
4. Remove upper base (8), and place it in a safe and comfortable place before dismantling it.
5. Removedriveshaft(5)byusingangerorawinchhandle.
6. To release the roller bearing (6), gently insert a small screwdriver between roller bearing
and base plate (8). Remove roller bearing.
7. Remove shafts (12.7, 13.7).
8. Remove and dismantle the two gear units.
9. Clean all parts in white spirits/mineral spirits. Remember to clean the gear teeth,
roller bearing track and bushing inside the drum (4).
10. Assemble in reverse order. During assemble, by the use of a small soft brush lightly grease
all gear teeth, drive shaft, roller bearing, shafts, pawls, springs and bushings. Pawls should
onlybelubricatedwithaverythinlmofANDERSENWINCHGREASE.Itisveryimportant
that pawls can move freely.
IMPORTANT: When assembling the winch, check the functioning of each pawl by pushing the
pawl against the spring. The pawls should move smoothly and automatically return to their
normal position, where the pawls engage with the teeth. If the pawls do not function correctly,
clean and lubricate the pawls and gears. Check the function of the pawls again to make sure
that it works correctly. If the pawls do not work correctly replace the springs and recheck the
functioning.
Malfunctioning pawls may lead to unexpected release of the winch force resulting in fatal
injuries to the user and others.
Service Kit No: 19 (part. no. 710019) contains spare parts for this winch.
Maintenance instructions for PVD coated stainless steel surfaces.
PVD-coated surfaces should be rinsed regularly in fresh water to remove any salt residue, dirt
or other contaminants and dried gently with a soft cloth. To remove grease or other marks,
a mild abrasive free cleaning agent such as spray-on glass cleaning solution may be used.
No caustic detergents or other aggressive or abrasive cleaning agents
should ever be used, as they may damage the surface.
• Winch handle
• ANDERSEN winch grease
p5
46ST (V.5.0) |46ST FS (V.5.0.F)
50ST (V.2.0) |50ST FS (V.2.0.F)

GENERAL INFORMATION
Due to the best choice of materials and high precision in manufacturing, we recommend, for
normal use, only to dismantle, clean and lubricate the winch once every second year. Under
extensive use, such as racing, charter or blue water sailing, we recommend to lubricate the
winch once every year.
WestronglyrecommendalwaystouseANDERSENWINCHGREASE,whenlubricatingyour
winch.ANDERSENWINCHGREASEisahighqualitysilicone/Teongreaseproduct.
Most other types of grease, including “marine grease” are not suitable for lubrication of
winches. Non-suitable grease products can cause malfunction, which could result in fatal
injuries for the user and others.
Pawl arm springs should be replaced every second year. Spare arm springs and other parts
that may be required are included in the ANDERSEN Service Kit. Please refer to the service
instructionfortheServiceKitsuitableforthespecicwinch.
When the winch handle is not in use but the winch is under load, we recommend, from a
safety point of view, to remove the winch handle from the winch.
To ensure correct function of the self-tailing unit, only use recommended line sizes. When
using the winch with mooring lines DO NOT use the self-tailing function and be sure that the
mooring line is not in contact with the self-tailing arm.
To ensure the best possible functioning of the winch, we recommend that
the winch is placed in accordance with the line entry (shown below).
Be also aware that the self-tailing arm is positioned correctly. We recommend to have the
self-tailing arm positioned within the shaded area (shown above). On this model the self-tailing
armcanbeplacedinseveraldierentpositionsafterhavinginstalledthewinch.
To identify the Output Drive Gear, insert a winch handle into the winch
and rotate in both directions, the drive gear will only rotate clockwise
in a fast and slow speed.
Ideal
rope
entry
Output
drive
gear
p6
46ST (V.5.0) |46ST FS (V.5.0.F)
50ST (V.2.0) |50ST FS (V.2.0.F)

SAFETY NOTICES
ALLWINCHES
DO NOT DISCARD
Failure to observe these precautions
could result in serious injury or death.
Read All Safety Notices and Product Manuals
Do not install or operate this winch before reading and fully understanding the contents of
this Product Manual.
Stay Alert When Operating
Andersenwinchesareverypowerfulandhavethepotentialtocausesignicantdamage
and/or serious injury if used improperly or without due caution and vigilance.
Operators Must be Trained
Helppreventsignicantdamageand/orseriousinjurybyensuringanypersonoperatinga
winch has a thorough understanding of its proper operation and is aware of the potential
hazards involved. As a minimum, all winch operators must read and understand this Safety
Notice Sheet and the Product Manual.
Particular attention is drawn to the following points:
• Childrenandothersnotqualiedtooperateanelectricwinchmustbekeptatasafe
distancefromthewinchandanyriggingorttingsthatareunderload.
• Long hair and/or loose clothing must be tied back to avoid being caught in the winch.
• Intheeventofaropeoverrideorotherfault,stopthewinchandturnopowerbefore
attempting to resolve the problem.
Avoid Accidental Operation
Removewinchhandlesandturnopowertothewinchwhennotinusetohelpavoid
unsupervisedorunintentionaloperation.Failuretodosocouldresultinsignicant
damage and/or serious injury.
Maintenance
Turnopowertothewinchbeforeperforminganymaintenanceorservicetasks.Failure
todosocouldresultinsignicantdamageand/orseriousinjury.
Lifting Operations
The winch must not be operated with the rope in the self tailer when used in any kind of
lifting operation.
Any lifting operations should be conducted by two persons in order to maintain constant
visual contact with the object being lifted.
Furthermore the self tailer must not be used as a cleat for a rope used to lift or suspend
anyobject.Theropemustbesecuredproperlybytyingo,orleadingtoasuitabletting
such as a cleat or bollard.
p7
46ST (V.5.0) |46ST FS (V.5.0.F)
50ST (V.2.0) |50ST FS (V.2.0.F)

Visit www.andersenwinches.com
Visit www.ronstan.com/warranty
Manufactured by Ronstan Denmark ApS.
Jægervænget 36 - 7100 Vejle - Denmark
o[email protected]-www.andersenwinches.com
WORLDWIDE DISTRIBUTION & SERVICE
WARRANTY
46ST (V.5.0) |46ST FS (V.5.0.F) |50ST (V.2.0) |50ST FS (V.2.0.F)
