Included in The Box
SMART LOCK
INSTRUCTIONS
20mm 20mm 10mm 10mm 45mm
1 Pcs
FRONT PANEL
1 Pcs
BACK PANEL
1 Pcs
MOUNTING PLATE
1 Pcs
DEADBOLT LATCH
1 Pcs
STRIKE PLATE
1 Pcs
CYLINDER
2 Pcs
BACK UP KEYS
2 Pcs
CARDS
1 Pcs
OPENING HOLE
CUTOUT GUIDE
1 Pcs
MOBILE APP MANUAL
(SCAN QR CODE FOR
LATEST VERSION)
1 Pcs
LOCK MANUAL
4 Pcs
SCREW A
1 Pcs
SCREW B
1 Pcs
SCREW C
1 Pcs
SCREW D
3 Pcs
SCREW E
3 Pcs
SOLENOID

5
Information & Safety Warnings
Introduction
This user manual will guide you through the functions and usages of the ROOK™
Smart Lock. It is important that you follow the instructions. Please consult this
manual before you attempt to use this lock. If you have any questions that we
haven’t answered by this manual or in need of non-routine service, please get in
touch with our service team. We’re available at [email protected]
General Use
•
•
•
•
•
Verify that all parts of the lock are accounted for. If any parts are missing,
please contact us at [email protected]
There is protective film on the front touch panel, please remove the film after
installation. The film may get in the way of the sensors, so removing the film is
a must.
Should you have any problem, please contact our team. We’ll be happy to help.
Never apply any cleaner directly to any part of this lock. Only use clean water
or mild cleaner on a soft non-abrasive cloth when cleaning.
Potential shock warning: Do not allow water or liquids to get into the lock’s
electric parts.
FOR SUPPORT PLEASE GET IN TOUCH WITH US
[email protected]
For any questions, defects, returns/replacements, or troubleshooting
please get in touch immediately.

6
Sales & Service Terms
PLEASE READ THE MANUAL CAREFULLY BEFORE USE!
2-Year Electronic Warranty and
Lifetime Mechanical and Finish Warranty.
•
•
•
•
This product comes with a 2-Year Warranty on Electronic Parts and a Lifetime
Mechanical and Finish Warranty against defects in materials and workmanship
under normal use to the original residential user. You must register for this
Warranty within 7 days of receiving your ROOK™ Smart Lock.
Visit 
Help Us Continue to Improve Our Instructions:
Any error or question in our manual or sales terms, please feel free to contact
with us at [email protected]
It is forbidden to copy our manual and for other usage, except the authorized
company and users. At this moment, only Prime Proximity, LLC is the sole
manufacturer and provider of ROOK™ Smart Home Devices.
Please do not take apart the lock if you are not technician, if necessary,
please make the operations under the guide of technician.
Notice: After changing the battery, please be mindful of how you dispose of
your batteries. We recommend and suggest that you kindly dispose of the
batteries using your local waste management ordinances.
FOR SUPPORT PLEASE GET IN TOUCH WITH US
[email protected]
For any questions, defects, returns/replacements, or troubleshooting
please get in touch immediately.

7
Installation Steps
STEP 1 PREPARATION
Before you Check the Dimensions, please Identify if your door is LEFT or RIGHT Swing.
For more details on DOOR HANDLING DESIGNATION refer to page 11.
35-55mm
(thickness)
Measure distance from Center of the Hole to
the Edge of Door. This may mean that you will
need to expand the deadbolt in the next step.
Accceptable Lengths are 60 or 70mm.
(hole diameter)



Top Solenoid (Optional)
8
STEP 2 INSTALLING DEADBOLT AND STRIKE PLATE
STEP 3 PREPARING KEYPAD
Screw A
Screw D
Expand the Deadbolt to Appropriate Setting.
Twist to Expand to 70mm (if needed)
NOTE: Drilling this hole
is optional.

NOTE: Drilling this hole
is optional. If you do, please
use the Cutout Guide.
NOTE: Drilling this hole is optional.
If you do, please use the Cutout Guide.
9
STEP 4 INSTALLING KEYPAD
Adjust lock cylinder to
horizontal position.
Wire goes in
under the latch This side up

10

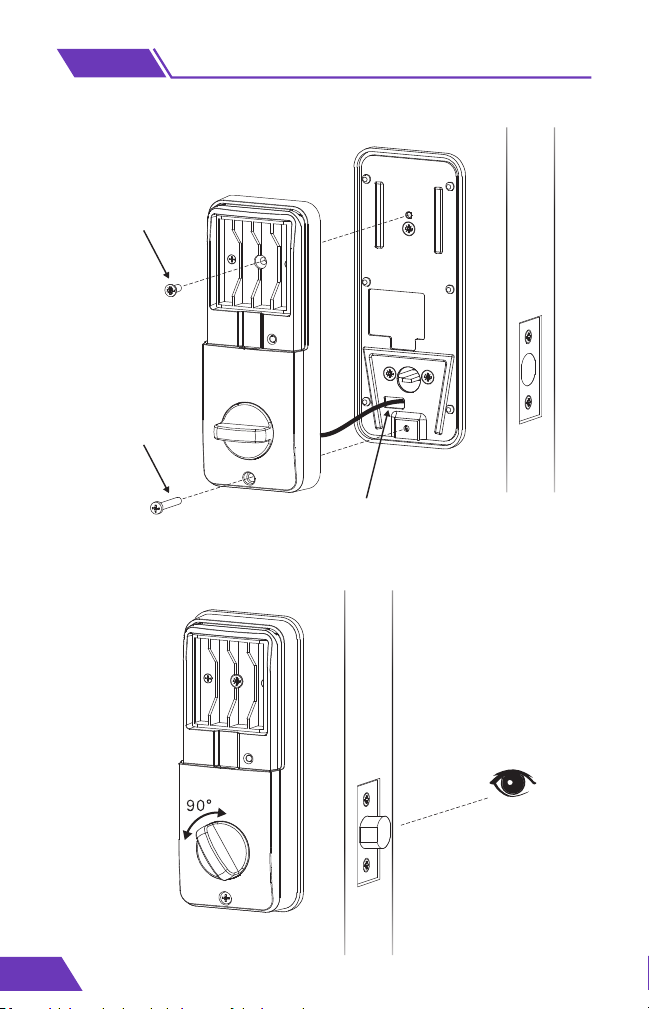

STEP 5 INSTALLING MOUNTING PLATE
Silicone Seal
Bulge at this side



Make sure the bolt extends
and retracts smoothly.
Do not over tighten
the screws.
Screw E
Route the wire through the hole

Make sure that the L/R Switch is Set Correctly as well as the Knob!

Please manually test open/close before tightening the screws.
11

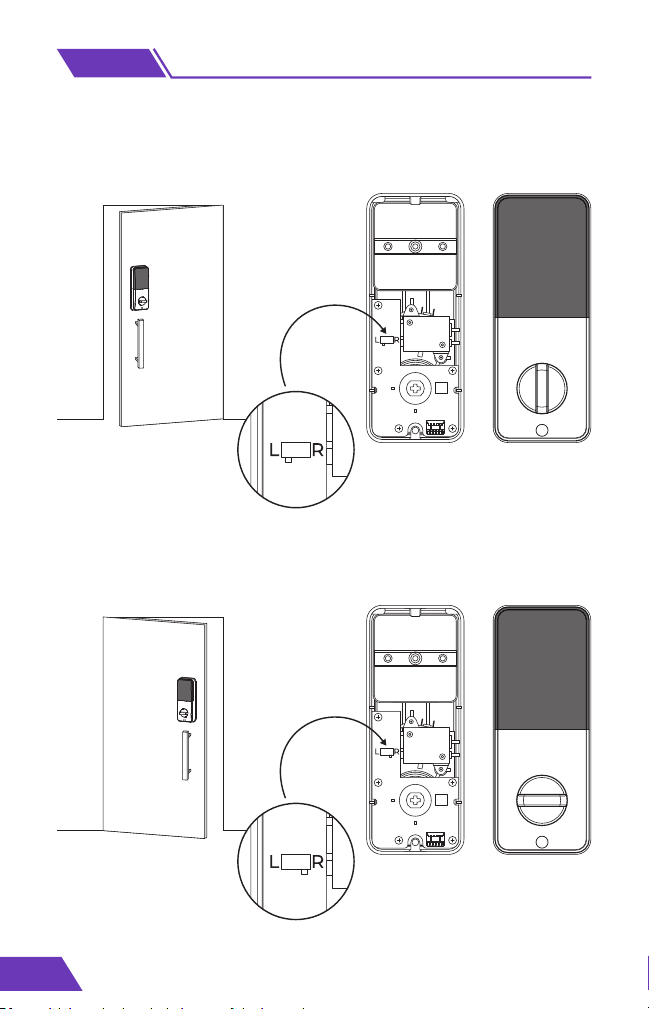

STEP 6 DOOR HANDLING DIRECTION
Lock on Left Side
(inside view)
Lock on Right Side
(inside view)
Set Knob to Vertical
(test Open/Close Manually
before Tightening Screws)
Set Knob to Horizontal
(test Open/Close Manually
before Tightening Screws)

Make sure that the cord is fully
connected to the receiver.
12
STEP 7 CONNECT THE CABLE
Bolt is retracted

12
STEP 8 INSTALLING INTERIOR ASSEMBLY & TESTING
Push extra wire back
into door hole through this hole
Check if the bolt moves
in & out smoothly. If it doesn’t
come out when you twist the
knob, please refer to Page 11.
Screw C
Screw B

13

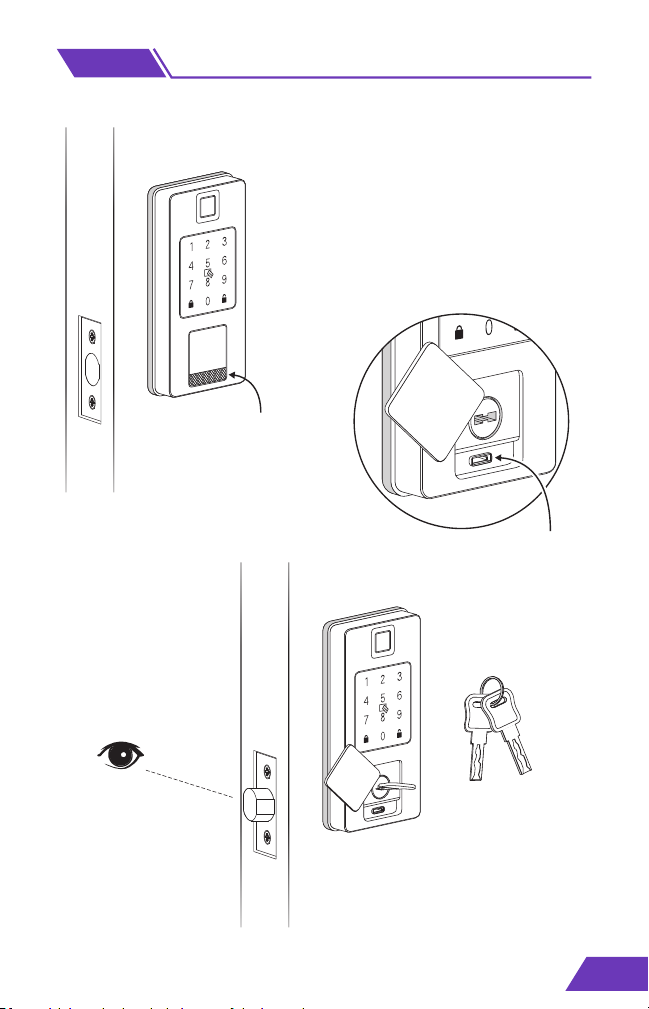

STEP 9 BACK UP KEY TESTING
Use your mechanical keys
to Test if the bolt goes in &
out smoothly.
Press the bottom side
of the cover
rotate anti-clockwise 120 degree
Emergency power

14
STEP 10 INSTALLING BATTERIES & COVER
Reset button
Slide the Cover Over
the Batteries
There is one reset button on
the back panel.
Press and hold this button for
5 seconds until you hear 2
quick beeps. This will erase all
fingerprints and codes, and the
lock will be under factory
state. The default passcode
is: 123456.
Reset to
Factory State

15
Operation Testing
System Details
Fingerprint
Password
Card
Lock Button
Cover
Cylinder
USB Port
Unlock Button
Use the card or password to unlock the smart lock
Battery Box
Back Panel
Thumb Knob
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
Project
Main material
Door thickness
Battery power
Quiescent dissipation
Dynamic power dissipation
Digit of password
Card reading distance
Anti radiation interference
Operation humidity
Operation temperature
Fingerprint collection
Fingerprint collecting time
Battery Life
WiFi Gateway
Communication
Emegercy power supply
Antistatic
Low-Battery alarm
Available Mortise
Support OS
Unlock Way
Parameter
Zinc alloy, ABS
35mm to 55mm
6V DC:4pcs AAA alkaline batteries
<50uA
<300mA
Valid 6-12 digits
5-20mm
10V/m
10%-90%
(-20°C) − (60°C)
Semiconductor collector
<0.5seconds
8000 times normal unlock (10 months)
Available (Optional)
Bluetooth 4.0 BLE
5V Micro USB
Contact discharge 8KV/Air discharge 15KV
4.8V
60/70 adjustable deadbolt mortise
I OS 7.0 or above / Android 4.4 or above
Card, passcode, APP, Fingeprint, key
