Rose electronics UltraView DVI User manual

UltraView DVI
1×16 KVM Switch • DVI • USB2.0 • Audio
Installation
and
Operation Manual
10707 Stancliff Road
Houston, Texas
77099
Phone: [phone]
[email protected]

LIMITED WARRANTY
Copyright Rose Electronics 2016. All rights reserved.
No part of this manual may be reproduced, stored in a retrieval system, or transcribed in any form or any means, electronic or mechanical, including photocopying and
recording, without the prior written permission of Rose Electronics.
manual-ultraview-dvi-2016-10-29
Rose Electronics®warrants the UltraView DVI to be in good working order for one year from the date of
purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at
any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as
set forth below. Repair parts and replacement units will be either reconditioned or new. All replaced parts
become the property of Rose Electronics. This limited warranty does not include service to repair damage to
the Unit resulting from accident, disaster, abuse, or unauthorized modification of the Unit, including static
discharge and power surges.
Limited Warranty service may be obtained by delivering this unit during the one-year warranty period to Rose
Electronics or an authorized repair center providing a proof of purchase date. If this Unit is delivered by mail,
you agree to insure the Unit or assume the risk of loss or damage in transit, to prepay shipping charges to the
warranty service location, and to use the original shipping container or its equivalent. You must call for a return
authorization number first. Under no circumstances will a unit be accepted without a return authorization
number. Contact an authorized repair center or Rose Electronics for further information.
ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO A
PERIOD OF ONE YEAR FROM THE DATE OF PURCHASE, AND NO WARRANTIES, WHETHER EXPRESS
OR IMPLIED, WILL APPLY AFTER THIS PERIOD. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW
LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
IF THIS PRODUCT IS NOT IN GOOD WORKING ORDER AS WARRANTIED ABOVE, YOUR SOLE
REMEDY SHALL BE REPLACEMENT OR REPAIR AS PROVIDED ABOVE. IN NO EVENT WILL ROSE
ELECTRONICS BE LIABLE TO YOU FOR ANY DAMAGES INCLUDING ANY LOST PROFITS, LOST
SAVINGS OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF OR
THE INABILITY TO USE SUCH PRODUCT, EVEN IF ROSE ELECTRONICS OR AN AUTHORIZED DEALER
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, OR FOR ANY CLAIM BY ANY OTHER
PARTY.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS, SO THE ABOVE MAY NOT APPLY TO YOU.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS
WHICH MAY VARY FROM STATE TO STATE.

TABLE OF CONTENTS
Contents
Disclaimer 1
System Introduction 1
Features 1
Package Contents 2
UltraView DVI Models 3
Front View 3
Rear View 3
Installation 4
UltraView DVI Operation 5
Front Panel buttons 5
RS-232 Commands 5
Hotkey Commands 6
Safety 7
Maintenance and Repair 8
Technical Support 8
Figures
Figure 1. UltraView DVI Front View 3
Figure 2. UltraView DVI Rear Panel 3
Figure 3. UltraView DVI Installation 4
Appendices
Appendix A- Specifications 9
Appendix B- Part Numbers 10
Appendix C- Hotkey and RS-232 Commands 10

INTRODUCTION
UltraView DVI Manual 1
Disclaimer
While every precaution has been taken in the preparation of this manual, the manufacturer assumes no
responsibility for errors or omissions. Neither does the manufacturer assume any liability for damages resulting
from the use of the information contained herein. The manufacturer reserves the right to change the
specifications, functions, circuitry of the product, and manual content at any time without notice.
The manufacturer cannot accept liability for damages due to misuse of the product or other circumstances
outside the manufacturer’s control. The manufacturer will not be responsible for any loss, damage, or injury
arising directly or indirectly from the use of this product. (See limited warranty.)
System Introduction
Thank you for choosing the UltraView DVI KVM Switch. It is the result of Rose Electronics commitment to
providing state-of-the-art solutions for today’s demanding workplace. The UltraView DVI is a dedicated multi-
platform KVM switch capable of managing up to 16 different computers through a single console’s DVI-D
monitor, USB keyboard & mouse. Stereo analog audio output and USB 2.0 devices can be shared between the
computers.
The USB emulation technology utilized by the UltraView DVI enables immediate hotkey source switching
through a USB keyboard. The UltraView DVI supports high resolution video up to 1920x1200 with zero pixel
loss through TMDS signal correction.
Switching computers can be controlled using keyboard hotkeys or RS-232 commands, as well as through the
unit’s front panel push buttons.
DDC signals from the console display are easily detected by the UltraView Pro’s EDID learning and
programming facility. This allows selecting each computer’s optimum video resolution for the console’s display.
Furthermore, the EDID feature continues to present the console monitor to each computer, even when the
computer is not currently selected.
USB keyboard and mouse emulation provides quick source switching by means of keyboard hotkey
sequences. The UltraView DVI imitates the presence of a keyboard and mouse to every attached computer
through its USB connection, even when the computers are not currently selected.
Features
■Supports Mac, PC, Linux and Sun DVI
■Supports DVI Single Link video up to 1920x1200 @ 60Hz (WUXGA)
■Uses TMDS signal correction for zero pixel loss
■Supports all USB 2.0 Devices (Flash Drives, Printers, Scanners, etc.)
■Supports USB HID keyboard and mouse
■Balanced stereo audio output
■Front panel push buttons with LCD display
■Switching by RS-232 comands
■USB keyboard hotkey commands for quick channel selection
■Complete keyboard emulation for error free booting
■Independent (asynchronous) switching of KVM and peripheral USB/audio ports. Users can listen to audio
from one computer while working on the other or scan a document and save in another computer.

UltraView DVI Manual 2
Package Contents
The package contents consist of the following:
■The UltraView DVI unit as ordered
■External power supply unit and country-specific power cable
■Manual
Additional cables that are required, but are not included in the package:
■DVI-D cables
■USB cables, A to B
■Audio cables
Additional cables are usually ordered separately. If the package contents are not correct, contact Rose
Electronics or your reseller so the problem can be quickly resolved.

MODELS
UltraView DVI Manual 3
UltraView DVI Models
The UltraView DVI comes in a single model as shown below.

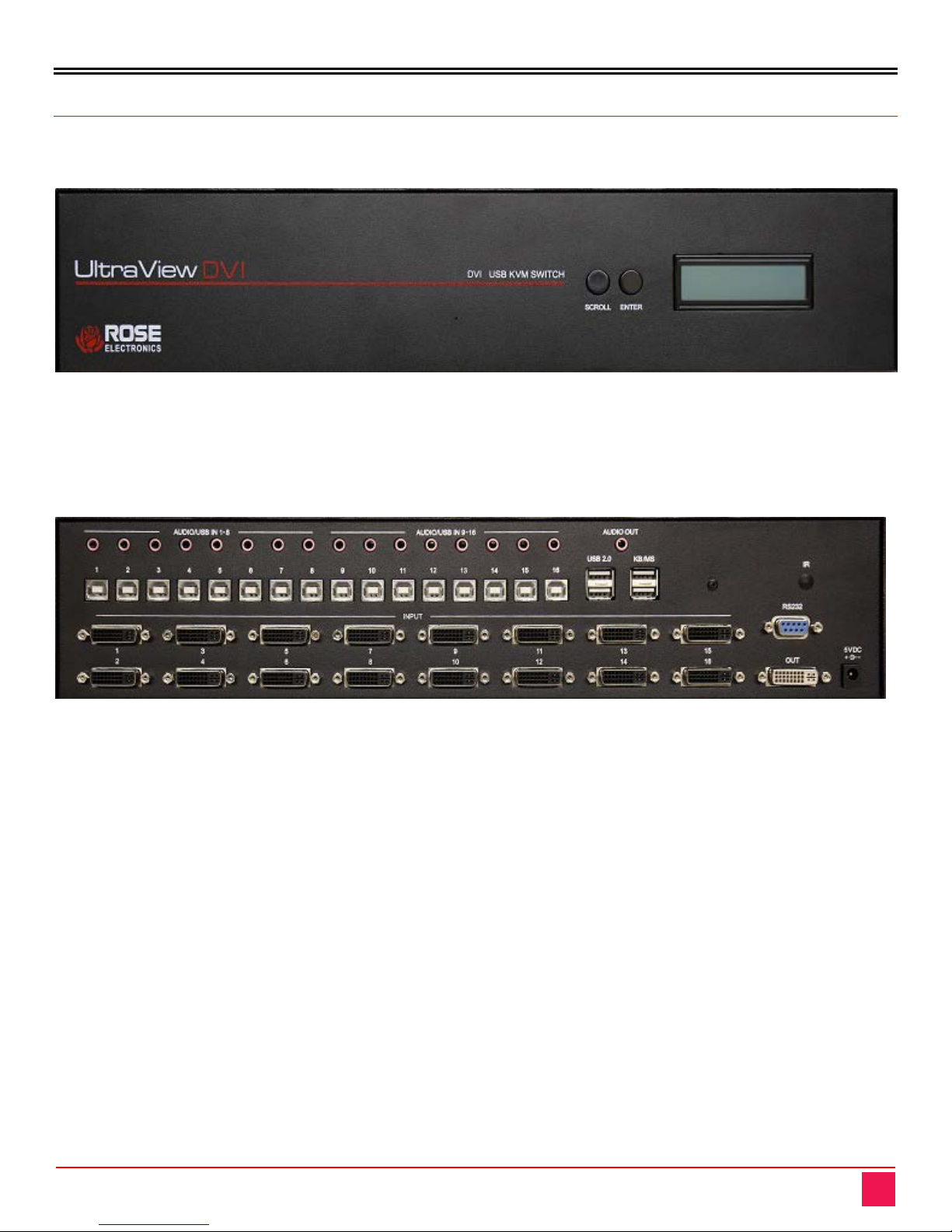

Front View
Figure 1. UltraView DVI Front View
The front panel has a 2 x 20 character LCD display panel and 2 control buttons - Enter and Scroll.
Rear View
Figure 2. UltraView DVI Rear Panel
The rear panel of the UltraView DVI has 16 DVI, USB, and Audio connectors for signals to and from the
computers. Connect as many sets of PC cables as are required, up to a maximum distance of 20 ft (6.0 m)
from the switch.
The other ports on the back panel are as follows
■1 x DVI-D OUT Connect a DVI Monitor
■2 x USB KB/MS Connect a USB Keyboard/Mouse
■2 x USB 2.0 Connect any USB2.0 peripheral for sharing between computers
■1 x DB9F RS232 Serial control interface port
■1 x 3.5mm Audio Out Audio port for speaker connection
■1 x 5VDC Power connector for 5V PSU

INSTALLATION
UltraView DVI Manual 4
Installation
Installation of the UltraView DVI is very simple. The steps to do so are outlined below.
1. Ensure that power is disconnected from UltraView DVI.
2. Connect the DVI cables, USB cables (male-A to male-B), and audio cables from the computers to the
respective ports on the UltraView DVI.
3. Optionally connect RS-232 for control functions.
4. Connect USB keyboard and mouse to the two USB ports labeled “KB/MS”.
5. Optionally connect USB peripherals (flash drives, printers, etc.) to the USB ports labeled “USB 2.0”.
6. Connect speakers to the Audio Out port.
7. Connect the display monitor to the DVI connector labeled “OUT”.
8. Apply power to the UltraView DVI.
The completed installation will appear as in the figure below.
Figure 3. UltraView DVI Installation
Note:
It is not advisable to use CPU cable lengths greater than 20 ft (6 m), as longer cables may result in video
disturbances and /or intermittent USB keyboard/mouse performance.

OPERATION
UltraView DVI Manual 5
UltraView DVI Operation
This section deals with the use of the front panel buttons, and using RS-232 and hotkey commands
Front Panel buttons
As mentioned earlier, the front panel has a 2 x 20 character LCD display panel and 2 control buttons - Enter
and Scroll. Pressing both the Scroll and Enter buttons simultaneously will display a menu on the LCD. Press
the Scroll button to move between the menu selections and the Enter button to execute the selection.
The available selections are as follows.
■Learn Screen: Learn EDID from connected monitor
■Hot Plug: Resets a pin on the DVI connector causing the UltraView DVI to re-learn the connected monitor’s
EDID
■Exit: Exits menu
RS-232 Commands
The UltraView DVI may also be controlled via RS-232 commands. This feature requires that the controlling
computer has a RS-232 card. Otherwise, a USB to RS-232 adapter may be used. The UltraView DVI comes
with a DB9(F) serial communications port.
Establish a connection to the UltraView DVI :
1. Connect a straight-through RS-232 cable to the RS-232 connector on the PC.
2. Connect the other end of the cable to the RS-232 port of the UltraView DVI.
3. Power on the device.
To identify the COM port used by a Windows computer do the following:
1. Click on the start button.
2. Click on Control Panel.
3. Click on Device Manager.
4. Click on the arrow next to Ports (COM & LPT).
The adapter name and the COM port number in use should be displayed.
Setting up the Terminal Application:
1. Run the terminal client of choice (such as HyperTerminal, Tera Term or PuTTY).
2. Select the COM port on the PC where the unit is connected.
3. Use the following connection settings: 9600, N, 8, 1, No Flow Control.
Note:
PuTTY and other terminal software may not default to the settings above. If the RS-232 connection seems
unresponsive, cycling power to the UltraView DVI will reset all values and boot up messages will be sent to the
terminal display, verifying the connection.
A listing of available RS232 commands is shown in Appendix C.

UltraView DVI Manual 6
Hotkey Commands
The Hotkey command is a keyboard sequence used to trigger an action on the UltraView DVI through the use
of the keyboard connected to a USB KB/MS port. To activate the hotkey sequence, press and release the
CTRL key twice and then enter the desired hotkey command. A listing of available hotkey commands is shown
in Appendix C.

PRODUCT SAFETY
UltraView DVI Manual 7
Safety
The UltraView DVI, like all electronic equipment, should be used with care. To protect yourself from possible
injury and to minimize the risk of damage to the Unit, read and follow these safety instructions.

Follow all instructions and warnings marked on this Unit.

Except where explained in this manual, do not attempt to service this Unit yourself.

Do not use this Unit near water.

Assure that the placement of this Unit is on a stable surface.

Provide proper ventilation and air circulation.

Keep connection cables clear of obstructions that might cause damage to them.

Use only power cords, power adapter and connection cables designed for this Unit.

Keep objects that might damage this Unit and liquids that may spill, clear from this Unit. Liquids and
foreign objects might come in contact with voltage points that could create a risk of fire or electrical
shock.

Do not use liquid or aerosol cleaners to clean this Unit. Always unplug this Unit from the power source
before cleaning.
Remove power from the Unit and refer servicing to a qualified service center if any of the following conditions
occur:

The connection cables are damaged or frayed.

The Unit has been exposed to any liquids.

The Unit does not operate normally when all operating instructions have been followed.

The Unit has been dropped or the case has been damaged.

The Unit exhibits a distinct change in performance, indicating a need for service.

SERVICE AND MAINTENANCE
UltraView DVI Manual 8
Maintenance and Repair
This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or
maintenance, you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized
repair center. This Return Authorization number must appear on the outside of the shipping container.
See Limited Warranty for more information.
When returning a Unit, it should be double-packed in the original container or equivalent, insured and shipped
to:
Rose Electronics
Attn: RA__________
10707 Stancliff Road
Houston, Texas 77099 USA
Technical Support
If you are experiencing problems, or need assistance in setting up, configuring or operating your product,
consult the appropriate sections of this manual. If, however, you require additional information or assistance,
please contact the Rose Electronics Technical Support Department at:
Phone: [phone]
E-mail: T[email protected]
Web: www.rose.com
Technical Support hours are from: 8:00 am to 6:00 pm CST (USA), Monday through Friday.
Please report any malfunctions in the operation of this Unit or any discrepancies in this manual to the Rose
Electronics Technical Support Department.

APPENDICES
UltraView DVI Manual 9
Appendix A- Specifications
Physical Specifications
Dimensions (W x D x H) 17 in x 7.5 in x 3.6 in (432 mm x 191 mm x 91 mm)
Weight 5.3 lbs (2.4 kg)
Connectors
Video Input 16 x DVI-D 29-pin (Female)
Output 1 x DVI-D 29-pin (Female)
USB
Input 16 x USB Type B (Female)
Output 2 x USB Type A (Female) for keyboard and mouse
2 x USB Type A (Female) for Transparent USB 2.0
Audio Input 16 x 3.5 mm Stereo Audio
Output 1 x 3.5 mm Stereo Audio
Serial Input 1 x DB9 (Female)
Power 1 x Barrel Jack
Signal Characteristics
Video
Format DVI-D Single Link
Max Pixel Clock 165 MHz
Max Resolution 1920 x 1200 @ 60Hz
DDC 5 volts p-p (TTL)
Input Equalization Automatic
Input Cable Length Up to 20 ft (6 m)
Output Cable Length Up to 20 ft (6 m)
Audio
Impedance 600 Ohm
Frequency Response 20 Hz to 20 kHz
Nominal Level 0-1.0 V
Common Mode Rejection at 60 dB
USB Signal Type USB 2.0, 1.1, and 1.0 w/ internal hub
Serial RS-232 @ 9600, N, 8, 1, No Flow Control
Control Front Panel Buttons and LCD Display, Keyboard Hotkeys, RS-232 Commands
Power External 100-240 VAC/ 5VDC4A @20W
Environmental Conditions
Operating Temperature 32ºF to 131ºF (0ºC to 55ºC)
Storage Temperature -4ºF to 185ºF(-20ºC to 85ºC)
Relative Humidity Up to 95% no condensation

UltraView DVI Manual 10
Appendix B- Part Numbers
Part Number Description
UVD-1x16DVI/UA1 1X16 UltraView DVI /USB/Audio KVM Switch
CAB-DVIDMM006 DVI-D, 6 ft (2 m) Video Cable
CAB-USBAB006 USB-AB 6 ft (2 m) USB Cable
CAB-SPMM006 Audio 3.5mm, 6ft (2m)
Appendix C- Hotkey and RS-232 Commands
Commands Hotkeys RS-232
Switch all devices (KVM, USB 2.0, and Audio) [CTRL] [CTRL] m [port #] [ENTER] //m[port #] [ENTER]
Switch KVM only [CTRL] [CTRL] c [port #] [ENTER] //c[port #] [ENTER]
Switch Audio only [CTRL] [CTRL] a [port #] [ENTER] //a[port #] [ENTER]
Reset [CTRL] [CTRL] r //r
Switch USB2.0 only [CTRL] [CTRL] u [port #] [ENTER] //u[port #] [ENTER]
Reload EDID (Toggle Hotplug pin) n/a //h[ENTER]
Switch to next port [CTRL] [CTRL] n/a
Switch to previous port [CTRL] [CTRL] n/a

WWW.ROSE.COM
▪
[e-mail]
▪
[phone]
Rose Electronics
▪10707 Stancliff Road ▪Houston, Texas 77099
Rose USA (281)
933-7673 ▪Rose Europe [phone]
Rose Asia [phone]
▪Rose Australia [phone]
WWW.ROSE.COM
