Roto Brute MEGABRUTE BD100A User manual

BD100A
championcuttingtool.com
MEGABRUTE
Magnetic
Drill Press
_______________
Operating Manual

INTENDED USE
The intended use of this magnetic drill press is to drill holes in ferrous metals. The magnet is used to hold the drill in
place whilst the drill is functioning. It is designed for use in fabrication, construction, railways, petrochemical and
any other applications when drilling ferrous metal.
Any deviation from its intended use will not be covered by warranty.
GENERAL SAFETY RULES
WARNING! Follow all instructions listed below to prevent electric shock, fire and/or serious personal injury.
Cancer & Reproductive Harm. See P65warnings.ca.gov for more info.
WORK AREA
1. Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents.
2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or
dust. Power tools create sparks which may ignite the dust or fumes.
3. Keep bystanders, children and visitors away while operating a power tool. Distractions can cause you to lose
control.
ELECTRICAL SAFETY
1. Grounded tools must be plugged into an outlet properly installed and grounded in accordance with
all codes and ordinances. Never remove the grounding prong or modify the plug in any way. Do not use any
adaptor plugs. Check with a qualified electrician if you are in doubt as to whether the outlet is properly grounded. If
the tools should electrically malfunction or break down, grounding provides a low resistance path to carry
electricity away from the user.
2. Avoid body contact with grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an
increased risk of electric shock if your body is grounded.
3. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric
shock.
4. Do not abuse the cord. Never use the cord to carry the tools or pull the plug from an outlet. Keep cord away from
heat, oil, sharp edges or moving parts. Replace damaged cords immediately. Damaged cords increase the risk of
electric shock.
5. When operating a power tool outside, use an outdoor extension cord marked” W-A” or” W”. These cords are rated
for outdoor use and reduce the risk of electric shock.
6. Use With 110/120V Supply Only.
7. Do not use on DC Supply.
8. Do not use magnetic drill on same structure when arc welding is in progress.
POWER INPUT 1800 W (16.4A)
VOLTAGE 110 / 120V

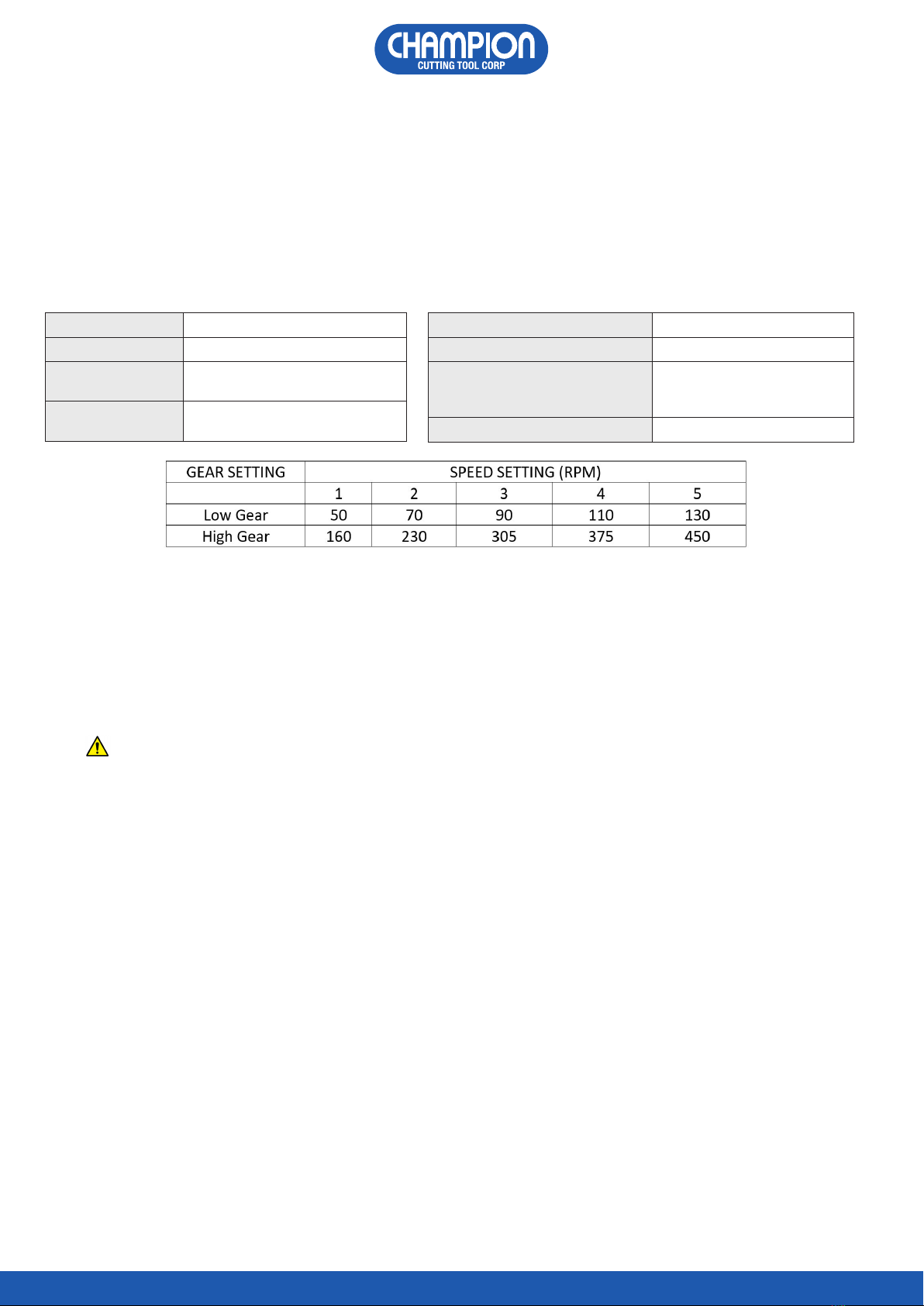

MOTOR SPEEDS See chart below
MAGNETIC
STRENGTH 3820 lb (1733 kg)
ANNULAR CUTTER CAPACITY** 4” DIAM X 4” DEPTH
TWIST DRILL CAPACITY* 1-1/4” DIAM
DRILL PRESS DIMENSIONS HEIGHT: 30-1/8"
WIDTH: 11-1/132"
OAL LENGTH: 13-3/16"
NET WEIGHT
CONTENTS
Hex Key 2.5mm, Hex Key 5.0mm, Safety Guard , Handles (3)
Safety Strap, 3MT Set Screw Arbor, 3MT Drift Key, Coolant Tank Assembly
ARBORS
Set Screw Arbor Accepts Standard ¾” Weldon Shank Annular Cutters.
**Capacity of standard arbor is 2-1/4" diameter x 2" depth. To use larger cutters, please contact
Champion Cutting Tool for information regarding additional arbors and annular cutters / pilot pins**
MAGNETIC DRILL PRESS SPECIFICATIONS
BD100AManual championcuttingtool.com
2
59.5 lbs (27 kg)

PERSONAL SAFETY
1. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use
tool while tired or under the inuence of drugs, alcohol, or medication. A moment of inattention while
operating power tools may result in serious personal injury.
2. Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your hair, clothing, and
gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts.
3. Avoid accidental starting. Be sure switch is off before plugging in. Carrying tools with your nger on the
switch or plugging in tools that have the switch on invites accidents.
4. Remove adjusting keys or switches before turning the tool on. A wrench or a key that is left attached to
a rotating part of the tool may result in personal injury.
5. Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enable
better control of the tool in unexpected situations.
6. Use safety equipment. Always wear eye protection. Dust mask, non-skid safety shoes, hardhat, or
hearing protection must be used for appropriate conditions.
TOOL USE AND CARE
1. Use clamps or other practical way to secure and support the workpiece to a stable platform.
Holding the work by hand or against your body is unstable and may lead to loss of control.
2. Do not force tool. Use the correct tool for your application. The correct tool will do the job better and
safer at the rate for which it is designed.
3. Do not use tool if switch does not turn it on or off. Any tool that cannot be controlled with the switch is
dangerous and must be repaired.
4. Disconnect the plug from the power source before making any adjustments, changing accessories, or
storing the tool. Such preventive safety measures reduce the risk of starting the tool accidentally.
5. Store idle tools out of reach of children and other untrained persons. Tools are dangerous in the hands
of untrained users.
6. Maintain tools with care. Keep cutting tools sharp and clean. Properly maintained tools, with sharp
cutting edges are less likely to bind and are easier to control.
7. Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may
affect the tools operation. If damaged, have the tool serviced before using. Many accidents are caused
by poorly maintained tools.
8. Use only accessories that are recommended by the manufacturer or your model. Accessories that may
be suitable for one tool, may become hazardous when used on another tool.
MAGNETIC DRILL SAFETY
1. The drill’s magnetic adhesion depends on the thickness of the work-piece. 1/2” (13mm) is the minimum
thickness for safe operation.
2. Keep the magnet clean of metal chips and other dirt and debris. These will seriously reduce the
magnetic adhesion.
3. The drill must be operated on its own electrical outlet.
4. Always use the supplied safety strap or chain. An electrical overload can result in loss of adhesion.
CAUTION: The slug ejects at end of cut and is very hot.
SERVICE
1. Tool service must be performed only by qualied repair personnel. Service or maintenance performed
by unqualied personnel could result in a risk of injury.
2. When servicing a tool, use only identical replacement parts. Follow instructions in the Maintenance
section of this manual. Use of unauthorized parts or failure to follow Maintenance Instructions may
create a risk of electric shock or injury.
BD100AManual championcuttingtool.com
3

OPERATIONAL SAFETY PROCEDURES
• When using electrical tools, basic safety precautions should always be followed to reduce the risk of
electric shock, fire, and personal injury.
•Ensure the magnet is OFF before plugging in the magnetic drill press.
•Do NOT use in wet or damp conditions. Failure to do so may result in personal injury.
•Do NOT use in the presence of flammable liquids, gases or in high risk environments. Failure to do so
may result in personal injury.
•BEFORE activating the magnetic drill press, inspect all electrical supply cables (including extension
leads), and replace if damaged. DO NOT use if there are any signs of damage.
•Only use extension cables approved for site conditions.
•BEFORE activating the magnetic drill press, ALWAYS check the correct function of all operational
systems, switches, magnet etc.
•BEFORE operating, the magnetic drill press MUST be securely restrained to a fixed independent
feature (by using a safety strap, or other means) to reduce the potential free movement, should the
magnet become detached from the work piece. Failure to do so may result in personal injury.
•ALWAYS wear approved eye protectors, ear defenders and recommended PPE at ALL times when
operating the magnetic drill press.
• Disconnect from power source when changing cutters or working on the magnetic drill press.
•Cutters and chips are sharp, ALWAYS ensure that hands are adequately protected when changing
cutters or removing chips. Use a tool or brush where necessary to remove any chips or the cutter from
the arbor.
•Before operating the magnetic drill press, ALWAYS ensure cutter-retaining screws are secured tightly.
• Regularly clear the work area and magnetic drill press of chips and dirt, paying particular attention to
the underside of the magnet base.
•ALWAYS remove tie, rings, watches and any loose adornments that might entangle with the rotating
machinery before operating.
•ALWAYS ensure that long hair is securely enclosed by an approved restraint before operating the mag
drill.
• Should the cutter become stuck in the work piece, stop the motor immediately to prevent personal
injury. Disconnect from power source and turn arbor to and from.
DO NOT ATTEMPT TO FREE THE CUTTER BY SWITCHING THE MOTOR ON AND OFF.
Wear safety gloves to remove the cutter from the arbor.
•If the magnetic drill press is accidentally dropped, ALWAYS thoroughly examine the magnetic drill press
for signs of damage and check that it functions correctly BEFORE resuming drilling.
• Regularly inspect the magnetic drill press and check for any damaged or loose parts.
•ALWAYS ensure when using the magnetic drill press in an inverted position that only the minimum
amount of coolant is used, and that care is taken to ensure that coolant does not enter the motor unit.
•Cutting tools may shatter, ALWAYS position the guard over the cutter before activating the magnetic
drill press. Failure to do so may result in personal injury.
•On completion of the cut, a slug will be ejected. DO NOT operate the magnetic drill press as the ejected
slug may cause injury.
•When not in use ALWAYS store the magnetic drill press in a safe and secure location.
•ALWAYS ensure that approved CHAMPION authorized repair centers conduct repairs.
BD100AManual championcuttingtool.com
4

3. INFORMATION PLATE SYMBOLS
1. Dispose of the machine and electrical components correctly.
2. Refer to the user manual for operational and safety issues with regard to this machine.
3. Eye protection and ear defenders must be worn when operating the machine.
4.
5..
OPERATIONAL INSTRUCTIONS
• Keep the inside of the cutter clear of chips. It restricts the operating depth of the cutter.
•Ensure that the coolant bottle contains sufficient cutting oil to complete the required operating duration.
Refill as required.
•Occasionally depress the pilot to ensure cutting fluid is being correctly metered.
•To start the magnetic drill press, follow the control panel operation instructions.
•ALWAYS switch off the motor by depressing the MOTOR stop button. DO NOT switch off the motor by
depressing the MAGNET switch.
• Apply light pressure when starting the cut of a hole until the cutter is introduced into the work
surface. Pressure can then be increased sufficiently to load the motor. Excessive pressure is
undesirable, it does not increase the speed of penetration and will cause the safety overload protection
device to stop the motor, (the motor can be restarted by operating the motor start button), and may
cause excessive heat which may result in inconsistent slug ejection
•Always ensure that the slug has been ejected from the previous hole before commencing to cut the
next.
•If the slug sticks in the cutter, move the magnetic drill press to a flat surface, switch on the magnet and
gently bring the cutter down to make contact with the surface. This will usually straighten a cocked slug
and allow it to eject normally.
• Apply a small amount of light oil lubricant regularly to the slide and arbor support bearing.
•Cutter breakage is usually caused by insecure anchorage, a loosely fitting slide or a worn bearing in the
arbor support. (Refer to routine maintenance instructions).
•Only use approved cutting fluid.
CUTTER INSTALLATION
This mag drill accepts annular cutters with 3/4” (19.05mm) diameter Weldon shanks.
1
2
The pilot pin is used to both center the cutter and to eject the slug on completion of the cut. It has a at
side to allow coolant to run down to reach the center of the cut where the heat is greatest. Slide the pin
through the hole in the center of the cutter shank.
Lay the magnetic drill press on its side with feed handles uppermost, ensuring arbor is wound down to
its lowest point to enable access to socket screws.
Take appropriate pilot and place through the hole in cutter shank. Insert shank of cutter into bore of
arbor, ensuring alignment of two drive flats with socket screws.Tighten both screws using hexagon key.
ALWAYS DISCONNECT THE MAG DRILL FROM THE POWER SOURCE BEFORE CHANGING CUTTERS.
BD100AManual championcuttingtool.com
5
3

BD100AManual championcuttingtool.com
6
EXTENSION CABLE SELECTION
• The magnetic drill press is factory fitted with a 3 meter length of cable having three conductors 1.5
mm² LIVE, NEUTRAL and EARTH.
• If it becomes necessary to fit an extension cable from the power source, care must be taken in using a
cable of adequate capacity. Failure to do so will result in a loss of traction by the magnet and a
reduction of power from the motor.
•If the replacement of the supply cord is necessary, this must be done by the manufacturer or an
approved agent in order to avoid a safety hazard.
•Assuming a normal AC supply of the correct voltage, it is recommended that the following extension
lengths shall not be exceeded: For 110v supply: 3.5 meters of 3 core x1.5mm²
REPLACEMENT PARTS
•Contact Champion directly for information regarding replacement parts.
•It is highly suggested that all repairs to this magnetic drill press are competed by one of Champion's
authorized repair centers.

14
12
32
38
34
24
32
33 30
39
37
36
35
10
11
Item Description Qty
KEY01 ALLEN KEY 2.5mm 1
KEY04 ALLEN KEY 5mm 1
KEY05 ALLEN KEY 6mm 1
BD100A-GUARD BD100A GUARD 1
RB-STRAP SAFETY STRAP 1
BD100-ARBOR MT3 ARBOR 1

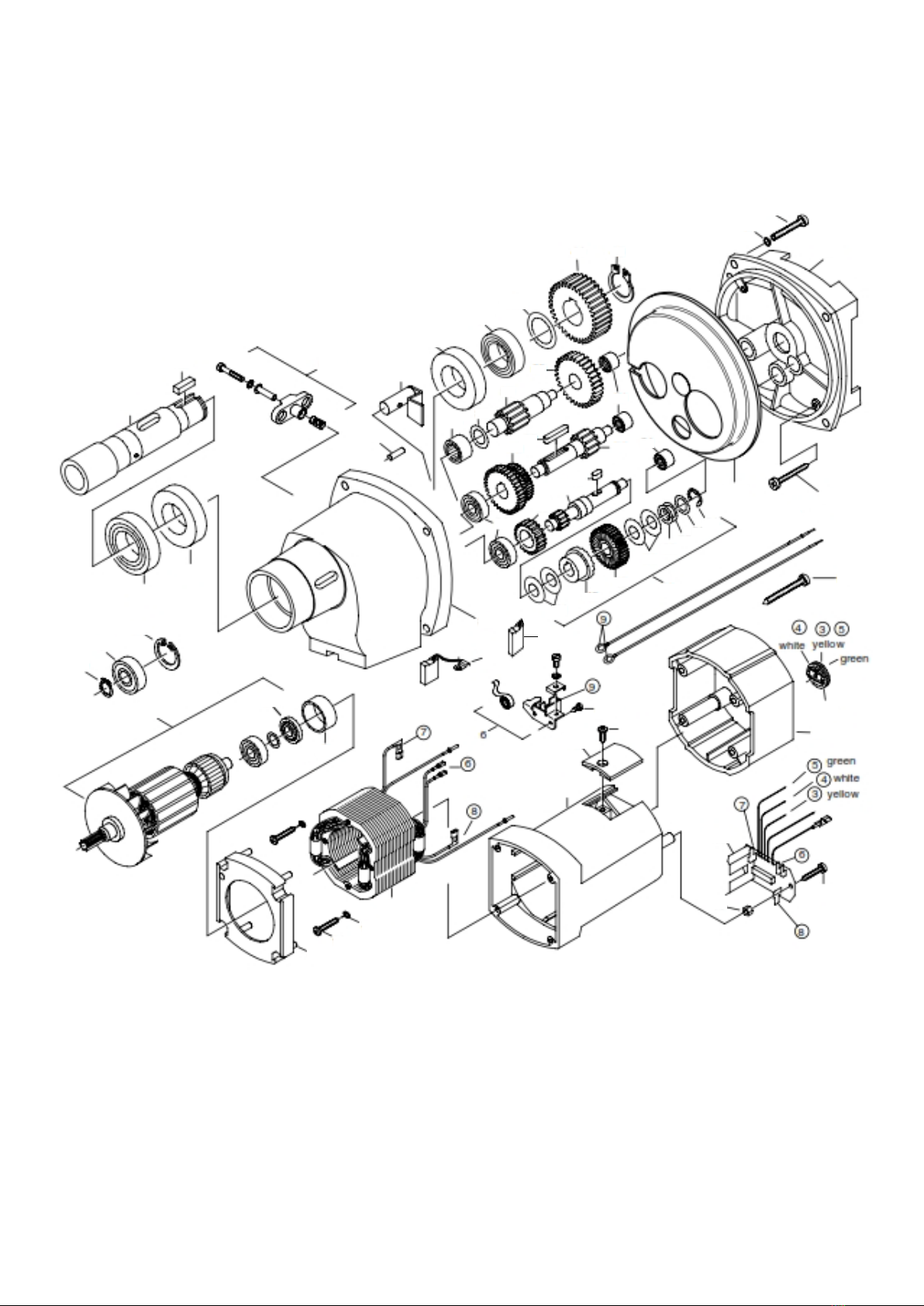

BD100A Components

41
42
14
15
16
5
12
13
3
11
14
4
19
21
8
7
2
1
63
30
29
28
38
39
22
39
40
43
27
25
26
20
17
33
18
23
62 61
35 36
59
60
31
31
44 45
51
49
48
51
5255 53
54
58 57 56
34
50
46 47
6
BD100A Motor Parts

No
Item
Descrip�on
Qty
1
BD100A-EIB058-1-A
ARMATURE ASSEMBLY 120V
1
2
BD100A-EIB194
ARMATURE BEARING CAP
1
3
BD100A-EIB054-1A
FIELD COIL 120V
1
4
BD100A-EIB018
FAN COVER
1
5
BD100A-EIB019
MOTOR HOUSING
1
6
BD100A-EIB036
BRUSH HOLDER
2
7
BD100A-18ZD07
CARBON BRUSH
2
8
BD100A-EIB196
SCREW HC 2.9X13
1
11
BD100A-EIB197
SPRING WASHER S6
2
12
BD100A-EIB020
BRUSH COVER
2
13
BD100A-EIB154
SCREW HC 4.2 X 13
2
14
BD100A-EIB155
SCREW HC 4.2 X 25
3
15
BD100A-EIB524
PCB 120V
1
16
BD100A-EIB151
M5 PLASTIC NUT
1
17
BD100A-EIB029
END CAP
1
18
BD100A-EIB201 CLUTCH GEAR ASSEMBLY
1
19
BD100A-EIB157
SCREW HC4.8 X 50
4
20
BD100A-EIB045B
SPEED CONTROL KNOB
1
21
BD100A-EIB158
SCREW HC 4.8 X 45
2
22
BD100A-EIB159
LOCATING DOWEL
1
23
BD100A-EIB082
GEAR PLATE SHEILD
1
25
BD100A-EIB160
SCREW 6 X 20
4
26
BD100A-EIB161
WASHER A6
4
27
BD100A-EIB032
GEAR PLATE
1
28
BD100A-EIB043
CIRCLIP
1
29
BD100A-UDC012
BEARING 6201
1
30
BD100A-EIB143
CIRCLIP
1
31
BD100A-UDC020
BEARING HK0810
3
33
BD100A-EIB031
GEARBOX HOUSING
1
34
BD100A-UDC001
BEARING 6000
2
35
BD100A-UDC021
BEARING RNA 4900 2RS
1
36
BD100A-EIB163
WASHER RNA4900
1
38
BD100A-UDC007
BEARING 6006 2RS
1
39
BD100A-EIB049
SEAL
1
40
BD100A-UDC006
BEARING 6005 2RS
1
41
BD100A-EIB030
DRIVE SPINDLE
1
42
BD100A-EIB164
KEY 6 X 6 X 20
1
43
BD100A-EIB165
COMPRESSOR RING
1
44
BD100A-EIB016
MAIN GEAR
1
45
BD100A-EIB041
CIRCLIP
1
46
BD100A-EIB011
GEAR SHAFT
1
47
BD100A-EIB146
KEY
1
48
BD100A-EIB060-A
CLUTCH GEAR
1
49
BD100A-EIB015
CLUTCH COUPLING
1
50
BD100A-EIB141
INTER GEAR
1
51
BD100A-EIB147
WASHER 28X 12
4
52
BD100A-EIB148
WASHER 12/18 X 0.05
1
53
BD100A-EIB150
THRUST WASHER
1
54
BD100A-EIB149
CLUTCH COUPLING
1
55
BD100A-EIB144
THUST WASHER 12.1 X 18
1
56
BD100A-EIB012
GEAR SHAFT
1
57
BD100A-EIB034
KEY 5 X 5 X 28
1
58
BD100A-EIB009
DOUBLE GEAR
1
59
BD100A-EIB013
GEAR SHAFT
1
60
BD100A-EIB010
SPUR GEAR
1
61
BD100A-EIB195
GEAR LEVER
1
62
BD100A-EIB017
GEAR LEVER ASSEMBLY
1
63
BD100A-EIB062
SPEED RING
1

No.
Descrip�on
Quan�ty
1
BD100-M0401
BRIDGE RECTIFIER
1
2
BD100A-W18XC511
FUSE HOLDER
1
3
BD100A-SC410BUT
BUTTON HEAD SCREW M4 X 10
4
4
BD100A-W18XC512
FUSE
1
5
BD100-NCP006
MAGNET SWITCH
1
6
BD100-NCP001
MOTOR SWITCH 120V
1
7
BD100-W18XC650
FORWARD/REVERSE SWITCH
1
8
BD100A-M1058
CONTROL PANEL PLATE
1
BD100A Control Panel Parts
Part Number

BROWN
BLUE
CAPACITOR (X2)
(EMC FILTER)
RD43118
110V
NO VOLT
RELEASE
SWITCH
WITH REMOTE
NCP001
ILLUMINATED
ROCKER SWITCH
W18XC456
2A FUSE
FAST ACTING
W18XC512
(HOLDER = W18XC511)
VARISTOR
150V
W18XC522
ELECTRO MAGNET 110V CONNECTION
M0033
FWD/OFF/REV
18X650
M
110V
DRILL UNIT
REV CONTACTS CLOSED
OFF ALL CONTACTS OPEN
FWD CONTACTS OPEN
BRIDGE
RECTIFIER

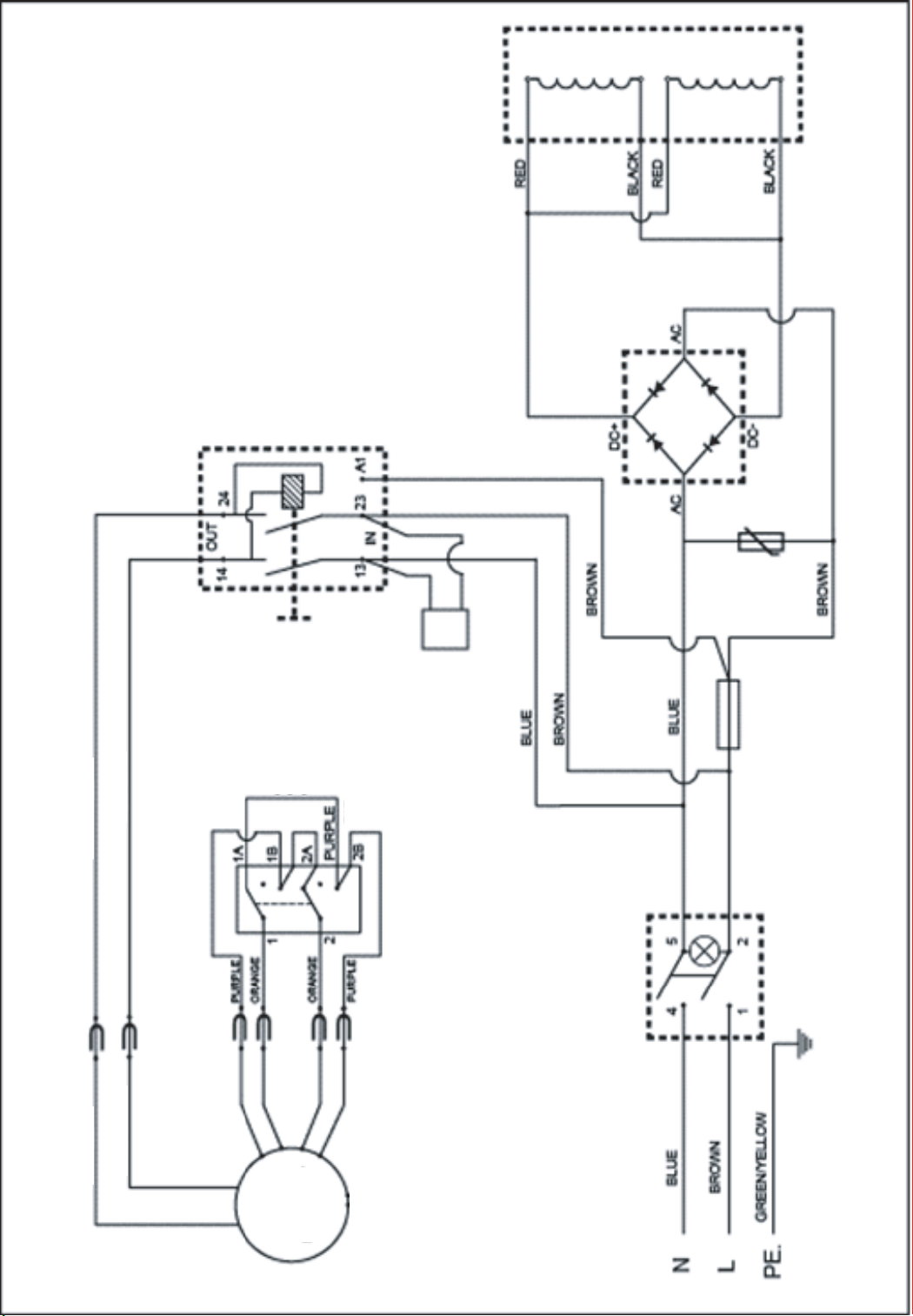

BD100A Wiring Diagram

VISUAL CHECK OF MAG DRILL FOR DAMAGE X
OPERATION OF MAG DRILL X
CHECK BRUSH WEAR X
CHECK MAGNETIC BASE X
CHECK GREASE X
CHECK ARMATURE X
DESCRIPTION EVERY OPERATION WEEKLY MONTHLY
Visually check the Magnetic Drill Press for damage.
The magnetic drill press must be checked before operation for any signs of damage that will affect the
operation of the magnetic drill press. Particular notice must be taken to the mains cable, if the magnetic drill
press appears to be damaged it should not be used, failure to do so may cause injury or death.
Check operation of the magnetic drill press.
The magnetic drill press's operation must be checked to ensure that all components are working correctly.
Magnetic Drill Press Brushes - should be checked to make sure there is no abnormal wear present (this
should be checked at least once a week if used frequently). If the brush has worn more than 2/3 the original
length the brushes should be changed. Failure to do so may cause damage to the mag drill.
Magnetic base – before every operation the magnetic base should be checked to make sure that the base is
at and there is no damage present. An uneven magnet base will cause the magnet not to hold as efciently
and may cause injury to the operator.
Check magnetic drill press grease.
The gearbox grease should be checked once a month to ensure all moving components are covered to
prevent wear. The grease should be changed at least once a year to ensure you gain the best from your mag
drill.
Check Armature of the mag drill.
This should be checked at least once a month to check that there are no visual signs of damage to the body or
to the commutator. Some signs of wear will be seen on the commutator over a period of time, but this is
normal (this is the part that comes into contact with the brushes) however, if there are any signs of abnormal
damage the part should be replaced.
MAINTENANCE
In order to get the best life out of your Champion magnetic drill press always keep it in good working order.
Several items must always be checked on Champion magnetic drill presses.
Always before starting any job make sure the mag drill is in good working order and that there are no
damaged or loose parts. Any loose parts must be tightened.
Before proceeding with any maintenance work be certain that the power supply is disconnected.
BD100AManual championcuttingtool.com
7

MEGABRUTE
REMEDIES FOR HOLE MAKING PROBLEMS
1) Magnetic base will not
hold effectively
Material being cut may be too thin for
efcient holding.
Attach an additional piece of metal
under the magnet, or mechanically
clamp magnetic base to workpiece.
Chips or dirt under magnet. Clean magnet.
Irregularity on magnet contact or
workpiece.
Use extreme care; le any
imperfections ush to surface.
Insufcient current going to magnet
during drilling cycles.
Conrm power supply and output from
control unit, check supply cable.
PROBLEM CAUSE REMEDY
2) Cutter skips out of center-punch
mark at initiation of cut
Magnetic base is not holding
effectively.
See causes and remedies above.
Worn arbor bushing and/or ejector
collar.
New arbor bushing is needed.
Too much feed pressure at start of cut. Light pressure only is needed until a
groove is cut. The groove then serves
as a stabilizer.
Cutter is dull, worn, chipped or
incorrectly sharpened.
Replace or re-sharpen. Sharpening
service is available.
Poor center-punch mark; weak
pilot spring; pilot not centerd in
centre-punch mark.
Improve center-punch and/or replace
worn parts Worn or bent pilot, worn
pilot hole.
Worn or bent pilot, worn pilot hole. Replace part or parts
3) Excessive drilling pressure
required
Incorrectly re-sharpened, worn or
chipped cutter.
Re-sharpen or replace.
Coming down on chips lying on
surface of workpiece.
Take care not to start a cut on chips.
Chips accumulated (packed) inside
cutter.
Clear cutter.
4) Excessive cutter breakage Steel chips or dirt under cutter. Remove cutter, clean part thoroughly
and replace.
Incorrectly re-sharpened or worn
cutter.
Always have a new cutter on hand
to refer to for correct tooth geometry,
together with instruction sheet.
Cutter skipping. See causes and remedies (2).
Cutter not attached tightly to arbor. Retighten.
Insufcient use of cutting oil or
unsuitable type of oil.
Inject oil of light viscosity into the
coolant-inducing ring and check that
oil is being metered into cutter when
pilot is depressed. If not, check pilot
groove and arbor internally for dirt
or apply oil externally. (Even a small
amount of oil is very effective).
Incorrect speed Ensure correct speed is use for the
cutter.
5) Excessive cutter wear See cause and remedy above
Incorrectly re-sharpened cutter. Refer to instructions and a new cutter
for proper tooth geometry.
Insufcient or spasmodic cutting
pressure.
Use sufcient steady pressure to
slow the drill down. This will result in
optimum cutting speed and chip load.
BD100AManual championcuttingtool.com
8

MEGABRUTE
Magnet and motor do not function - The magnet switch is not connected to the power supply
- Damaged or defective wiring
- Defective magnet switch
- Defective control unit
- Defective power supply
Magnet does function, the motor does not - Damaged or defective wiring
- Carbon brushes are stuck or worn out
- Defective magnet switch
- Defective on / off switch
- Defective control unit
- Defective armature and/or eld
Magnet does not function, the motor does - Defective magnet
- Defective control unit
Hole cutters break quickly, holes are bigger than the hole
cutter
- Play in the guide
- Bent spindle
- Shaft extending from the motor is bent
- Pilot bent
Motor running roughly and/or seizing up - Bent spindle
- Shaft extending from the motor is bent
- Triangular guide not mounted straight
Motor making a rattling sound - Gear ring (bottom of the armature) worn out
- Gear(s) worn out
- No grease in gear box
Motor humming, big sparks and motor has no force - Armature damaged
- Field burned
- Carbon brushes worn out
Motor does not start or fails. - Damaged or defective wiring
- Damage to armature or eld coil
- Damaged or defective brushes
Insufcient magnetic force - Damaged or defective wiring
- Bottom of magnet not clean and dry
- Bottom of magnet not at
- Work piece is not bare metal
- Work piece is not at
- Work piece is too thin less than 10mm
- Defective control unit
- Defective magnet
Frame under voltage - Damaged / defective wiring
- Defective magnet
- Motor seriously dirty
Fuse blows when magnet switch is turned on - Damaged or defective wiring
- Wrong value fuse
- Defective magnet switch
- Defective control unit
- Defective magnet
Fuse blows when motor is started up - Damaged or defective wiring
- Motor running roughly
- Defective armature and / or eld
- Carbon brushes worn out
- Defective control unit
Rotation system free stroke too long - Loose or defective gear-rack
- Defective rotation system
TROUBLESHOOTING
BD100AManual championcuttingtool.com
9

BD100AManual championcuttingtool.com
RECOMMENDED SPEED GUIDELINES
WARRANTY
Champion warrants its magnetic drill presses to be free from faulty parts, under normal usage of mag drills, for a period of 12
months from initial date of purchase. All other parts (excluding cutters) are under warranty for 90 days, provided that the warranty
online registration has been completed and returned to Champion or its designated distributor within a period of (30) days from
the purchase date. Failure to do so will void the warranty. If the stated is adhered to, Champion will repair or replace (at its option)
without charge any faulty items returned.
This Warranty does not cover:
1. Components that are subject to natural wear and tear caused by the use is not in accordance with the
operator’s instructions
2. Defects in the tool caused by non-compliance with the operating instructions, improper use, abnormal
environment conditions, inappropriate operating conditions overload or insufcient servicing or
maintenance.
3. Defects caused by using accessories, components or spare parts other than original Champion parts.
4. Tools to which changes or additions have been made.
5. Electrical components are subject to manufacturer’s warranty.
Optimize Performance Of Your Tools
Use BruteLube Fluid or Wax
Champion Offers A Complete Range Of
HSS & Carbide Tipped Annular Cutters
The warranty claim must be logged within the warranty period. This requires the submission or sending of the complete tool in question
with the original sales receipt which must indicate the purchase date of the product.
A complaint form must also be submitted prior to the return.
All goods returned defective must be returned pre-paid to Champion, in no event shall Champion be liable for subsequent direct, or
indirect loss or damage.
THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, (EXPRESSED OR IMPLIED) INCLUDING ANY WARRANTY OF
MERCHANTABLITY OR FITNESS FOR A PURPOSE. CHAMPION RESERVES THE RIGHT TO MAKE IMPROVEMENTS AND
MODIFICATIONS TO DESIGN WITHOUT PRIOR NOTICE
10
Visit championcuttingtool.com for more information
Phone: [phone]
PO BOX 368 Rockville Centre, NY 11571
© 2022 Champion Cutting Tool Corp
