ROTONDI LG Series User manual

All Steam Iron
Instruction & Exploded View
series LG
User’sManUal
SHOULD USE OUR PRODUCT AFTER READING INSTRUCTION

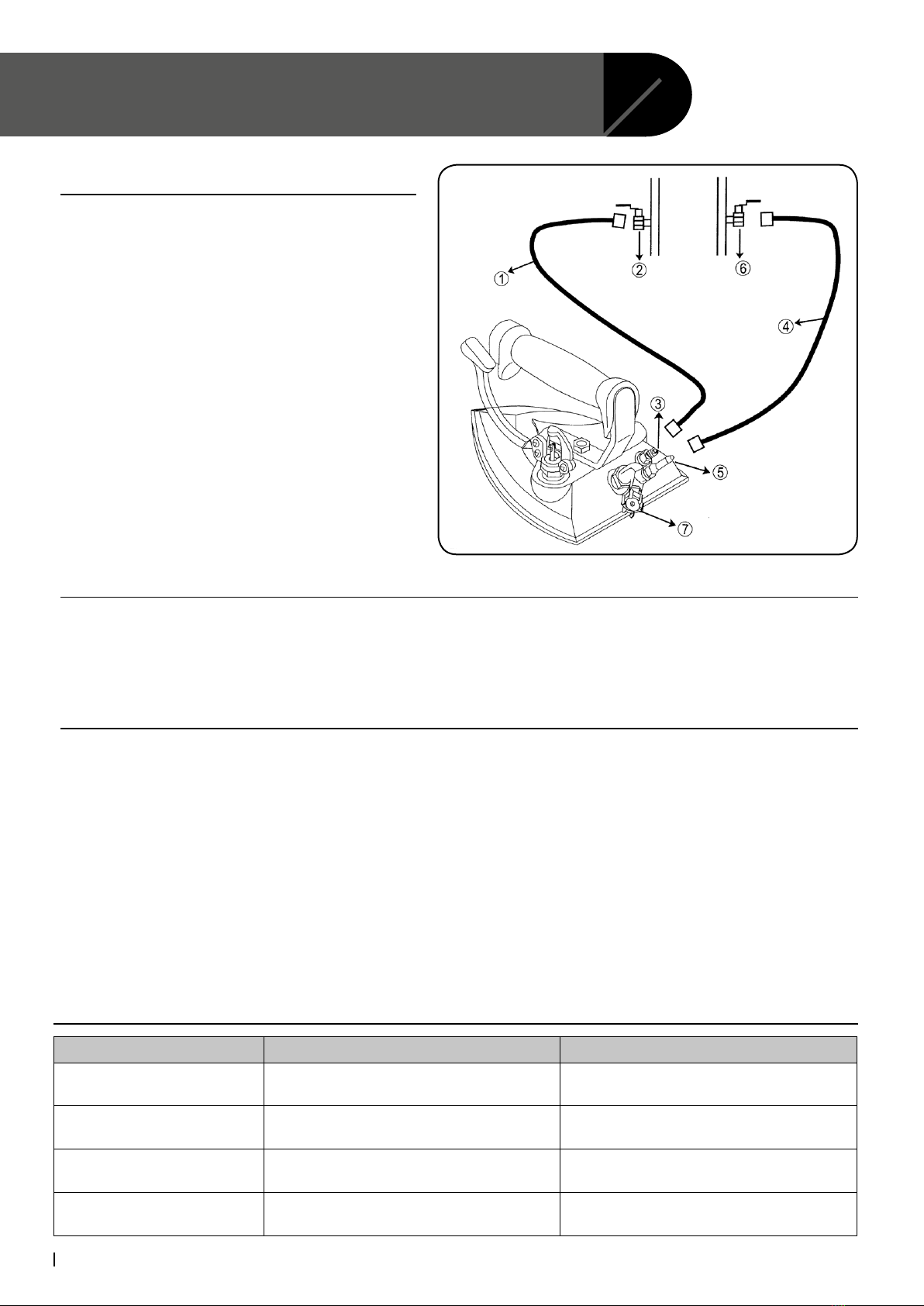

ConneCting Hose
1_ MAXIMUM STEAM PRESSURE: 8 BAR
2_ CONNECTING STEAM HOSE
1) Connect steam hose (1) to either steam
outlet pipe (2) or the steam nipple of boiler.
2) Connect the other end of steam hose (1) to
intake nipple of iron (3).
3_ CONNECTING DRAIN HOSE
1) If return (drain pipe) is available, connect
steam hose to the nipple of return pipe.
2) Connect the end of steam hose connected to
return pipe to the nipple of outlet valve (5).
3) If return pipe is not available, connect drain
hose to the nipple of outlet valve.
Then, either place the other end of hose
outside of workshop or connect it to
condense water tank.
Use instrUCtion
1_ Turn on power switch of boiler and wait until the pressure of boiler reaches at 3-5 BAR. Then turn outlet valve knob
counterclockwise and heat iron with the steam from boiler for 10 min. and press steam lever to start using.
2_ If outlet valve (7) too tightens, water can leak out of the iron. Loosen outlet valve properly for efficient ironing.
safety instrUCtion
1_ Read all instruction of this manual before using iron.
2_ If the appliance shows any defect, stop using it and contact Service Centre for repair or the store where you purchased.
3_ When changing steam hose, close the pressure of boiler and remove the pressure inside of iron, then change the
steam hose.
4_ While using, keep any parts of body away the soleplate of iron. Burns can occur from touching hot metal parts.
5_ While using, do not jet steam toward any parts of body. Burns can occur from touching hot water, or steam.
6_ Keep the iron away from children and do not allow them to operate it.
7_ Contact an authorized service facility only for repair and information on examination.
8_ Damage from misuse, abuse or neglect are not covered by warranty. Also, warranty becomes void if repairs are
undertaken by unauthorized persons.
Lg steam iron
troUbLe sHooting
PROBLEM CAUSE SOLUTION
Steam keeps coming out
of steam hole.
Replace valve switch pin.
Valve pin spring abrasion.
Replace valve switch pin.
Replace valve pin spring.
Steam comes out
of outlet valve.
Outlet valve fastening nut loosened.
Valve Teflon ring abrasion.
Tighten the fastening nut fully.
Replace Teflon ring.
Steam comes out
of steam valve.
Teflon ring abrasion.
Spring abraded or loosened.
Replace Teflon ring.
Teplace valve pin spring.
Water comes out
of steam hole. Outlet valve too tightens. Let water iside of iron come out by
opening outlet valve
2

LG 200
LG 300
NO. DESCRIPTION
ABase
BExit valve set
CSteam valve set
DValve band set
EHandle set
FValve lever
GNipple (A)
HNipple (C)
NO. DESCRIPTION
ABase
BExit valve set
CSteam valve set
DValve band set
EHandle set
FValve lever
GCover
HNipple (A)
INipple (C)
3

ROTONDI group srl
Via F.lli Rosselli, 14/16 20019 Settimo Milanese (Milano) - Italy
Tel. [phone] - Fax [phone]
www.rotondigroup.com - [email protected]
NO. DESCRIPTION
1M4X34 screw
2Front cover
3Handle
4M6X14 hex screw
5Handle support
6Washer
7Nut cap
8Back cover
9M4X6 screw
10 M6X11 tightening
screw
11 M6 nut cap
12 Support (big)
13 Square washer
14 Push switch
15 Plastic shell
16 Nipple
17 Washer
18 Iron body
19 Valve body
20 Teflon
21 o-ring
22 Teflon
23 Copper-washer
24 Spring
25 Support (small)
26 M3X12 screw
27 Steam valve
28 Nipple
29 Components
of drain valve
30 Core
31 Copper-washer
32 Teflon
33 Copper-washer
34 Copper nut cap
35 Knob
36 M4X4 screw
