ROUILLARD 36D User manual

GUIDE D’INSTALLATION
INSTALLATION GUIDE
TABLE HAUTE / HIGH TABLE
36’’ - 42’’ Haut / High (36D-36E-36F-42D-42E-42F)
Service à la clientèle: 1 800 463-1611
Customer service: 1 855 459-1954

Pièces & quincailleries - Parts & hardware Instructions
IMPORTANT: Assurez-vous de mettre le beau côté du piètement
(sans rainure) vers l’extérieur
Make sure to place the legs with the smooth side
(without groove) outward.
ÉTAPE 1: F          /-  /’’  
ÉTAPE 2: V        #  ’’
ÉTAPE 3: V           
STEP 1: S        /-  /’’   
STEP 2 :S         #  ’’
STEP 3 :S        
Hardware
32 x Screw 1/4-20 x 3/4'' flat head
12 x Wood screw #12 x 2''
4 x glides
Pieces for 42'' high table
Two hand plate
TA**XXXX D42 X : x = 23,55''
TA**XXXX E42 X : x = 29,55''
TA**XXXX F42 X : x = 35,55''
42'' high table
installation guide
Quincaillerie
32 x Vis 1/4-20 x 3/4'' tête plate
12 x Vis #12 x 2''
4 x niveleurs
1:10
2014-12-16
Échelle/scale Unités/Units Date Par/By
Design creation:
Dessiné/Draw by:
Nom/Name
Pièce
#
/Part
#
1/2
Page:
Code R&D
Achat/Purchase
Projet/Project
Hardware
32 x Screw 1/4-20 x 3/4'' flat head
12 x Wood screw #12 x 2''
4 x glides
Pieces for 42'' high table
Two hand plate
TA**XXXX D42 X : x = 23,55''
TA**XXXX E42 X : x = 29,55''
TA**XXXX F42 X : x = 35,55''
42'' high table
installation guide
Quincaillerie
32 x Vis 1/4-20 x 3/4'' tête plate
12 x Vis #12 x 2''
4 x niveleurs
1:10
2014-12-16
Échelle/scale Unités/Units Date Par/By
Design creation:
Dessiné/Draw by:
Nom/Name
Pièce
#
/Part
#
1/2
Page:
Code R&D
Achat/Purchase
Projet/Project
STEP 2 :Remove the glide from the legs
STEP 3 :Screw the plate to the legs
with Wood screw #12 x 2''
1
1
1
12 23 3 33

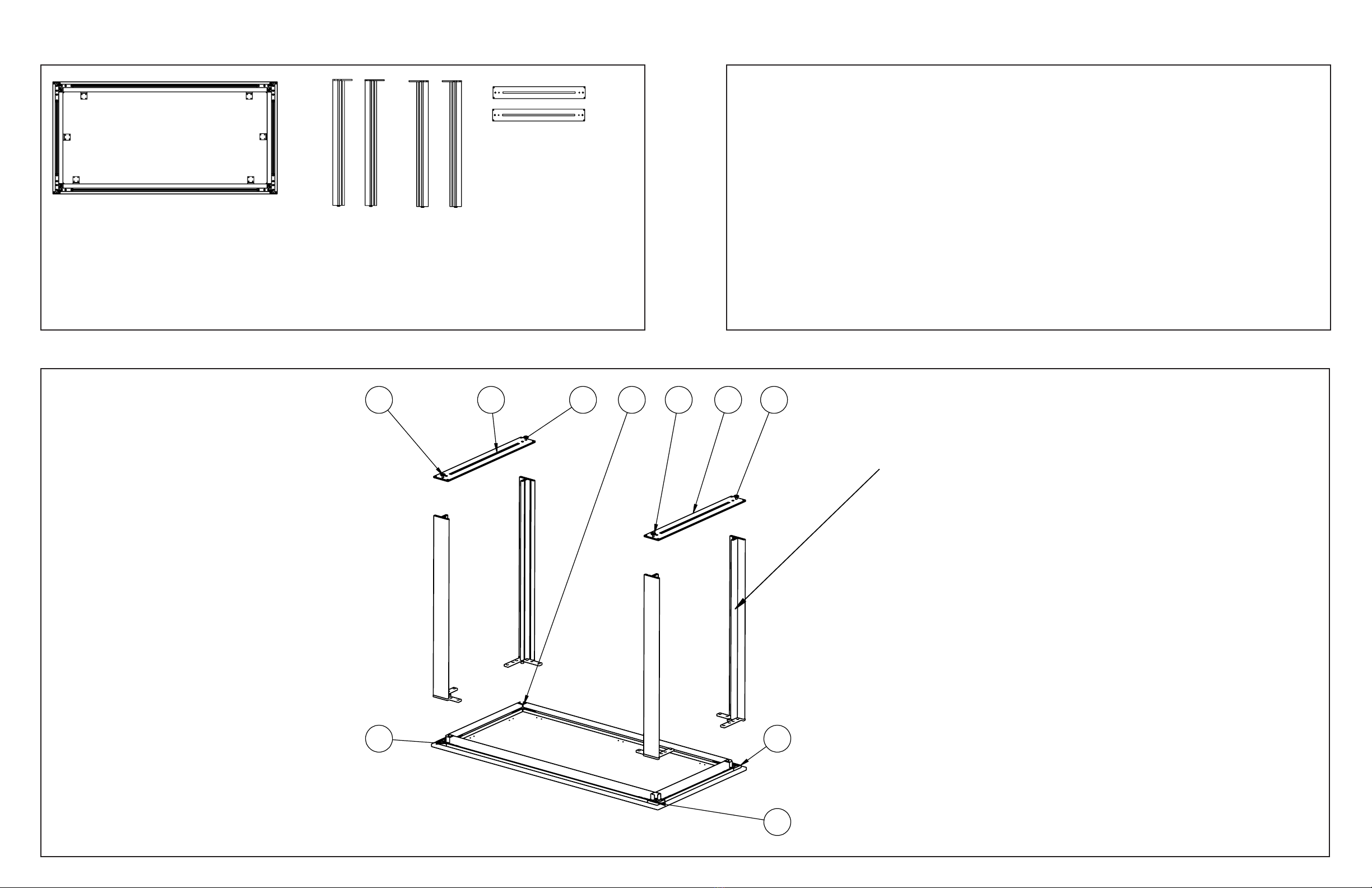

Installation instruction
STEP 1 : Screw the 4 legs to the structure
with 1/4-20 x 3/4'' round head screw
STEP 4 :Screw the glides through the plate
in the legs
42'' high table
installation guide
1:10
2014-12-16
Échelle/scale Unités/Units Date Par/By
Design creation:
Dessiné/Draw by:
Nom/Name
Pièce
#
/Part
#
2/2
Page:
Code R&D
Achat/Purchase
Projet/Project
Quincaillerie
  V /-  /’’  
  V #  ’’
  
Hardware
   /-  /’’  
  W  #  ’’’
  
4
4
4
41
3
1. Assemble the both table with the
flat bar, srew it with the 3/8'' allen screw.
Then asssemble the shared leg with one washer
each side and 1/4-20 x 5/8'' screw
2
2. Assemble each corner leg with
1/4-20 3/4'' screw
