Royal Sovereign ARP-9409 User manual

Royal Sovereign International, Inc
PORTABLE AIR CONDITIONER
ACONDICIONADOR DE AIRE PORTÁTIL
CONDITIONNEUR D' AIRE PORTABLE
Página en Español 17
Page en Français 33
Read and retain these instructions for future reference.
For any Customer Support needs, please choose the Support tab on
www.royalsovereign.com
ARP-9409 / ARP-9411
OWNER’S MANUAL
ARP-9409, ARP-9411

PORTABLE AIR CONDITIONER
ARP-9409, ARP-9411
INTRODUCTION
Thank you for choosing Royal Sovereign to provide you and your family with all of the “Home Comfort” requirements for your home, apartment,
or office. This Portable Air Conditioner can be set-up in just minutes and can be easily moved from room to room. It is a multi-functional room
air comfort system that offers you Air Conditioning, Dehumidification and Air Circulation modes. This manual will provide you with valuable
information necessary for the proper care and maintenance for your new appliance. Please take a few moments and read the instructions
thoroughly. If properly maintained, your appliance will give you many years of troublefree operation.

Page
Precautions for use 4
Identification of parts 5
Installation instructions 6~7
Operation 8~11
Maintenance 12
Troubleshooting 13
Specifications 14
Warranty 15
Contact information 16
Página en Español 17
CONTENTS

4
PRECAUTIONS FOR USE
Electrical Specifications and Power Cord
Check to ensure that the electrical service being used is adequate for the model you’ve chosen. The electrical rating of your new air conditioner is
defined on the serial plate of the unit. Please refer to the rating when checking electrical requirements to ensure they meet the electrical codes of
your location.






qualified electrician install the proper outlet.

• Do not use this unit with any extension cords or adapter plugs.



General Use







ARP-9409 / 9411
5

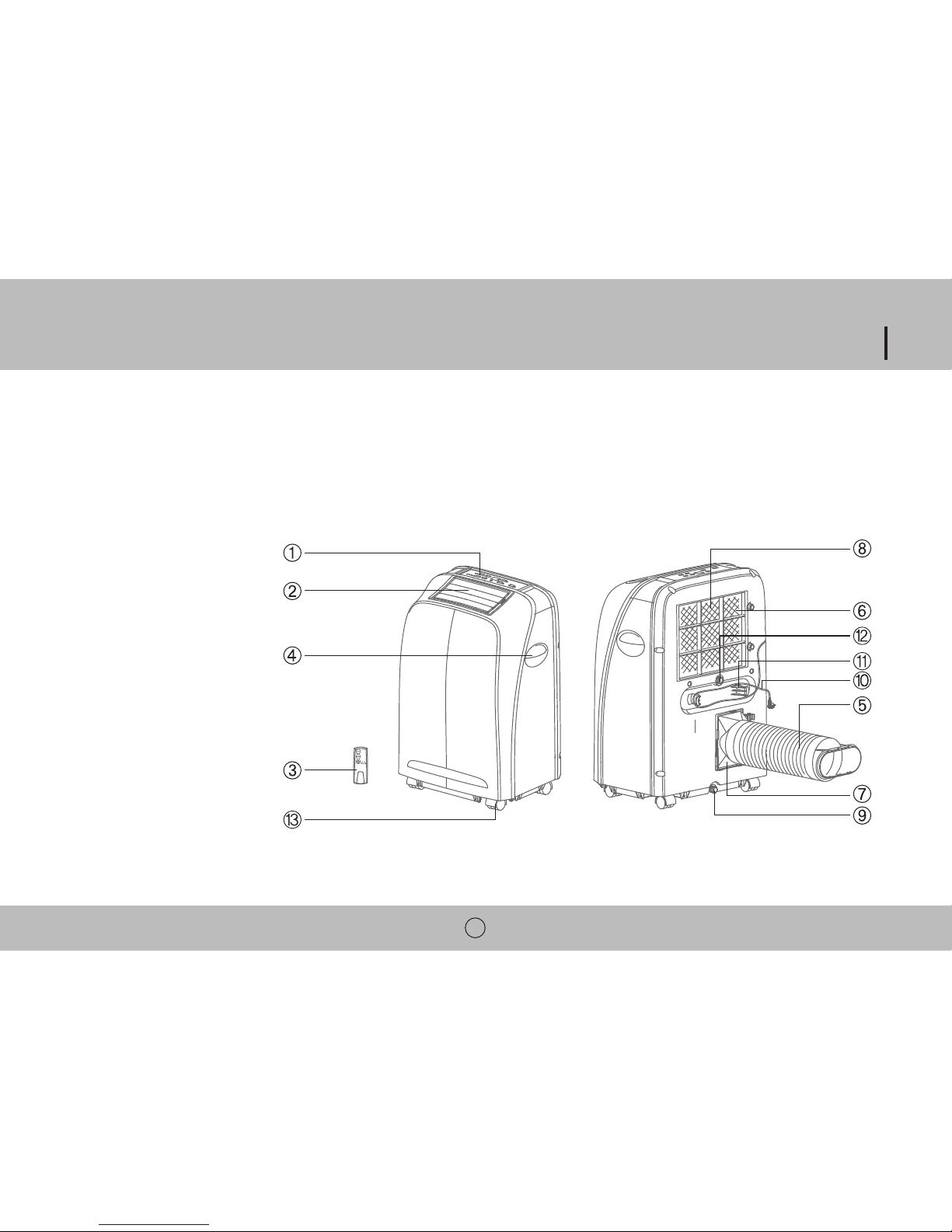

IDENTIFICATION OF PARTS
1. Control panel
2. Air outlet
3. Remote control
4. Handle

6. Air intake

8. Filter
9. Drain port
10. Power cord
11. Power cord hooks
12. Secondary drain port
13. Caster wheel

6
INSTALLATION
Unpack your New Portable Air Conditioner and let the machine stand upright for 2 hours before starting.
Unpack all parts listed below. If any parts are missing do not return this product to the place of purchase.
Please visit our website www.royalsovereign.com and click on the “Support” tab .

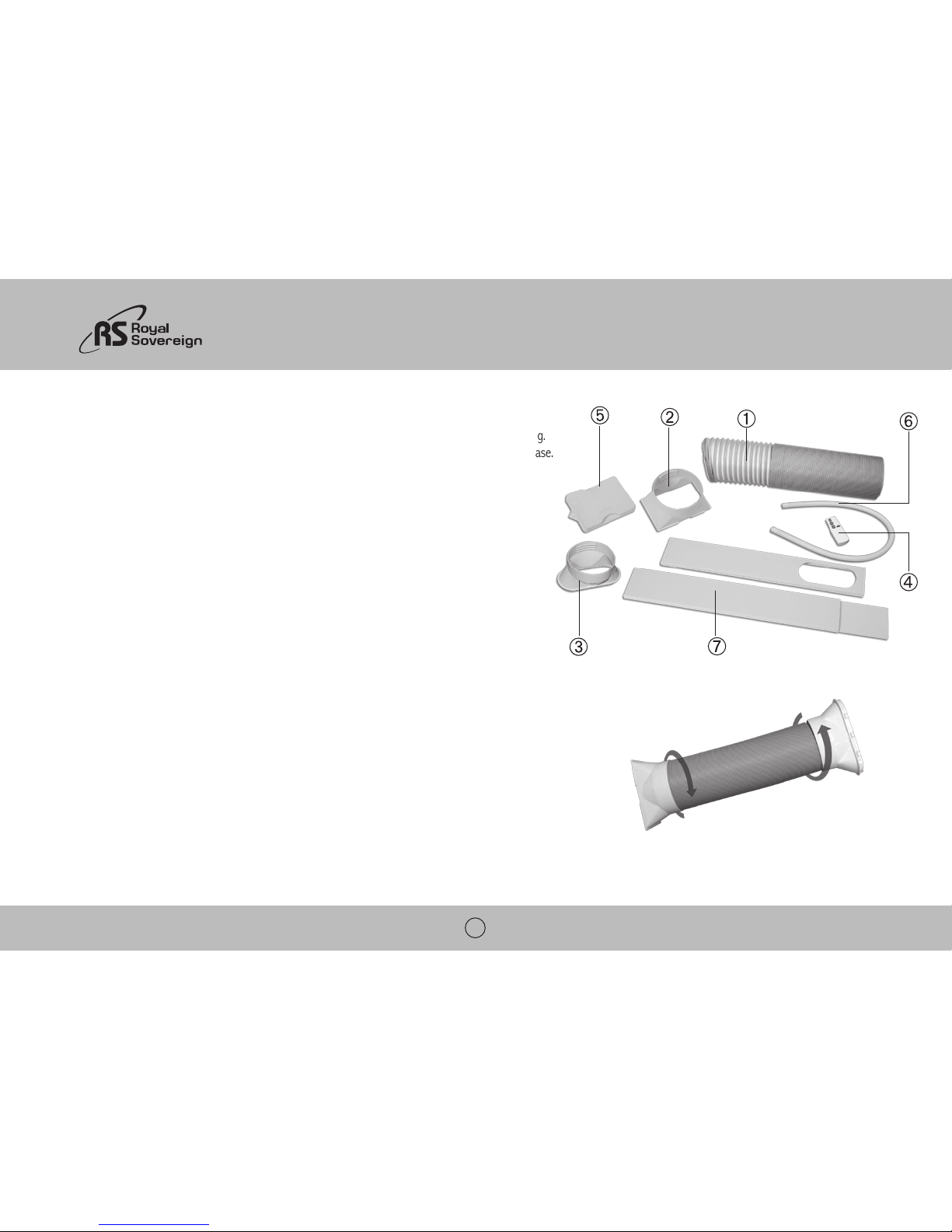

Accessories Include

2. Hose connector
3. Hose adapter
4. Remote control
5. Water tray
6. Drainage hose
7. Window slider
Part 1: Exhaust hose, connector and adapter




Fig 1.

ARP-9409 / 9411
7
Part 2: Attaching exhaust hose


locking the connector in place.
Part 3: Installing window slider kit
1. Open the window and place the window slider on the inside edge of the window.
2. Adjust the window slider to the width of the window.
3. Insert a screw into the top of the window slider to secure it at the correct length.

outside.

6. Place window slider and hose into the edge of the window.
7. Close window to secure slider.
Fig 3. Fig 4.
Fig 2.

8
OPERATION

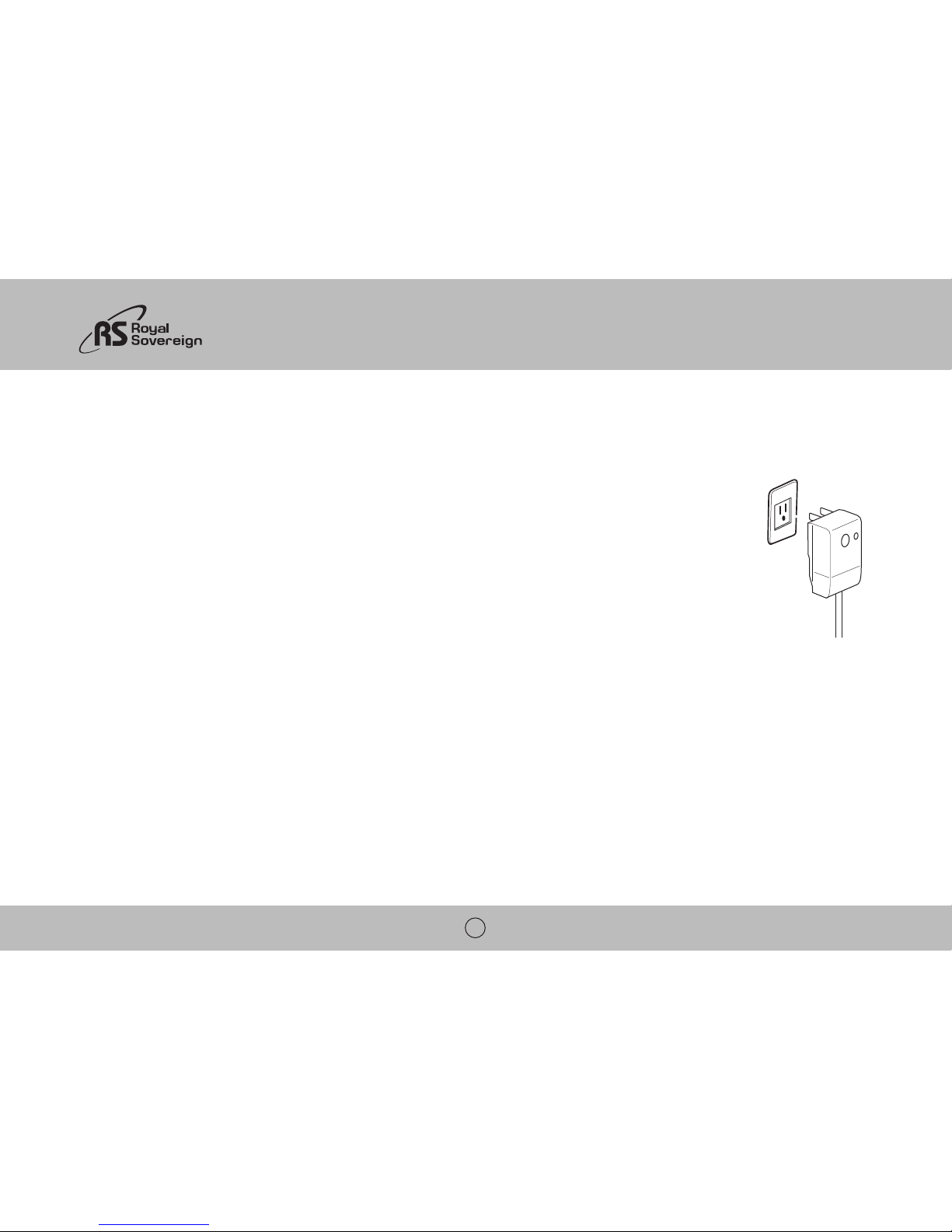

Before Use




1. Press the RESET button on the power cord.
2. Plug cord into an electrical outlet.
3. Press the TEST button on the power cord. The RESET button should pop up.
4. Press the RESET button for use.
5. Do not use the air conditioner if the test fails. The green light on the power cord will turn on if the plug is working properly.
Note: If you turn the air conditioner off and immediately restart it, allow 3 minutes for the compressor to restart cooling.
In the event of a power failure, wait 3 minutes before restarting unit.

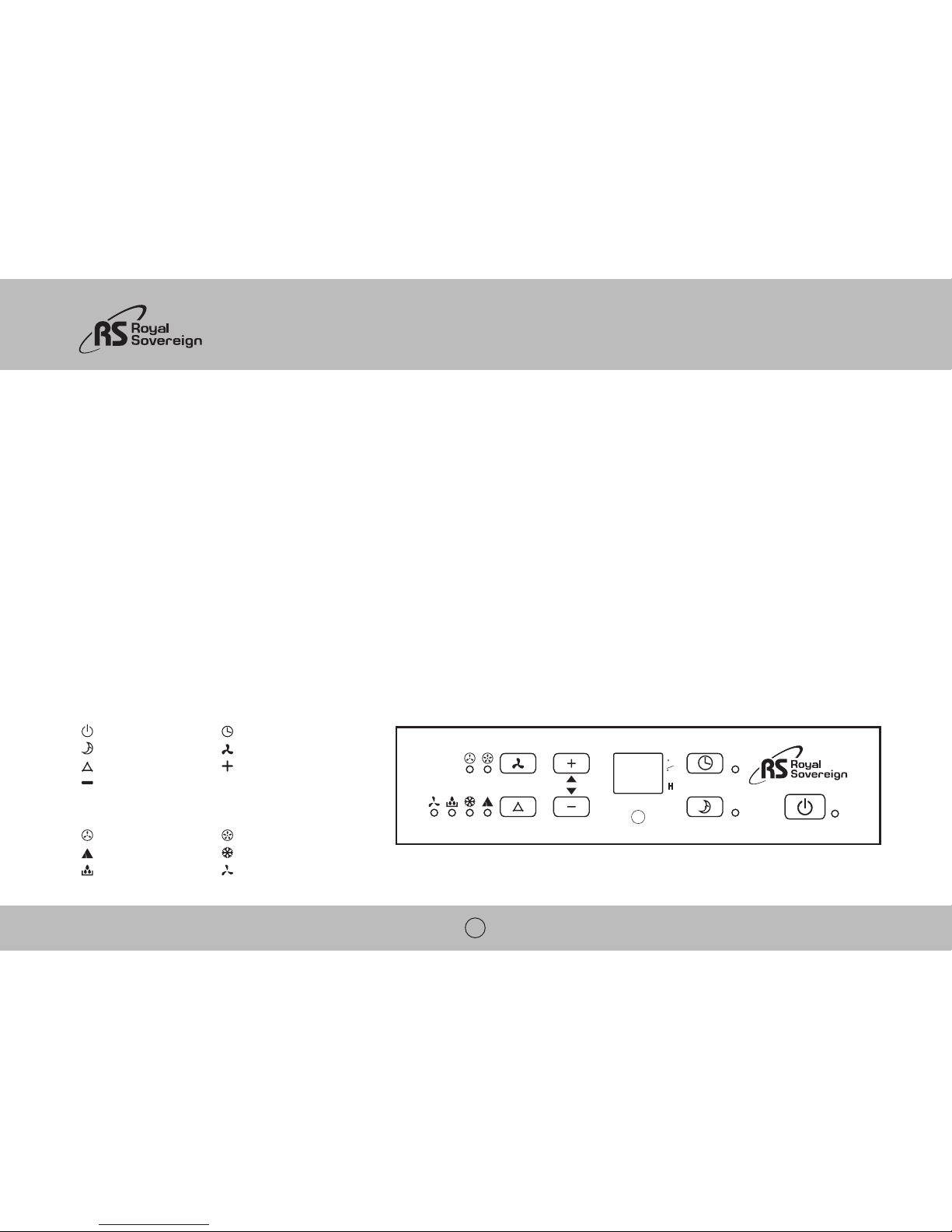

Control Panel
Buttons
Power button Timer button
Sleep mode button Fan speed button
Mode button Temperature / Timer up button
Temperature / Timer down button
Indicator Lights
Low fan speed High fan speed
Automatic mode Cool mode
Dehumidify mode Fan only mode
C
F
H

ARP-9409 / 9411
9
Control Panel Operation

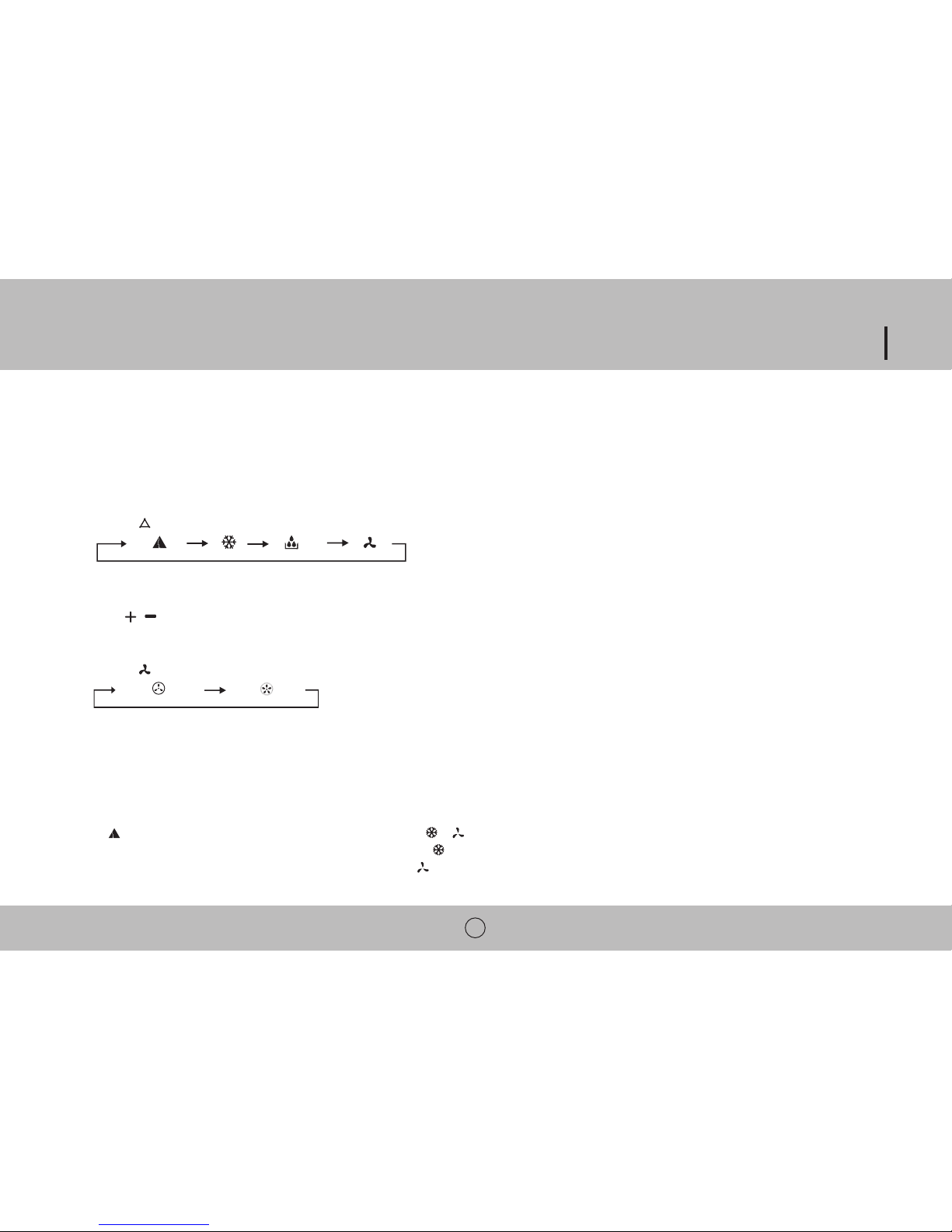

Automatic, Cool, Dehumidify, Fan Only Mode Operation
1. Turn the unit on

2. Select operating mode
Press the 
3. Adjust temperature
The temperature can be set within a range of 59°F to 87°F by 1 °F intervals.
Press , to increase or decrease the temperature. The LED display will flash the desired temperature for 5 seconds then display the current room temperature.
4. Adjust fan speed
Press the button to select desired fan speed.
5. Power down
Press the power button again to turn the unit off.
Mode Descriptions
Automatic mode
When is selected the unit will automatically select the operation mode with or .
When room temperature is greater than 75 °F the unit will automatically select mode.
When room temperature is less than 75 °F the unit will automatically select mode.

10
Cool mode
When mode is chosen the air conditioner will run when the room temperature is higher than the set temperature.
When the room temperature is lower than the set temperature only the fan will run.
Dehumidify mode
When in mode then fan will run at low speed and cannot be adjusted.
Temperature cannot be adjusted during dehumidify mode.
The compressor will stop running after 8 minutes and will turn back on after 6 minutes and will continue to cycle on and off.
Fan mode
When is selected the unit will only run the fan at low or high speed.
Temperature cannot be adjusted during fan mode.
Timer Operation
The timer can be used to turn the unit off after a set amount of time, or to turn the unit on after a set amount of time.
To use the timer to turn the unit on: While air conditioner is off press the 
, 
timer is set. The unit will turn on after the set time has passed.
To use the timer to turn the unit off: Press the  , buttons to adjust
the time up to 24 hours. The unit will shut down after the set time has passed.
Sleep Mode Operation

passed the unit will stop running.
To use sleep mode: Make sure the unit is in Cool mode. Press the 
NOTE: The unit has a memory function, when the unit is turned off and back on the previous setting should remain intact. This function does not work when unit is left in Automatic
mode.

ARP-9409 / 9411
11
Remote Control




/ 


Remote Control Battery Installation
- The remote control uses two AAA batteries which have been included for your convenience.
- Remove the battery cover on back of the remote.

- Replace the battery cover.
NOTES:
-When replacing batteries, always change both batteries at the same time.
-Remove the batteries if the remote control is not used for a month or longer.
-Do not dispose of batteries in a fire.

12
MAINTENANCE
Drainage
Occasionally, you may need to drain the unit. The LED display will show E4 when draining is necessary.
To drain:
1. Turn off the power to the unit and unplug.
2. Place the water tray under the drainage port to collect water.
3. Remove the rubber drainage plug.
4. Replace the plug, when drainage water stops flowing.
For continuous drainage into a floor drain:
1. Turn off the power to the unit and unplug.
2. Remove the rubber drainage plug from the secondary drainage port.
3. Attach the drainage hose to the secondary port.
4. Place other end of drainage hose into a floor drain.
5. Replace the rubber drainage plug after operation to prevent leaks.

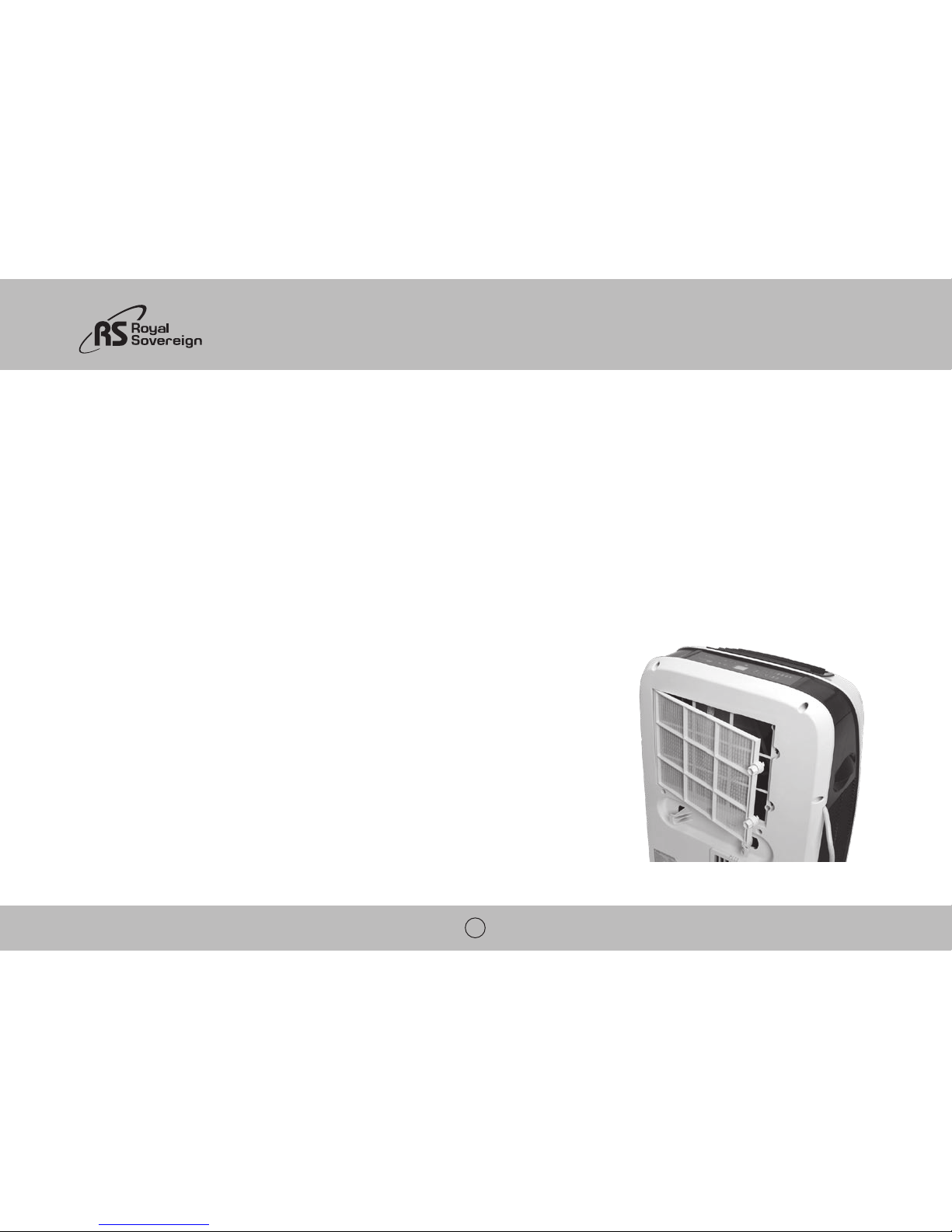

Cleaning the filter
The filter should be cleaned about every 2 weeks to maintain proper airflow.
1. Turn off the power to the unit.
2. Locate the 2 filter knobs on the back of the unit.
3. Twist both knobs counter clockwise to unlock the filter and remove the knobs.
4. Remove the filter.
5. Filter can be cleaned by a vacuum or soft cloth. If the filter is very dirty it can be washed with a mild
detergent and rinsed with water. Make sure filter is dry before replacement.
6 . Replace filter and knobs and turn knobs clockwise to the lock position.
NOTE: Never run the unit without the filter in. The could damage the unit.
Cleaning the unit
1. Turn off the power to the unit and unplug.
2. Wipe down unit with a soft, dry, or damp cloth. A mild detergent can be used.

ARP-9409 / 9411
13
3. Never use a volatile substance such a gasoline or abrasive cleaners.
4. Do not splash water onto the unit.
Storing the air conditioner
If the unit will not be used for a long time, be sure to drain the air conditioner, clean the air filter, pull out the power supply plug and wrap around power cord hooks, and remove the
batteries from the remote control before storage. After draining, keep the air conditioner running on FAN mode for at least 8 hours to dry the unit completely to prevent mold.
TROUBLESHOOTING
Problem Possible Reasons
Air Conditioner does not operate
- Check and reset the power plug. Wait 3 minutes and try to run the unit again.
- The batteries in the remote may need to be replaced. Replace the batteries and try to run the unit again.
- Make sure the plug is properly plugged into the outlet.
- The set temperature may be too close to room temperature. Lower the set temperature.
- The air outlet may be blocked. Check the air outlet and remove any items that may be found.
Air Conditioner runs but does not cool
- Check the room for open doors or windows and close them.
- There may be another appliance in the room giving off heat. Check the room and turn off the appliance.
- The air filter may be dirty. Check the filter and clean if necessary.

- The set temperature may be too high. Check the set temperature and reduce it if necessary.
Air Conditioner does not run and LED shows E4 
Water is leaking from the unit - Make sure unit is on a flat surface
- Drain the unit.
Machine automatically turns off - Timer may have been set to shut off. Turn power back on.
LED display shows E4 - Water full. Drain the unit.
LED display shows E2 - Temperature sensor error
LED display shows E3 - Evaporator error

14
SPECIFICATIONS
- Figures noted in the contents are for reference only; variation may result due to the application in different countries or regions, and shall be based on practical operation.
“Electrical waste products should not be disposed of with household waste.

Model ARP-9409 ARP-9411
Cooling Capacity 9,000 BTU / 2600W 11,000 BTU/ 3200W
Dehumidifying Capacity 1.9 pints / h / .9L/h 2.3 pints/ h / 1.1 L/h
Standard Cooling Input Power / Current 860 W / 7.7 A 1130 W / 10 A
 340 m2/h 340 m2/h
  
Sound Pressure Level  
Net Weight 53 lbs / 24 kg 59.5 / 27 kg
Unit Dimensions  
Packaging Dimensions  
Refrigerant R410A R410A

ARP-9409 / 9411
15
FULL ONE YEAR WARRANTY
Royal Sovereign warrants each Portable Air Conditioner to be free from defects in material and workmanship. Our obligation under this warranty is limited to the repair or

in effect to the original purchaser, for a period of one year from the date of purchase and is not transferable. This warranty shall apply only if the air conditioner is used on

LIMITED FIVE YEAR WARRANTY (COMPRESSOR)
For a period of five years from the date of purchase, when this Royal Sovereign Portable Air Conditioner is operated and maintained according to the instruction manual provided

material. If repair becomes necessary, please contact our customer service center. You will be responsible for all freight, insurance, and any other transportation charges to get the
unit to our factory or service center. If shipping is required, be sure to pack the unit properly to avoid shipping damages, as we will not be responsible for such damages.
EXCLUSIONS

centers, mishandling, improper installation, modification or unreasonable use including incorrect voltage, acts of God, or failure to provide reasonable and necessary maintenance.


rights which vary from state to state.

ROYAL SOVEREIGN INTERNATIONAL, INC.


ROYAL SOVEREIGN INC.
1001, World Meridian II, 426-5, Gasan-dong, Geumcheon-gu, Seoul, 153-759, KOREA

RS INTERNATIONAL AUSTRALIA PTY. LTD.
30 Prime Drive, Seven Hills, NSW 2147, AUSTRALIA
 
RS CANADA INC.
1025 Westport Crescent, Mississauga On L5T 1E8 CANADA


RS Holland B.V.
Industrieweg 6K, 4104AR, Culemborg, The Netherlands


Royal Sovereign International, Inc
SPANISH
PORTÁTIL DE AIRE ACONDICIONADO
Lea y conserve estas instrucciones para referencia futura.
Para cualquier asistencia al cliente las necesidades,
por favor, seleccione la pestaña de soporte en www.royalsovereign.com
ARP-9409 / ARP-9411
MANUAL DEL USUARIO
ARP-9409, ARP-9411

PORTÁTIL DE AIRE ACONDICIONADO
ARP-9409, ARP-9411
INTRODUCCIÓN

apartamento u oficina. Este acondicionador de aire portátil puede ser puesta en marcha en cuestión de minutos y se pueden mover fácilmente
de una habitación a otra. Es un aire multi-funcional sala de sistema de confort que le ofrece aire acondicionado, deshumidificación y los modos
de circulación de aire. Este manual le proporcionará valiosa información necesaria para el cuidado y mantenimiento para su nuevo aparato. Por
favor, tómese unos minutos y lea las instrucciones cuidadosamente. Si el mantenimiento adecuado, el aparato le dará muchos años de operación
libre de problemas.

Page
Precauciones para el uso  20
Identificación de las partes 21
Las instrucciones de instalación  22~23
Operación  24~27
Mantenimiento  28
Solución de problemas  29
Especificaciones  30
Garantía 31
Información de contacto 32
ÍNDICE

20
PRECAUCIONES PARA EL USO
Especificaciones eléctricas y cable de alimentación


cumplen los códigos eléctricos de su ubicación.






circuito, usted debe tener un electricista calificado instale un tomacorriente adecuado.

• No utilice esta unidad con todos los cables de extensión o adaptador de enchufe.



Uso General






