RS PRO IPM 3600N User manual

INSTRUCTION MANUAL
IPM 3600N
3 Phase Power Analyser
EN
3 4
1 2
MAG.
Q
U12 Y-M
-h
NO.
P
S
U23 D-h U31 m-s

3 Phase Power Analyser / EN
09/30/16 Version No. 00
CONTENTS
Title Page
I. SAFETY INFORMATION..........................................................................1
II. INTRODUCTION.......................................................................................3
III. SPECIFICATIONS ....................................................................................4
3-1 Environmental Conditions .........................................................................4
3-2 Safety Specifications .................................................................................4
3-3 General Specifications...............................................................................5
3-4 Electrical Specification...............................................................................5
IV. PARTS & CONTROLS .............................................................................9

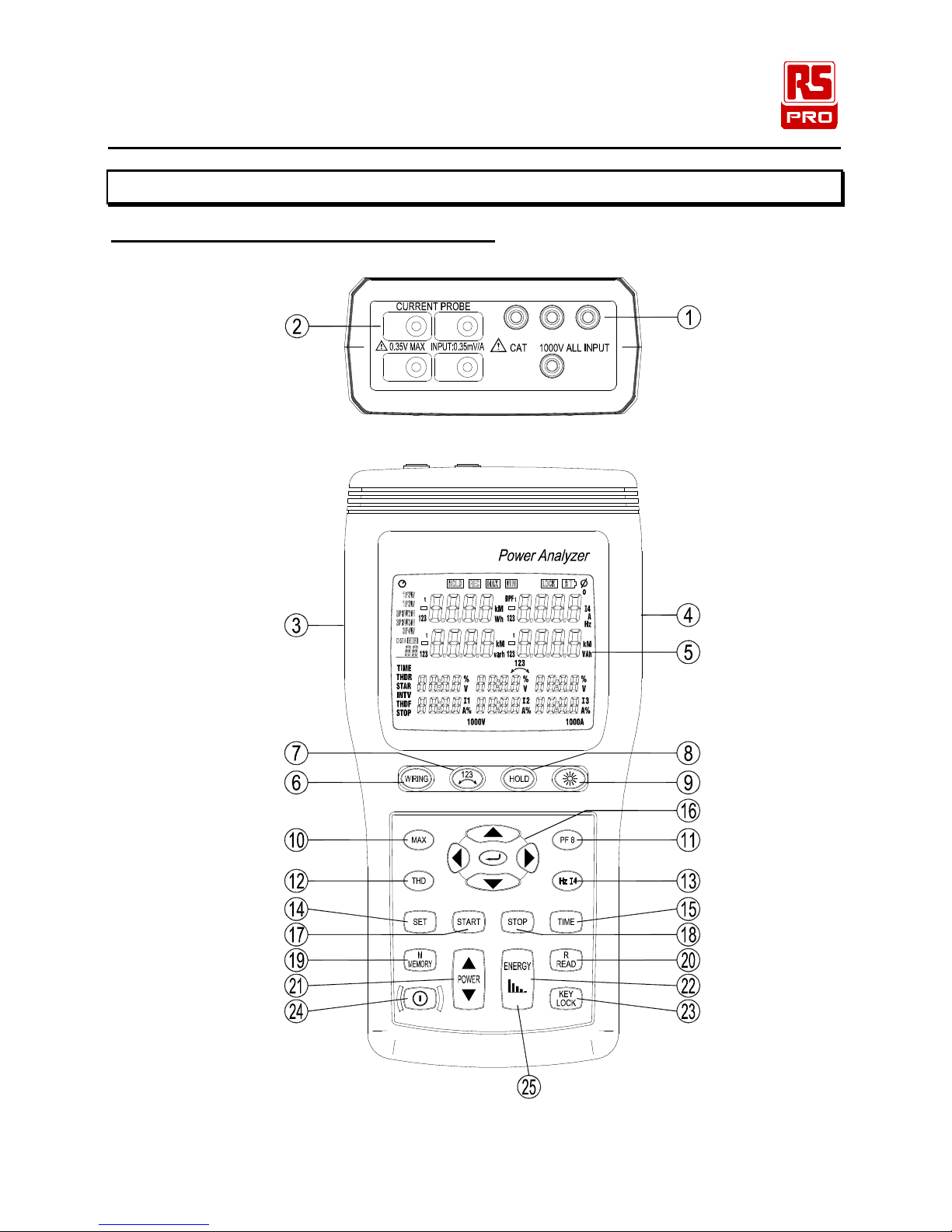

4-1 Description of Parts & Control keys...........................................................9

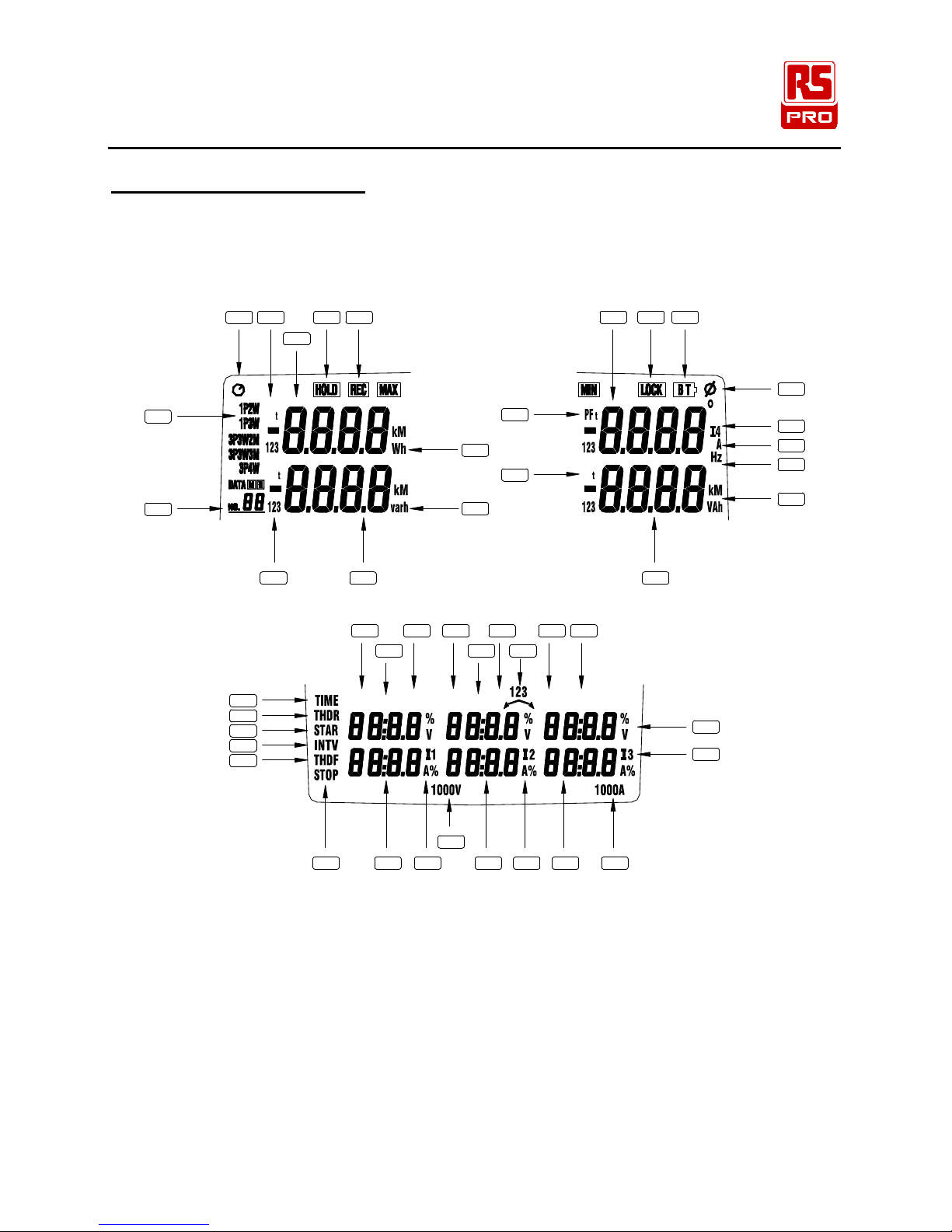

4-2 Description of Display..............................................................................13
V. OPERATING INSTRUCTIONS...............................................................16
5-1 ICA 3600N AC Current Probe Connection ..............................................16
5-2 Single-Phase 2-Wire (1P2W) Power System Measurement...................18
5-3 Single-Phase 3-Wire (1P3W) Power System Measurement...................20
5-4 Three-Phase 3-Wire (3P3W2M) Power System Measurement ..............22
5-5 Three-Phase 3-Wire (3P3W3M) Power System Measurement ..............25
5-6 Three-Phase 4-Wire (3P4W) Power System Measurement...................27
5-7 Single Phase Current Measurement.......................................................29
5-8 Manual Data Memory and Read Function Operation..............................30
5-9 Auto Data logging Function Operation ....................................................30
5-10 Phase Sequence Measurement............................................................31
5-11 Voltage, Current Waveform and Harmonic Analyzer.............................33
5-12 Enable Auto Power Off Function...........................................................33
VI. MAINTENANCE......................................................................................34
6-1 General Maintenance..............................................................................34
6-2 Battery Replacement...............................................................................34
VII. SOFTWARE INSTALLATION AND OPERATION..................................35

3 Phase Power Analyser / EN
1 09/30/16 Version No. 00
I. SAFETY INFORMATION
The following symbols may appear on the instrument and in this instruction manual:
Caution refer to this manual before using the instrument.
This mark indicates explanation, which is particularly important that the user should
read before using the instrument.
Risk of electric shock
Instrument is protected bydouble insulation or reinforced insulation.
Conforms to relevant EU directives
Dispose of in accordance with local regulations.
Safety Information
Read and understand this instruction manual completely before using this instrument. Failure to
observe the warnings and cautions in this instruction manual may result in injury, death or damage
to the instrument and other equipment or property.
If this instrument is used in a manner not specified in these instructions, the protection provided by
the instrument may be impaired
DANGER
•Do not store or use the instrument where it will be exposed to direct sunlight, high temperature,
high humidity, or condensation
•The instrument is designed for indoor use and can be safely used at temperatures ranging from
0°C to 40°C
•To prevent electric shock, do not allow the instrument to come into contact with water, do not
use in damp conditions and do not use the unit with wet hands
•Do not use the instrument in hazardous areas or around explosive or corrosive gases or vapours
•Examine the instrument and probes before use, do not use them if they are damaged
•Do not apply more than the rated voltage, as marked on the instrument and probes, between
terminals or between any terminal and earth ground
•To prevent electric shock, de-energise power systems before making connections whenever
possible
•Whenever possible, make connections to the output side of a circuit breaker to provide
better short circuit protection.
•Use caution with voltages above 30 Vac rms, 42 Vac peak, or 60 Vdc. These voltages pose a
shock hazard
•Use extreme caution when working around bare conductors or bus bars. Accidental contact with
the conductor could result in electric shock.
•Wear suitable personal protective equipment when working around or near hazardous live
conductors which could be accessible

3 Phase Power Analyser / EN
09/30/16 Version No. 00 2
WARNING
•Do not hold the test leads or probes beyond the finger guards or tactile barriers
•Remove all probes, test leads and accessories that are not required for the test
•Always use proper terminals, switch position, and range for measurements
•Verify the instrument is operating correctly by measuring a known voltage before use. If in doubt,
have the instrument serviced
•To avoid false readings that can lead to electric shock and injury, replace battery as soon as the
low battery indicator “
BT
” appears
•Follow all legal requirements
•Obey posted instructions
•Never assume that a circuit is de-energized, check it first
•Always set up the measurement first, then connect the test leads and probes to the
instrument before connecting to the circuit under test
•Connect the ground lead first, then the voltage leads and the current probe, Disconnect in
the reverse order
•Route all test leads carefully
•Remove test leads from instrument before opening the battery door or instrument case
CAUTION: The measurement inputs U1, U2 and U3 are not isolated from each other, input
N is the common reference point. Connecting either U1, U2 or U3 to the circuit
means that the others are also live and therefore a danger of electric shock is
present. To avoid electrical shock, connect only the probes and test leads
required for the test.

3 Phase Power Analyser / EN
3 09/30/16 Version No. 00
II. INTRODUCTION
The IPM 3600N is a 3 phase power analyser for portable measurement within public mains
supplies.
The analyzer can be used to analyse and trouble shoot power quality issues, improve power
efficiency, manage energy costs, analyze harmonics, optimize power system performance,
improve power quality and analyze system data to design optimal upgrades.
Features
•10 display LCD screen, capable of showing many power quality parameters at the same time.
•4 current probes included for measuring 3 phase and neutral line current.
•Measures single-phase 2-wire, single-phase 3-wire, three-phase 3-wire and three-phase 4-wire
systems.
•All true-RMS sensing, V,A, KW, KVAR, KVA, PF, θ, Hz, KWh, KVARh and KVAh measurements.
•Phase sequence indicator function.
•Backlight display function.
•Manual Data Memory and Read (50 sets).
•Data logging (micro SD CARD 4GB).
•USB optical PC interface with three phase voltage / current waveform display and harmonic
analysis.
Supplied accessories
•ICA 3600N AC current probe x 4
Category Rating: CAT III 600V per IEC61010-1, Pollution Degree2.
: IEC 61010-1 2nd Edition and IEC61010-2-032
Input : AC 1000A maximum.
Output : 0.35mV/A
•Voltage test lead x 4
Model no : TL 202I
Manufacturer : Hong Kai Co., Ltd.
Category Rating : CAT III, 1000V AC 10A Max.
•Alligator clip x 4
Model no : FC-A26
Manufacturer : Fu Chyi Enterprise CO., Ltd.
Category Rating : CAT III, 1000V AC 10A Max.
•AC Adaptor (IN-OUT Isolated type, Input 230V AC 50Hz)
Model : MWD48-1200300GS
Input : 230V AC 50Hz
Output : 12V DC 300mA
Manufacturer : MAW WOEI Enterprise CO., Ltd.
•Battery 1.5V “AA” x 8
•Instruction manual x 1
•PC software CD-R x 1
•Carrying case x 1
•Optical USB interface x 1

3 Phase Power Analyser / EN
09/30/16 Version No. 00 4
III. SPECIFICATIONS
3-1 Environmental Conditions
•Altitude up to 2000 metres
•Indoor use only
•Ambient operating temperature: 0 to 40°C
•Operating humidity : Max 80%RH ≤31°C decrease linearly to 50% relative humidity at 40°C
(non-condensing).
•Storage temperature and humidity : -10 to 60°C R.H. < 70% non-condensing.
3-2 Safety Specifications
IPM 3600N Power Analyser
Category Rating : CAT III 1000V per IEC 61010-1
Pollution Degree 2
: IEC 61010-1 2nd Edition
ICA 3600N AC current probes:
Current Clamps, model ICA3600N, to be used only with the Three-Phase power analyzer,
model IPM 3600N.
Category Rating: CAT III 600V per IEC61010-1,
Pollution Degree2.
: IEC 61010-1 2nd Edition and IEC61010-2-032
Input : AC 1000A maximum.
Output : 0.35mV/A
Voltage test leads:
Category Rating : CAT III, 1000V, AC 10A Max.
Alligator clip:
Category Rating : CAT III, 1000V, AC 10A Max.
Category definitions
Measurement
Category Application
I Measurements on circuits not directly connected to mains.
Examples include: Measurements on battery powered equipment and
specially protected (internal) mains-derived circuits.
II Measurements on circuits directly connected to the low voltage installation.
Examples include: Household appliances, portable tools and similar equipment.
III Measurements performed in the building installation.
Examples include measurements on distribution boards, junction boxes,
socket-outlets and wiring and cables in the fixed installation.
IV Measurements performed at the source of the low-voltage installation.
Examples include measurements on primary over current protection devices
and electricity meters

3 Phase Power Analyser / EN
5 09/30/16 Version No. 00
3-3 General Specifications
•Maximum voltage between voltage input terminals and earth ground : 1000 Vrms
•Maximum rated working voltage for current input : 0.35 Vrms
•Maximum current for current probe : 1000Arms
•Numerical display : 10 display 4 digit LCD maximum reading 9999.
•Battery life : approx. 50 hours.
•Auto power off : approx. 30 minutes.
•Low battery indication : The “
BT
” symbol is displayed when the battery voltage drops below
the operating voltage.
•Backlight display time : Auto off approx. 30 seconds.
•Sampling rate : Approx. 1 time per 2 seconds (Digital display).
•Harmonic analyzer : 1 ~ 63th order.
•Manual data memory and read capacity: 50 sets.
•Data logger capacity: micro SD CARD 4GB (Maximum 99 blocks).
•Current probe jaw opening diameter : Cables φ40mm.
•Storage temperature and humidity : -10 to 60°C R.H. < 70% non-condensing.
•Dimensions :
Instrument: 235x117x54 mm.
Current probe: 193x88x40 mm.
•Weight :
Instrument including battery: ~ 730g
Current probe: ~ 333g
3-4 Electrical Specification
Accuracy : ±(% of reading + number of digits) at 23°C ± 5°C ≤80%RH
Temperature coefficient : 0.1 ± (specified accuracy) / °C (<18 or >28°C)
1. Position the conductor within the jaws at the intersection
of the indicated marks as much as possible in order to
meet this meter’s accuracy.
2. If the conductor is positioned elsewhere within the jaws,
the maximum additional error is 1.5 percent.
Figure 1. Current Probe Positional Error

AC Voltage Trms measurement (Vrms) :
Range Resolution
Accuracy Input
impedance
Overload
protection
Nominal power
system frequency
10 to 999.9V
0.1V ±(0.3%rdg±10dgts)
2MΩ1000Vrms
50Hz
•Display item : RMS voltage value for each channel.

3 Phase Power Analyser / EN
09/30/16 Version No. 00 6
AC Current Trms Measurement (Arms) :
Range Resolution
Accuracy
(including current probe)
Current probe
output Overload protection
Nominal power
system frequency
10 to 299.9A
±0.5%rdg±15dgts
300 to 999.9A
0.1A ±1.2%rdg±15dgts 0.35mV/A
1000Arms
50Hz
•Display item : RMS current value for each channel.
Active Power measurement P (KW) :
Range Resolution Accuracy
0.1 to 999.9KW 0.1KW ±1.0%rdg±20dgts (10 to 299.9A)
±1.5%rdg±20dgts (300 to 999.9A)
•Display items : Active power of each channel and its sum of multiple channels.
•Polarity display : For influx (consumption) No symbol, For outflow (regenerative) “ - ”.
Apparent Power measurement S (KVA) :
Range Resolution Accuracy
0.1 to 999.9KVA 0.1KVA ±1.0%rdg±20dgts (10 to 299.9A)
±1.5%rdg±20dgts (300 to 999.9A)
•Measurement method : Calculated from RMS voltage U and RMS current I.
•Display item : Apparent power of each channel and its sum of multiple channels.
•Polarity display : No polarity.
Reactive Power measurement Q (KVAR) :
Range Resolution Accuracy
0.1 to 999.9KVAR 0.1KVAR ±1.0%rdg±20dgts (10 to 299.9A)
±1.5%rdg±20dgts (300 to 999.9A)
•Measurement method : Calculated from apparent power S and active power P,
Q =
S
P
2 2
−
•Display item : Reactive power of each channel and its sum of multiple channels.
•Polarity display : For phase lag : No symbol.
For lead phase : “-”

Power Factor measurement (COSφ) :
Range Resolution CalculatedAccuracy
-1 to +1 0.001 ±10dgt
•Measurement method : Calculated from apparent power S and active power P,
PF = COSφ=
P S/
•Display item : Power factor of each channel and its sum of multiple channels.

3 Phase Power Analyser / EN
7 09/30/16 Version No. 00

Phase angle measurement (φ) :
Range Resolution CalculatedAccuracy
0.1° to +180°, 0.1° to -180°0.1°±15dgt
•Measurement method : Calculated from power factor COSφ,φ= COS
-1
PF.
•Display item : Phase angle of each channel and its sum of multiple channels.
•Polarity display :
For phase lag : No symbol
For phase lead : “-”.
Frequency measurement (Hz) :
Range Resolution Accuracy Measurement source
50Hz 0.1Hz ±0.1%rdg±2dgt Voltage U1 > 50V
•Measurable input range : > 50V
Three Phase Sequence Detection :
Input voltage range
Normal phase indication
Reverse phase indication
Measurement source
3P > 50V to 1000V
U1, U2 and U3
Active Power Energy measurement (kWh) :
Range Resolution Active power accuracy
Timer interval
TimerAccuracy
0.001 to 9.999KWh
0.001KWh
0.01 to 99.99KWh
0.01KWh
0.1 to 999.9KWh
0.1KWh
0.001 to 9.999MWh
0.001MWh
0.01 to 30.59MWh
0.01MWh
±1.0%rdg±20dgts
(10 to 299.9A)
±1.5%rdg±20dgts
(300 to 999.9A)
1 sec ±50ppm (25°C)
•Measurement display : Display all active power consumption energy (sum of absolute values).
Apparent Power Energy measurement (kVAh) :
Range Resolution
Apparent power
accuracy Timer interval
TimerAccuracy
0.001 to 9.999kVAh
0.001kVAh
0.01 to 99.99kVAh
0.01kVAh
0.1 to 999.9kVAh
0.1kVAh
0.001 to 9.999MVAh
0.001MVAh
0.01 to 30.59MVAh
0.01MVAh
±1.0%rdg±20dgts
(10 to 299.9A)
±1.5%rdg±20dgts
(300 to 999.9A)
1 sec ±50ppm (25°C, 77°F)
•Measurement display : Display all apparent power energy (sum of absolute values).

3 Phase Power Analyser / EN
09/30/16 Version No. 00 8
Reactive Power Energy measurement (kVARh) :
Range Resolution
Reactive power
accuracy Timer interval
TimerAccuracy
0.001 to 9.999kVARh
0.001kVARh
0.01 to 99.99kVARh
0.01kVARh
0.1 to 999.9kVARh
0.1kVARh
0.001 to 9.999MVARh
0.001MVARh
0.01 to 30.59MVARh
0.01MVARh
±1.0%rdg±20dgts
(10 to 299.9A)
±1.5%rdg±20dgts
(300 to 999.9A)
1 sec ±50ppm (25°C, 77°F)
•Measurement display : Display all reactive power consumption (sum of absolute values).
Harmonic measurement
Order Accuracy Harmonic Source
1 to 63 ±3%THD U1, U2, U3 > 10V
I1, I2, I3 > 10A
Waveform (possible only on a PC via a PC connection)
Select phase L1, L2 or L3.
Select Voltage and current waveform output.

3 Phase Power Analyser / EN
9 09/30/16 Version No. 00
IV. PARTS & CONTROLS
4-1 Description of Parts & Control keys
MAG.
Q
U12 Y-M
-h
NO.
P
S
U23 D-h U31 m-s
I3
I1
I4
I2
N
Ⅲ
U1 U2 U3
Figure 2. Description of Parts & Control keys

3 Phase Power Analyser / EN
09/30/16 Version No. 00 10
1. Input for voltage terminals (U1, U2, U3, N).
Note the 3 inputs are not galvanically isolated, they have the common reference point “N”
(neutral).
2. Input sockets for current probes (I1, I2, I3, I4).
3. Plug for external AC adaptor power supply input.
CAUTION: Use only the mains adaptor supplied with the instrument
4. Optical USB interface output.
5. LCD display.
6. WIRING key : Press “WIRING” to select the type of electrical system under test:
1P2W -To measure single-phase two-wire power lines
1P3W -To measure single-phase three-wire power lines
3P3W2M -To measure three-phase, three-wire power lines without neutral, use
this when measuring three-phase power with 2-current probe
measurement only
3P3W3M - To measure three-phase three-wire power line without neutral, using
the three power meter method, use this when measuring
three-phase power with 3-current probe measurement only
3P4W -To measure three-phase four-wire power lines with neutral
7. key : Phase sequence detection function key. In the 3P4W mode, press and hold
down this key, it will display phase detection results as follows :
Normal phase
Reverse phase
8. HOLD key : Data hold function key, press “HOLD” key to hold data, the “ HOLD ” symbol is
displayed, press “HOLD” key again to exit Hold function.
9. key : Backlight function key, press “ ” key to turn on and off the backlight. The
backlight will switch off automatically after 30 seconds.
10. MAX key:Active power (P), reactive power (Q), and apparent power (S) Maximum / Minimum
recording measurement.
In the power measurement screen mode, press ⊳or key to select (P1, Q1, S1), (P2,
Q2, S2), (P3, Q3, S3) or (Pt, Qt, St) which one measured value to do the
maximum/minimum recording measurement.
Press “MAX” key to enter this mode, the “REC” mark is displayed.
Press “MAX” key to cycle through the
a). Maximum reading the “ REC MAX ” mark is displayed.
Press key to cycle through the
Maximum reading forActive power (“P” mark is blinking) with its Q, S, V,Areading and
its PF, Θ, Hz, I4 reading by press “PFΘ” and “Hz I4” keys.

3 Phase Power Analyser / EN
11 09/30/16 Version No. 00
Maximum reading for Reactive power (“Q” mark is blinking) with its P, S, V,Areading and
its PF, Θ, Hz, I4 reading by press “ PFΘ ” and “ Hz I4 ” keys.
Maximum reading forApparent power (“S” mark is blinking) with its P, Q, V,Areading and
its PF, Θ, Hz, I4 reading by press “ PFΘ ” and “ Hz I4 ” keys.
b). Minimum reading, the “ REC MIN ” mark is displayed.
Press key to cycle through the
Minimum reading forActive power (“P” mark is blinking) with its Q,S, V,Areading and its
PF, Θ, Hz, I4 reading by press “ PFΘ ” and “ Hz I4 ” keys.
Minimum reading for Reactive power (“Q” mark is blinking) with its P, S, V,Areading and
its PF, Θ, Hz, I4 reading by press “ PFΘ ” and “ Hz I4 ” keys.
Minimum reading forApparent power (“S” mark is blinking) with its P, Q, V,Areading and
its PF, Θ, Hz, I4 reading by press “ PFΘ ” and “ Hz I4 ” keys.
c). Current reading, the “ REC ” mark is displayed.
Press “MAX” key for 3 seconds to exit this mode.
11. PF Θkey : Display measured power factor or phase angle value control key, the “PF” or “φ”
symbol is displayed.
12. THD key: Display measured voltage or current THDF, THDR value control key.
THDF: Total Harmonic Distortion of a waveform is compared to its Fundamental.
THDR: Total Harmonic Distortion of a waveform is compared to the waveforms rms value.
Press “THD” key to enter the Voltage U1, U2 and U3 THDR and THDF measurement
mode, the “THDR” and “THDF” marks are displayed.
Press “THD” key again to enter the Current I1, I2 and I3 measurement mode, the
“THDR” and “THDF” marks are displayed.
Press “THD” key again to exit this mode.
13. Hz I4 key : Display measured frequency or I4 current probe value control key, the “Hz” or “I4”
symbol is displayed.
14. SET key : Setting current date and time function key, press “SET” key to enter current time
setting mode and interval time setting mode for auto data logging use.
15 TIME key : Display current date and time control key, press and hold down “TIME” key to
display the current data and time.
Press and hold down “TIME” key then press key turn on the meter, the
“ ” mark appear, enter into auto power off function.
16. ⊳ ↵keys :
In the harmonic measurement mode, press ↵key to select voltage or current harmonic
source. Press ⊳or key to select which source to be displayed. Press or key to
select harmonic order.
Set current date and time, or recall manual data memory control keys
17. START key : Start auto data logging function.

3 Phase Power Analyser / EN
09/30/16 Version No. 00 12
18. STOP key : Stop auto data logging function. Press “START” key to resume recording in
current data sets.
19. MEMORY key : Manual data memory control key. Press “MEMORY” key each time to store
one set of current display reading into the memory, the “M” symbol and the
memory address number is displayed, total memory size is 50 sets.
20. READ key : Read manual memory data control key.
21. POWERkey : Display measured power value control key, the Pt123, Qt123 and St123
symbols will be displayed in cycles.
22. ENERGY key : Display total integrated power energy value control key.
23. KEY Lock key : Lock all the functions key, except and keys, the “LOCK”symbol
is displayed.
24. key : Power on-off control key.
25. MAG. key: Harmonic measurement control key.
Press “ MAG.” key to enter the voltage and current waveform harmonic
measurement mode, the harmonic order number “Hd:XX” and its measured value (V or
A), harmonic ratio (%), P, Q, S, PF values are displayed.
Press or key to scroll the harmonic order from “Hd:01” to “Hd:63”.
Press ↵key to scroll the voltage or current harmonic for display.
Press ⊳or key to scroll the U1, U2, U3 or I1, I2, I3 for display.
Press “ MAG.” key again to exit this mode.

3 Phase Power Analyser / EN
13 09/30/16 Version No. 00
4-2 Description of Display
The multi-line display shows the currently measured primary values.
The display format, symbols and the units (V, kV, A, kA, W, kW, MW etc...) are automatically
displayed to match the selected values and functions and mode of operation.
Q
P
4.11
4.10
4.1 4.2
4.3
4.4 4.5
4.7
4.6
4.9 4.8
S
4.17
4.18
4.19
4.20
4.16
4.13 4.14 4.15
4.21
4.22
4.12
U12 Y-M U23 D-h U3 m-s
4.32
4.334.33
4.46
4.45
4.44
4.43
4.42
4.41 4.40 4.39
4.38
4.37 4.36 4.35 4.34
4.234.24 4.25 4.264.274.284.29 4.30 4.31
Figure 3. Display Layout

3 Phase Power Analyser / EN
09/30/16 Version No. 00 14
4.1
: Auto power off indication.
4.2
P : Harmonic active power measured display indicator.
P1 : Phase 1 active power measured display indicator.
P2 : Phase 2 active power measured display indicator.
P3 : Phase 3 active power measured display indicator.
Pt : Total active power measured display indicator and total active energy measured
display indicator.
4.3
Display value of Active Power
4.4
HOLD : Display hold mode.
4.5
REC MAX : Maximum recorded reading.
REC MIN : Minimum recorded reading.
REC : Recording mode indication and current reading.
4.6
KW : Active Power Unit: or KWh, MWh, active energy unit
4.7
Kvar : Reactive Power Unit or Kvarh, Mvarh reactive energy unit
4.8
Display of reactive Power
4.9
Q : Harmonic reactive power measured display indicator.
Q1 : Phase 1 reactive power measured display indicator.
Q2 : Phase 2 reactive power measured display indicator.
Q3 : Phase 3 reactive power measured display indicator.
Qt : Total reactive power measured display indicator and total reactive energy
measured display indicator.
4.10
DATA No.××: Last manual datalogged memory address number indication (01~50).
M : Manual datalogged indication, M displays one time store one sets data into the
memory.
R No.××: Recall manual datalogged address number indication, the memory data
displayed for read.
DATA M ××: Auto datalogging indication, M disappears one time store one sets data
into the memory .
01 ~ 99: Maximum 99 memory blocks can be use.
FULL: Memory full indication, if exceed 99 memory blocks or micro SD
CARD is full used.
4.11
1P2W : Measure single-phase two-wire power line indicator.
1P3W : Measure single-phase three-wire power line indicator.
3P3W2M : Measure three-phase three-wire power line indicator.
3P3W3M: Measure three-phase three-wire power line using 3 power meter indicator.
3P4W : Measure three-phase four-wire power line indicator.
4.12
PF : Harmonic power factor measured display.
PF1 : Phase 1 power factor measured display.
PF2 : Phase 2 power factor measured display.
PF3 : Phase 3 power factor measured display.
PFt : Total power factor measured display.
4.13
Display value for Power Factor, Frequency & I4 current
4.14
LOCK : Keyboard lock indicator.
4.15
BT
: Low battery indicator.

3 Phase Power Analyser / EN
15 09/30/16 Version No. 00
4.16
O
: Phase angle unit
ϕ: Phase angle display
4.17
Indicates current measurement from input “I4”
4.18
A : Unit of current
4.19
Hz : Unit of frequency
4.20
KVA : Apparent power unit or KVAh, MVAh : Apparent energy unit.
4.21
Display value of apparent power
4.22
S : Harmonic apparent power measured display indicator.
S1 : Phase 1 apparent power measured display indicator.
S2 : Phase 2 apparent power measured display indicator.
S3 : Phase 3 apparent power measured display indicator.
St : Total apparent power measured display indicator and total apparent energy
measured display indicator.
4.23
U1 : Indicates the display of voltage on phase 1(U1), THDR %, THDF % or Harmonic.
4.24
Y-M :Year and Month display indicator
4.25
Display of Voltage, Date (Year: Month), THDR % or Harmonic order number (Hd: 01 ~
Hd: 63)
4.26
U2 : Indicates the display of voltage on phase 2(U2), THDR %, THDF % or Harmonic.
4.27
D-h :Day and hour display indicator
4.28
Display of Voltage or Date (Day: hour) or THDR%
4.29
Display of the rotary field direction
4.30
U3 : indicates display of voltage on phase 3, THDR%, THDF% or Harmonic
4.31
m-s : minutes and seconds display indicator
4.32
Display of Voltage, Time (minutes: second) or THDR%
4.33
A, I3, % : units and indicator for phase 3 current, THDR%, THDF% or Harmonic
4.34
1000A : Current range indicator
4.35
Display of current, time or THDF%
4.36
A, I2, % : units and indicator for phase 2 current, THDR%, THDF% or Harmonic
4.37
Display of current, date/time or THDF%
4.38
1000V : Voltage range indicator
4.39
A, I1, % : units and indicator for phase 1 current, THDR%, THDF% or Harmonic
4.40
Display of current, date or THDF%
4.41
STOP : Indicates the stop time for energy calculation
4.42
THDF : Voltage or current Total Harmonic Distortion of a waveform to its Fundamental
indicator.
4.43
INTV : Indicates theAuto data logging interval time setting
4.44
STAR : Indicates the start time for energy calculation
4.45
THDR : Voltage or current Total Harmonic Distortion of a waveform to the waveform
RMS value indication.
4.46
TIME : Current data and time indicator

3 Phase Power Analyser / EN
09/30/16 Version No. 00 16
V. OPERATING INSTRUCTIONS
DANGER
•Voltage input connectors U1 to, U2 & U3 are not galvanically isolated, they have the
common reference point “N” (neutral)
•Only connect the necessary number of test leads and probes for the test.
WARNING
•Always set up the measurement first, then connect the test leads and probes to the
instrument before connecting to the circuit under test
•Connect the Neutral lead first, then the voltage leads and the current probe,
Disconnect in the reverse order.
•Remove all test leads and probes that are not in use.
CAUTION
•Where possible, isolate the power to the electrical circuit to be tested before
connecting the voltage test leads and current probes.
5-1 ICA 3600N AC Current Probe Connection
Safety Information
•Read the operating instructions before using and follow all safety instructions.
•Use the current probe only as specified in the operating instructions, otherwise the
instruments safety features may not protect you.
•Adhere to local and national safety codes. Personal protective equipment must be used
to prevent shock and arc blast injury where hazardous live conductors are exposed.
•Do not hold the current probe anywhere beyond the tactile barrier, see Figure 4. ICA3600N
Current Probe
•Before each use, inspect the current probes. Look for cracks or missing portions of the
clamp housing or output cable insulation.Also look for loose or weakened components.
Pay particular attention to the insulation surrounding the jaws.
•Do not use damaged current probes.
•Never use the current probes on a circuit with voltages higher than 600V CAT III.
•Use extreme caution when working around bare conductor or bus bars, contact with the
conductor could result in electric shock.
•Use caution with voltages above 30 Vac rms, 42 Vac peak, or 60 Vdc. These voltages pose
a shock hazard
•Use only the current probes supplied with the analyser.
CAUTION : Ensure the current probe is connected to the instrument before clamping
around a live conductor. Open current probe outputs can induce a high
voltage in the outputs that can be dangerous to the user and can lead to
destruction of the current probe.

3 Phase Power Analyser / EN
17 09/30/16 Version No. 00
(See Figure 1. Current Probe Positional Error and Figure 4. ICA 3600N Current Probe)
1. Connect the current probe to the instrument.
2. Connect the current probe jaws around the conductor to be measured
Centre the conductor inside the current probe jaw
Make sure the probe is perpendicular to the conductor
Ensure the arrow on the top of the probe faces towards the load of the circuit
For optimal reading, ensure that the conductor is positioned between the alignment
marks on the jaws of the current probe
Avoid taking measurements close to other current carrying conductors
Load Direction Arrow
Alignment Marks
Tactile Barrier
Figure 4. ICA 3600N Current Probe
