DESCRIPTION Catalog # Type
Project
Comments Date
Prepared by
www.cooperlighting.com
SPECIFICATION FEATURES
8.25”
10.75”
14.13”
17.13”
7.50”
Ceiling
Cut-Out
5.50”sq.
0.5” - 1.0”

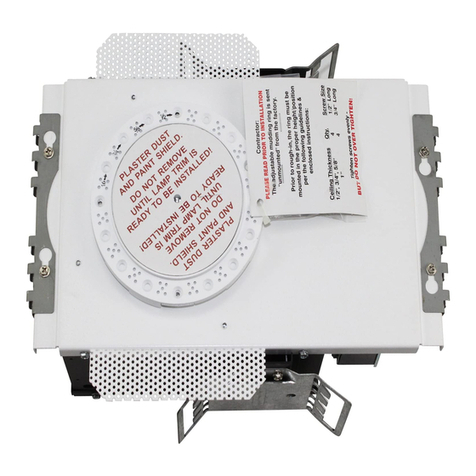

A...Housing
Housing and plaster frame: 18 gauge CRS
with flat black powder coated internal
finish. Adjustable trimless mud-ring can
accommodate 1/2”, 5/8”, 3/4” & 1” ceiling
thickness.
B ...System Protection:
Thermal protection provided.
C ...Electrical
Integral j-box and electronic or magnetic
low voltage transformer . 120V or 277V
input, 12V output. Junction box is
U.L. listed for through branch wiring.
Includes five 1/2 trade size knockouts
(six knockouts when magnetic xfmr. is
specified).
D...Lamp
12V MR16 71 watts max. (not included)
Internal rotation ring with locking
adjustment. Provides 360º rotation of
trim and secures original trim position
after relamping. “POSI-GRIP” bi-pin
lamp socket for firm, mechanical lamp
connection.
E ...Mounting
Hanger Bars and Butterfly Brackets
included for residential and commercial
applications respectively. Perforated
flaps for secure drywall installation.
Ceiling Cut-Out: 5.50” sq.
QUIET CEILING
TRIMLESS
QCT903IC
Insulated Ceiling
AirTite Housing
for Square Trim
FOR 12V MR16 50W max.
ORDERING INFORMATION
Housing
QCT903IC =
Quiet Ceiling
Insulated Ceiling Housing
AirTite for Square Trim
w/ Integral Low Voltage
Transformer
Voltage
120 =120 volts primary
277 =277 volts primary
Insulated ceiling AirTite housing for Quiet Ceiling square trimless fixtures.
For 12V MR16 50 watts max.
For insulated ceiling applications. Rated for direct contact with insulation
material.
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX [phone]
Transformer
ELC =Electronic
MAG =Magnetic
QCT903IC
Ceiling mudding compound is applied
right to the edge of the fixture.
rev. 030108
