RSI VIDEO TECHNOLOGIES Videofied CMA600 User manual

Product Summary
The Keypad Model CMA600/CMA200/CMA700 is designed for use
in conguring/programming and operating a RSI VIDEO
TECHNOLOGIES™security system. The keypad includes the
following features:
> Lithium batteries for long life
> 2-line, 16-character alphanumeric LCD display
with backlighting
> Armed status red LED
> Built-in piezo for status and alarm sounds
> Dual tamper function provides detection for both wall
and cover tamper.
> Transmits check-in/status signal every 8 minutes
Installation Guidelines
For easier installation, programming and RF testing
should be done to check for good communication between
the control panel and all system devices before mounting
system devices. Install the keypad and other system
devices in the following order:
>Programming/RF Testing—program keypad and
all other devices into the control panel and test
RF communicationfrom each intended device
location to the control panel.
>Mounting—mount keypad at the tested location.
Programming/RF Testing
The following provides summarized steps for device
programming and testing. For complete details, refer to the
control panel installation manual.
1Remove bottom screw,
separate base from keypad
and install batteries.
2Re-attach base to
secure tamper switch.
3Put control panel
into programming/
conguration mode.
4On keypad, press and
hold Clr and Esc/No
buttons together for
one second, then release
them. Wait for keypad
display to show KEYPAD
1 RECORDED.
5Press Yes. The display
shows RADIO RANGE
TEST? Press Yes again.
The detector LED starts
ashing and keypad display
shows TEST IN PROGRESS..
6Press Yes to end radio range test, then press Esc/No.
Note: If this is the rst keypad programmed in a new installation,
the keypad display prompts you to enter other system congura-
tion data. If you are adding the keypad to an existing (operational)
system, proceed to step 9.
8Repeat steps 1 - 8 for all alphanumeric keypads.
9When nished, exit conguration mode.
Note:The control panel assigns alphanumeric keypads automatically
to Zone 1 (Entry/Exit Delay).
www.videofied.com
Screw
Clr and Esc/No Buttons
LED
I N S T A L L A T I O N I N S T R U C T I O N S
Keypad Model CMA600/CMA200/CMA700
Made by RSI VIDEO TECHNOLOGIES 1004-c February 2008

Mounting
> Use proper tools and hardware.
> Mount indoors in a temperature-controlled environment.
> Mount in a location that provides customer convenience,
but out of view from windows.
Regulatory Information
FCC Part 15
This device complies with FCC Rules Part 15. Operation is
subject to the following two conditions:
1.) This device may not cause harmful interference
and, 2.) this device must accept any interference that
may be received, including interference that may cause
undesired operation.
Changes or modications not expressly approved
by RSI VIDEO TECHNOLOGIES, Inc. can void the user’s authority to
operate the equipment.
Specifications
Panel Compatibility VIDEOFIED V6000/VISIO1000/V7000
Operating Frequency 915/868/920 MHz
Radio type Spread Spectrum Bidirectional RF
Power Requirements Three 3.6 V lithium batteries
Battery Type LS14500
Operating Temperature 32° - 104° F (0° - +40° C)
Maximum Relative Humidity 70%, non-condensing
Dimensions (LxWxD): 7 in. x 3-3/4 in x 1-1/2 in.
(177 mm x 95mm x 37 mm)
Weight 9 oz./255 g (without batteries)
Approvals UL / FCC (CMA600)
CE / EN50131 / EN300220 / INCERT/ IDA / NCP (CMA200)
A-Tick (CMA700)

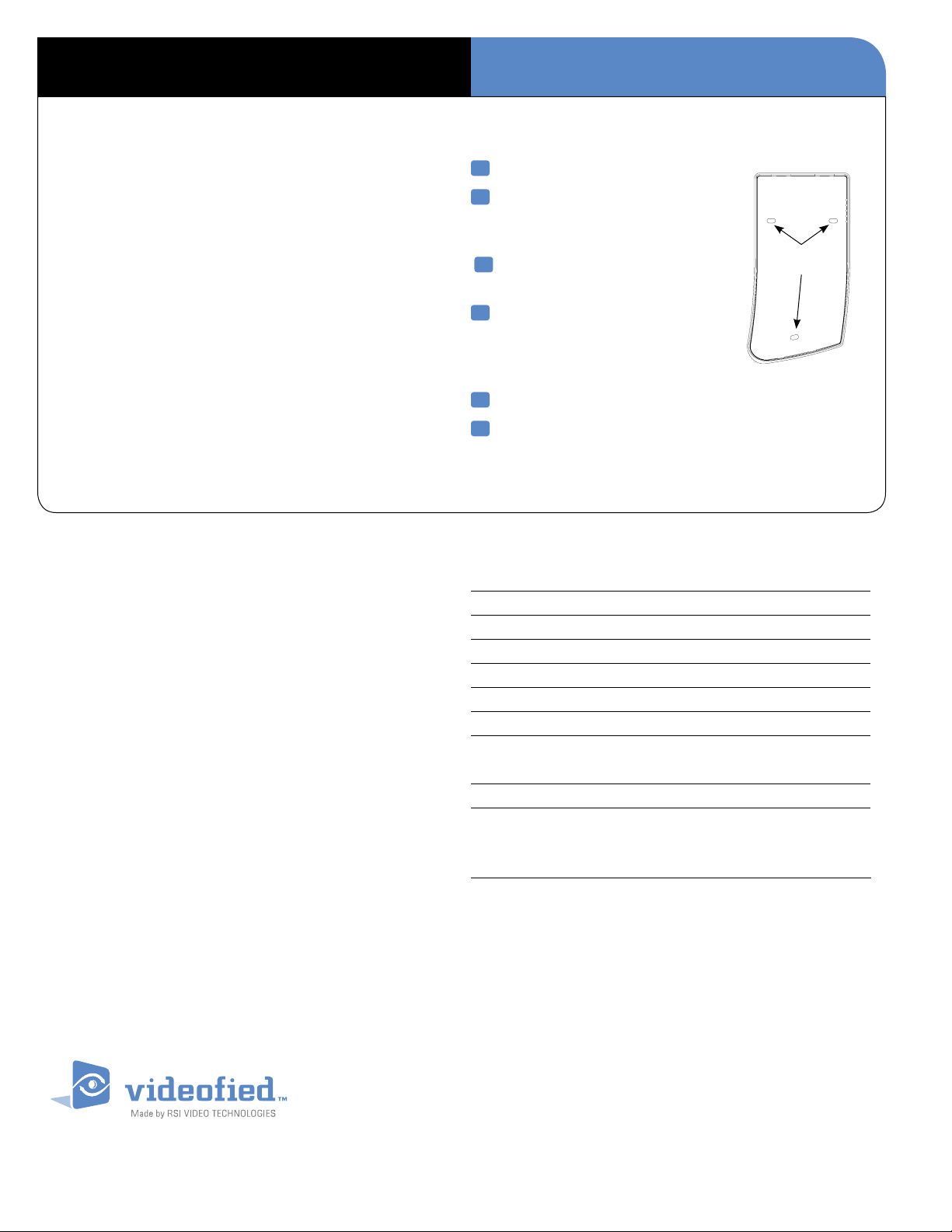

1Separate base from keypad.
2Hold base against mounting
surface and mark the three
mounting holes.
3Drill pilot holes and install
anchors where needed.
4Place base on mounting surface
so mounting holes line up with pilot
holes/anchors and secure base with
appropriate screws.
5Install batteries into keypad, observing correct polarity.
6Attach keypad to base and secure with screws.
EMEA SALES
2, rue Alexis de Tocqueville
92160 ANTONY
FRANCE
Phone [phone]
Fax [phone]
© 2007 RSI VIDEO TECHNOLOGIES™ Videoed®is a Registered Trademark of RSI VIDEO TECHNOLOGIES™.
S2View®is a registered trademark of RSI VIDEO TECHNOLOGIES™. Specications subject to change without notice.
USA SALES
4455 White Bear Parkway, Suite 700
White Bear Lake, MN 55110
USA
Phone [phone]
Fax [phone]
www.videofied.com
Mounting
Holes
I N S T A L L A T I O N I N S T R U C T I O N SKeypad Model CMA600/CMA200/CMA7
