INTRODUCTION
The main characteristic of the Conical Pulley, due to the cone’s nature, is that the movement is
accelerated with progressive weight. The rope’s radius decreases as it moves across the cone,
progressively increasing resistance. The nature of the weight is inertial, that is, depending on how
much power the user applies to the machine, power values will be higher or lower. This feature
wide range of use of the subject, since we always work on percentages of individual power of
the user. We can practice a great variety of exercises, making it possible to train every muscle
group from a single machine by attaching different accessories to the end of the rope.
Moreover, this machine’s weight range is really wide.
We increase weight by working over the free cone radius with a roll-up rope, and also by shifting
the inertia moment using 4 integrated masses on the disk (they can be extracted).
The wider the radius, the lighter the weight; and the narrower the radius, the heavier the weight.
This regulation is performed through a lengthwise rail along the cone.
The moment of inertia is adjusted through the different masses integrated within the disk. There
are three possible positions.
STANDARD EQUIPMENT
-RSP Conic chassis
- 120cm wall rail for height adjustment of the output pulley
- Ground anchorage eyebolt for vertical shooting
- 4 aluminium masses
-Carbo Harken pulley 40mm Ø
- Carbo Harken pulley T2 Loop 40mm Ø
-4meters of high performance rope with lenght regulator
- Hand grip and ankle strap
-Assembly manual
-Wall mounting kit

4
INSTALATION
Parts of the machine.
rail block
screw chassis
conical axis
flywheel
masses
outlet block
handle
screw
rail
screw
screw
rail 120 cm

5
Place de Machine.
0,72 cm
10 cm
1 cm
20 cm
The surface where the machine is placed must be installed on a stable and level base.
Place de machine as close as possible to the ground, if you have baseboards will be placed
above it.
The rail of 120 cm is placed centered with the machine and 20 cm of it.

6
Set the machine to the wall
x6 x1
x6 x1
output ground.*
8 mm Ø 10 mm Ø
x1
output ground.*
* This ringbolt mounting (optional) is used to derive the output
block to the ground.
Make four holes in the wall to the height indicated, first insert the plugs and screw the four screws
into the wall. Then install the rail to the block of wall outlet to the height indicated, with the plugs
and screws indicated.

7
ADJUSTING THE HANDLE POSITION
Click on this link https://bit.ly/RSPconictechnician to see:
The most important technical features of our RSP Conic, how you can assembly it, how
the rope is adjusted and how the pulleys and the rope are changed. We also explain
how to improve it and give you some useful tips.
FLYWHEEL MASS
The mass of the flywheel defines a large range of speed/force curves that can be varied
MASS (Flywheel weight) CHANGE INSTRUCTIONS
without mass
Press the bottom up to
remove the masses

8

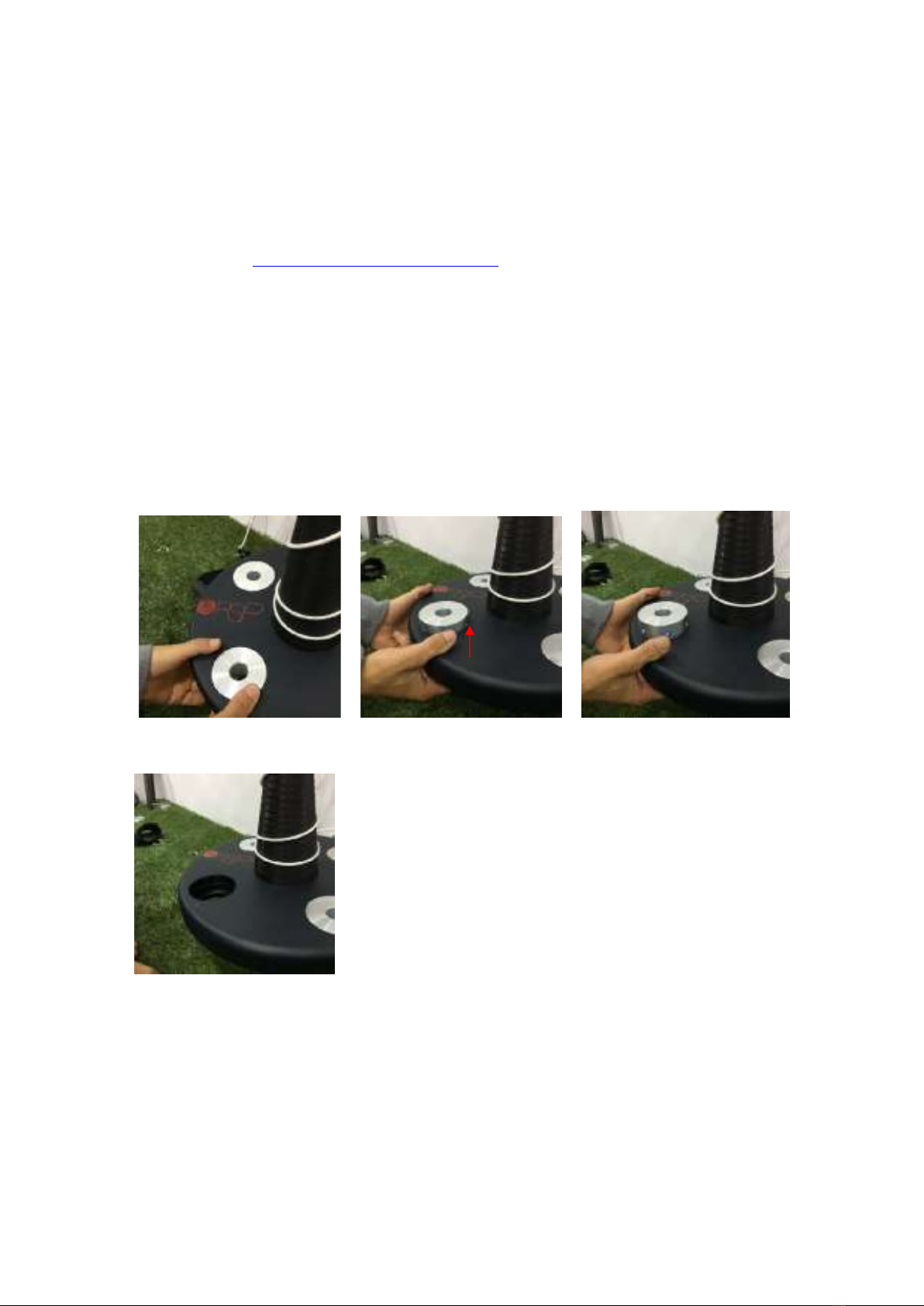

How to place the masses
Place the mass right Press up and down Until it is in line with the flywheel
The RSP conic flywheel comes with four masses to modify the force/speed parameters.
The flywheel has four locations to add or delete steel weights in opposite pairs.
Placement
masses:
without masses 4 masess2 masses
IMPORTANT: FLYWHEEL WEIGHTS MUST BE ADDED OR DELETED IN PAIRS AND IN DIRECTLY OPPOSITE
LOCATIONS
HOW TO MOVE THE RAIL
The marked workpiece Pull out and move up or down
1º Pull out
2º move up or down

9

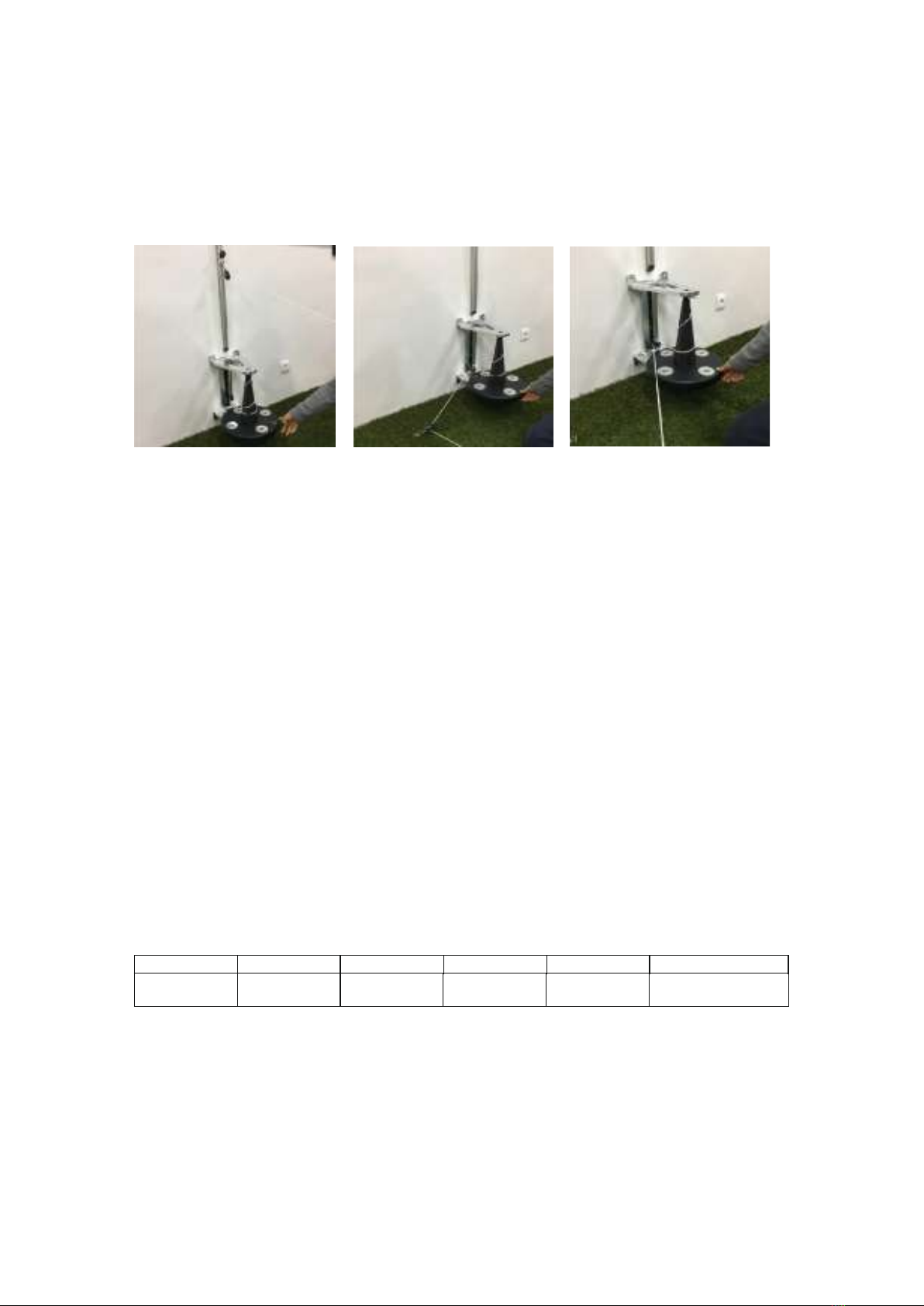

DIFFERENT ANGLES TO PULL THE ROPE
Wall outlet block. Output pulley from the ground. Output of the cone.
TECHNICAL SPECIFICATIONS
- Designed for precise upper and lower body movements.
- Adjusting the acceleration through the axis radius.
- Adjustment of the moment of inertia through the masses integrated in the disc,
each mass represents 10% of the moment of inertia.
- Adjusting the height of the rope output.
- Anchorage for a vertical shot.
Size: 45 x 35 x 45 cm high
Weight: 14 kg
Adaptations: Customization for specic trainings Inertial performance, S.L., with CIF B 27813518
declares that this training equipment is in accordance with the norm EN 957-2, Class S.
531,39 Kg/cm² 635,13 kg/cm² 738,86 Kg/cm²
Moments of inertia
without masses 2 masses 4 masses
829,37 Kg/cm² 1126,22 kg/cm²
2 masses Stainless +60% 4 masses Stainless+120% 2 masses stainless/2 alum +80 %
933,11 Kg/cm²

10
ACCESORIES
-RSP Encoder
-Stainless steel masses
-High load pulleys (high performance with high working densities)
-Harken Fly pulleys (highest quality of shooting on the market)
-Long carbon bar
-Short carbon bar
-Adaptor for Chronojump codificator
-Foldable floor eyebolt
-Portability kit (to fix the machine to a solid structure such as goal, trellis, column..)
Spare parts: https://einercial.com/en/categoria-producto/rsp-conic-en/
USE
Always tense rope during the execution of the exercise.
Always work with the rope coiled in the axis to avoid to squash the bearings of the blocks.
It's important to do the exercises with a suitable technique and must be supervised by a
professional. You can affect the health an excessive or incorrect use of the machine, please
consult your doctor before exercising.
It is important to keep the unattended children away from the machine.
The blocks and the ropes are elements of wear by the use of the machine.
RSP recommends the use of his blocks and ropes to guarantee the ideal functioning of the
machines.
RSP is not responsible for wear caused by misuse of the machine.
To know the whole gallery of exercises and the safe and proper use of the machine visit:
https://einercial.com/en/tutorials/
https://einercial.com/videos/

11
MAINTENANCE
Clean the machine with a damp cloth without using any abrasive product.
Do not leave machine in very humid places. Indoor use.
Replace the rope if it is worn or broken, the blocks and the ropes are elements of wear by the
use of the machine.
Spare parts: https://einercial.com/en/categoria-producto/rsp-conic-en/
Call for assistance if required. [phone]
REPLACING THE ROPE
https://bit.ly/RSPconictechnician
WARRANTY
1. Inercial Performance, S.L. warrants to the purchaser that RSP conic is free of defects in
materials and workmanship under normal use and maintenance, has a limited warranty of 2
years from the date of purchase, subject to the terms and conditions that marks the Spanish law,
after 6 months of this period the costumer will have to prove that the fault exists since the origin of
the purchase
2. This warranty does not cover any damage caused by handling, misuse, tampering,
negligence, accidents, abnormal conditions, lack of adequate maintenance or unauthorized
service or alterations to the product.
3. The blocks and the ropes are elements of wear by the use of the machine, are not subject to
this warranty except for manufacturing defect.
4. In the event that the machine is damaged from the factory in the first 6 months after the
purchase (point 1) will replace the defective part or be replaced the machine, if necessary,
without any cost for our client.
